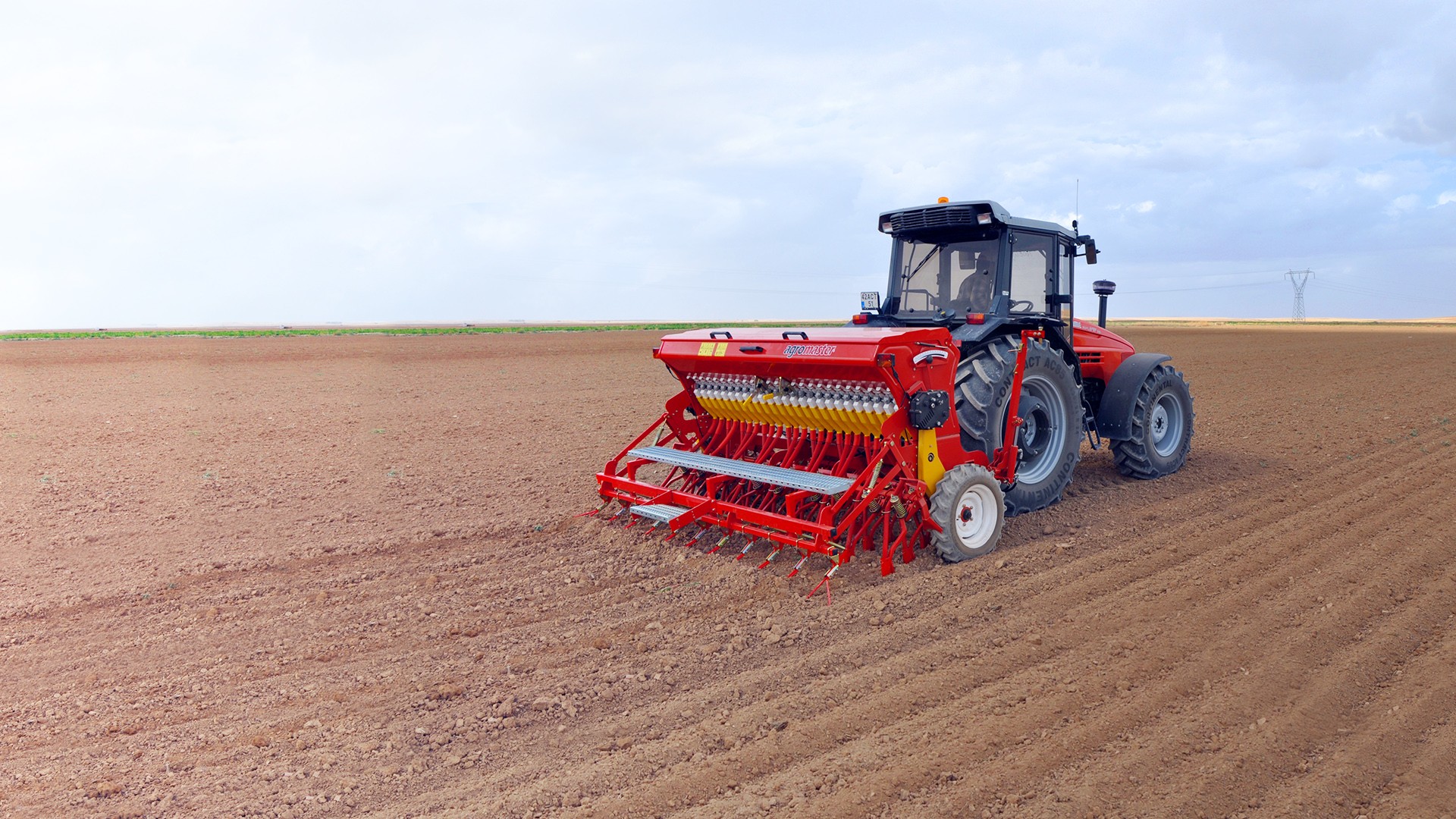

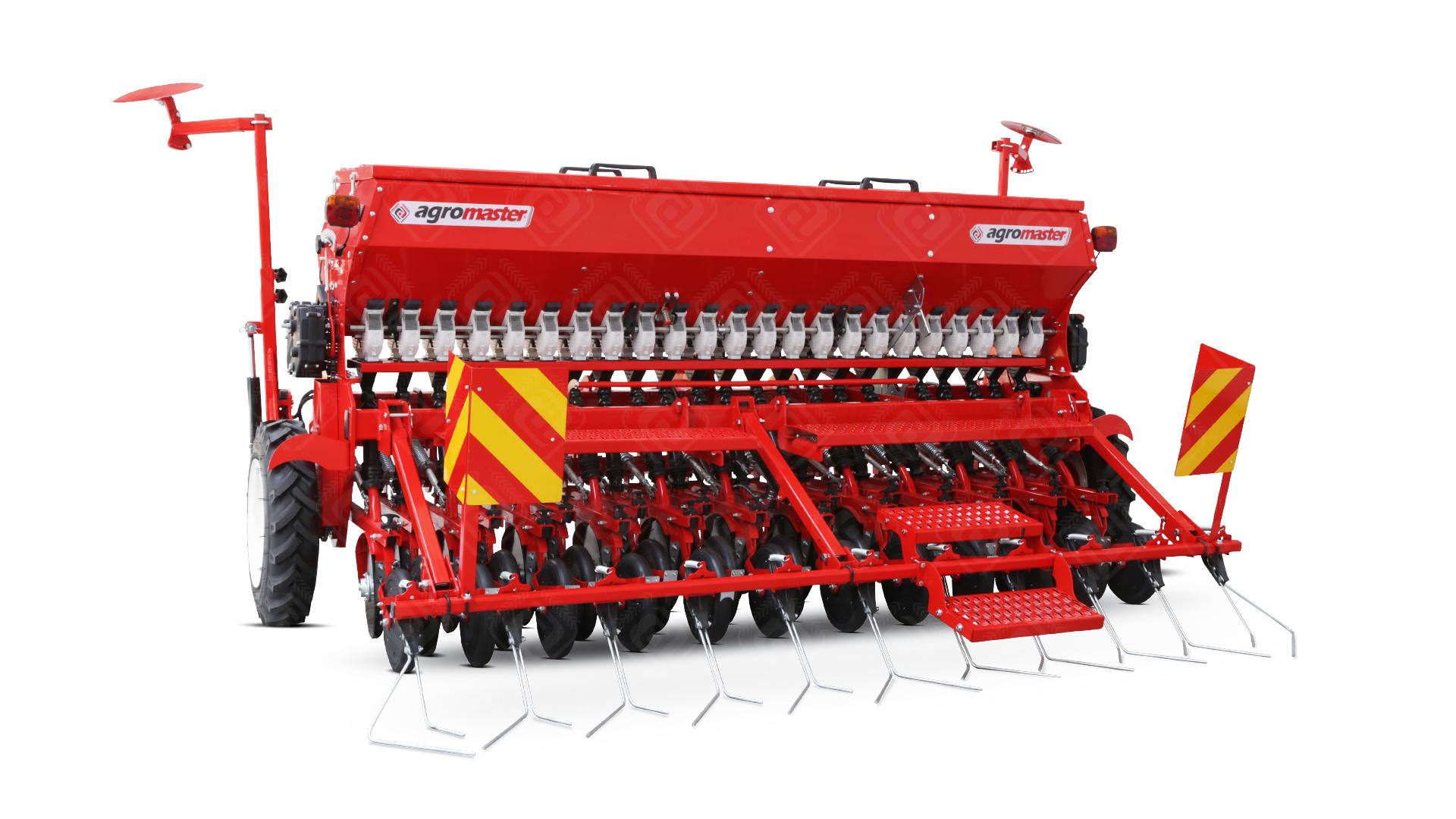

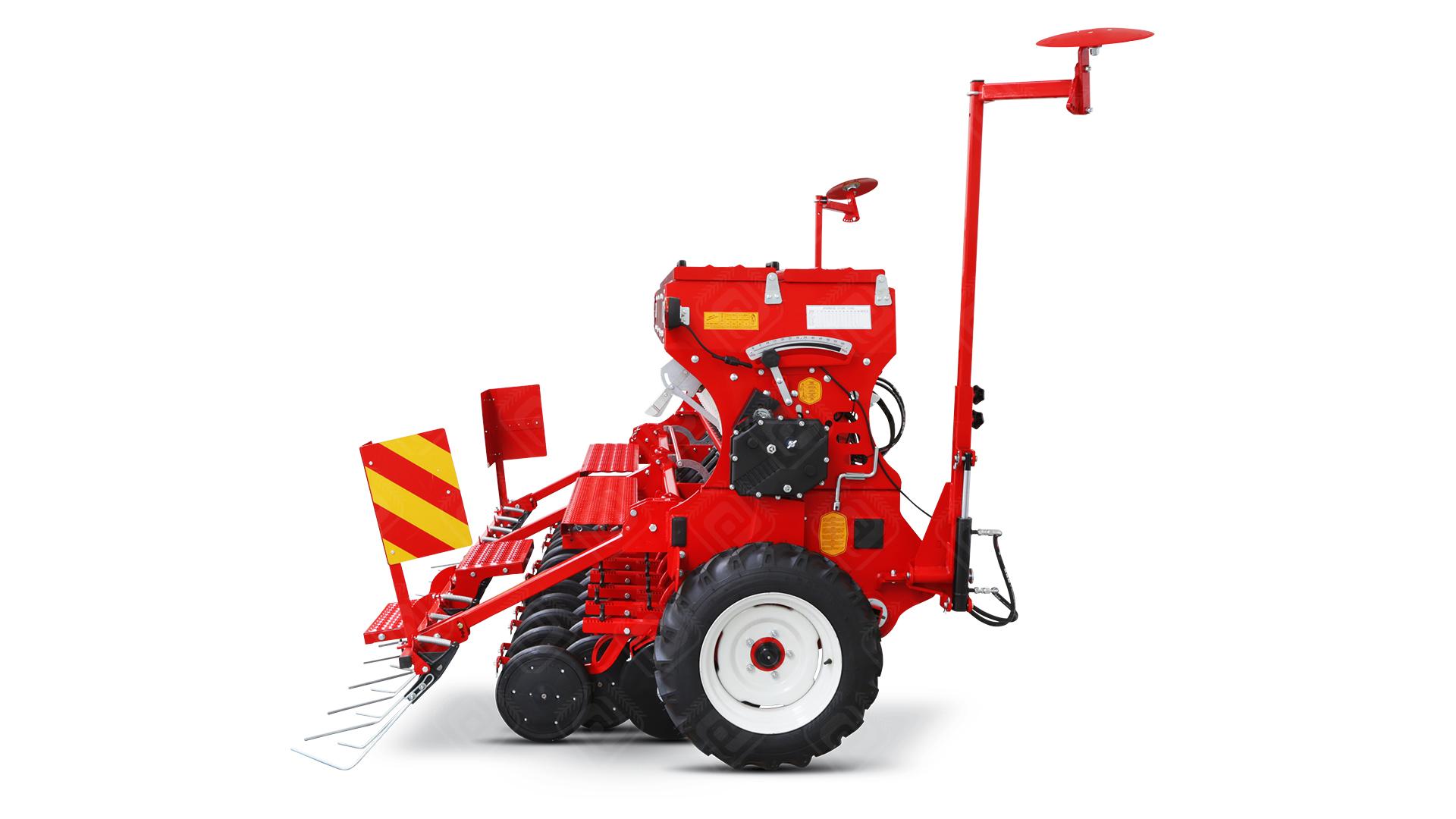

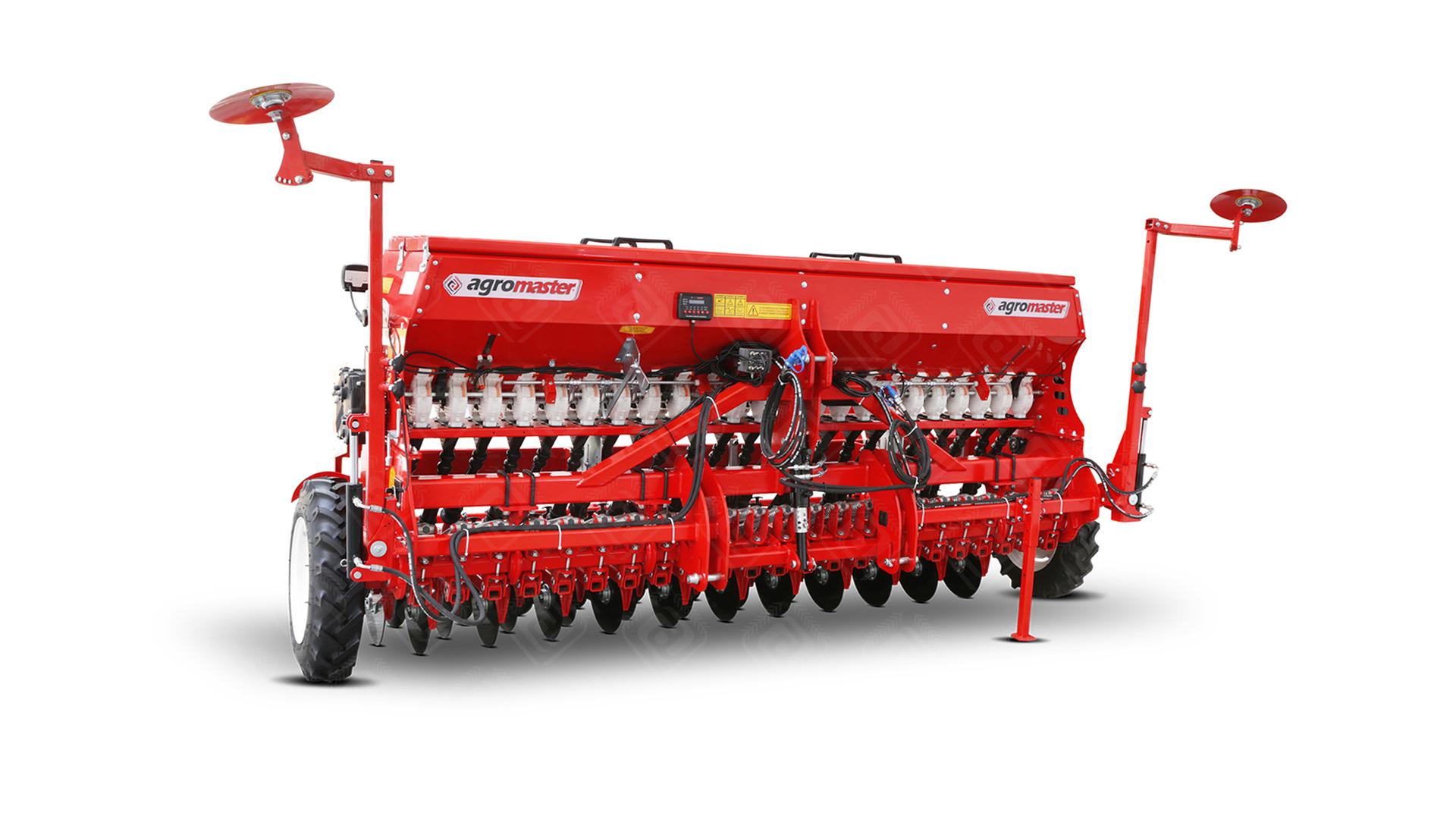

Seed Drills
You can sow all seeds of cereals through precision. Such as wheat, barley, oat, rye besides canola, alfalfa , clover etc. Small, medium and big sizes seeds can be sowed with this machine. The seeds are sowed through the spring tines. However the seeds are regularly dropped & distributed to soil by way of seed distributor roll unit.
|
Technical Specifications* |
Unit |
TORUN 275 |
TORUN 300 |
TORUN 325 |
TORUN 350 |
TORUN 375 |
TORUN 400 |
|
Number of Sowers |
pcs |
21 |
23 |
25 |
27 |
29 |
31 |
|
Total Width (W) (Transport Position) |
mm |
3300 |
3550 |
3800 |
4050 |
4300 |
4550 |
|
ft.in |
10’9” |
11’7” |
12’5” |
13’3” |
14’1” |
14’11” |
|
|
Total Length (L) |
mm |
2325 |
2325 |
2325 |
2325 |
2325 |
2325 |
|
ft.in |
7’7” |
7’7” |
7’7” |
7’7” |
7’7” |
7’7” |
|
|
Total Height (H) |
mm |
1640 |
1640 |
1640 |
1640 |
1640 |
1640 |
|
ft.in |
5’4” |
5’4” |
5’4” |
5’4” |
5’4” |
5’4” |
|
|
Working Width |
mm |
2750 |
3000 |
3250 |
3500 |
3750 |
4000 |
|
ft.in |
9’ |
9’10” |
10’7” |
11’5” |
12’3” |
13’1” |
|
|
Space Between Sowers |
mm |
130 |
130 |
130 |
130 |
130 |
130 |
|
ft.in |
0’5” |
0’5” |
0’5” |
0’5” |
0’5” |
0’5” |
|
|
Seed Hopper Volume Without Fertilizer |
dm3 |
710 |
781 |
852 |
923 |
994 |
1065 |
|
Seed Hopper Volume With Fertilizer |
dm3 |
298 |
328 |
358 |
388 |
418 |
448 |
|
Fertilizer Hopper Volume |
dm3 |
410 |
450 |
490 |
532 |
574 |
615 |
|
Tyres |
|
6.01x16 |
6.01x16 |
6.01x16 |
6.01x16 |
6.01x16 |
6.01x16 |
|
Requred Power |
hp |
90-95 |
95-100 |
100-105 |
105-110 |
110-115 |
115-120 |
|
Weight Without Fertilizer |
kg |
1375 |
1470 |
1530 |
1585 |
1640 |
1680 |
|
Ibs |
3031 |
3240 |
3373 |
3494 |
3615 |
3703 |
|
|
Weight With Fertilizer |
kg |
1475 |
1580 |
1650 |
1715 |
1780 |
1830 |
|
Ibs |
3251 |
3483 |
3637 |
3780 |
3924 |
4034 |
