Seed Drills

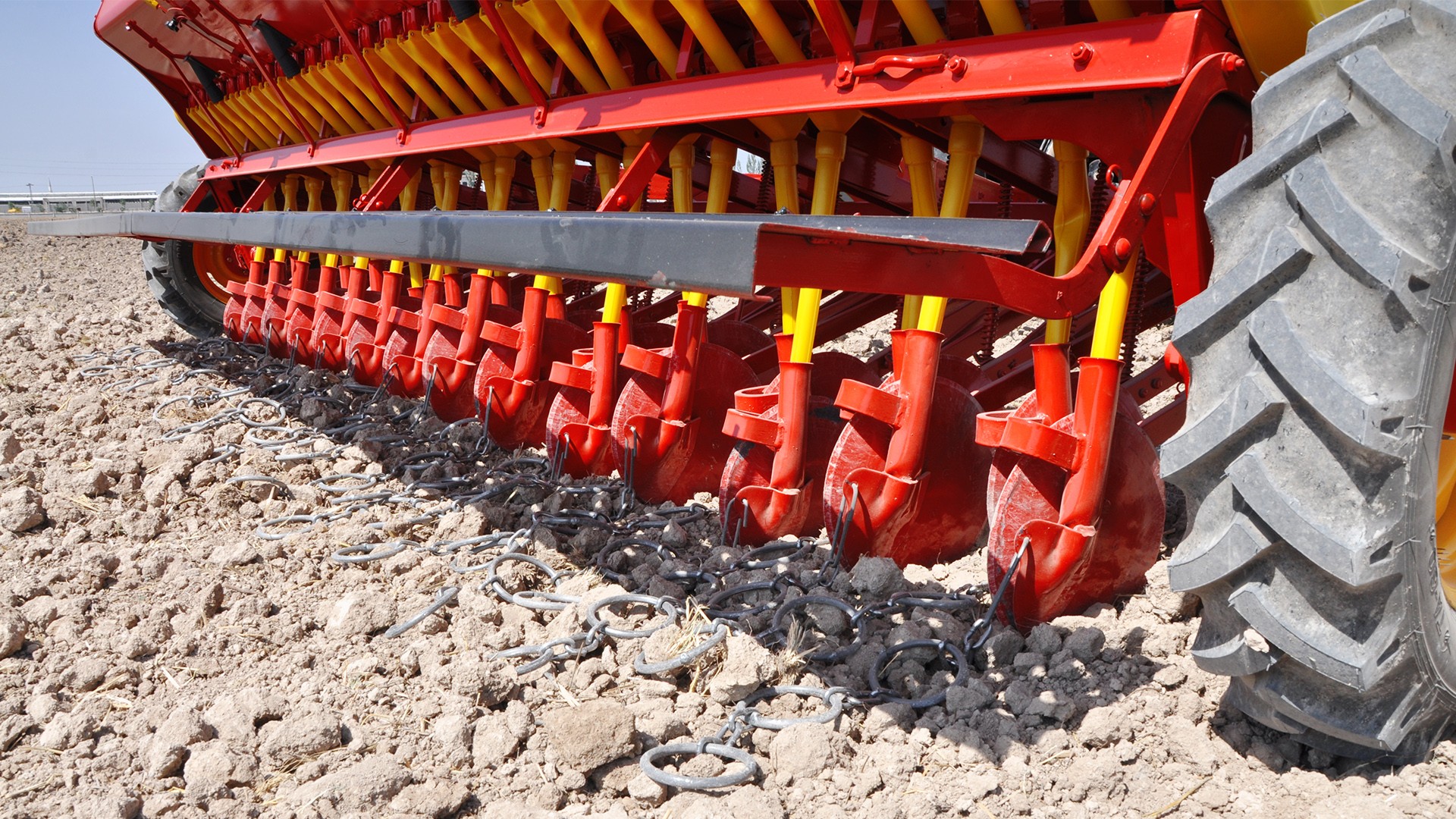

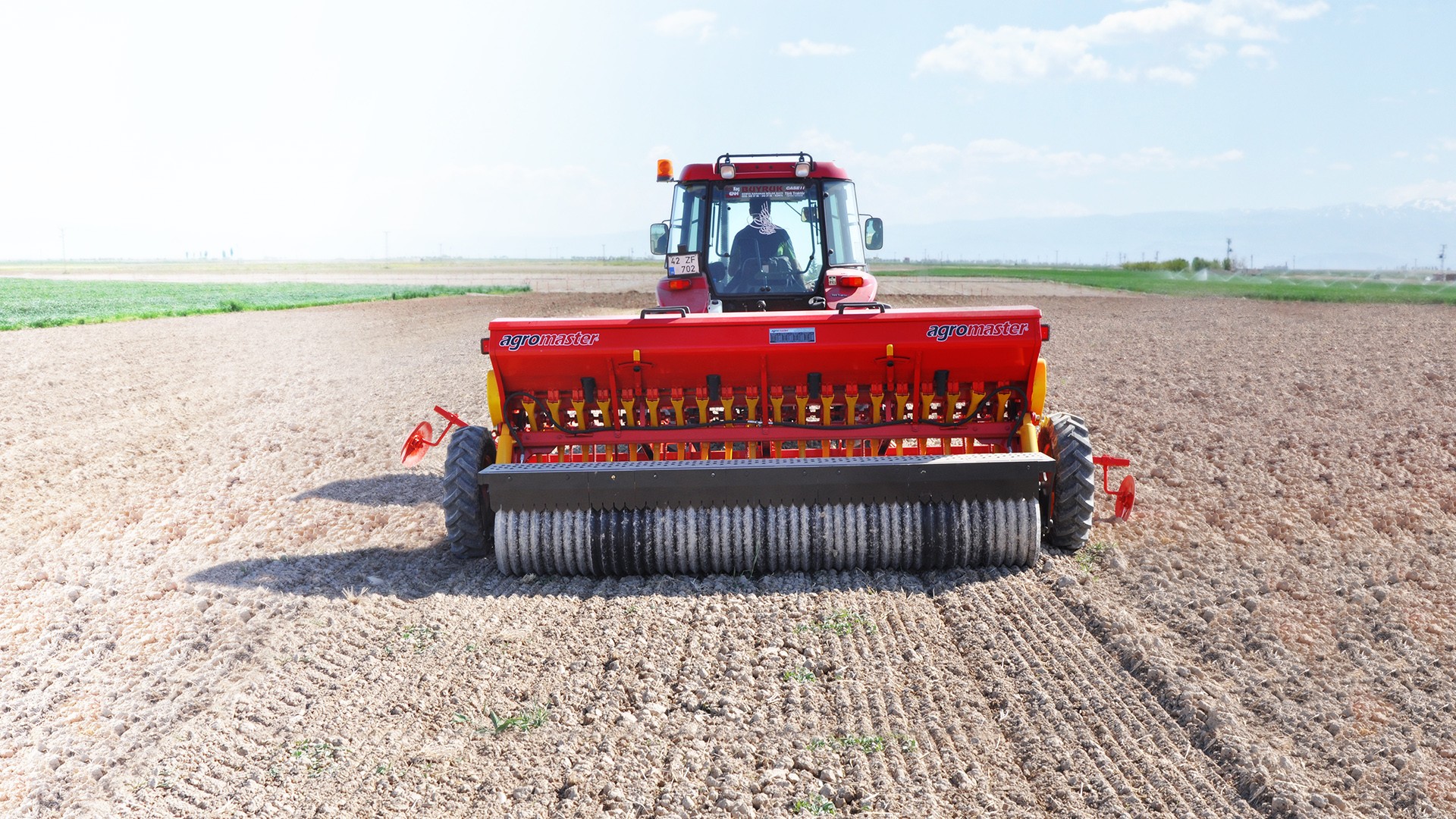

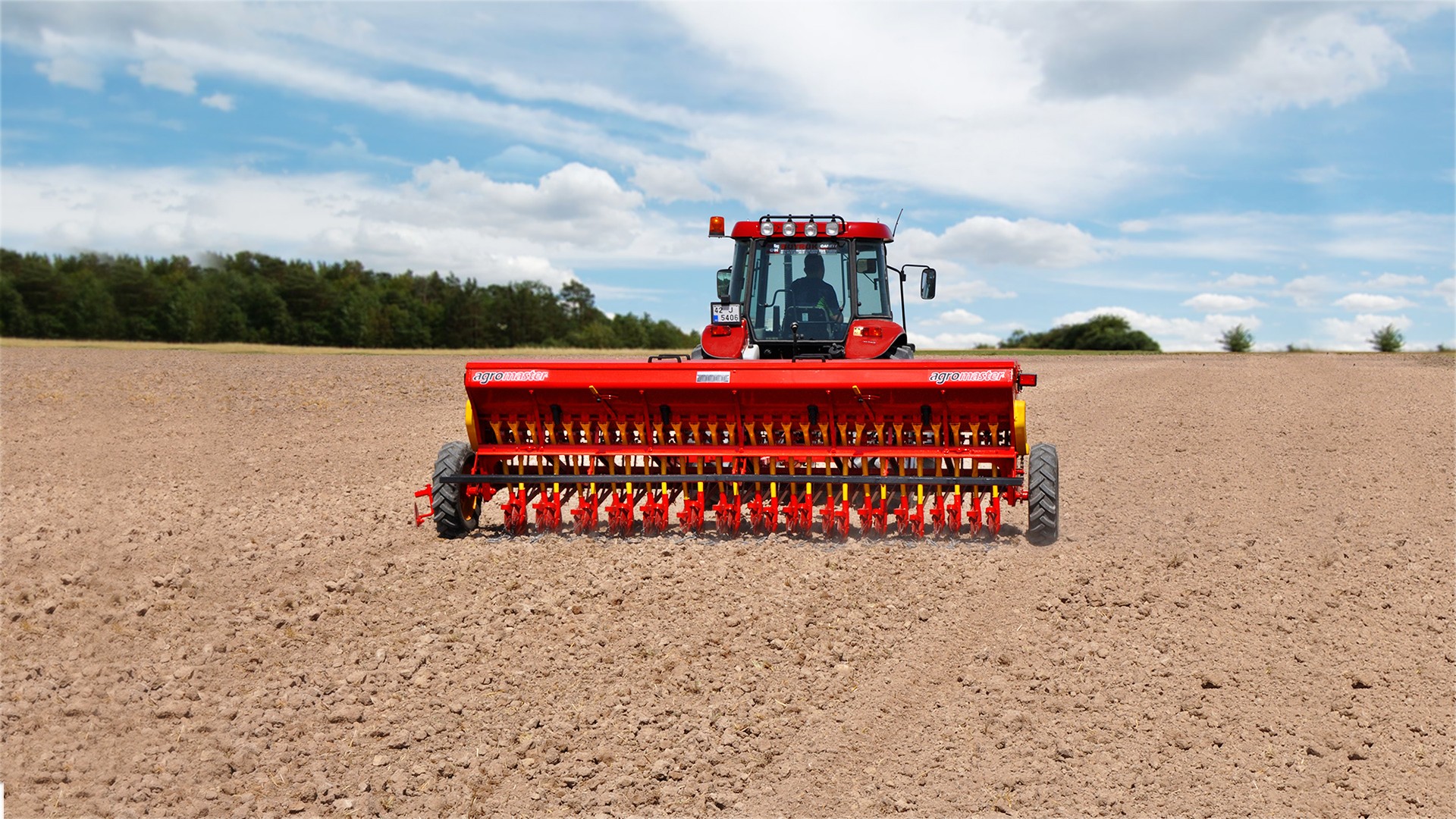

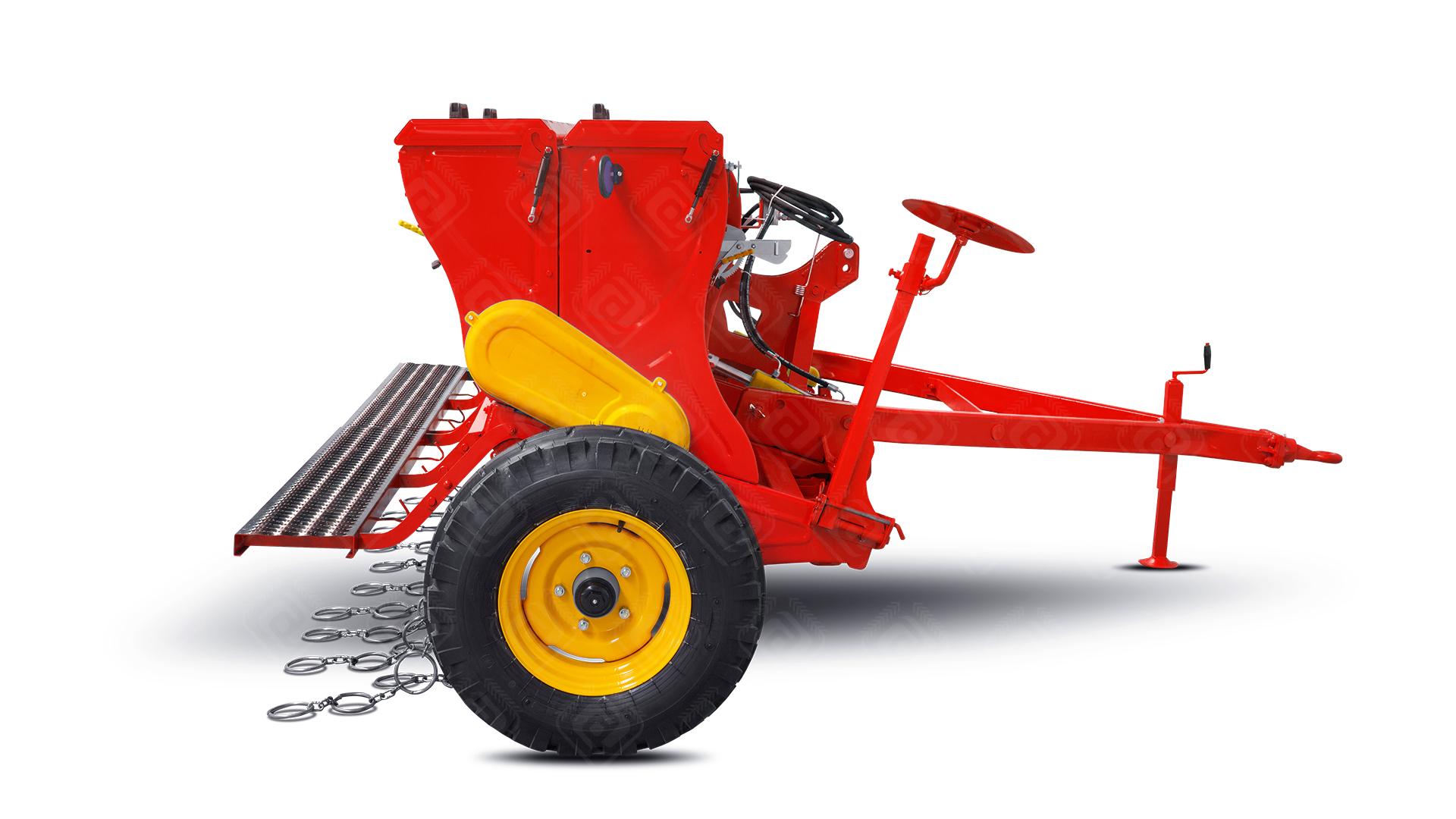

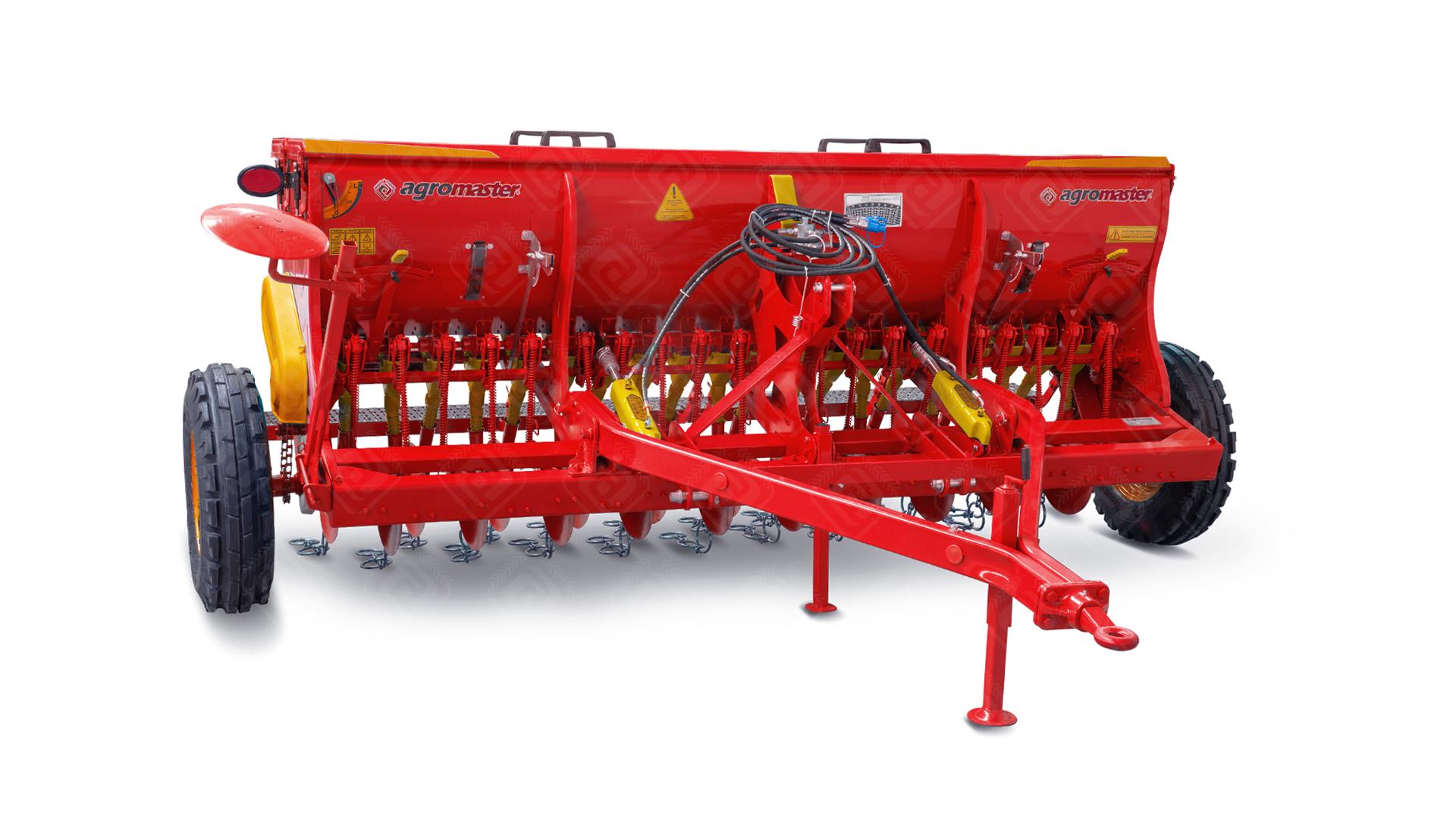

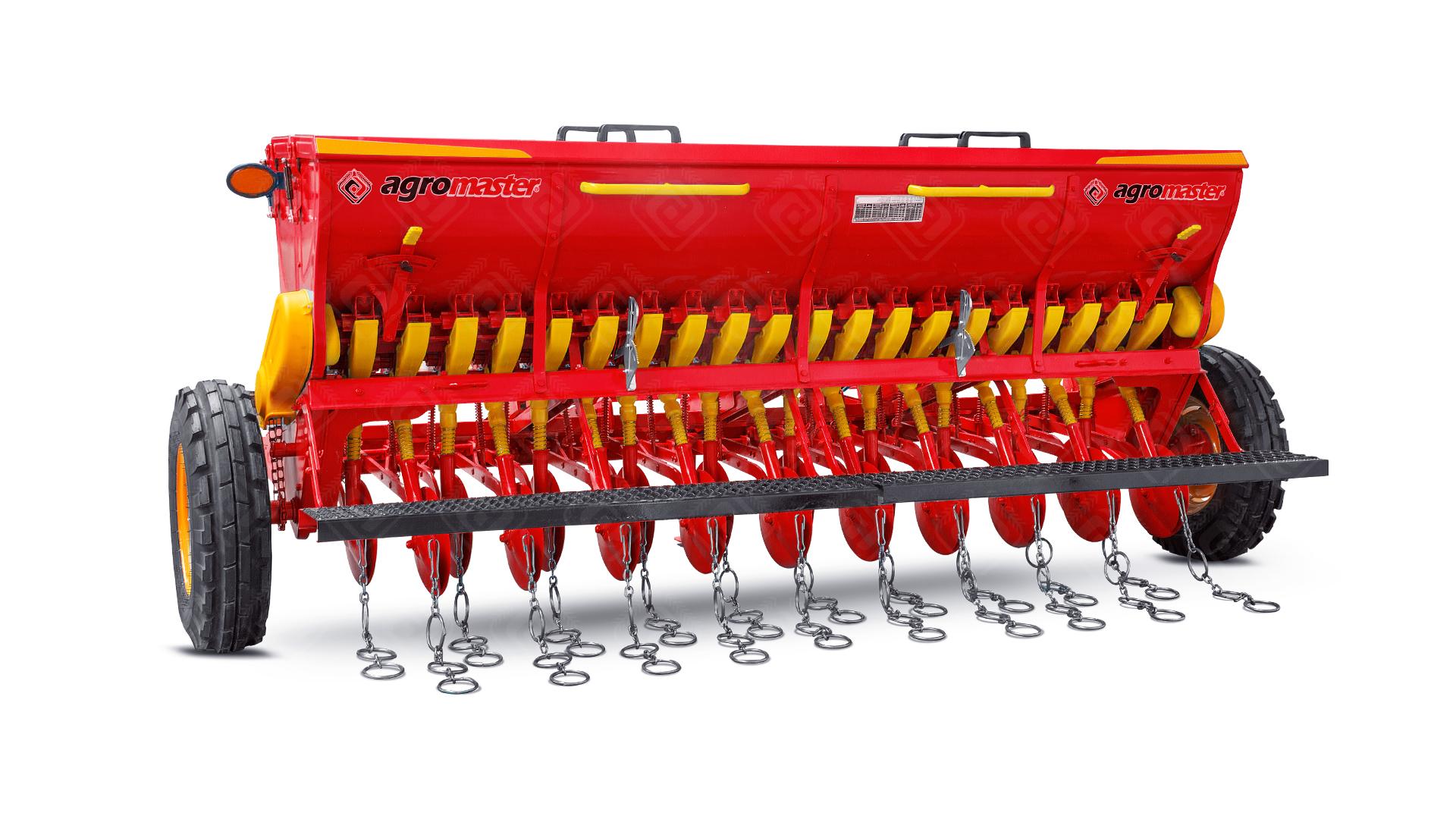

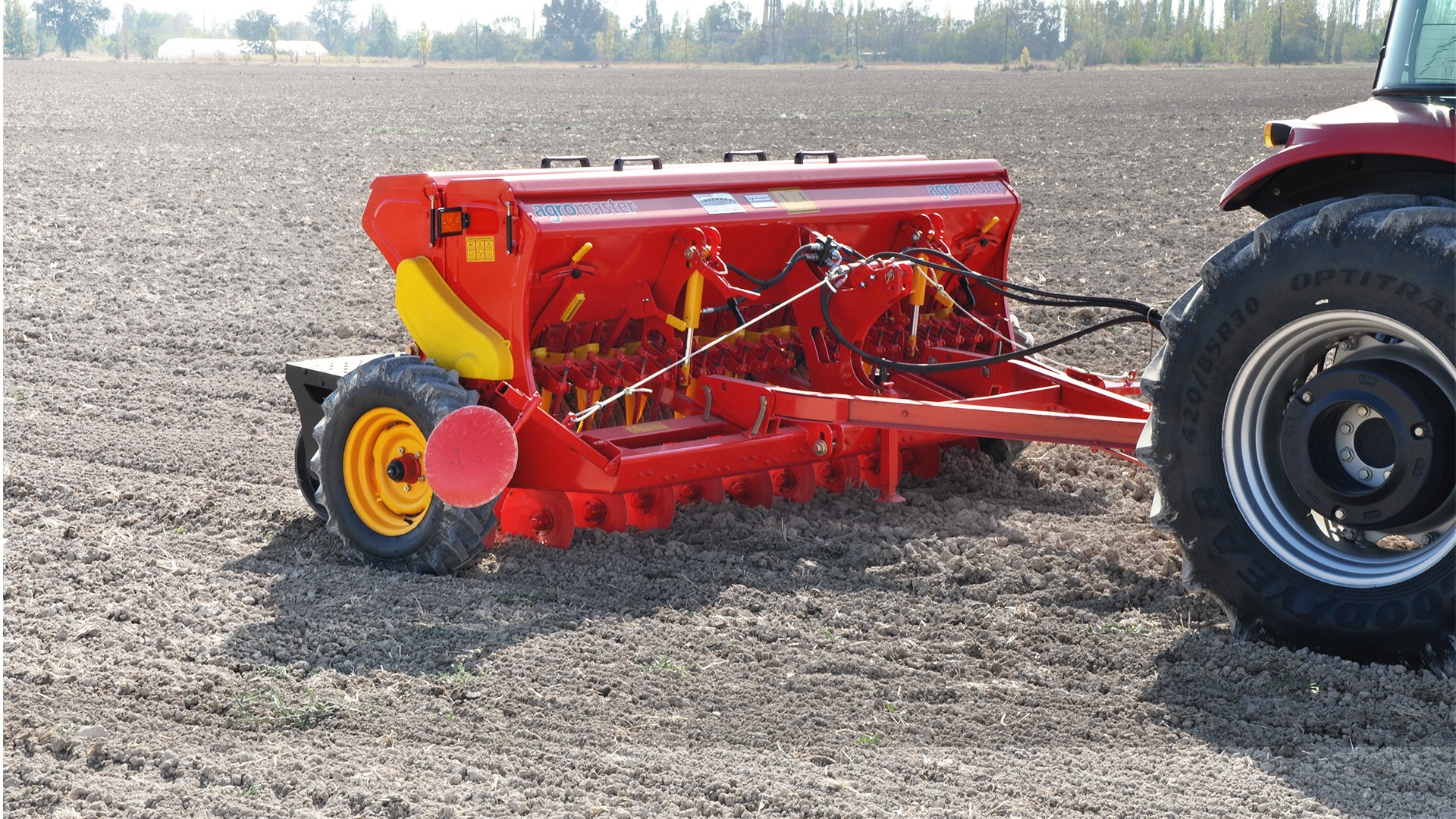

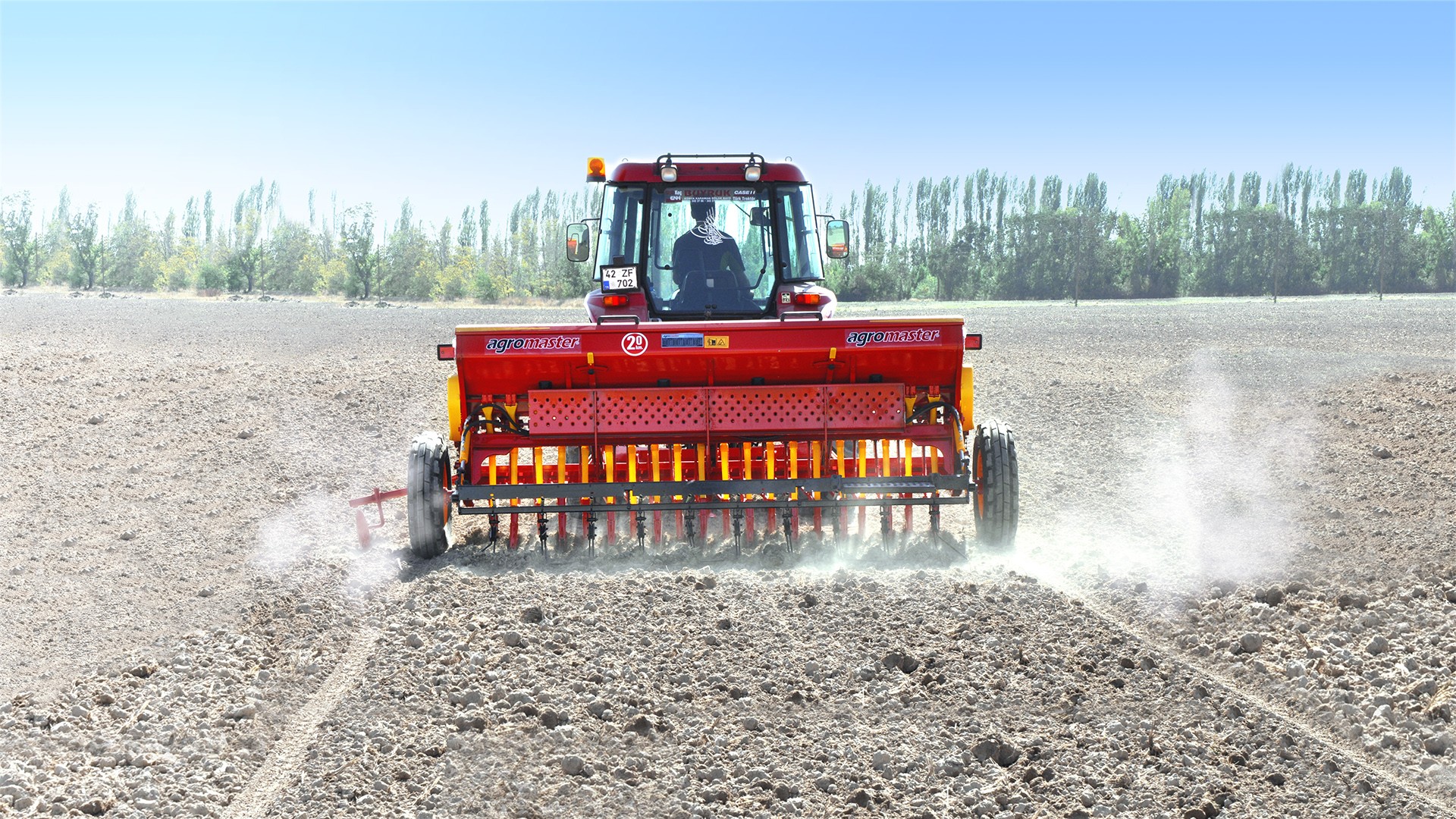

Seed Drill BM provides seed planting on prepared soil. Widely used for seeding of cereal seeds (wheat, rye, barley, oats, etc.), legumes (peas, beans, lentils, etc.) crops, as well as seeds of other crops close to the size of seeds and seed rate to crops, along with fertilizer.
|
Technical Specifications* |
Unit |
BM 12 |
BM 14 |
BM 16 |
BM 18 |
BM 20 |
|
Number of Disc |
pcs |
12 |
14 |
16 |
18 |
20 |
|
Total Width (W) |
mm |
2530 |
2810 |
3090 |
3370 |
3660 |
|
ft.in. |
8'4" |
9'3" |
10'2" |
11'1" |
12' |
|
|
Total Length (L) |
mm |
3350 |
3350 |
3350 |
3350 |
3350 |
|
ft.in |
10'12" |
10'12" |
10'12" |
10'12" |
10'12" |
|
|
Total Height (H) |
mm |
1515 |
1515 |
1515 |
1515 |
1515 |
|
ft.in |
4'12" |
4'12" |
4'12" |
4'12" |
4'12" |
|
|
Working Depth (Max.) |
mm |
0-100 |
0-100 |
0-100 |
0-100 |
0-100 |
|
ft.in. |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
|
|
Working Width (L1) |
mm |
1704 |
1988 |
2272 |
2556 |
2840 |
|
ft.in. |
5'7" |
6'6" |
7'5" |
8'5" |
9'4" |
|
|
Length of Hopper (L2) |
mm |
1870 |
2150 |
2430 |
2710 |
3000 |
|
ft.in. |
6'2" |
7' |
7'12" |
8'11" |
9'10" |
|
|
Space Between of Disc |
mm |
142 |
142 |
142 |
142 |
142 |
|
ft.in. |
6" |
6" |
6" |
6" |
6" |
|
|
Space Between of Wheels |
mm |
2302 |
2586 |
2870 |
3154 |
3438 |
|
ft.in. |
7'7" |
8'6" |
9'5" |
10'4" |
11'3" |
|
|
Fertilizer Hopper Volume |
dm3 |
218 |
245 |
272 |
300 |
327 |
|
Seed Hopper Volume |
dm3 |
327 |
370 |
412 |
456 |
500 |
|
Fertilizer Hopper Capacity |
kg |
225 |
250 |
275 |
300 |
325 |
|
lbs |
496 |
551 |
606 |
661 |
716 |
|
|
Seed Hopper Capacity (wheat) |
kg |
268 |
301 |
333 |
366 |
400 |
|
lbs |
590 |
663 |
734 |
806 |
881 |
|
|
Seed Hopper Capacity (barley) |
kg |
190 |
215 |
239 |
265 |
290 |
|
lbs |
418 |
473 |
526 |
584 |
639 |
|
|
Seed Hopper Capacity (oats) |
kg |
143 |
163 |
182 |
201 |
220 |
|
lbs |
315 |
359 |
401 |
443 |
485 |
|
|
Seed Hopper Capacity (lentil) |
kg |
291 |
329 |
366 |
405 |
445 |
|
lbs |
641 |
725 |
806 |
892 |
981 |
|
|
Seed Hopper Capacity (bean) |
kg |
258 |
292 |
325 |
360 |
395 |
|
lbs |
568 |
643 |
716 |
793 |
870 |
|
|
Seed Hopper Capacity (chickpea) |
kg |
291 |
329 |
366 |
405 |
445 |
|
lbs |
641 |
725 |
806 |
892 |
981 |
|
|
Required Power |
hp |
40-45 |
45-50 |
60-65 |
65-70 |
75-80 |
|
Weight |
kg |
740 |
830 |
920 |
1000 |
1085 |
|
lbs |
1631 |
1829 |
2028 |
2204 |
2392 |
|
Technical Specifications* |
Unit |
BM 22 |
BM 24 |
BM 26 |
BM 28 |
BM 38 |
|
Number of Disc |
pcs |
22 |
24 |
26 |
28 |
38 |
|
Total Width (W) |
mm |
3940 |
4220 |
4510 |
4636 |
5400 |
|
ft.in. |
12'11" |
13'10" |
14'10" |
15'3" |
17'9" |
|
|
Total Length (L) |
mm |
3350 |
3350 |
3350 |
3350 |
3350 |
|
ft.in |
10'12" |
10'12" |
10'12" |
10'12" |
10'12" |
|
|
Total Height (H) |
mm |
1515 |
1515 |
1515 |
1515 |
1515 |
|
ft.in |
4'12" |
4'12" |
4'12" |
4'12" |
4'12" |
|
|
Transport Position Length |
|
|
|
|
|
7650 |
|
|
|
|
|
|
25'1" |
|
|
Transport Position Width |
|
|
|
|
|
2270 |
|
|
|
|
|
|
7'5" |
|
|
Working Depth (Max.) |
mm |
0-100 |
0-100 |
0-100 |
0-100 |
0-100 |
|
ft.in. |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
|
|
Working Width (L1) |
mm |
3124 |
3408 |
3690 |
3976(142) |
5450 |
|
ft.in. |
10'3" |
11'2" |
12'1" |
13'(6") |
17'11" |
|
|
Length of Hopper (L2) |
mm |
3280 |
3560 |
3850 |
4130 |
5560 |
|
ft.in. |
10'9" |
11'8" |
12'6" |
13'7" |
18'3" |
|
|
Space Between of Disc |
mm |
142 |
142 |
142 |
142 |
142 |
|
ft.in. |
6" |
6" |
6" |
6" |
6" |
|
|
Space Between of Wheels |
mm |
3722 |
4006 |
4290 |
4574 |
5850 |
|
ft.in. |
12'2" |
13'2" |
14'1" |
15' |
19'2" |
|
|
Fertilizer Hopper Volume |
dm3 |
354 |
381 |
408 |
435 |
590 |
|
Seed Hopper Volume |
dm3 |
542 |
584 |
626 |
668 |
776 |
|
Fertilizer Hopper Capacity |
kg |
350 |
375 |
400 |
425 |
550 |
|
lbs |
771 |
826 |
881 |
936 |
1212 |
|
|
Seed Hopper Capacity (wheat) |
kg |
432 |
464 |
496 |
528 |
560 |
|
lbs |
952 |
1022 |
1093 |
1164 |
1234 |
|
|
Seed Hopper Capacity (barley) |
kg |
315 |
340 |
365 |
390 |
446 |
|
lbs |
694 |
749 |
804 |
859 |
983 |
|
|
Seed Hopper Capacity (oats) |
kg |
240 |
260 |
280 |
300 |
347 |
|
lbs |
529 |
573 |
617 |
661 |
765 |
|
|
Seed Hopper Capacity (lentil) |
kg |
482 |
519 |
551 |
583 |
650 |
|
lbs |
1062 |
1144 |
1214 |
1285 |
1433 |
|
|
Seed Hopper Capacity (bean) |
kg |
428 |
461 |
494 |
527 |
|
|
lbs |
943 |
1016 |
1089 |
1161 |
|
|
|
Seed Hopper Capacity (chickpea) |
kg |
482 |
519 |
556 |
593 |
|
|
lbs |
1062 |
1144 |
1225 |
1307 |
|
|
|
Required Power |
hp |
85-90 |
90-95 |
82-100 |
82-100 |
120-140 |
|
Weight |
kg |
1145 |
1240 |
1325 |
1385 |
2415 |
|
lbs |
2524 |
2733 |
2921 |
3053 |
5324 |
