Seed Drills

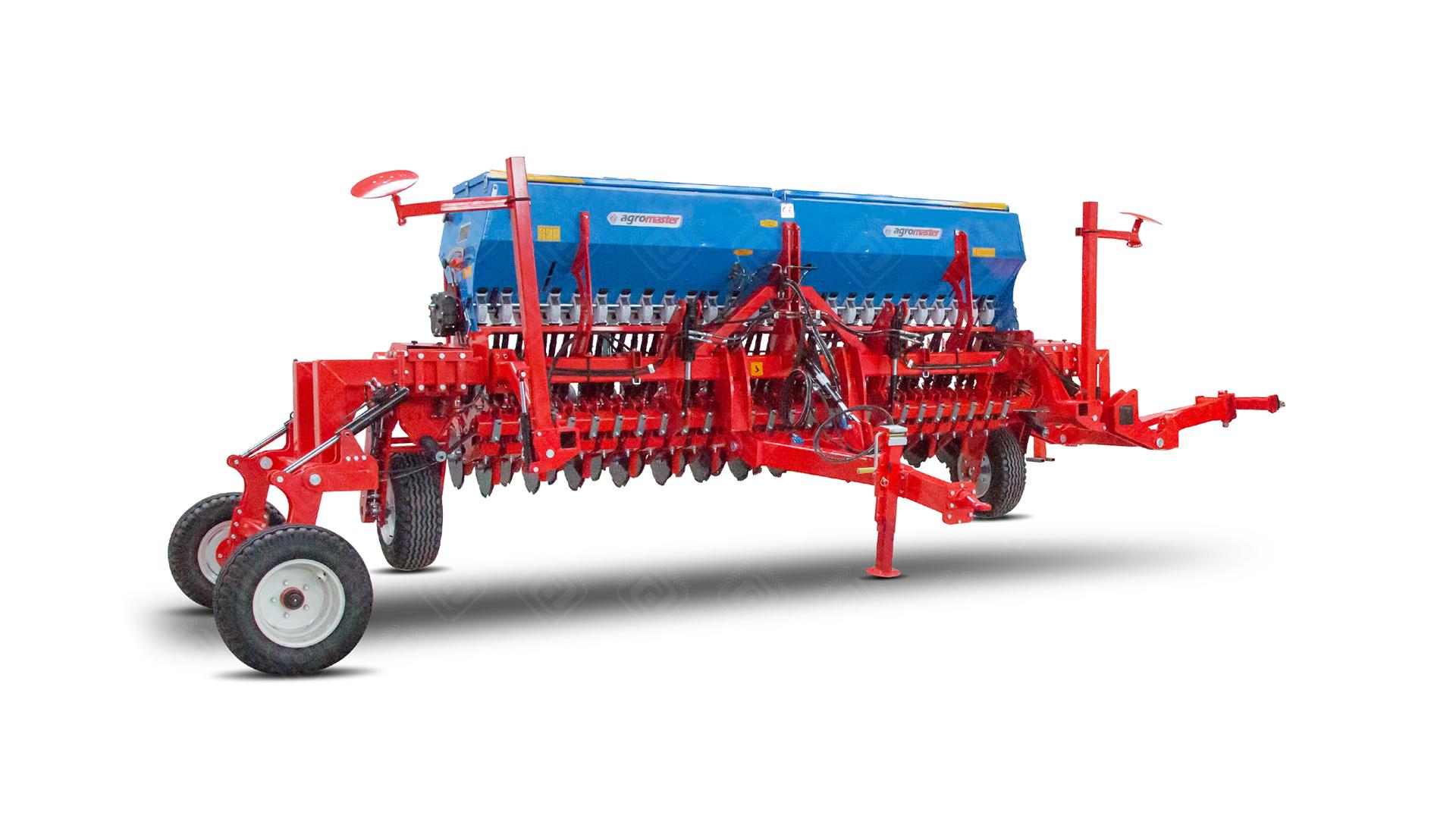

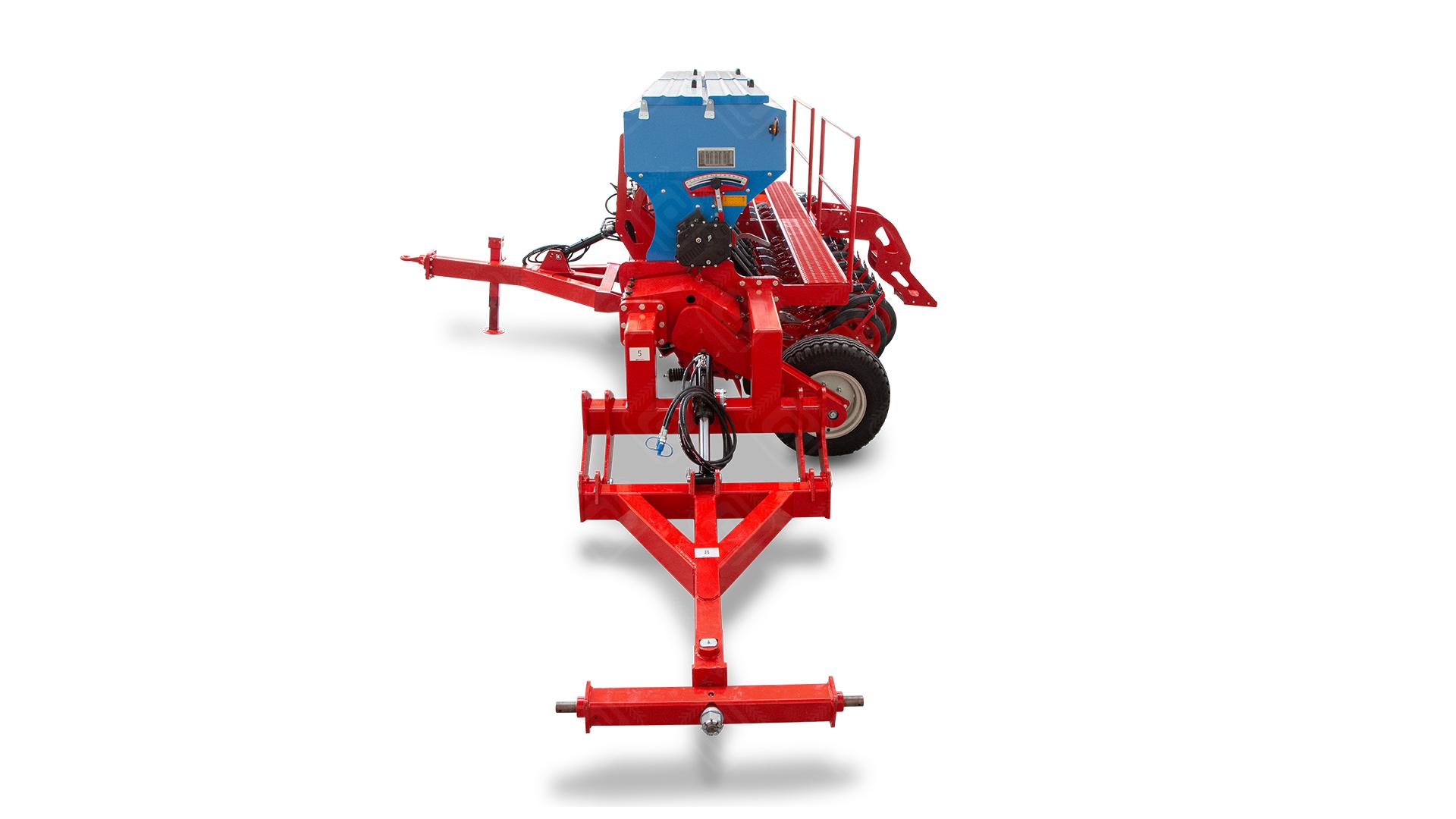

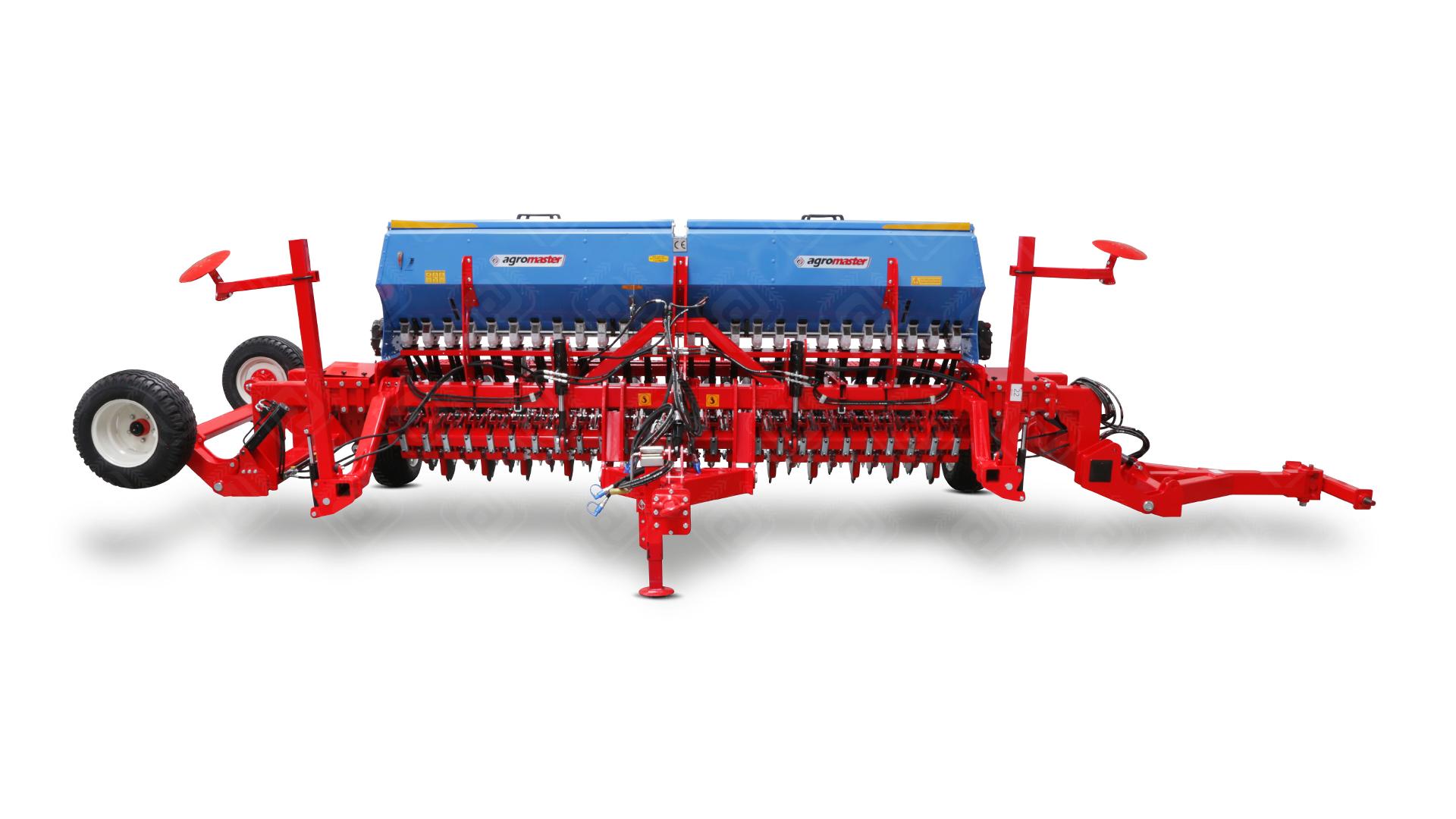

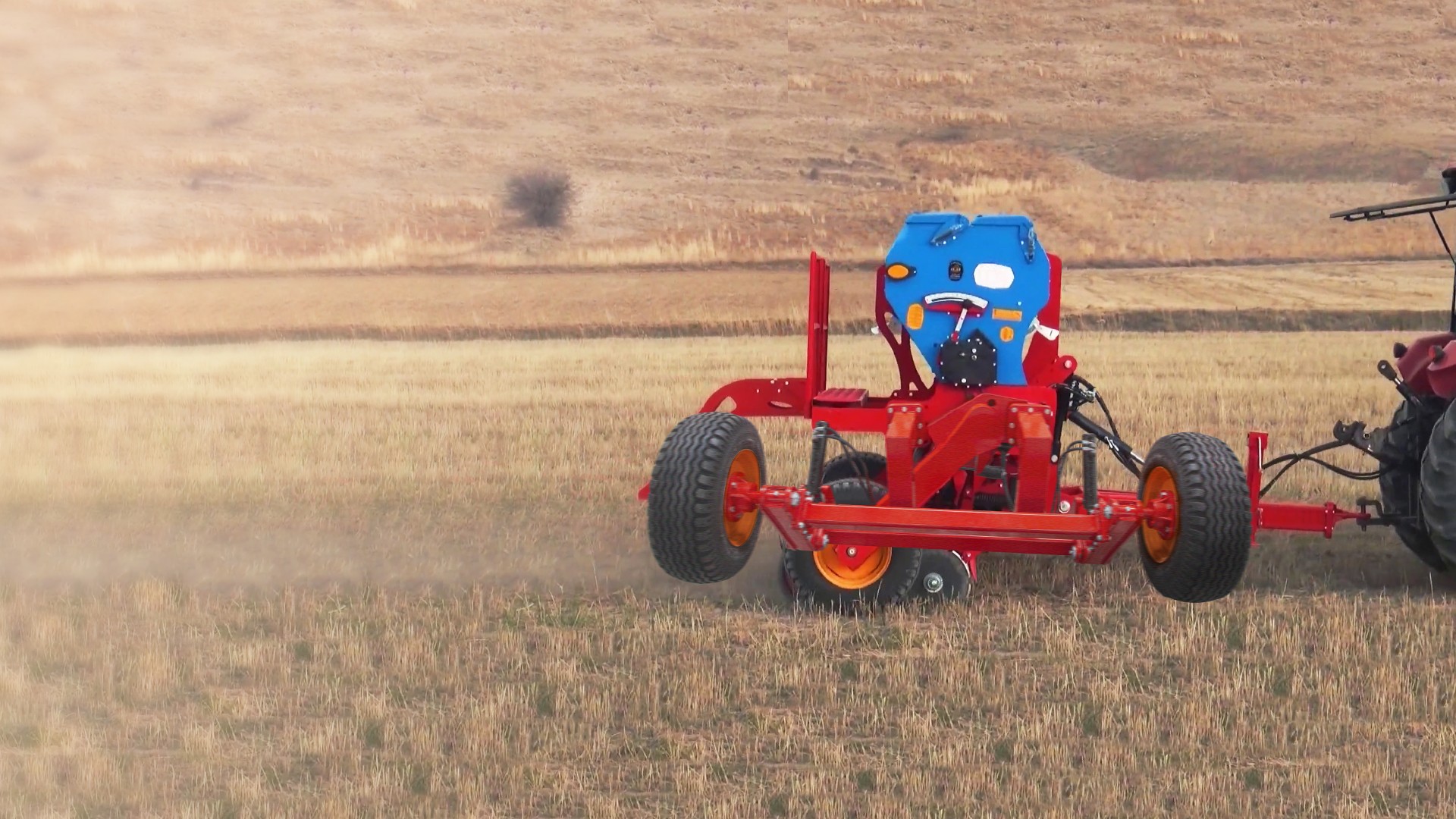

The No-Till Seed Drill, Trailed for Transport Position is engineered for efficient direct seeding while offering a practical transport configuration for safe and convenient road travel. Its advanced disc opener system ensures precise seed placement through crop residue without disturbing the soil, helping preserve moisture and reduce erosion. The transport position allows the machine to be moved easily between fields, improving mobility and reducing downtime. Built for durability and high field performance, it delivers accurate sowing, lower fuel consumption, and increased operational efficiency for modern conservation farming.
|
Technical Specifications* |
Unit |
DS 16 |
DS 18 |
DS 20 |
DS 24 |
DS 28 |
|
Number of Openers |
pcs |
16 |
18 |
20 |
24 |
28 |
|
Width without Drawbar |
mm |
5500 |
5800 |
6100 |
6700 |
7300 |
|
ft.in |
18' |
19' |
20' |
21'12" |
23'11" |
|
|
Total Width (W) |
mm |
6900 |
7200 |
7500 |
8100 |
8900 |
|
ft.in |
22'8" |
23'8" |
24'8" |
26'7" |
29'3" |
|
|
Transport Width |
mm |
2700 |
2700 |
2700 |
2700 |
2700 |
|
ft.in |
8'10" |
8'10" |
8'10" |
8'10" |
8'10" |
|
|
Length without Drawbar |
mm |
1950 |
1950 |
1950 |
1950 |
1950 |
|
ft.in |
6'5" |
6'5" |
6'5" |
6'5" |
6'5" |
|
|
Total Length (L) |
mm |
3750 |
3750 |
3750 |
3750 |
3750 |
|
ft.in. |
12'4" |
12'4" |
12'4" |
12'4" |
12'4" |
|
|
Total Height (H) |
mm |
1900 |
1900 |
1900 |
1900 |
1900 |
|
ft.in |
6'3" |
6'3" |
6'3" |
6'3" |
6'3" |
|
|
Working Width |
mm |
2400 |
2700 |
3000 |
3600 |
4200 |
|
ft.in |
7'10" |
8'10" |
9'10" |
11'10" |
13'10" |
|
|
Row Spacing |
mm |
150 |
150 |
150 |
150 |
150 |
|
ft.in. |
6" |
6" |
6" |
6" |
6" |
|
|
Sowing Depth |
mm |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
|
ft.in. |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
|
|
Seed Hopper Capacity |
L |
1210 |
1350 |
1500 |
1800 |
2100 |
|
gallon |
319 |
357 |
396 |
475 |
555 |
|
|
Fertilizer Hopper Capacity |
L |
- |
- |
- |
- |
- |
|
gallon |
- |
- |
- |
- |
- |
|
|
Tyre Size |
|
10.0/75-15.3 |
||||
|
Opener Disc Diameter |
mm |
410 |
410 |
410 |
410 |
410 |
|
ft.in. |
16" |
16" |
16" |
16" |
16" |
|
|
Pressure Wheel Diameter |
mm |
400 |
400 |
400 |
400 |
400 |
|
ft.in. |
16" |
16" |
16" |
16" |
16" |
|
|
Opener Down Pressure |
kg |
90-200 |
90-200 |
90-200 |
90-175 |
90-175 |
|
Ibs |
198-440 |
198-440 |
198-440 |
198-385 |
198-385 |
|
|
Working Speed |
km/h |
5-7 |
5-7 |
5-7 |
5-7 |
5-7 |
|
Required Power |
hp |
70-80 |
80-90 |
90-100 |
110-120 |
120-130 |
|
Weight |
kg |
3200 |
3500 |
3820 |
4100 |
4430 |
|
Ibs |
7054 |
7716 |
8422 |
9040 |
9.766 |
|
|
Weight with Marker |
kg |
3520 |
3820 |
4140 |
4420 |
4750 |
|
Ibs |
7760 |
8421 |
9127 |
9744 |
10471 |
|
|
Technical Specifications* |
Unit |
DSF 16 |
DSF 18 |
DSF 20 |
DSF 24 |
DSF 28 |
|
Number of Openers |
pcs |
16 |
18 |
20 |
24 |
28 |
|
Width without Drawbar |
mm |
5500 |
5800 |
6100 |
6700 |
7300 |
|
ft.in |
18' |
19' |
20' |
21'12" |
23'11" |
|
|
Total Width (W) |
mm |
6900 |
7200 |
7500 |
8100 |
8900 |
|
ft.in |
22'8" |
23'8" |
24'8" |
26'7" |
29'3" |
|
|
Transport Width |
mm |
2700 |
2700 |
2700 |
2700 |
2700 |
|
ft.in |
8'10" |
8'10" |
8'10" |
8'10" |
8'10" |
|
|
Length without Drawbar |
mm |
1950 |
1950 |
1950 |
1950 |
1950 |
|
ft.in |
6'5" |
6'5" |
6'5" |
6'5" |
6'5" |
|
|
Total Length (L) |
mm |
3750 |
3750 |
3750 |
3750 |
3750 |
|
ft.in. |
12'4" |
12'4" |
12'4" |
12'4" |
12'4" |
|
|
Total Height (H) |
mm |
1900 |
1900 |
1900 |
1900 |
1900 |
|
ft.in |
6'3" |
6'3" |
6'3" |
6'3" |
6'3" |
|
|
Working Width |
mm |
2400 |
2700 |
3000 |
3600 |
4200 |
|
ft.in |
7'10" |
8'10" |
9'10" |
11'10" |
13'10" |
|
|
Row Spacing |
mm |
150 |
150 |
150 |
150 |
150 |
|
ft.in. |
6" |
6" |
6" |
6" |
6" |
|
|
Sowing Depth |
mm |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
|
ft.in. |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
0"-4" |
|
|
Seed Hopper Capacity |
L |
610 |
683 |
758 |
908 |
1058 |
|
gallon |
161 |
180 |
200 |
240 |
280 |
|
|
Fertilizer Hopper Capacity |
L |
600 |
674 |
748 |
896 |
1044 |
|
gallon |
158 |
178 |
197 |
236 |
275 |
|
|
Tyre Size |
|
10.0/75-15.3 |
||||
|
Opener Disc Diameter |
mm |
410 |
410 |
410 |
410 |
410 |
|
ft.in. |
16" |
16" |
16" |
16" |
16" |
|
|
Pressure Wheel Diameter |
mm |
400 |
400 |
400 |
400 |
400 |
|
ft.in. |
16" |
16" |
16" |
16" |
16" |
|
|
Opener Down Pressure |
kg |
90-200 |
90-200 |
90-200 |
90-175 |
90-175 |
|
Ibs |
198-440 |
198-440 |
198-440 |
198-385 |
198-385 |
|
|
Working Speed |
km/h |
5-7 |
5-7 |
5-7 |
5-7 |
5-7 |
|
Required Power |
hp |
70-80 |
80-90 |
90-100 |
110-120 |
120-130 |
|
Weight |
kg |
3550 |
3720 |
4000 |
4400 |
4720 |
|
Ibs |
7826 |
8200 |
8818 |
9700 |
10.405 |
|
|
Weight with Marker |
kg |
3870 |
4040 |
4320 |
4720 |
5040 |
|
Ibs |
8531 |
8906 |
9523 |
10405 |
11111 |
|
