Seed Drills

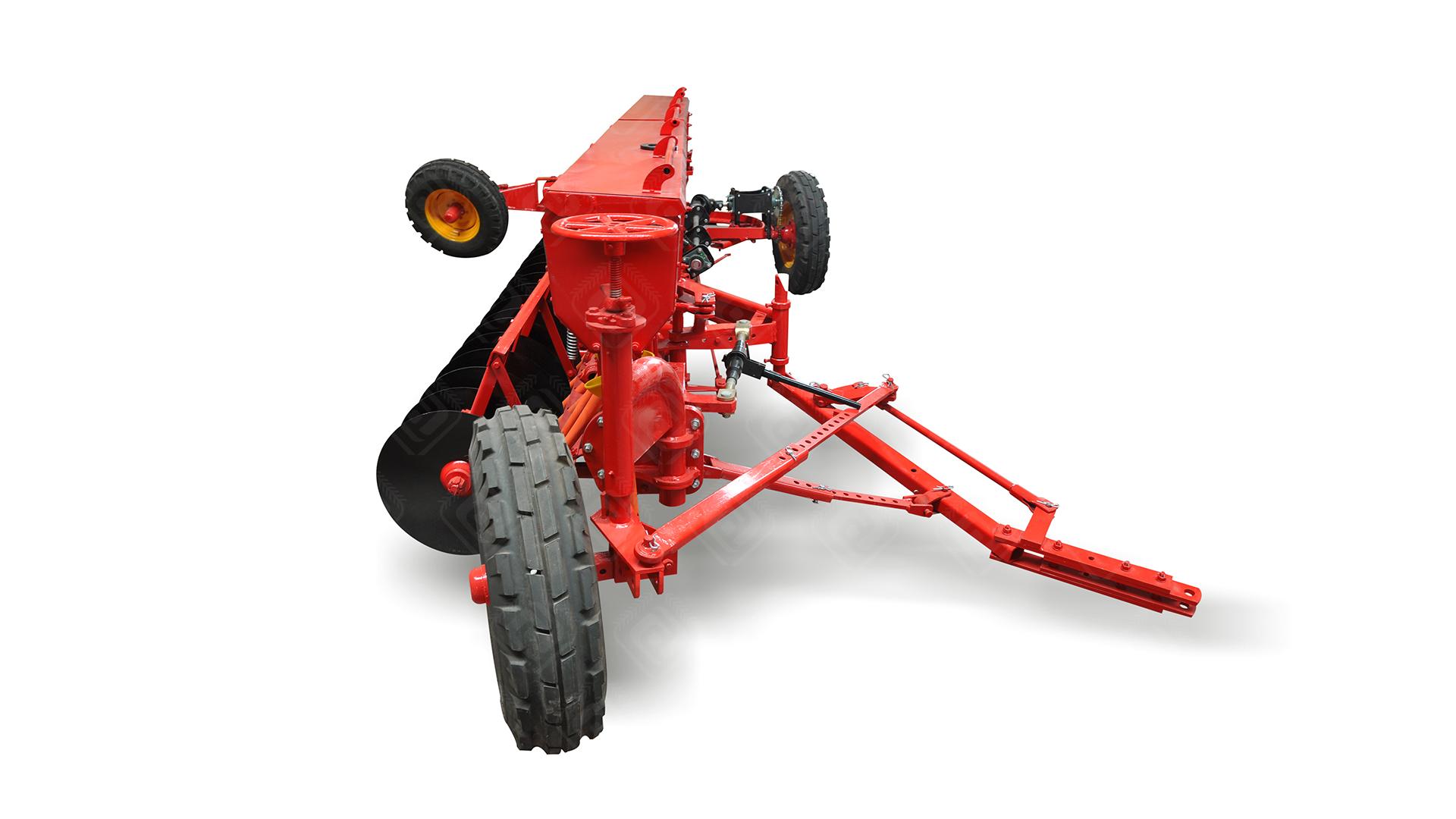

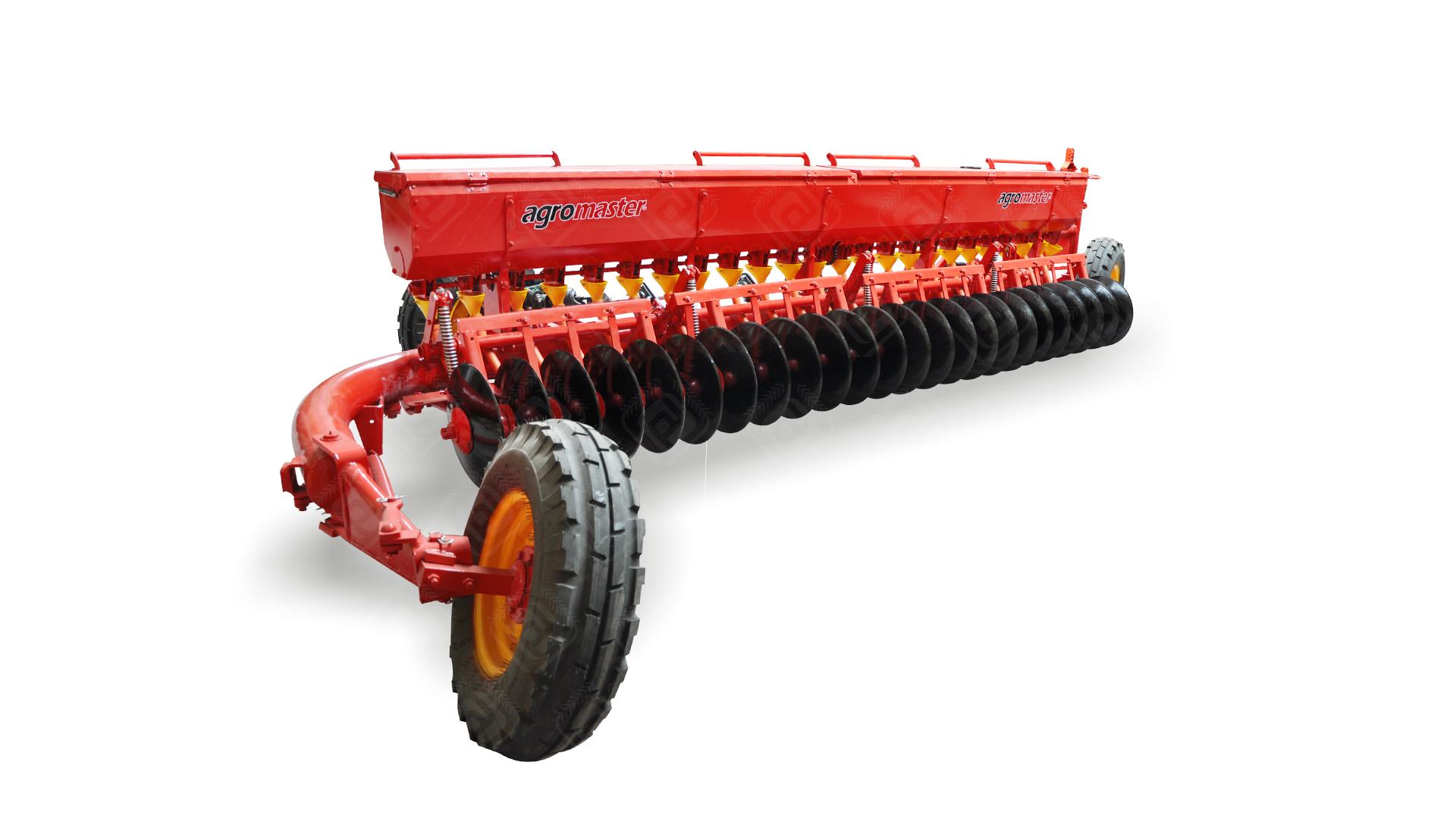

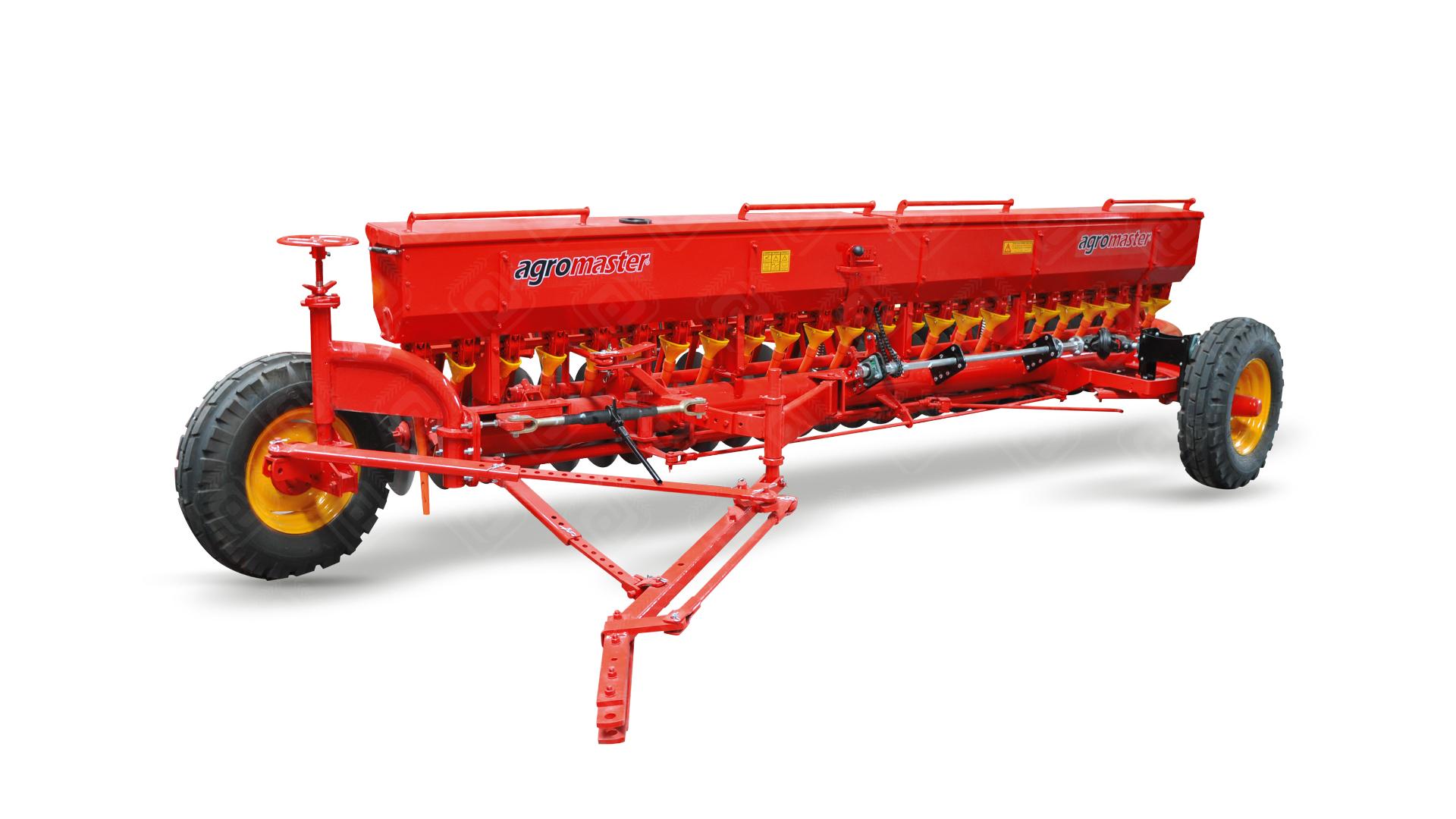

The Wide Level Disc Harrow & Sesame Seed Drills leave land level with no dead furrows or ridges. These machines include a 24,30,36 disc models that cut a width of SM24,30,36 ensure correct cutting action of the discs without undue pulverization of the top soil. Mounted on the wheels this revolutionary new disc harrow is very simple in design. It throws the soil always in the same direction, leaving the land perfectly level.
|
Technical Specificaions* |
Unit |
SM24 |
SM30 |
SM36 |
|
Number of Disc |
pcs |
24 |
30 |
36 |
|
Total Width (W) |
mm |
6500 |
7500 |
8500 |
|
ft.in. |
21'4" |
24'7" |
27'11" |
|
|
Total Length (L) |
mm |
3700 |
3700 |
3700 |
|
ft.in. |
12'2" |
12'2" |
12'2" |
|
|
Total Height (H) |
mm |
1240 |
1240 |
1240 |
|
ft.in. |
4' |
4' |
4' |
|
|
Working Depth |
mm |
5-150 |
5-150 |
5-150 |
|
ft.in. |
13/64"-6" |
13/64"-6" |
13/64"-6" |
|
|
Working Width (L1) |
mm |
4100 |
5100 |
6100 |
|
ft.in. |
13'5" |
16'9" |
20' |
|
|
Distance Between Sowing Feet (B) |
mm |
175 |
175 |
175 |
|
ft.in. |
7" |
7" |
7" |
|
|
Total Seed Hopper Capacity |
lt. |
430 |
530 |
640 |
|
gallon |
114 |
140 |
169 |
|
|
Disc Diameter |
mm |
510 |
510 |
510 |
|
ft.in. |
20" |
20" |
20" |
|
|
Wheel Dimensions |
|
750x16 |
750x16 |
750x16 |
|
Required Power |
hp |
75-85 |
85-100 |
90-110 |
|
Weight |
kg |
1230 |
1700 |
1980 |
|
Ibs |
2711 |
3747 |
4365 |
