Seed Drills

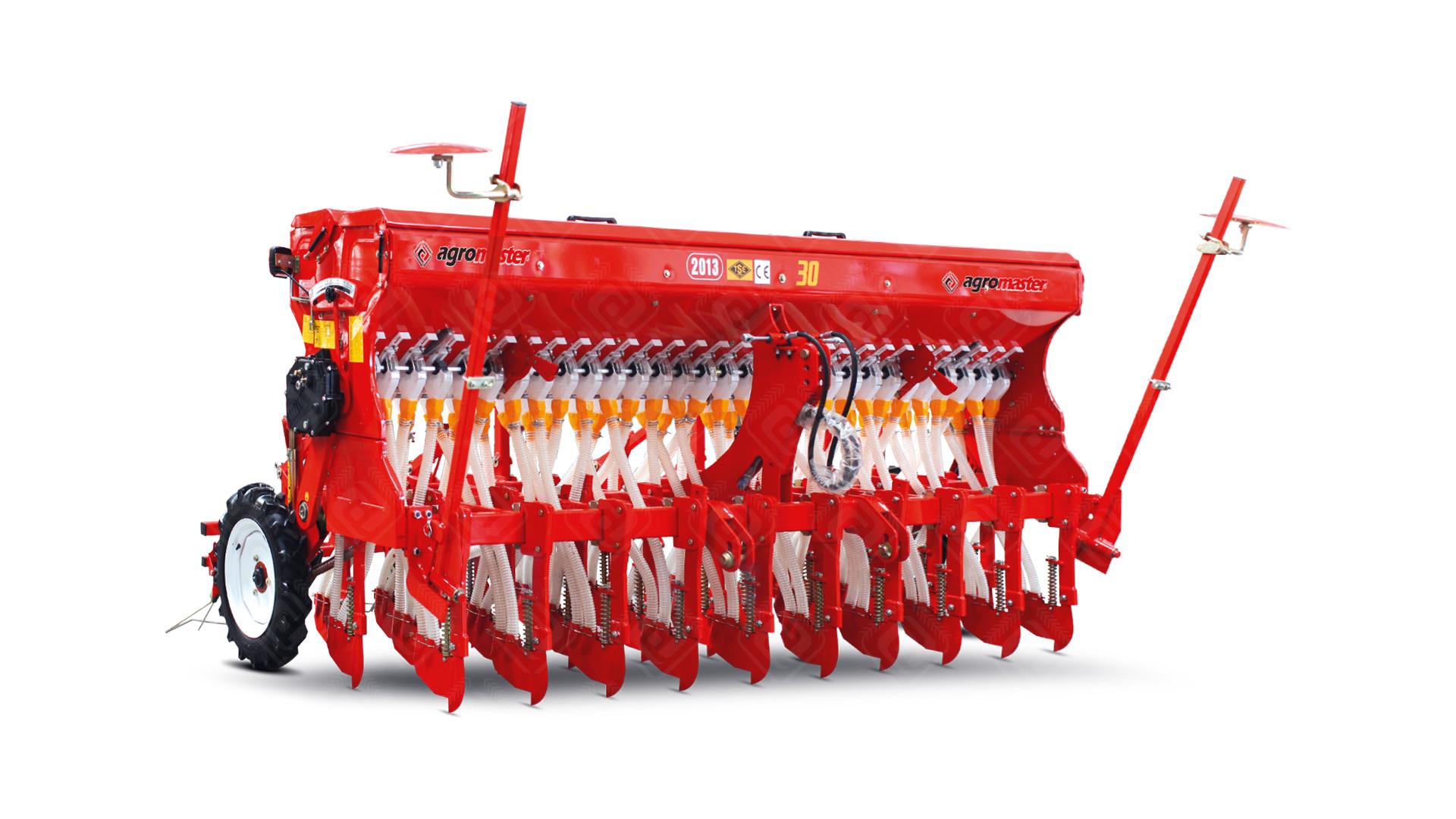

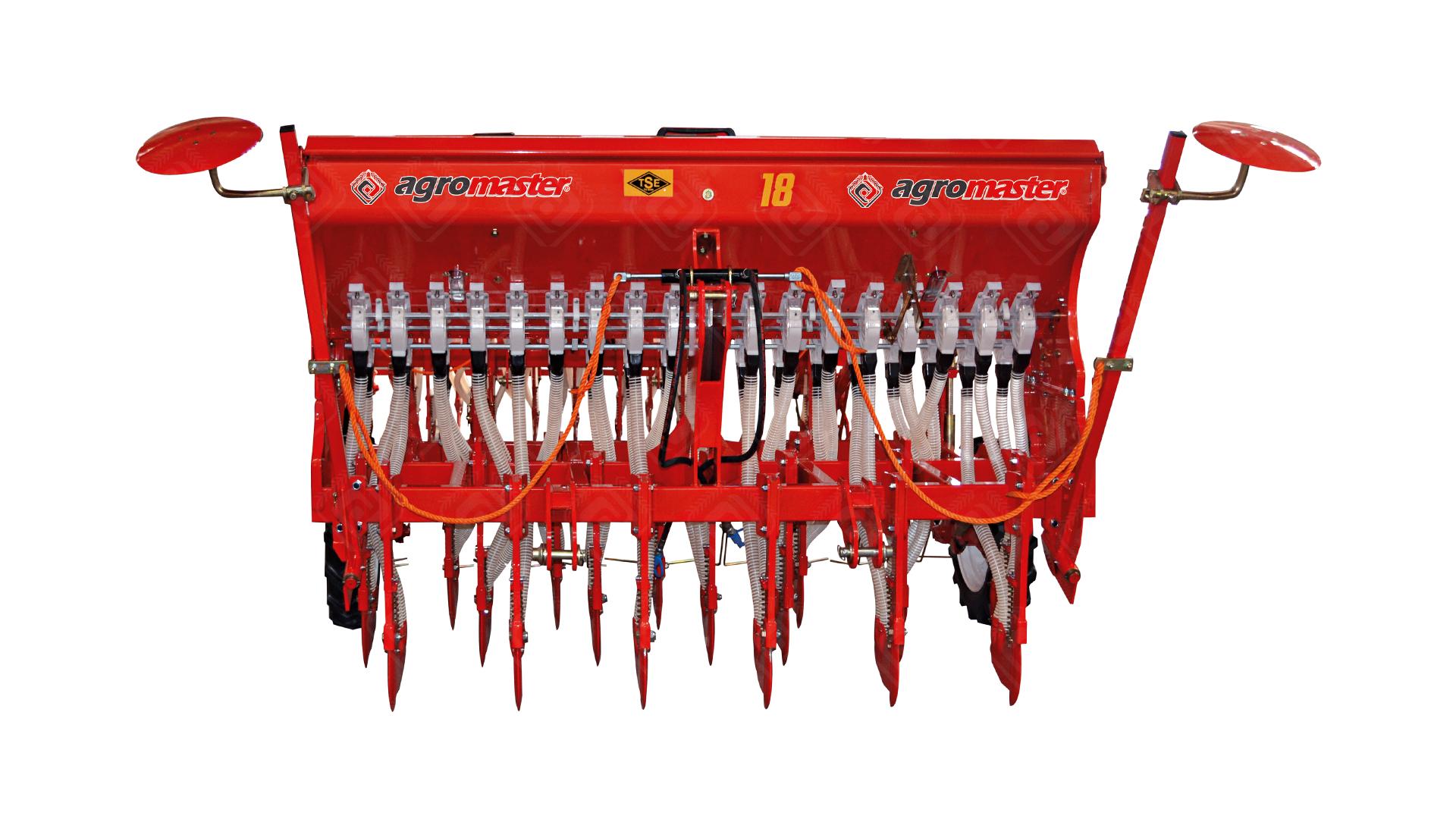

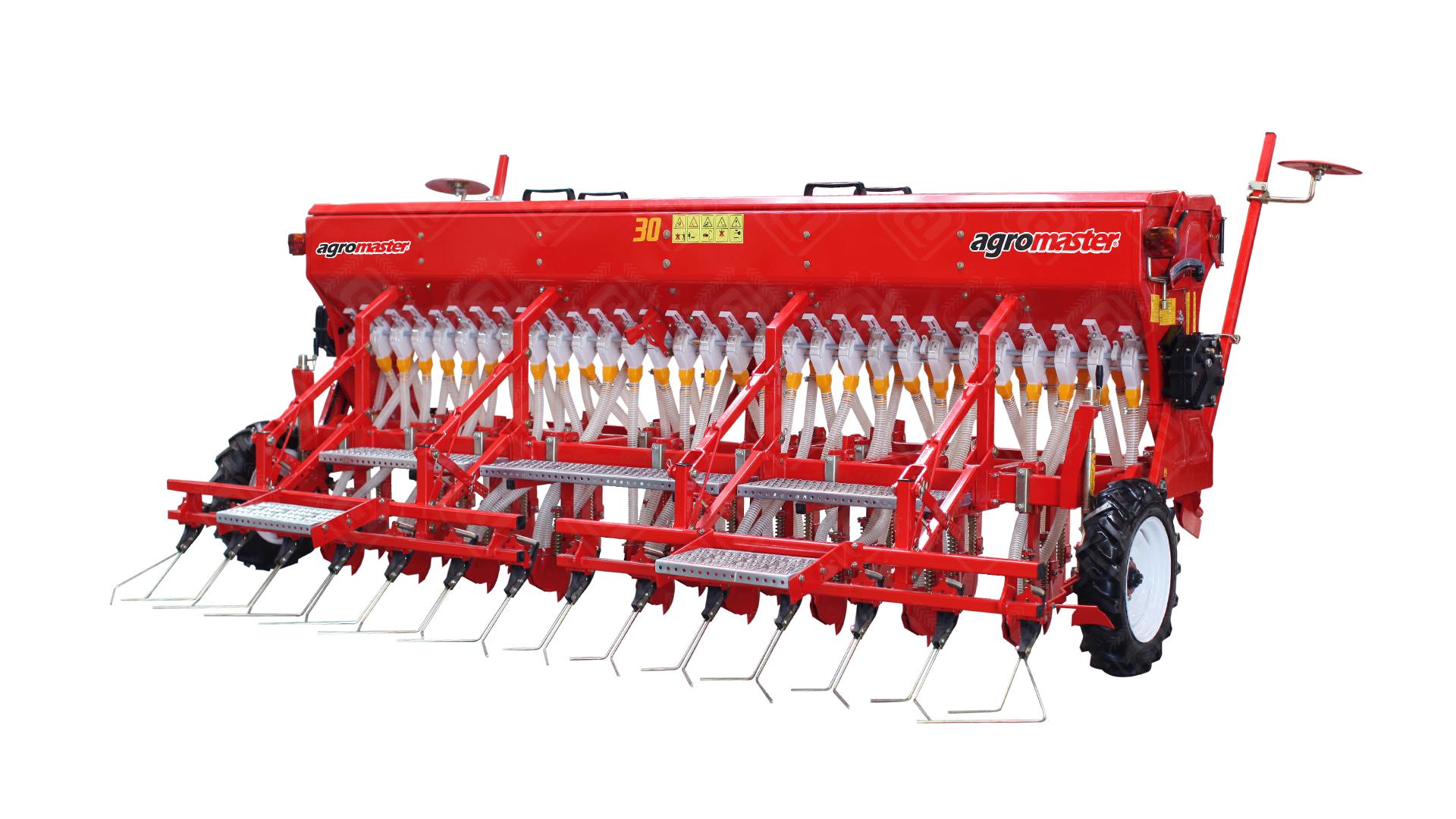

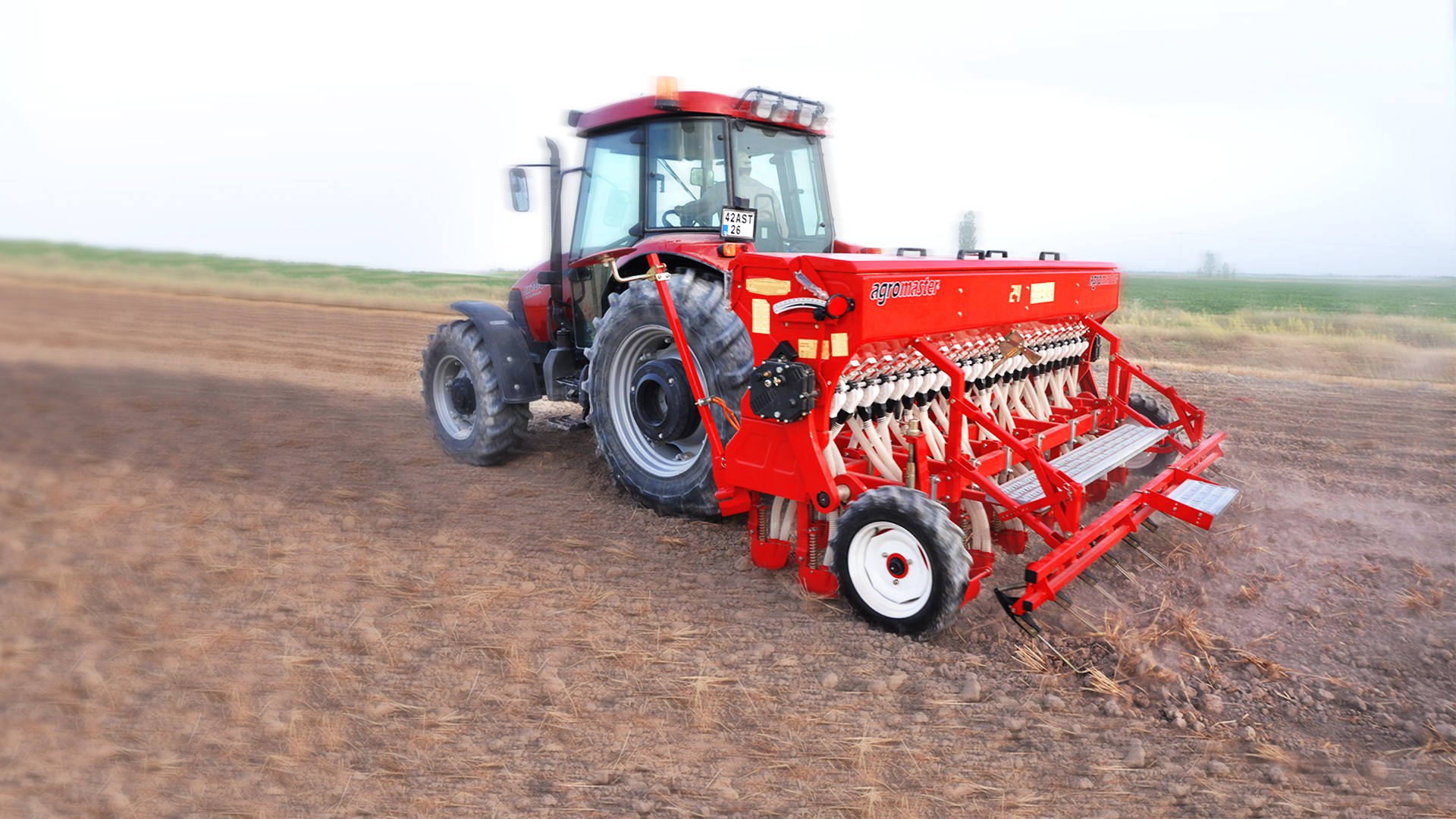

This is sowing machine which is mounted type along with three-point hitch and hydraulic lifting unit of tractor with or without fertilizer hopper options. These machines are produced from 14 up to 32 rows.You can sow all seeds of cereals through precision. Such as wheat, barley, oat, rye besides canola, alfalfa , clover etc. Small, medium and big sizes seeds can be sowed with this machine.The seeds are sowed through the spring tines. However the seeds are regularly dropped & distributed to soil by way of seed distributor roll unit. In this machine there can be used only spring axe type sowers, depending on field and soil conditions especially for hard and dirty soil conditions.
|
Technical Specifications* |
Unit |
AHM 14 |
AHM 16 |
AHM 18 |
AHM 20 |
AHM 22 |
|
Number of Sowers |
pcs |
14 |
16 |
18 |
20 |
22 |
|
Distance Between Sowers |
mm |
125 |
125 |
125 |
125 |
125 |
|
ft.in. |
5" |
5" |
5" |
5" |
5" |
|
|
Total Width (W) |
mm |
2200 |
2450 |
2700 |
2950 |
3200 |
|
ft.in. |
7'3" |
8' |
8'10" |
9'8" |
10'8" |
|
|
Total Length (L) |
mm |
2400 |
2400 |
2400 |
2400 |
2400 |
|
ft.in |
7'10" |
7'10" |
7'10" |
7'10" |
7'10" |
|
|
Total Height (H) |
mm |
1560 |
1560 |
1560 |
1560 |
1560 |
|
ft.in |
5'1" |
5'1" |
5'1" |
5'1" |
5'1" |
|
|
Working Width |
mm |
1750 |
2000 |
2250 |
2500 |
2750 |
|
ft.in. |
5'9" |
6'7" |
7'5" |
8'2" |
9' |
|
|
Fertilizer Hopper Capacity |
lt. |
296 |
337 |
377 |
417 |
457 |
|
gallon |
78 |
89 |
99 |
110 |
120 |
|
|
Seed Hopper Capacity |
lt. |
223 |
254 |
284 |
315 |
345 |
|
gallon |
58 |
67 |
75 |
83 |
91 |
|
|
Seed Hopper Cap. Without Fertilizer |
lt. |
519 |
591 |
661 |
732 |
802 |
|
gallon |
137 |
156 |
174 |
193 |
211 |
|
|
Wheel |
6,5/80-15 |
6,5/80-15 |
6,5/80-15 |
6,5/80-15 |
6,5/80-15 |
|
|
Working Speed |
km/h |
05-07 |
05-07 |
05-07 |
05-07 |
05-07 |
|
Required Power |
hp |
40-50 |
40-50 |
50-60 |
60-70 |
70-80 |
|
Weight |
kg |
774 |
836 |
870 |
955 |
1014 |
|
Ibs |
1706 |
1834 |
1918 |
2105 |
2235 |
|
Technical Specifications* |
Unit |
AHM 24 |
AHM 26 |
AHM 28 |
AHM 30 |
AHM 32 |
|
Number of Sowers |
pcs |
24 |
26 |
28 |
30 |
32 |
|
Distance Between Sowers |
mm |
125 |
125 |
125 |
125 |
125 |
|
ft.in. |
5" |
5" |
5" |
5" |
5" |
|
|
Total Width (W) |
mm |
3450 |
3700 |
3950 |
4200 |
4450 |
|
ft.in. |
11'4" |
12'2" |
12'12" |
13'9" |
14'7" |
|
|
Total Length (L) |
mm |
2400 |
2400 |
2400 |
2400 |
2400 |
|
ft.in |
7'10" |
7'10" |
7'10" |
7'10" |
7'10" |
|
|
Total Height (H) |
mm |
1560 |
1560 |
1560 |
1560 |
1560 |
|
ft.in |
5'1" |
5'1" |
5'1" |
5'1" |
5'1" |
|
|
Working Width |
mm |
3000 |
3250 |
3500 |
3750 |
4000 |
|
ft.in. |
9'10" |
10'8" |
11'6" |
12'4" |
13'1" |
|
|
Fertilizer Hopper Capacity |
lt. |
498 |
538 |
578 |
619 |
659 |
|
gallon |
131 |
142 |
152 |
163 |
174 |
|
|
Seed Hopper Capacity |
lt. |
376 |
406 |
436 |
467 |
497 |
|
gallon |
99 |
107 |
115 |
123 |
131 |
|
|
Seed Hopper Cap. Without Fertilizer |
lt. |
874 |
944 |
1014 |
1086 |
1156 |
|
gallon |
230 |
249 |
267 |
286 |
305 |
|
|
Wheel |
6,5/80-15 |
6,5/80-15 |
6,5/80-15 |
6,5/80-15 |
6,5/80-15 |
|
|
6,00-16 |
6,00-16 |
6,00-16 |
6,00-16 |
|||
|
Working Speed |
km/h |
05-07 |
05-07 |
05-07 |
05-07 |
05-07 |
|
Required Power |
hp |
80-90 |
100-110 |
100-110 |
110-120 |
110-120 |
|
Weight |
kg |
1090 |
1215 |
1270 |
1385 |
1465 |
|
Ibs |
2403 |
2678 |
2799 |
3053 |
3229 |
