PLANTER D TRIPLE

Pneumatic Precision Planters

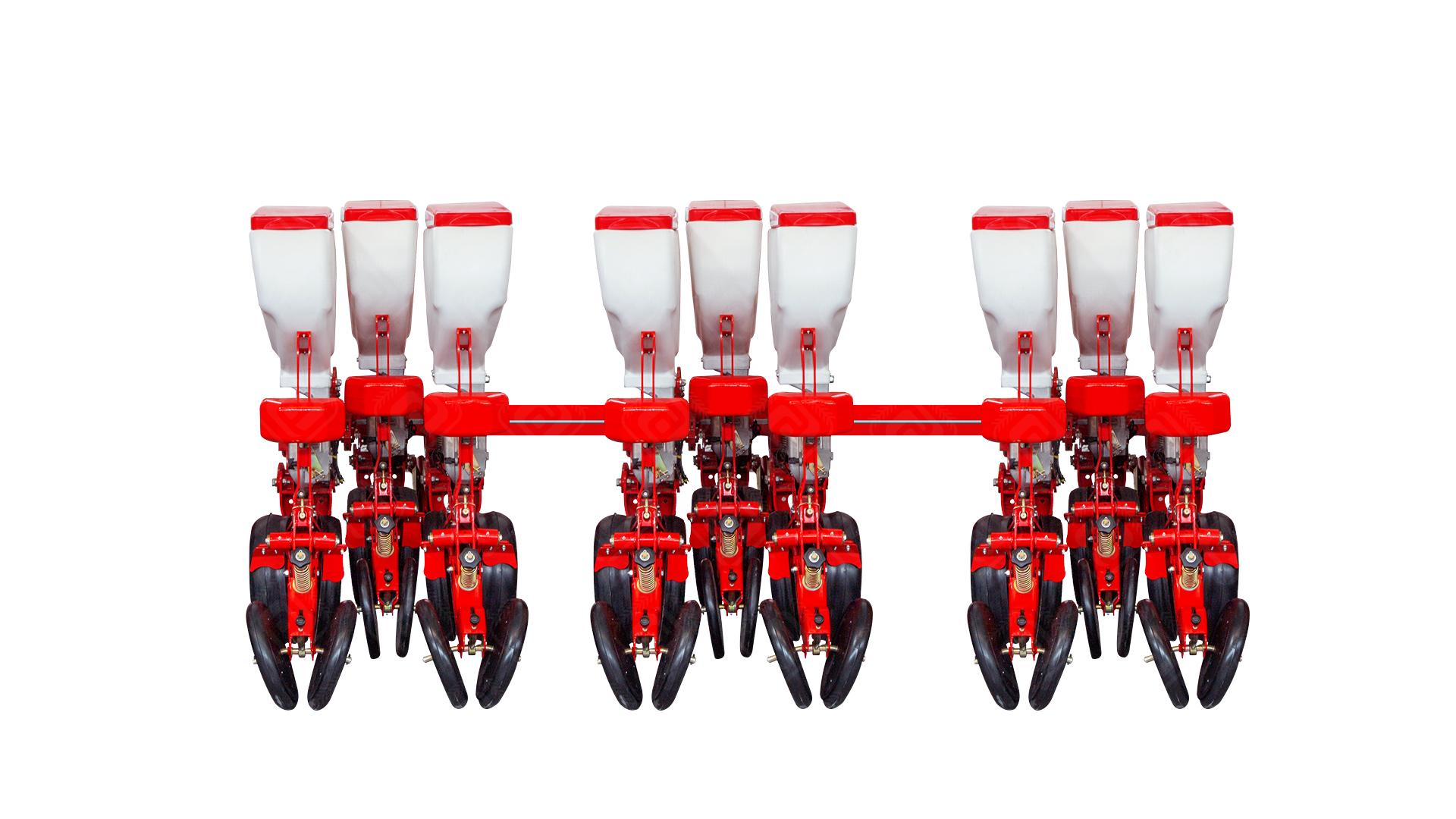

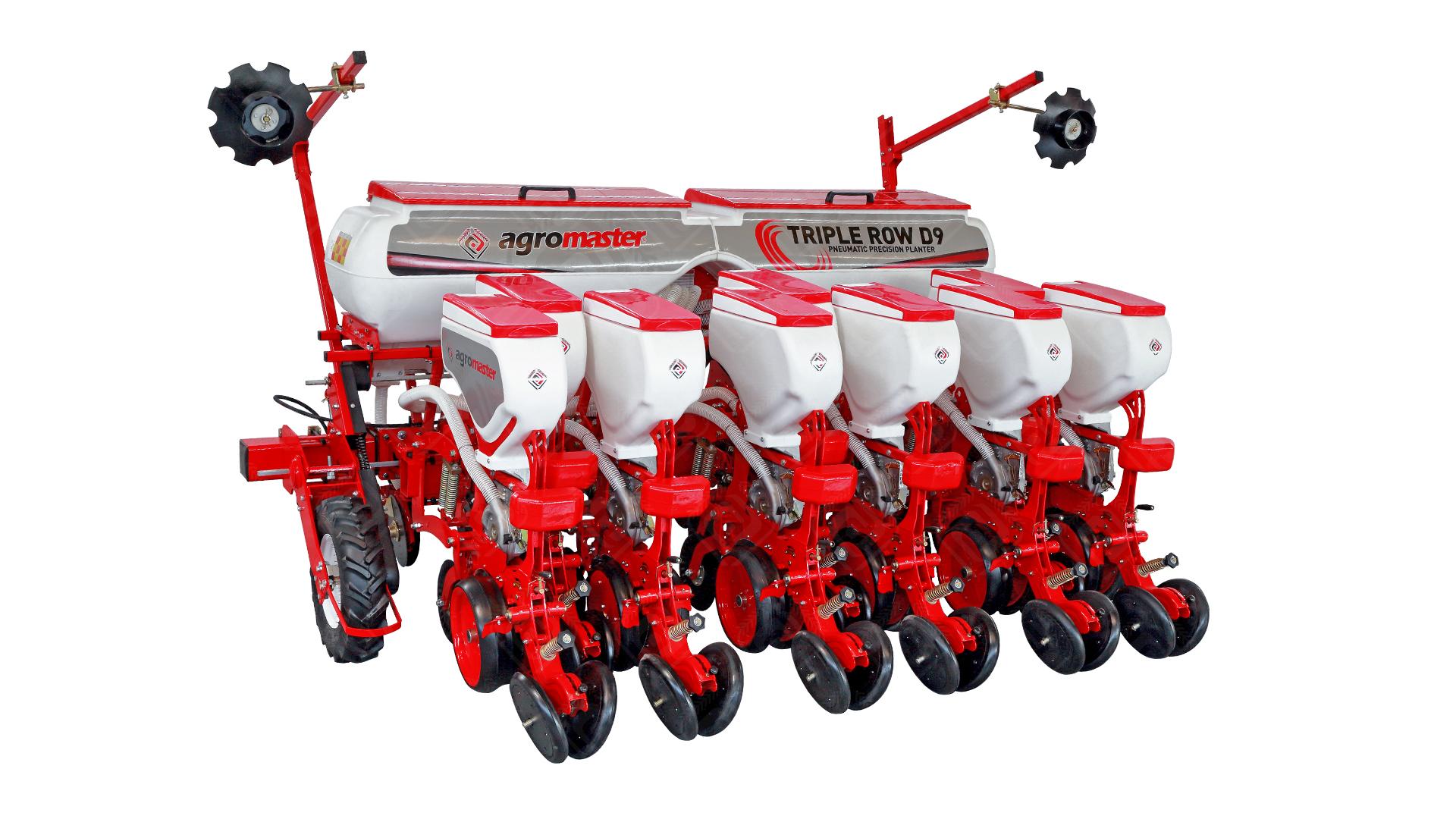

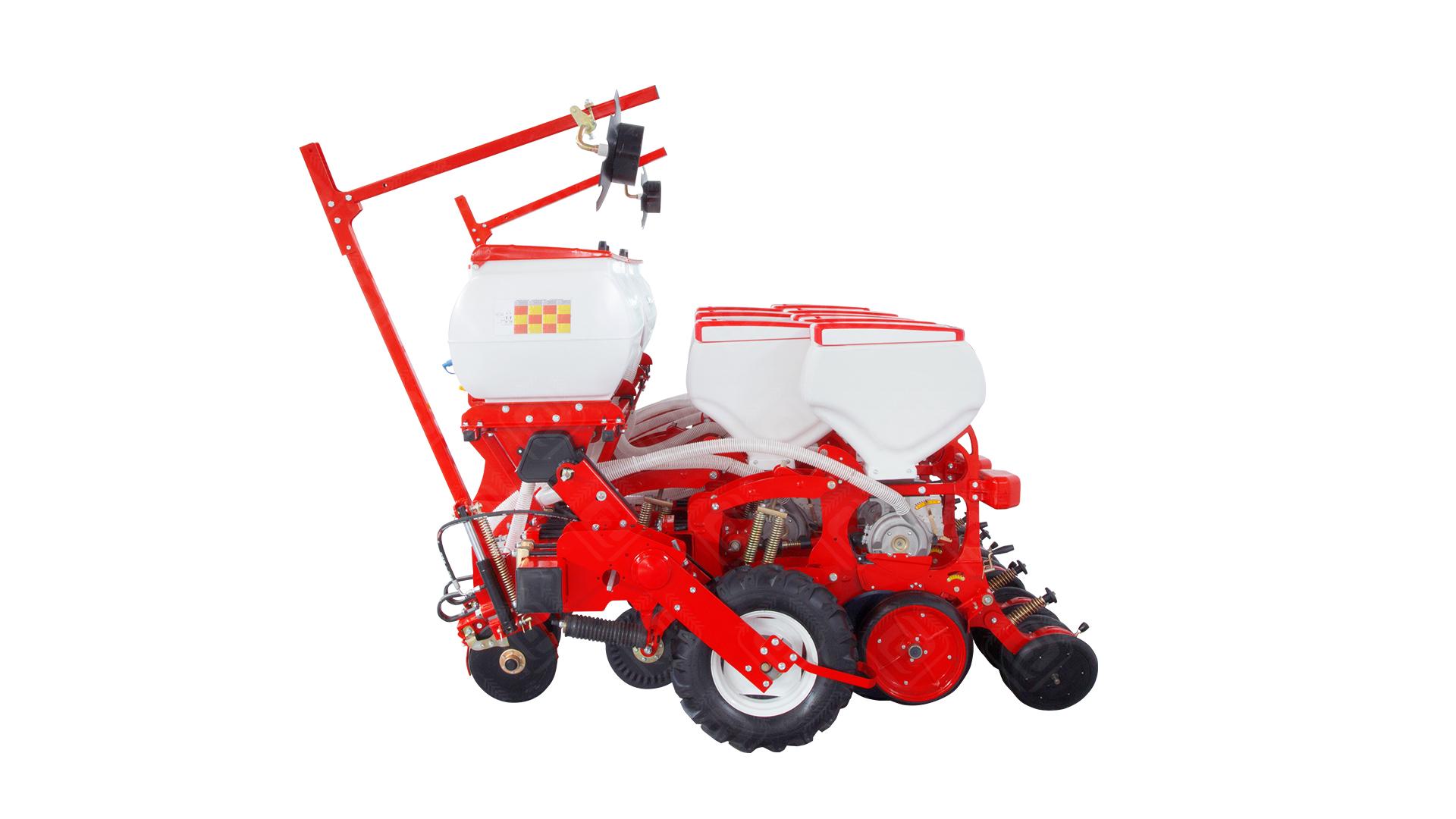

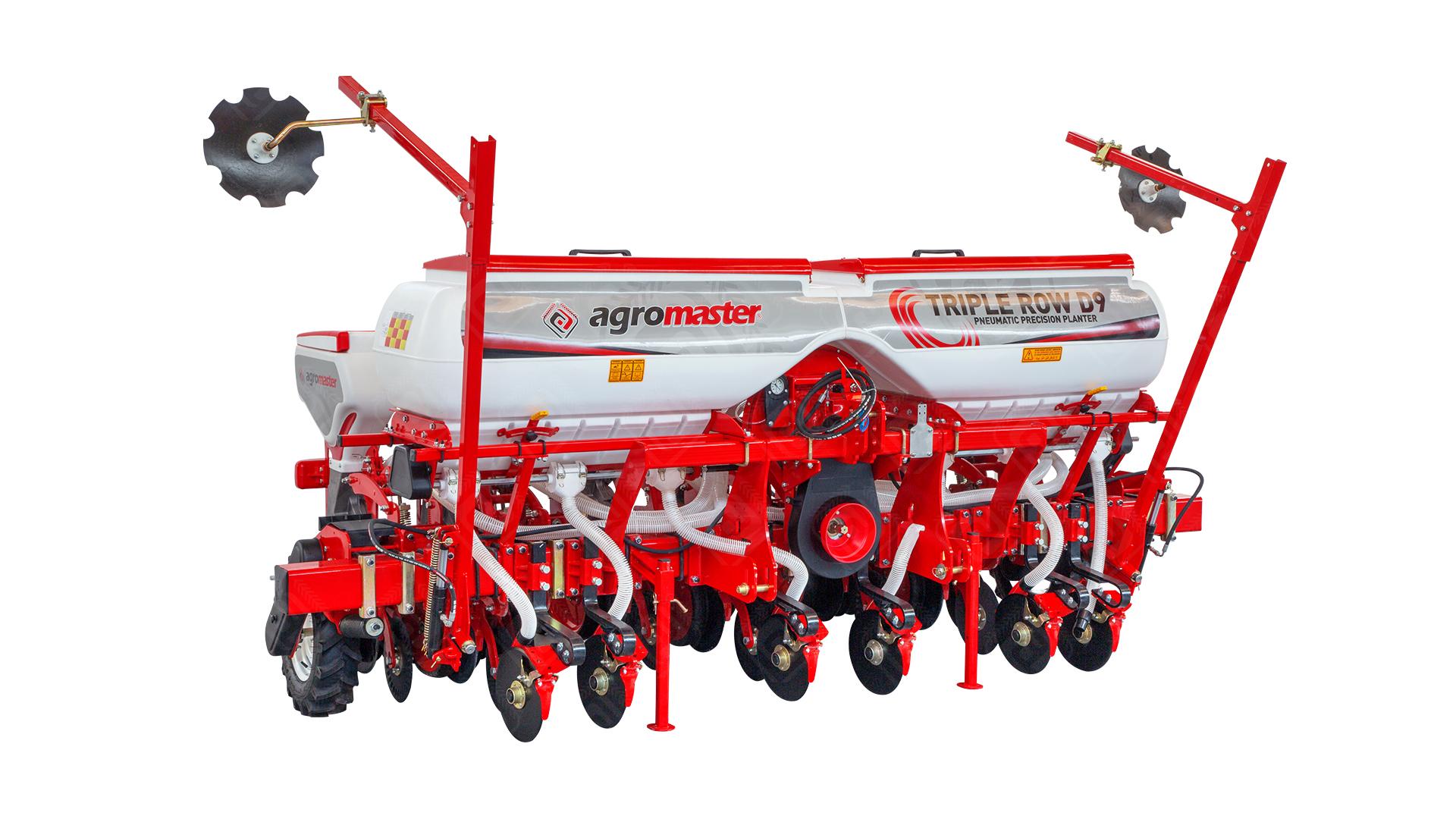

TRIPLE ROW PNEUMATIC PRECISION PLANTER DISC TYPE

DESCRIPTION

Triple Row Sowing operation enables to plant at more frequent intervals. Row spacing is min. 20 cm from each planting unit to other one.

Technical Specificaions*	Unit	PLANTER D3X3	PLANTER D3X4	PLANTER D3X5	PLANTER D3X6
Number of Rows	pcs	9	12	15	18
Total Width (W)	mm	4000	5200	6400	8000
Total Width (W)	ft.in.	13'1"	17'	21'	26'2"
Total Length (L)	mm	2500	2500	2500	2500
Total Length (L)	ft.in.	8'2"	8'2"	8'2"	8'2"
Total Height (H)	mm	1800	1800	1800	1800
Total Height (H)	ft.in.	5'10"	5'10"	5'10"	5'10"
Working Depth	mm	0-100
Working Depth	ft.in.	0”-4”
Fertilizer Hopper Capacity	kg	160x4	160x6	200x5	200x6
Fertilizer Hopper Capacity	Ibs	352x4	352x6	440x5	440x6
Fertilizer Hopper Capacity (Big)	kg	-	-	-	-
Fertilizer Hopper Capacity (Big)	Ibs	-	-	-	-
Seed Hopper Volume	dm³	40X9	40X12	40X15	40X18
Space Between Rows (B)	mm	200-600	200-600	200-600	200-600
Space Between Rows (B)	ft.in.	7"-1'11"	7"-1'11"	7"-1'11"	7"-1'11"
Working Speed	km/h	4-8
PTO Rotation	rpm	540
Tyre Size		6.5X80-15
Required Power	hp	120-140	140-150	160-180	180-200
Weight with Fertilizer Hopper	kg	-	-	-	-
Weight with Fertilizer Hopper	Ibs	-	-	-	-
Weight with Fertilizer Hopper (Big)	kg	-	-	-	-
Weight with Fertilizer Hopper (Big)	Ibs	-	-	-	-
Weight without Fertilizer Hopper	kg	-	-	-	-
Weight without Fertilizer Hopper	Ibs	-	-	-	-
