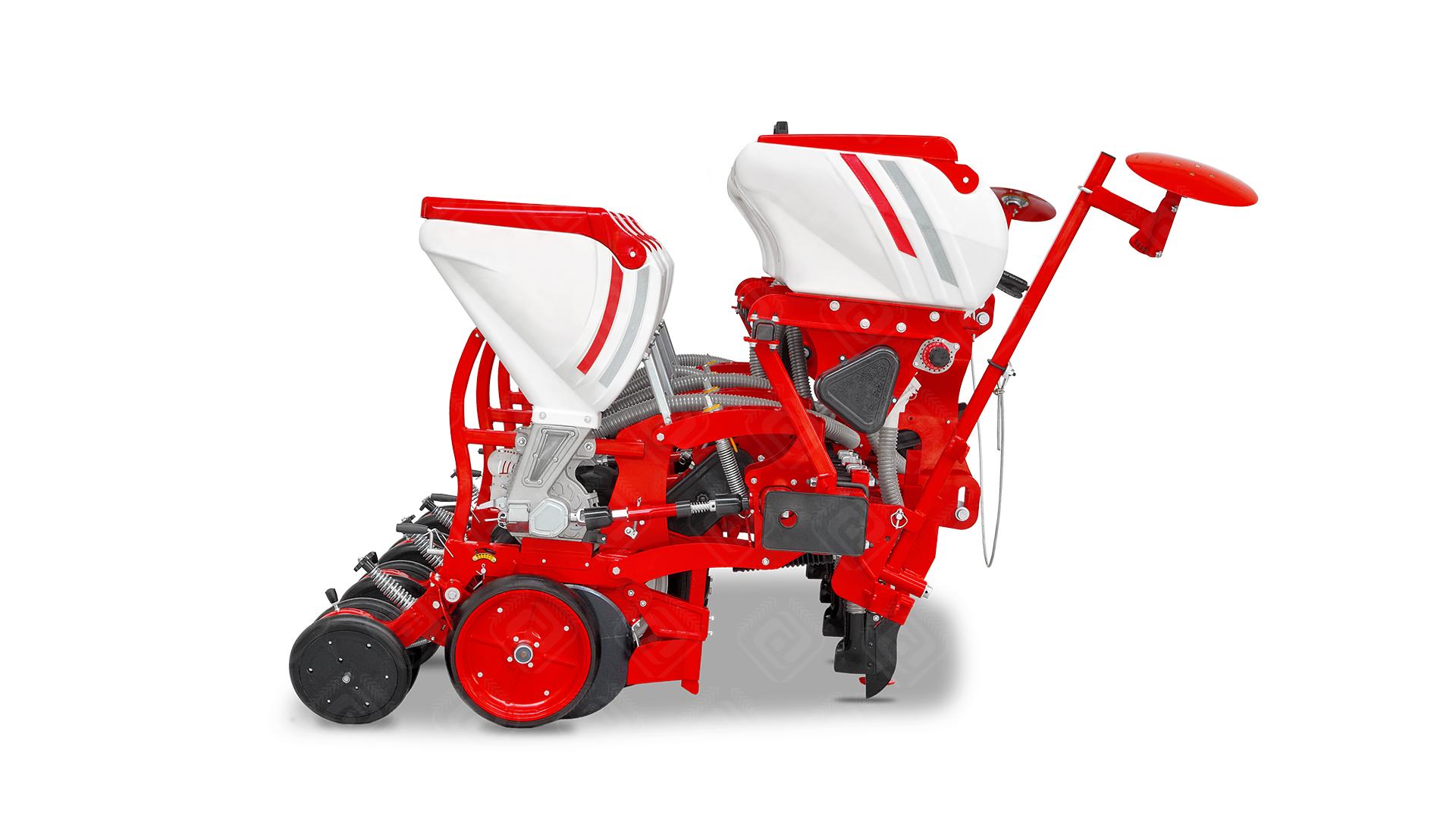

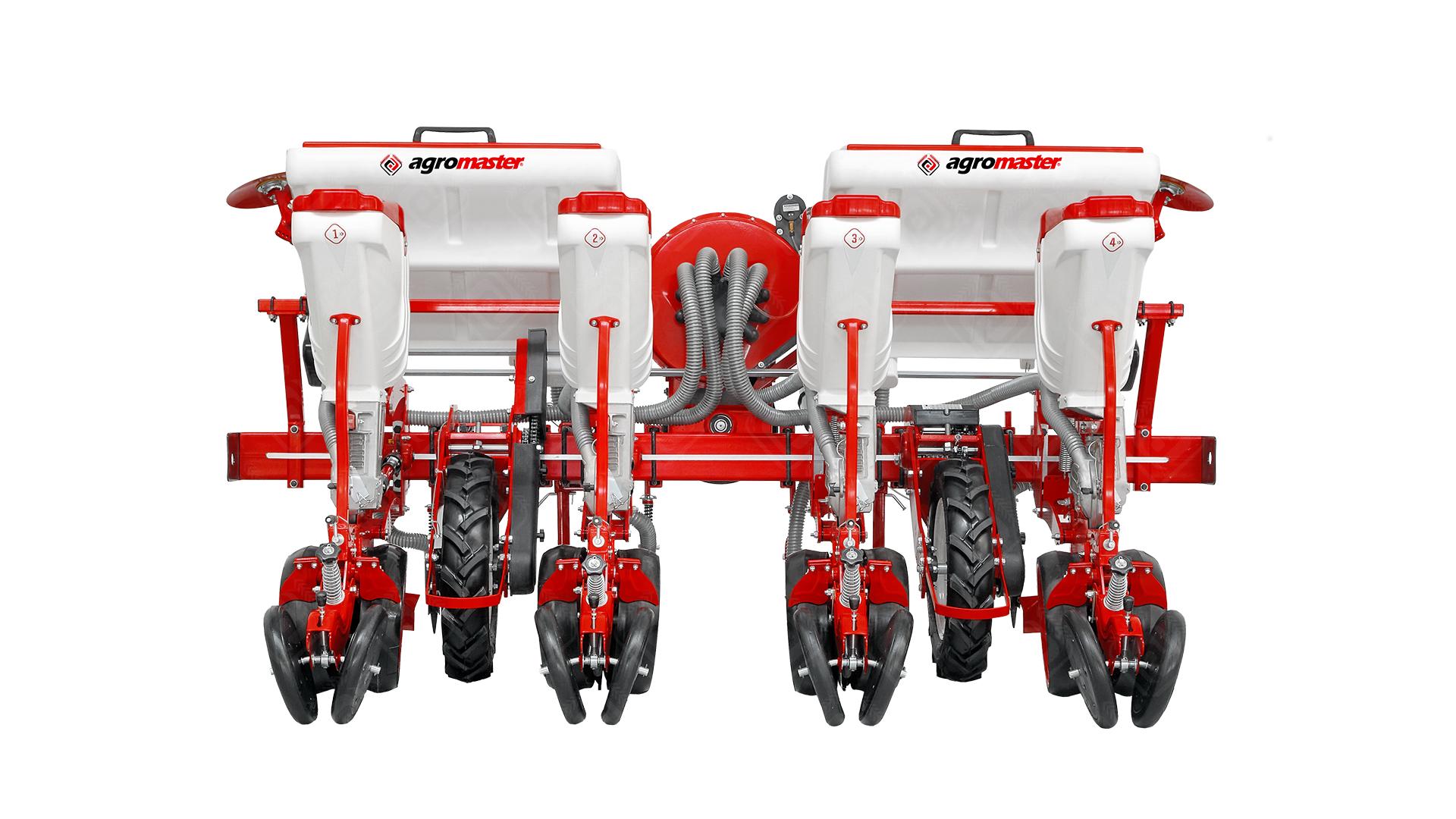

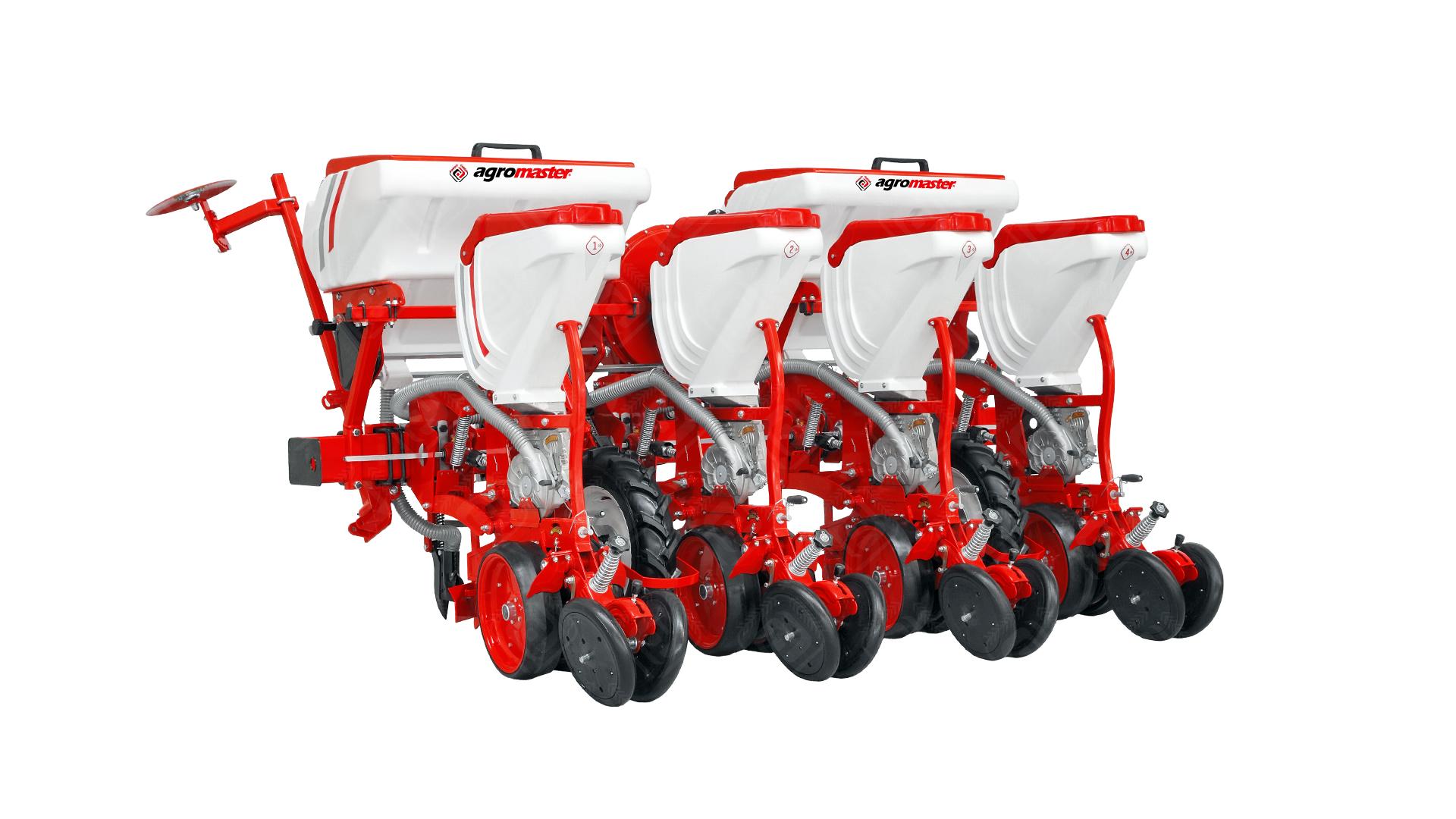

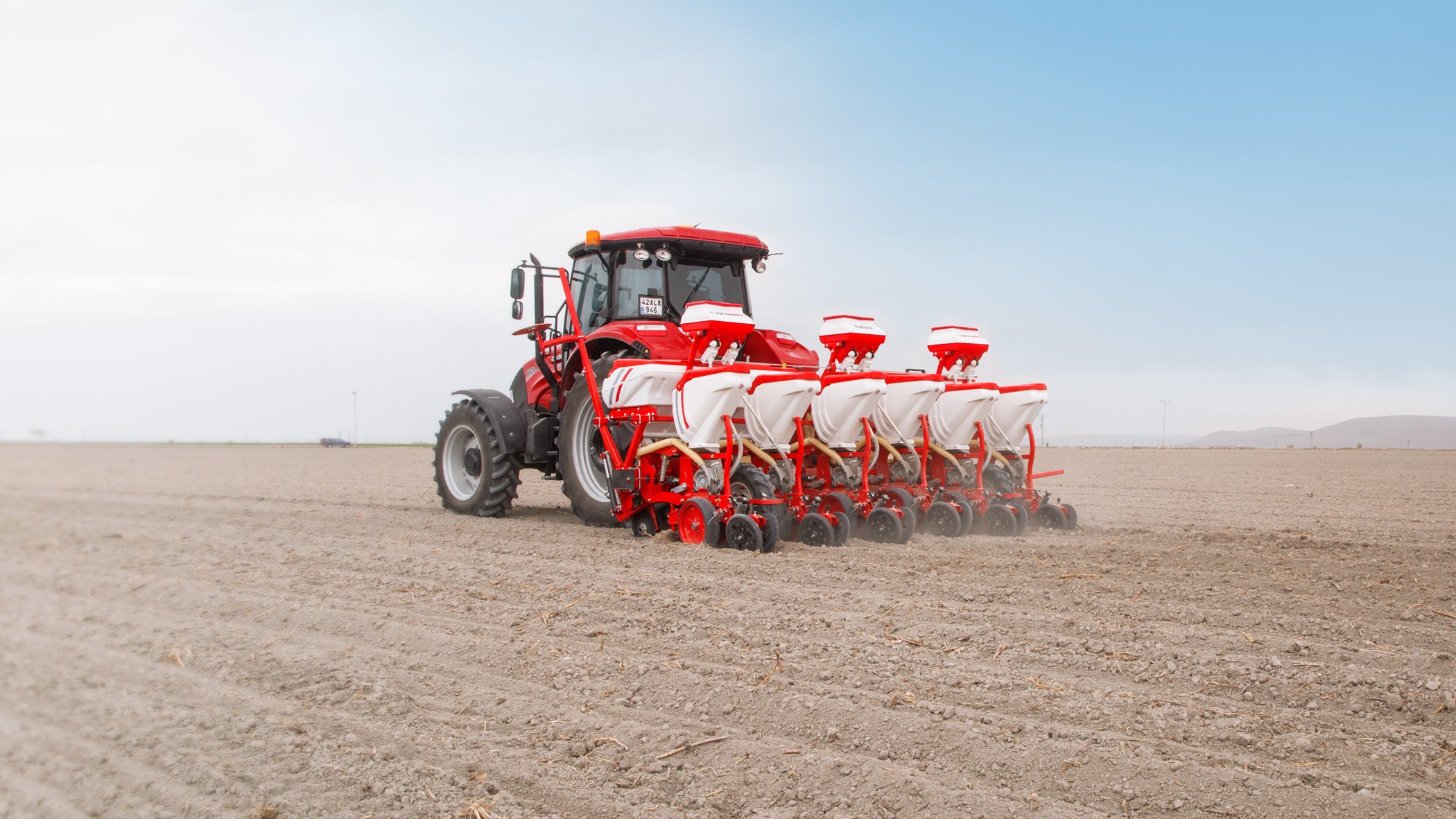

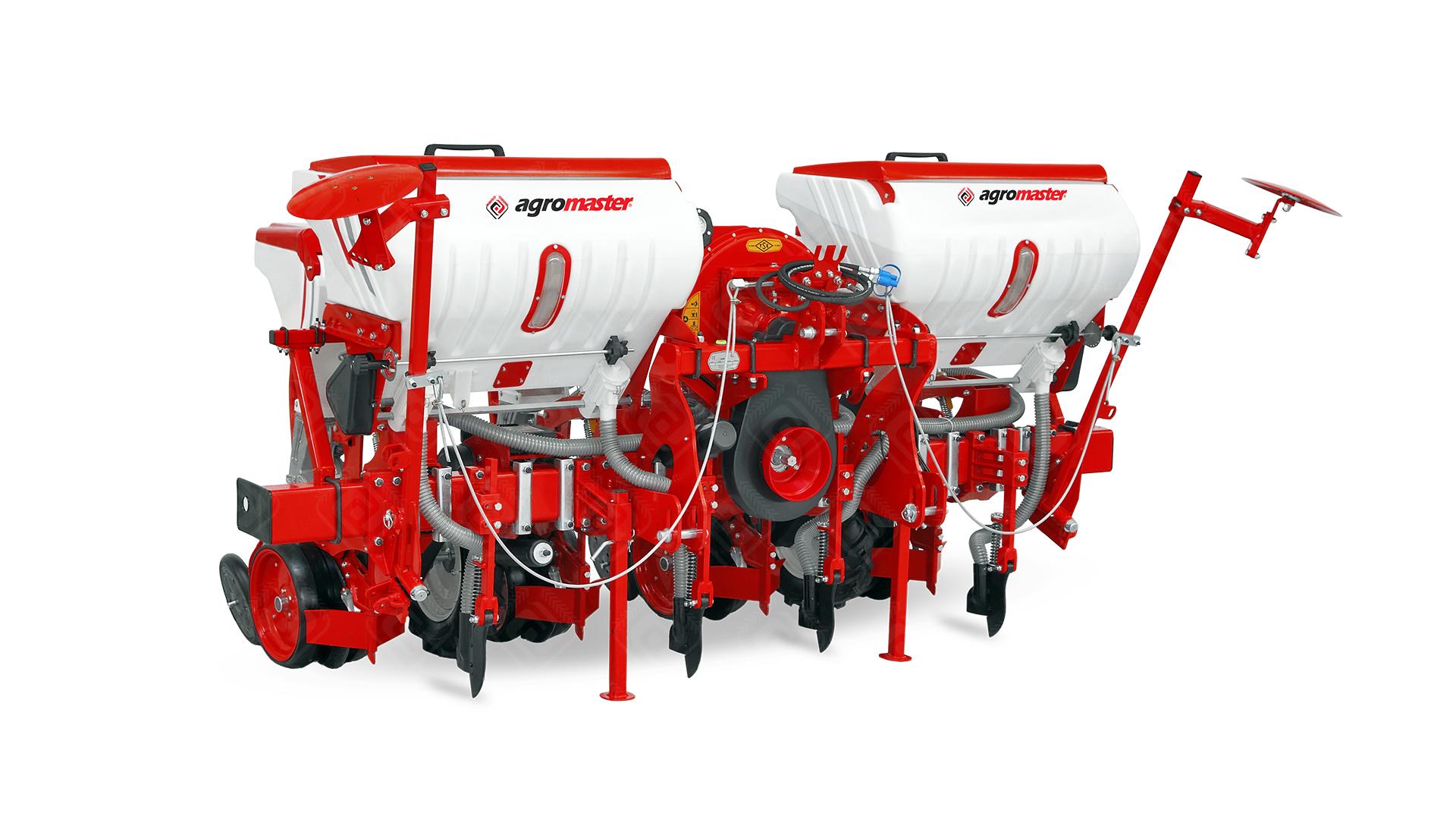

Pneumatic Precision Planters
Planter D Series Disc Type Pneumatic Precision Planters are produced from 2 rows to 12 rows. The row space between the planting units can be easily adjusted at the desired distance. It offers farmers convenience during planting with different options. For 4 rows , 6 rows and 12 rows planters, wheel movement transmission is provided with a one-way chain transmission system. For 8 rows and 10 rows planters, wheel movement transmission is provided with a twoway chain transmission system.
|
Technical Specificaions* |
Unit |
PLANTER D4 |
PLANTER D5 |
PLANTER D6 |
PLANTER D8 |
PLANTER D9 |
PLANTER D10 |
PLANTER D12 |
|
Number of Rows |
pcs |
4 |
5 |
6 |
8 |
9 |
10 |
12 |
|
Total Width (W) |
mm |
3000 |
3200 |
4200 |
5600 |
6500 |
7000 |
9000 |
|
ft.in. |
9'10" |
10'6" |
13'9" |
18'4" |
21'3" |
22'11" |
29'6" |
|
|
Total Length (L) |
mm |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
|
ft.in |
6'7" |
6'7" |
6'7" |
6'7" |
6'7" |
6'7" |
6'7" |
|
|
Total Height (H) |
mm |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
|
ft.in. |
5'11" |
5'11" |
5'11" |
5'11" |
5'11" |
5'11" |
5'11" |
|
|
Working Depth |
mm |
0-100 |
||||||
|
ft.in. |
0”-4” |
|||||||
|
Fertilizer Hopper Capacity |
kg |
160x2 |
160x2 |
200x2 |
160x4 |
160x4 |
160x6 |
160x6 |
|
Ibs |
352x2 |
352x2 |
440x2 |
352x4 |
352x4 |
352x4 |
352x4 |
|
|
Fertilizer Hopper Capacity (Big) |
kg |
790 |
790 |
950 |
- |
- |
- |
- |
|
Ibs |
1741 |
1741 |
2094 |
- |
- |
- |
- |
|
|
Seed Hopper Volume |
dm3 |
40x4 |
40x5 |
40x6 |
40x8 |
40x9 |
40x10 |
40x12 |
|
Space Between Rows (B) |
mm |
350-800 |
350-800 |
350-800 |
350-800 |
350-800 |
350-800 |
350-800 |
|
ft.in. |
1'8"-2'7" |
1'8"-2'7" |
1'8"-2'7" |
1'8"-2'7" |
1'8"-2'7" |
1'8"-2'7" |
1'8"-2'7" |
|
|
Working Speed |
km/h |
4-8 |
||||||
|
PTO Rotation |
rpm |
540 |
||||||
|
Tyre Size |
500-15 |
500-15 |
6.5x80-15 |
6.5x80-15 |
6.5x80-15 |
500-15 |
500-15 |
|
|
Required Power |
hp |
60-65 |
70-75 |
85-90 |
100-110 |
120-130 |
140-150 |
150-180 |
|
Weight with Fertilizer Hopper |
kg |
1000 |
1200 |
1425 |
2050 |
- |
- |
- |
|
Ibs |
2204 |
2645 |
3141 |
4519 |
- |
- |
- |
|
|
Weight with Fertilizer Hopper (Big) |
kg |
1150 |
1350 |
1625 |
- |
- |
- |
- |
|
Ibs |
2535 |
2976 |
3582 |
- |
- |
- |
- |
|
|
Weight without Fertilizer Hopper |
kg |
820 |
960 |
1150 |
1550 |
- |
- |
- |
|
Ibs |
1807 |
2116 |
2535 |
3417 |
- |
- |
- |
|
