Pneumatic Precision Planters

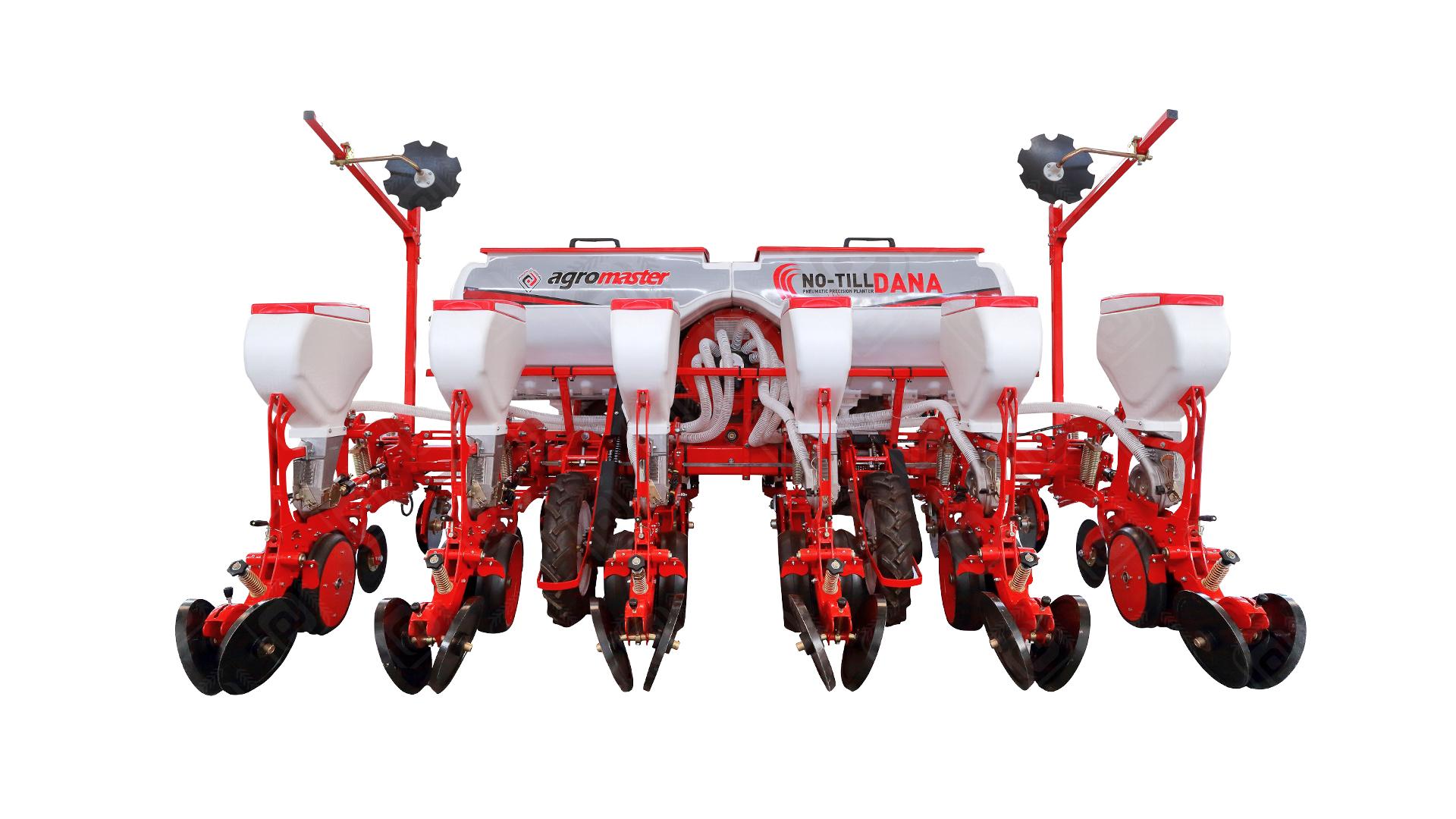

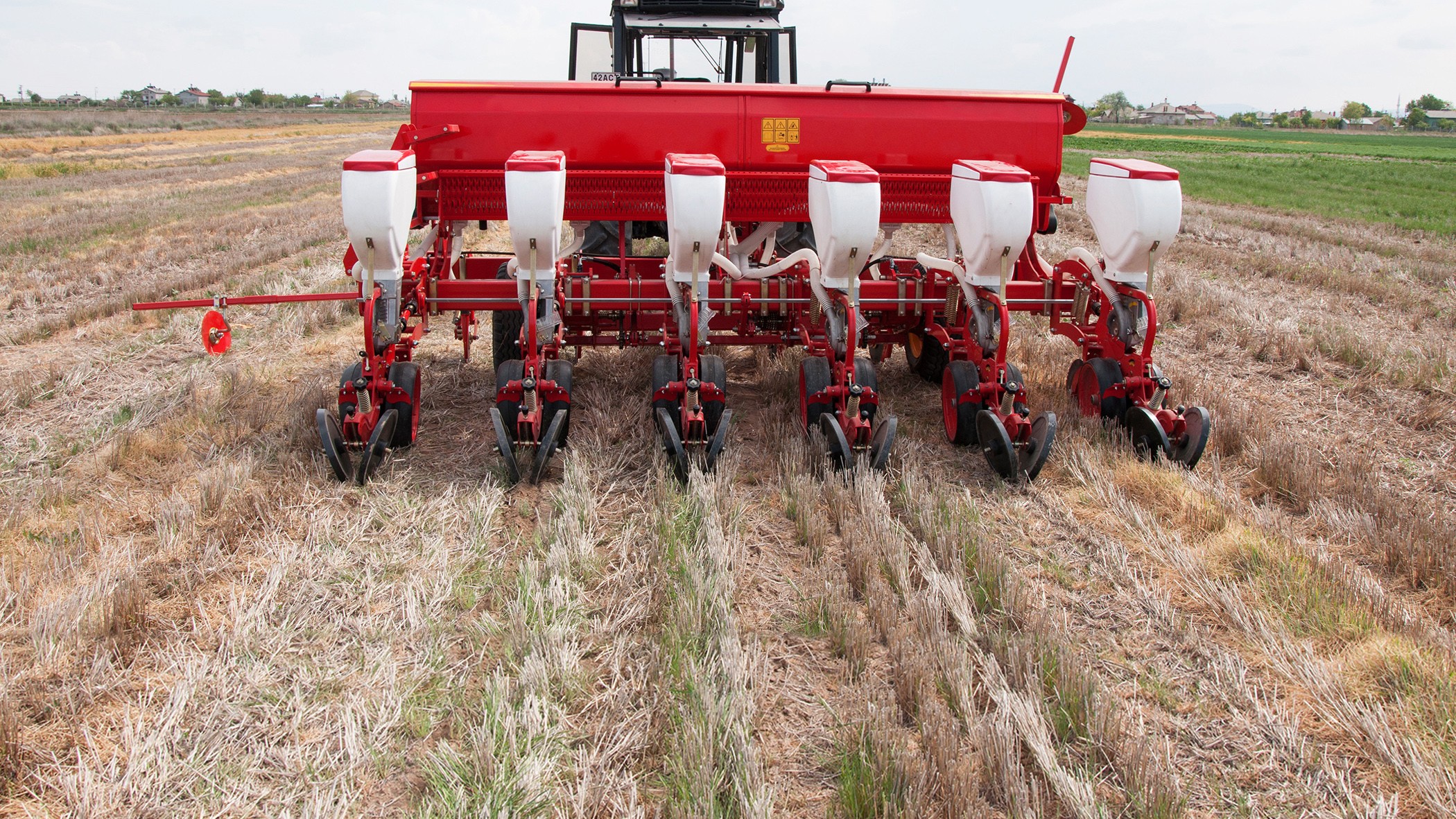

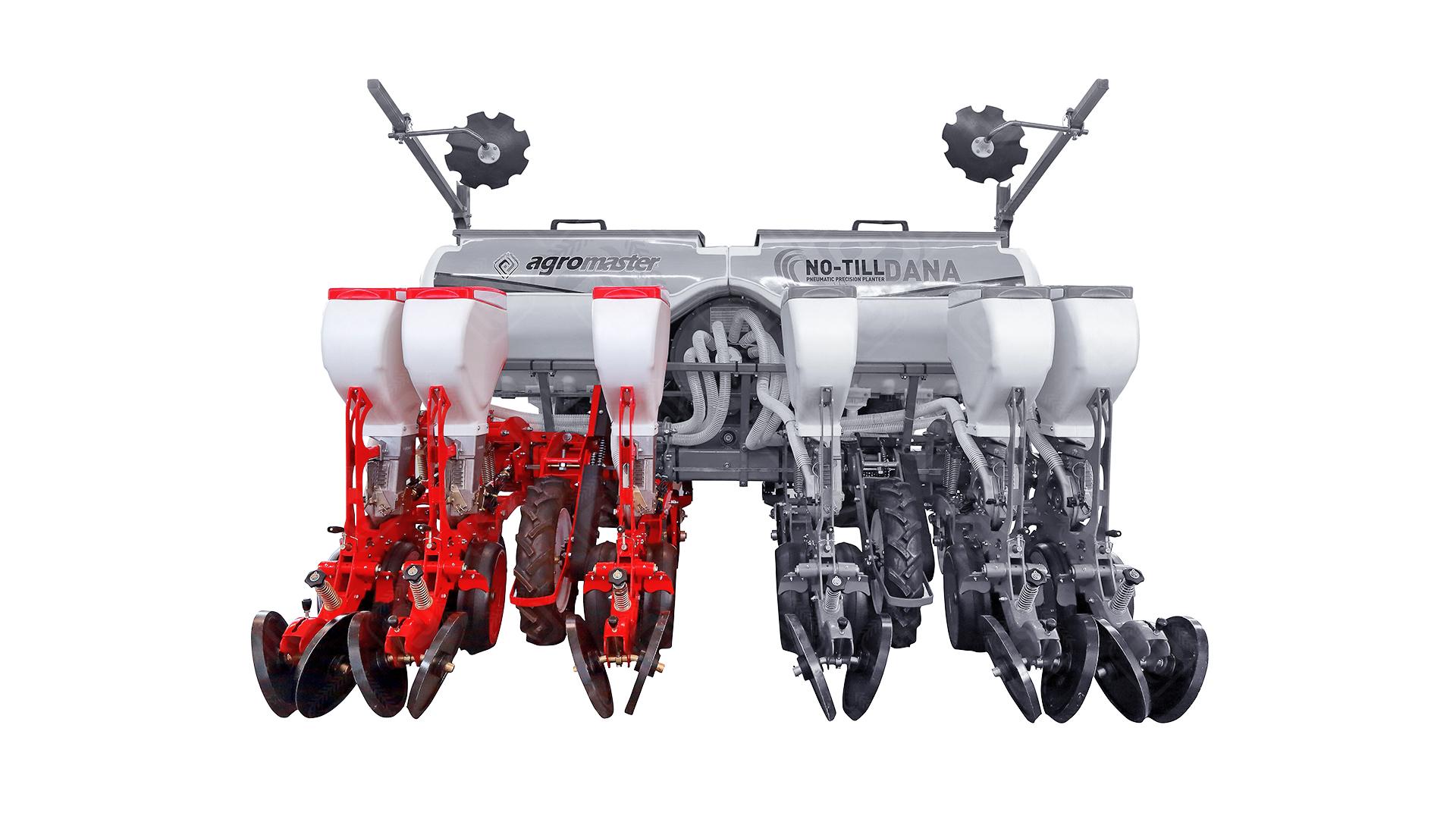

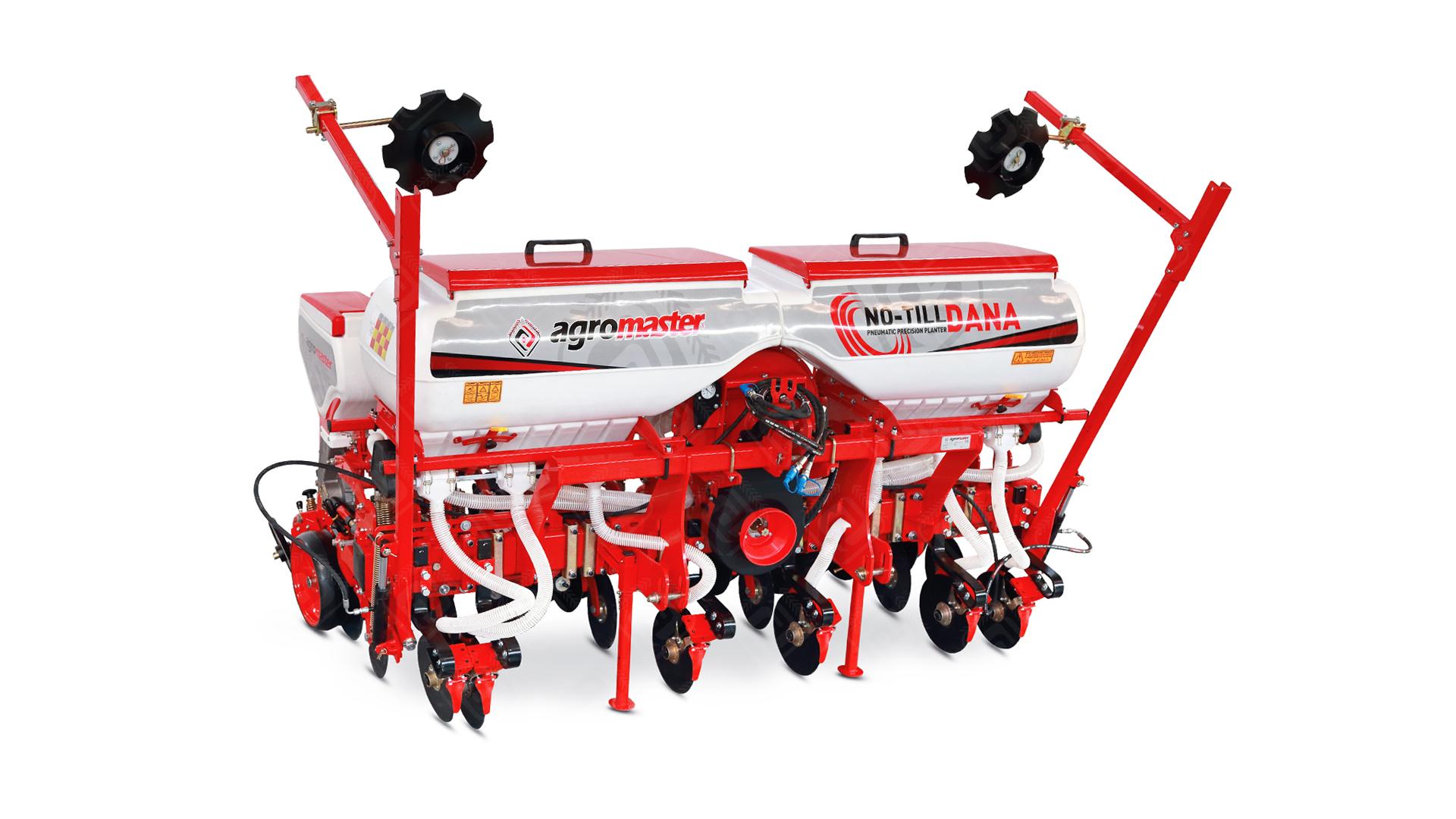

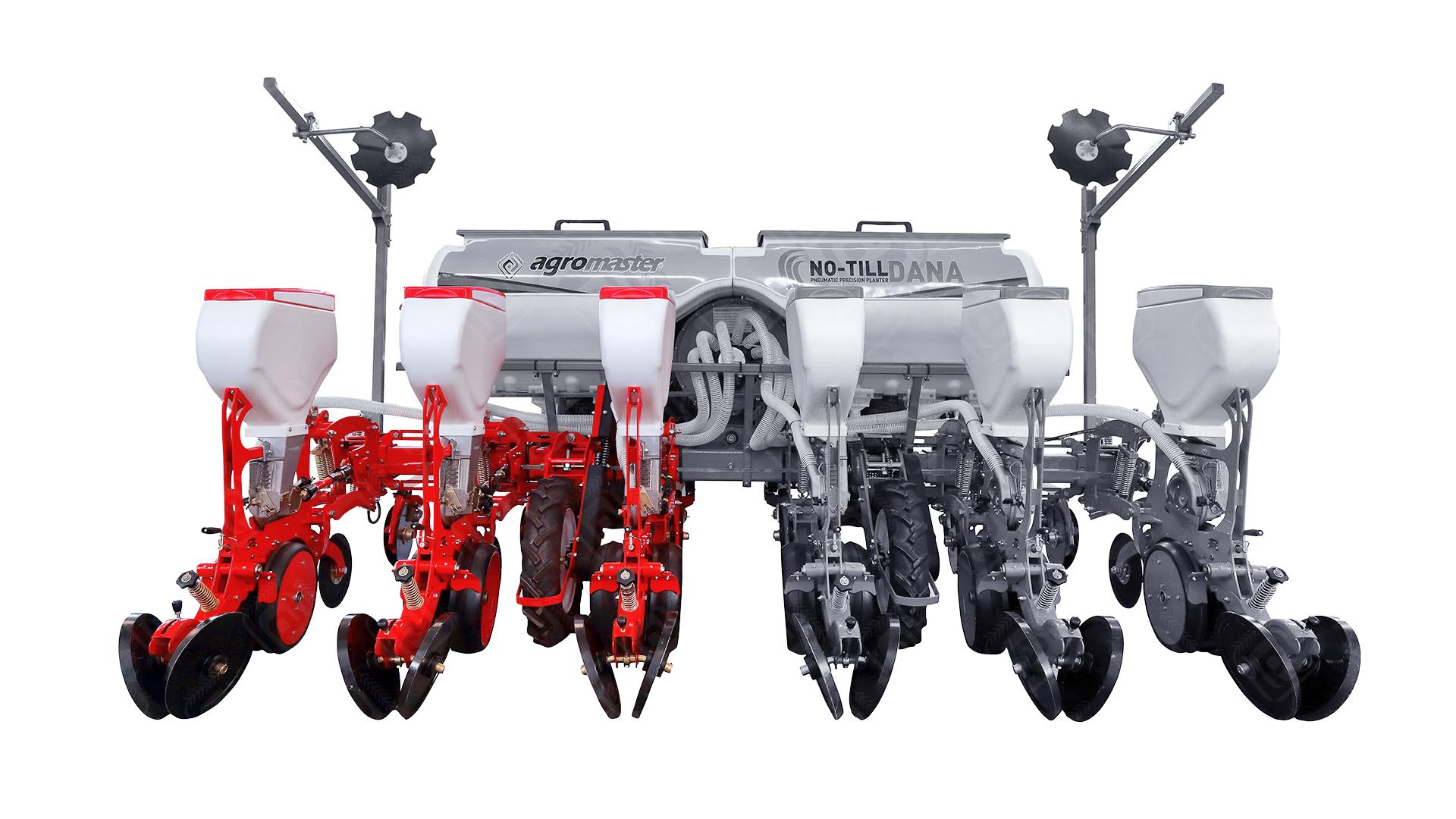

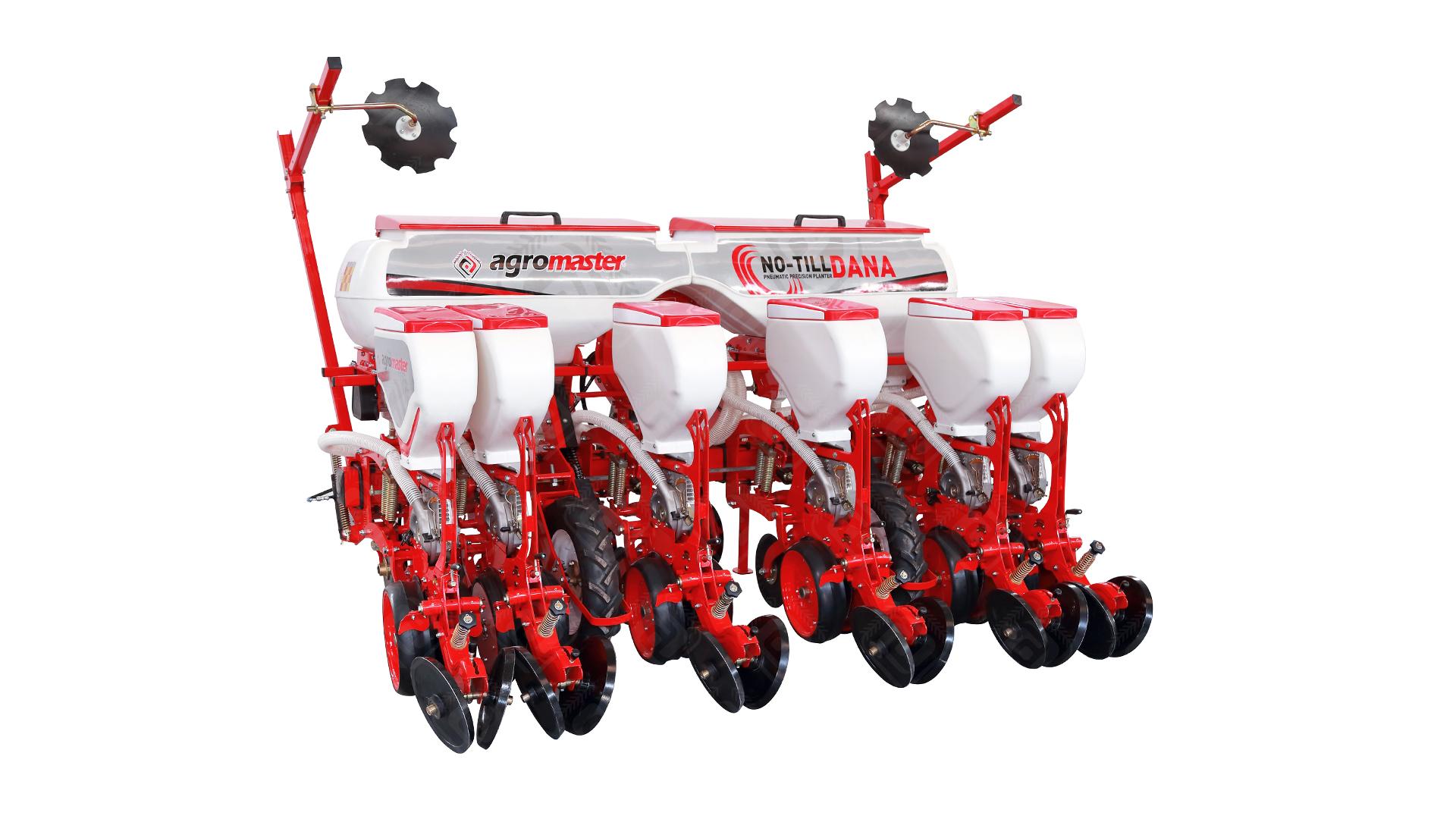

The NO-TILL Pneumatic Precision Planter Disc Type, Mounted – DANA M is designed to perform precise planting directly into untilled soil while preserving soil structure and moisture. Its disc-type no-till units cut through crop residue efficiently, ensuring accurate seed placement and uniform planting depth. The mounted design provides excellent maneuverability and easy attachment to the tractor, while the pneumatic precision metering system delivers consistent seed spacing for improved crop emergence and higher field productivity.
|
Technical Specificaions* |
Unit |
DANA M4 |
DANA M6 |
DANA M8 |
|
Number of Rows |
pcs |
4 |
6 |
8 |
|
Total Width (W) |
mm |
2800 |
4200 |
5600 |
|
ft.in. |
9'2" |
13'9" |
18'4" |
|
|
Transport Width (W1) |
mm |
2800 |
3000 |
5600 |
|
ft.in. |
9'2" |
9'10" |
18’4” |
|
|
Total Length (L) |
mm |
2000 |
2000 |
2000 |
|
ft.in. |
6'7" |
6'7" |
6'7" |
|
|
Total Height (H) |
mm |
2050 |
2050 |
2050 |
|
ft.in. |
6'9" |
6'9" |
6'9" |
|
|
Working Depth |
mm |
0-100 |
||
|
ft.in. |
0"-4" |
|||
|
Fertilizer Hopper Capacity |
L |
160x2 |
200x2 |
160x4 |
|
gallon |
42x2 |
52x2 |
42x4 |
|
|
Fertilizer Hopper Capacity (Big) |
L |
790 |
900 |
1248 |
|
gallon |
208 |
237 |
329 |
|
|
Seed Hopper Capacity |
dm3 |
40x4 |
40x6 |
40x8 |
|
Space Between Rows (B) |
mm |
450-800 |
450-800 |
450-800 |
|
ft.in. |
1'6"-2'7" |
1'6"-2'7" |
1'6"-2'7" |
|
|
Working Speed |
km/h |
4-8 |
||
|
PTO Rotation |
rpm |
540 |
||
|
Tyre Size |
6.5X80-15 |
|||
|
Required Power |
hp |
80-90 |
90-110 |
120-130 |
|
Weight with Fertilizer Hopper |
kg |
1300 |
1750 |
2400 |
|
Ibs |
2866 |
3858 |
5291 |
|
|
Weight with Fertilizer Hopper (Big) |
kg |
1525 |
1875 |
2530 |
|
Ibs |
3362 |
4133 |
5577 |
|
|
Weight without Fertilizer Hopper |
kg |
1030 |
1550 |
2100 |
|
Ibs |
2270 |
3417 |
4629 |
|
