PLANTER DKK

Pneumatic Precision Planters

PLANTER DKK

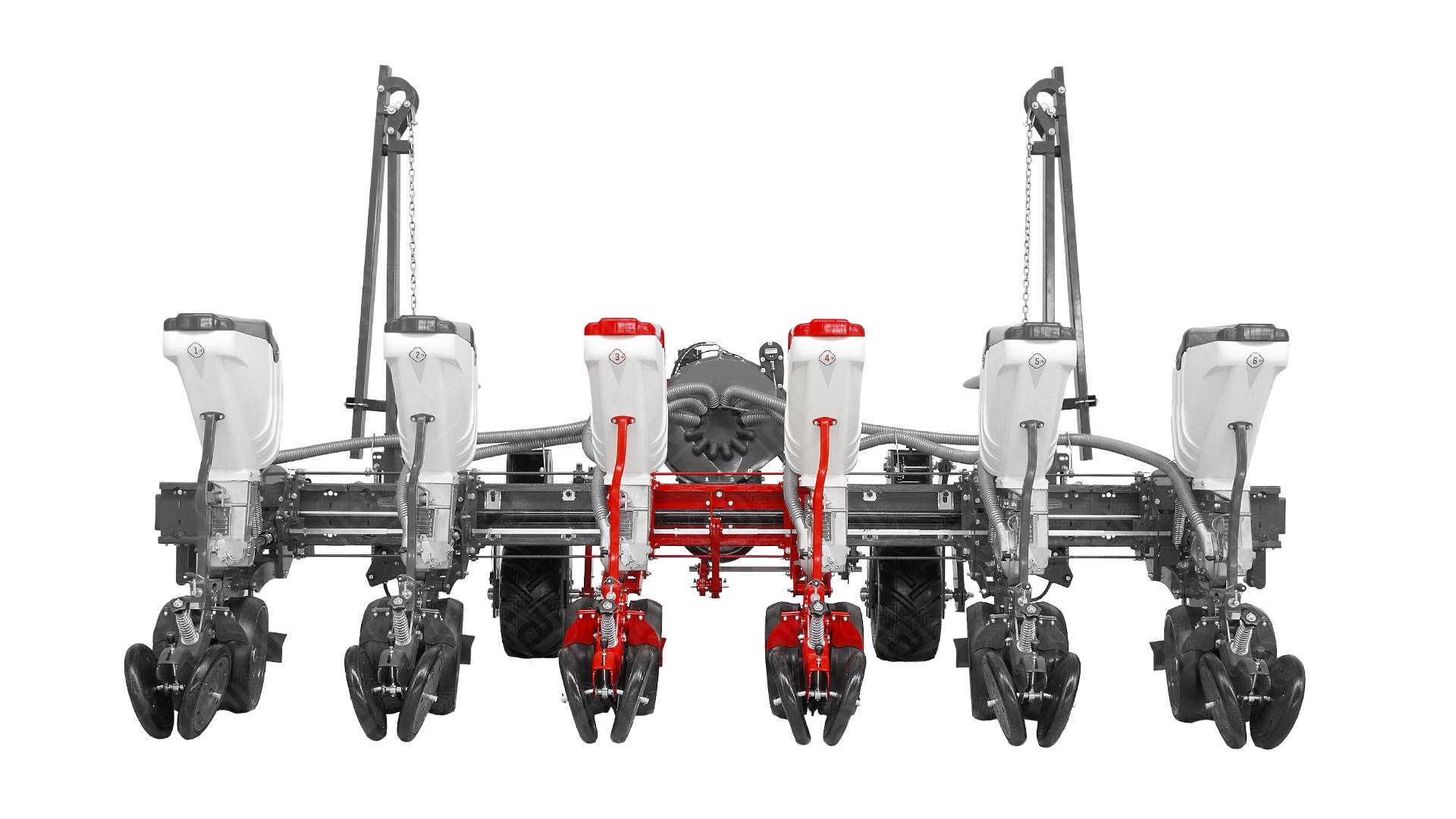

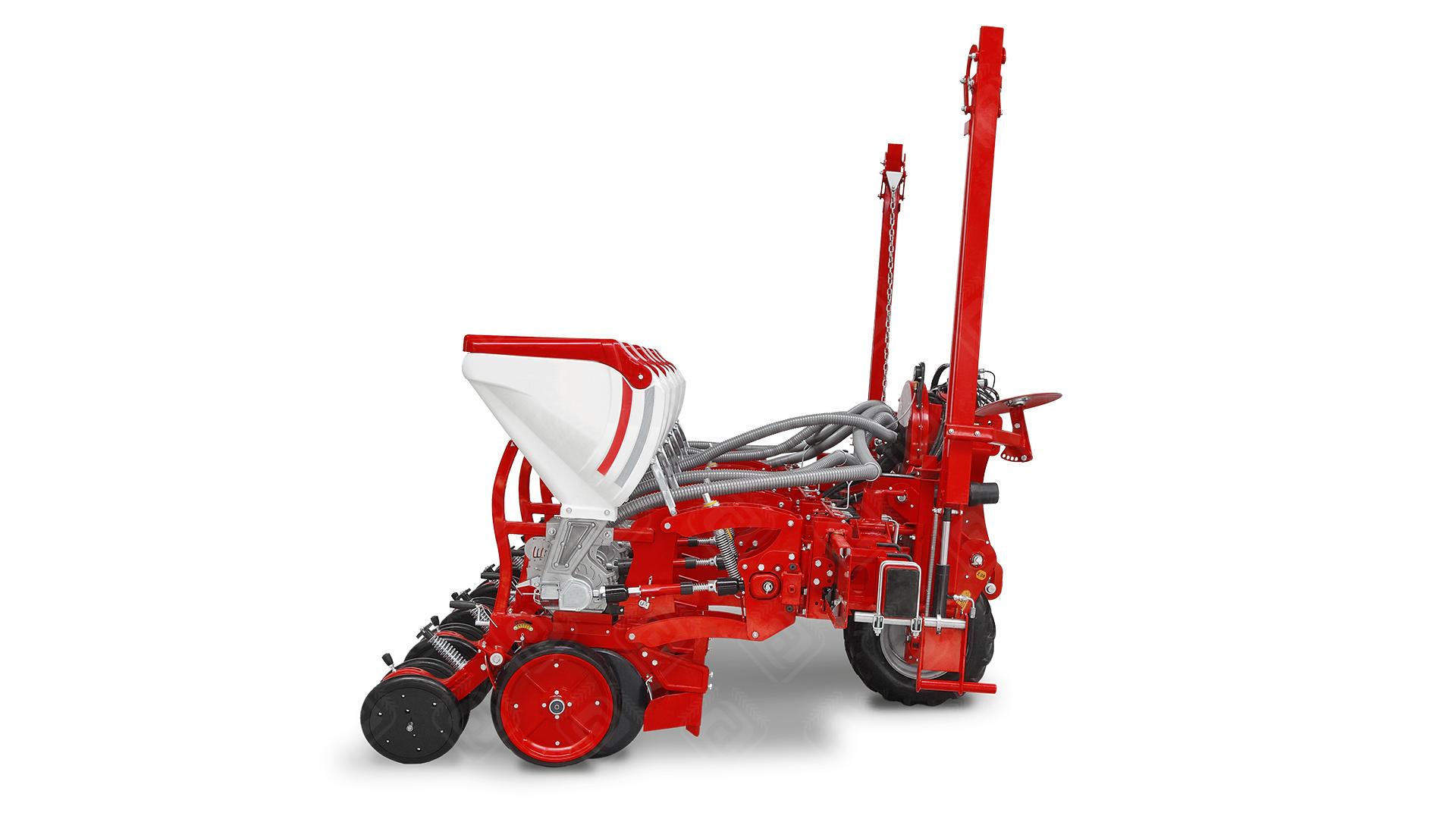

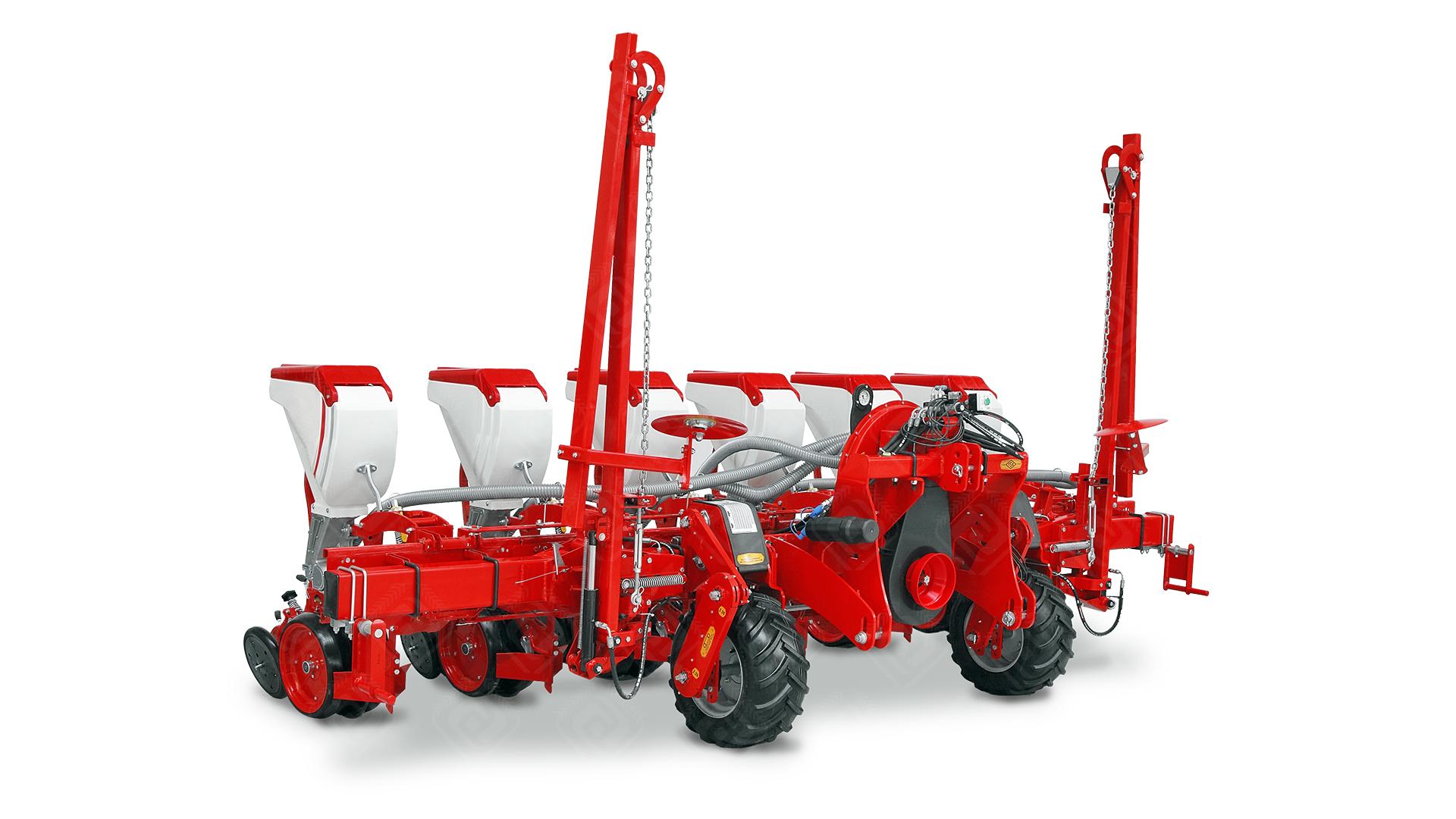

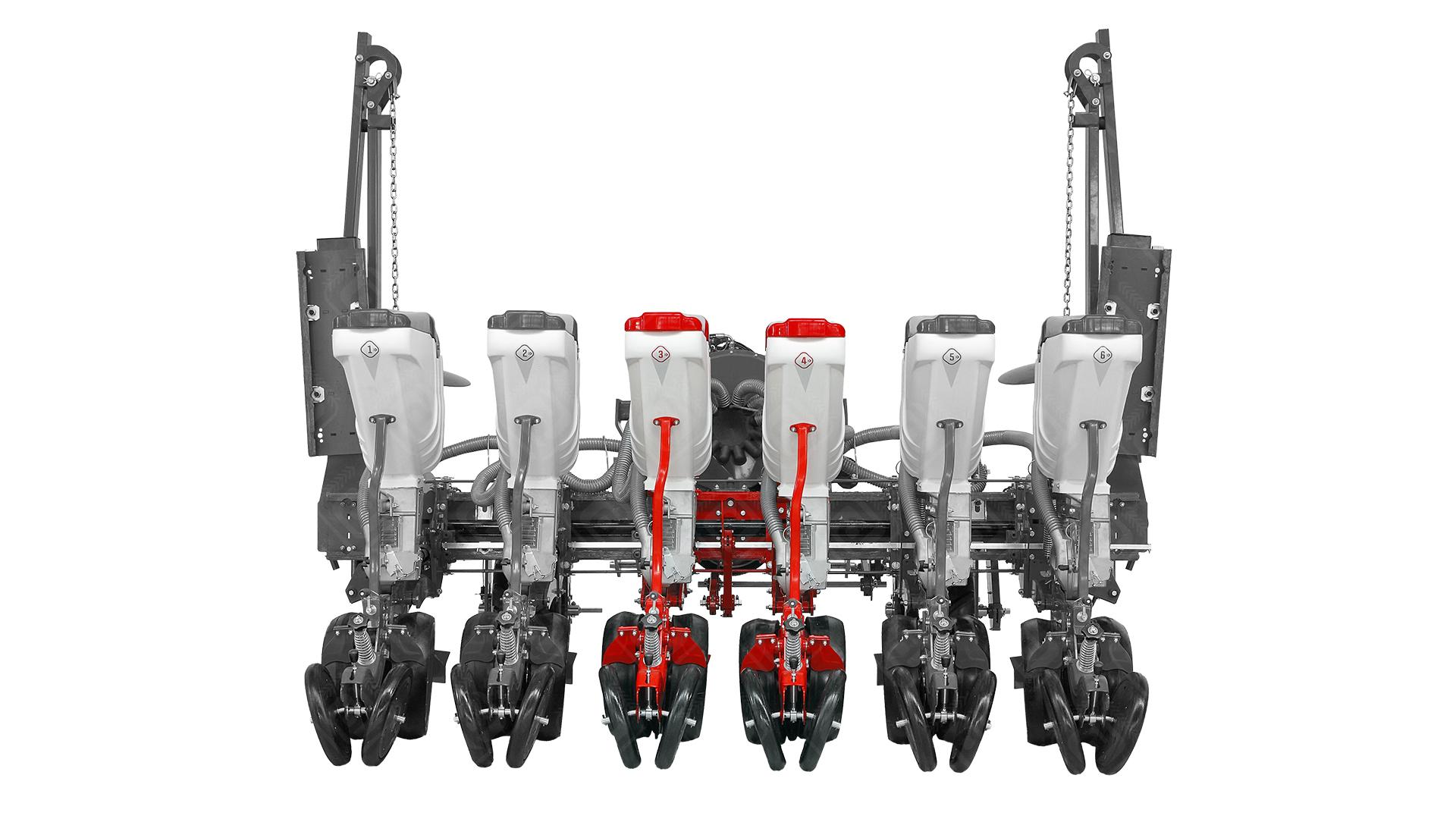

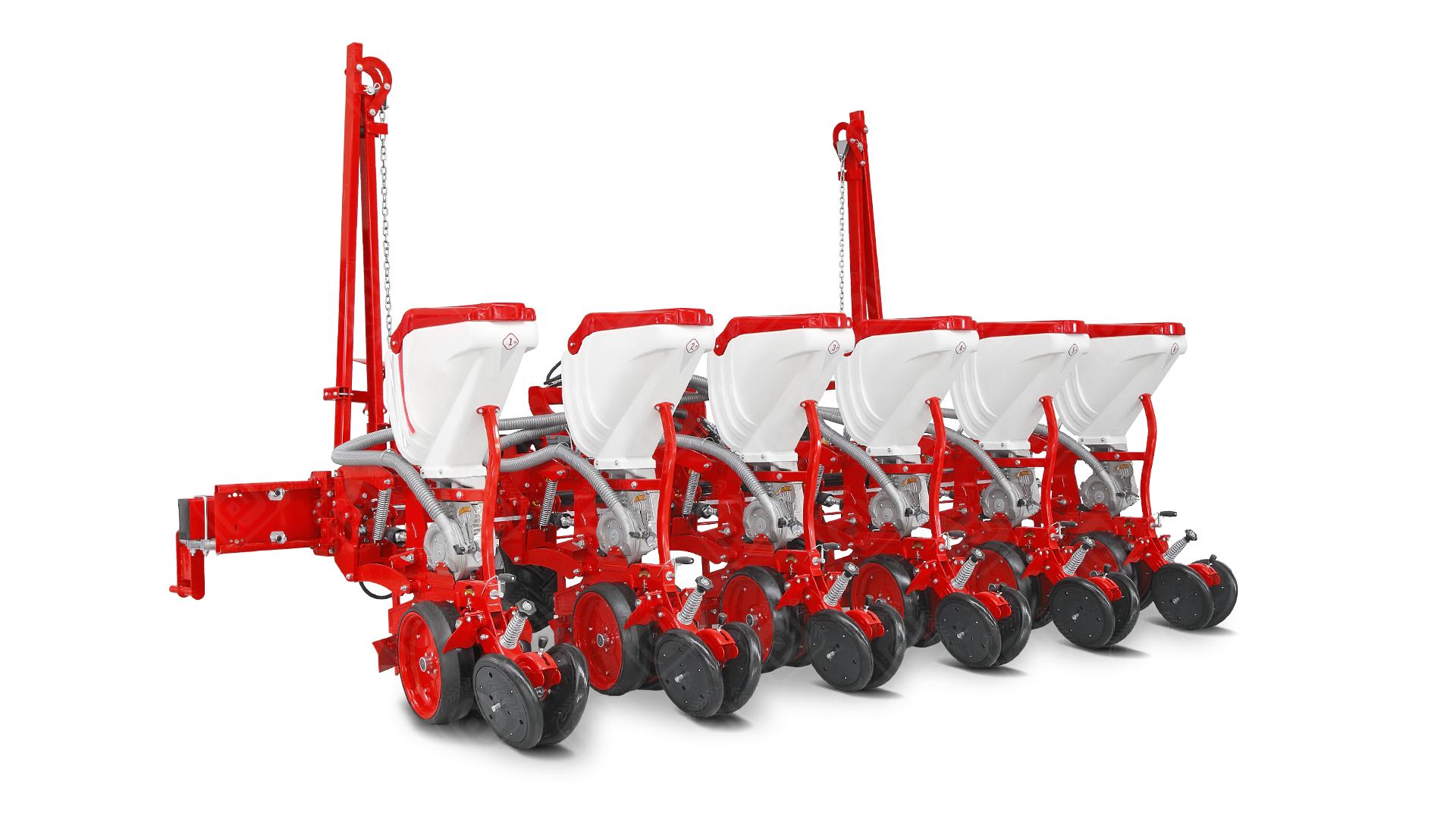

PNEUMATIC PRECISION PLANTER DISC TYPE, VARY SPACE FOLDABLE, HYDRAULIC ROW SPACE CONTROL

DESCRIPTION

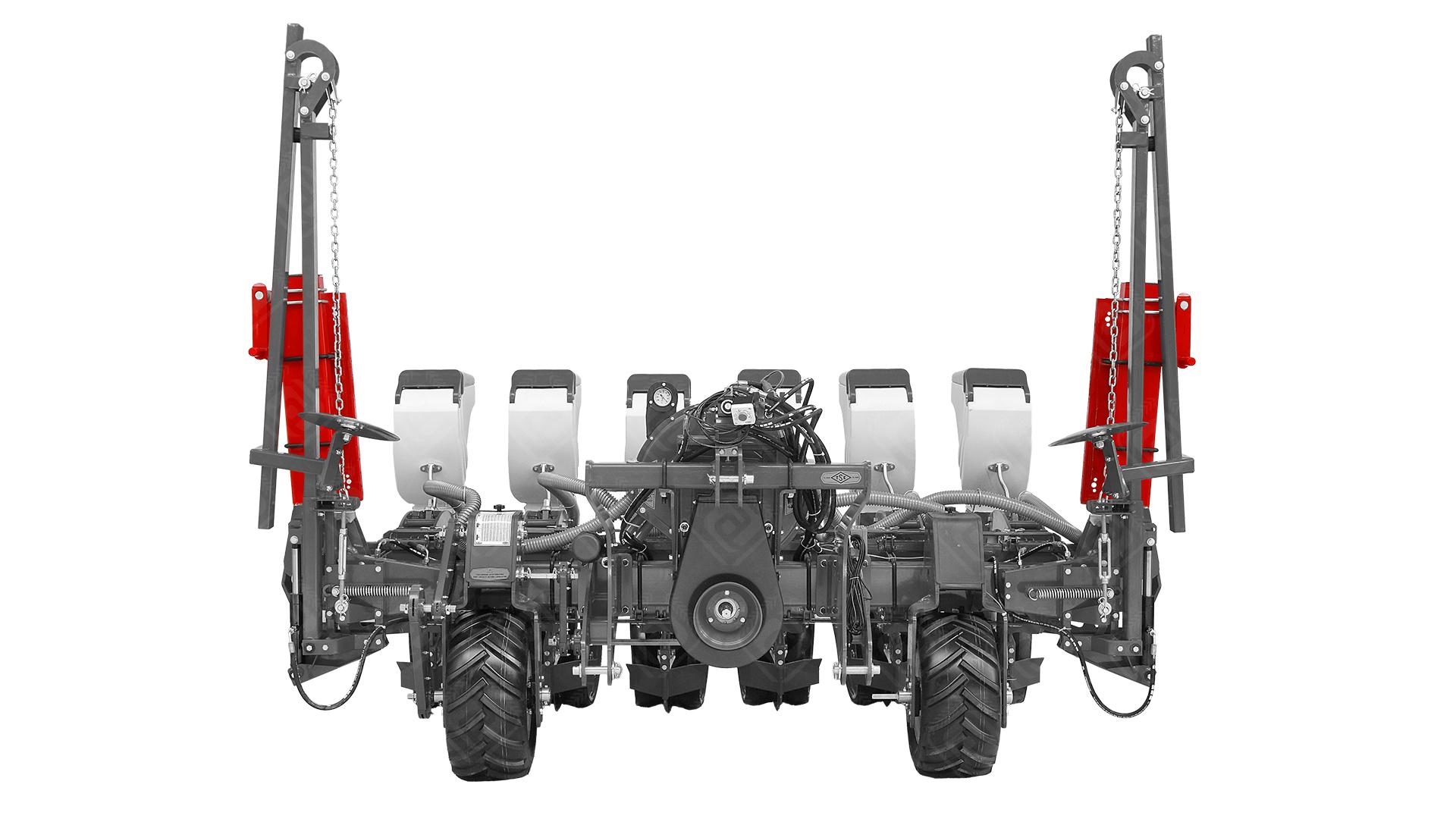

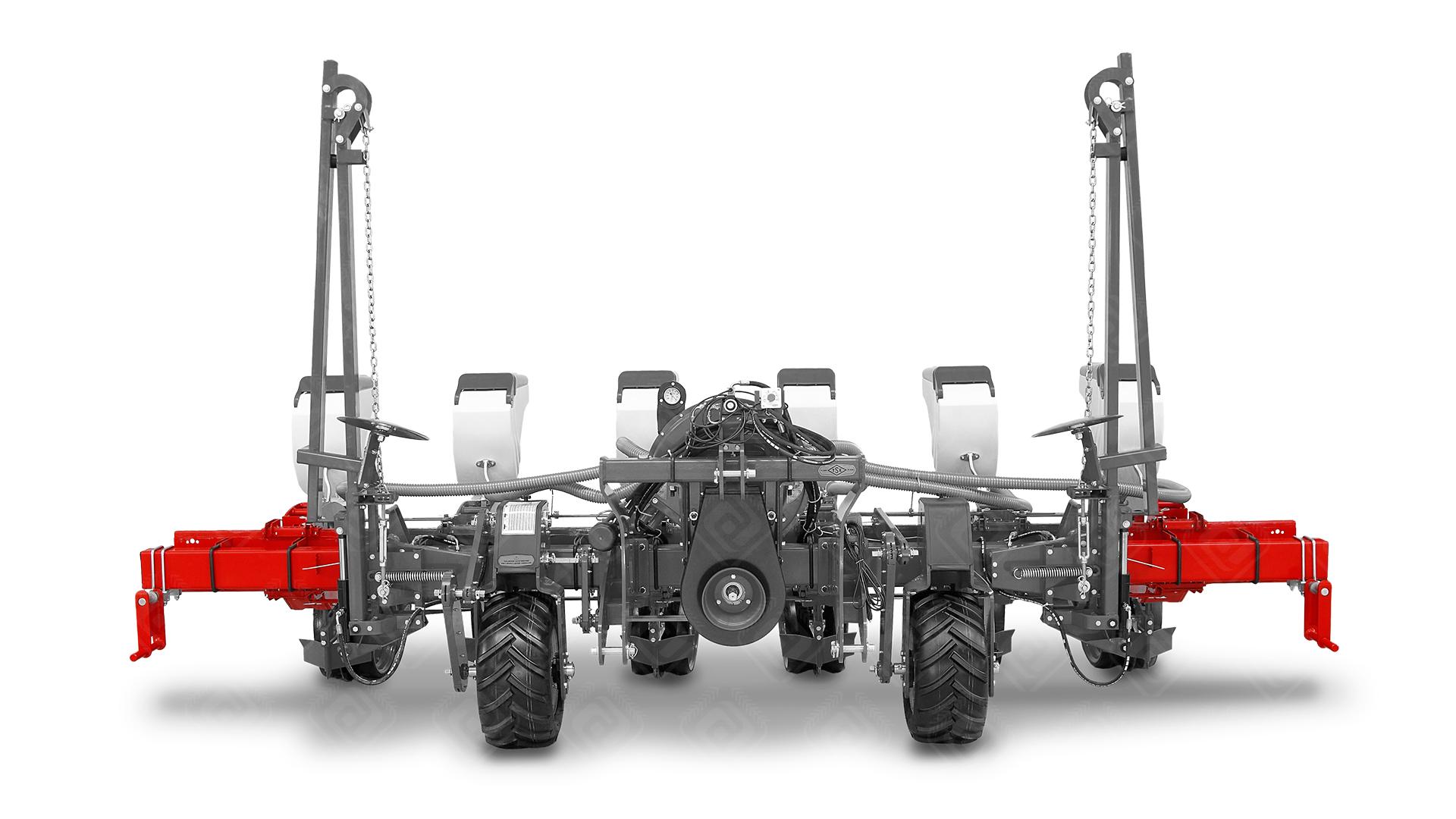

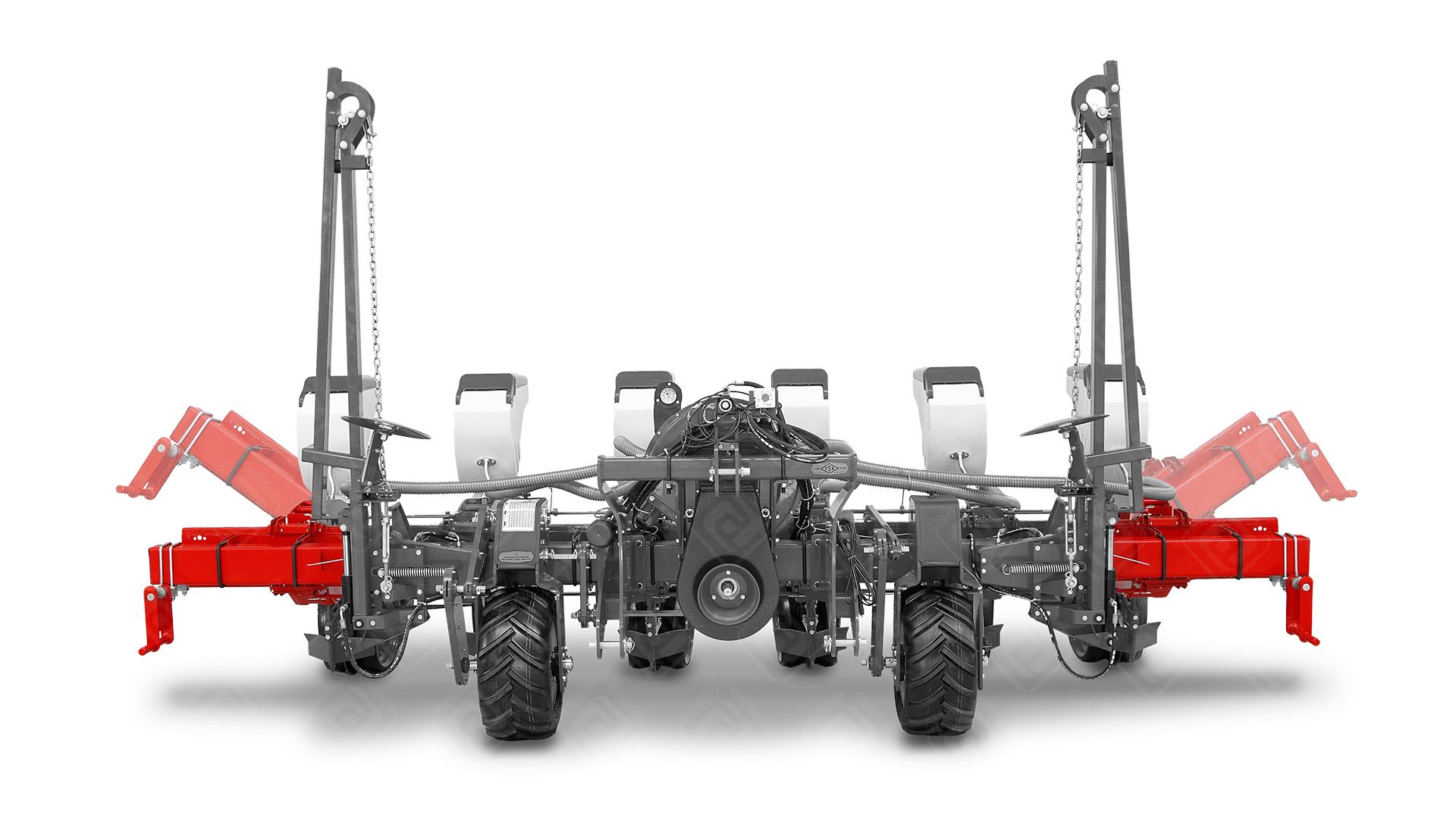

These planters are designed on the principle of multifunctionality, maximum efficiency and easy use. As Standart, Row space of these planters can be adjusted between 45-70 cm very easily from tractor cabin in 12-15 seconds. As Option, It can adjusted between 45-95 cm. Thanks to its foldable frame, it enables to easy transportation of planter to the field.

TECHNICAL SPECIFICATIONS

Technical Specificaions*	Unit	PLANTER DKK6	PLANTER DKK7	PLANTER DKK8
Number of Rows	pcs	6	7	8
Total Width (W)	mm	5000	-	6200
Total Width (W)	ft.in.	16'4"	-	20'4"
Total Length (L)	mm	2500	2500	2500
Total Length (L)	ft.in.	8'2"	8'2"	8'2"
Total Height (H)	mm	1800	1800	1800
Total Height (H)	ft.in.	5'10"	5'10"	5'10"
Working Depth	mm	0-100
Working Depth	ft.in.	0”-4”
Seed Hopper Volume	dm³	40x6	40x7	40x8
Space Between Rows (B)(as Standart)	mm	450-700	450-700	450-700
Space Between Rows (B)(as Standart)	ft.in.	1'6"-2'4"	1'6"-2'4"	1'6"-2'4"
Space Between Rows (B)(as Option)	mm	450-950	450-950	450-950
Space Between Rows (B)(as Option)	ft.in.	1'6"-3'1"	1'6"-3'1"	1'6"-3'1"
Working Speed	km/h	4-8
PTO Rotation	rpm	540
Tyre Size		23-10.5x12
Required Power	hp	100	115	130
Weight	kg	-	-	-
Weight	Ibs	-	-	-
