PLANTER A TRAILED

Pneumatic Precision Planters

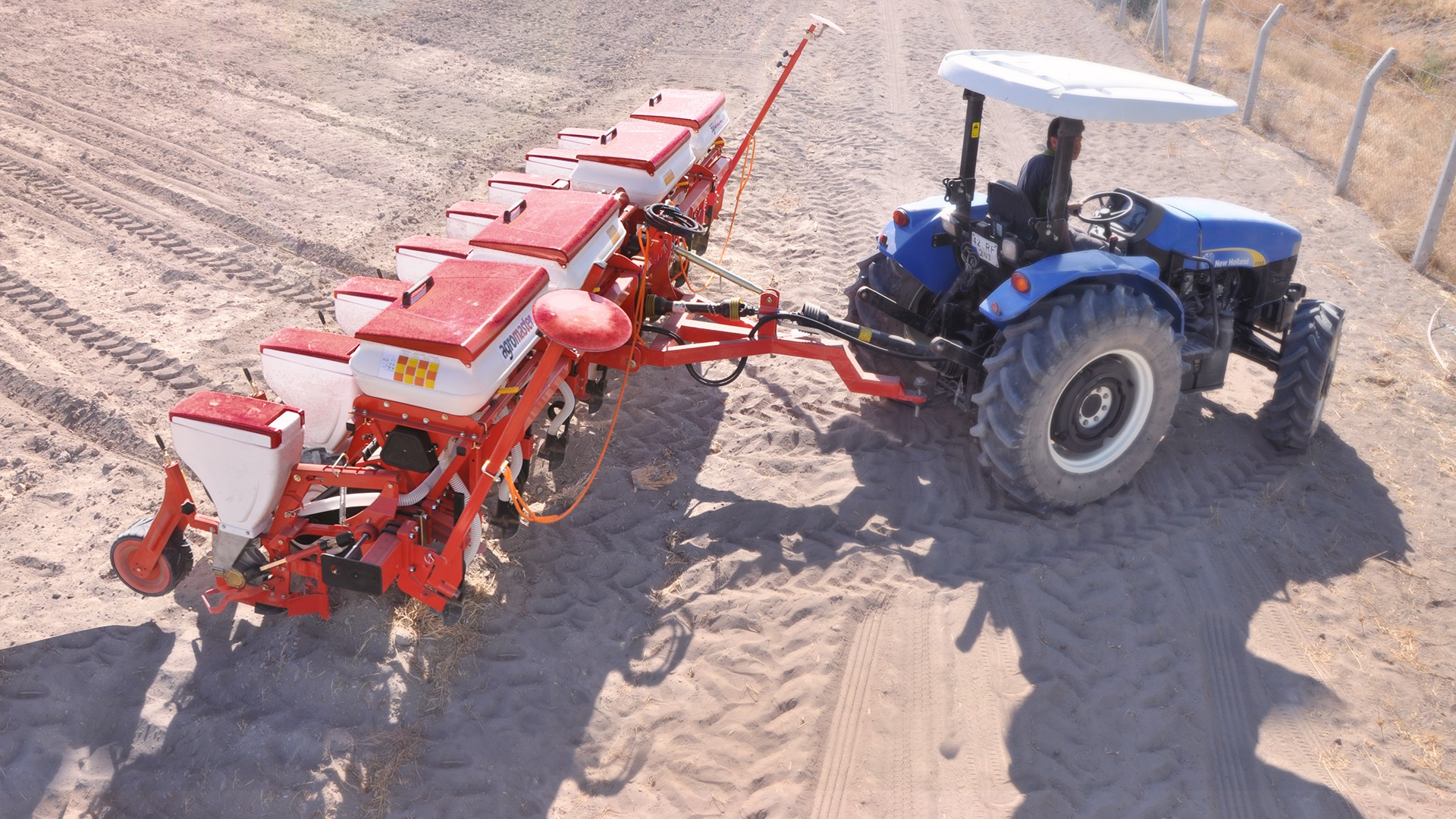

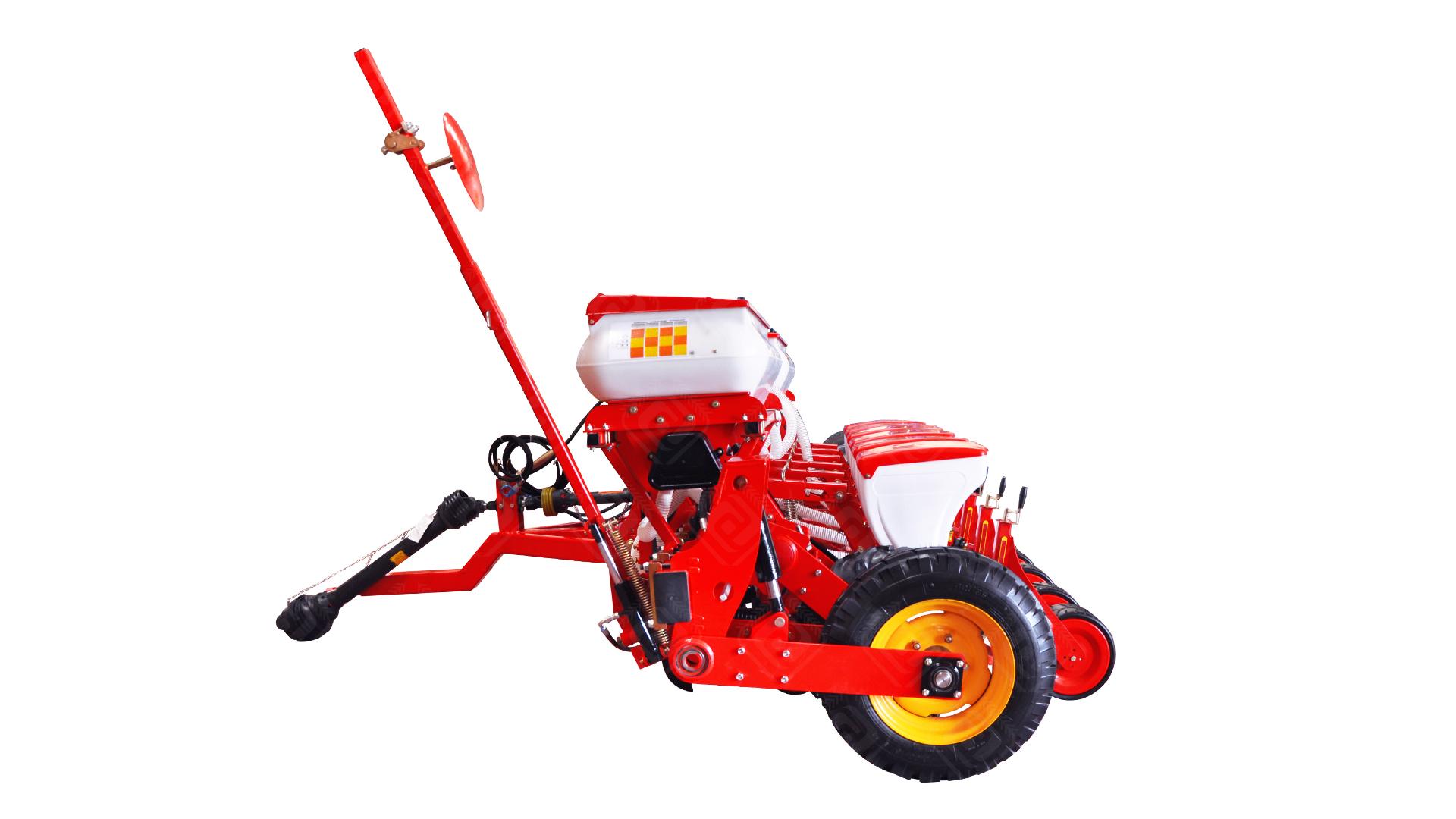

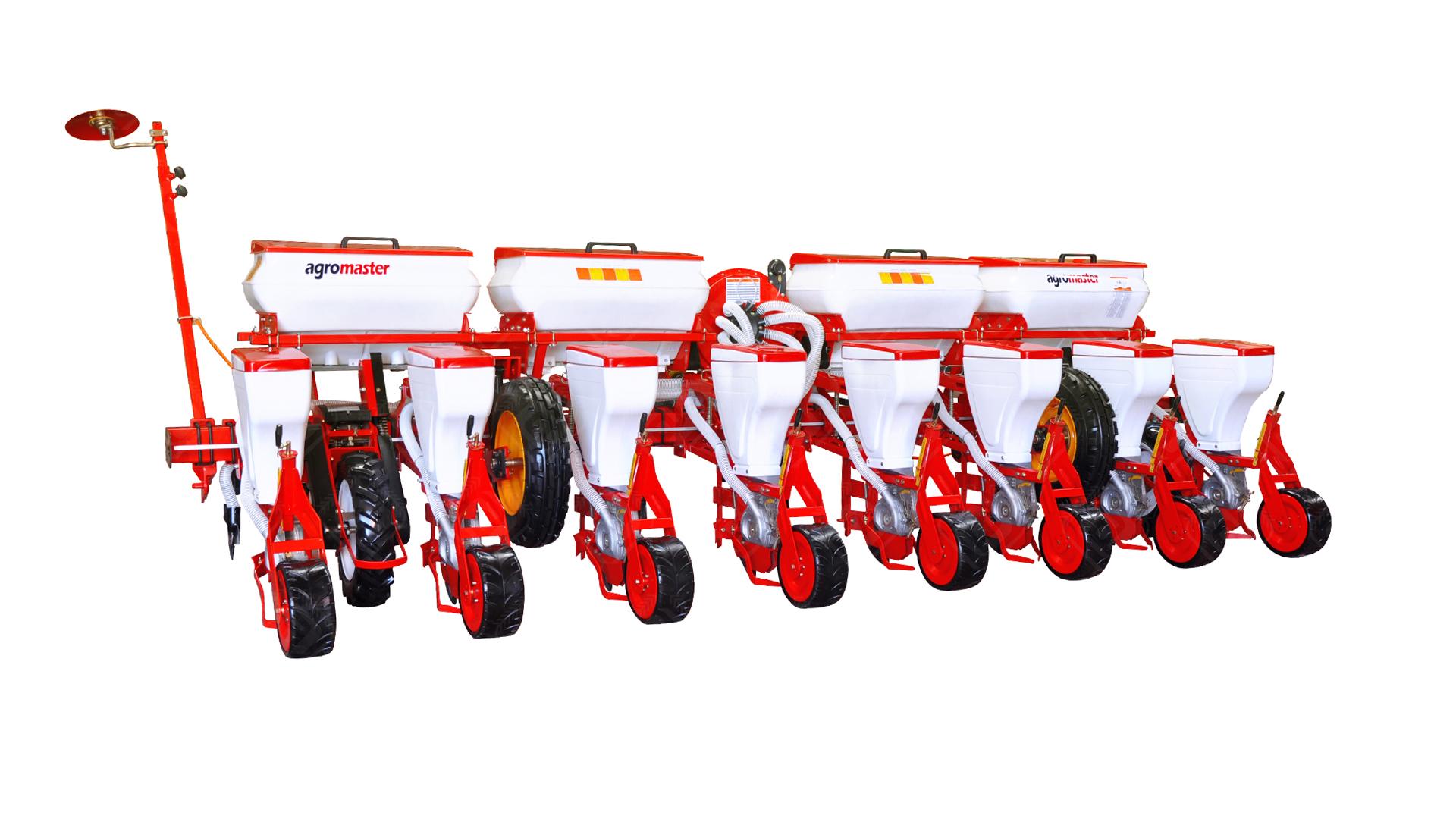

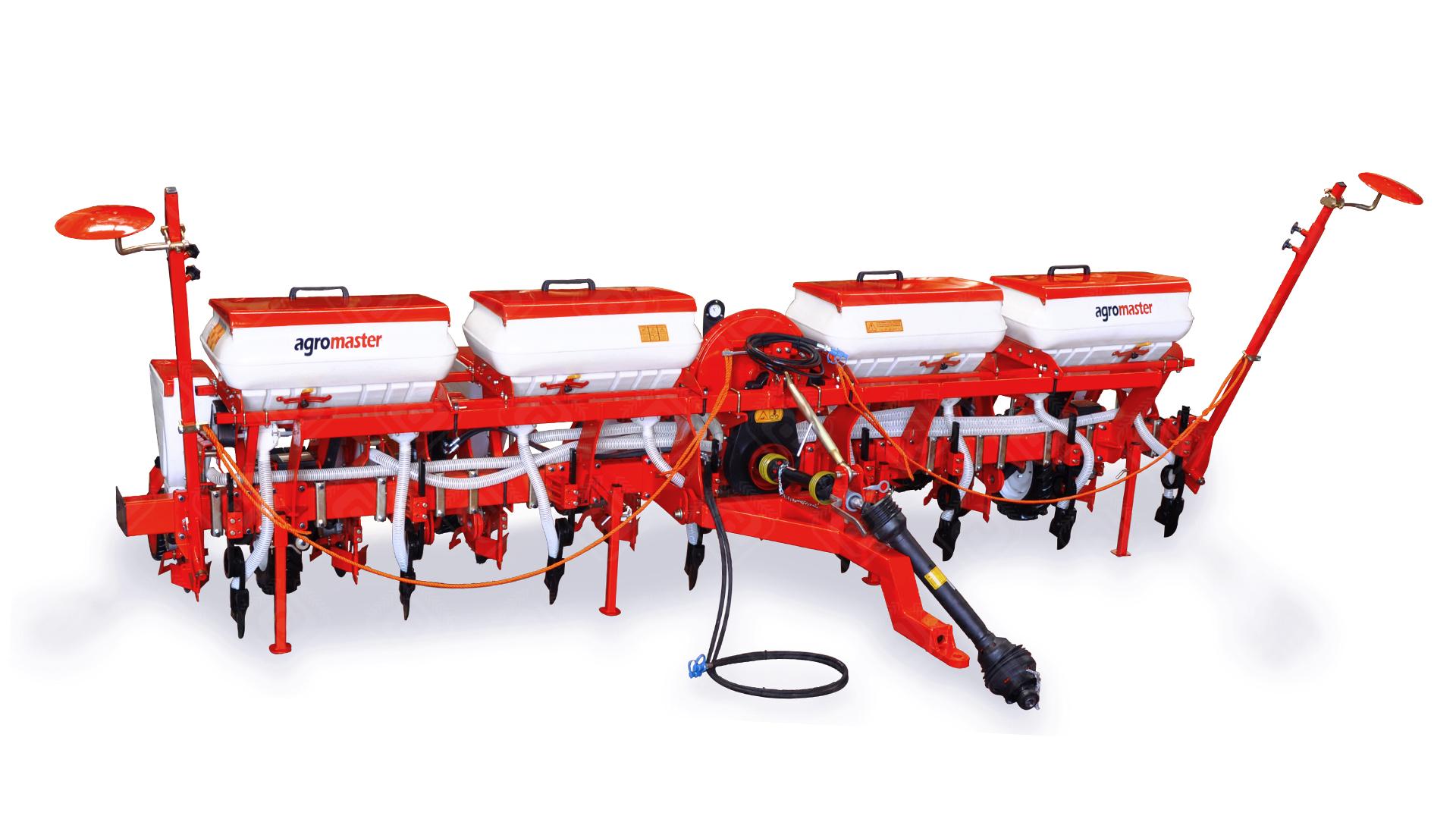

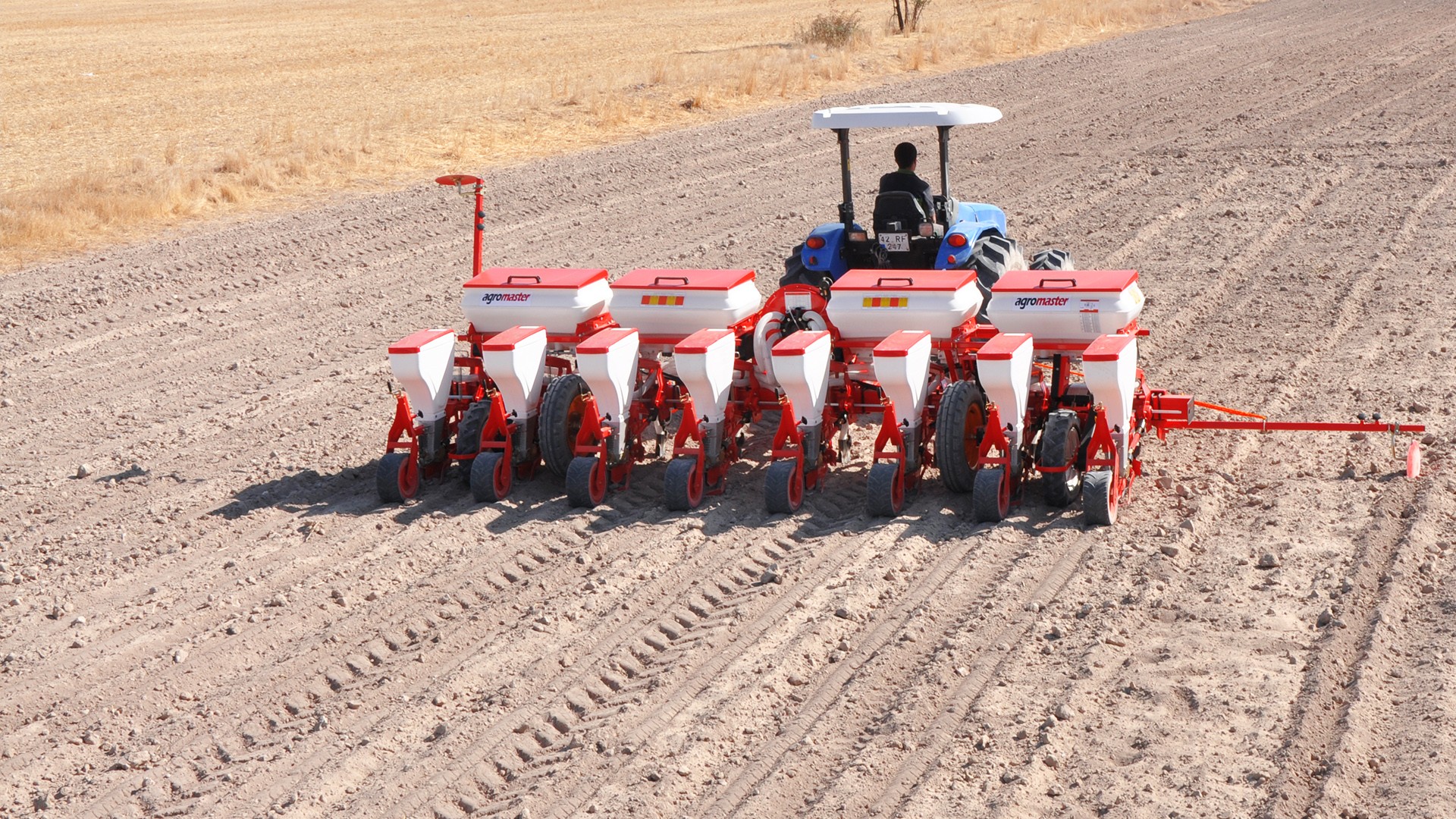

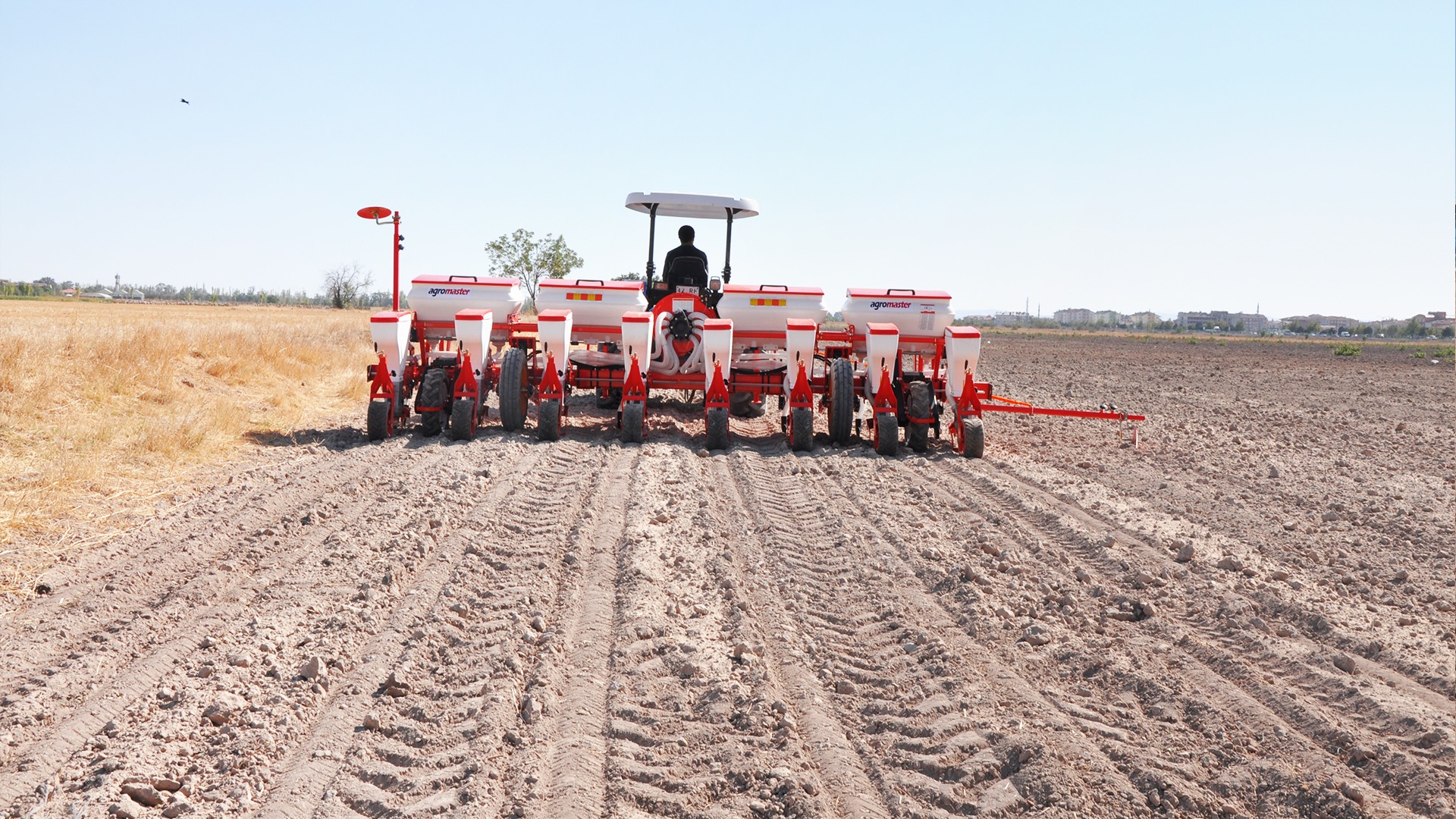

PNEUMATIC PRECISION PLANTER AXE TYPE, TRAILED, FOR WORKING POSITION

DESCRIPTION

To use this system enables to less weight placed on the tractor and use a smaller tractor. It is produced as option for 8,10 and 12 rows planters.

Technical Specificaions*	Unit	PLANTER A8	PLANTER A12
Number of Rows	pcs	8	12
Total Width (W)	mm	5600	9000
Total Width (W)	ft.in.	18'4"	29'6"
Total Length (L)	mm	2000	2000
Total Length (L)	ft.in.	6'7"	6'7"
Total Height (H)	mm	1700	1700
Total Height (H)	ft.in.	5'7"	5'7"
Working Depth	mm	0-100
Working Depth	ft.in.	0”-4”
Fertilizer Hopper Capacity	kg	160x4	160x6
Fertilizer Hopper Capacity	Ibs	352x4	352x6
Fertilizer Hopper Capacity (Big)	kg	-	-
Fertilizer Hopper Capacity (Big)	Ibs	-	-
Seed Hopper Volume	dm³	40X8	40X12
Space Between Rows (B)	mm	280-800	280-800
Space Between Rows (B)	ft.in.	11"-2'7"	11"-2'7"
Working Speed	km/h	4-8
PTO Rotation	rpm	540
Tyre Size		6.5x80-15	500-15
Required Power	hp	95-100	110-130
Weight with Fertilizer Hopper	kg	1480	-
Weight with Fertilizer Hopper	Ibs	3262	-
Weight with Fertilizer Hopper (Big)	kg	-	-
Weight with Fertilizer Hopper (Big)	Ibs	-	-
Weight without Fertilizer Hopper	kg	1130	-
Weight without Fertilizer Hopper	Ibs	2491	-

Technical Specificaions*	Unit	PLANTER A8 (Transport Position)	PLANTER A12 (Transport Position)	PLANTER A8 (Working Position)	PLANTER A12 (Working Position)
Total Width (W)	mm	-	-	-	-
Total Width (W)	ft.in.	-	-	-	-
Total Length (L)	mm	-	-	-	-
Total Length (L)	ft.in.	-	-	-	-
Total Height (H)	mm	1700	1700	1700	1700
Total Height (H)	ft.in.	5'7"	5'7"	5'7"	5'7"
Weight with Fertilizer Hopper	kg	-	-	-	-
Weight with Fertilizer Hopper	Ibs	-	-	-	-
Weight with Fertilizer Hopper (Big)	kg	-	-	-	-
Weight with Fertilizer Hopper (Big)	Ibs	-	-	-	-
Weight without Fertilizer Hopper	kg	-	-	-	-
Weight without Fertilizer Hopper	Ibs	-	-	-	-
