Pneumatic Precision Planters

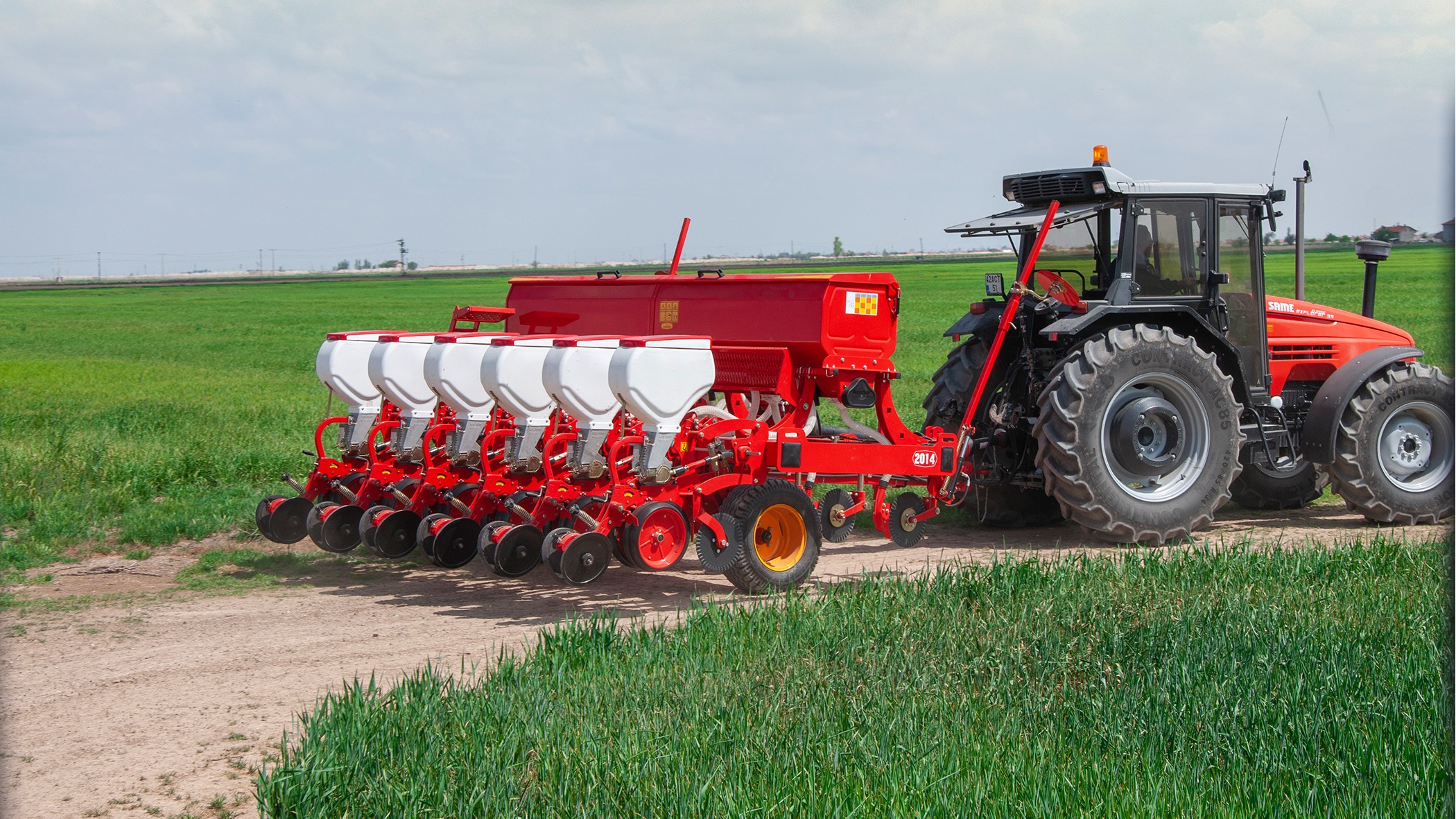

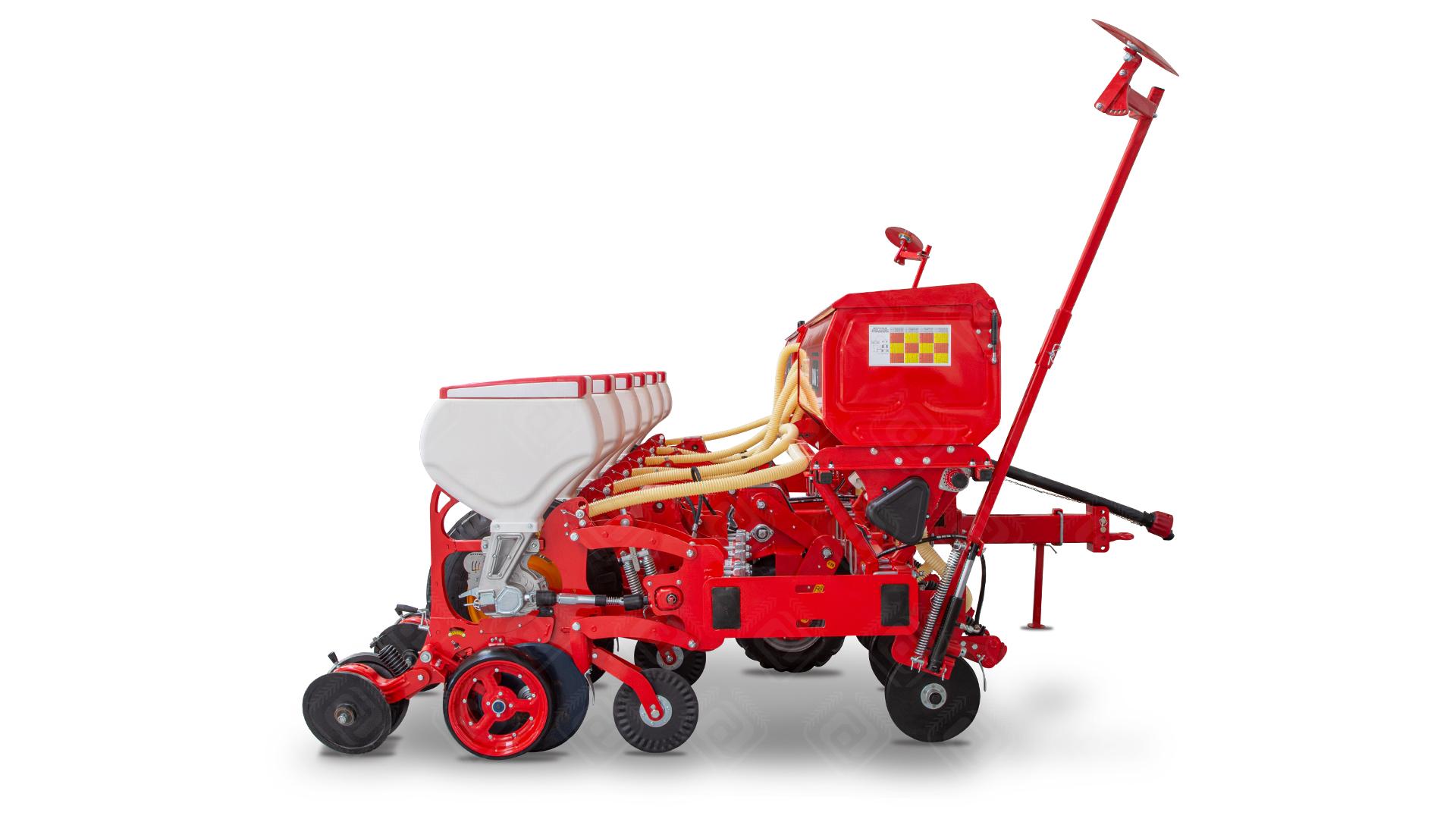

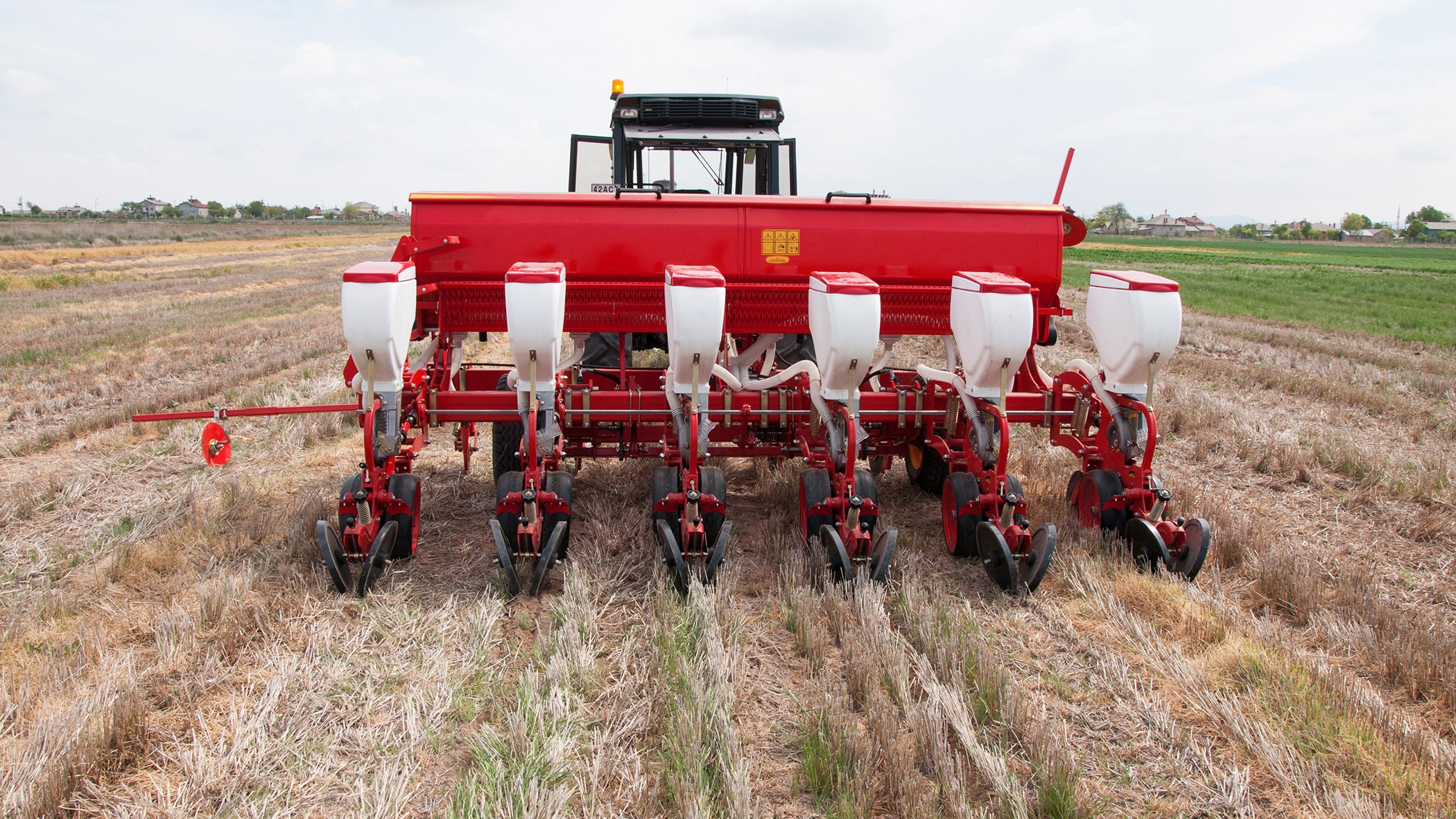

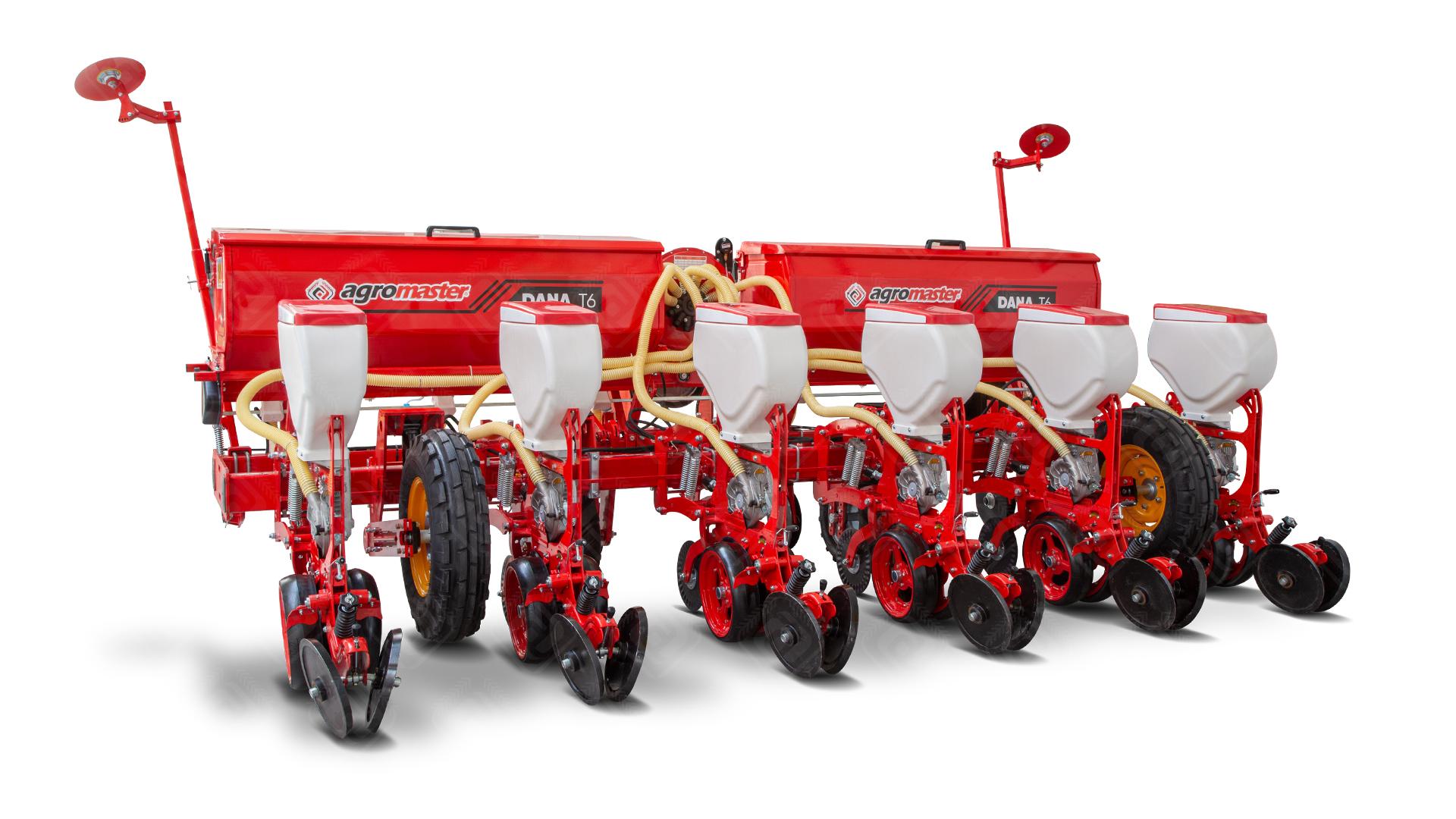

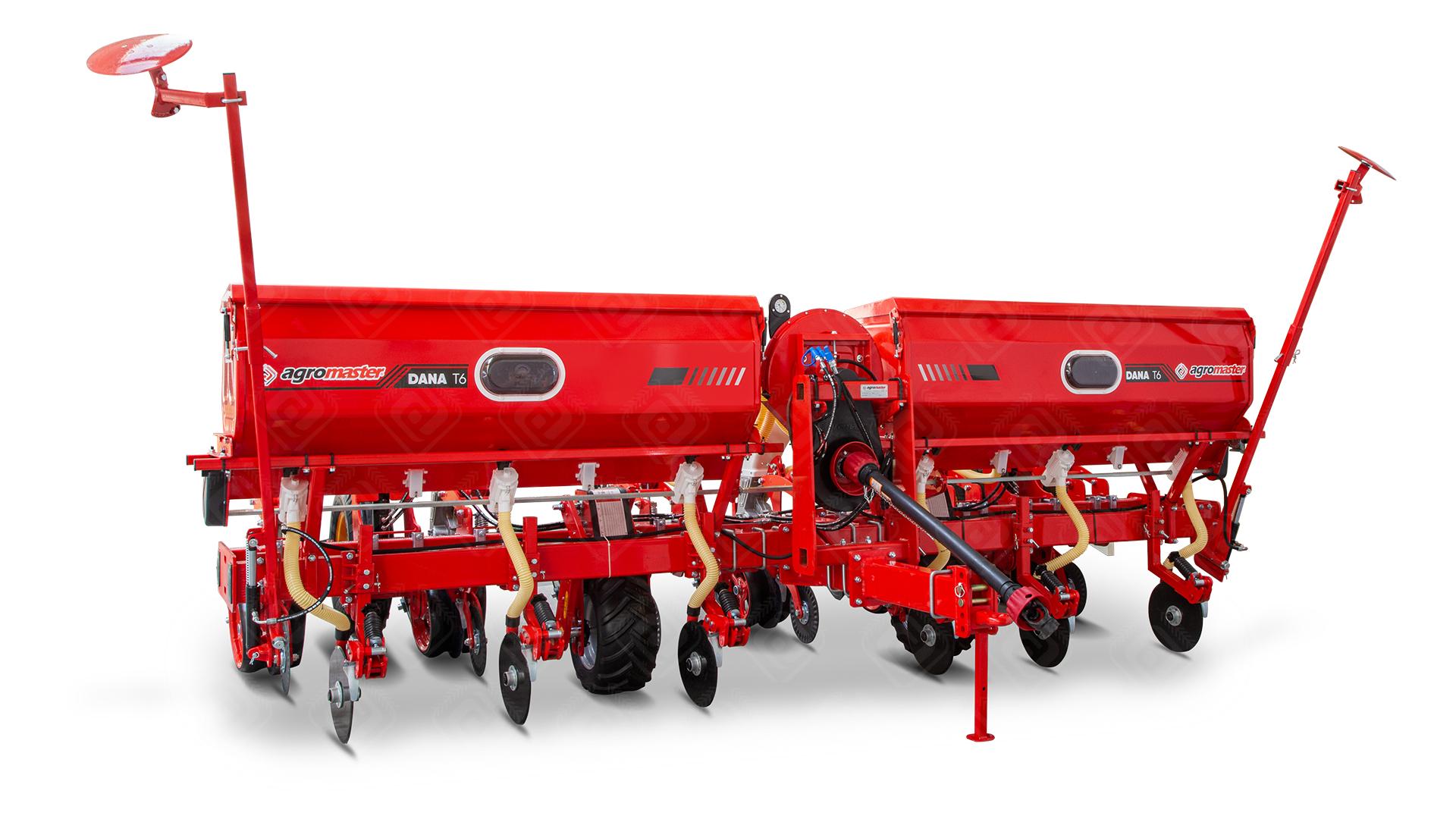

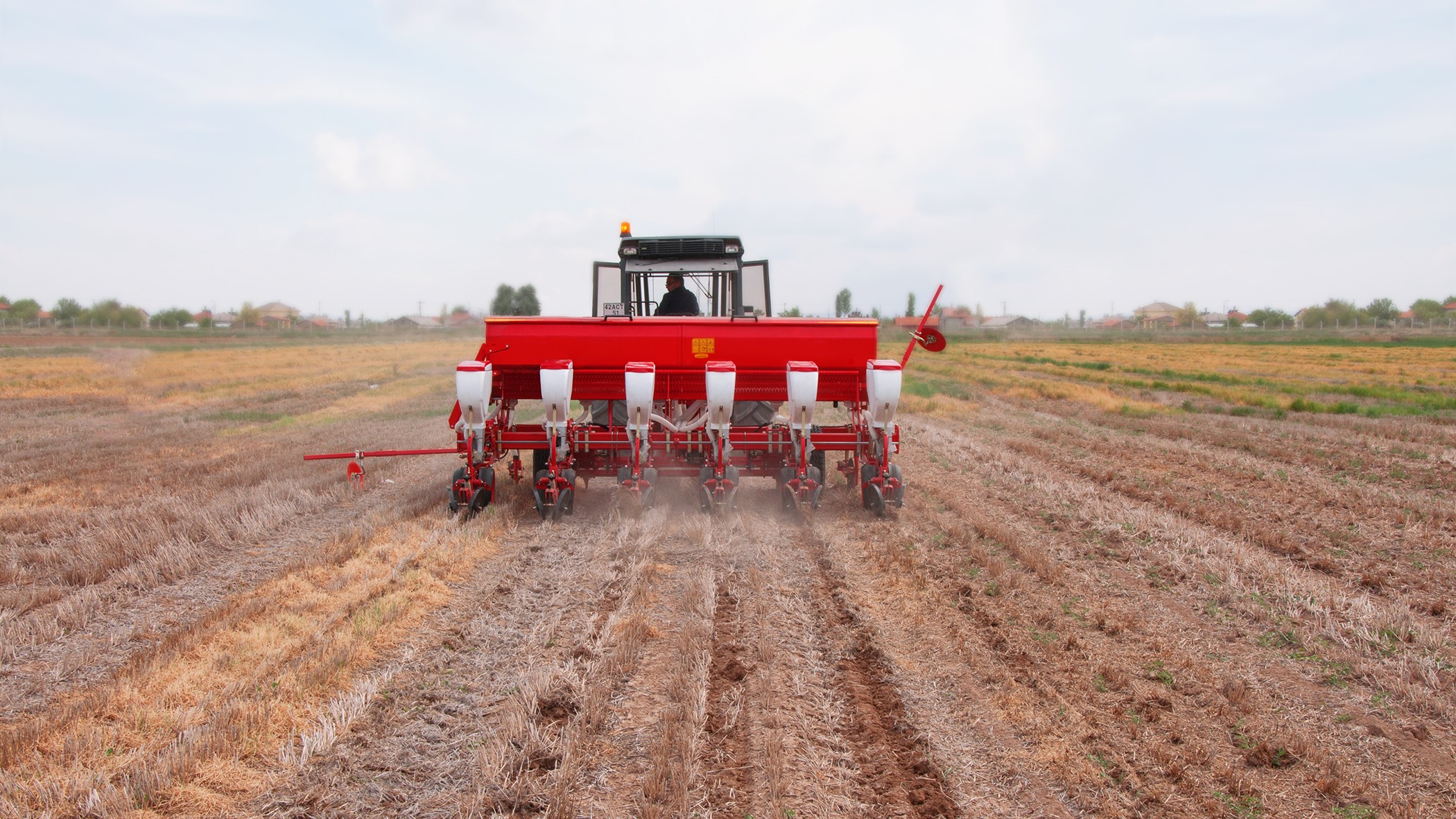

The NO-TILL Pneumatic Precision Planter Disc Type, Trailed – DANA T is engineered for high-precision planting directly into untilled soil while maintaining soil structure and conserving moisture. Its heavy-duty disc-type no-till units effectively cut through crop residue, ensuring accurate seed placement and uniform planting depth. The trailed design provides excellent stability and high field capacity, while the pneumatic precision metering system delivers consistent seed spacing for uniform crop emergence and maximum productivity under demanding field conditions.
|
Technical Specificaions* |
Unit |
DANA T4 |
DANA T6 |
DANA T8 |
|
Number of Rows |
pcs |
4 |
6 |
8 |
|
Total Width (W) |
mm |
3200 |
4750 |
5600 |
|
ft.in. |
10'6" |
15'7" |
18'4" |
|
|
Total Length (L) |
mm |
4500 |
4500 |
4500 |
|
ft.in. |
14'9" |
14'9" |
14'9" |
|
|
Total Height (H) |
mm |
1900 |
1900 |
1900 |
|
ft.in. |
6'3" |
6'3" |
6'3" |
|
|
Seed Hopper Capacity |
dm3 |
40x4 |
40x6 |
40x8 |
|
Fertilizer Hopper Capacity |
dm3 |
680 |
945 |
1200 |
|
Diameter of Sowing Discs |
mm |
420 |
420 |
420 |
|
ft.in. |
17” |
17” |
17” |
|
|
Diameter of Discs Sowing Fertilizer |
mm |
370 |
370 |
370 |
|
ft.in. |
15” |
15” |
15” |
|
|
Diameter of Turbo Discs |
mm |
370 |
370 |
370 |
|
ft.in. |
15” |
15” |
15” |
|
|
Space Between Rows (B) |
mm |
450-800 |
450-800 |
450-800 |
|
ft.in. |
1'6"-2'7" |
1'6"-2'7" |
1'6"-2'7" |
|
|
PTO Rotation |
rpm |
540 |
||
|
Tyre Size |
23-10.5x12 |
|||
|
Required Power |
hp |
70 |
90 |
110 |
|
Total Weight |
kg |
1986 |
2678 |
3400 |
|
Ibs |
4378 |
5903 |
7495 |
|
