Pneumatic Precision Planters
The Vegetable Pneumatic Precision Planter – BERAT is specially designed for the precise planting of vegetable seeds, ensuring accurate seed placement, uniform spacing, and consistent planting depth. Its pneumatic metering system minimizes seed waste while promoting uniform crop emergence and higher yields. Suitable for a wide range of vegetable crops, the machine offers easy adjustment, reliable operation, and excellent field performance. Its durable construction and user-friendly design provide long service life and high productivity under various planting conditions.
|
Technical Specifications* |
Unit |
BERAT 4 |
BERAT 5 |
BERAT 6 |
BERAT 8 |
BERAT 10 |
BERAT 12 |
|
Number of Rows |
pcs |
4 |
5 |
6 |
8 |
10 |
12 |
|
Total Width (W) |
mm |
2500-3000 |
2500-3000 |
3000 |
3500 |
4000 |
4000 |
|
ft.in |
8'2"-9'10" |
8'2"-9'10" |
9'10" |
11'6" |
13'2" |
13'2" |
|
|
Total Length (L) |
mm |
2150 |
2150 |
2150 |
2150 |
2150 |
2150 |
|
ft.in. |
7' |
7' |
7' |
7' |
7' |
7' |
|
|
Total Height (H) |
mm |
1480 |
1480 |
1480 |
1480 |
1480 |
1480 |
|
ft.in |
4'10" |
4'10" |
4'10" |
4'10" |
4'10" |
4'10" |
|
|
Total Height with Microgranulator |
mm |
1660 |
1660 |
1660 |
1660 |
1660 |
1660 |
|
ft.in |
5'5" |
5'5" |
5'5" |
5'5" |
5'5" |
5'5" |
|
|
Space between of Rows (min) |
mm |
260 |
260 |
260 |
260 |
260 |
260 |
|
ft.in. |
10" |
10" |
10" |
10" |
10" |
10" |
|
|
Planter Coulter Width (Min) |
cm |
4 - 5 - 6 - 7,5 |
|||||
|
ft.in. |
1/8' - 2"- 13/64' - 3" |
||||||
|
Planter Coulter Width (Max) |
cm |
8-10-13-15 |
|||||
|
ft.in. |
3"-4"-5"-6" |
||||||
|
Seed Hopper Volume |
L |
2x4 |
2x5 |
2x6 |
2x8 |
2x10 |
2x12 |
|
P.T.O. Rotation |
rpm |
540 |
|||||
|
Required Power |
hp |
35-80 |
35-80 |
35-80 |
35-80 |
35-80 |
35-80 |
|
Weight |
kg |
675 |
770 |
855 |
1065 |
1290 |
1510 |
|
Ibs |
1488 |
1697 |
1884 |
2347 |
2843 |
3328 |
|
|
Weight with Microgranulator |
kg |
770 |
865 |
1000 |
1255 |
1480 |
1800 |
|
Ibs |
1697 |
1906 |
2204 |
2766 |
3262 |
3968 |
|

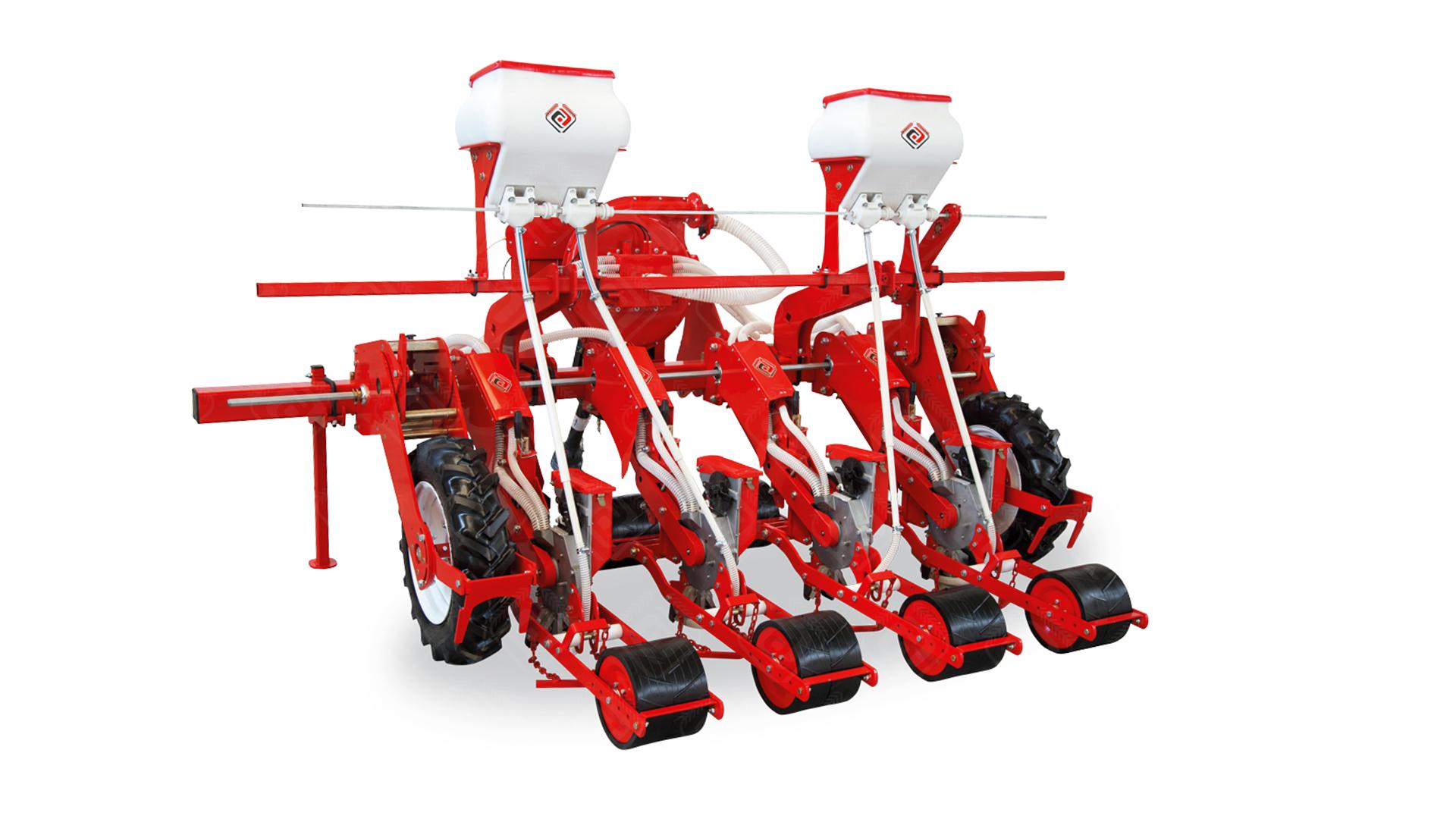

PNEUMATIC PRECISION PLANTER DISC TYPE
_F.jpg)

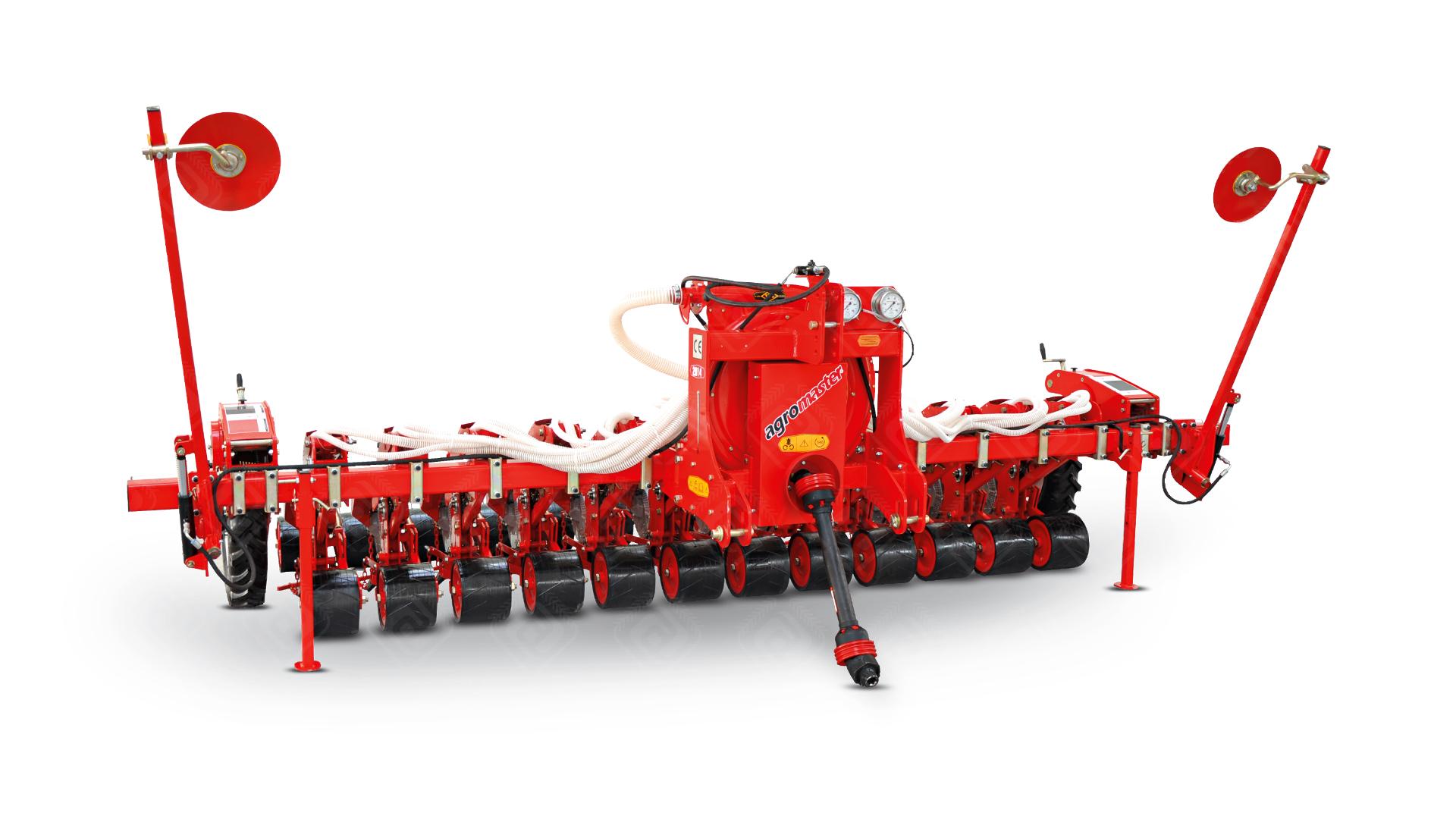

PNEUMATIC PRECISION PLANTER DISC TYPE, VARY SPACE, HYDRAULIC ROW SPACE CONTROL
_F.jpg)
PNEUMATIC PRECISION PLANTER DISC TYPE, VARY SPACE FOLDABLE, HYDRAULIC ROW SPACE CONTROL
_F.jpg)
TWIN ROW PNEUMATIC PRECISION PLANTER DISC TYPE
TRIPLE ROW PNEUMATIC PRECISION PLANTER DISC TYPE
PNEUMATIC PRECISION PLANTER DISC TYPE, TRAILED, FOR WORKING POSITION
PNEUMATIC PRECISION PLANTER DISC TYPE, TRAILED, FOR TRANSPORT POSITION
FOLDABLE PNEUMATIC PRECISION PLANTER DISC TYPE
