Pneumatic Precision Planters

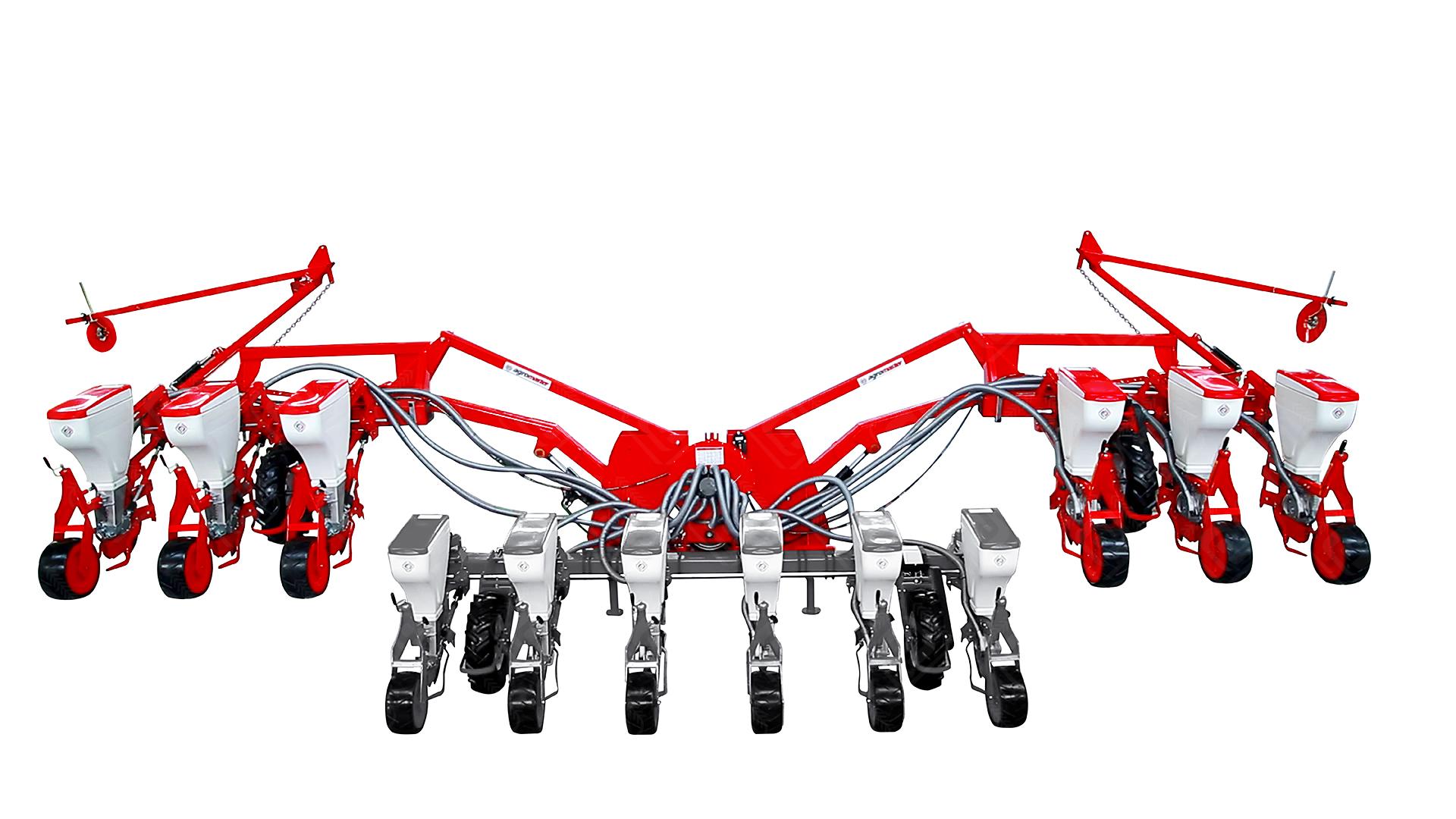

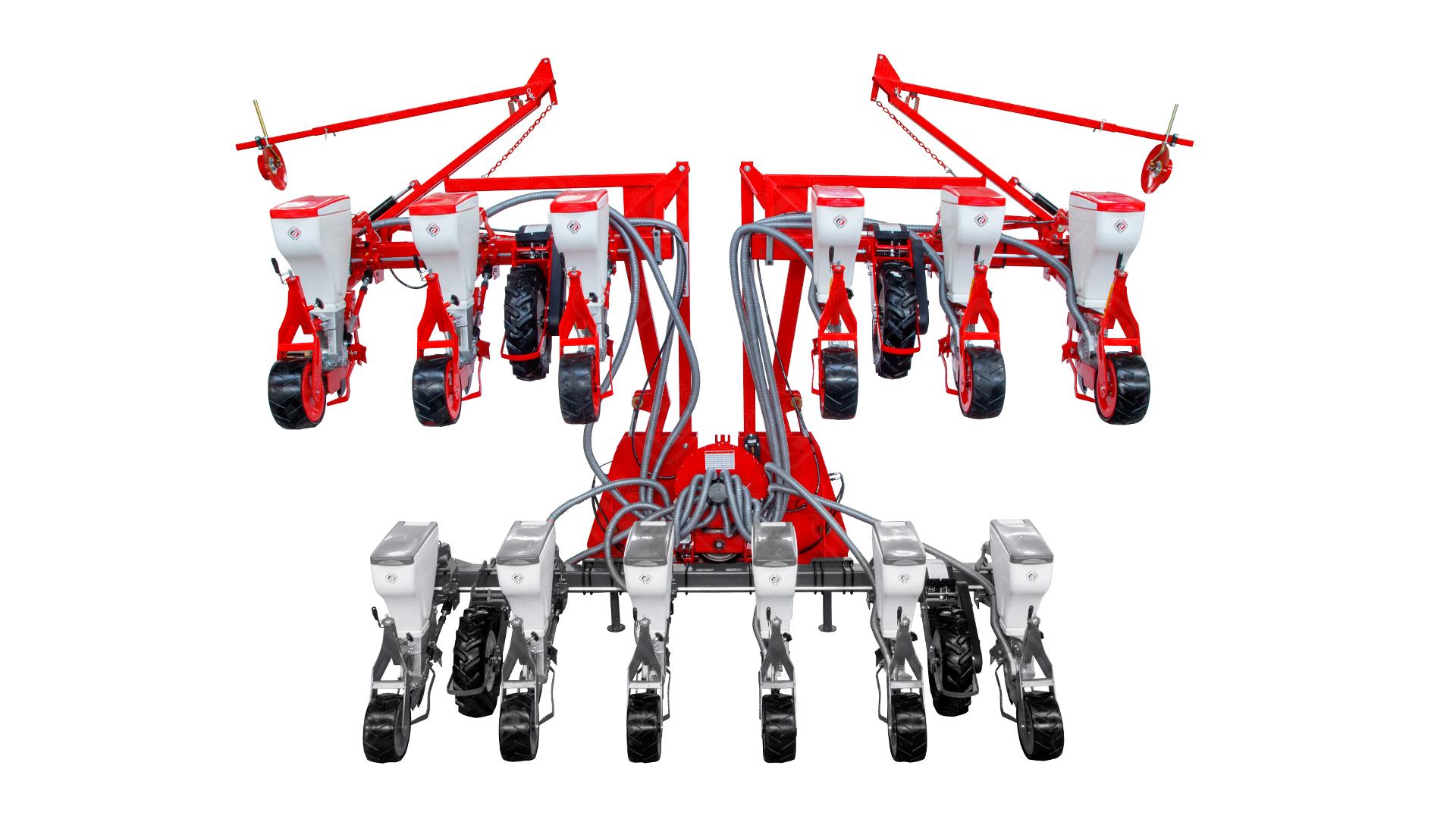

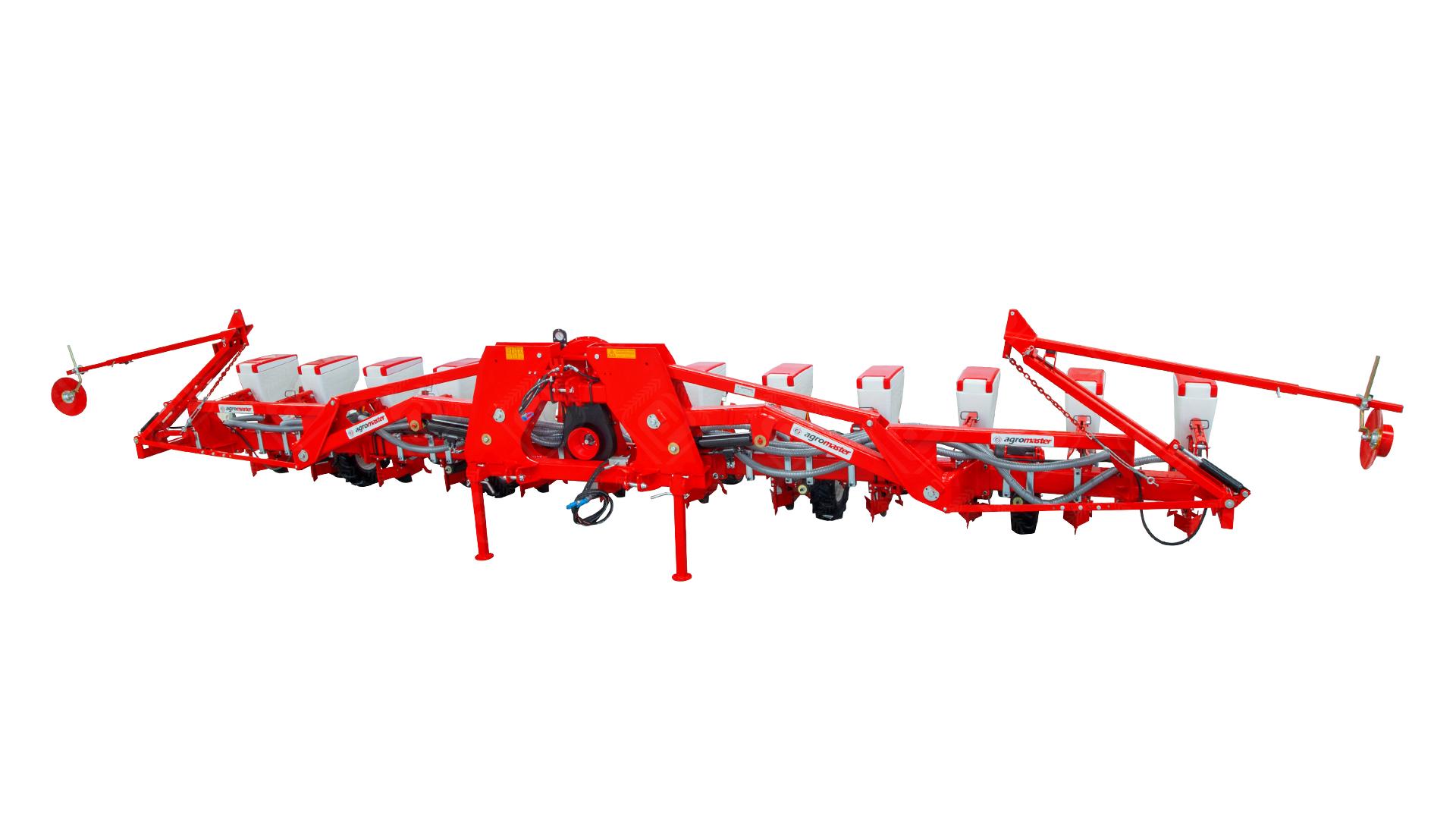

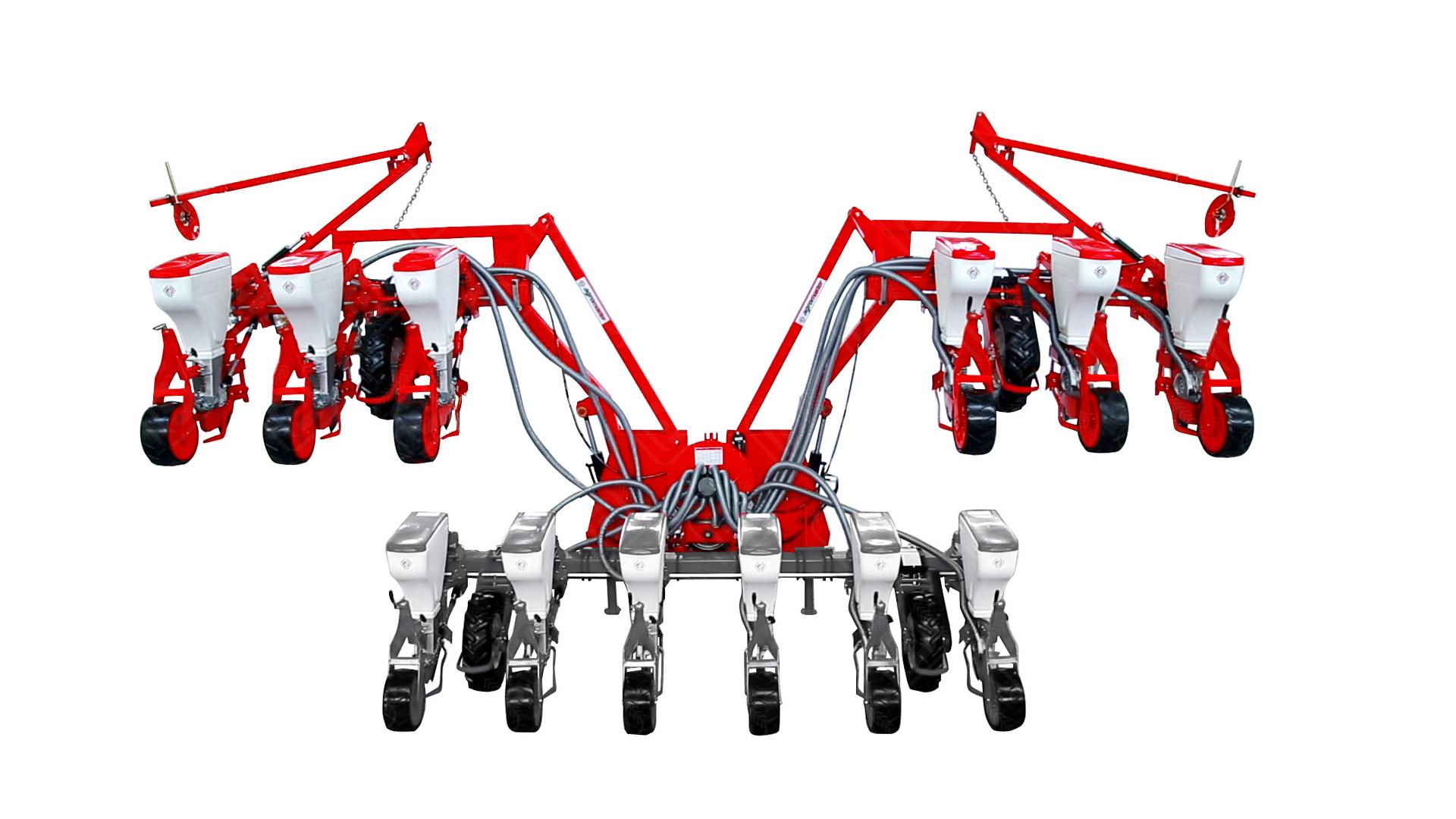

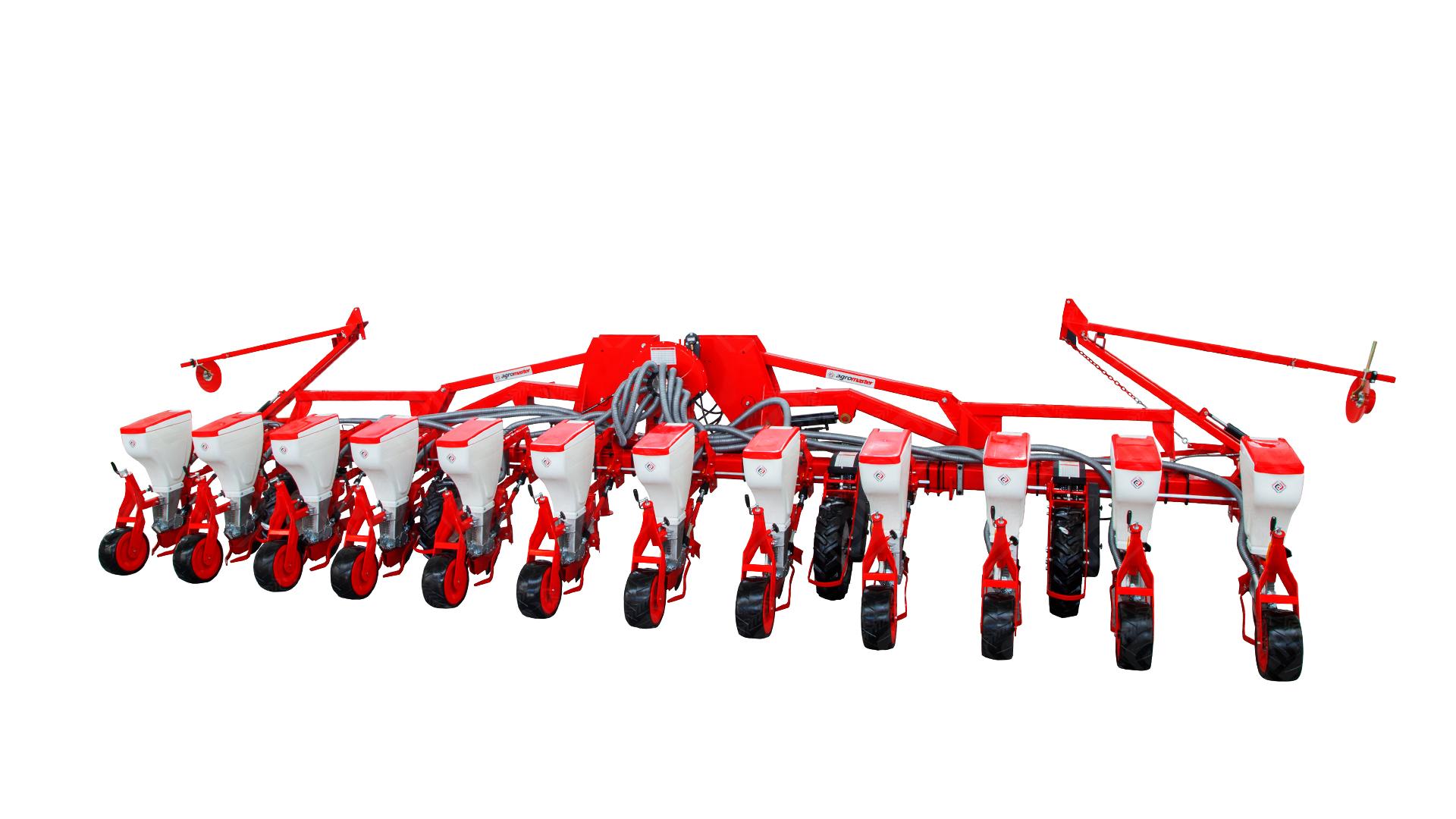

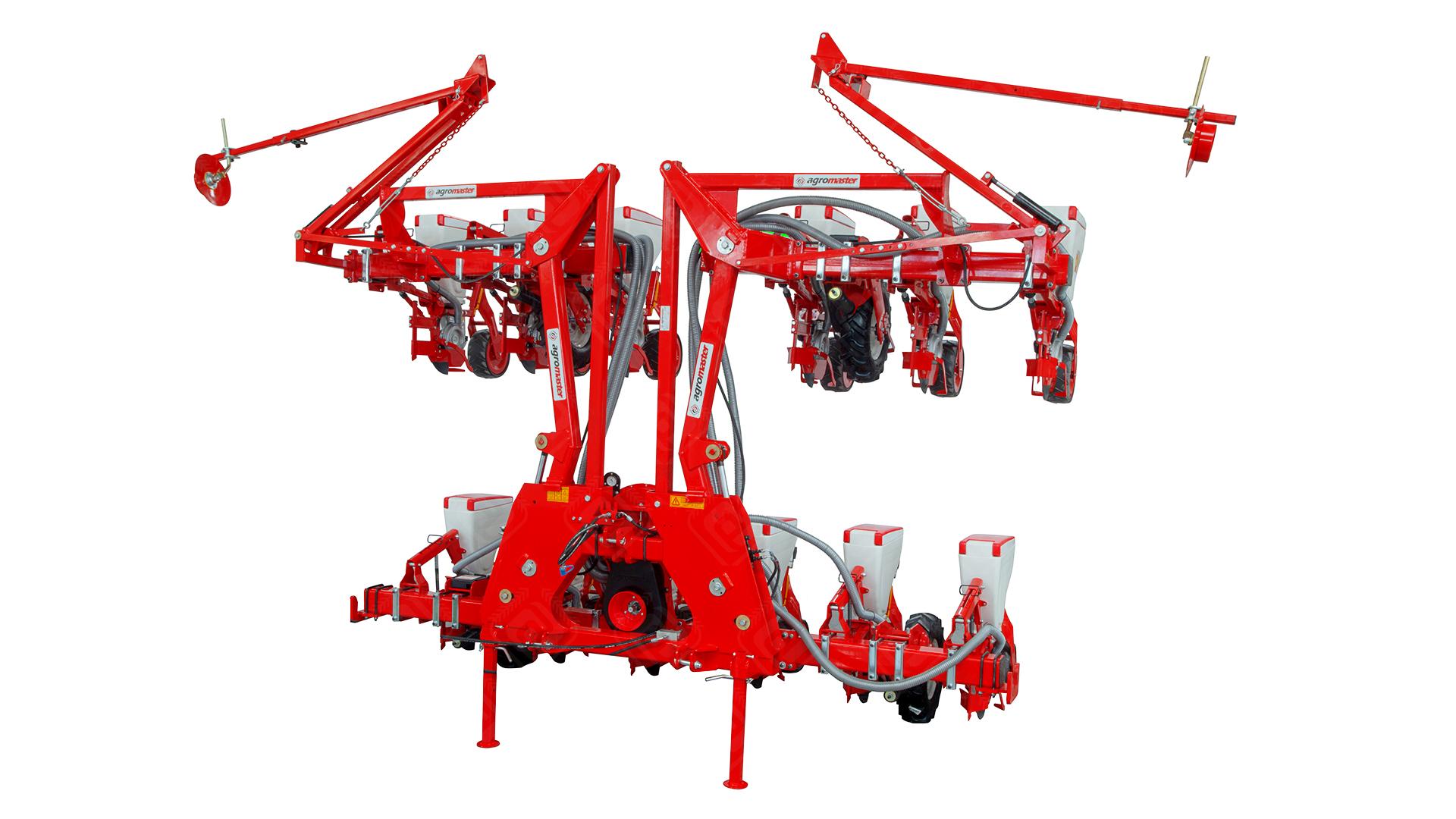

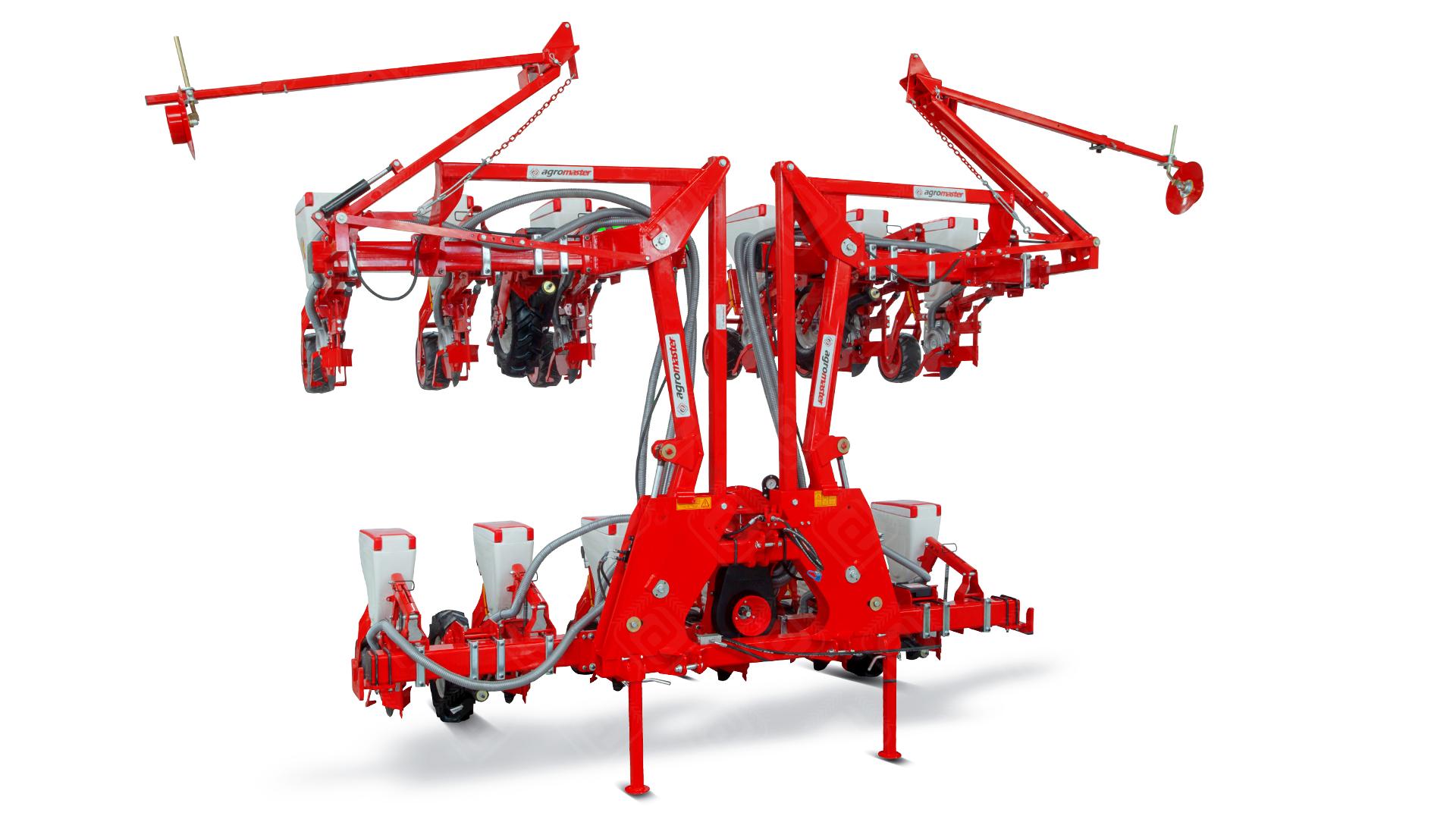

The Foldable Pneumatic Precision Planter Disc Type – AHTAPOT A is designed for high-capacity precision planting with excellent field performance and easy transportation. Thanks to its foldable frame, the machine can be transported safely and conveniently between fields while complying with road transport requirements. Its pneumatic precision metering system ensures accurate seed placement, uniform seed spacing, and consistent planting depth for improved crop emergence and higher yields. The robust construction and reliable folding mechanism provide outstanding durability, stability, and long-lasting performance in demanding field conditions.
|
Technical Specificaions* |
Unit |
AHTAPOT A8 |
AHTAPOT A10 |
AHTAPOT A12 |
|
Number of Rows |
pcs |
8 |
10 |
12 |
|
Total Width (W) |
mm |
6000 |
7800 |
9000 |
|
ft.in. |
19'8" |
25'7" |
29'6" |
|
|
Total Length (L) |
mm |
2400 |
2400 |
2400 |
|
ft.in. |
7'10" |
7'10" |
7'10" |
|
|
Total Height (H) |
mm |
3650 |
3650 |
3650 |
|
ft.in. |
11'11" |
11'11" |
11'11" |
|
|
Working Depth |
mm |
0-100 |
||
|
ft.in. |
0"-4" |
|||
|
Seed Hopper Volume |
dm3 |
40X8 |
40X10 |
40X12 |
|
Space Between Rows (B) |
mm |
450x750 |
450x750 |
450x750 |
|
ft.in. |
1'5"x2'5" |
1'5"x2'5" |
1'5"x2'5" |
|
|
Working Speed |
km/h |
4-8 |
||
|
PTO Rotation |
rpm |
540 |
||
|
Tyre Size |
|
6.5X80-15 |
||
|
Required Power |
hp |
100-120 |
120-130 |
130-150 |
PNEUMATIC PRECISION PLANTER DISC TYPE
_F.jpg)
PNEUMATIC PRECISION PLANTER DISC TYPE, VARY SPACE, HYDRAULIC ROW SPACE CONTROL
_F.jpg)
PNEUMATIC PRECISION PLANTER DISC TYPE, VARY SPACE FOLDABLE, HYDRAULIC ROW SPACE CONTROL
_F.jpg)
TWIN ROW PNEUMATIC PRECISION PLANTER DISC TYPE
TRIPLE ROW PNEUMATIC PRECISION PLANTER DISC TYPE
PNEUMATIC PRECISION PLANTER DISC TYPE, TRAILED, FOR WORKING POSITION
PNEUMATIC PRECISION PLANTER DISC TYPE, TRAILED, FOR TRANSPORT POSITION
FOLDABLE PNEUMATIC PRECISION PLANTER DISC TYPE
