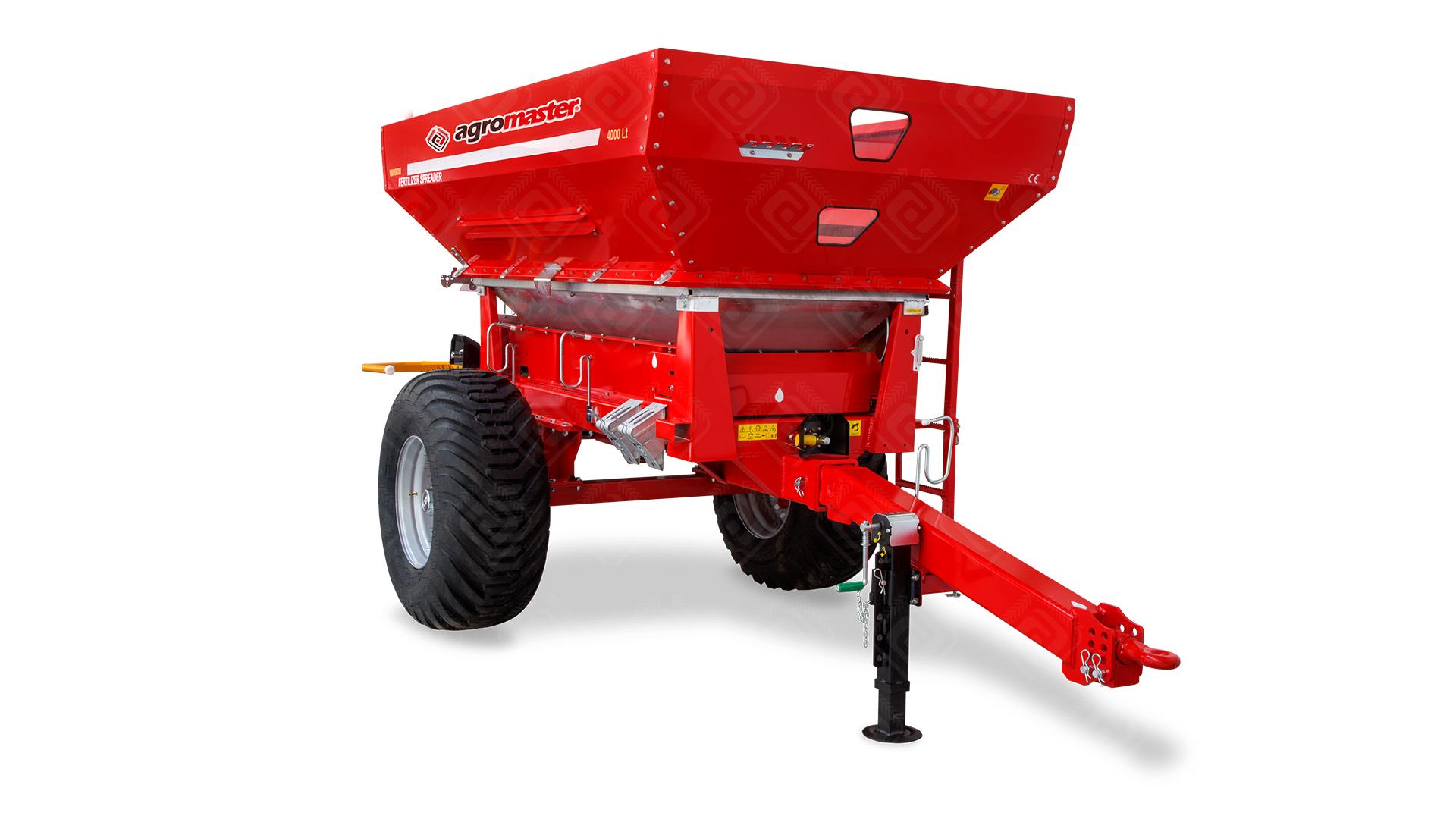

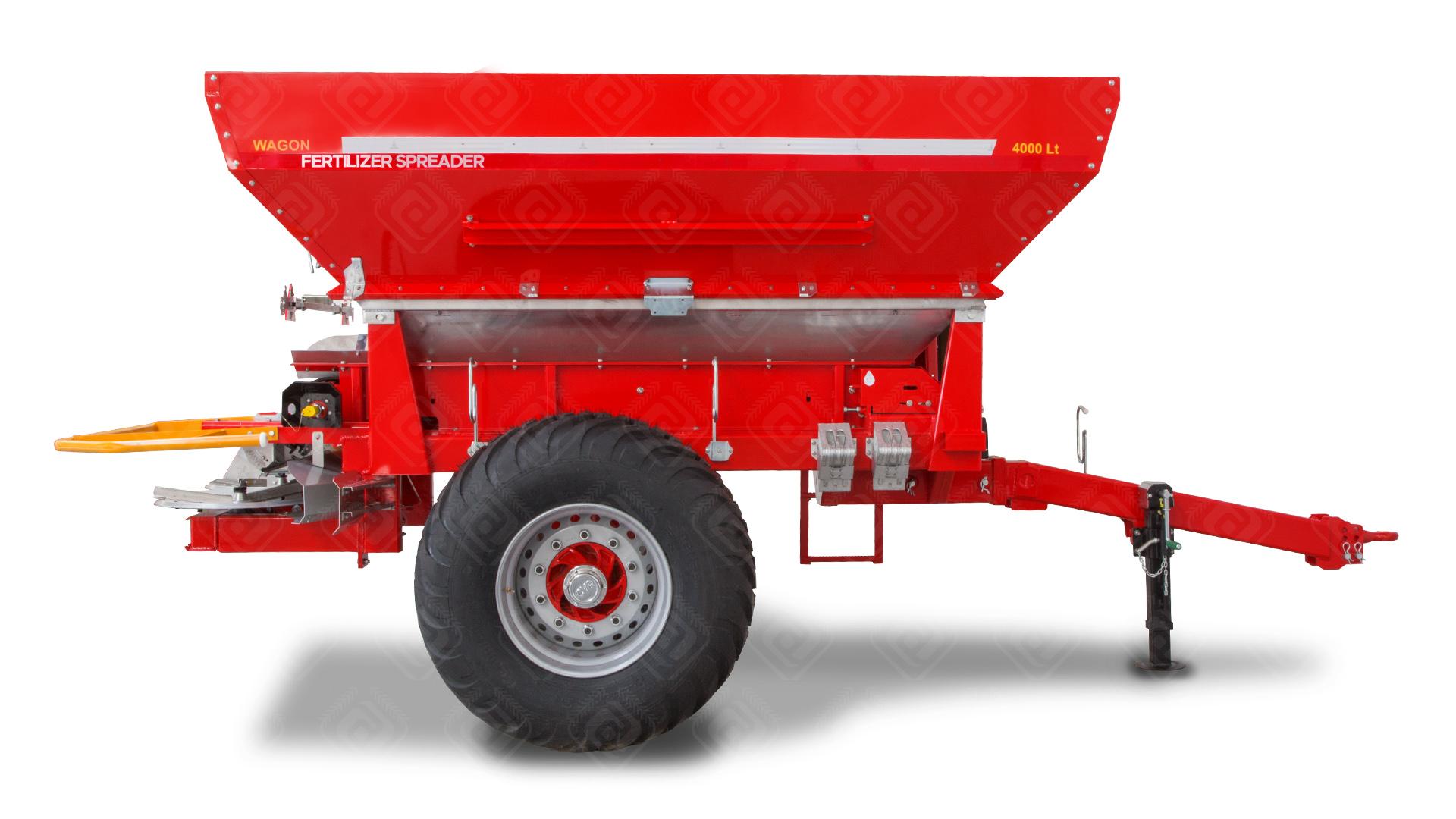

Trailed type VAGON T2 model Fertilizer Spreaders are produced with double discs, 4000 and 6000 liters capacities and 18-24, 24-36 m working width. These fertilizer spreaders are attached to tractor’s drawbar. Spreading discs made from stainless steel material. Horizontal mixer provides falling of fertilizer onto spreading discs easily. Fertilizer spreading degree can be easily adjusted by means of hydraulic lift. By the help of tandem system all four wheels are always in contact with the ground surface so the machines ride over the roughest terrain in balance and in a same spreading level.

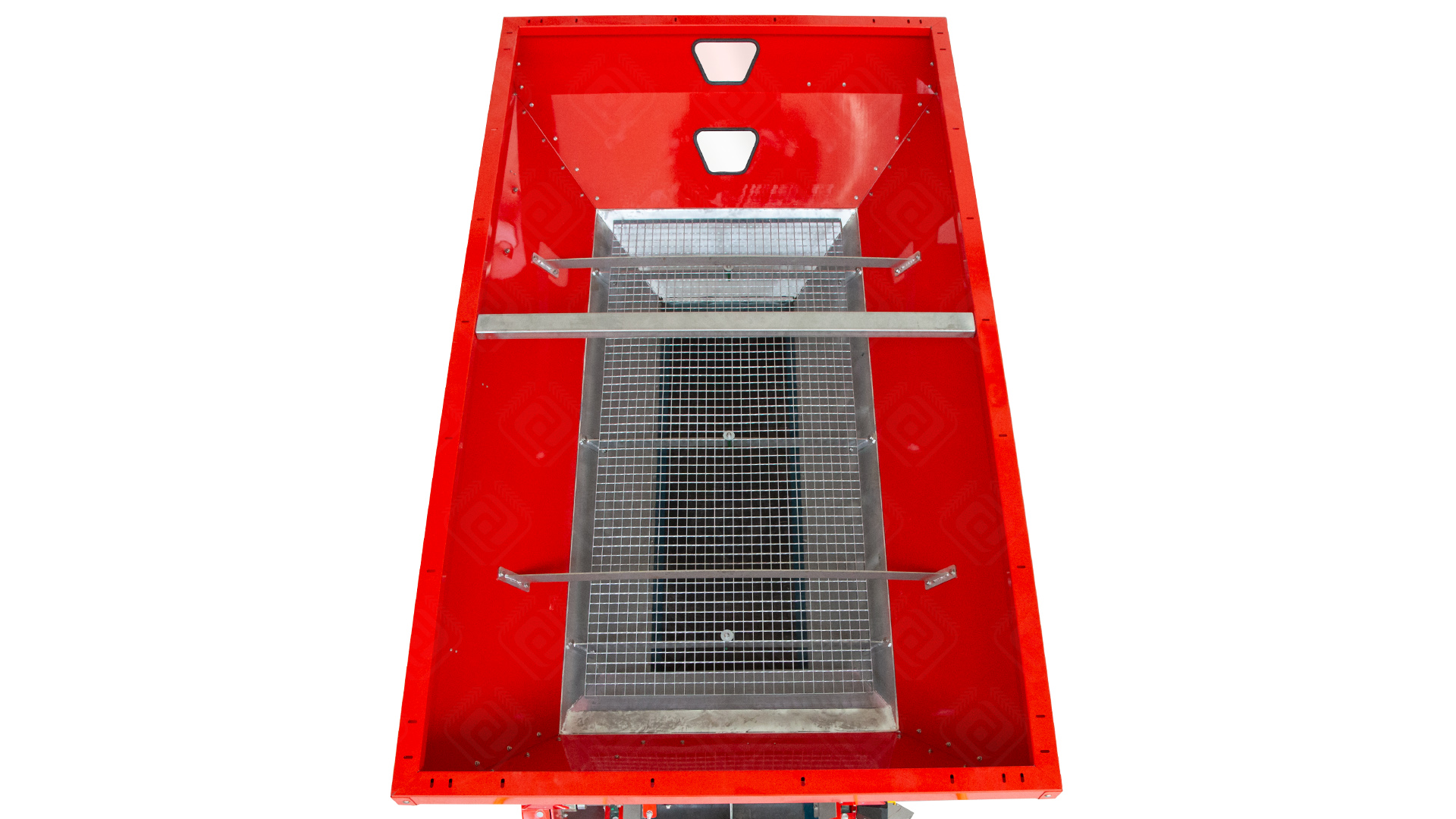

Extra large fertilizer hopper capacity

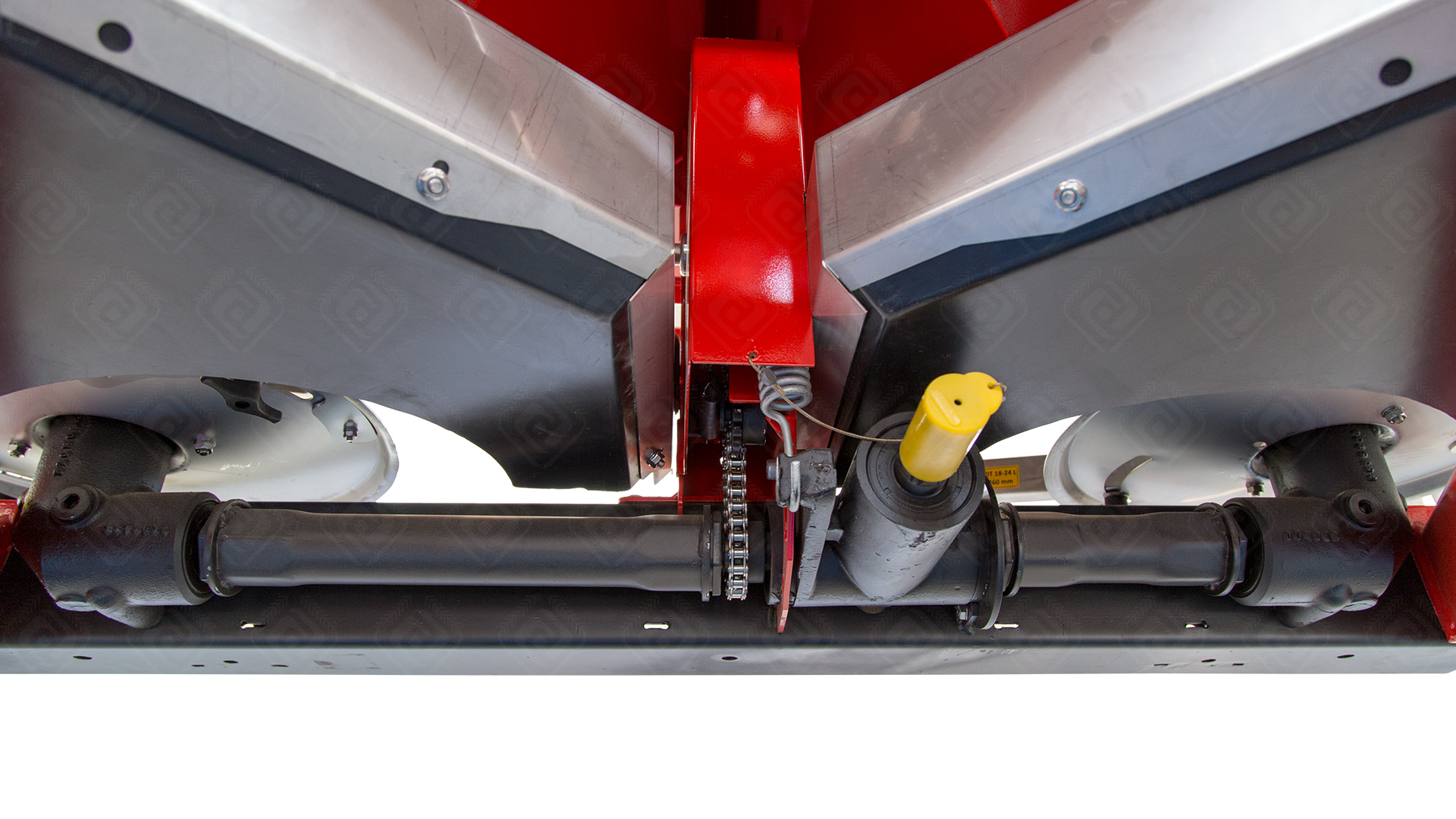

Horizontal type gearbox

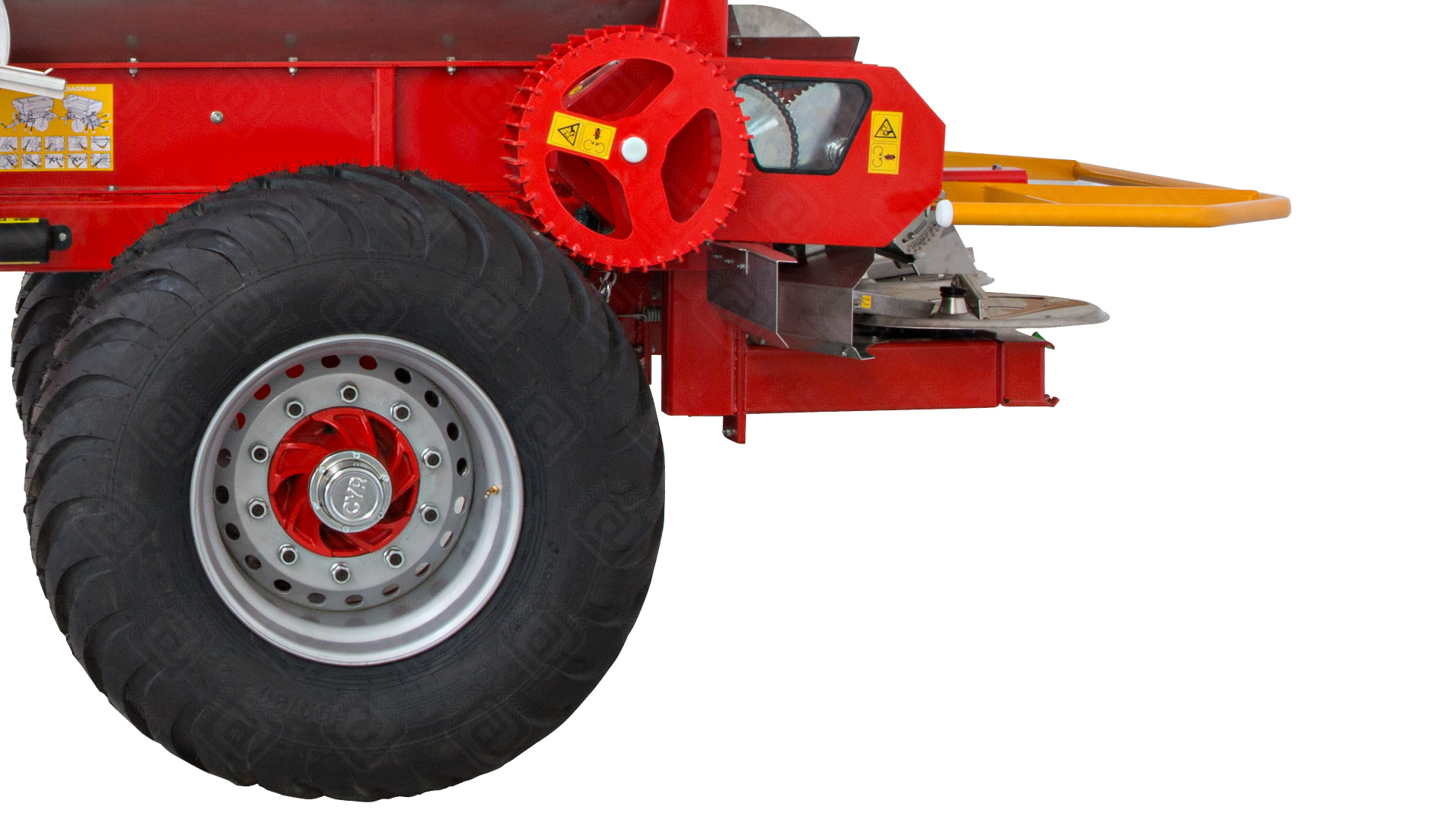

Movement wheel provides smooth and accurate a application norm.

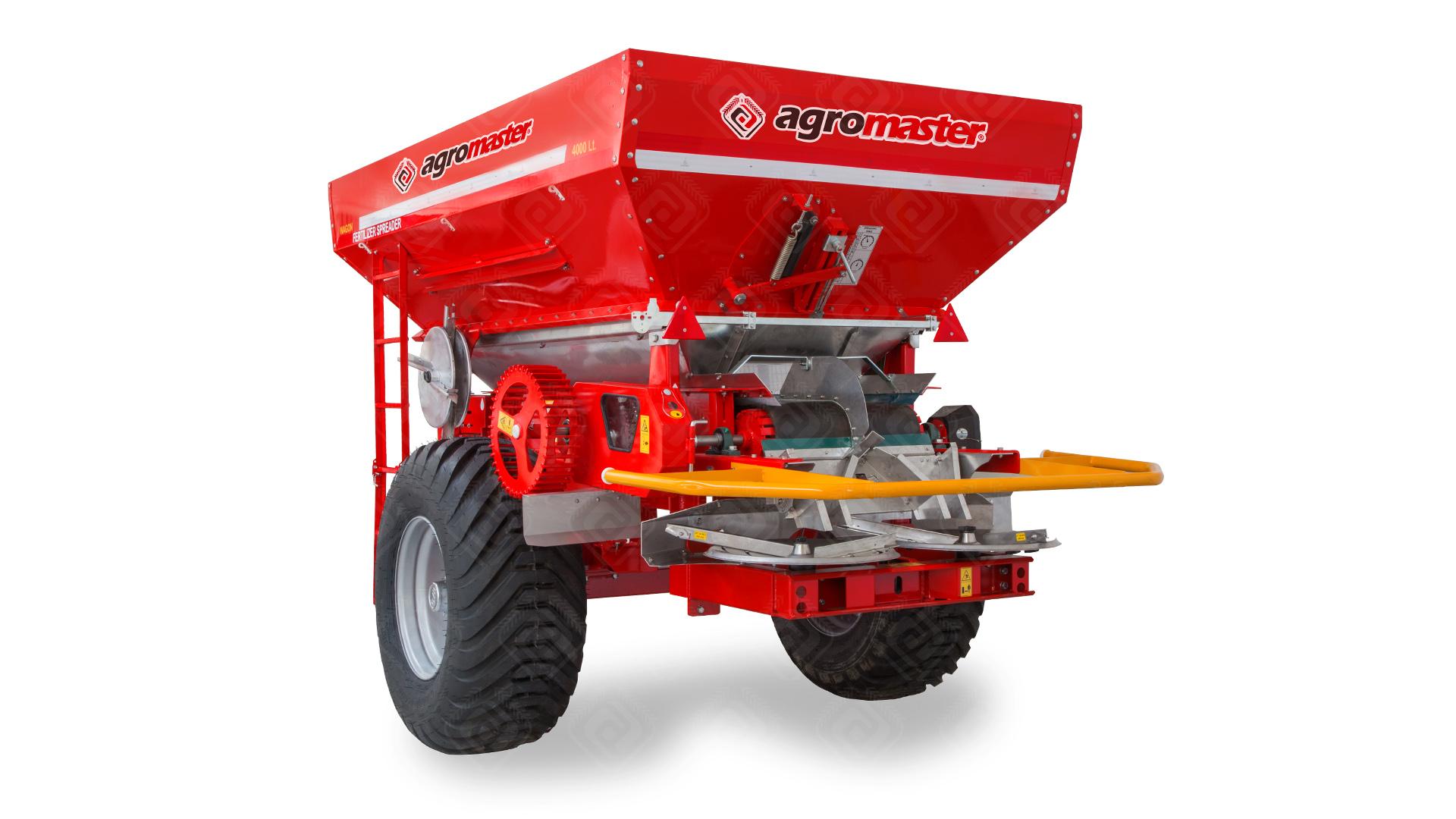

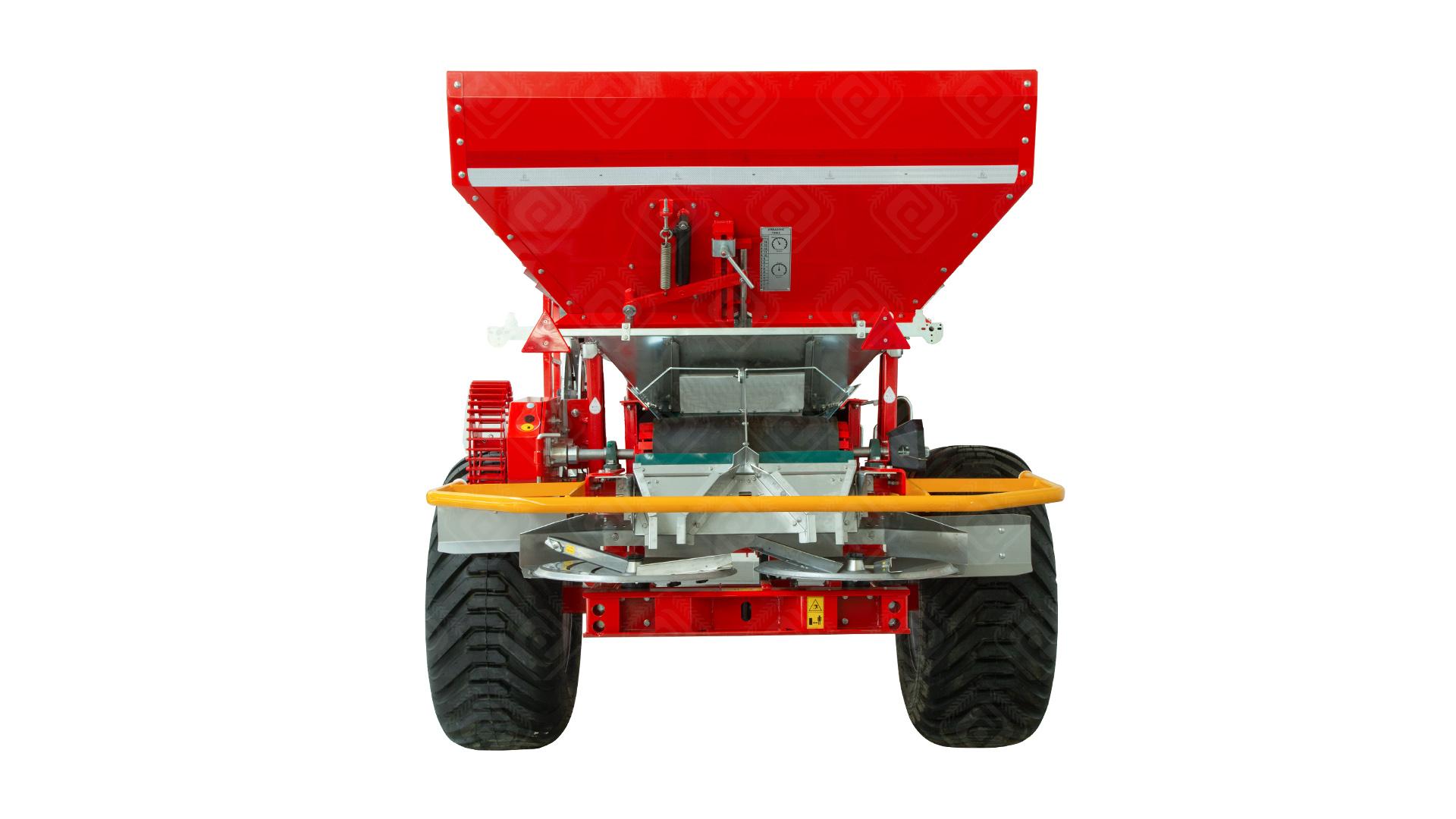

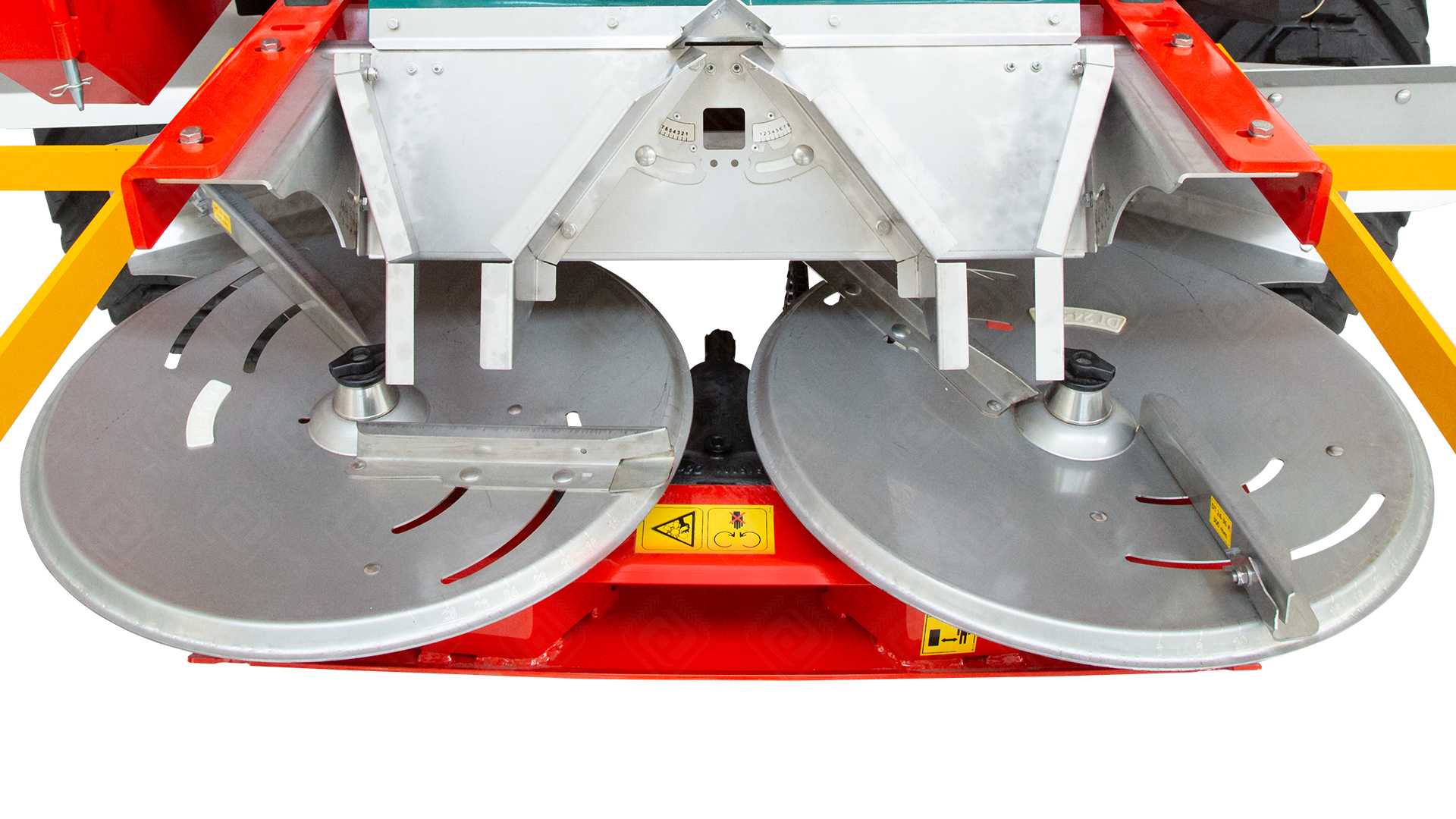

Stainless steel discs with adjustable vanes. Spread rate chart. Spread rate chart

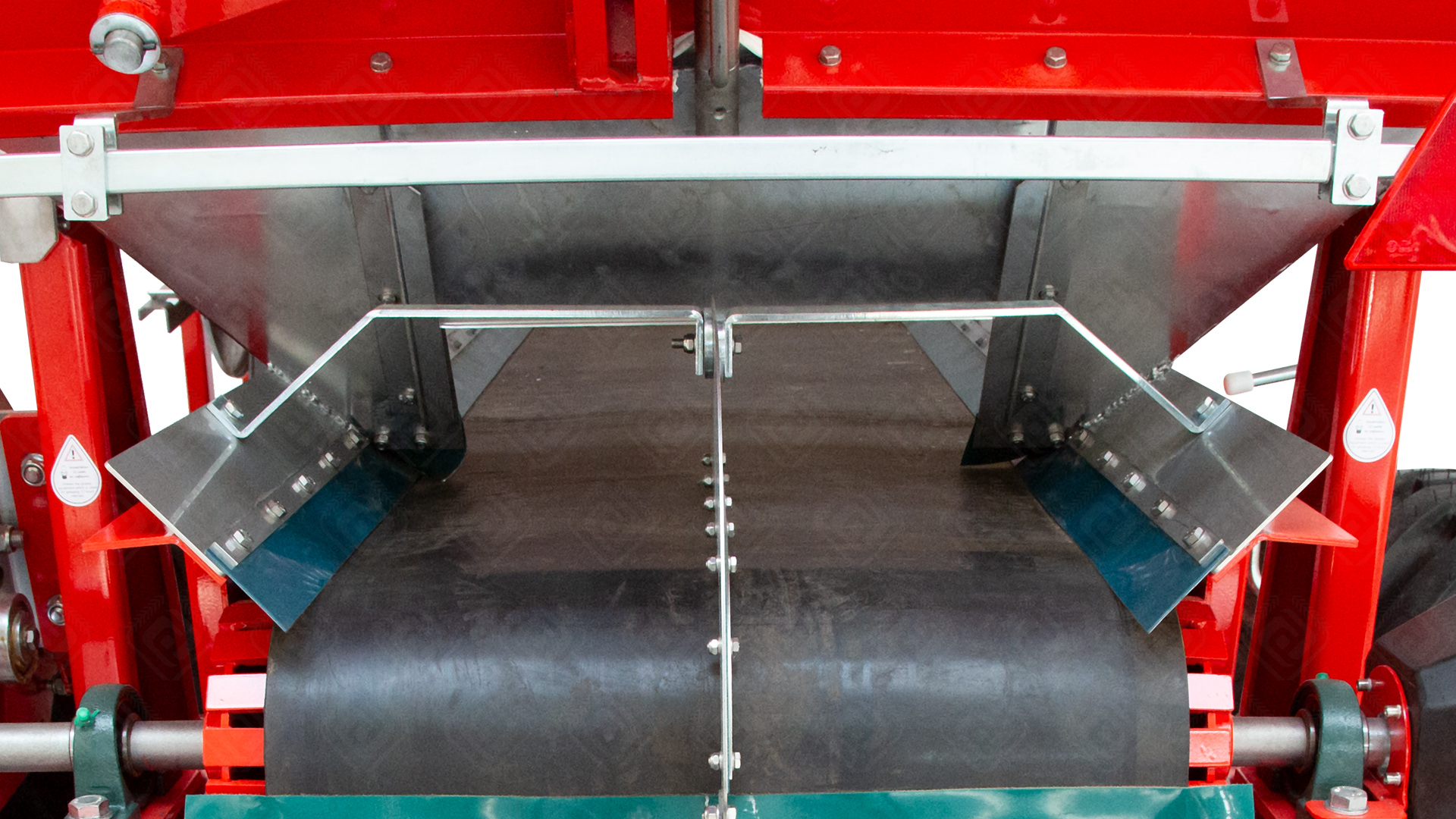

Stainless steel base

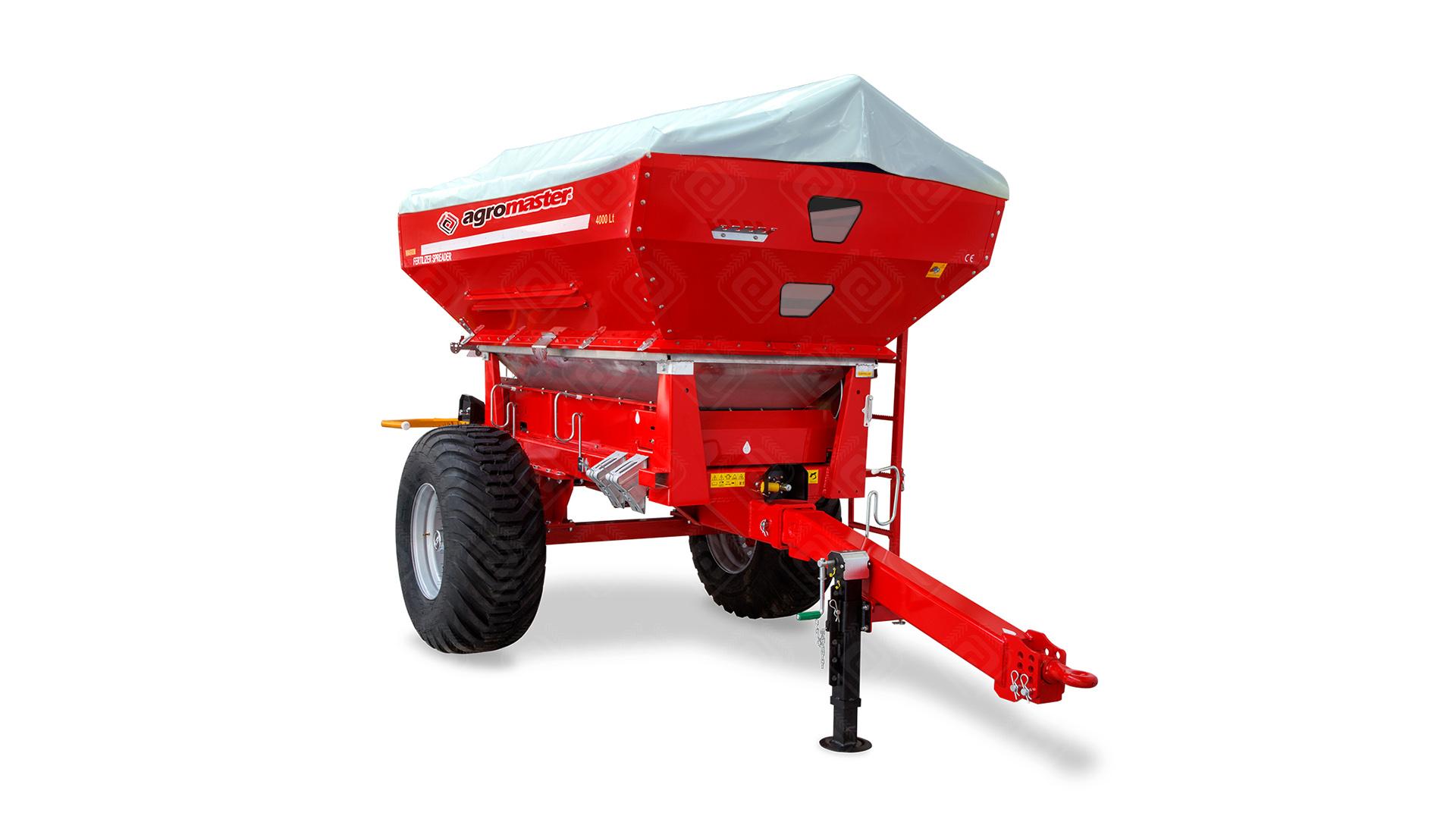

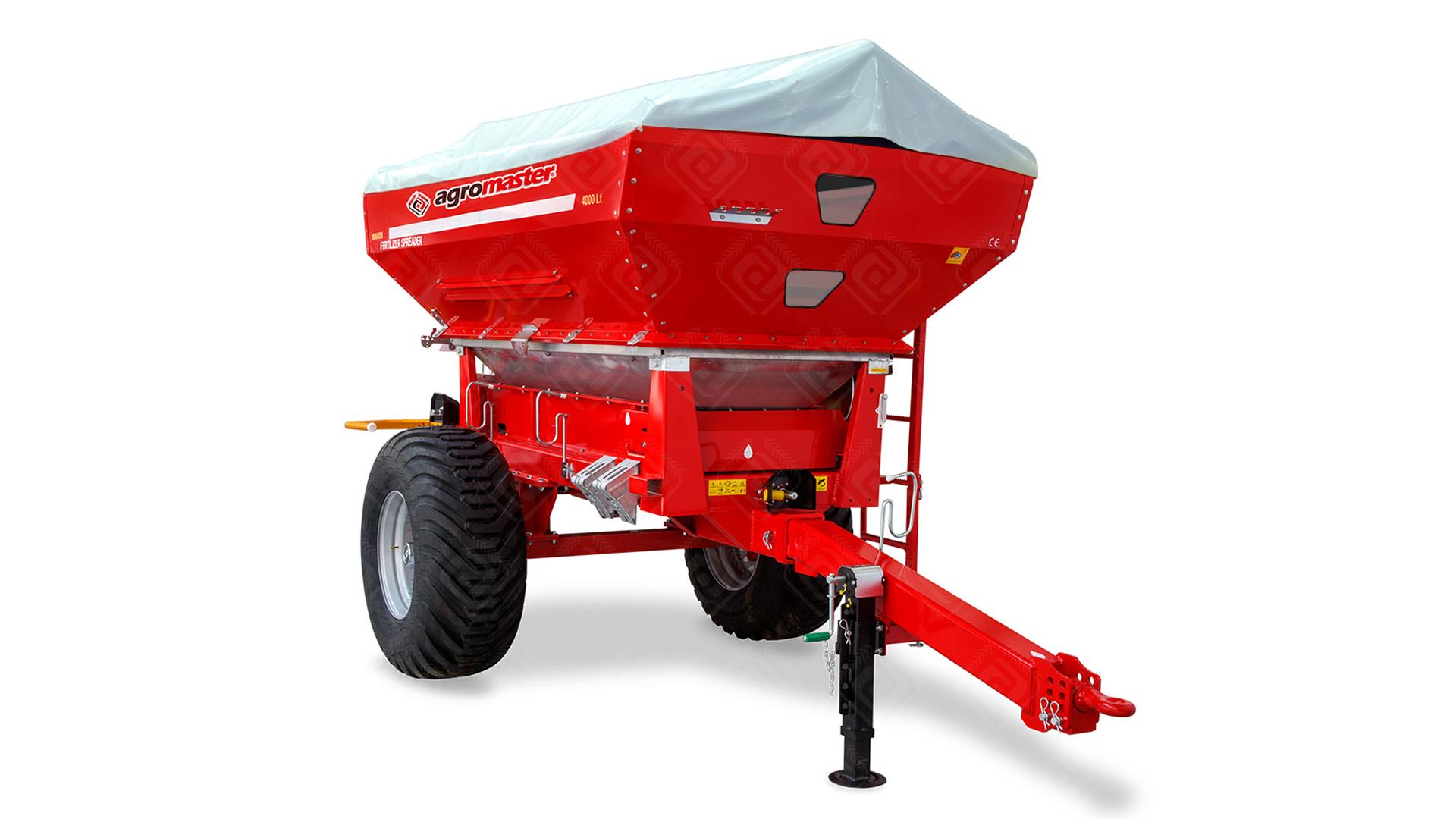

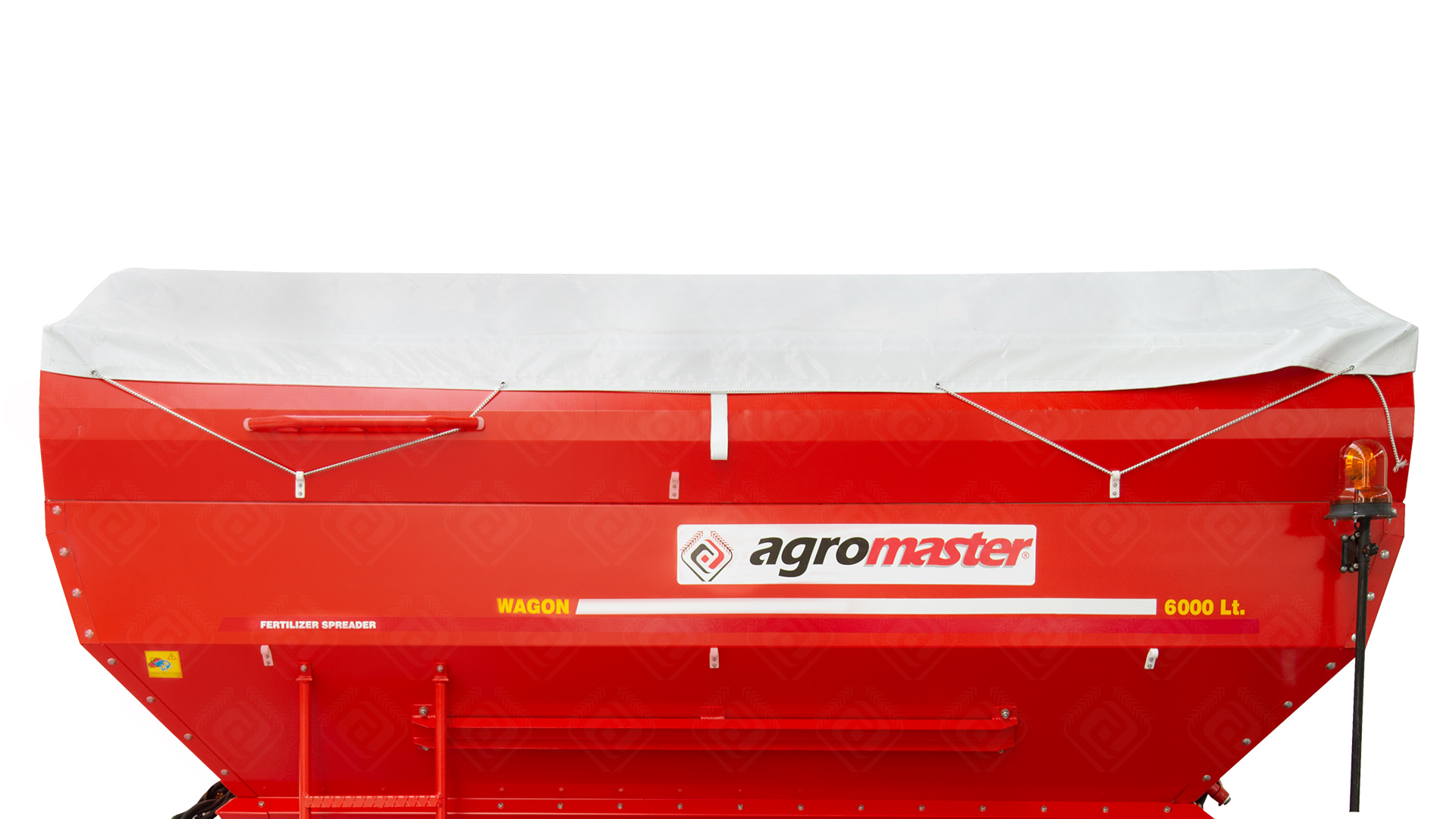

Tent
|
Technical Specifications* |
Unit |
V4000 T2 |
V6000 T2 |
|
Hopper Capacity |
L |
4000 |
6000 |
|
Number Of Disk |
pcs |
2 |
2 |
|
Total Width (W) |
mm |
2310 |
2310 |
|
ft.in. |
7'6" |
7'6" |
|
|
Total Length (L) |
mm |
5210 |
5210 |
|
ft.in. |
17’1” |
17'1" |
|
|
Height |
mm |
2340 |
2690 |
|
ft.in. |
7’8” |
8’10” |
|
|
Total Height (H) |
mm |
2680 |
3030 |
|
ft.in. |
8’9” |
9’11” |
|
|
Working Width |
mm |
18-24 / 59'-79' |
18-24 / 59'-79' |
|
ft.in. |
24-36 / 79'-118' |
24-36 / 79'-118' |
|
|
Category |
II |
||
|
Mixing system |
Horizontal |
||
|
Gearbox Type |
2 |
||
|
PTO |
rpm |
500 / 60 -22,5 |
|
|
Required Power |
hp |
110 |
110 |
|
Total Weight |
kg |
2070 |
2183 |
|
Ibs |
4563 |
4812 |
|
