FS2 CORNERED ECO

Fertilizer Spreaders

FS2 CORNERED ECO

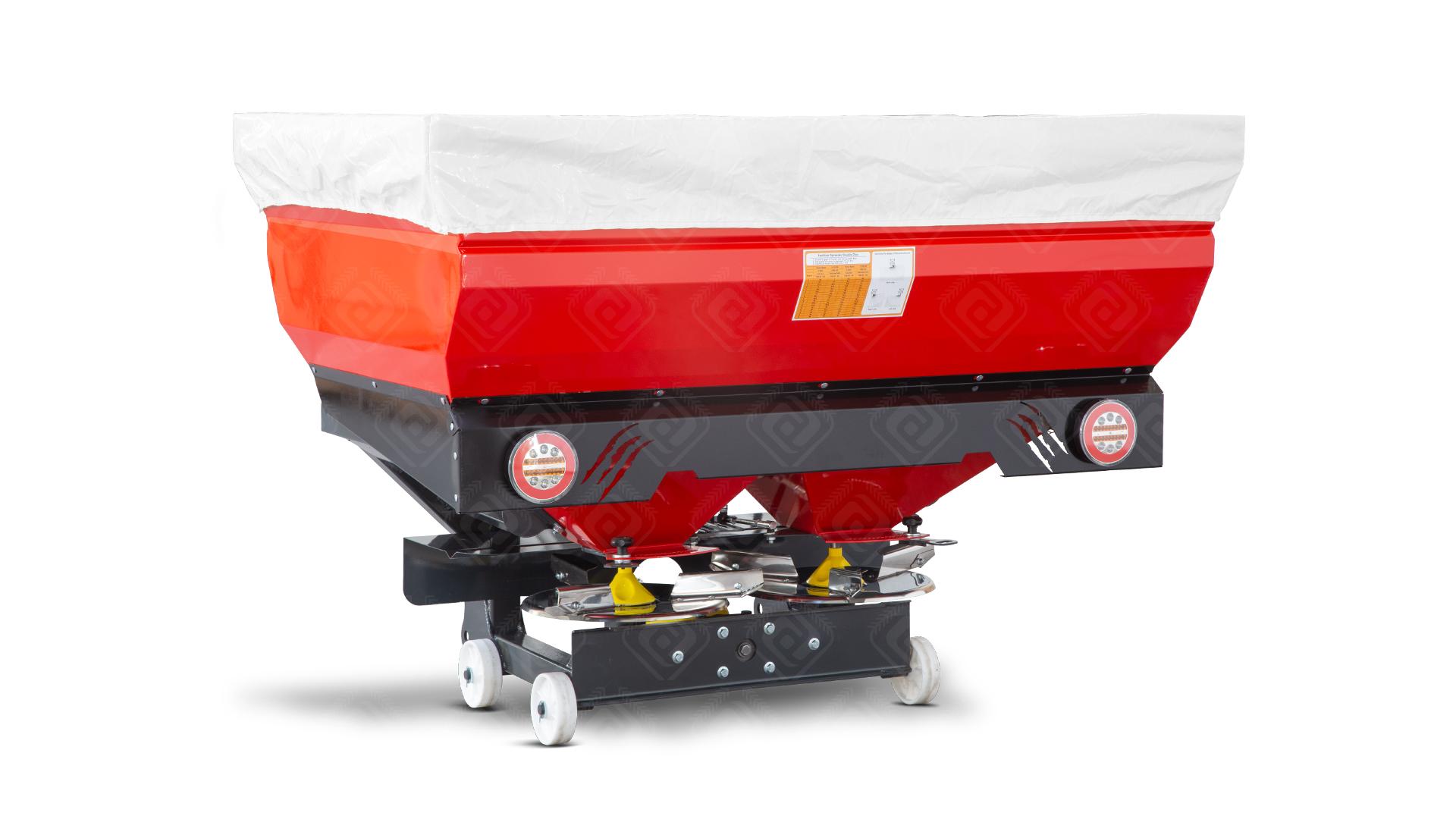

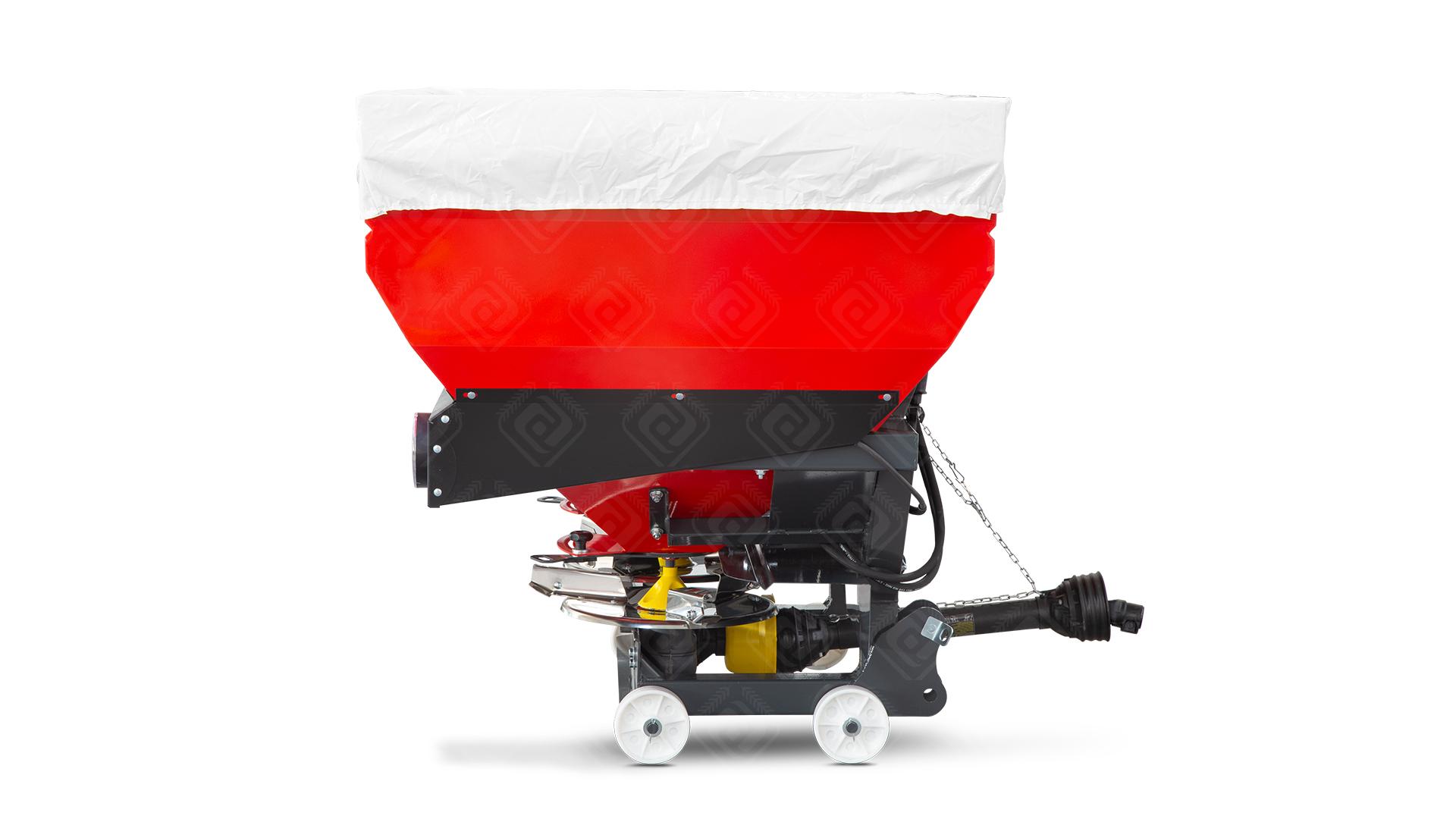

FERTILIZER SPREADER CORNERED TYPE MOUNTED DOUBLE DISC

Product Catalog

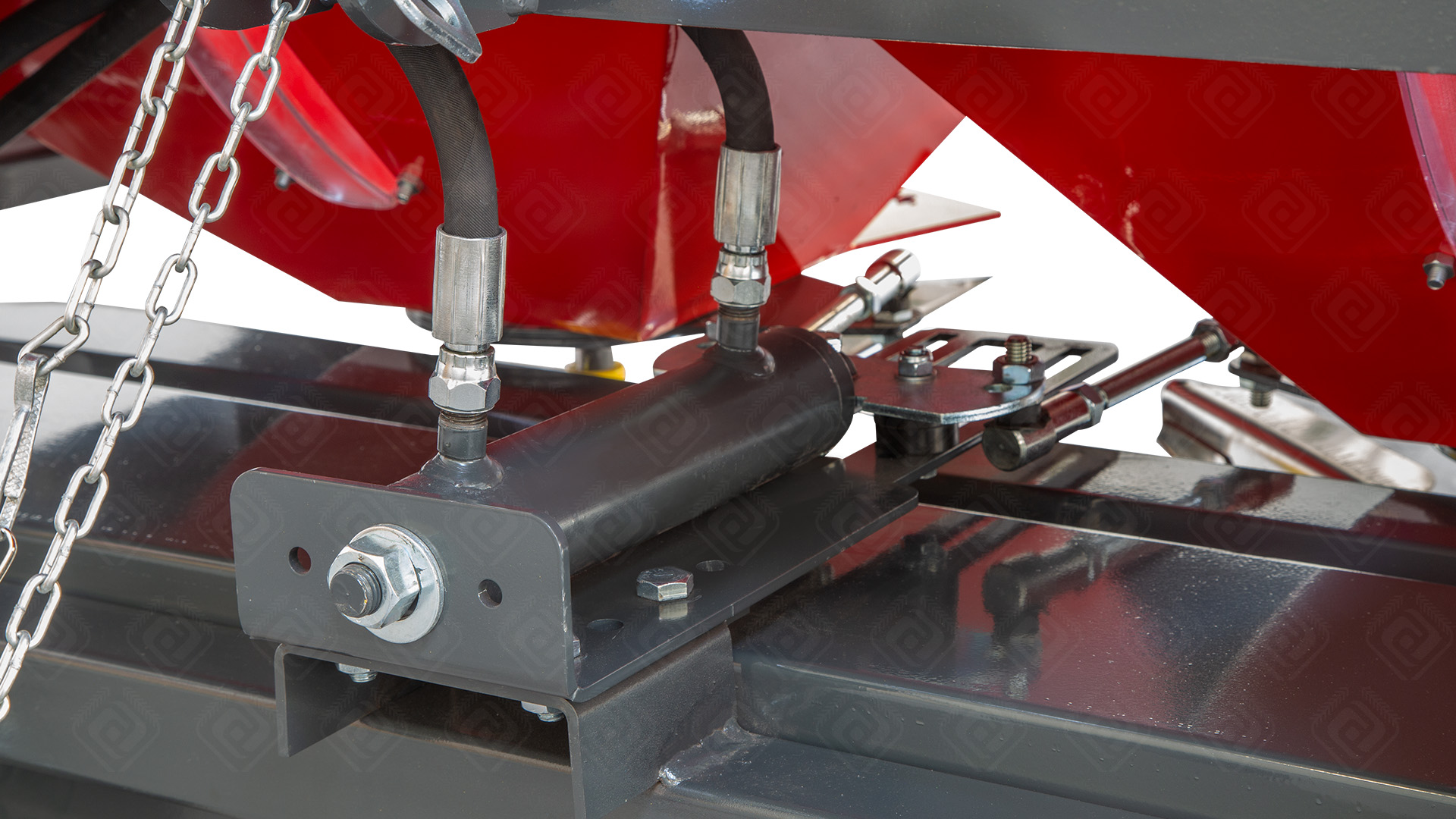

Hydraulic shut off ventils

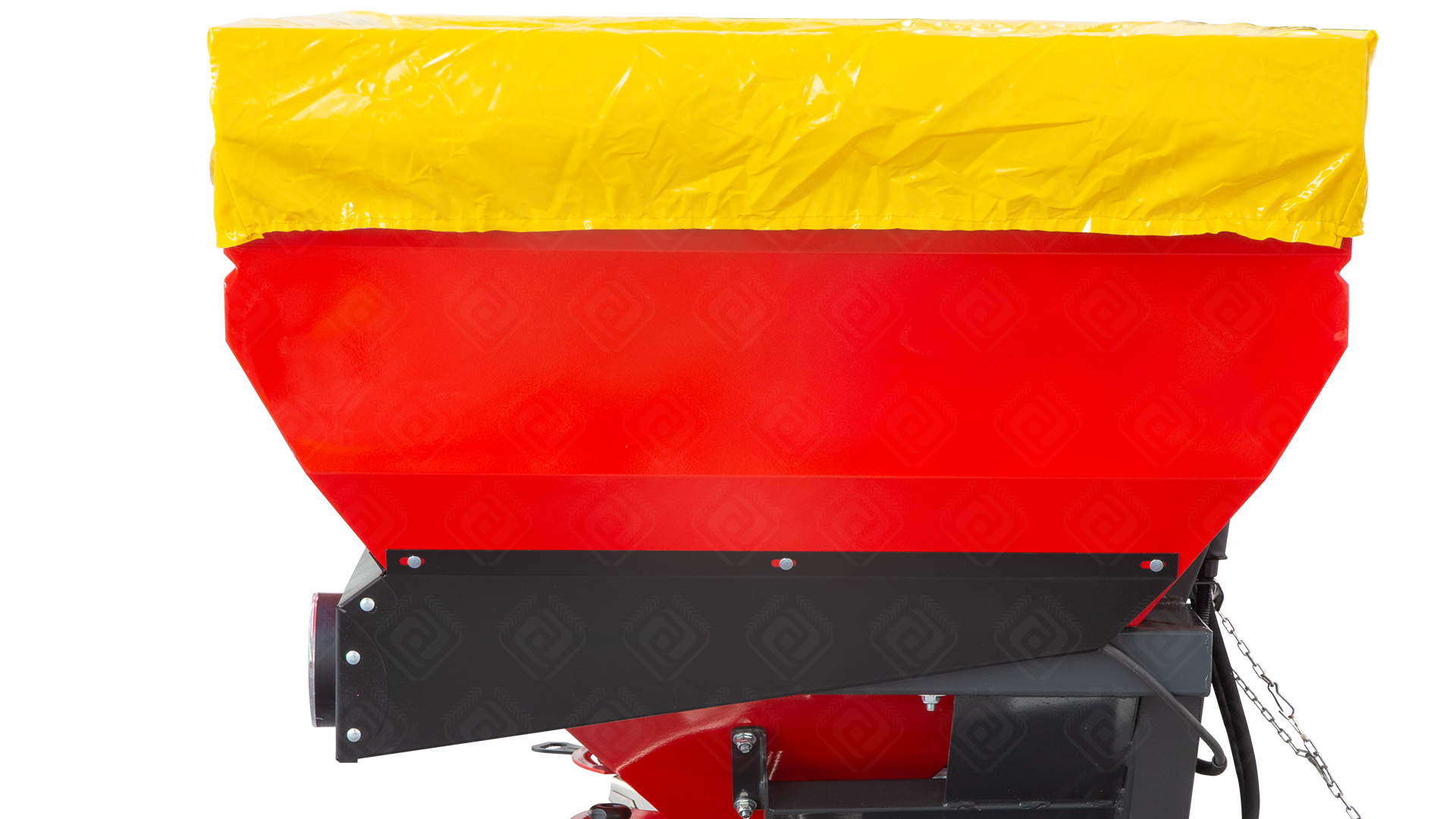

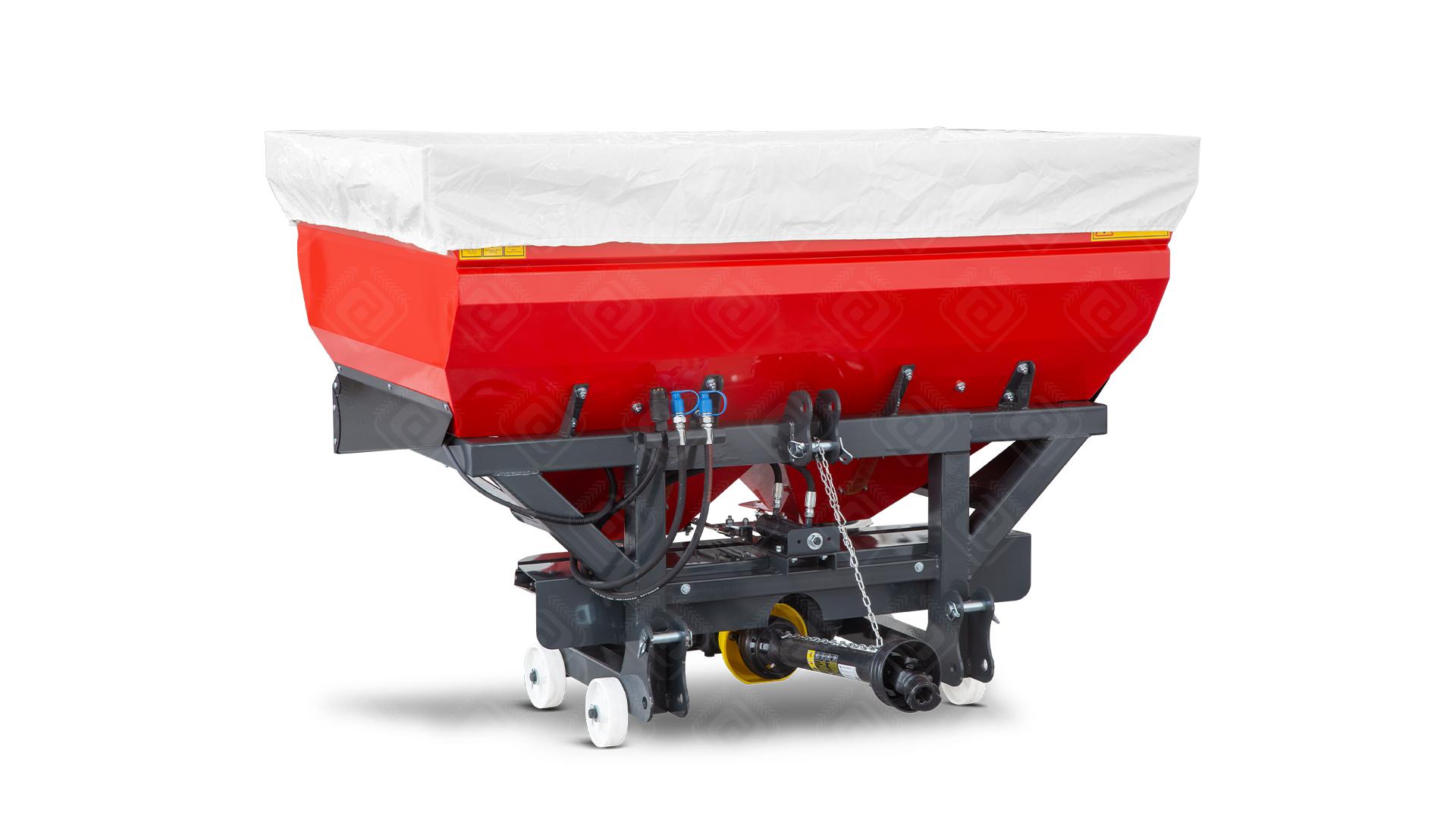

Tent

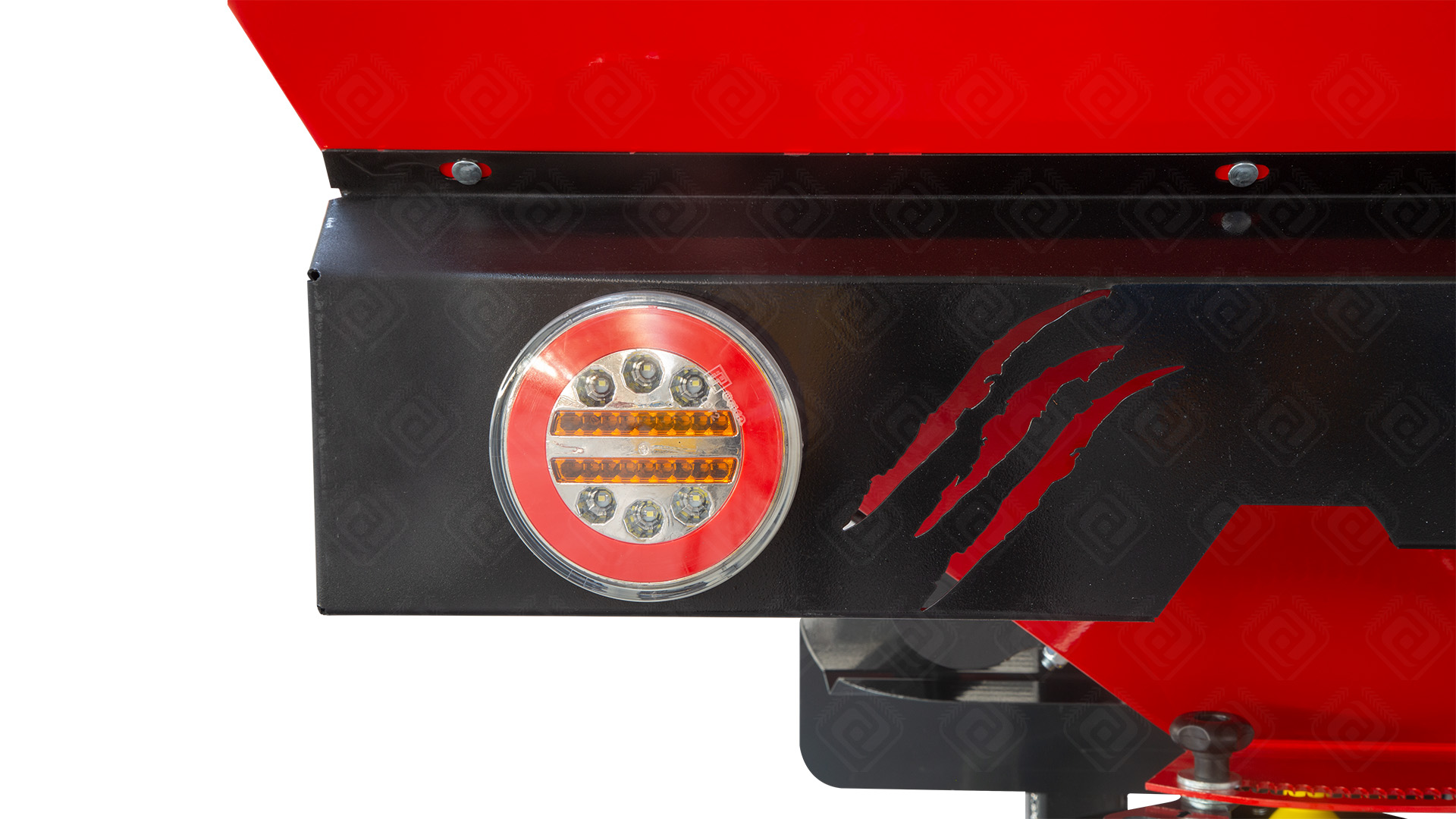

Led Light

Spread rate chart

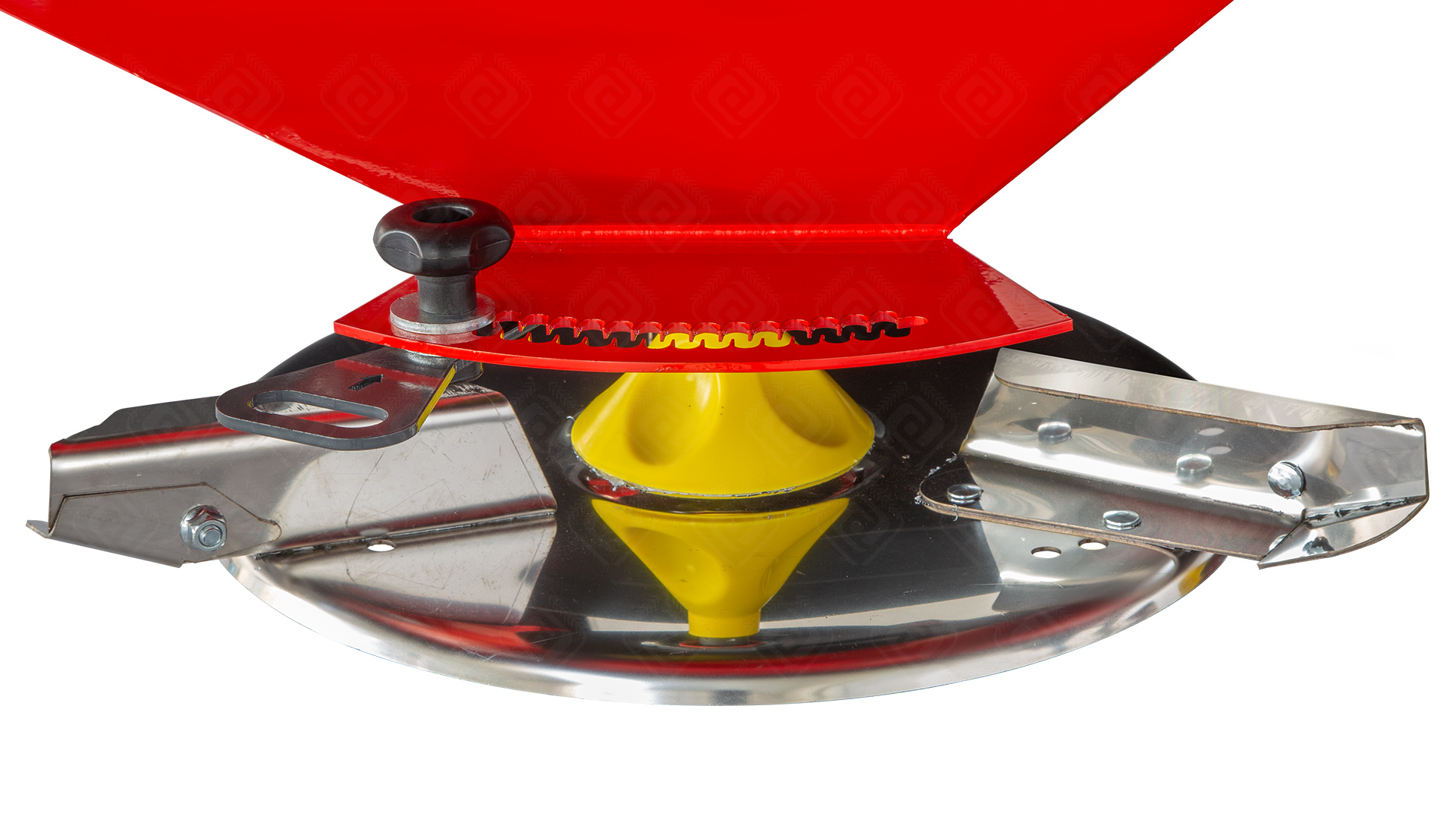

Chrome disc

TECHNICAL SPECIFICATIONS

Technical Specifications*	Unit	FS2 450	FS2 500	FS2 600	FS2 800	FS2 1000	FS2 1200	FS2 1500	FS2 1600
Hopper Capacity	l/	450	500	600	800	1000	1200	1500	1600
Hopper Capacity	gallon	118	132	158	211	264	317	396	422
Number of Disc	pcs	2	2	2	2	2	2	2	2
Working Width	m ft.in.	18	18	18	18	18	18	18	18
Working Width	m ft.in.	59'	59'	59'	59'	59'	59'	59'	59'
Total Width (W)	mm	1700	1700	1700	1700	1800	1800	1800	1800
Total Width (W)	ft.in.	5'7"	5'7"	5'7"	5'7"	5'11"	5'11"	5'11"	5'11"
Total Length (L)	mm	1150	1150	1160	1170	1170	1170	1170	1170
Total Length (L)	ft.in.	3'9"	3'9"	3'9"	3'10"	3'10"	3'10"	3'10"	3'10"
Total Height (H)	mm	1000	1050	1110	1200	1200	1350	1570	1630
Total Height (H)	ft.in.	3'3"	3'5"	3'7"	3'11"	3'11"	4'5"	5'1"	5'4"
Category		II	II	II	II	II	II	II	II
Transmission Type		1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1
Mixing System		Vertical
PTO Rotation	rpm	540	540	540	540	540	540	540	540
Required Power	hp	50-55	60-65	75-80	80-90	80-90	80-90	80-90	80-90
Total Weight	kg	190	195	200	205	210	225	245	270
Total Weight	Ibs	418	429	440	451	462	496	540	595

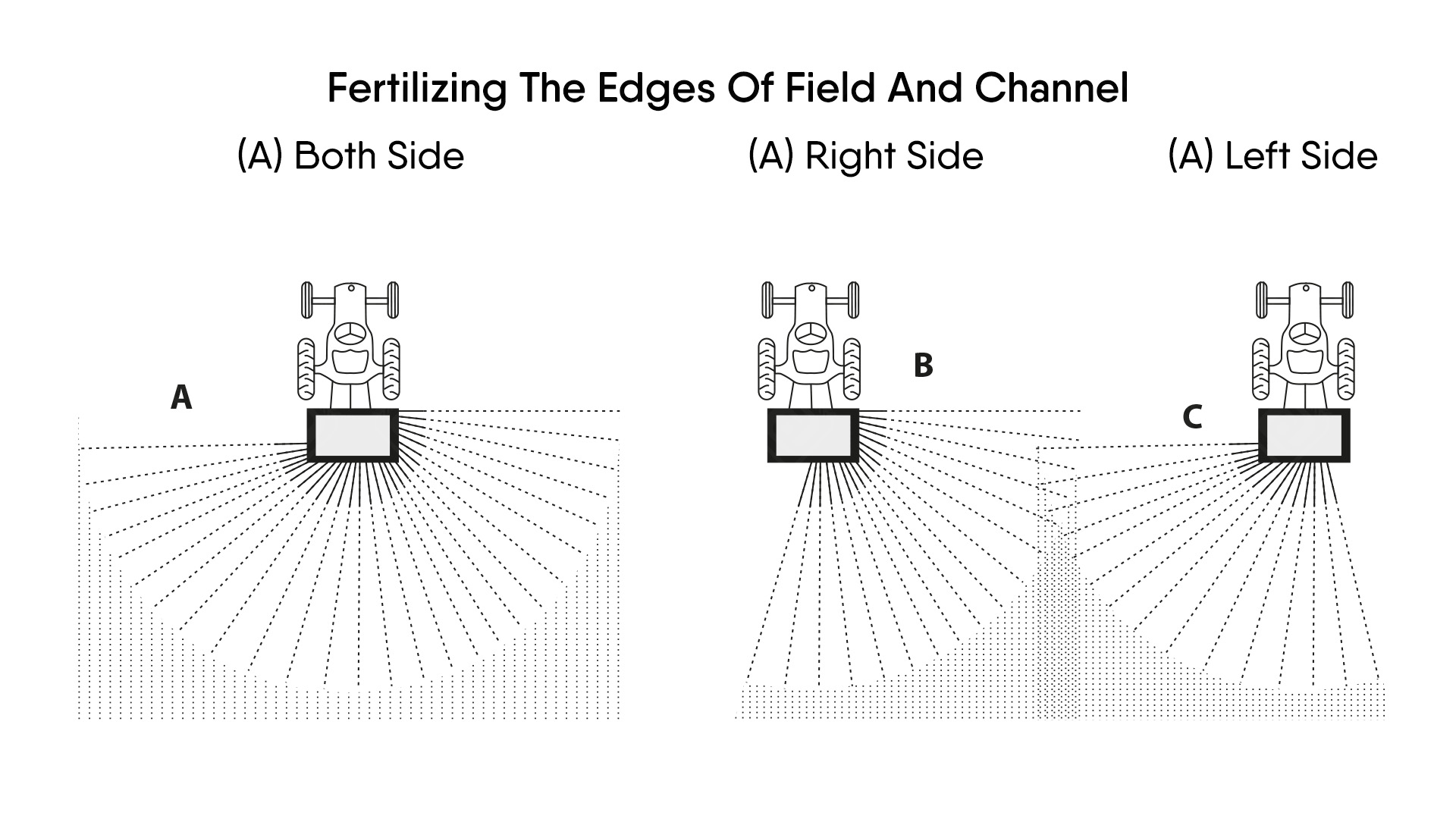

The advanced border spreading system enables fertilizer to be distributed precisely in the desired direction along field and channel edges. With right-side, left-side, or both-side spreading options, fertilizer loss is minimized, the environment is protected, and nutrients are applied only where they are needed. This feature ensures maximum efficiency and cost-effective fertilizer use in boundary areas.
