Fertilizer Spreaders

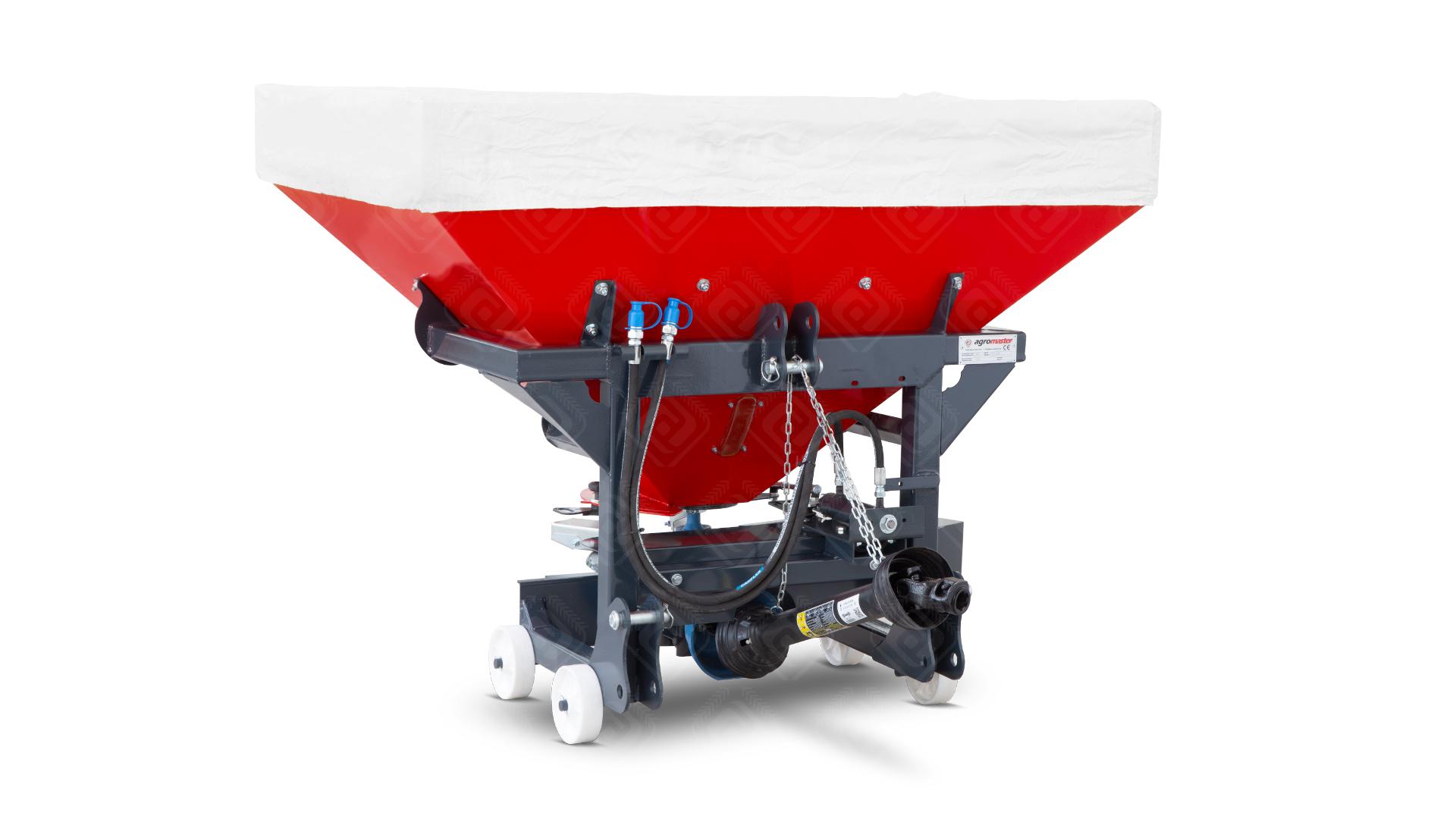

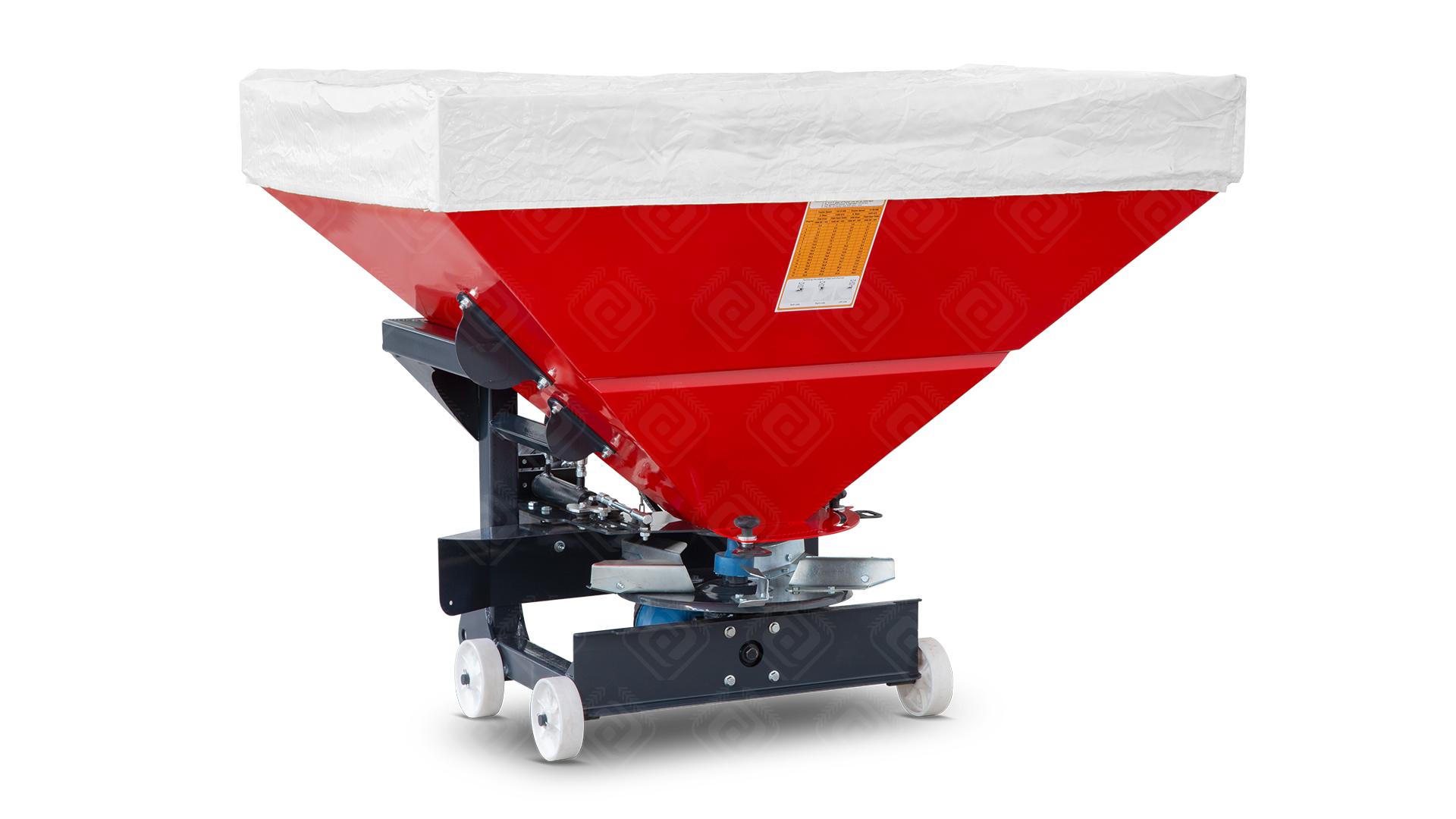

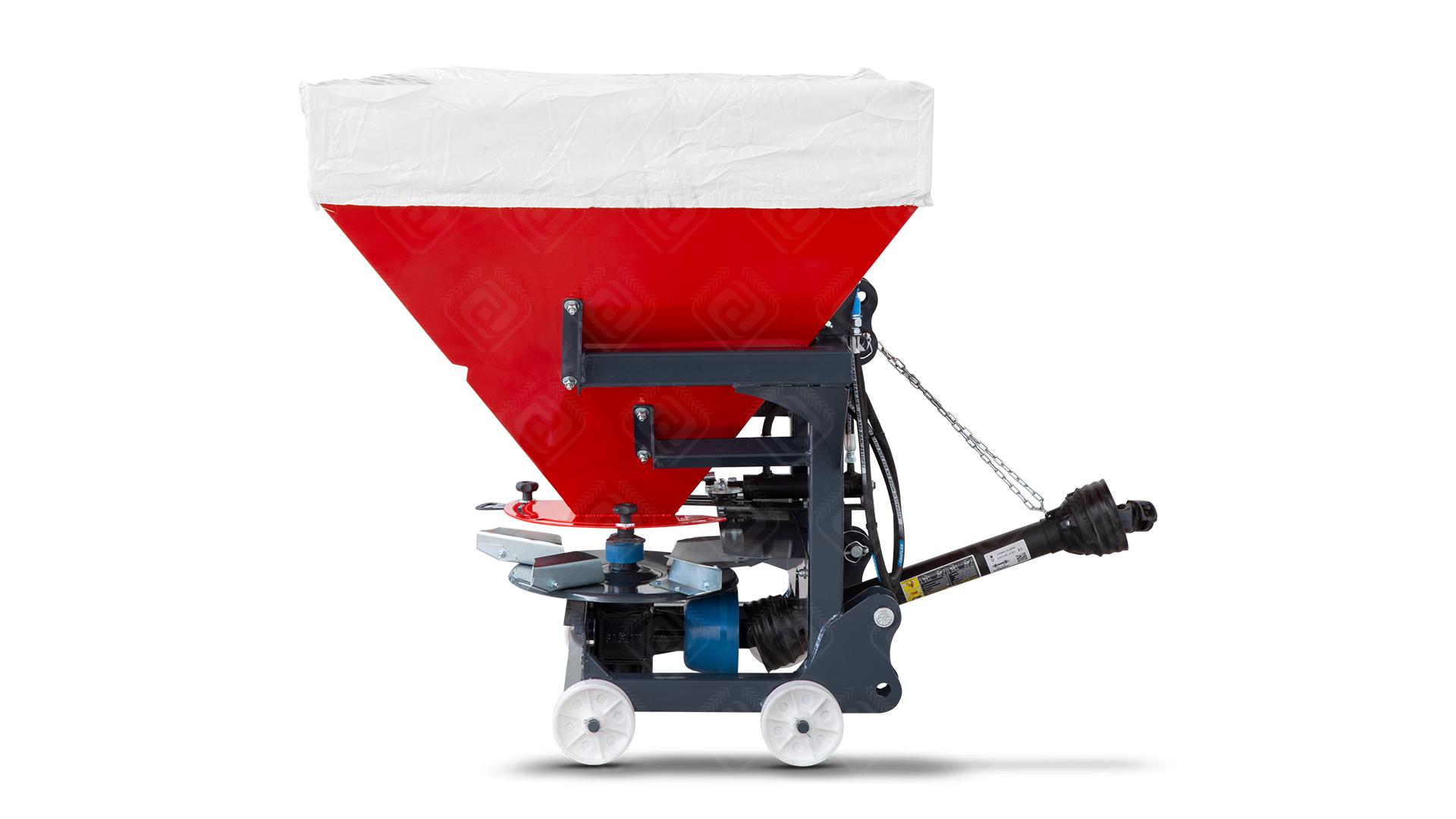

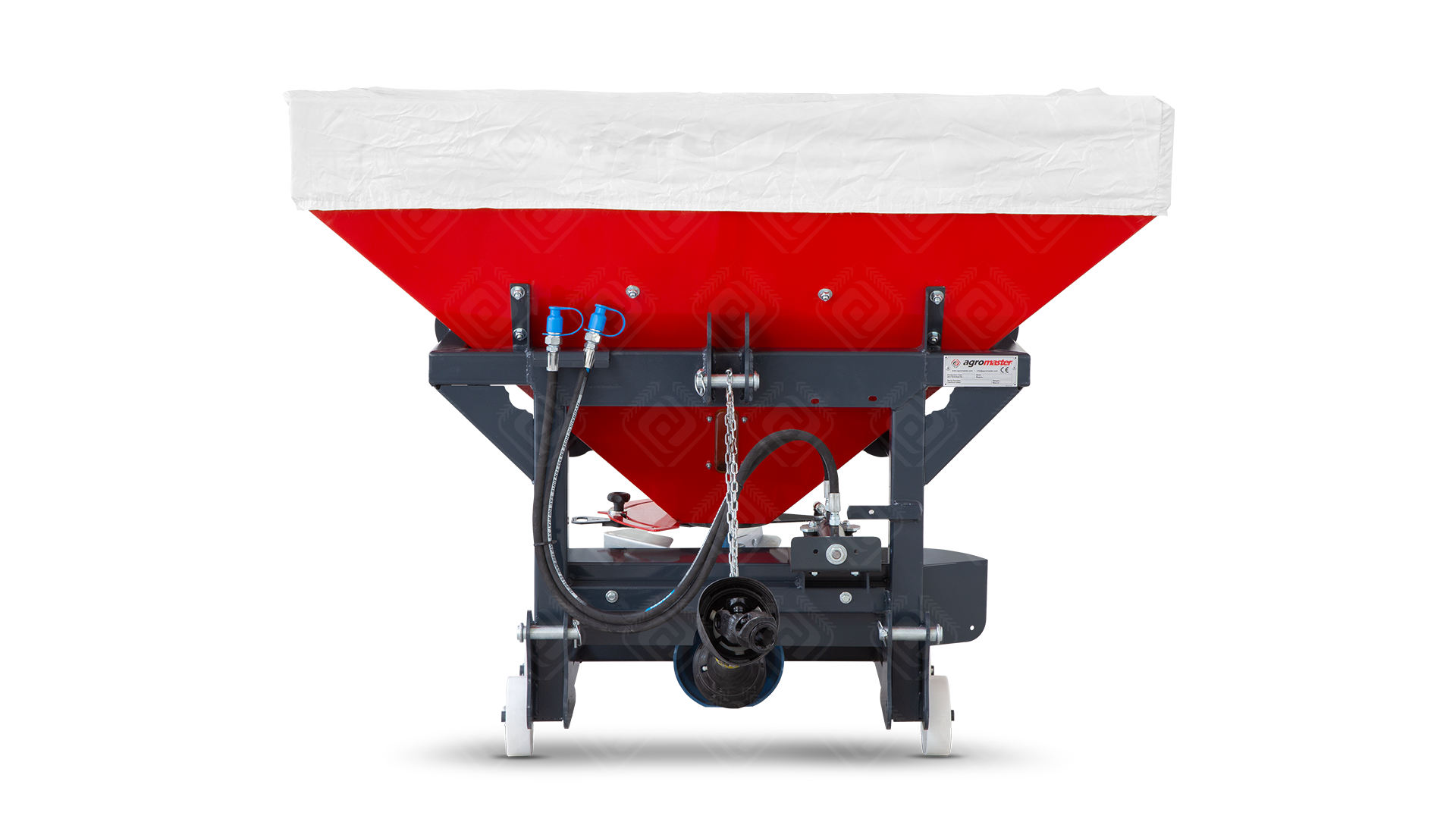

FS1 cornered type with single disc fertilizer spreaders are produced mounted types with 400-500-600-800 liters capacities. Mounted type machines are attached to tractors' universal three point linkage system and hydraulic lifting lever. Fertilizer spreader machine enriches the soil by spreading the fertilizer to plants as wheat, barley, oats, sorghum, canola, cotton, sugar beet, corn, beans, and sunflower.

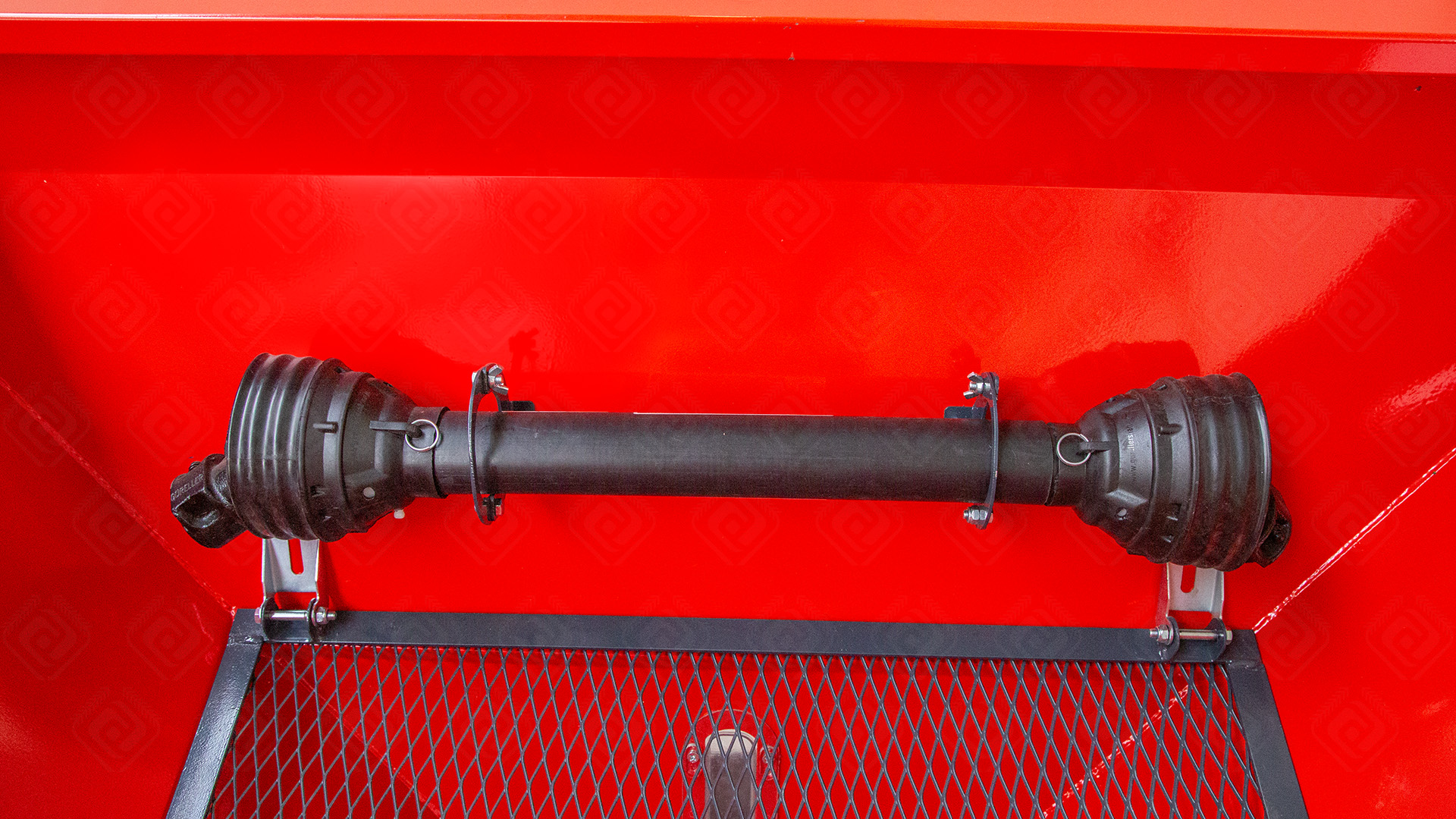

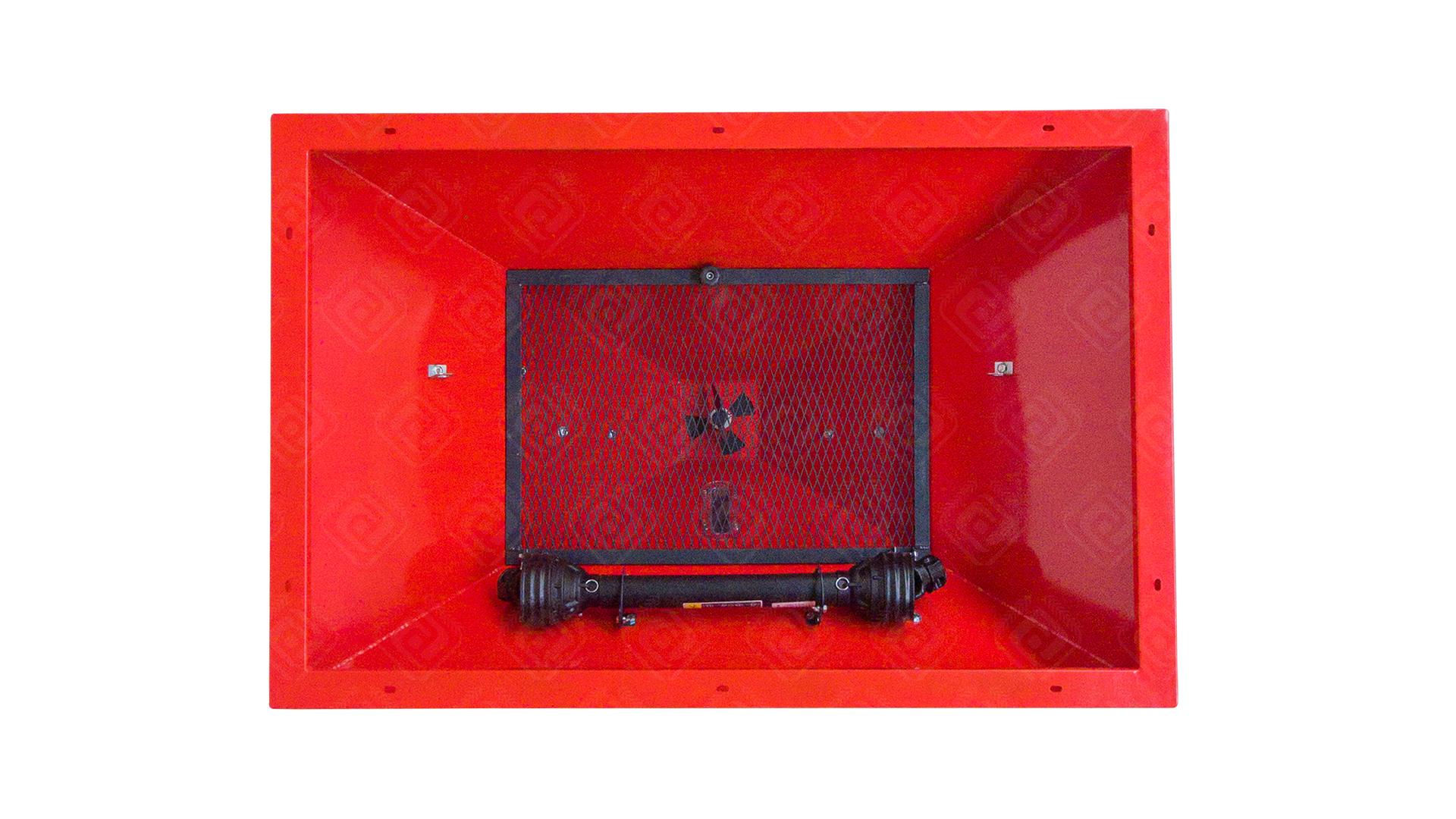

Shaft holder
Spread rate chart

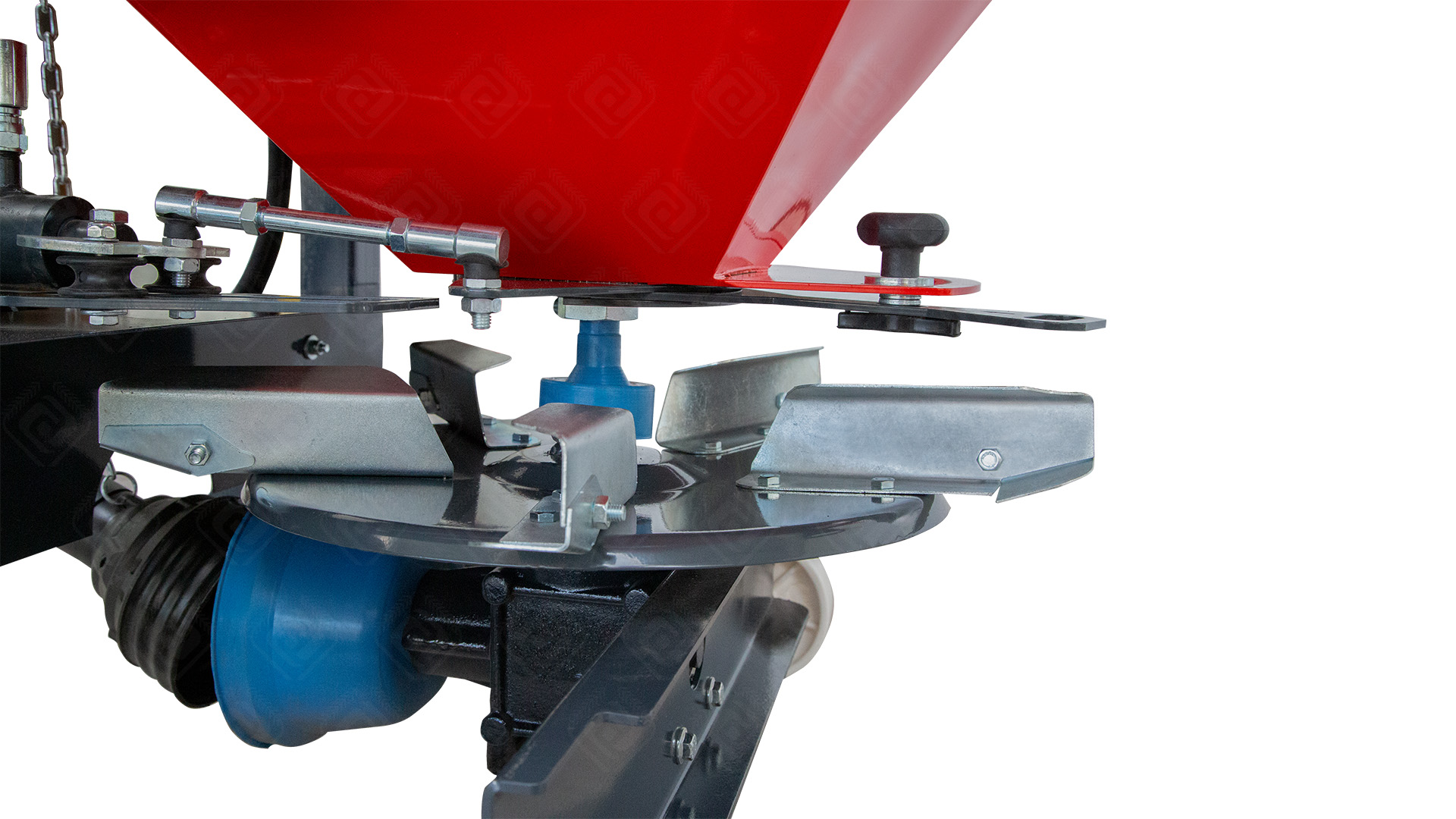

Disc

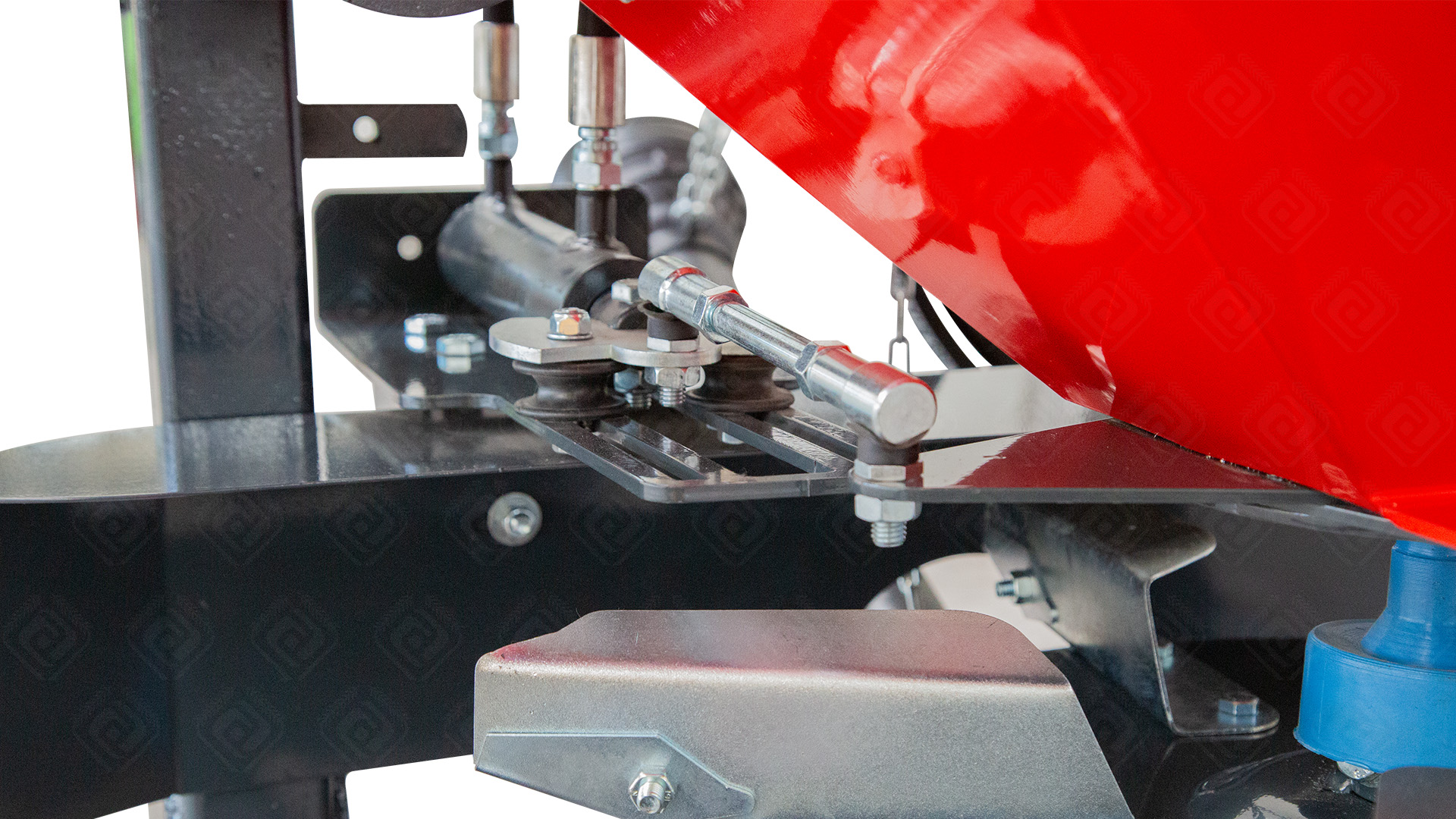

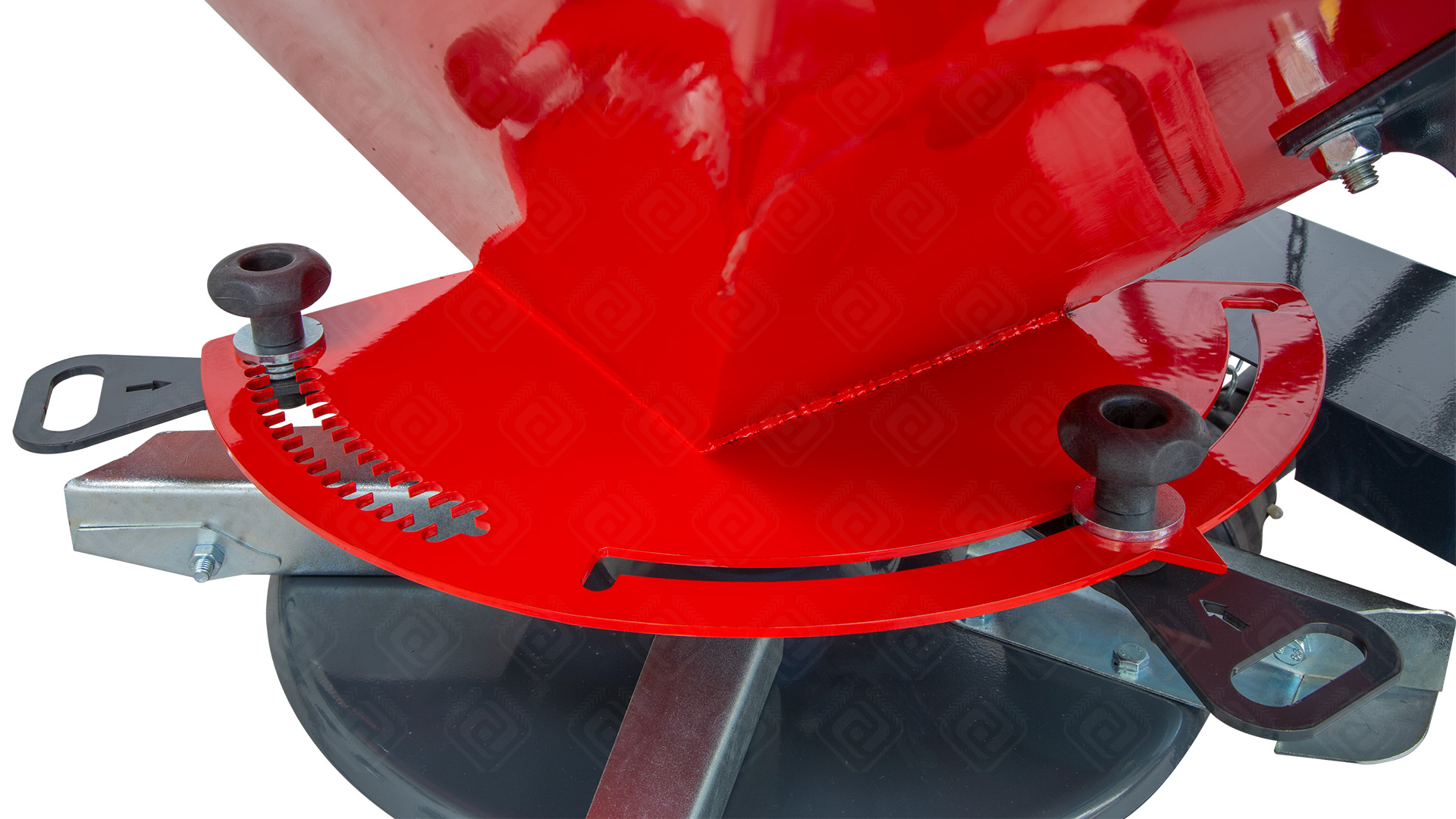

Hydraulic Opening and Closing System

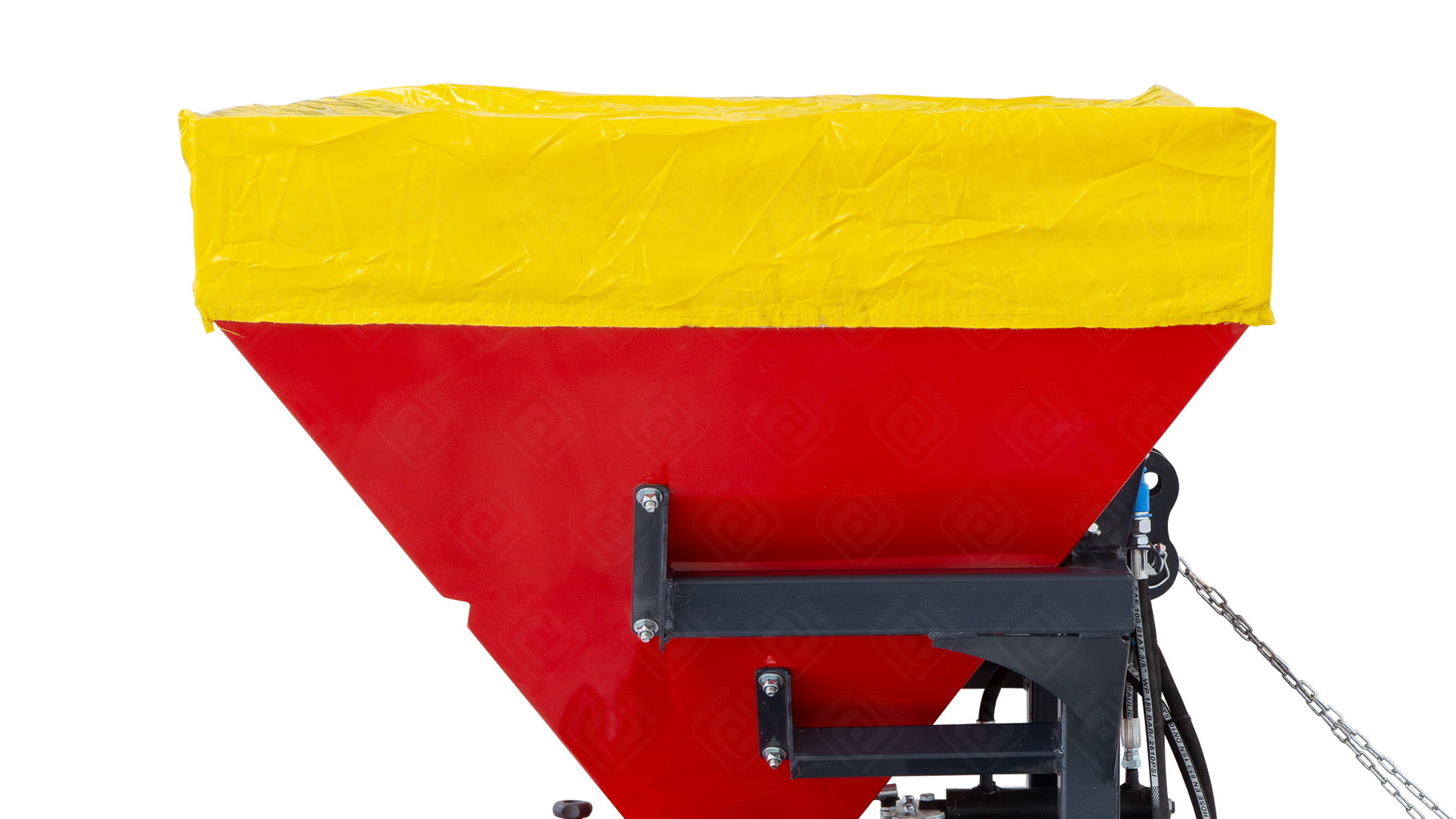

Tent

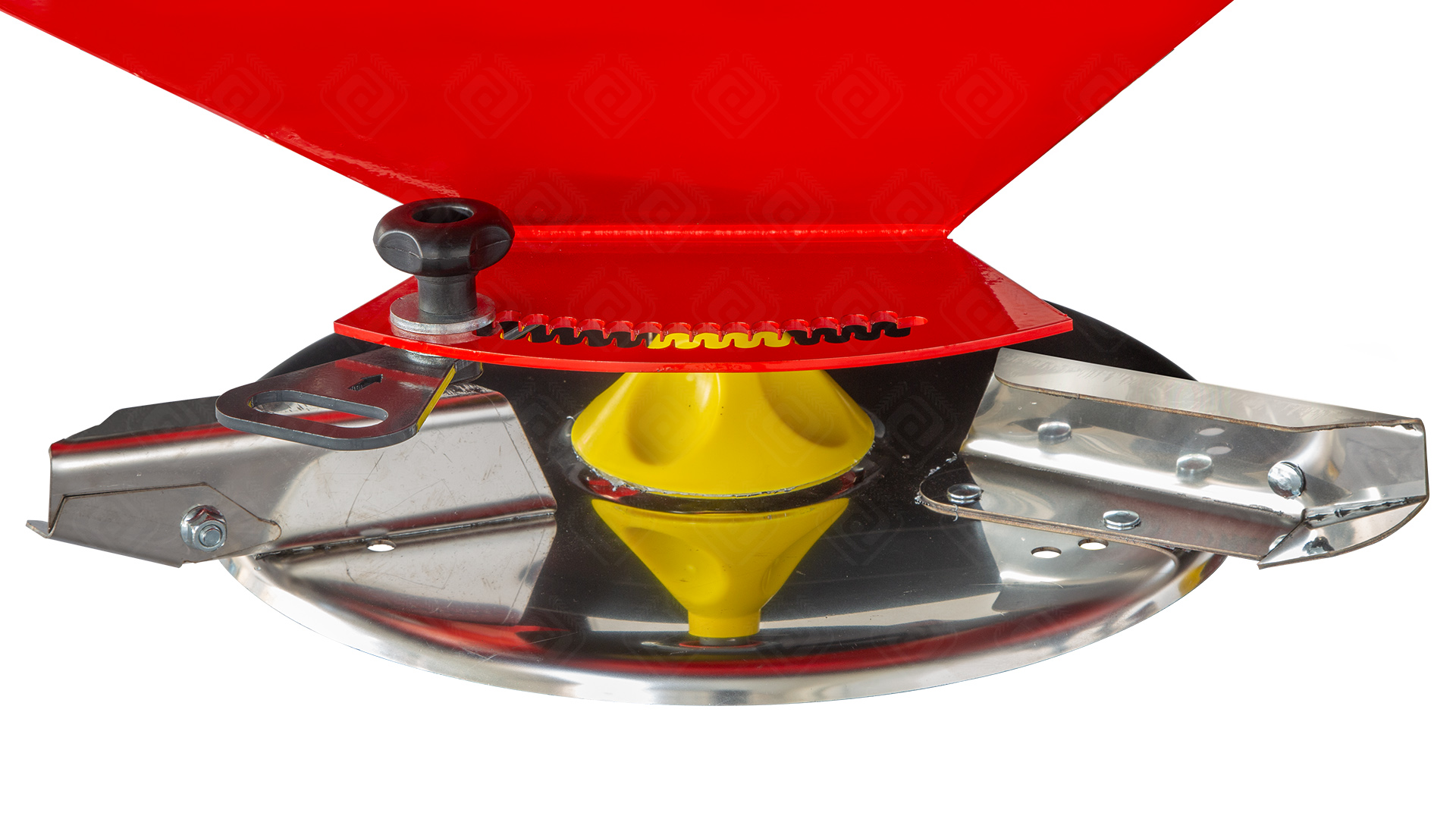

Chrome disc
|
Technical Specifications* |
Unit |
FS1 400 |
FS1 500 |
FS1 600 |
FS1 800 |
|
Hopper Capacity |
l |
400 |
500 |
600 |
800 |
|
gallon |
106 |
132 |
158 |
211 |
|
|
Number of Disc |
pcs |
1 |
1 |
1 |
1 |
|
Working Width |
m ft.in. |
14 |
14 |
14 |
14 |
|
45’11” |
45’11” |
45’11” |
45’11” |
||
|
Total Width (W) |
mm |
1150 |
1400 |
1480 |
1650 |
|
ft.in. |
3'9" |
4'8" |
4'10" |
5'5" |
|
|
Total Length (L) |
mm |
1020 |
1060 |
1110 |
1110 |
|
ft.in. |
3'4" |
3'5" |
3'7" |
3'7" |
|
|
Total Height (H) |
mm |
1120 |
1200 |
1200 |
1300 |
|
ft.in. |
3'8" |
3'11" |
3'11" |
4'3" |
|
|
Category |
II |
II |
II |
II |
|
|
Transmission Type |
1,25/1 |
1,25/1 |
1,25/1 |
1,25/1 |
|
|
Mixing System |
Vertical |
||||
|
PTO Rotation |
rpm |
540 |
540 |
540 |
540 |
|
Required Power |
hp |
40-45 |
50-55 |
60-65 |
60-65 |
|
Total Weight |
kg |
120 |
135 |
140 |
170 |
|
Ibs |
264 |
297 |
308 |
374 |
|
