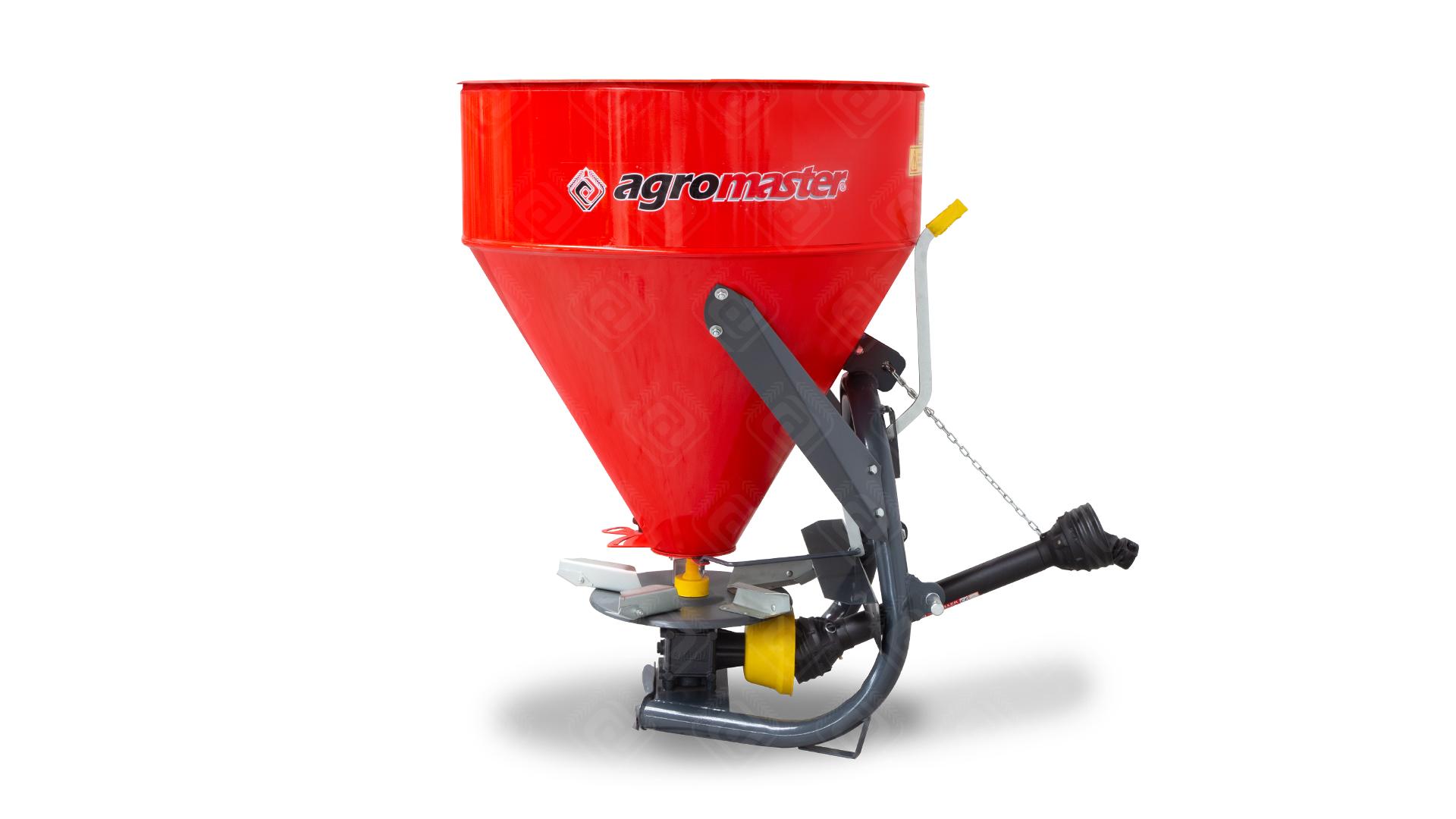

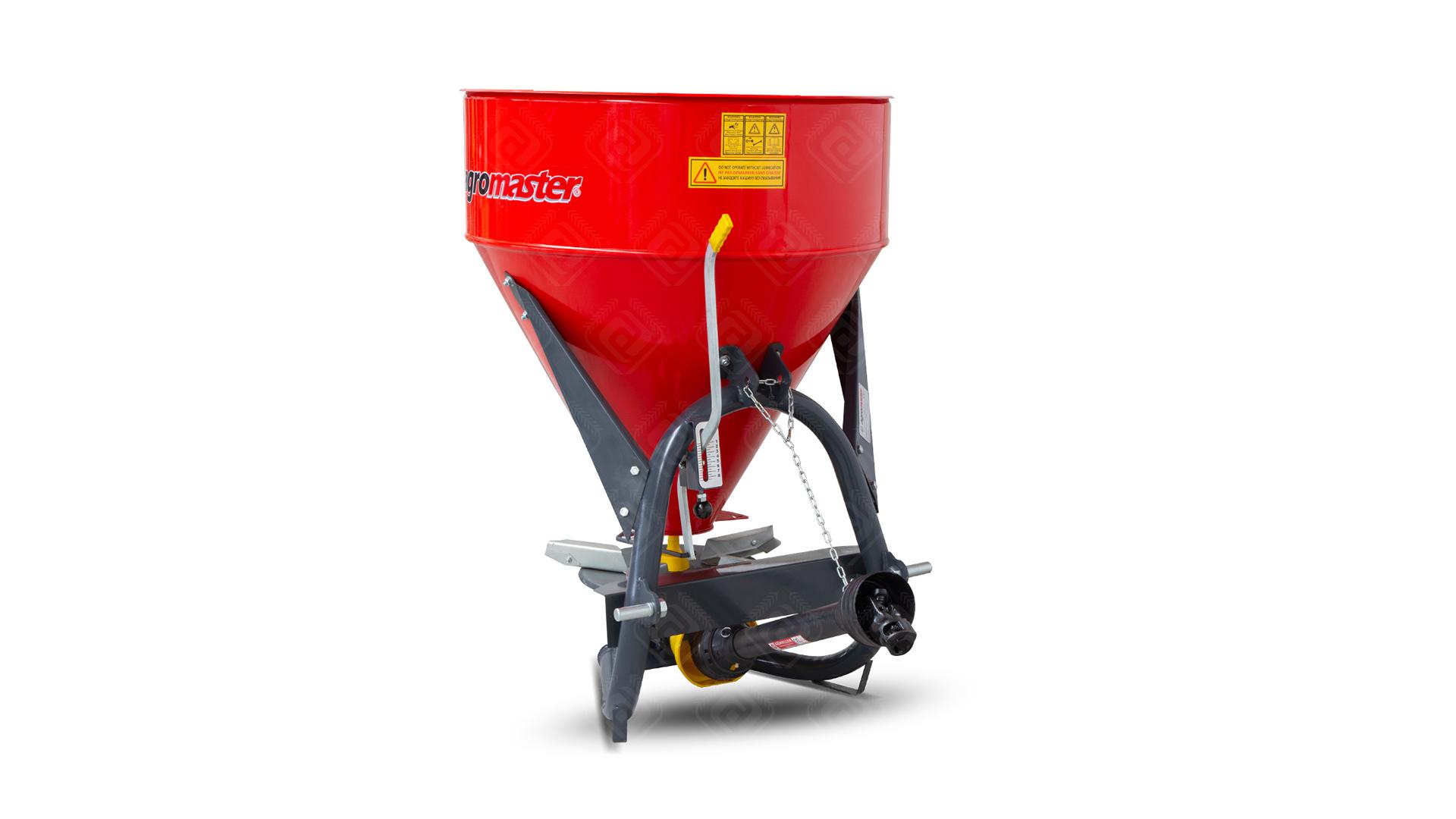

FS 1 model is produced mounted types as single disc with 250-350 liters capacities. Mounted type machines are attached to tractors' universal three point linkage system and hydraulic lifting lever. FS 1 enriches the soil by spreading the fertilizer to plants as wheat, barley, oats, sorghum, canola, cotton, sugar beet, corn, beans, and sunfower.

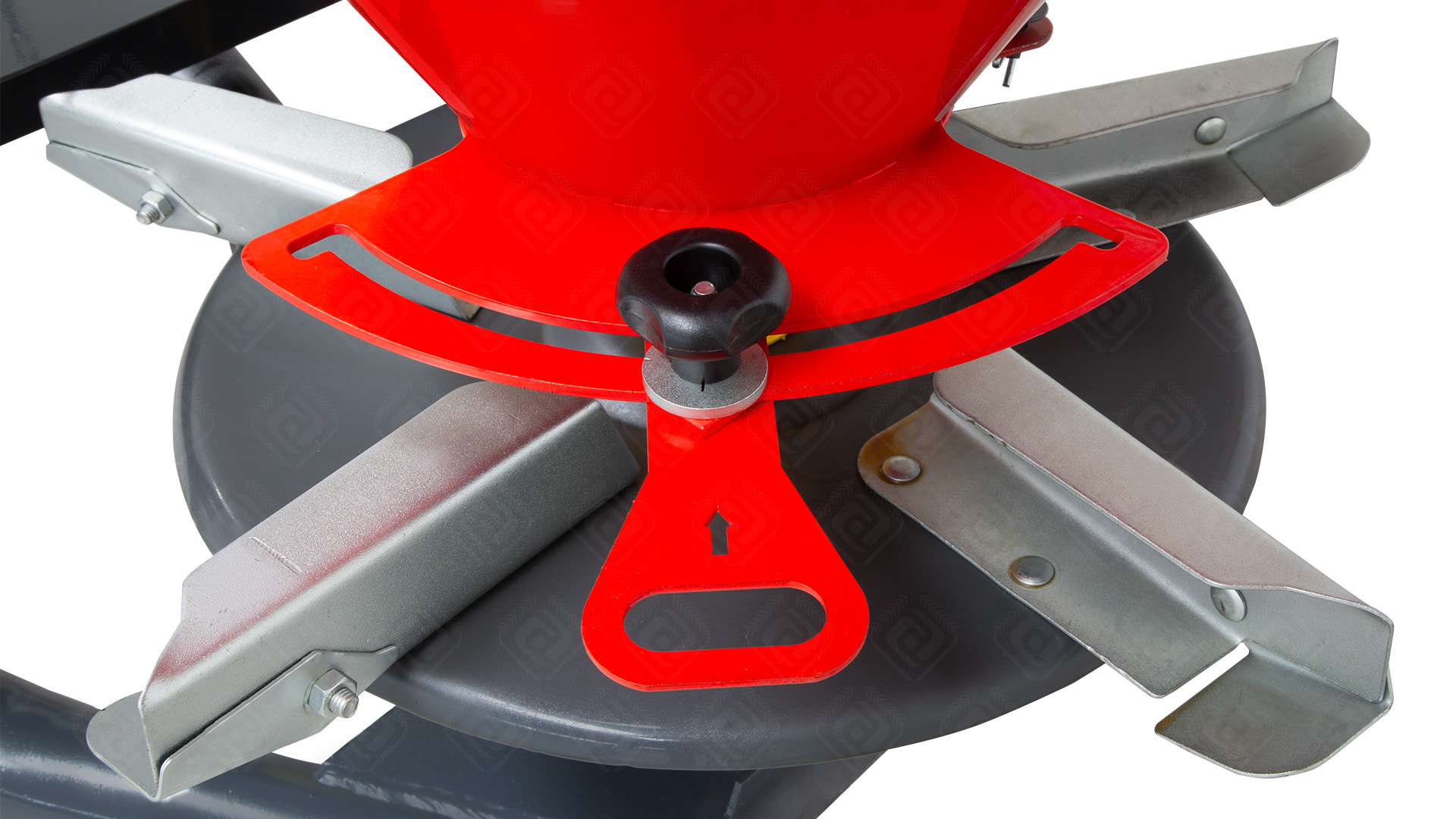

Disc

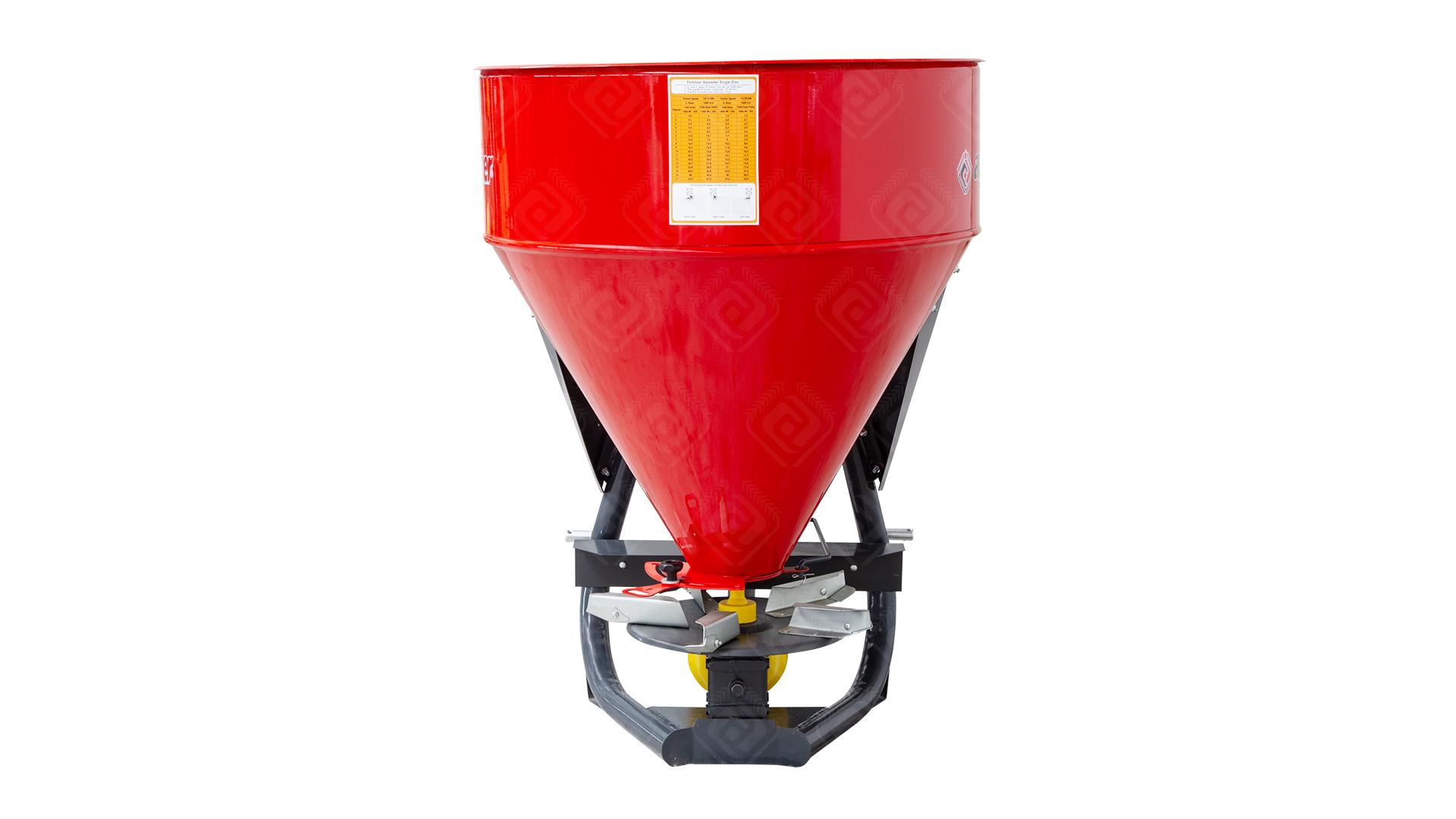

Spread Rate Chart

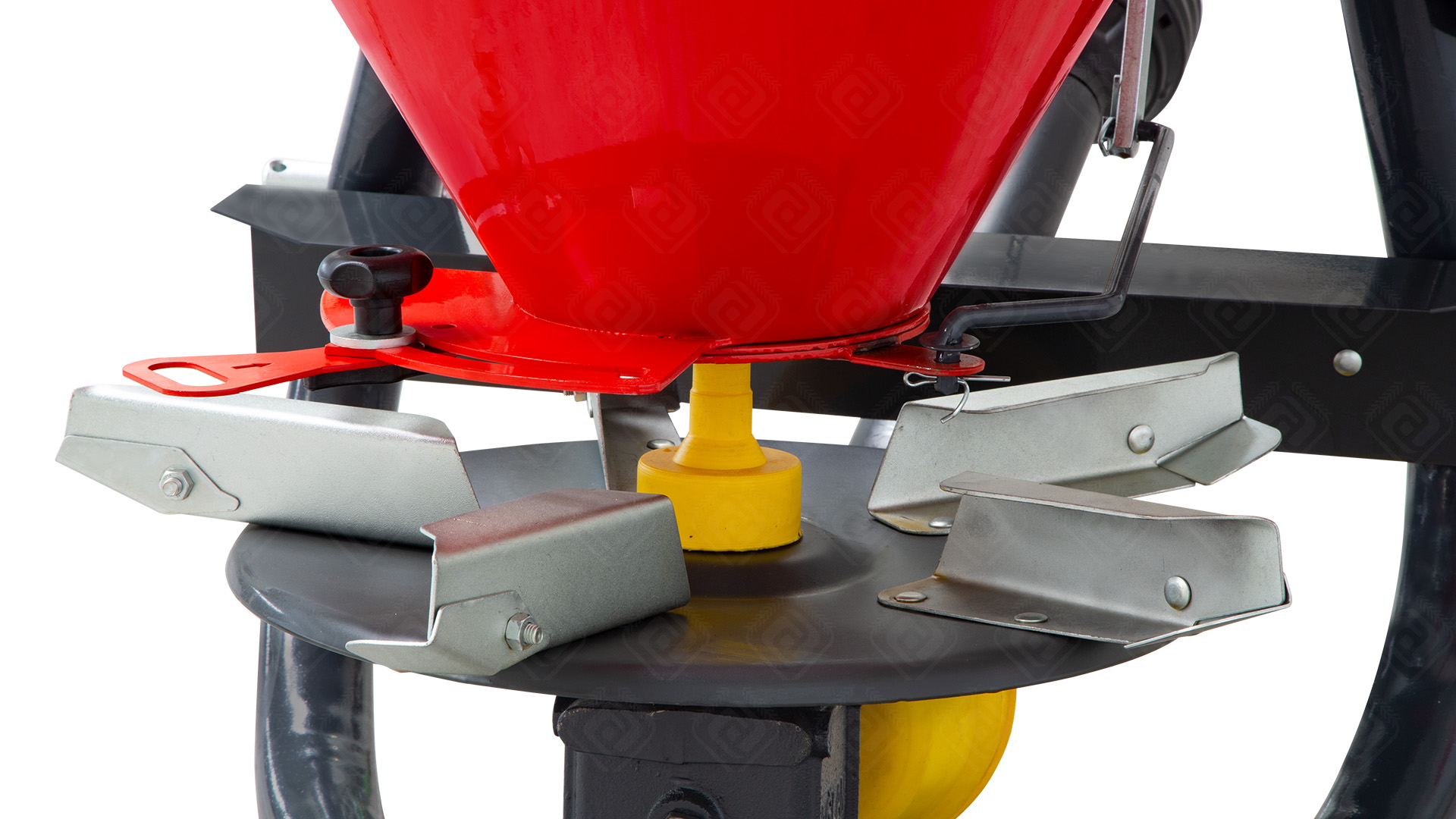

Mechanical shut off ventils

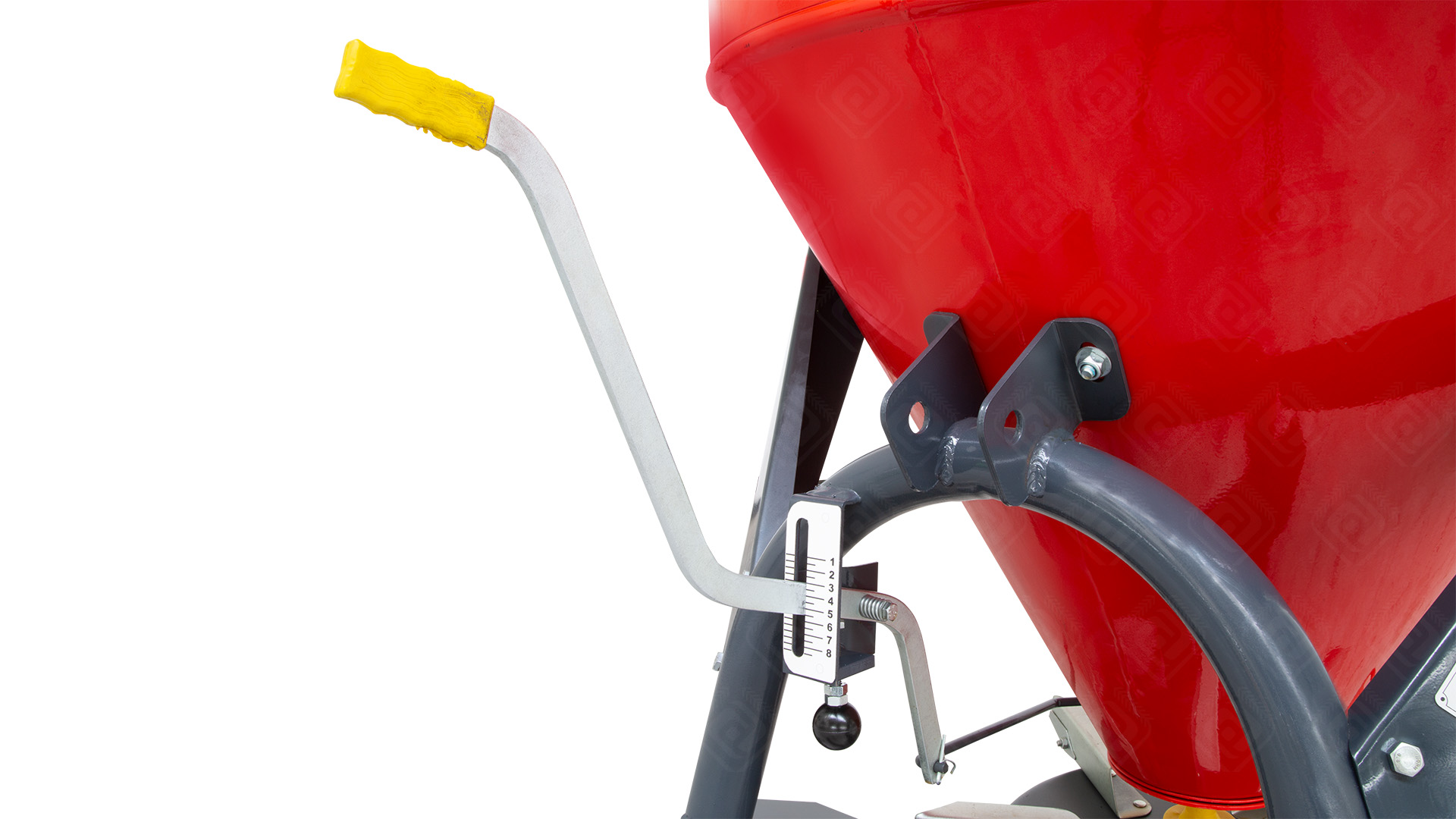

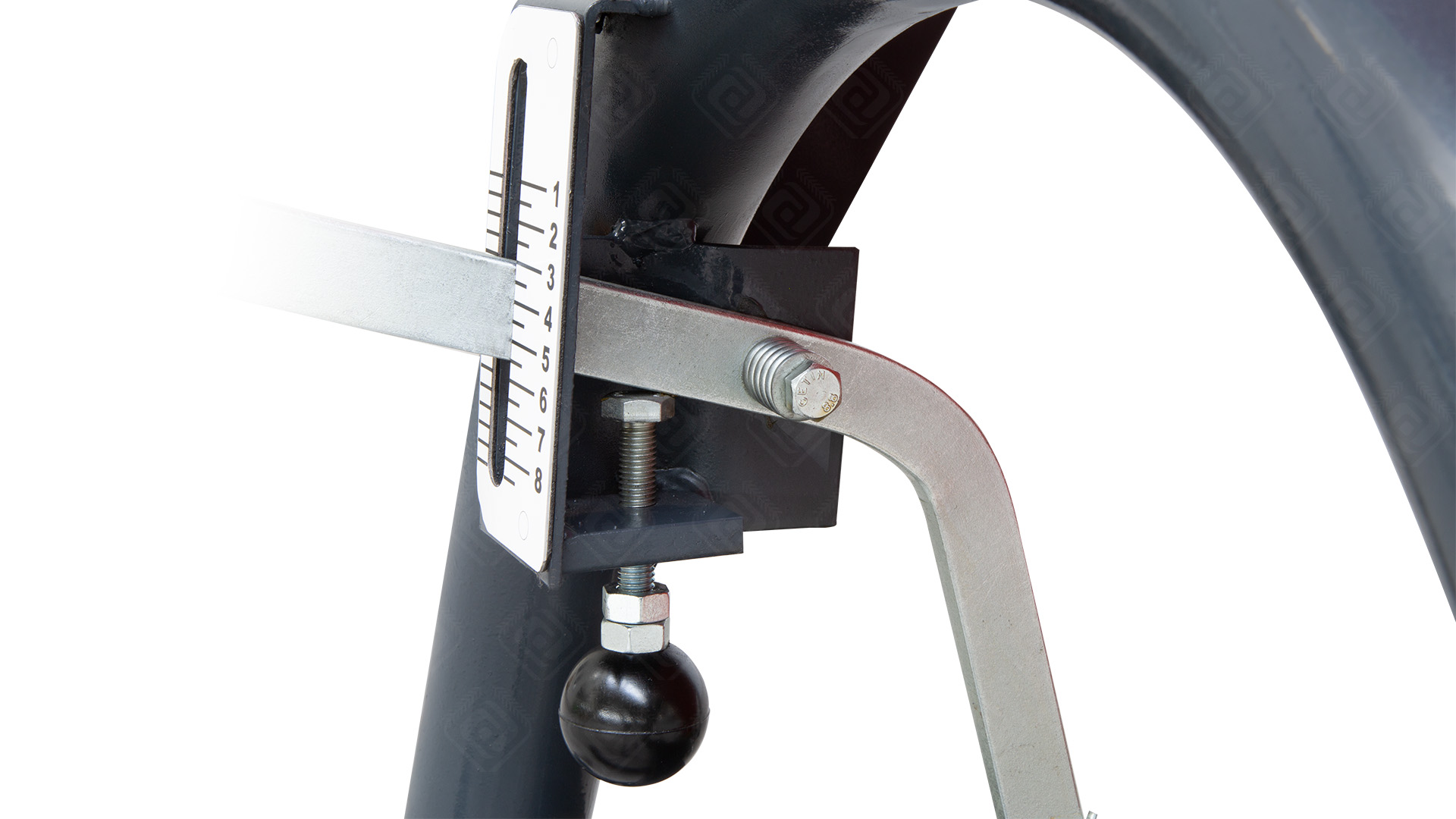

Spreading Adjustment Lever

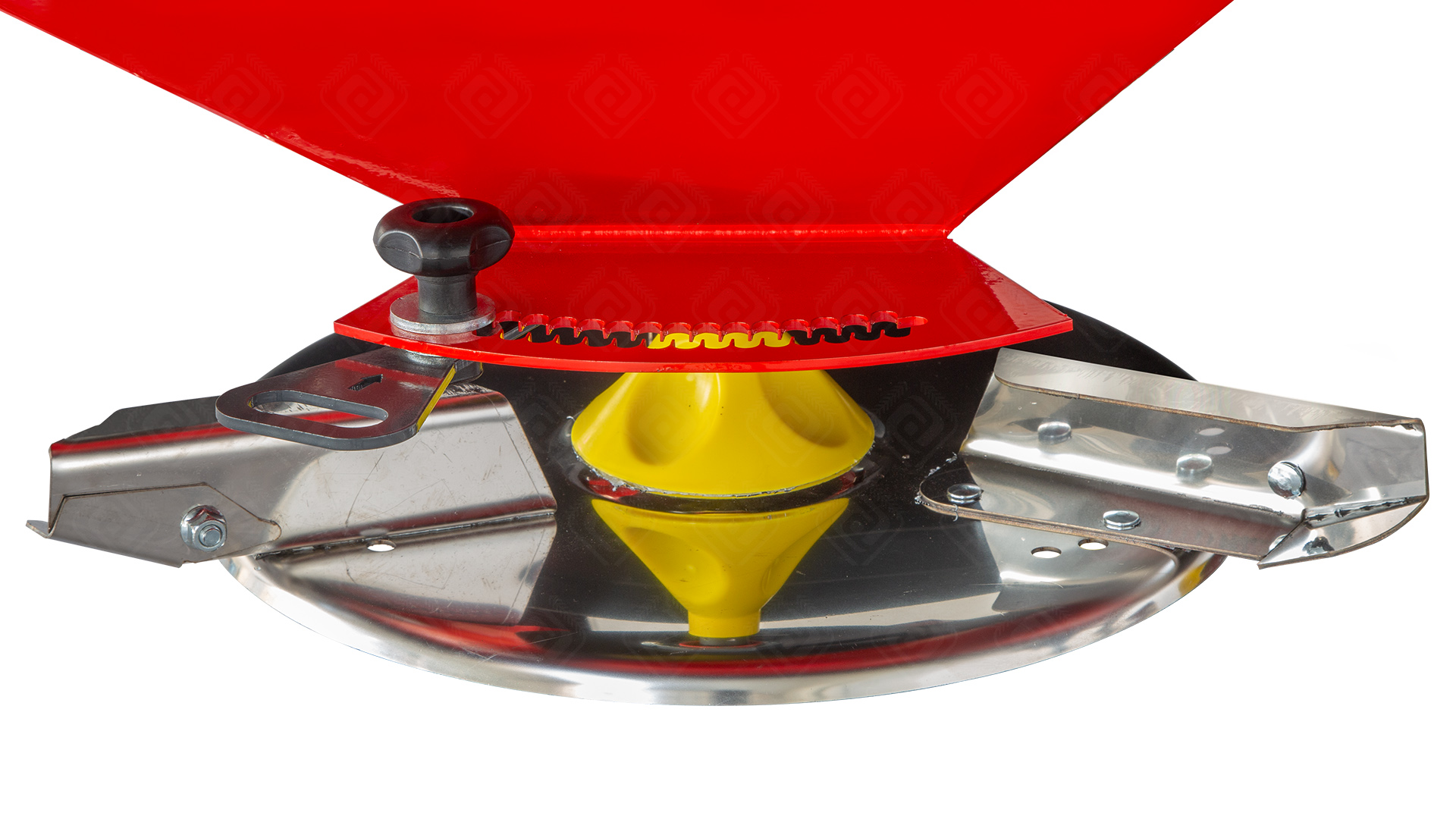

Chrome disc
|
Technical Specifications* |
Unit |
FS1 250 |
FS1 350 |
|
Hopper Capacity |
l |
250 |
350 |
|
gallon |
66 |
92 |
|
|
Number of Disc |
pcs |
1 |
1 |
|
Working Width |
m ft.in. |
14 |
14 |
|
45’11” |
45’11” |
||
|
Total Width (W) |
mm |
900 |
960 |
|
ft.in. |
2'11" |
3'2" |
|
|
Total Length (L) |
mm |
1215 |
1215 |
|
ft.in. |
3'11" |
3’11” |
|
|
Total Height (H) |
mm |
1250 |
1305 |
|
ft.in. |
4'1" |
4'3" |
|
|
Category |
I |
I |
|
|
Transmission Type |
1/1 |
1/1 |
|
|
Mixing System |
Vertical |
||
|
PTO Rotation |
rpm |
540 |
|
|
Required Power |
hp |
35-40 |
40-44 |
|
Total Weight |
kg |
65 |
77 |
|
Ibs |
143 |
169 |
|
