Mistblowers

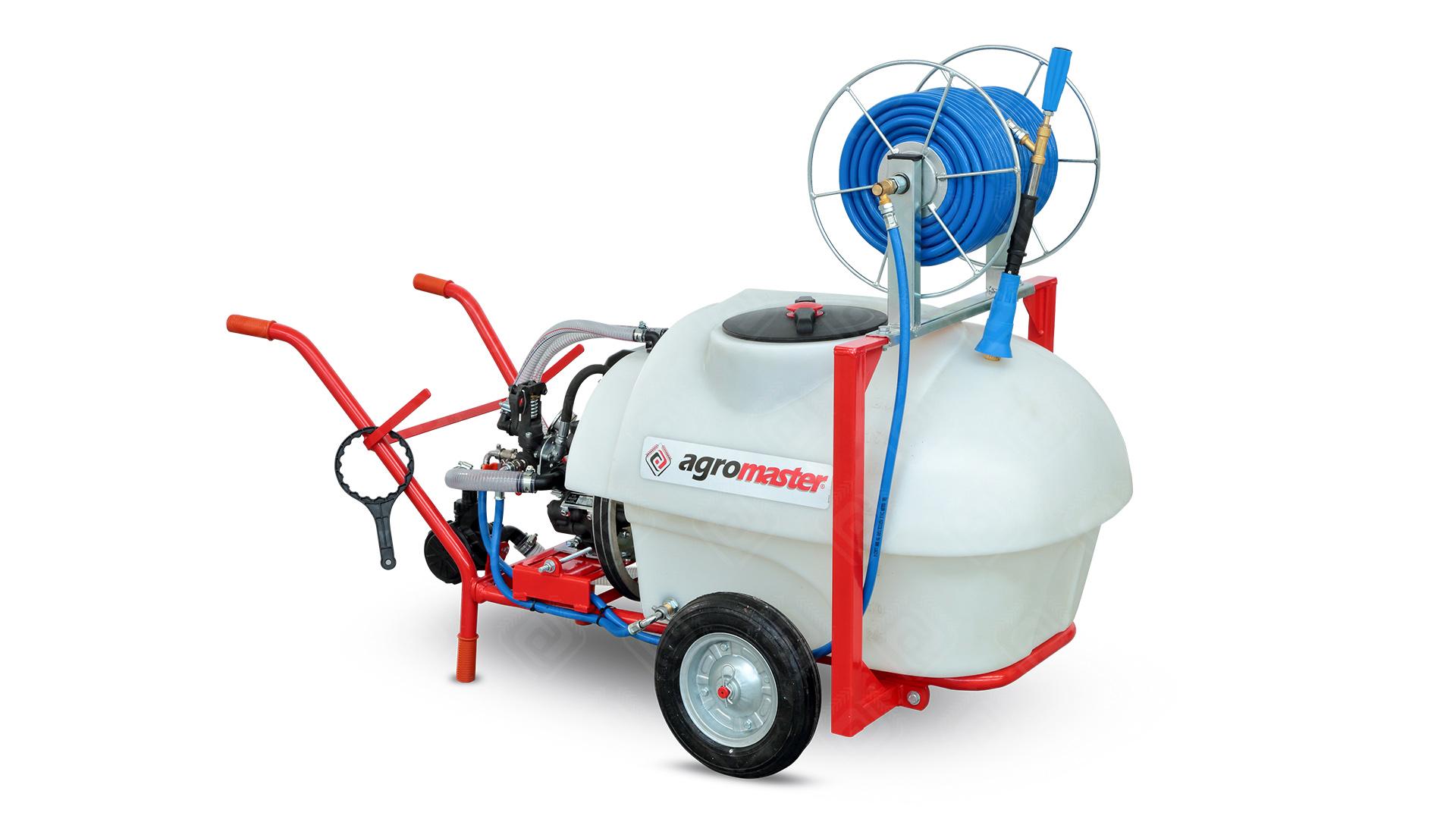

100-200 ltr Garden Manual Sprayer is multi-purpose pesticiding machines, preferred by farmers for easy transportation, operation and functionality. They can be used for spraying for all kinds of trees, tobaccos, hops, vineyards and greenhouses, as well as for washing, and disinfecting by means of its adjustable angle. Both gasoline engine and electric motor models are available.

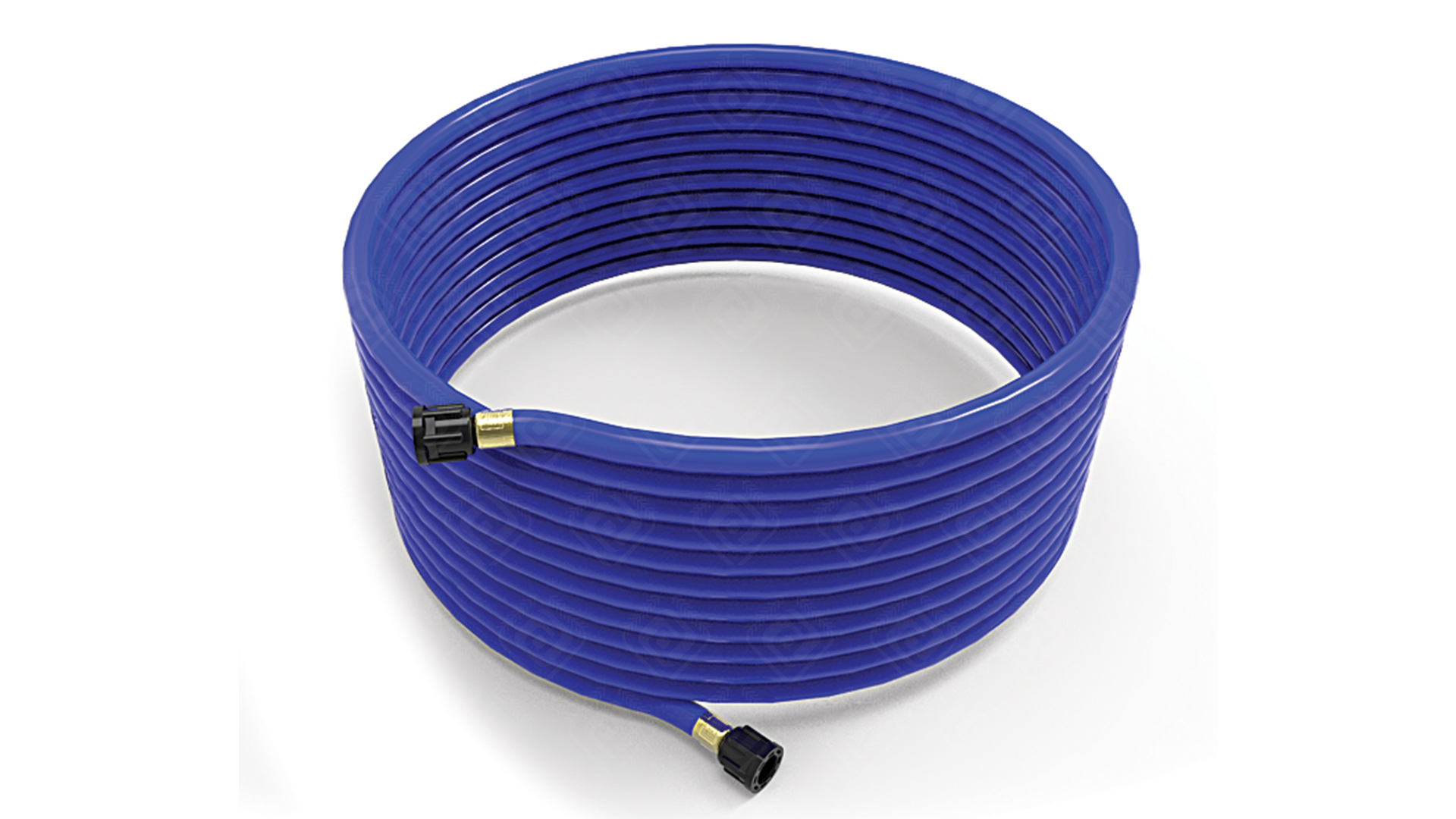

Hose Blue 90 Bar / 20 m Std.

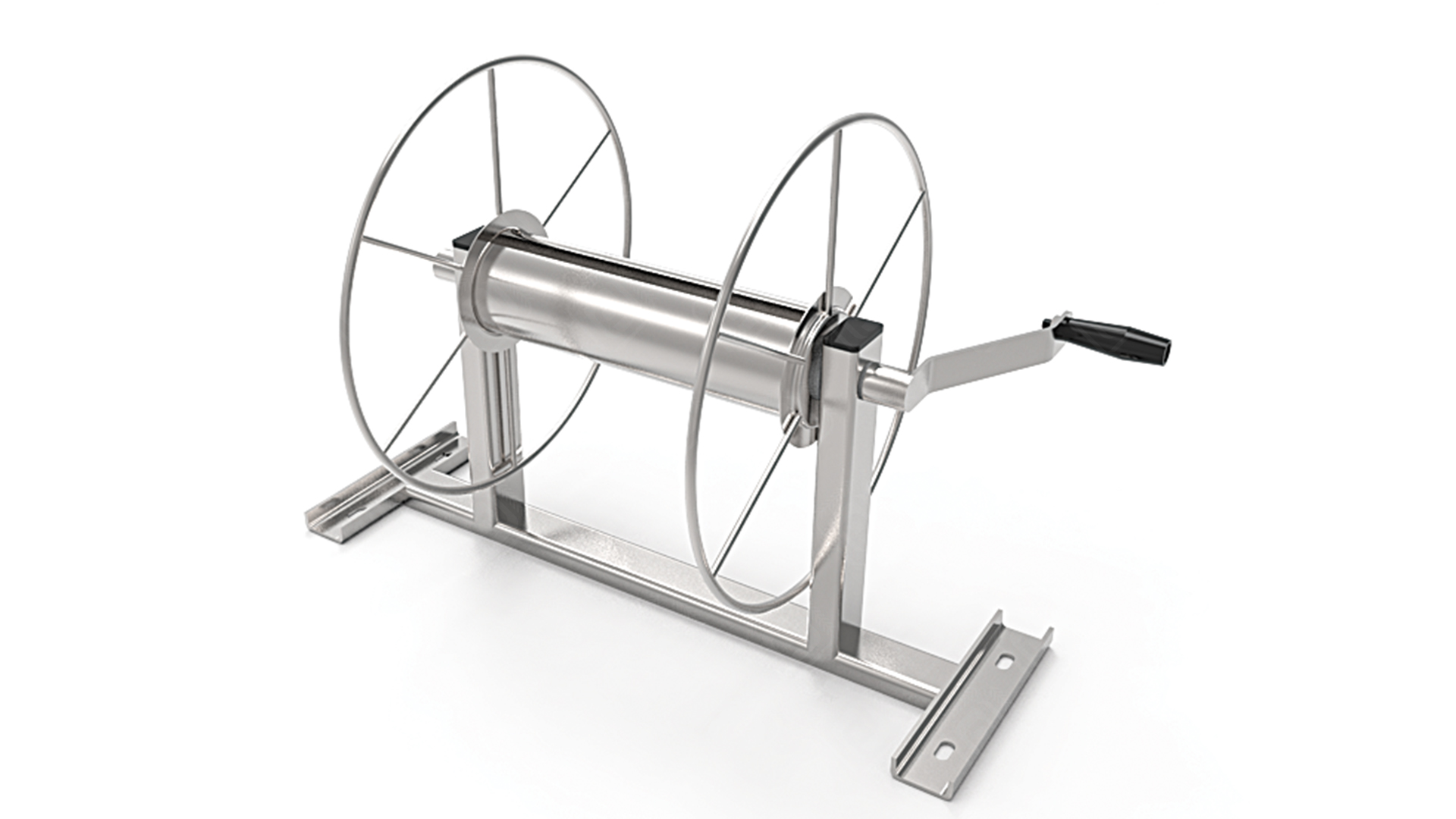

Hose Reel

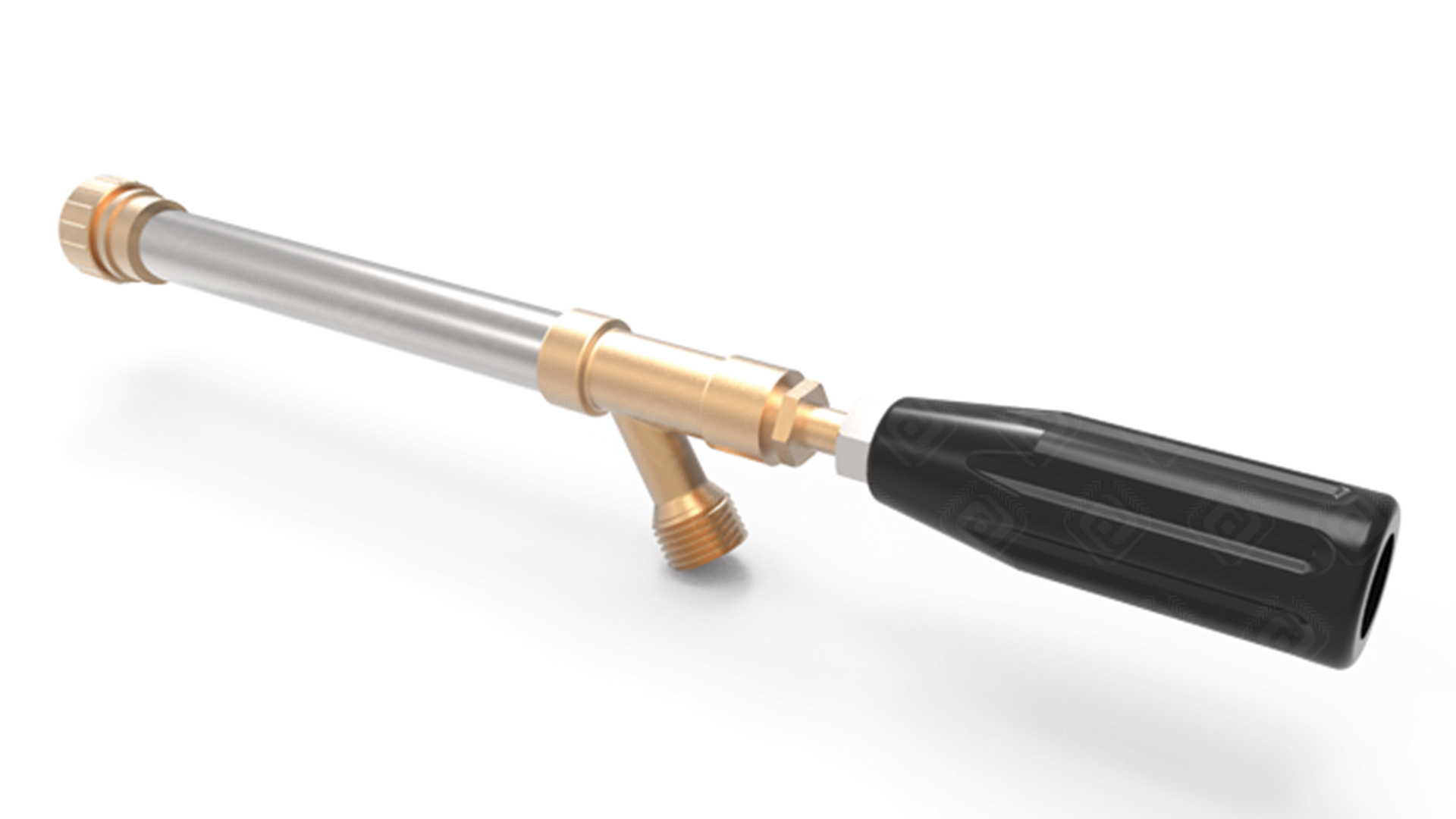

Short Gun

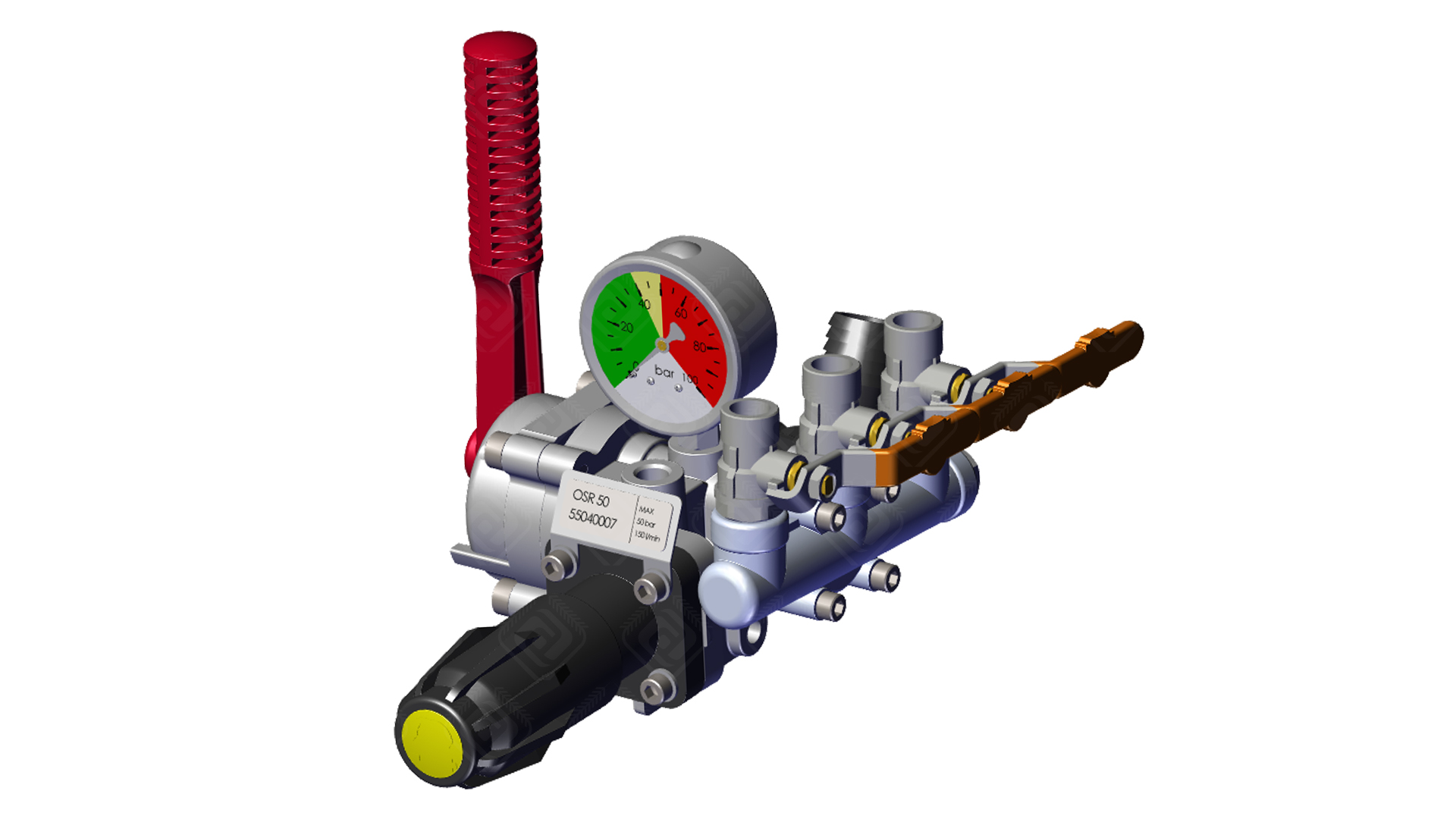

By the help of pressure regulator right or left spraying and the pressure adjustment can be made.

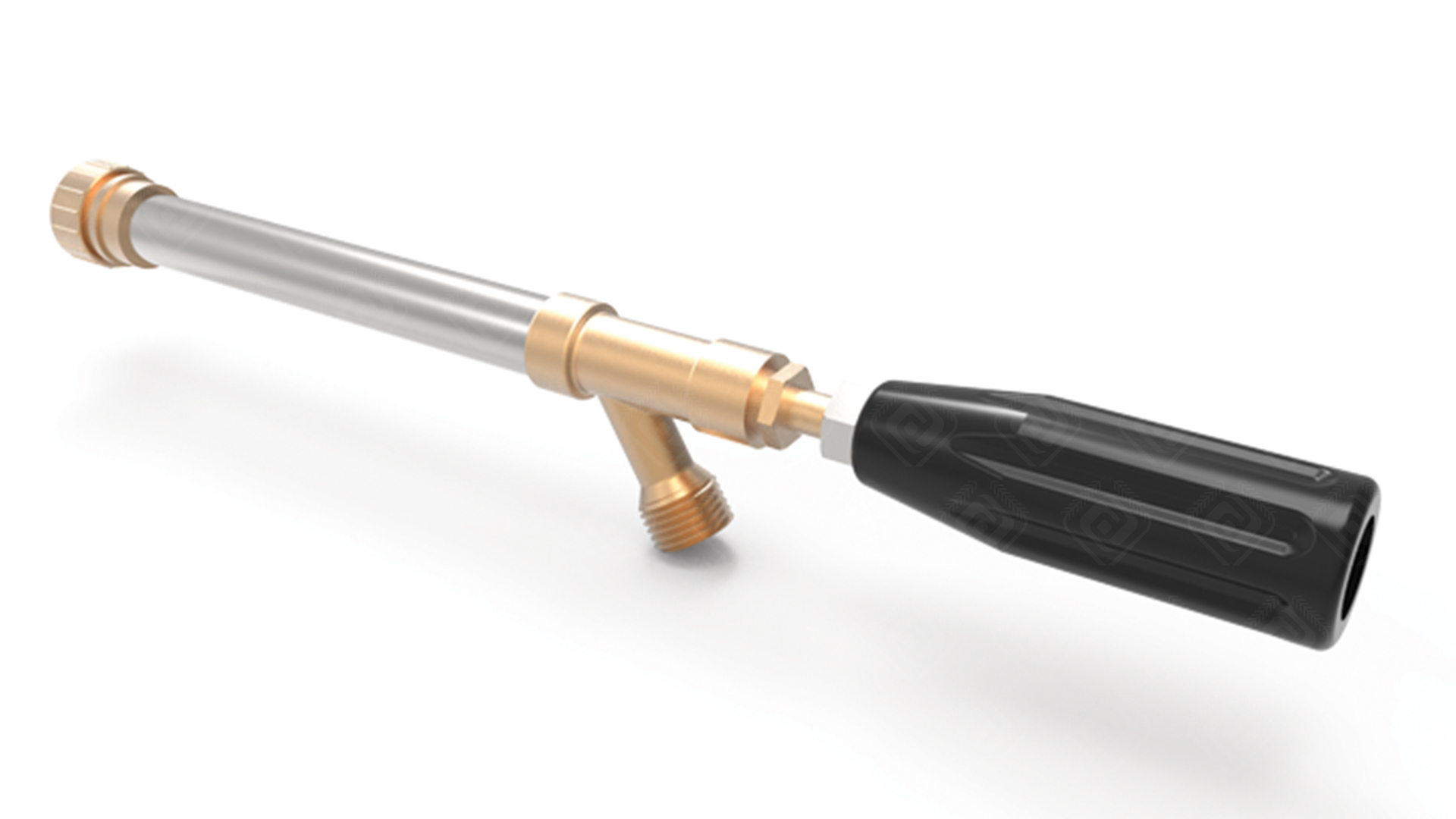

Long Gun

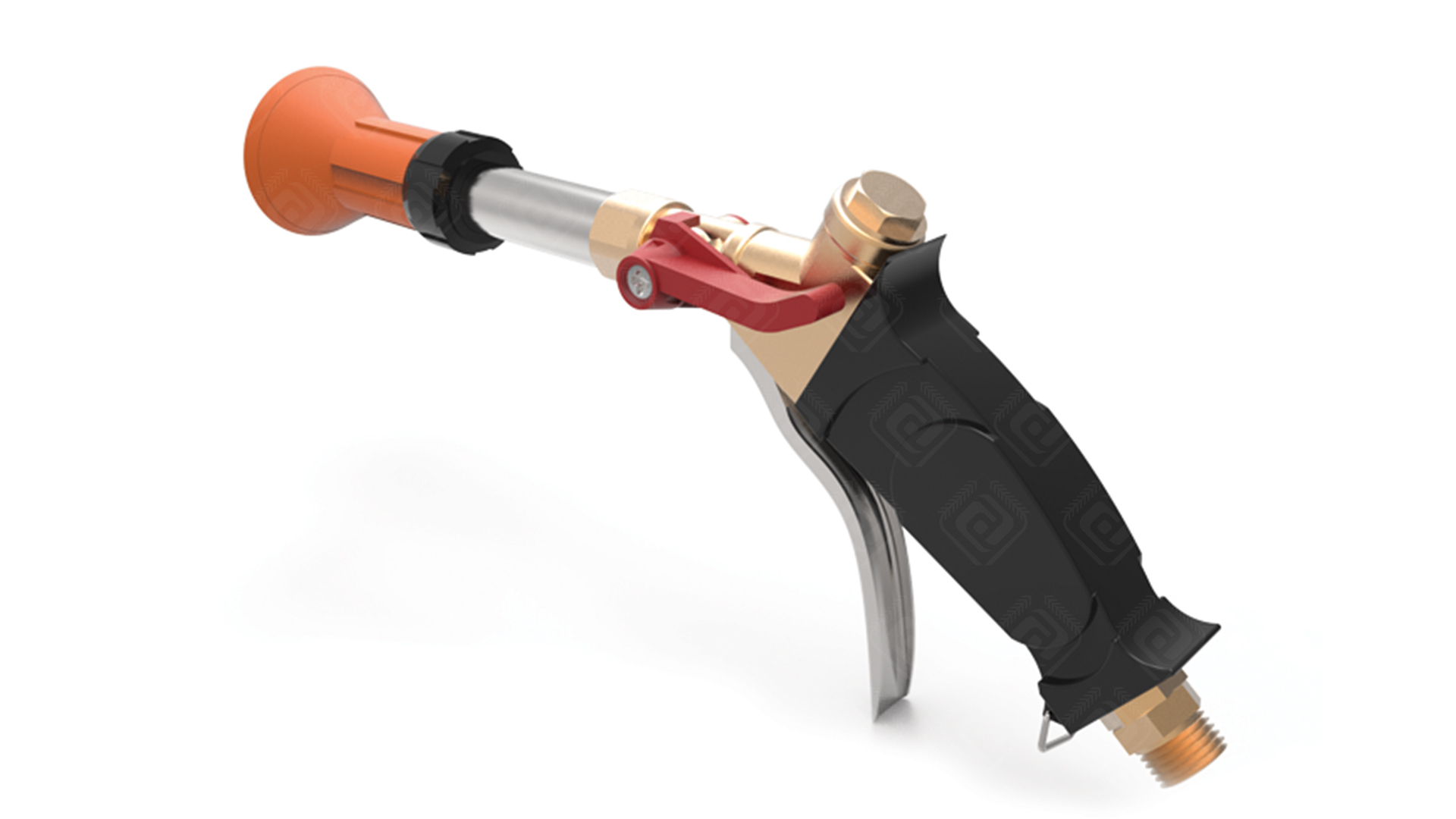

Short Trigger Gun

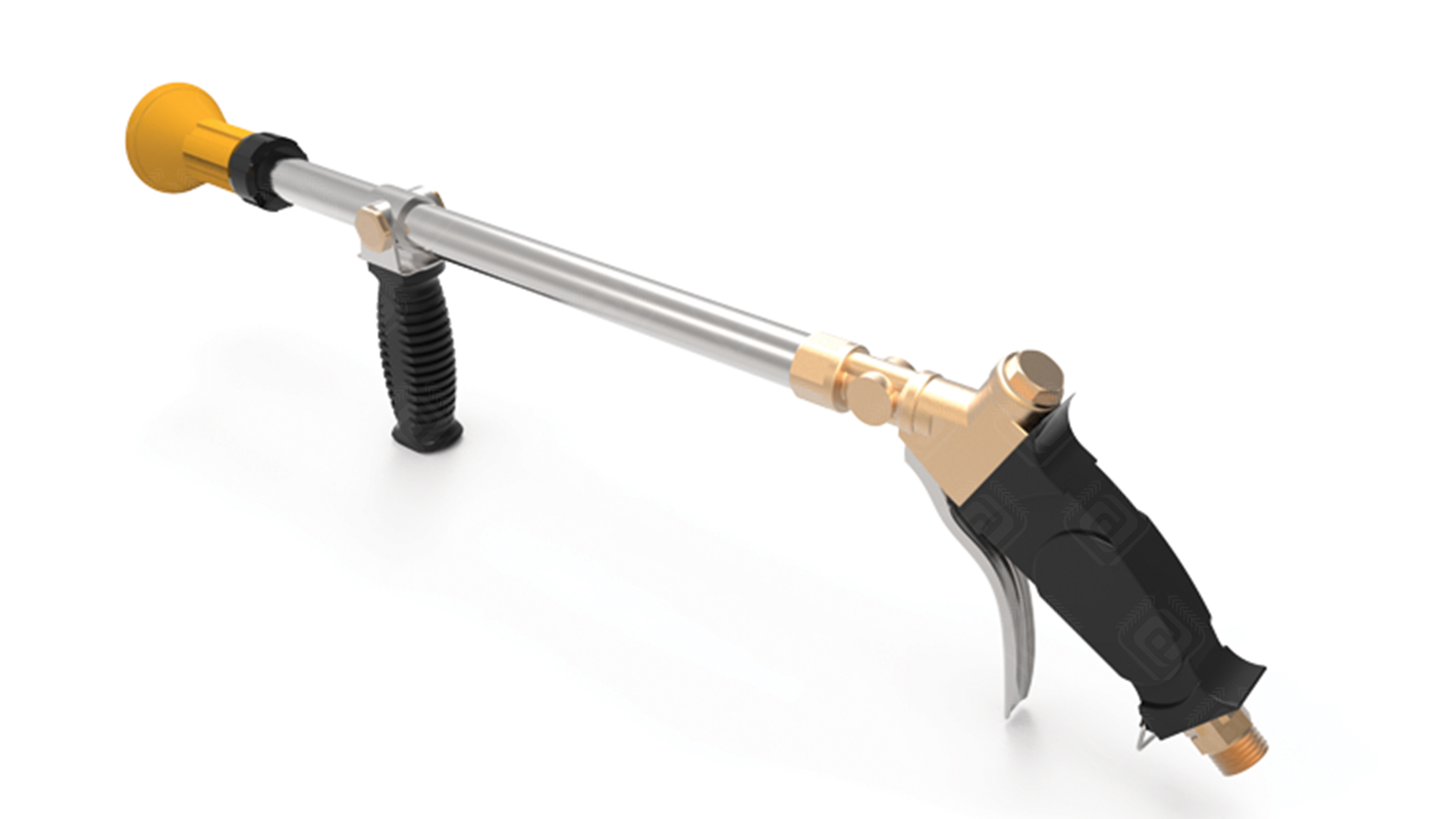

Long Trigger Gun

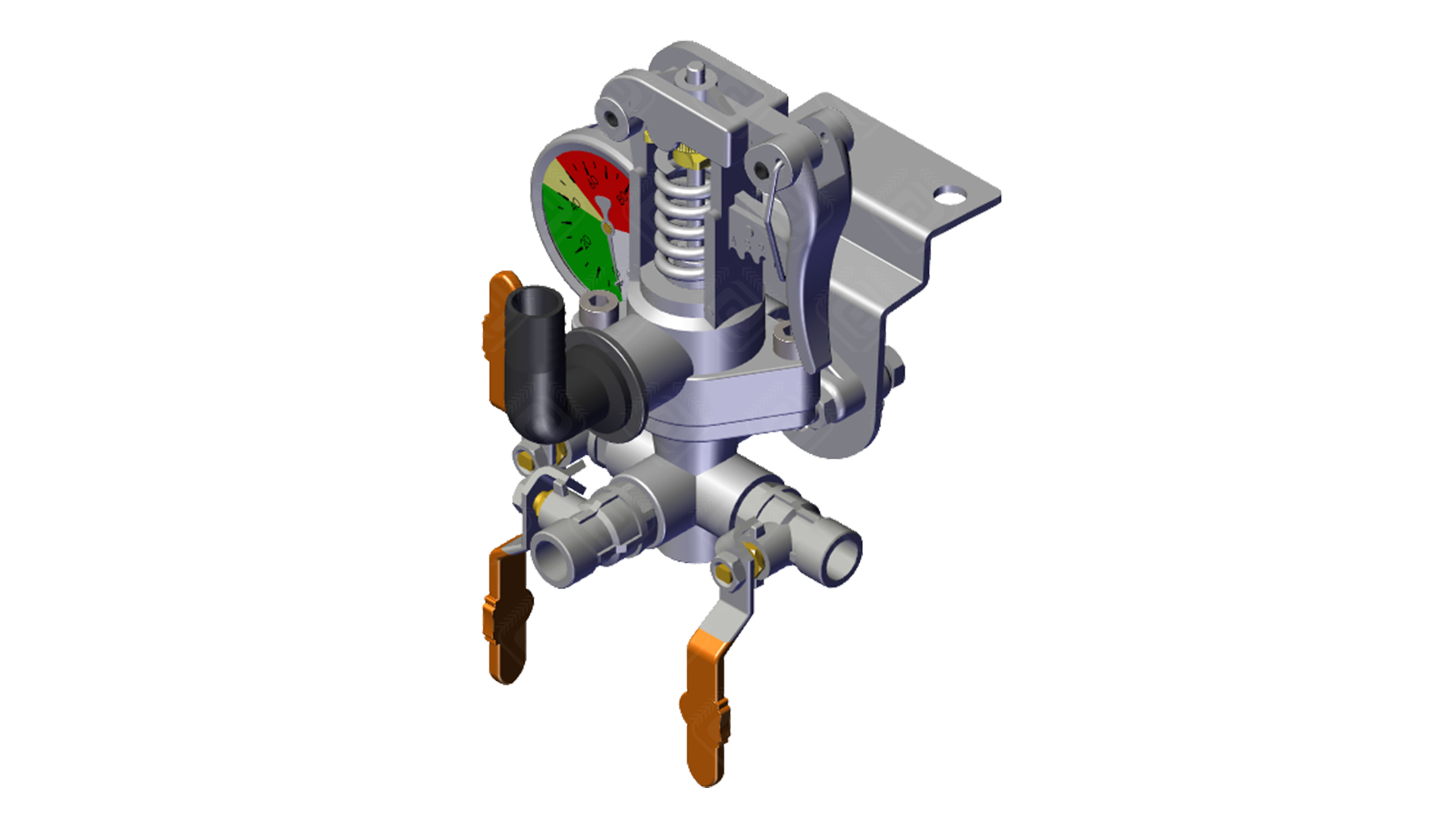

By the help of pressure regulator right or left spraying and the pressure adjustment can be made.
|
Technical Specifications |
Unit |
B 100 |
B 200 |
|
Capacity |
L |
100 |
200 |
|
gallon |
26 |
52 |
|
|
Total Width (W) |
mm |
800 |
780 |
|
ft.in |
2’7” |
2’7” |
|
|
Total Length (L) |
mm |
1640 |
1900 |
|
ft.in |
5’5” |
6’3” |
|
|
Total Height (H) |
mm |
680 |
760 |
|
ft.in |
2’3” |
2’6” |
|
|
Pump Type |
C41 / membrane |
||
|
Pump Flowrate |
L |
41 |
|
|
Pump Pressure |
bar |
50 |
|
|
Hose Length |
m |
20 |
|
|
ft.in |
65'7" |
||
|
Number of Regulator Outlet |
pcs |
2 |
|
|
Pressure Safety Valve |
standard |
||
|
Tank Mixer |
standard |
||
|
Tank Material |
fiberglass/polyethylene |
||
|
Number of Gun |
pcs |
1 |
|
|
Required Power |
hp |
5,5 |
|
|
Total Weight |
kg |
58 |
62 |
|
Ibs |
127 |
136 |
|
