COBRA CANON

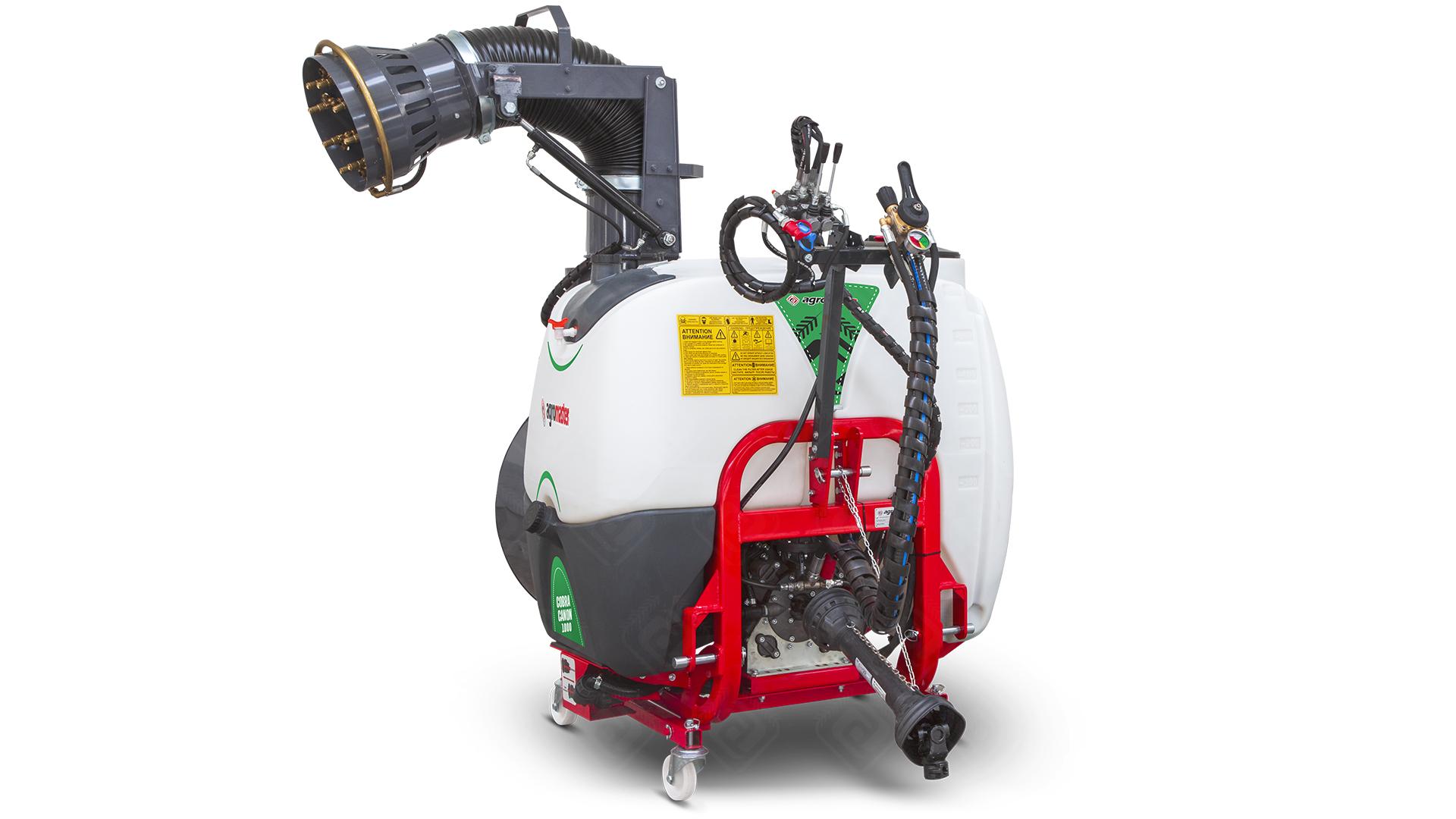

CANON MISTBLOWER SPRAYER MOUNTED TYPE

DESCRIPTION

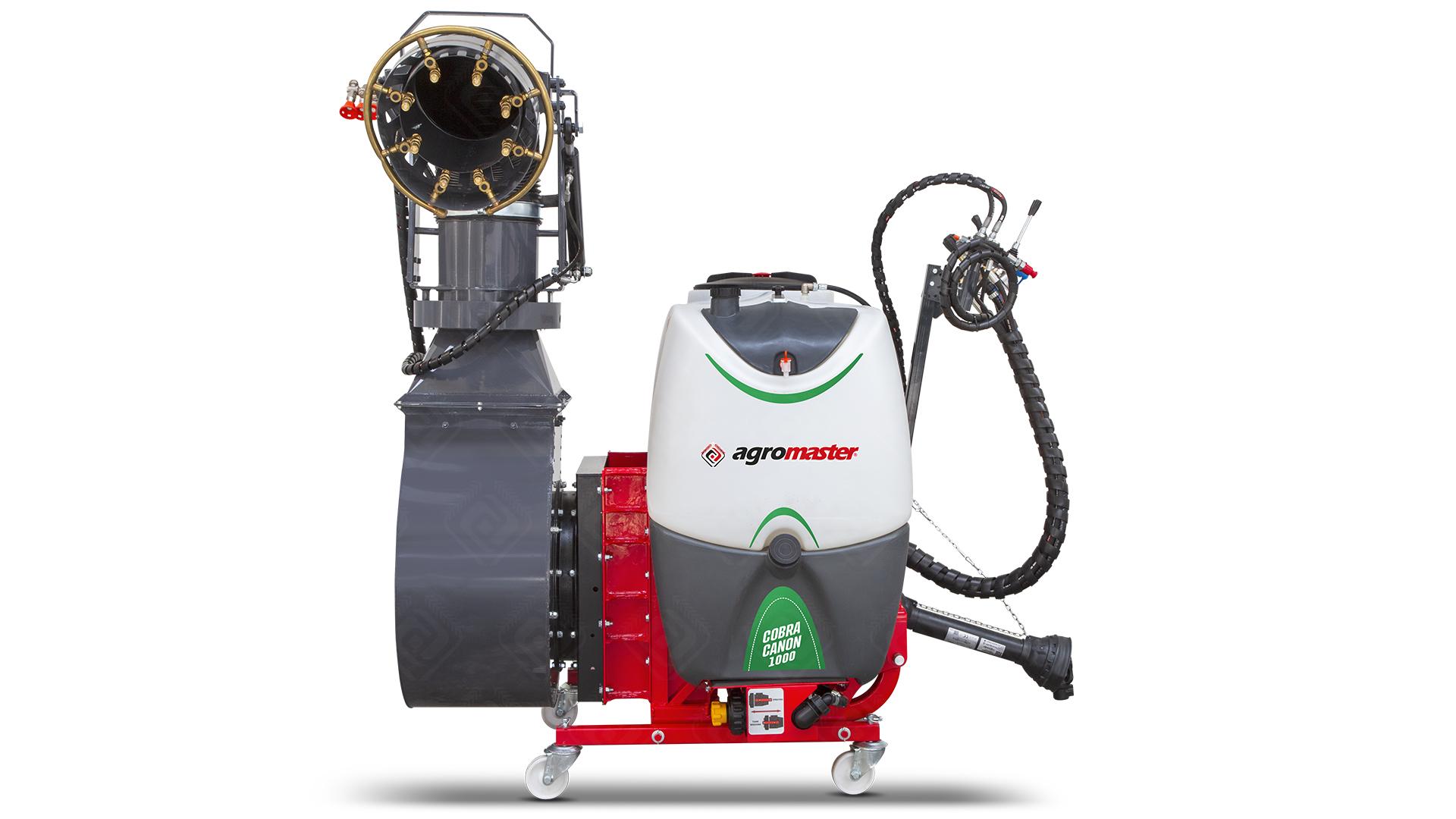

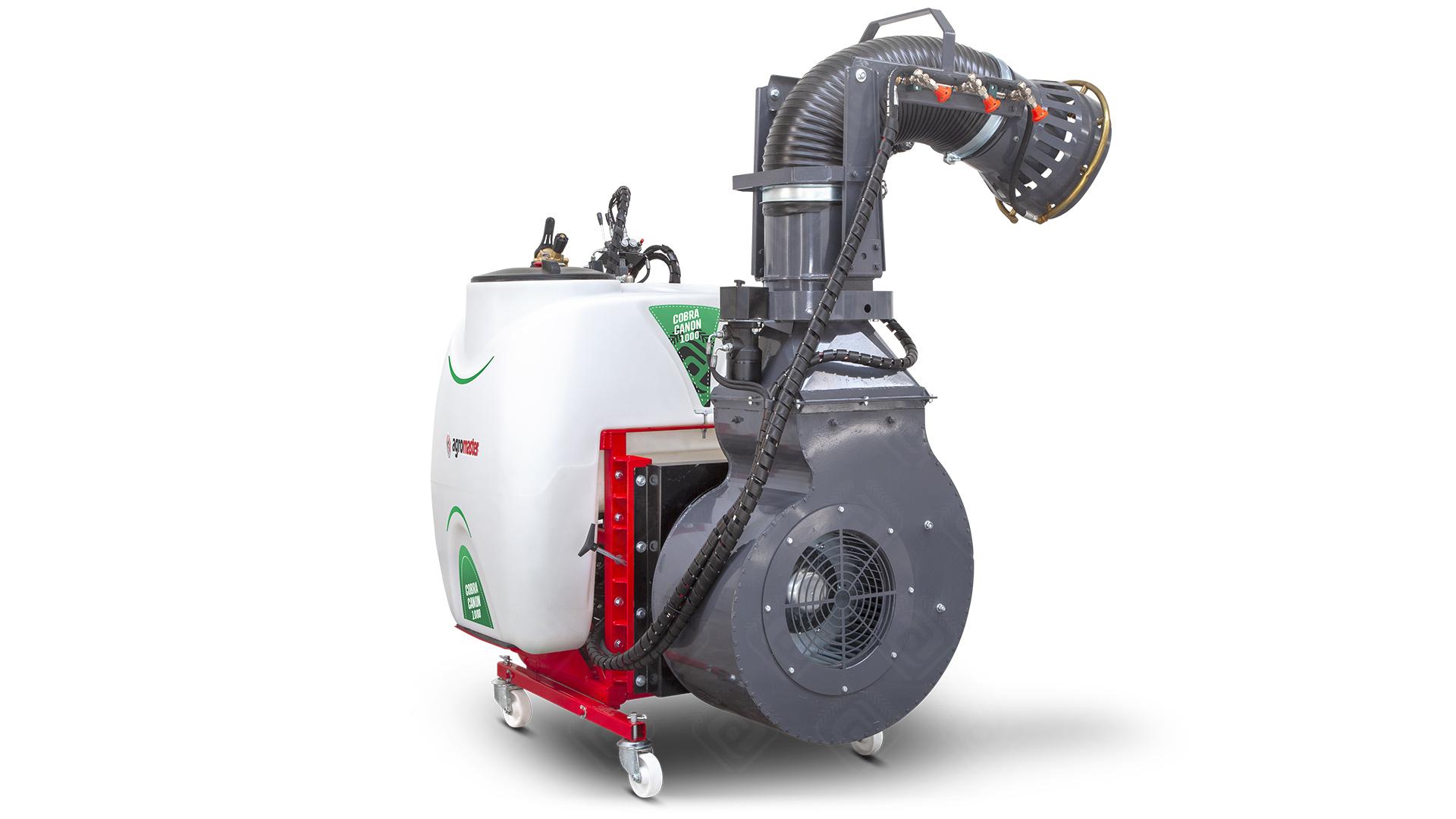

The Cobra Canon mistblower is a high-performance agricultural sprayer engineered to connect seamlessly to the three-point linkage system of a tractor, drawing its operational power directly from the Power Take-Off (P.T.O.) shaft. Designed for heavy-duty, multi-purpose plant protection, this versatile machine is highly effective for chemical applications in diverse environments, ranging from wide field crops to tall orchard canopies. By utilizing a robust C145 membrane pump alongside an advanced directional fan system, it ensures uniform chemical distribution and maximum penetration even in dense foliage. This tractor-mounted configuration provides excellent maneuverability in tight field corners while delivering the high pressure and extensive reach needed for comprehensive crop care.

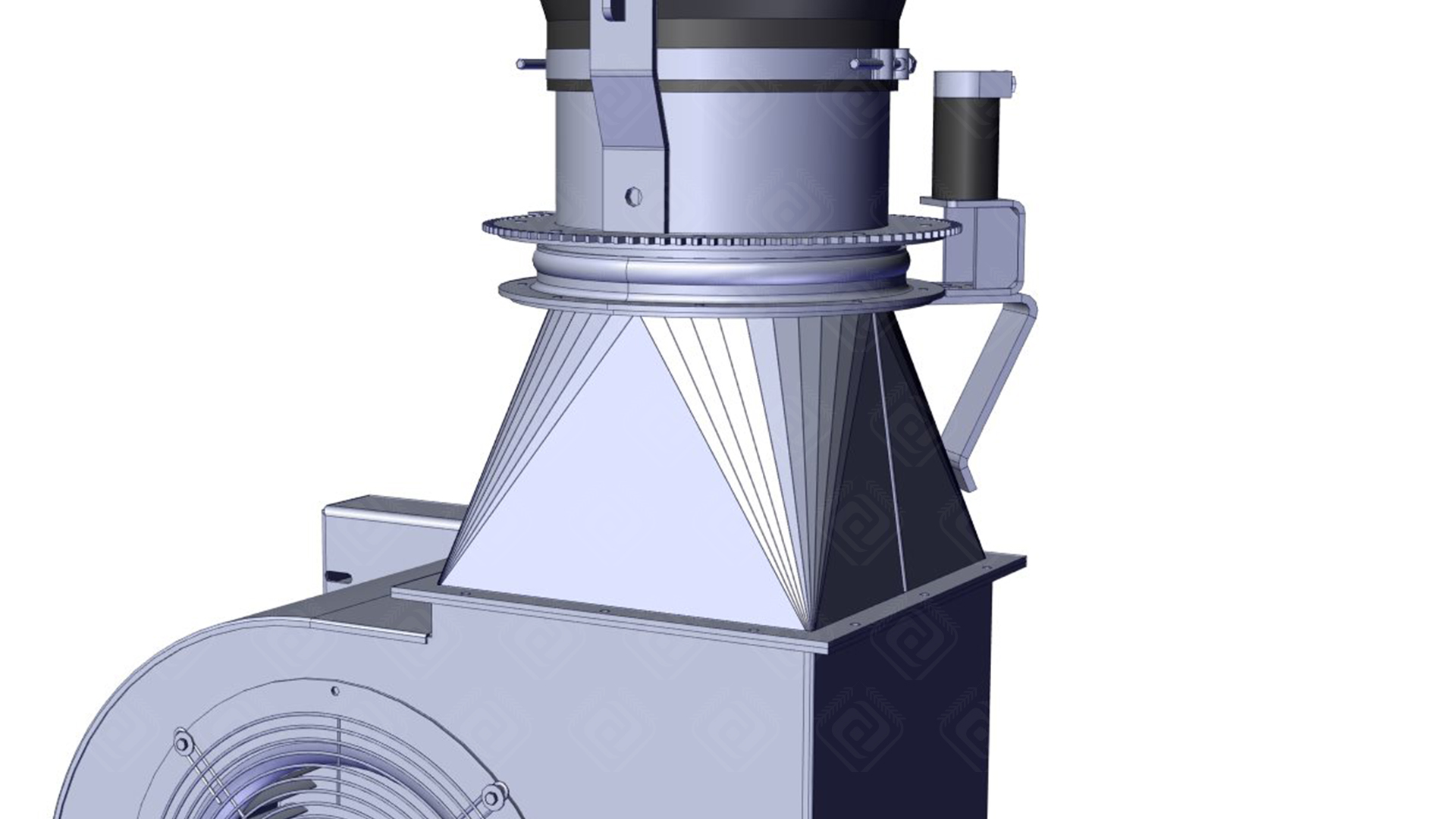

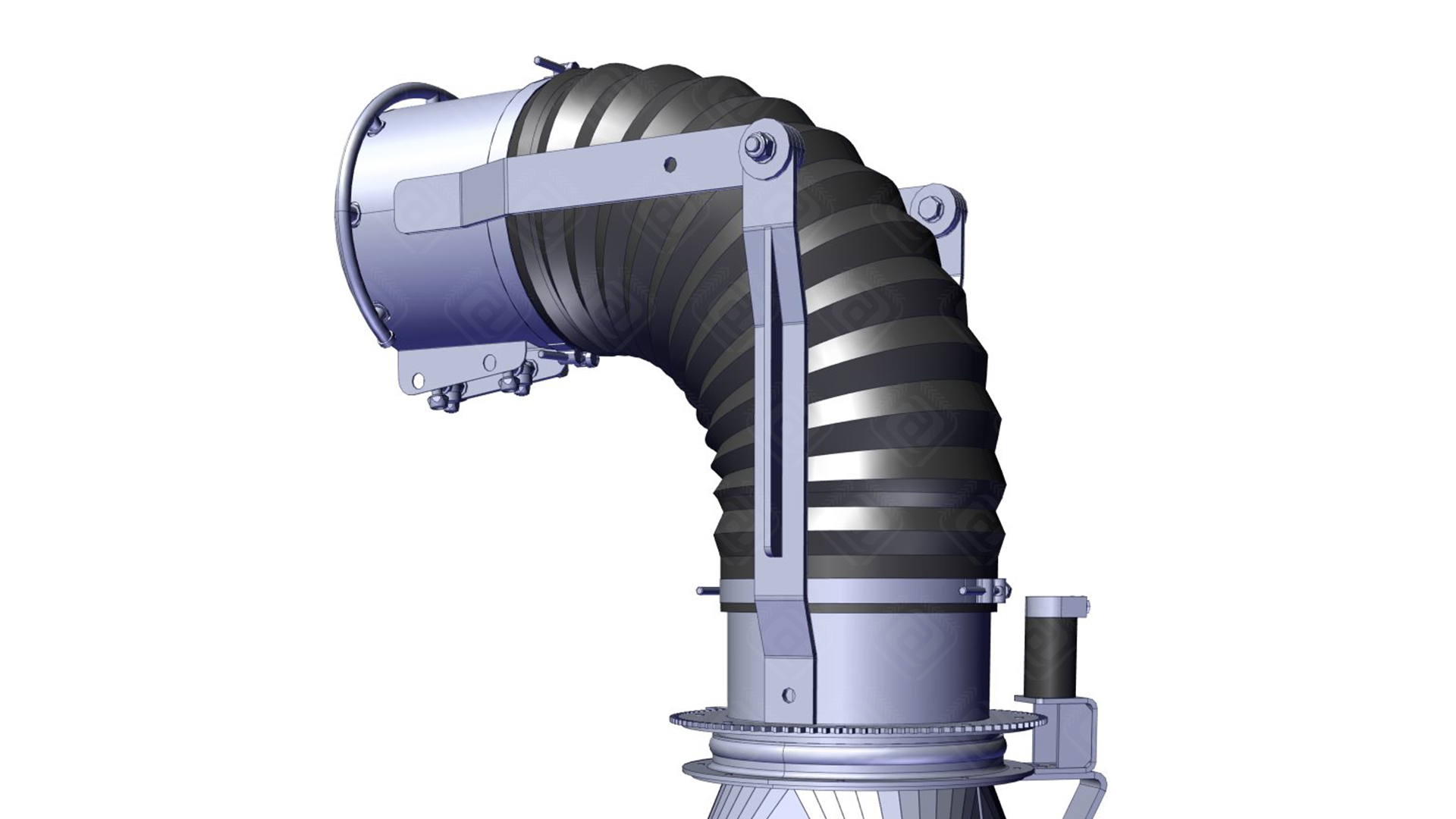

Hydromotor providing 270° working angle.

Hydraulic spraying height adjustment

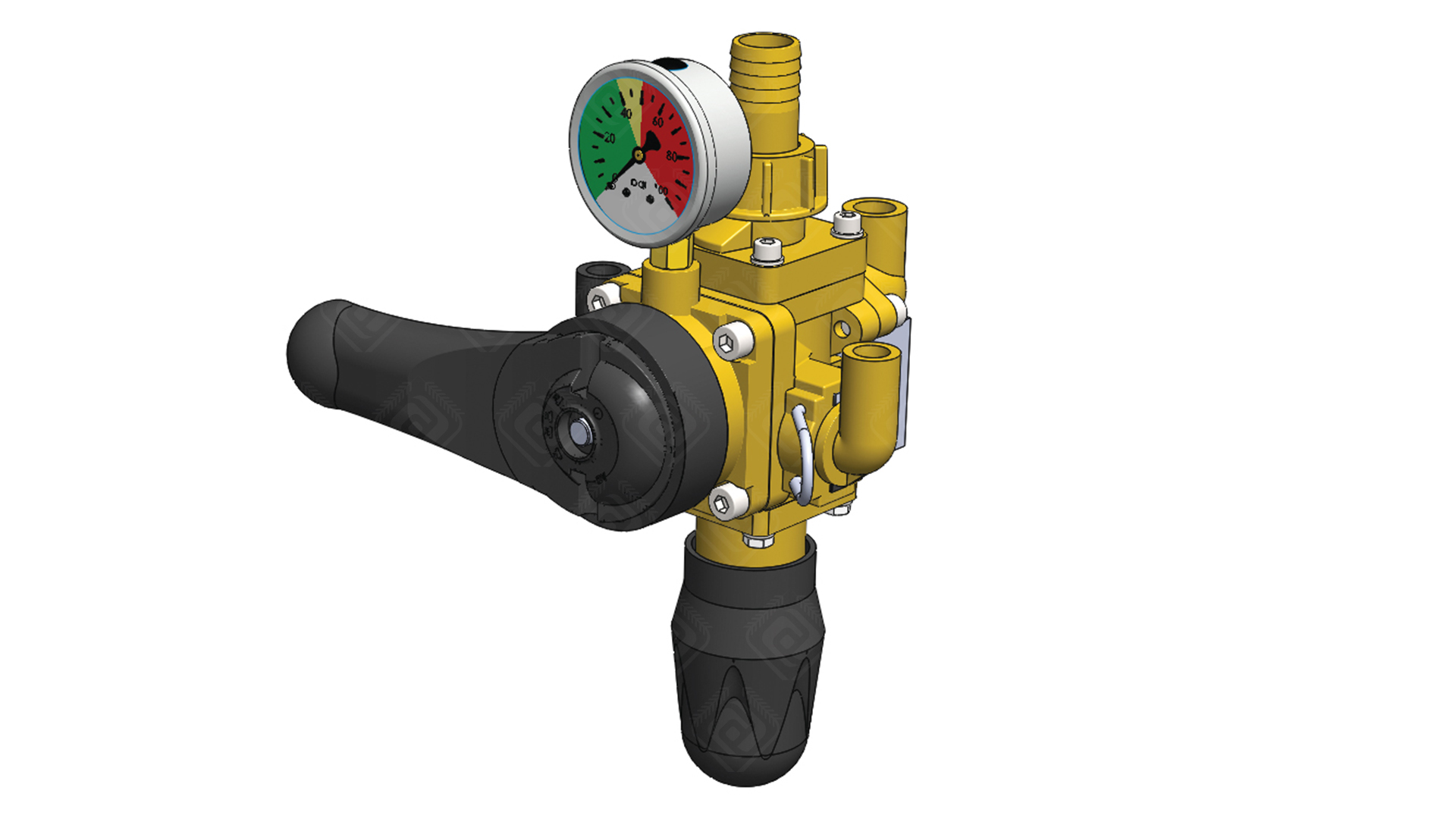

By the help of pressure regulator right or left spraying and the pressure adjustment can be made.

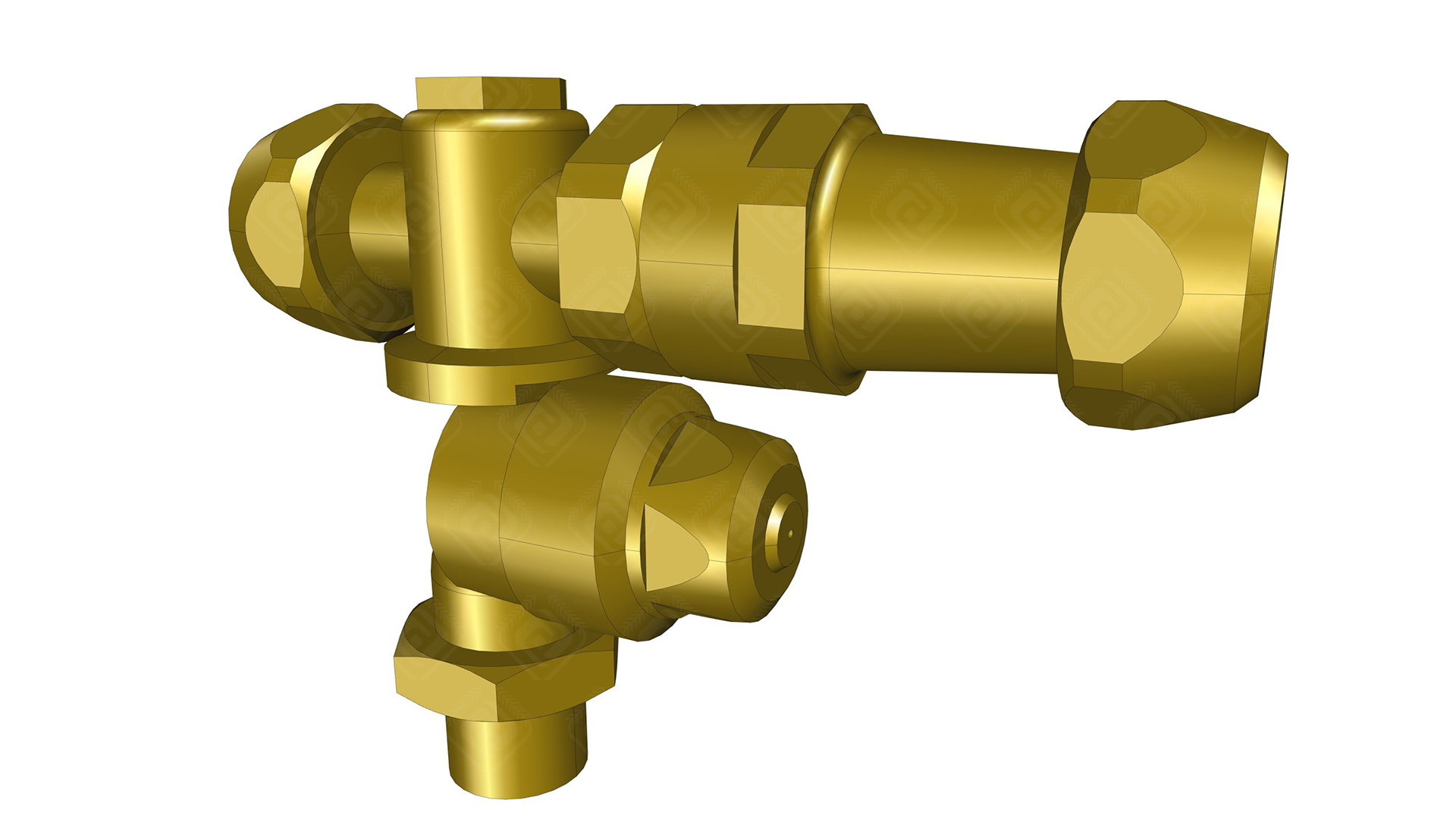

Angle Adjustable Nozzle

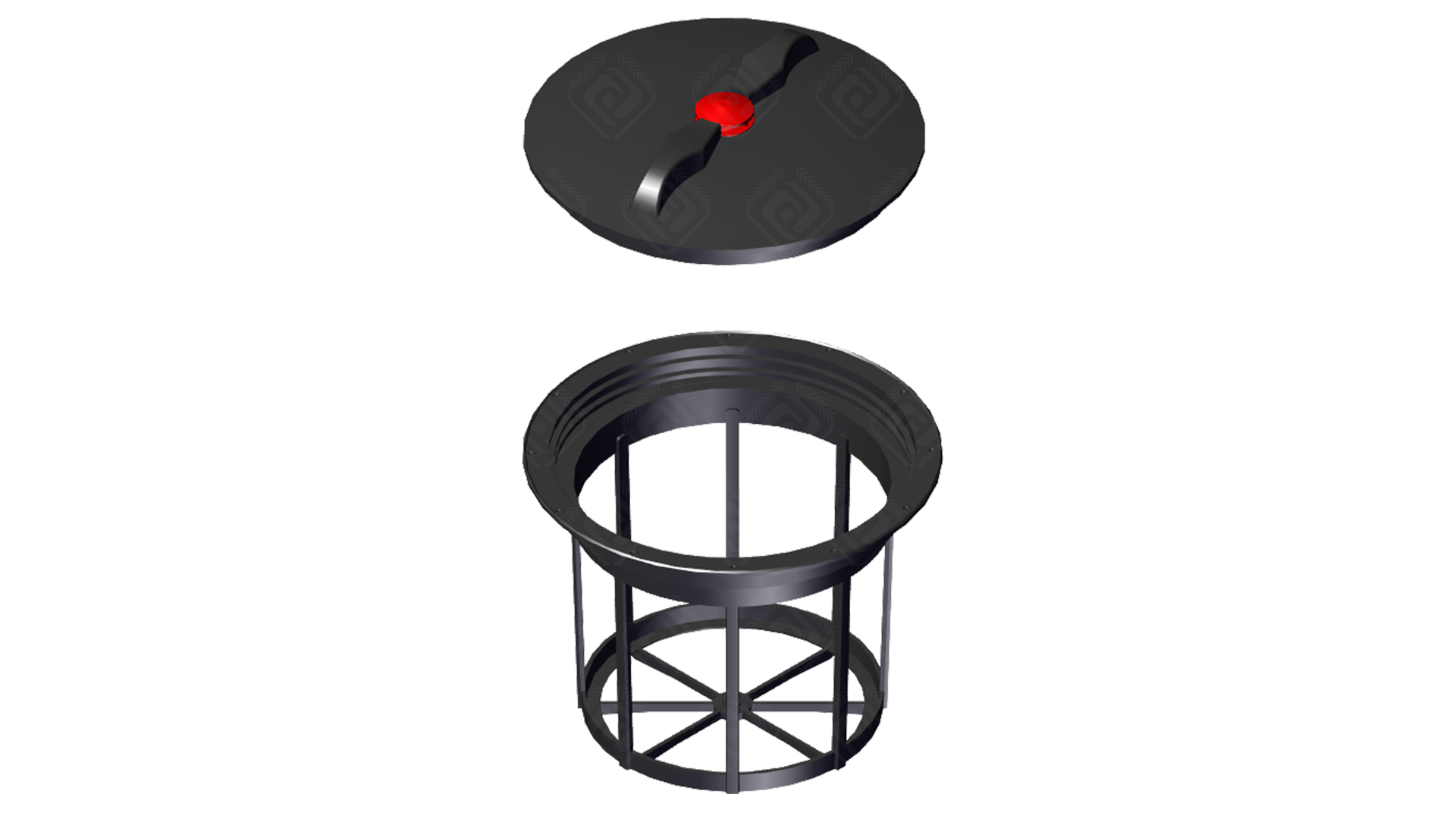

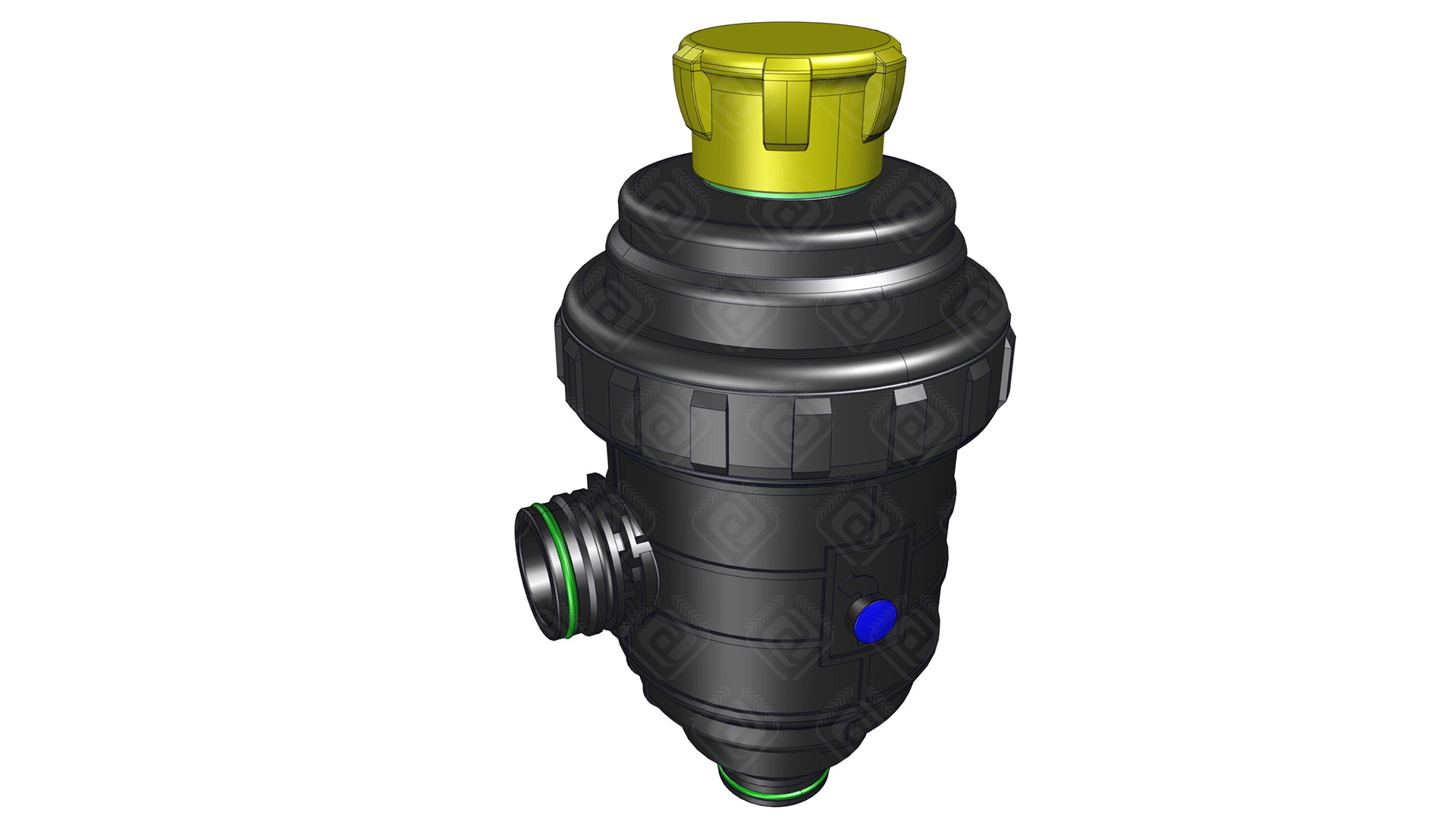

Cleanable Filter

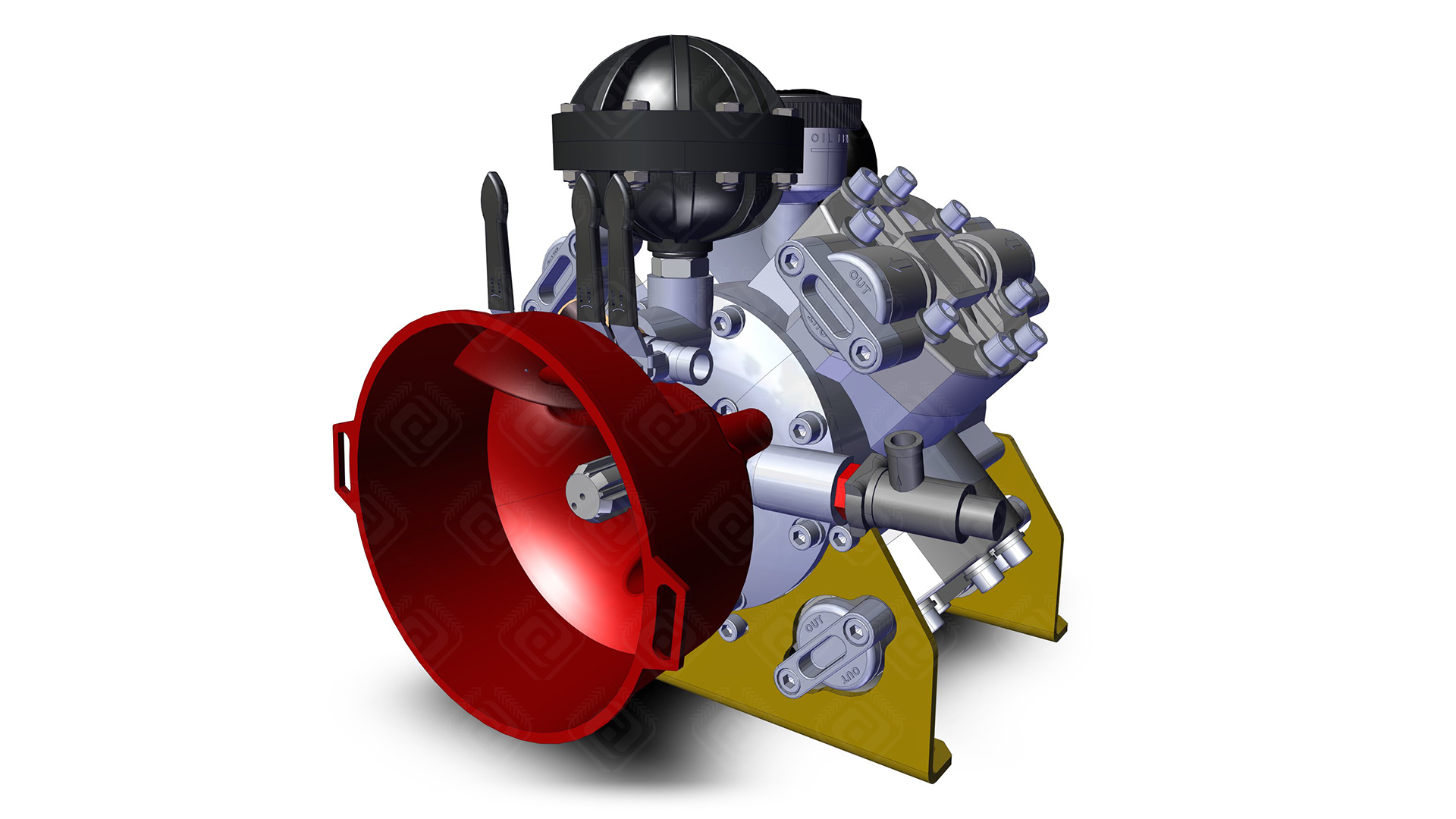

Best quality 4 membrane C145 pump which is produced by our factory is the most efficient product in its segment

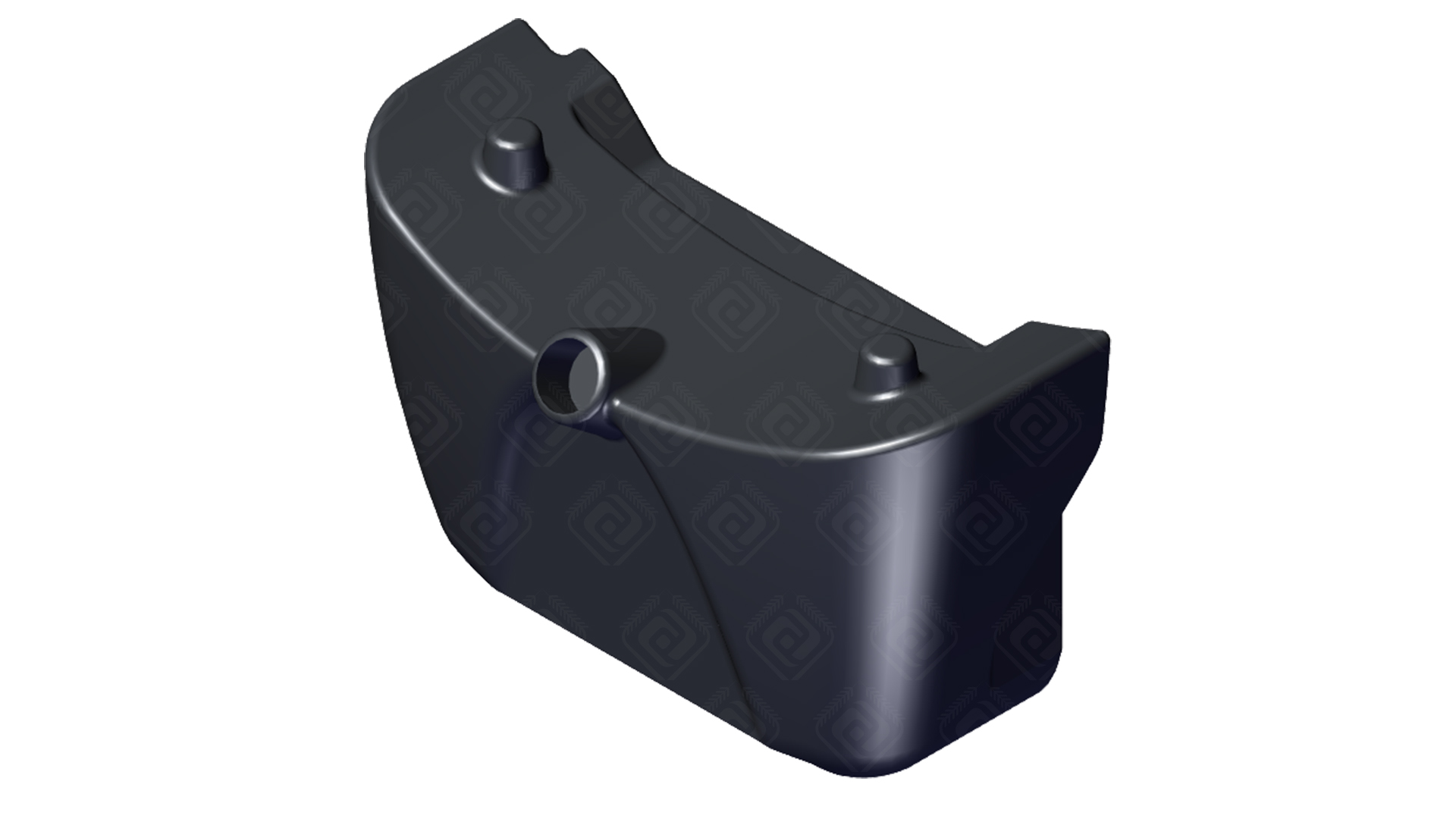

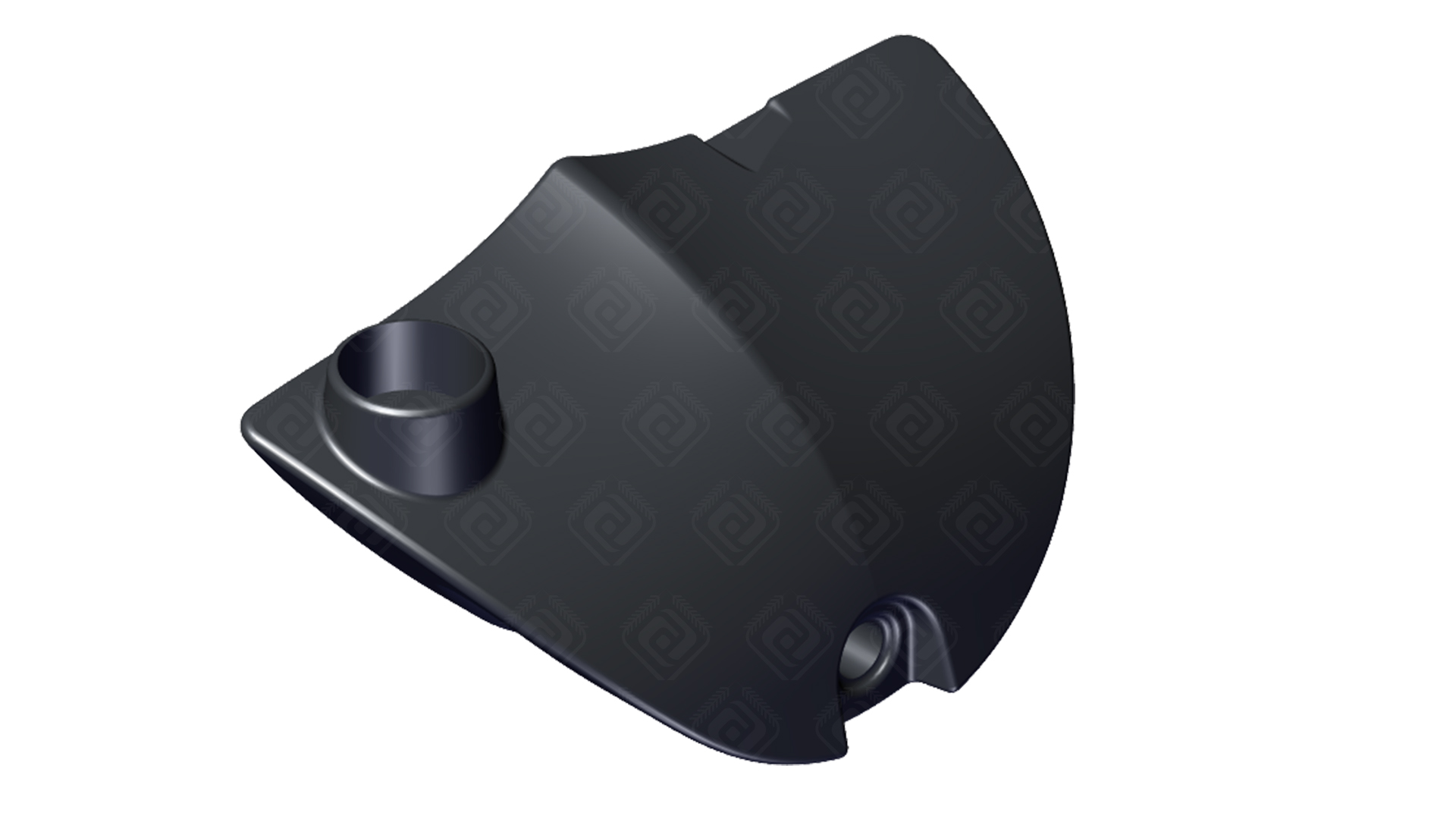

Hand Washing Tank

By means of filter system blockages are prevented.

Tank Cleaning System

Angle Adjustable Nozzle

TECHNICAL SPECIFICATIONS

Technical Specifications*	Unit	COBRA CANON 400	COBRA CANON 600	COBRA CANON 800	COBRA CANON 1000
Capacity	L	400	600	800	1000
Capacity	gallon	105	158	211	264
Total Width (W)	mm	1500	1500	1800	1800
Total Width (W)	ft.in	4'1"	4'1"	5'10"	5'10"
Total Length (L)	mm	1600	1600	1600	1600
Total Length (L)	ft.in	5'4"	5'4"	5'4"	5'4"
Total Height (H)	mm	2150	2150	2150	2150
Total Height (H)	ft.in	7'1"	7'1"	7'1"	7'1"
Pump Type		C145 membrane	C145 membrane	C145 membrane	C145 membrane
Pump Flowrate	L/min	145	145	145	145
Pump Pressure	bar	50	50	50	50
Number of Nozzles	pcs	11	11	11	11
Nozzles		Atomizer Nozzles	Atomizer Nozzles	Atomizer Nozzles	Atomizer Nozzles
Working Width	m	25-35	25-35	25-35	25-35
Working Width	ft.in	82'1" - 114'9"	82'1" - 114'9"	82'1" - 114'9"	82'1" - 114'9"
Regulator Model		OTR 17	OTR 17	OTR 17	OTR 17
Tank Material		Polyethylene	Polyethylene	Polyethylene	Polyethylene
PTO Rotation	rpm	540	540	540	540
Required Power	hp	75	75	75	75
Total Weight	kg	435	450	473	500
Total Weight	lbs	959	992	1042	1102

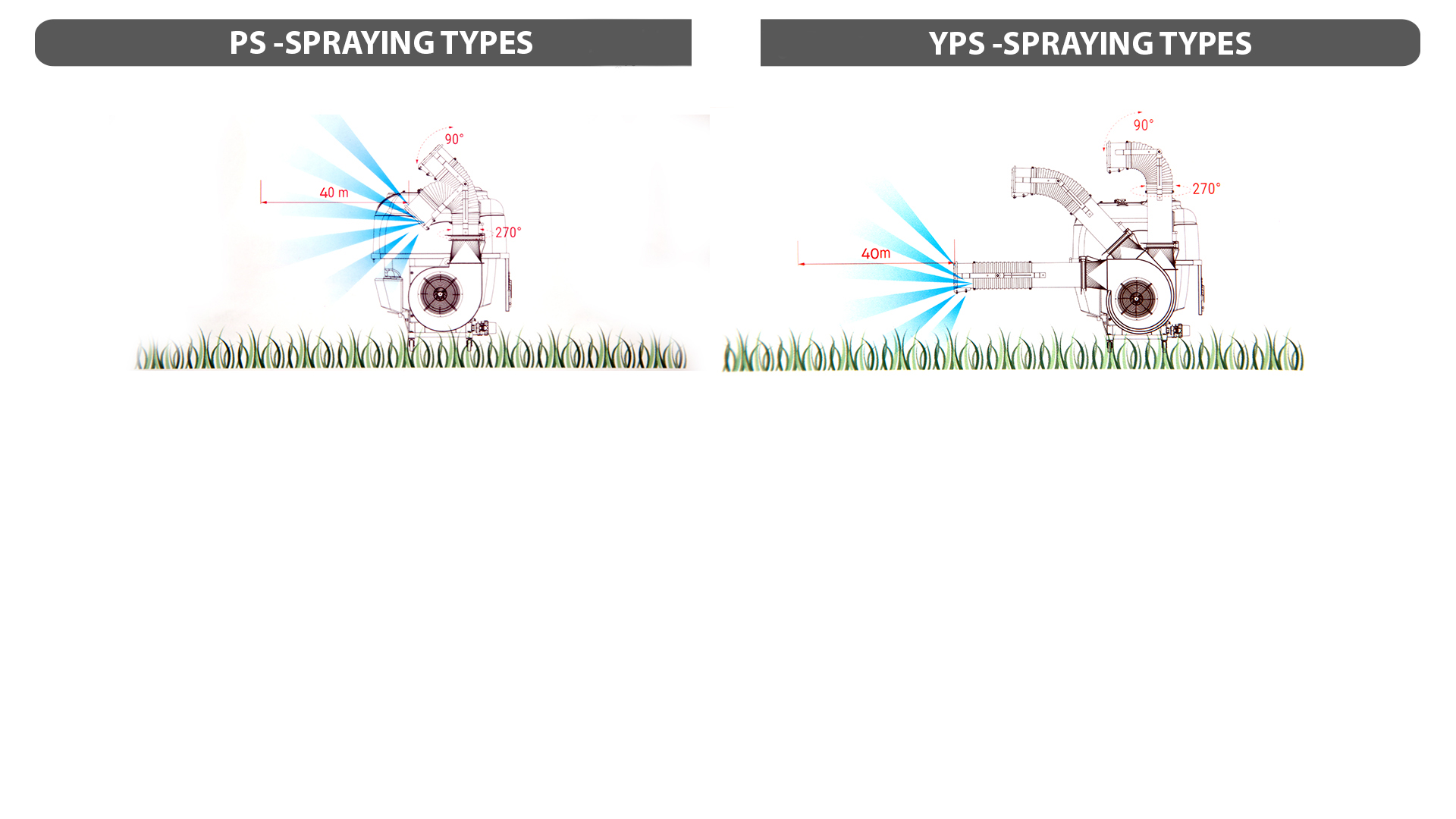

This image demonstrates the specialized configurations of the Canon mistblower series, where the PS - Spraying Types setup delivers an upward spray reaching a distance of 40 meters, and the YPS - Spraying Types setup provides a horizontal spray also reaching 40 meters, with both configurations utilizing a 90 degree vertical adjustment and a 270 degree rotating nozzle structure.

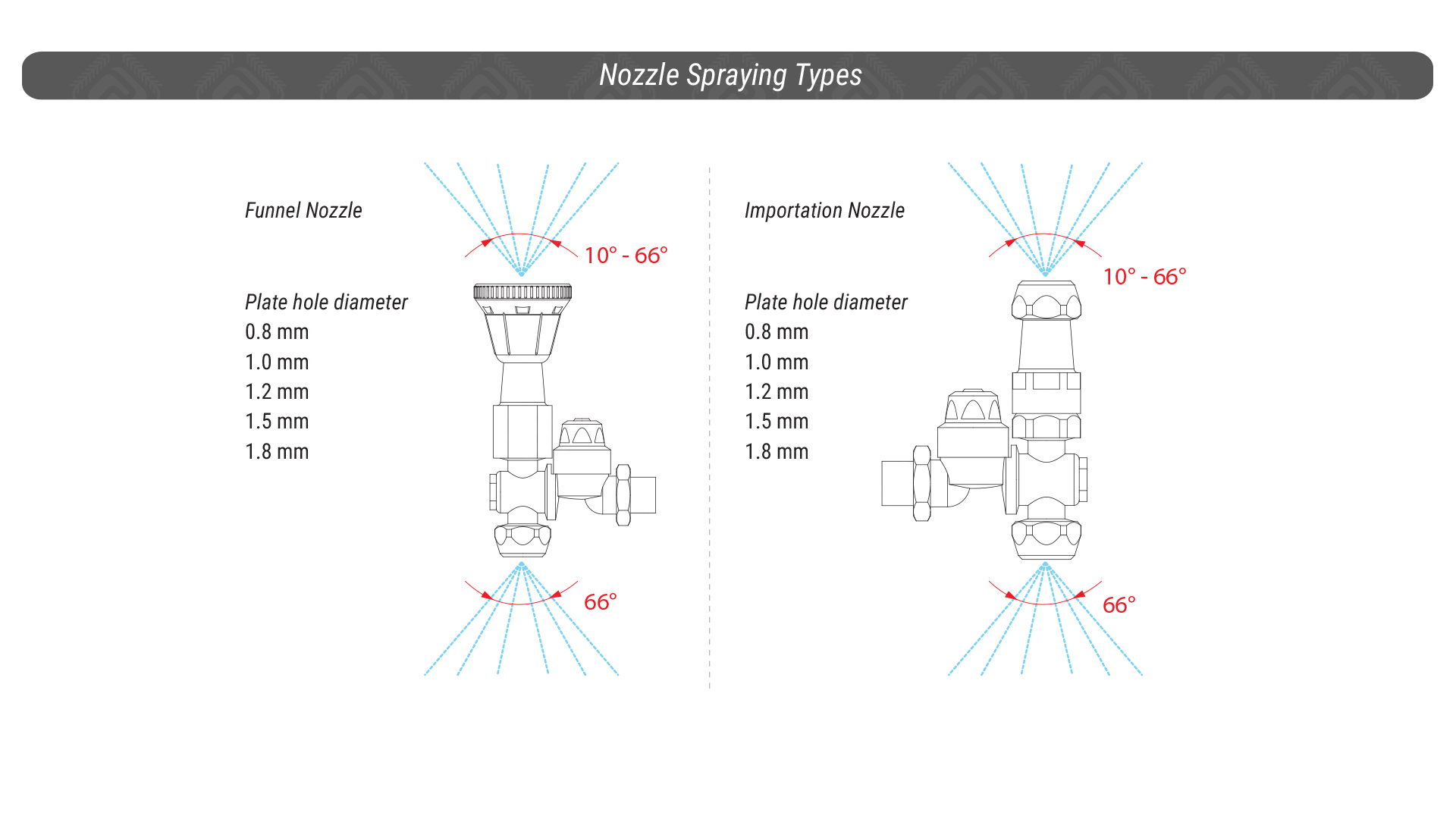

This diagram outlines the technical specifications for the Nozzle Spraying Types, comparing the Funnel Nozzle and the Importation Nozzle which both share identical mechanical capabilities. Both nozzle variants are equipped with interchangeable plate hole diameters measuring 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, and 1.8 mm, and they both generate precise spray patterns with adjustable spray angles ranging from 10 to 66 degrees at the top and fixed at 66 degrees at the bottom.
