COBRA F

Mistblowers

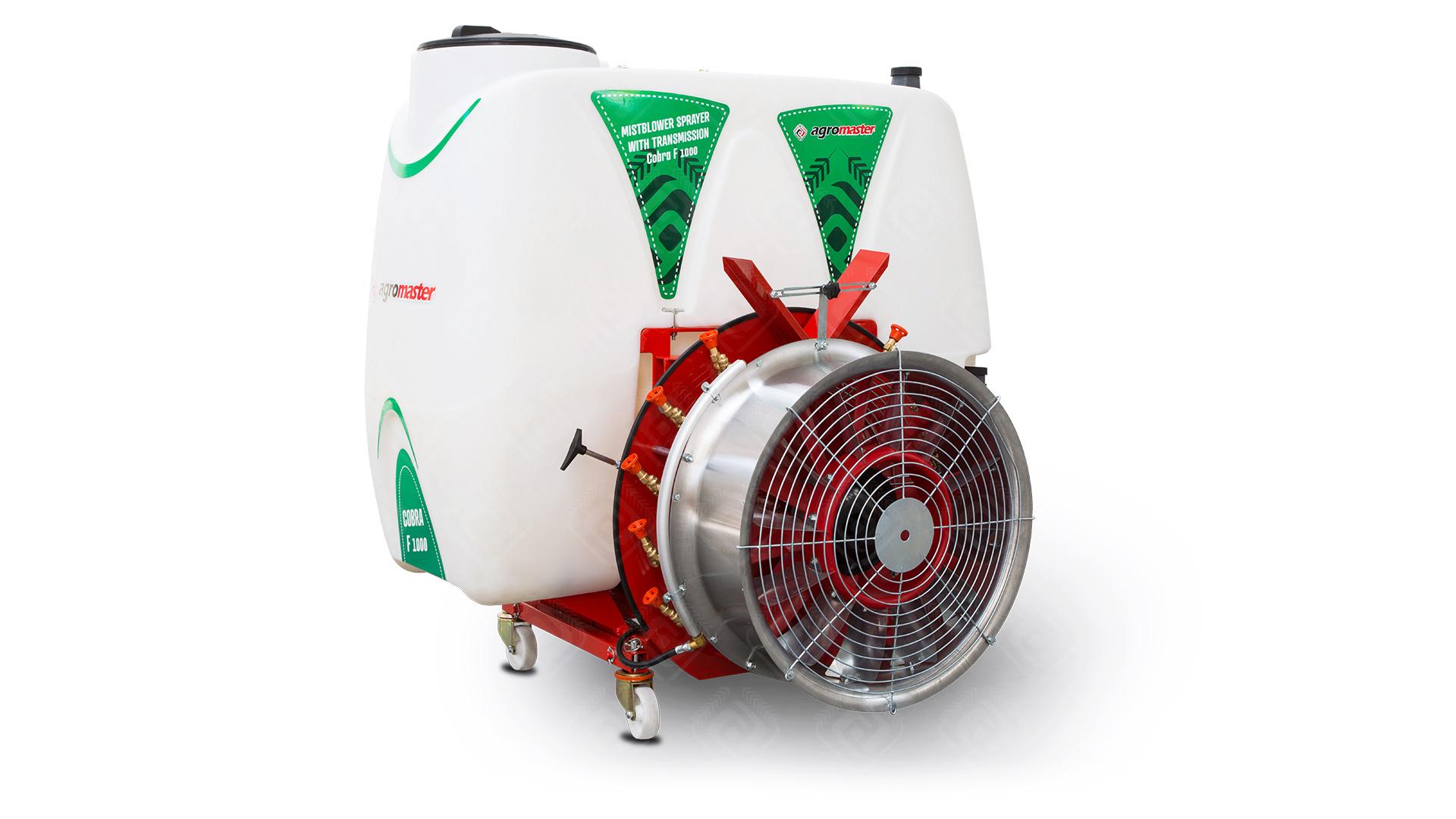

COBRA F

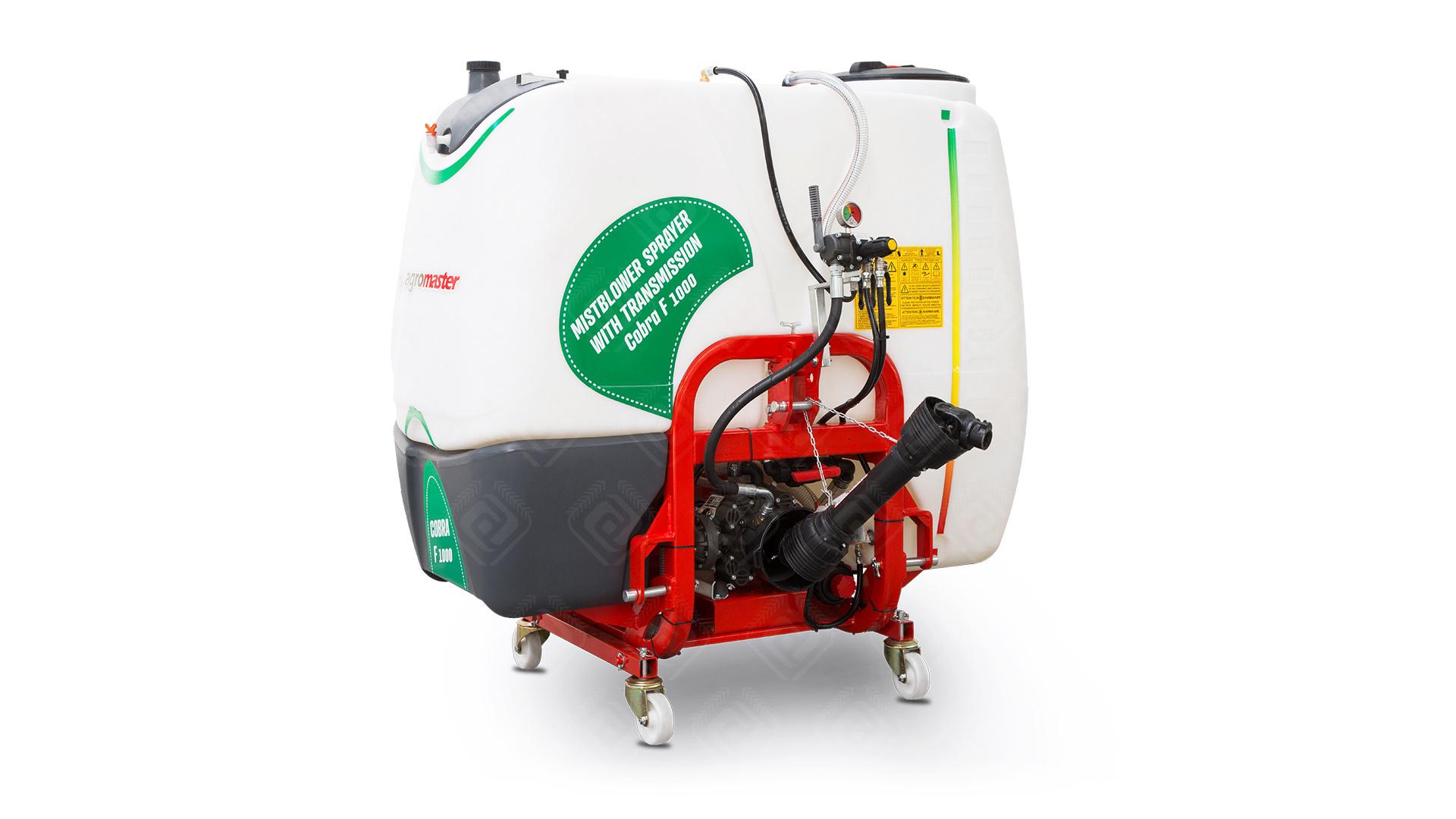

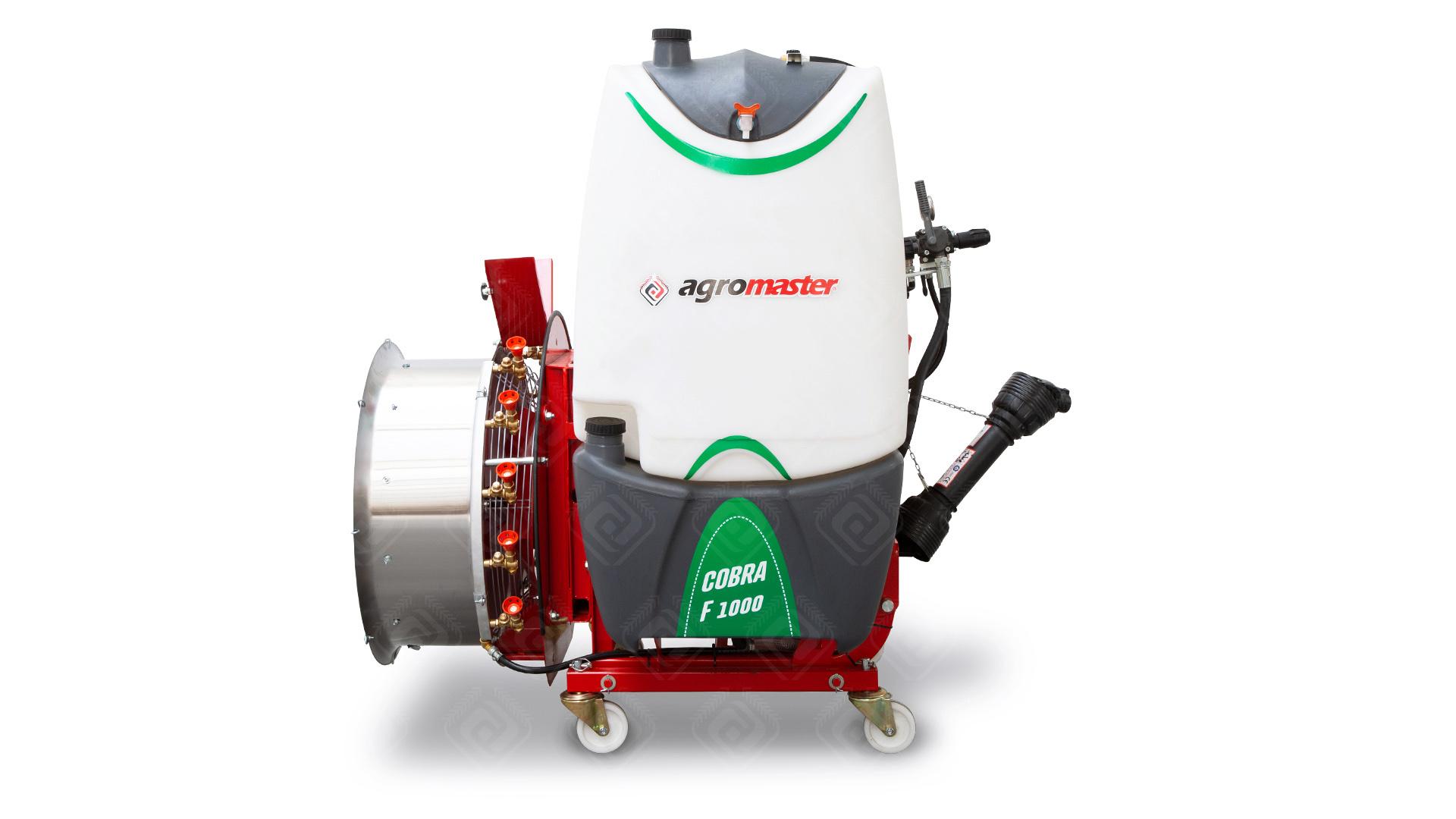

MISTBLOWER SPRAYER MOUNTED TYPE

DESCRIPTION

Cobra F Mounted type 400, 600, 800, 1000 ltr. Cobra F Series mistblowers connected to the three point of linkage of tractor and getting drive from (P.T.O) are used for multipurpose plant protection. Spraying pump is getting the power from P.T.O. and deliver the liquid under the pressure to nozzles on the spray fan.

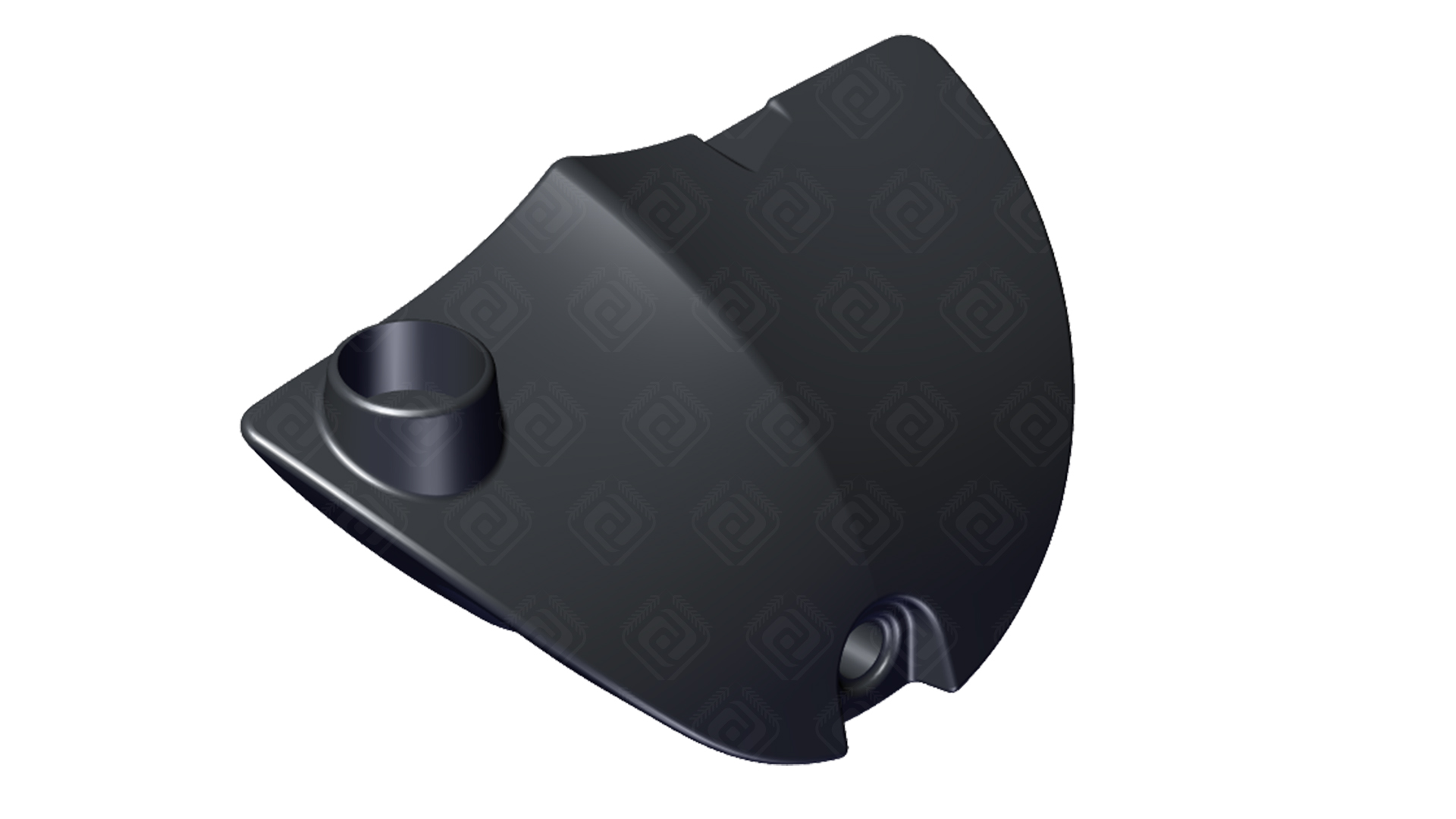

Hand Washing Tank

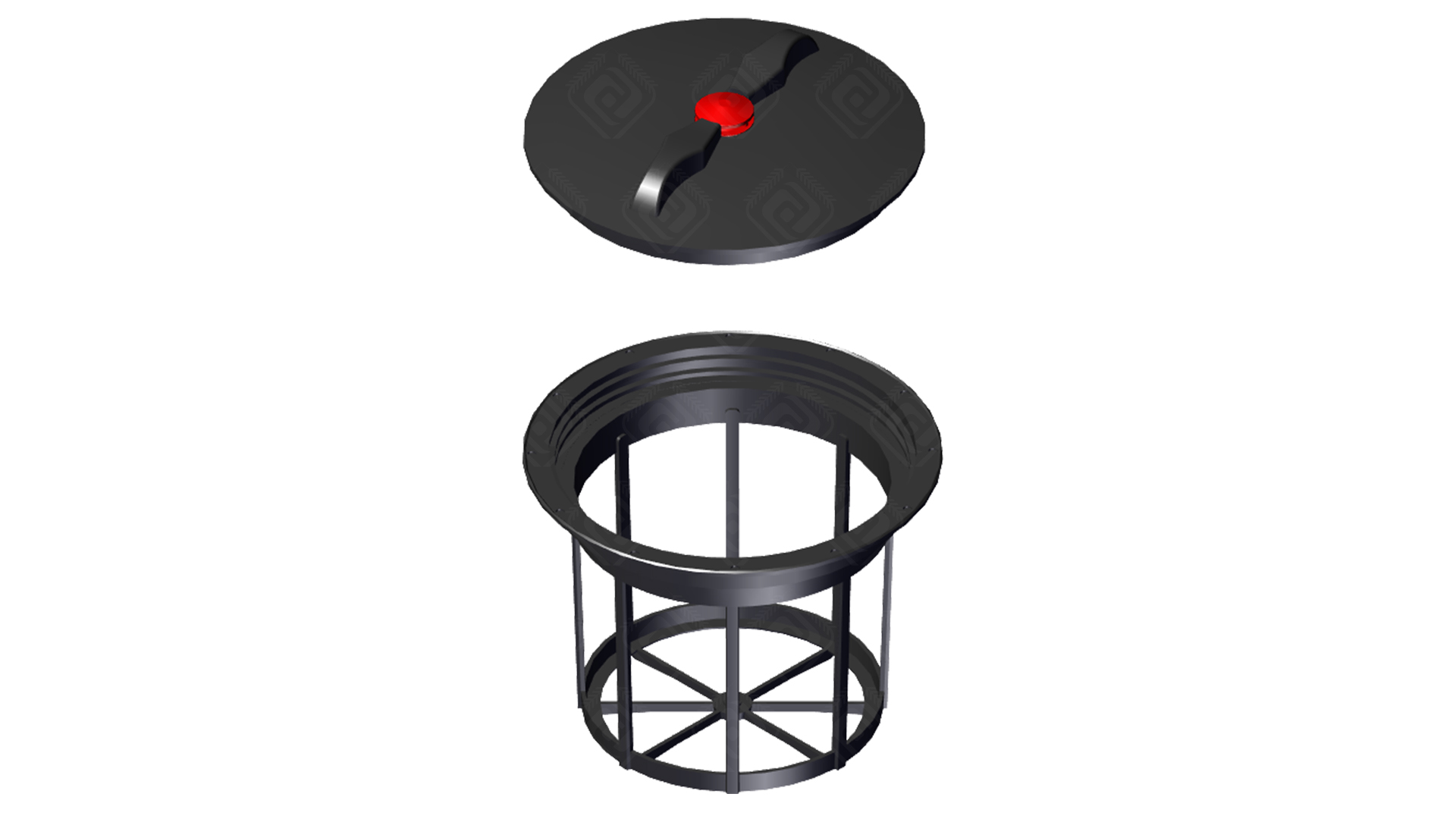

Tank Lid

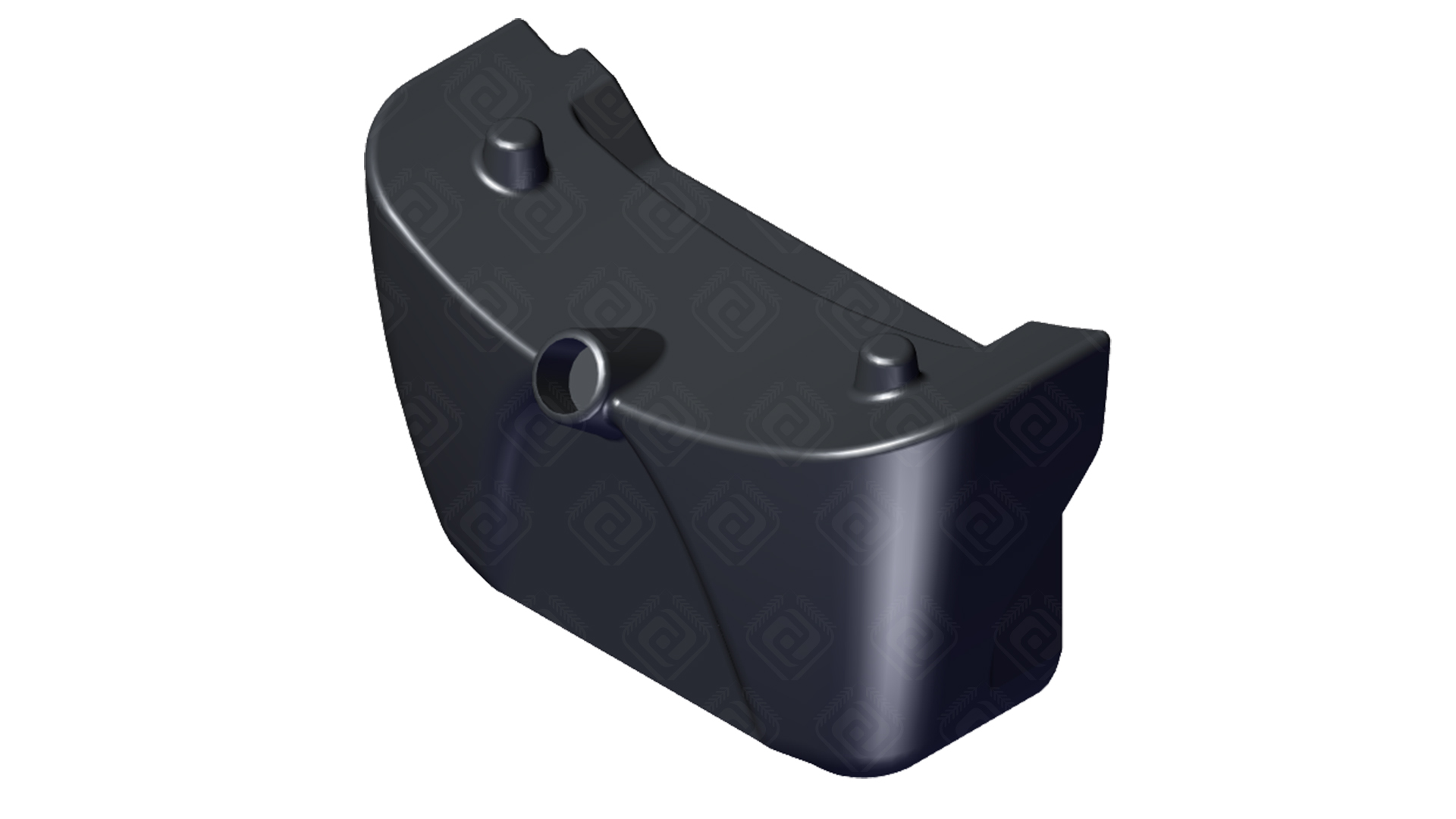

Tank Cleaning System

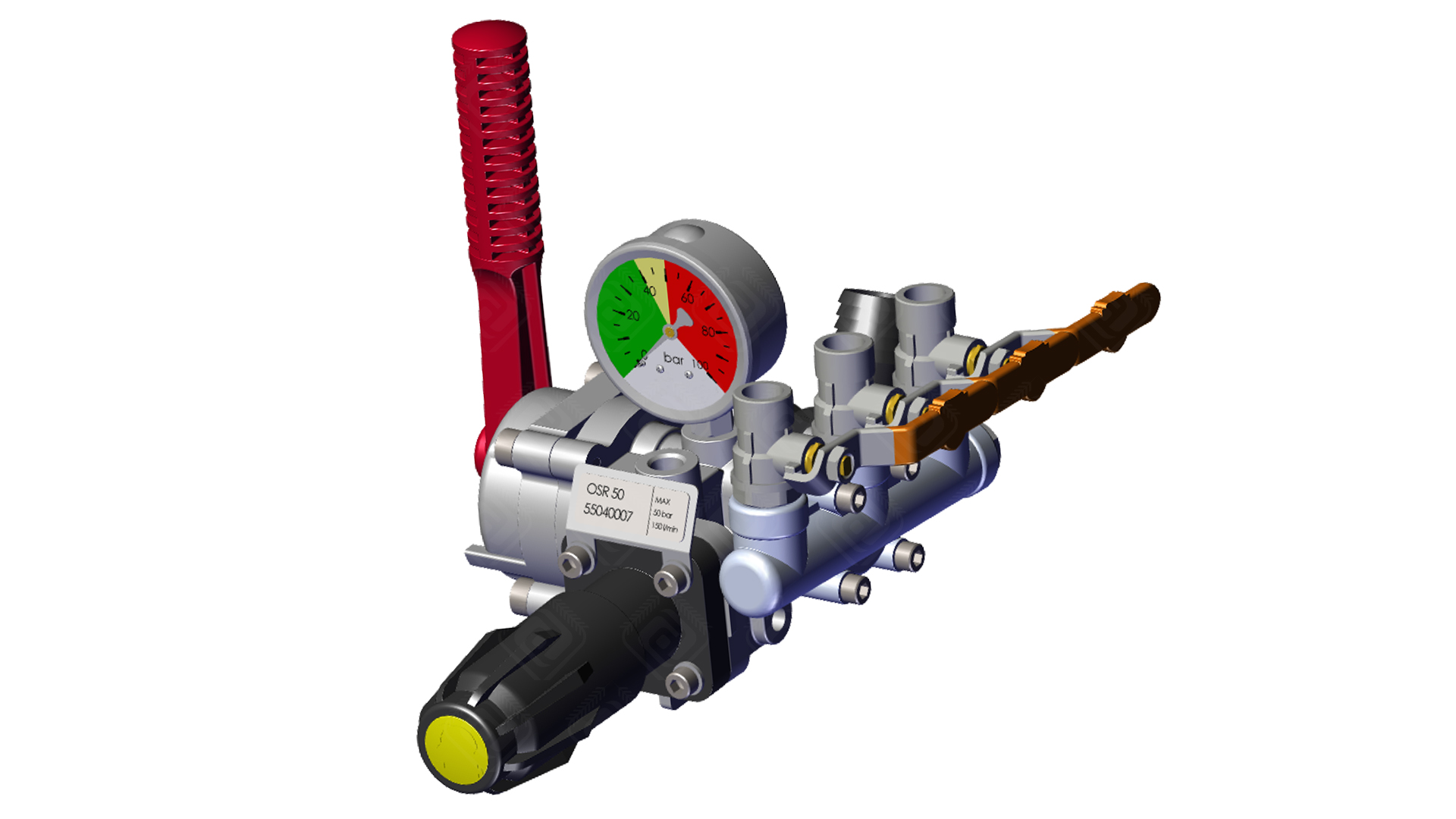

By the help of pressure regulator right or left spraying and the pressure adjustment can be made.

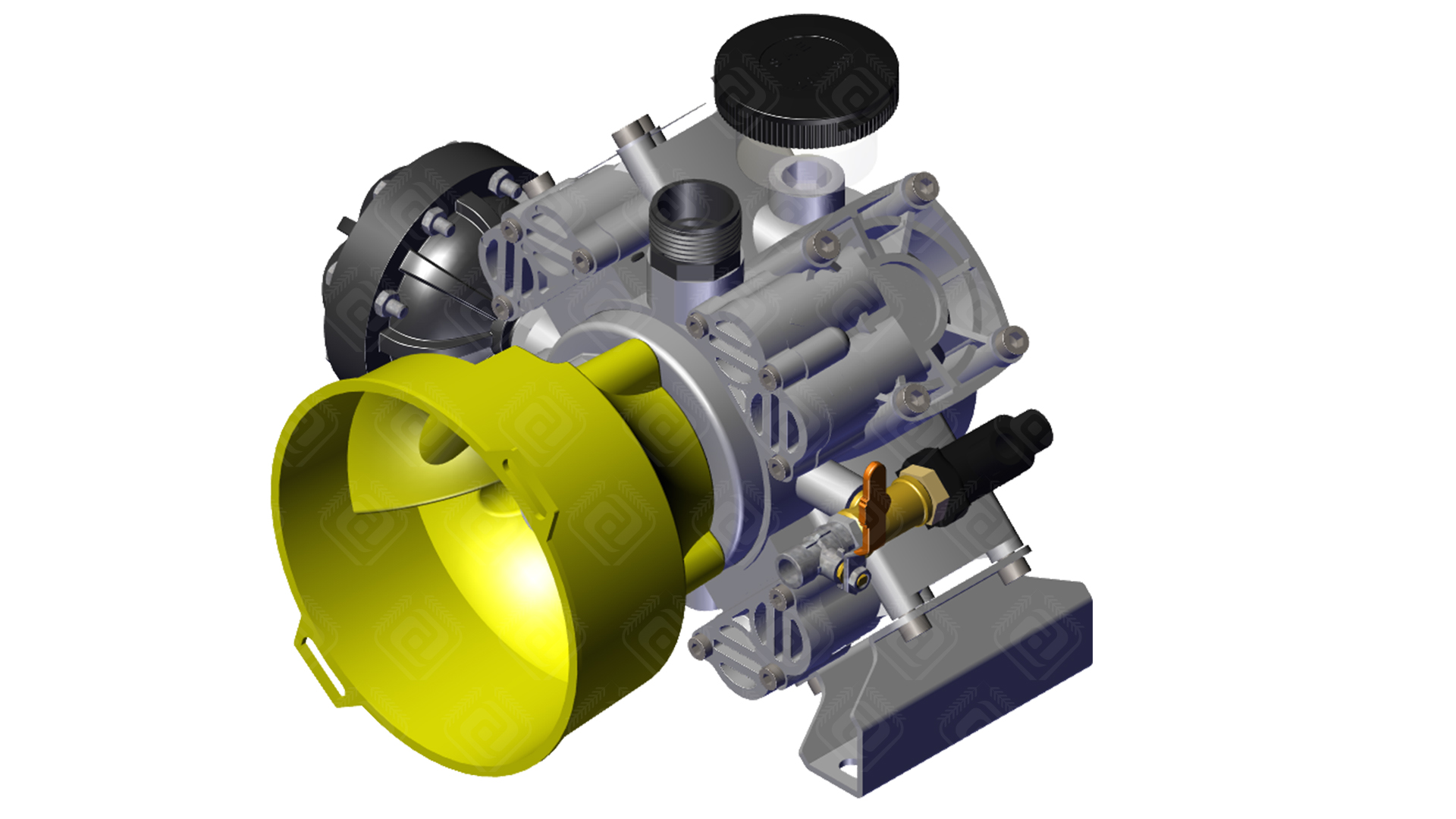

Best quality 4 membrane C96 pump which is produced by our factory is the most efficient product in its segment

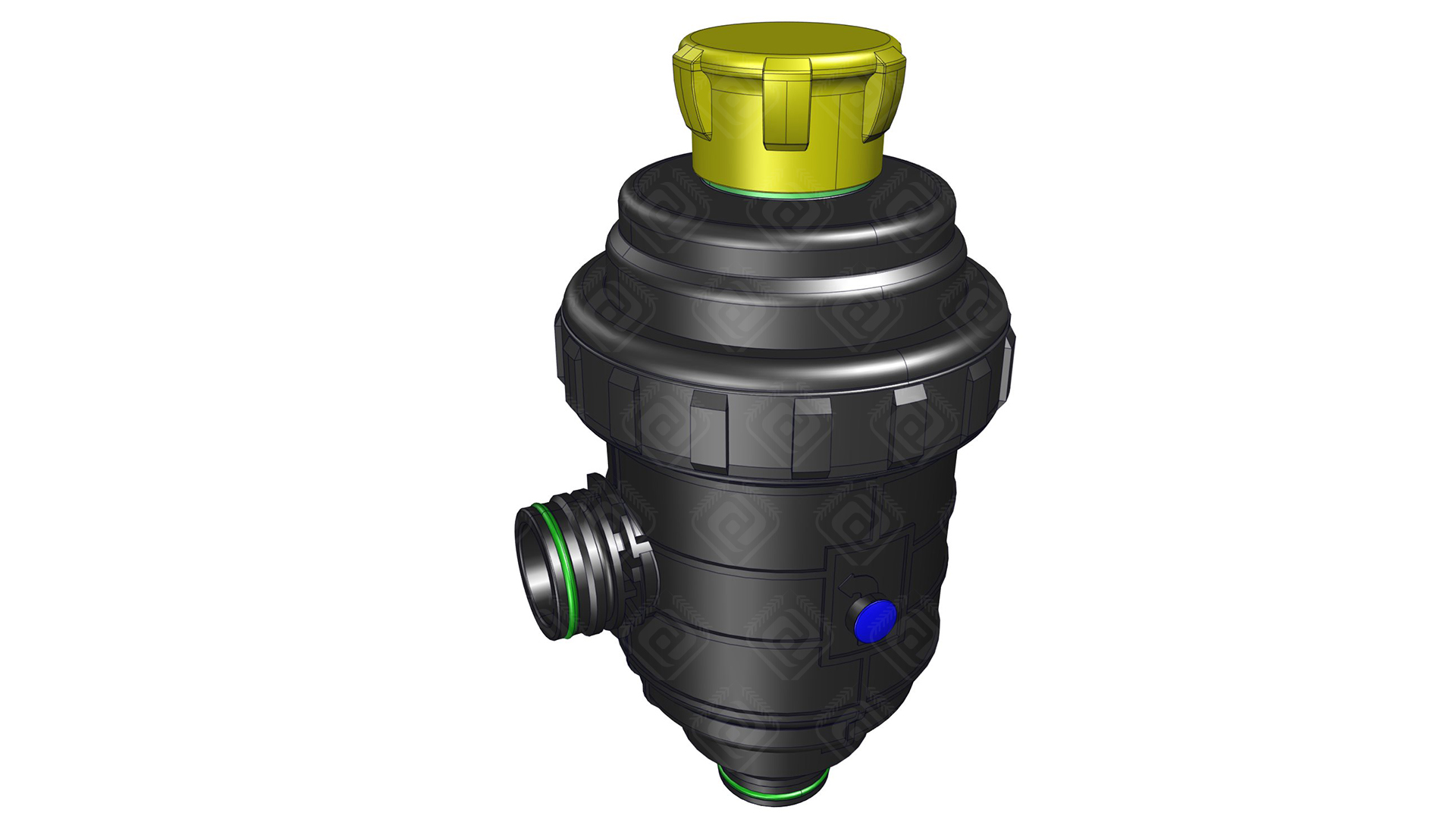

Cleanable Filter

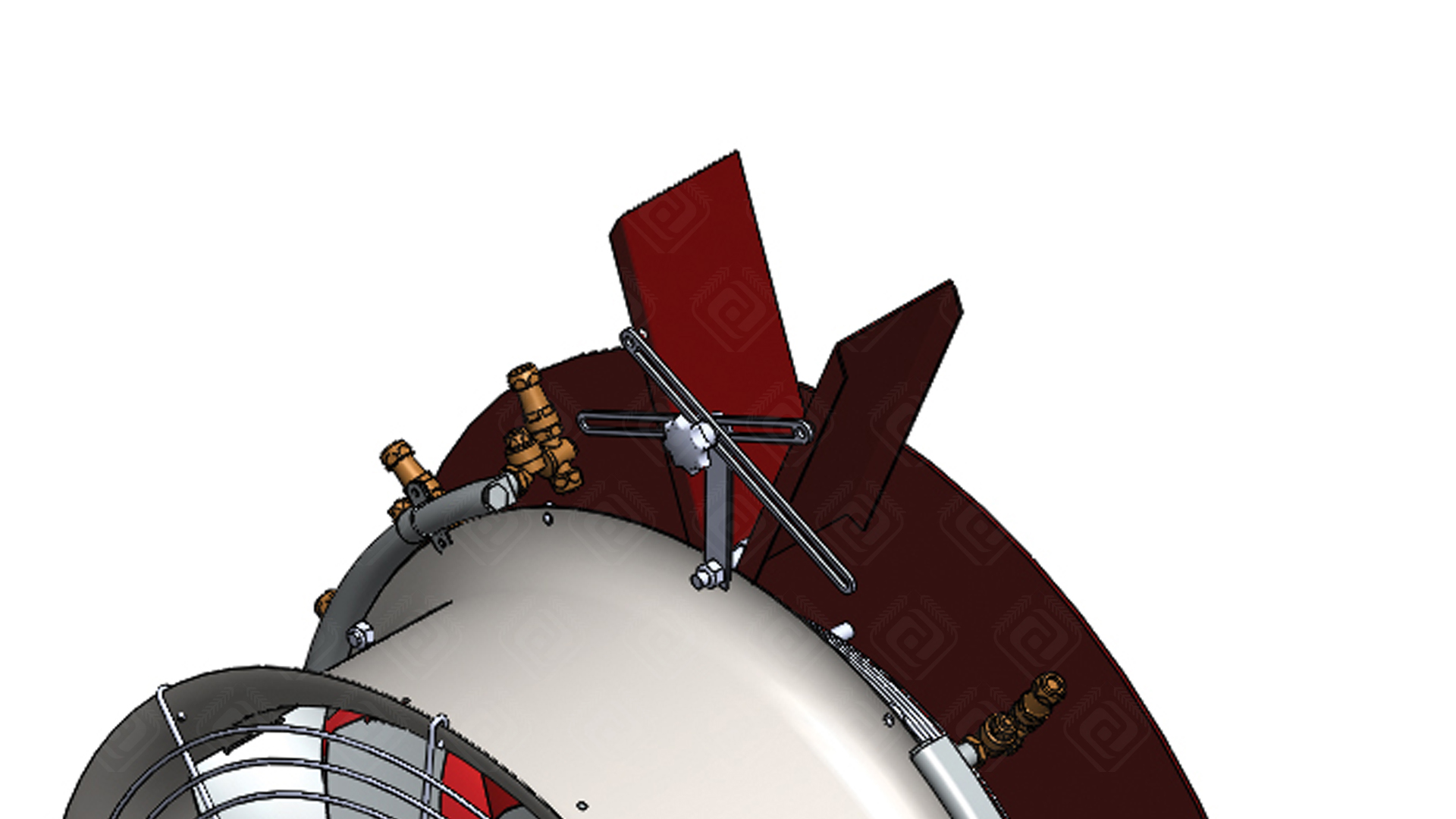

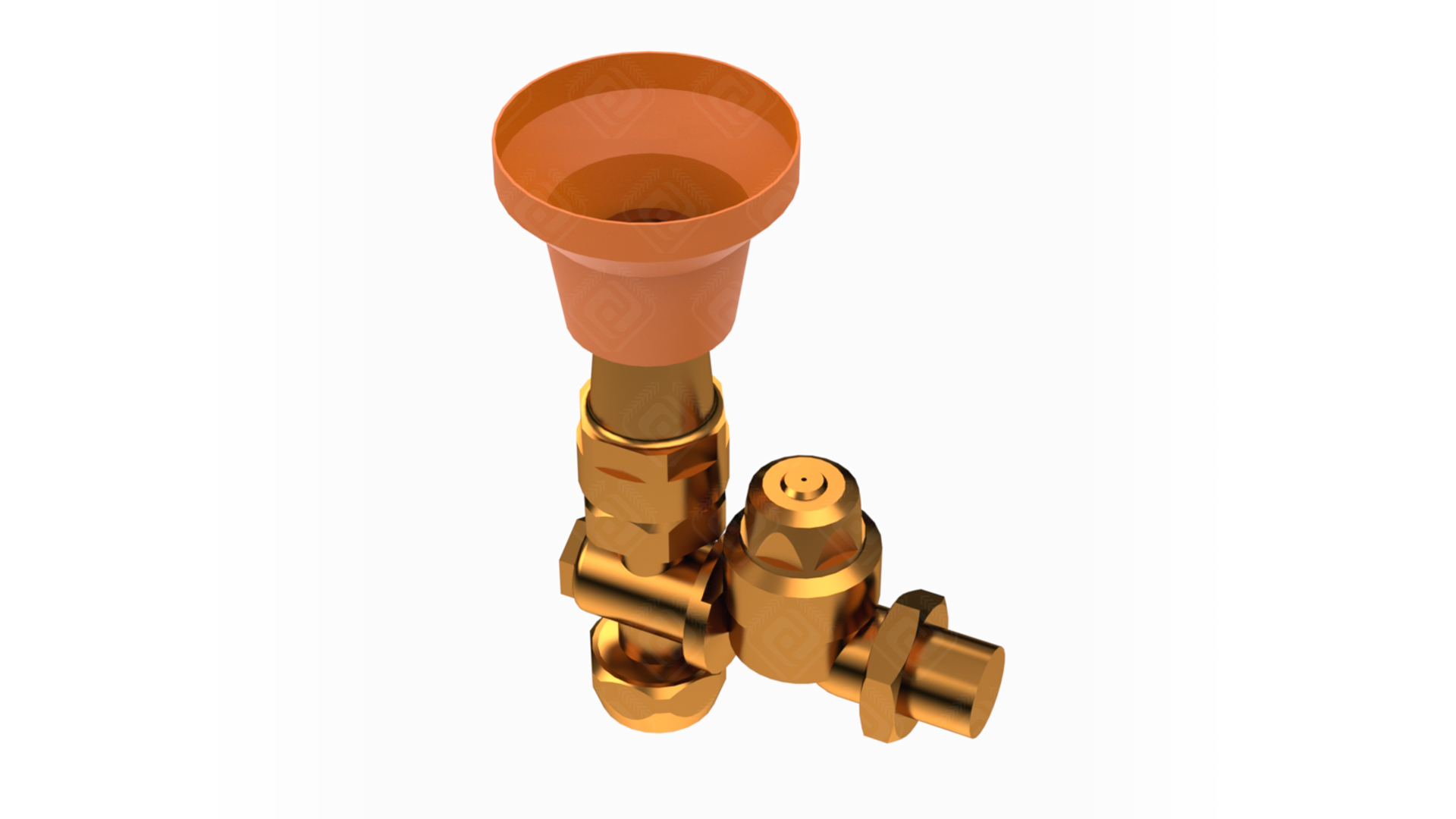

Angle Adjustable Nozzle

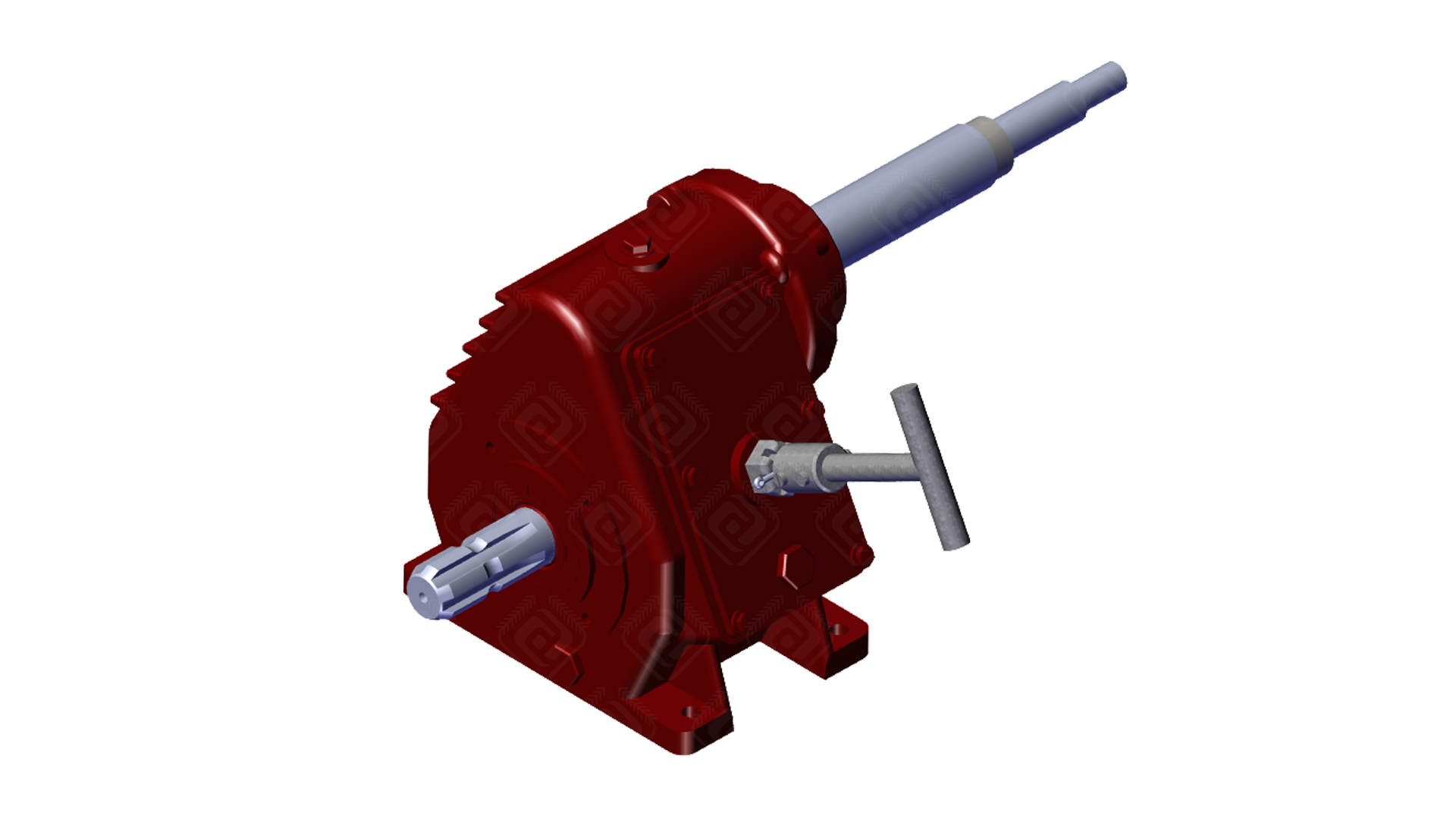

Transmission System

Provide Routing During Operation

TECHNICAL SPECIFICATIONS

Technical Specifications*	Unit	COBRA F 400	COBRA F 600	COBRA F 800	COBRA F 1000
Capacity	L	400	600	800	1000
Capacity	gallon	105	158	211	264
Total Width (W)	mm	1400	1450	1750	1750
Total Width (W)	ft.in	4'7"	4'9"	5’8”	5'8"
Total Length (L)	mm	1650	1650	1650	1650
Total Length (L)	ft.in	5'4"	5'4"	5'4"	5'4"
Total Height (H)	mm	1300	1500	1550	1750
Total Height (H)	ft.in	4'3"	4'11"	5'1"	5'9"
Pump Type		C 96 / membrane
Pump Flowrate	L/min	96
Pump Pressure	bar	50
Air Flow	m3/h	54000
Fan Diameter Ø	mm	750
Fan Diameter Ø	ft.in	2'6"
Number of Nozzles	pcs	5+5
Working Width	m	16
Working Width	ft.in	52’
Regulator Model		OSR
Pressure Safety Valve		Standard
Tank Mixer		Standard
Tank Material		Polyethylene
PTO Rotation	rpm	540
Hand Washing Tank	L	5
Hand Washing Tank	gallon	1
Tank Washing System	L	60	60	100	100
Tank Washing System	gallon	15	15	26	26
Required Power	hp	60-70	70-80	90-120
Total Weight	kg	250	275	320	330
Total Weight	Ibs	551	606	705	727

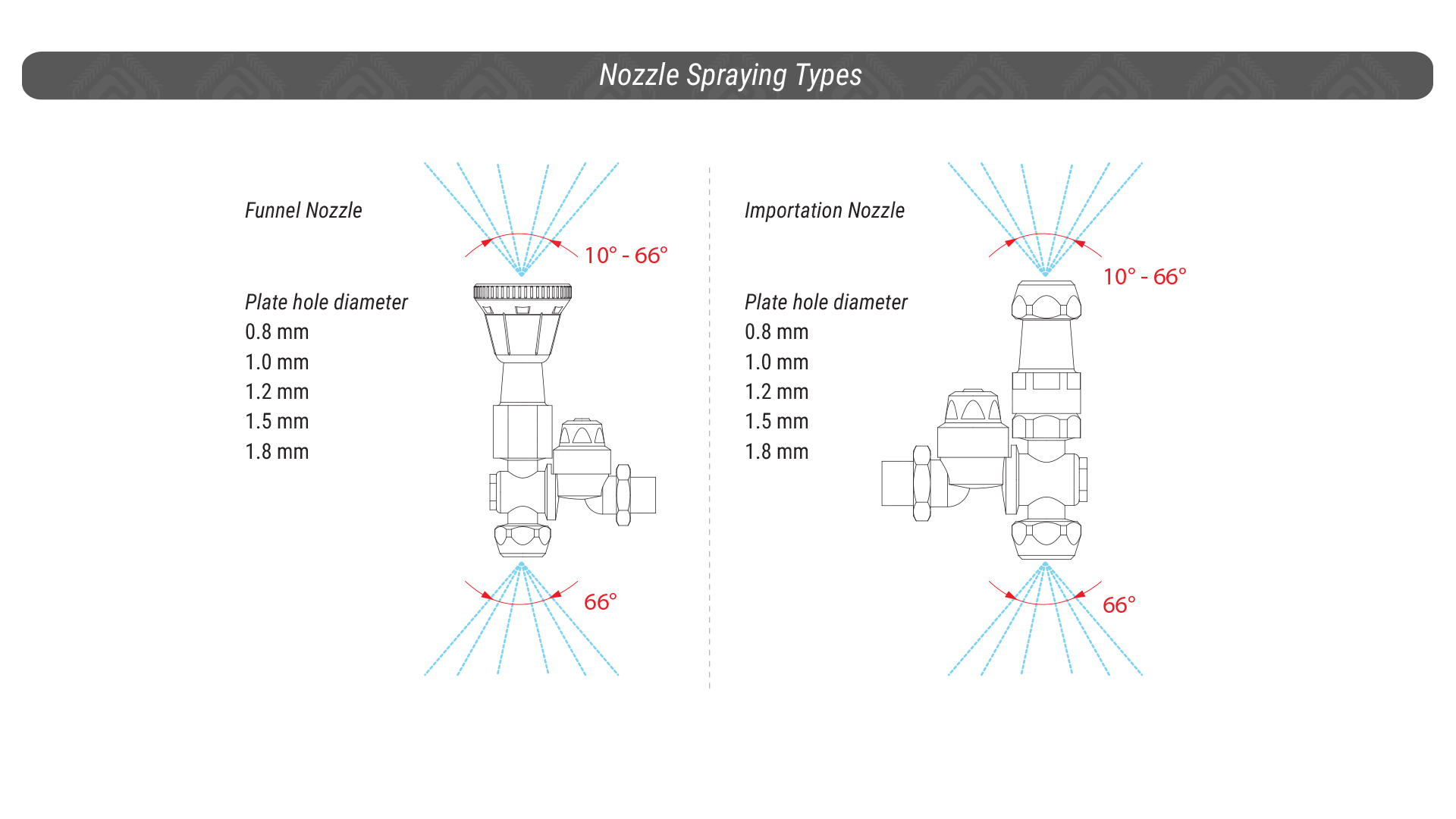

This diagram outlines the technical specifications for the Nozzle Spraying Types, comparing the Funnel Nozzle and the Importation Nozzle which both share identical mechanical capabilities. Both nozzle variants are equipped with interchangeable plate hole diameters measuring 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, and 1.8 mm, and they both generate precise spray patterns with adjustable spray angles ranging from 10 to 66 degrees at the top and fixed at 66 degrees at the bottom.

This visual details the workflow of a more compact mistblower model, which is engineered with a slightly reduced spray reach of 8 meters horizontally toward the trees and 8 meters vertically upward. Similar to the larger unit, its air-assisted system is fully adaptable, allowing the operator to execute dual-sided spraying to cover both flanking rows at once, or single-sided spraying to direct the chemical application exclusively to the left or right side.
