APACHE YHL

Field Sprayers

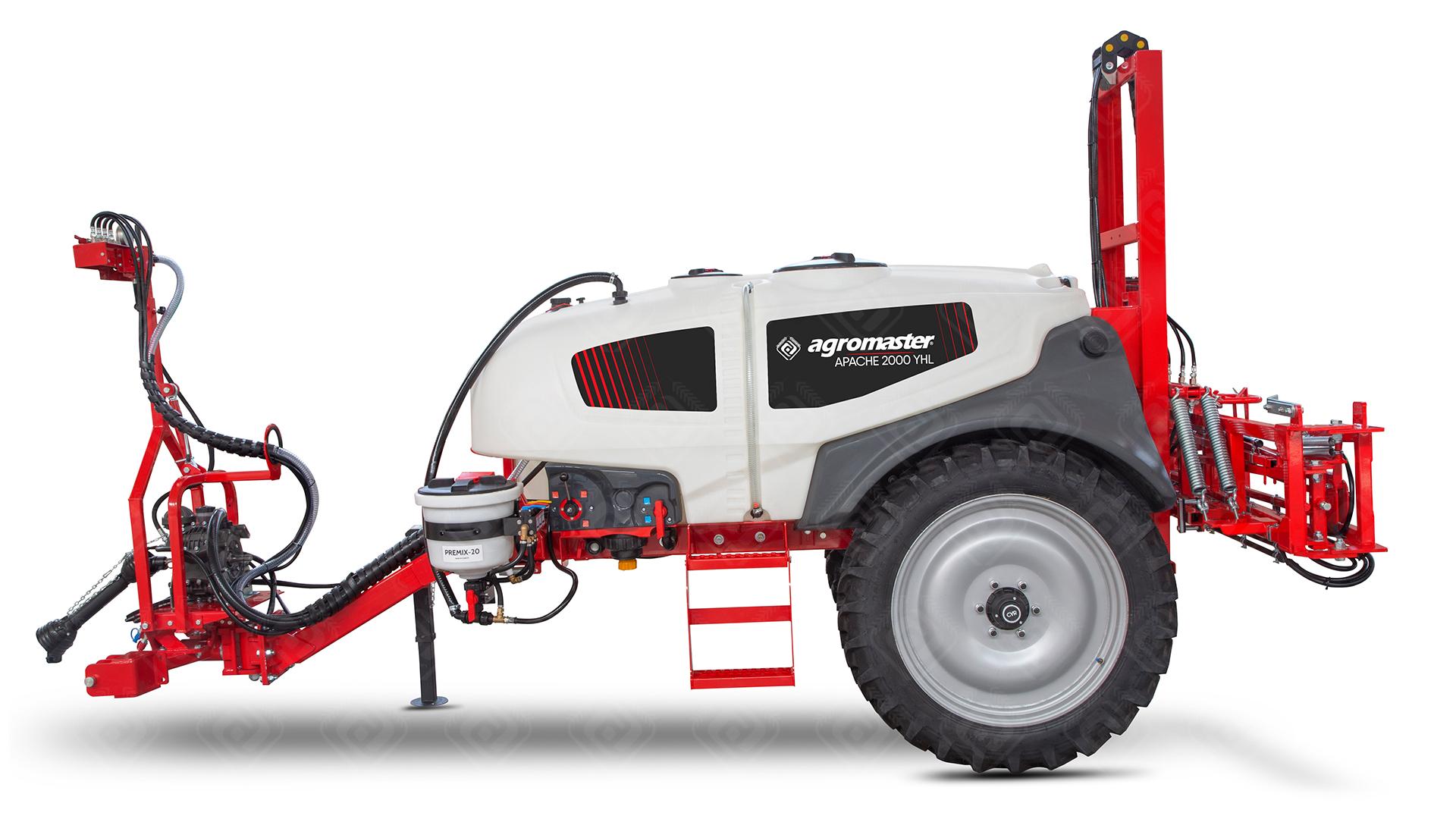

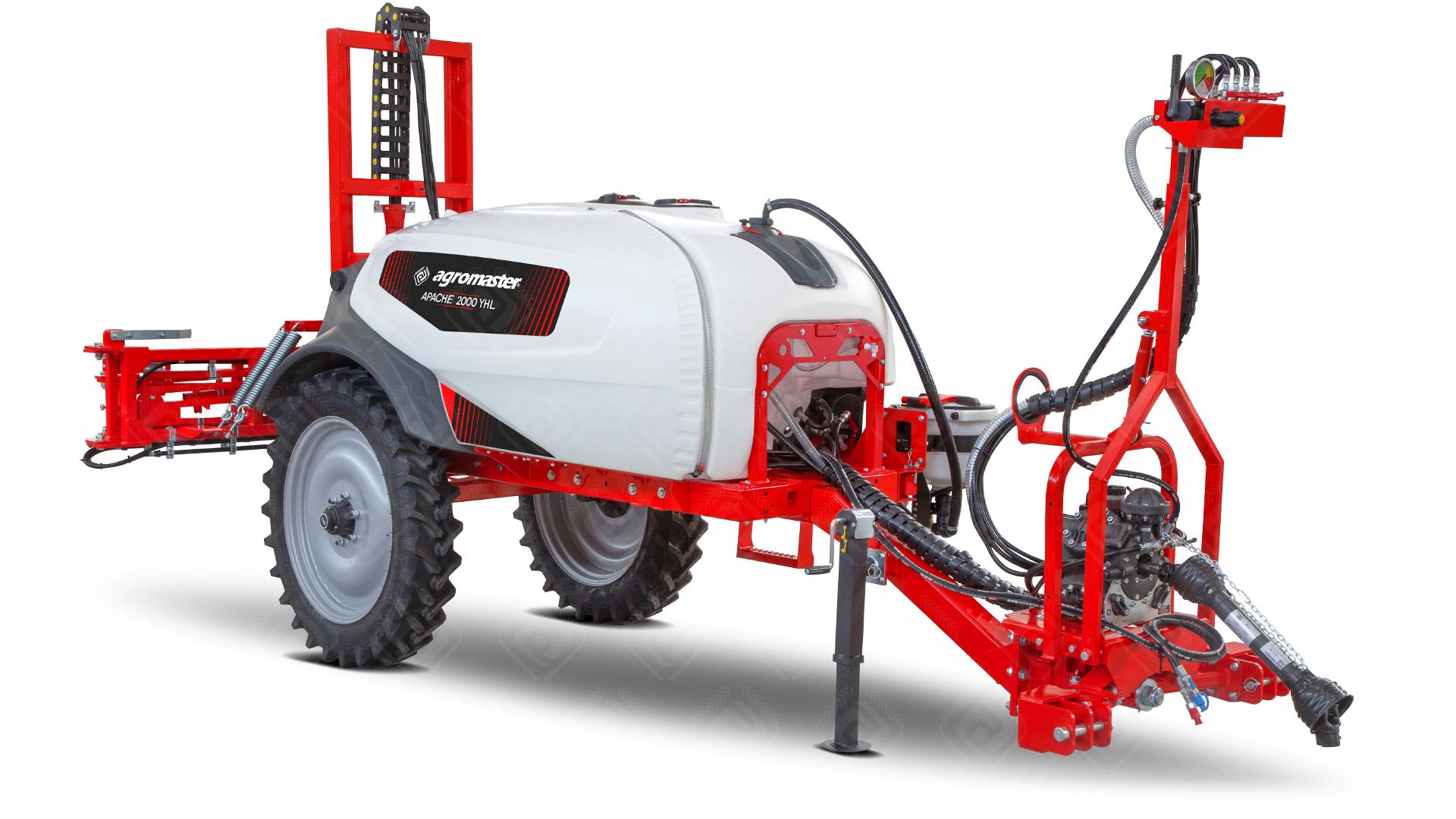

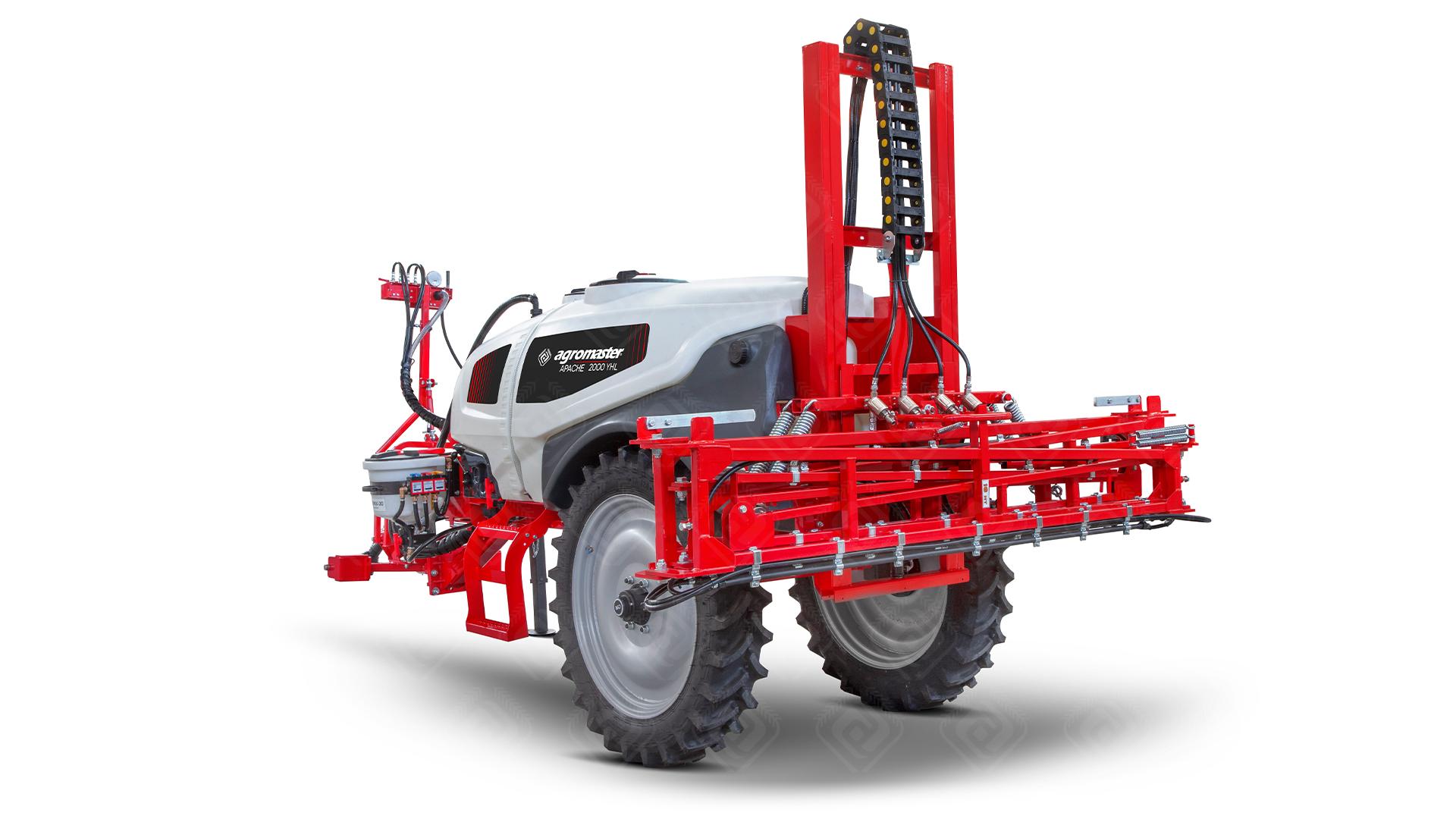

APACHE YHL

FIELD SPRAYER, TRAILED TYPE SEMI-HYDRAULIC BOOM

Product Catalog

DESCRIPTION

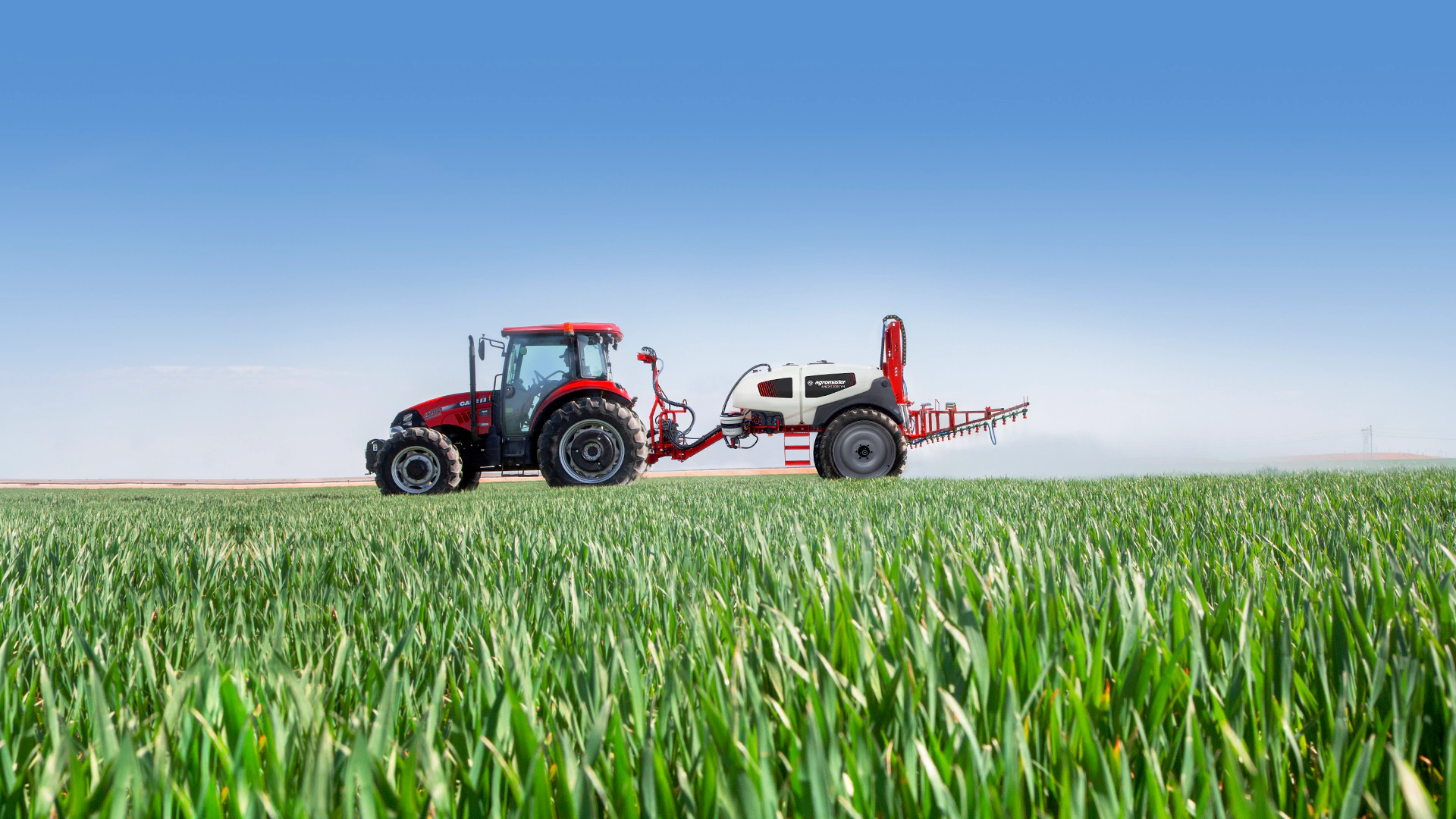

Agromaster sprayers are versatile sprayers ever built. APACHE YHL series heavy-duty semihydraulic boom sprayers are durable for many options and it finds use in traditional farming, horticulture, orchards, vineyards and on grasslands. Trailed type 2000, 3000 L field sprayers are used for multipurpose plant protection. Sprayers connected to drawbar of tractor and powered by P.T.O.

Long-lasting and cleanable nozzle provides homogeneous disinfection

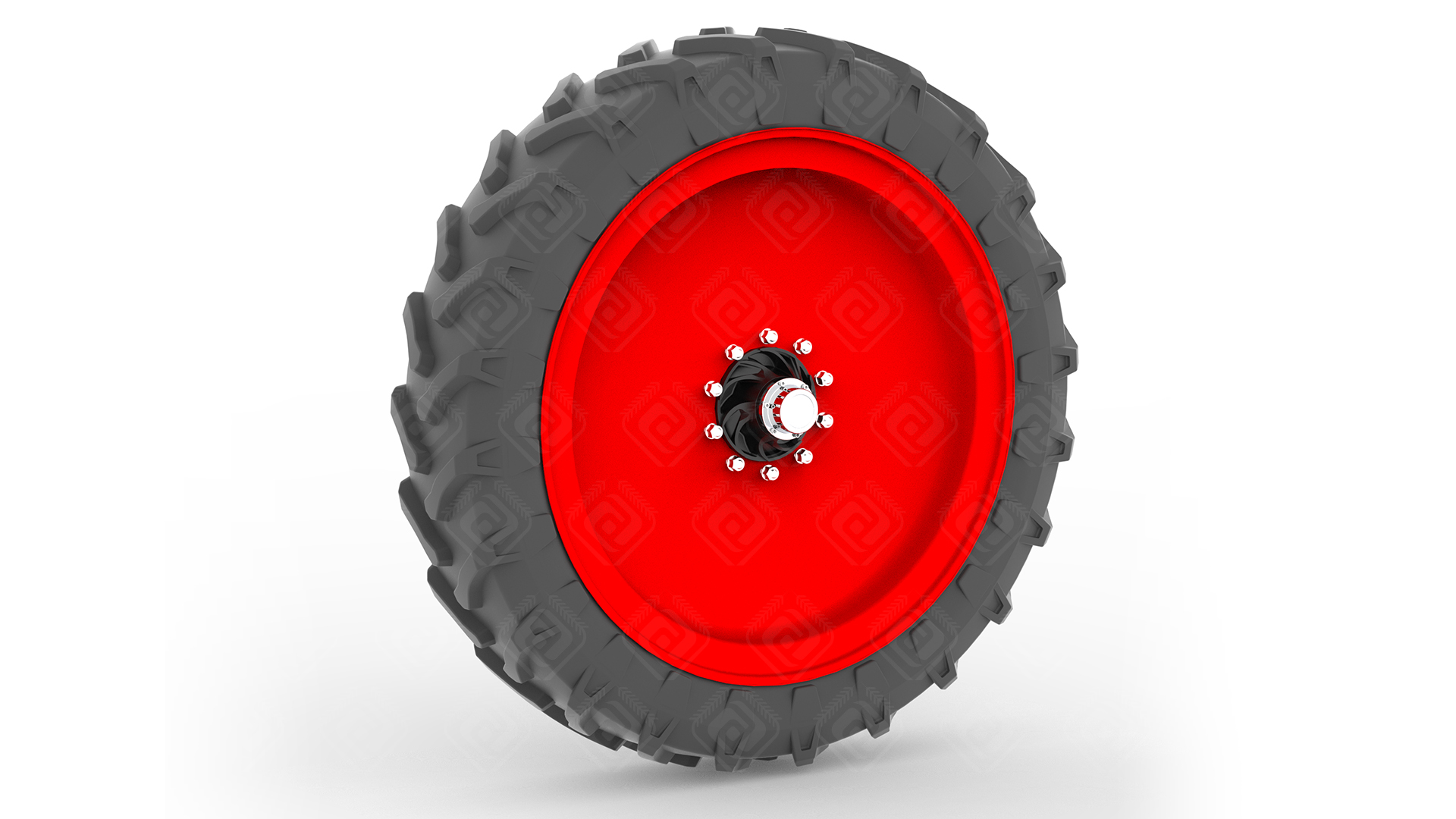

Durable Wheel

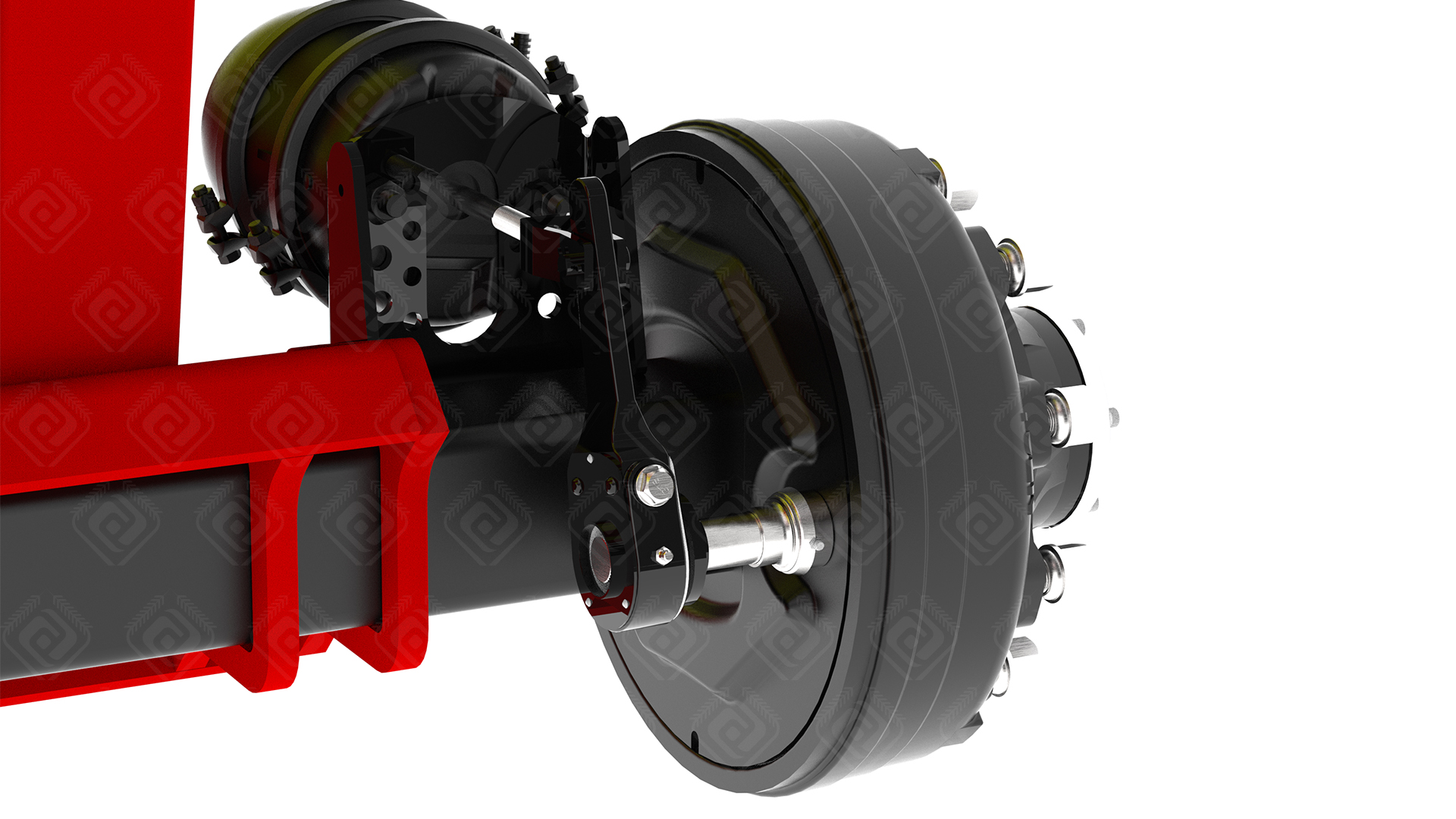

Airbreak Axle

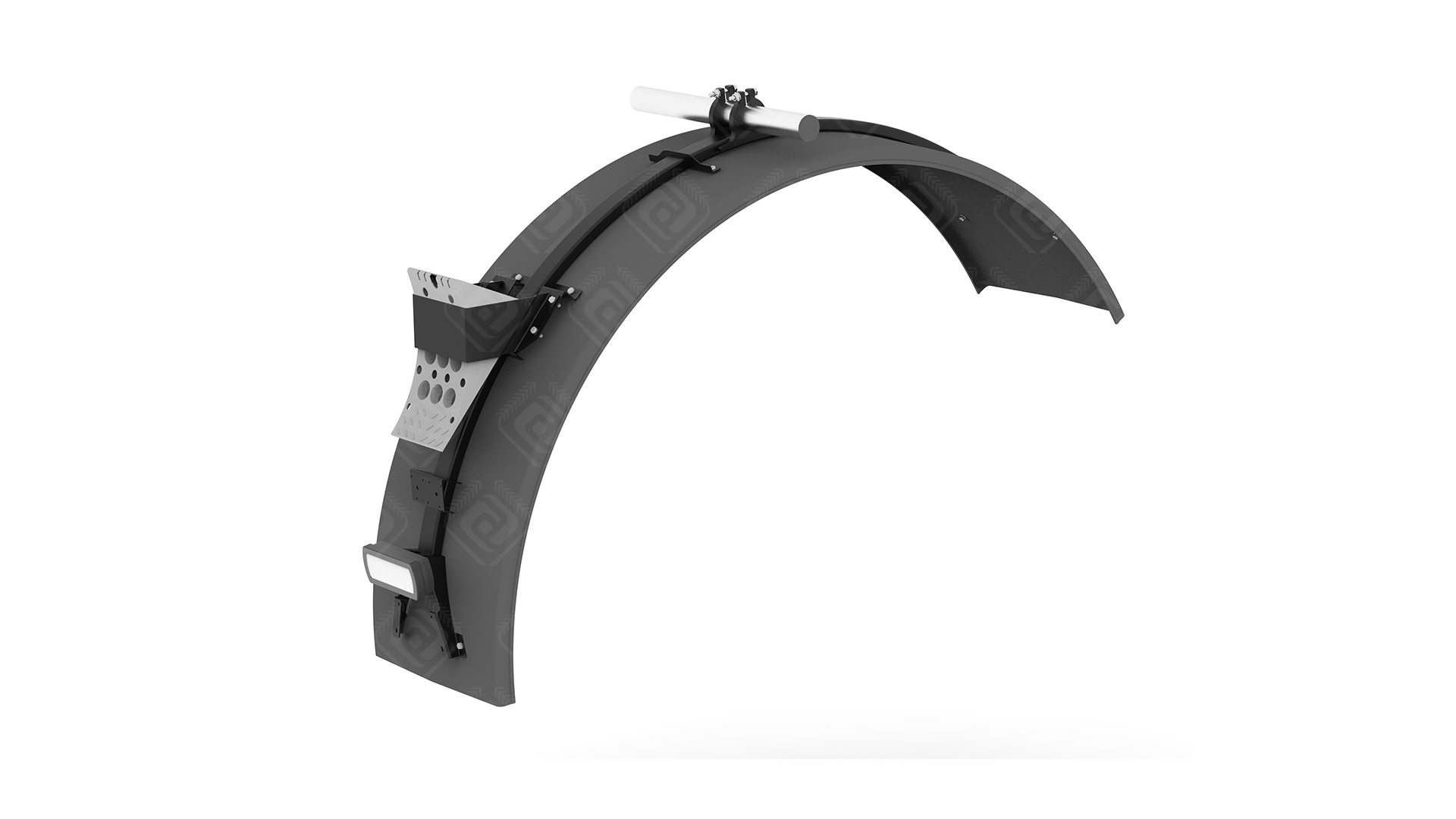

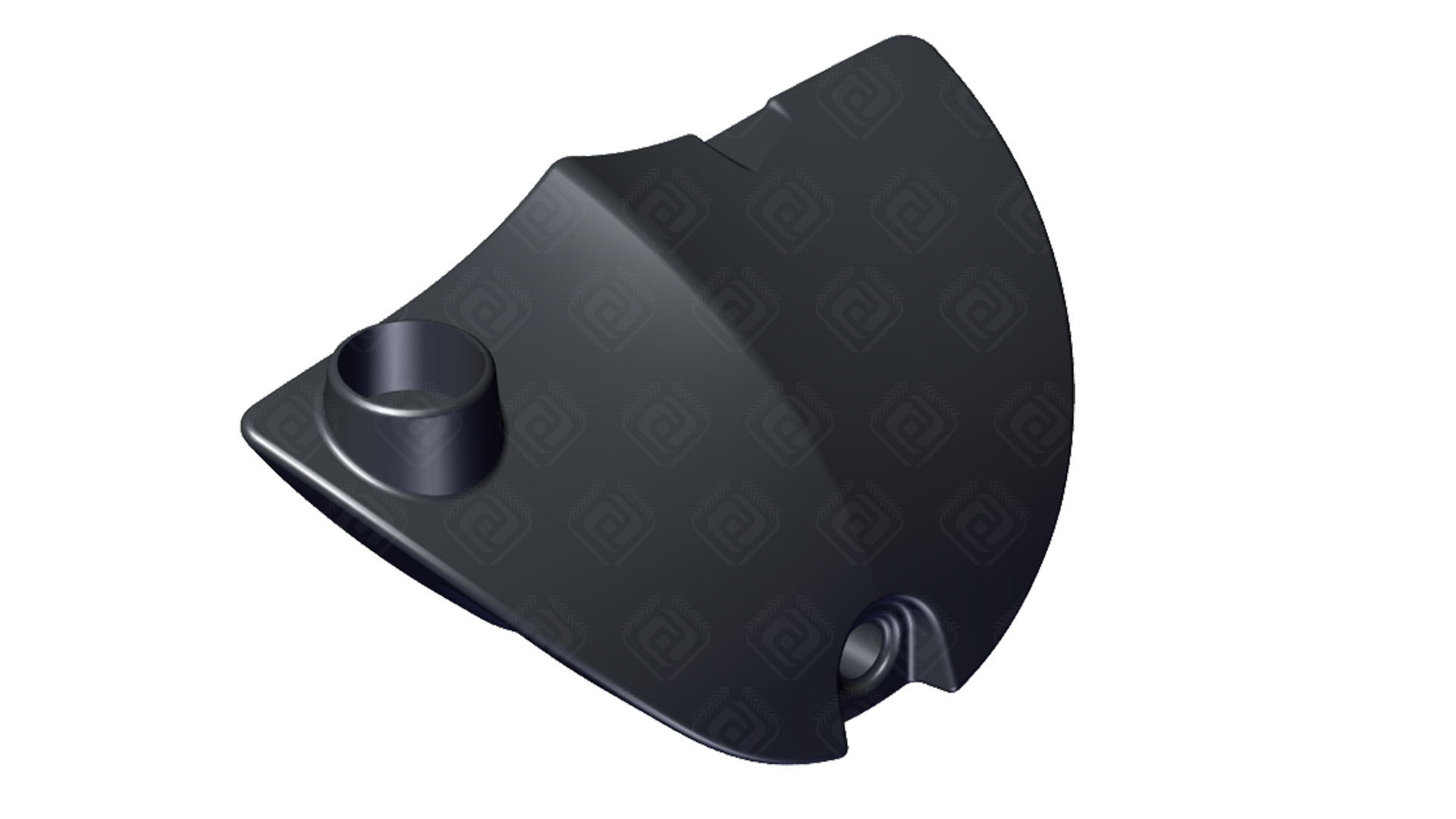

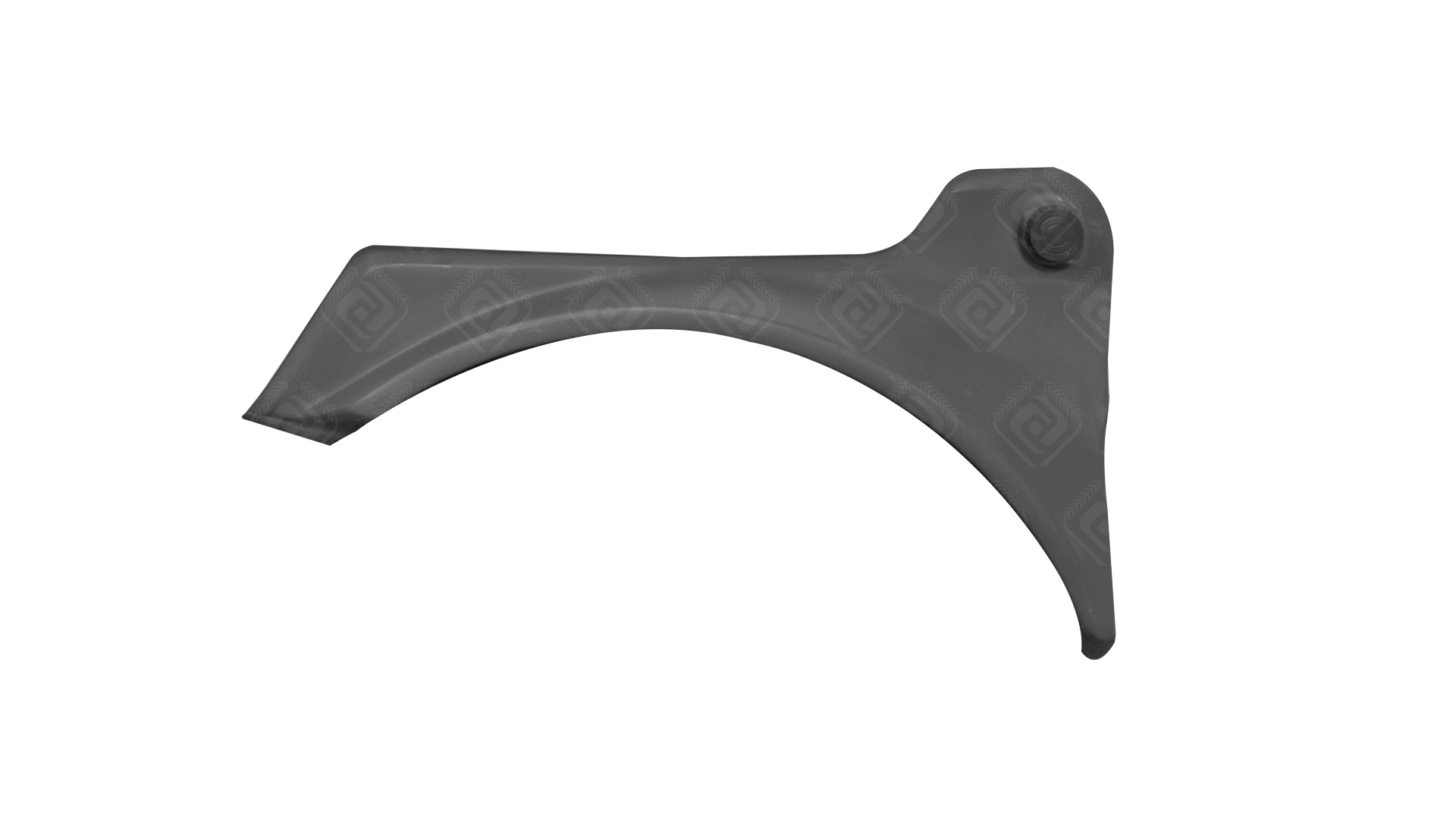

Mudguard

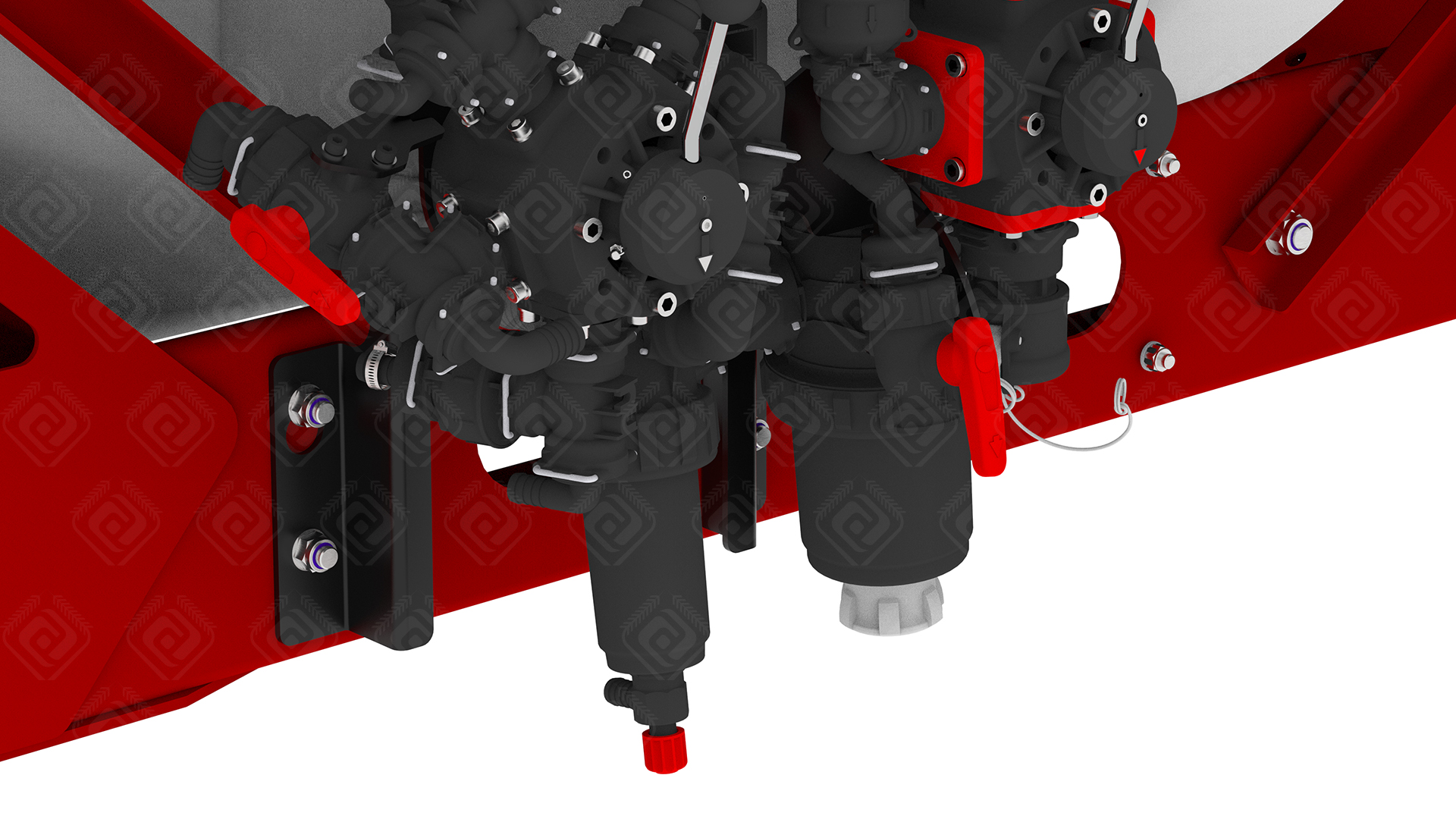

Control Valves

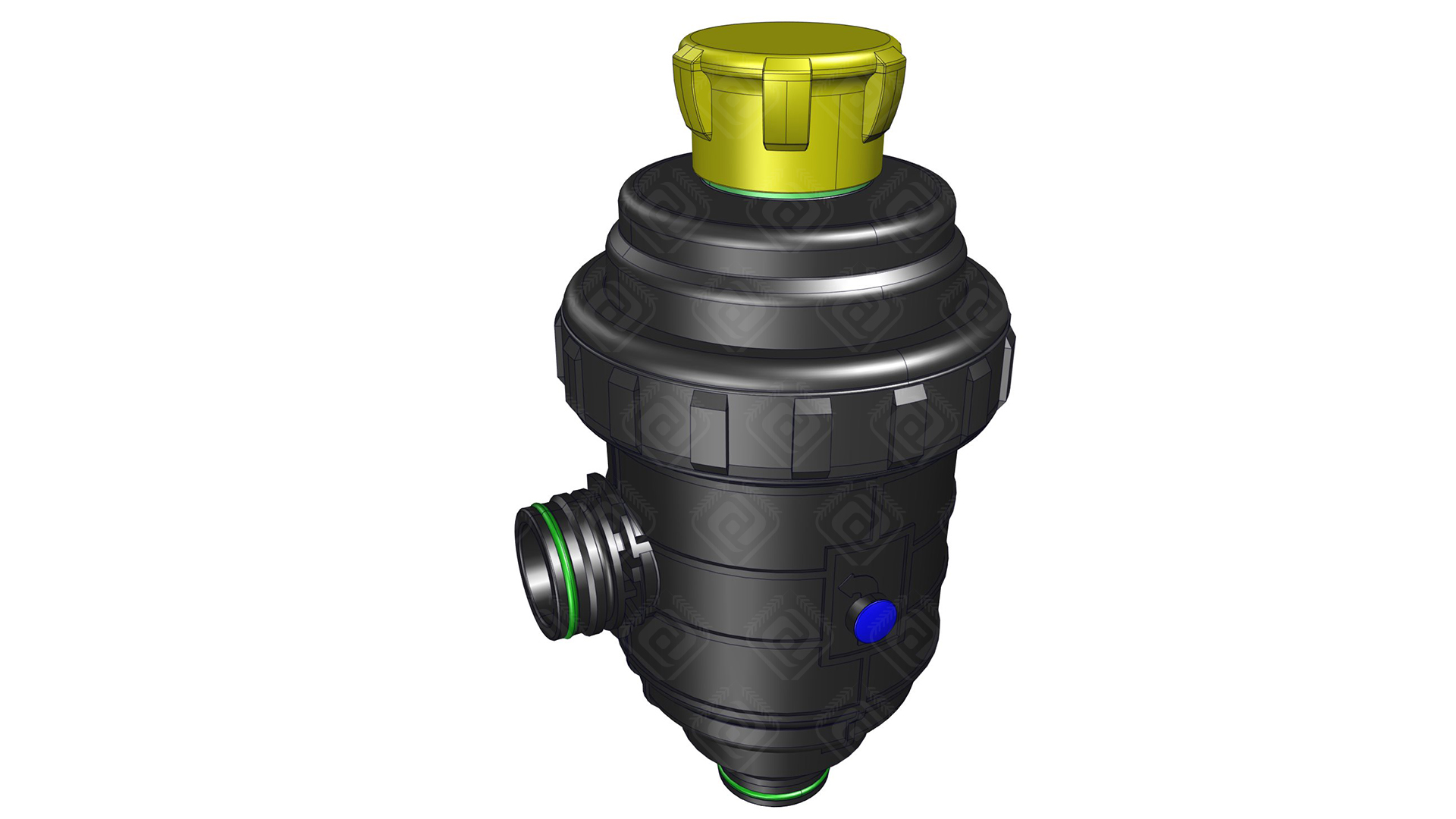

Cleanable Filter

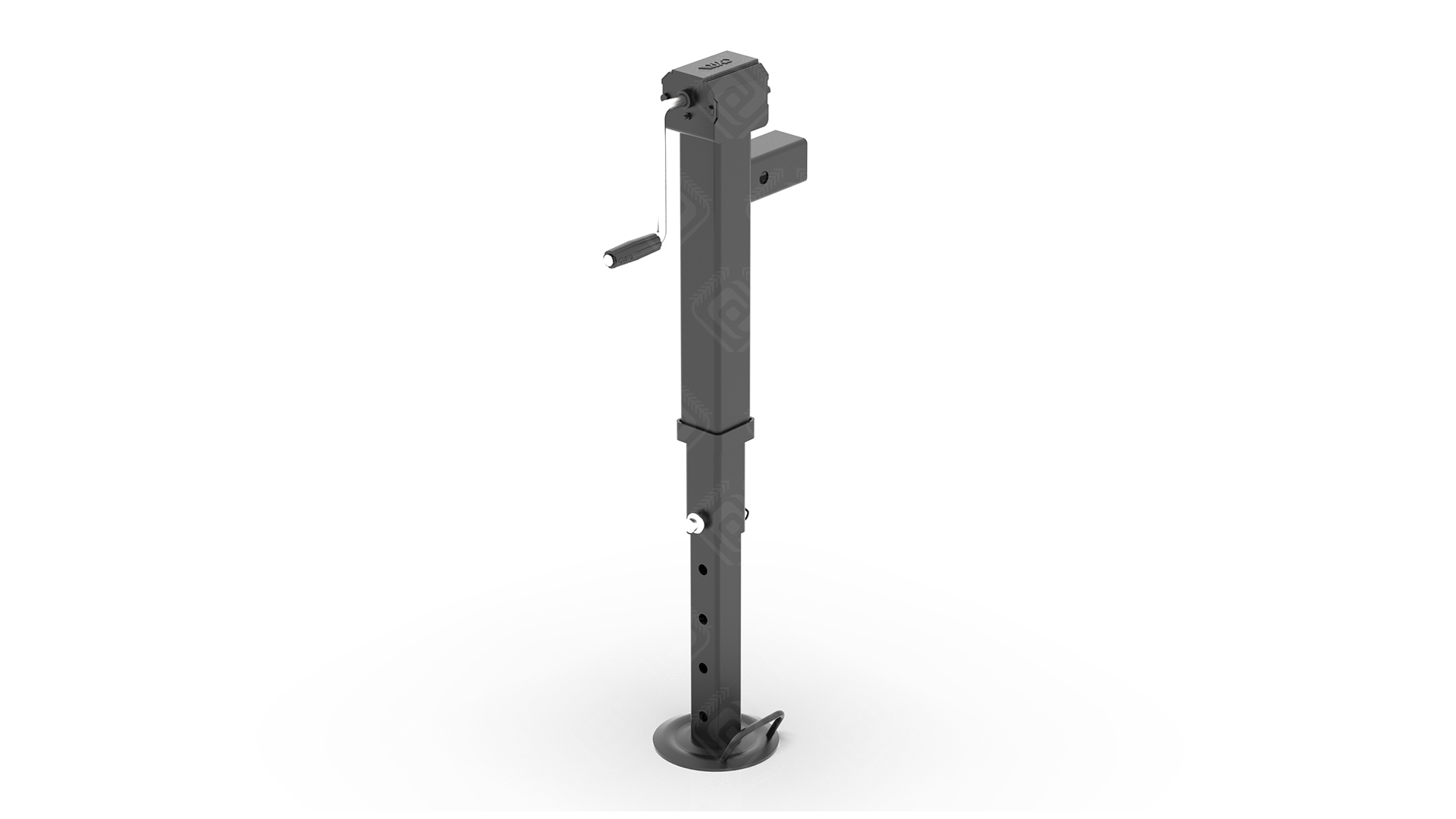

Jack

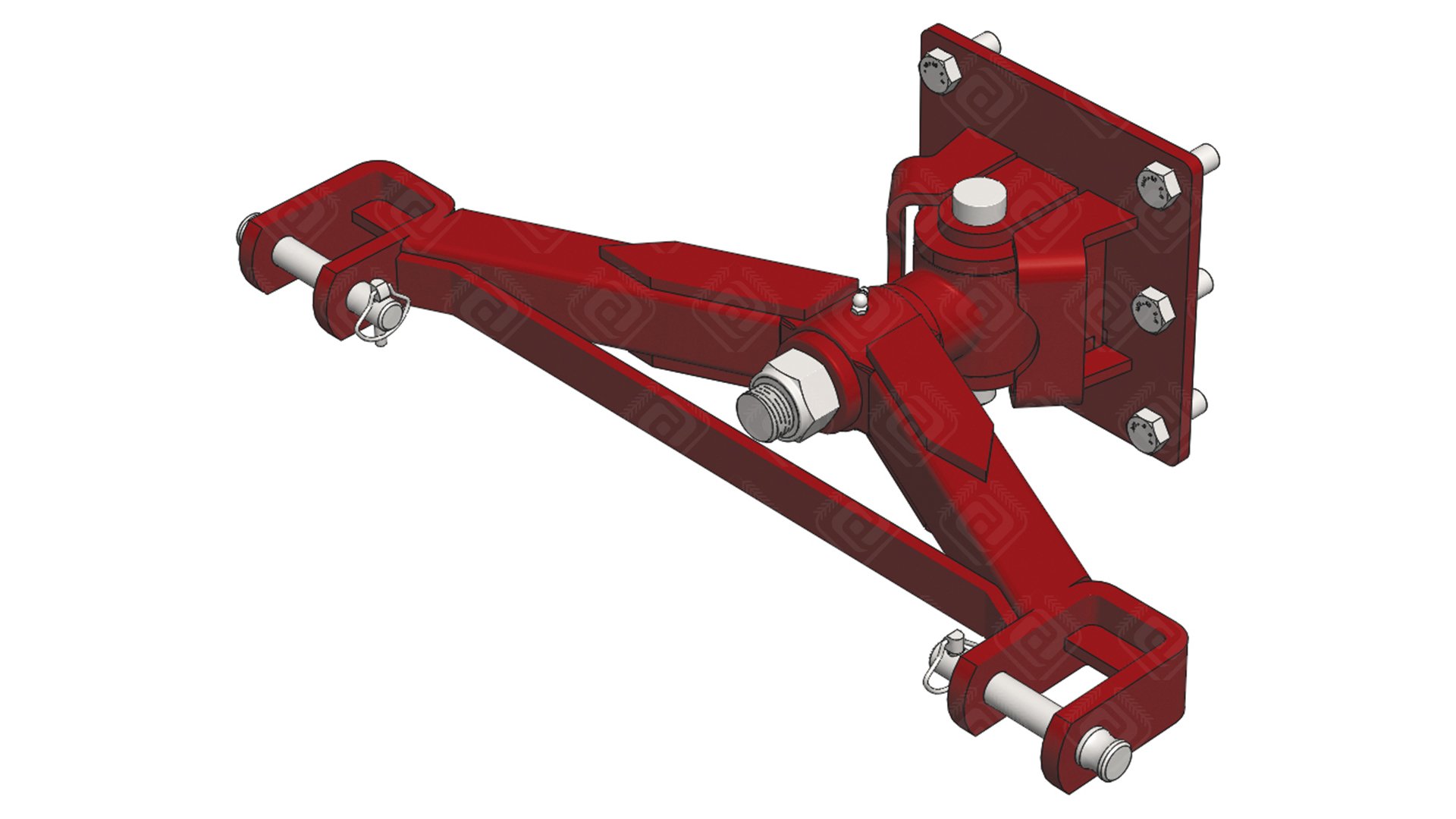

Drawbar Group

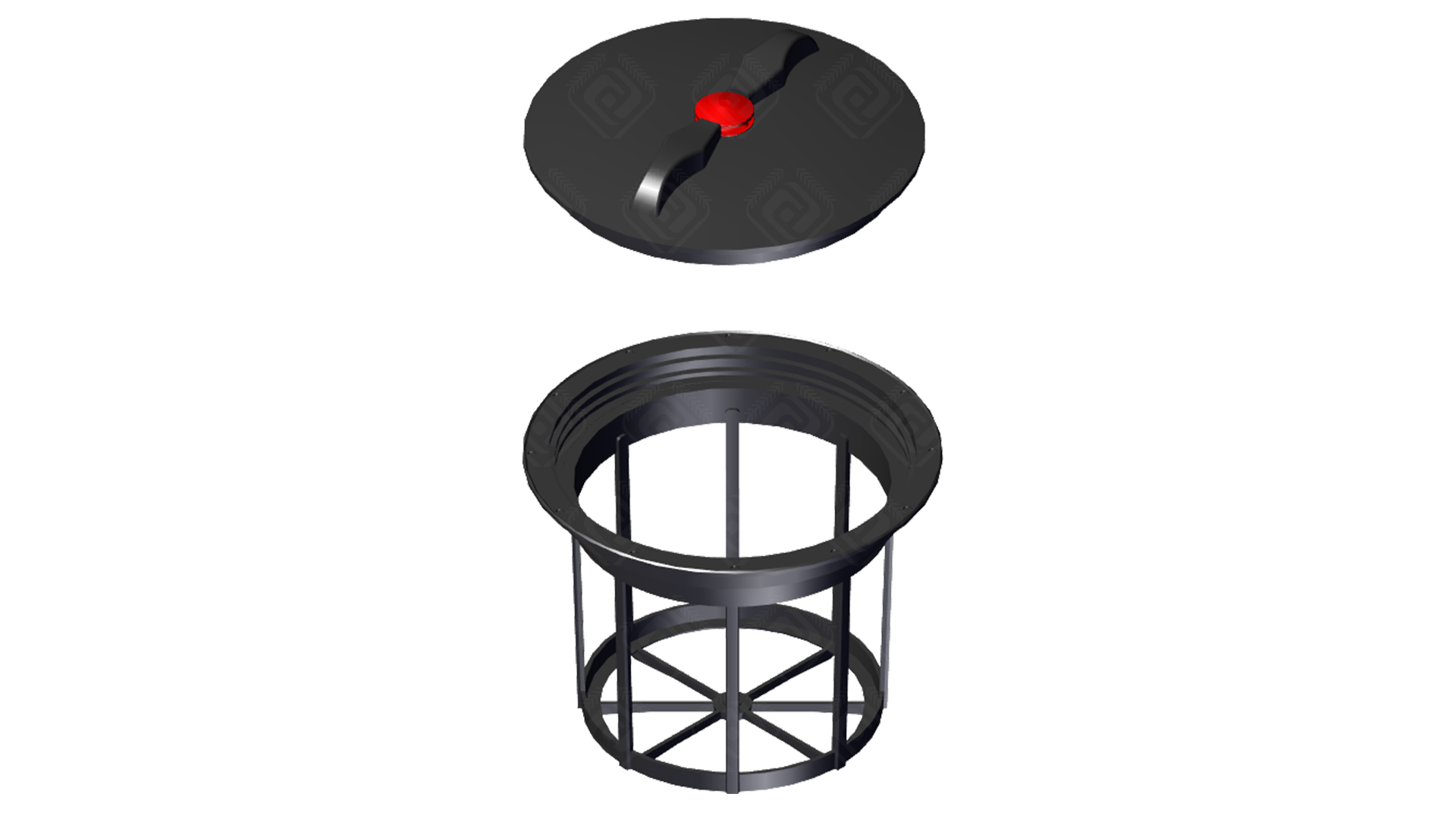

Tank Lid

Hand Washing Tank

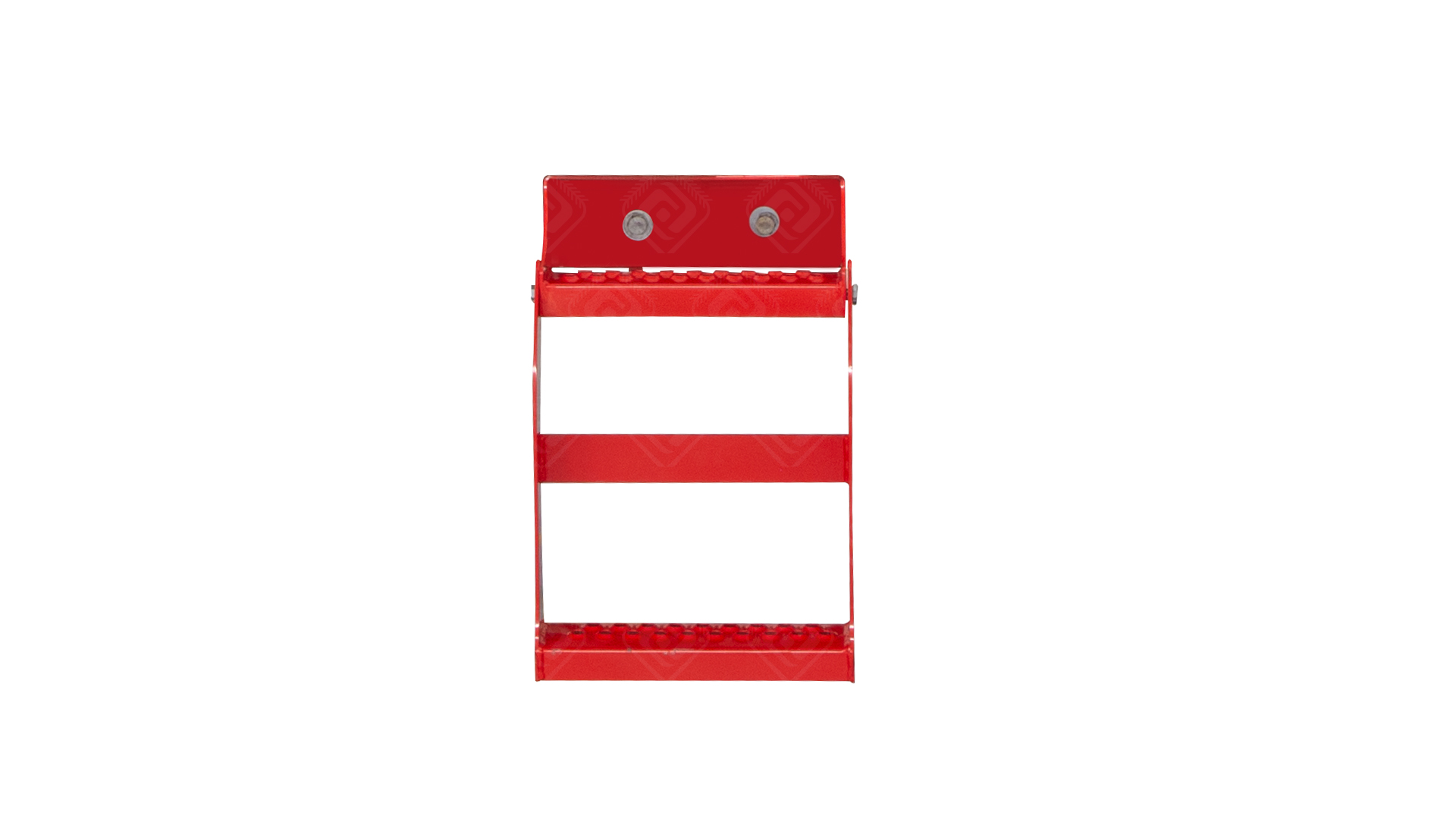

Ladder for easy acces

Tank Cleaning System

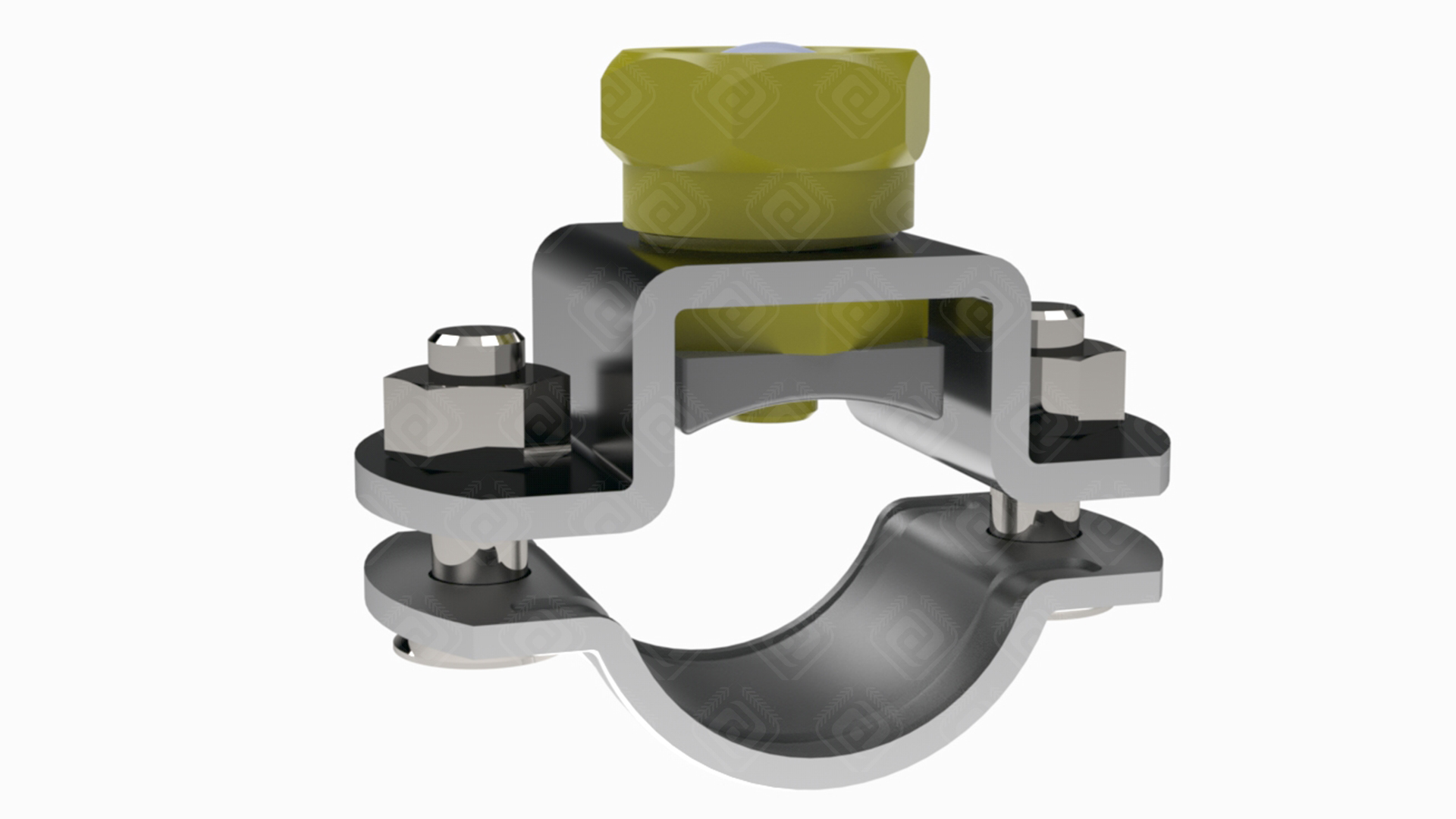

Single Plastic Nozzle

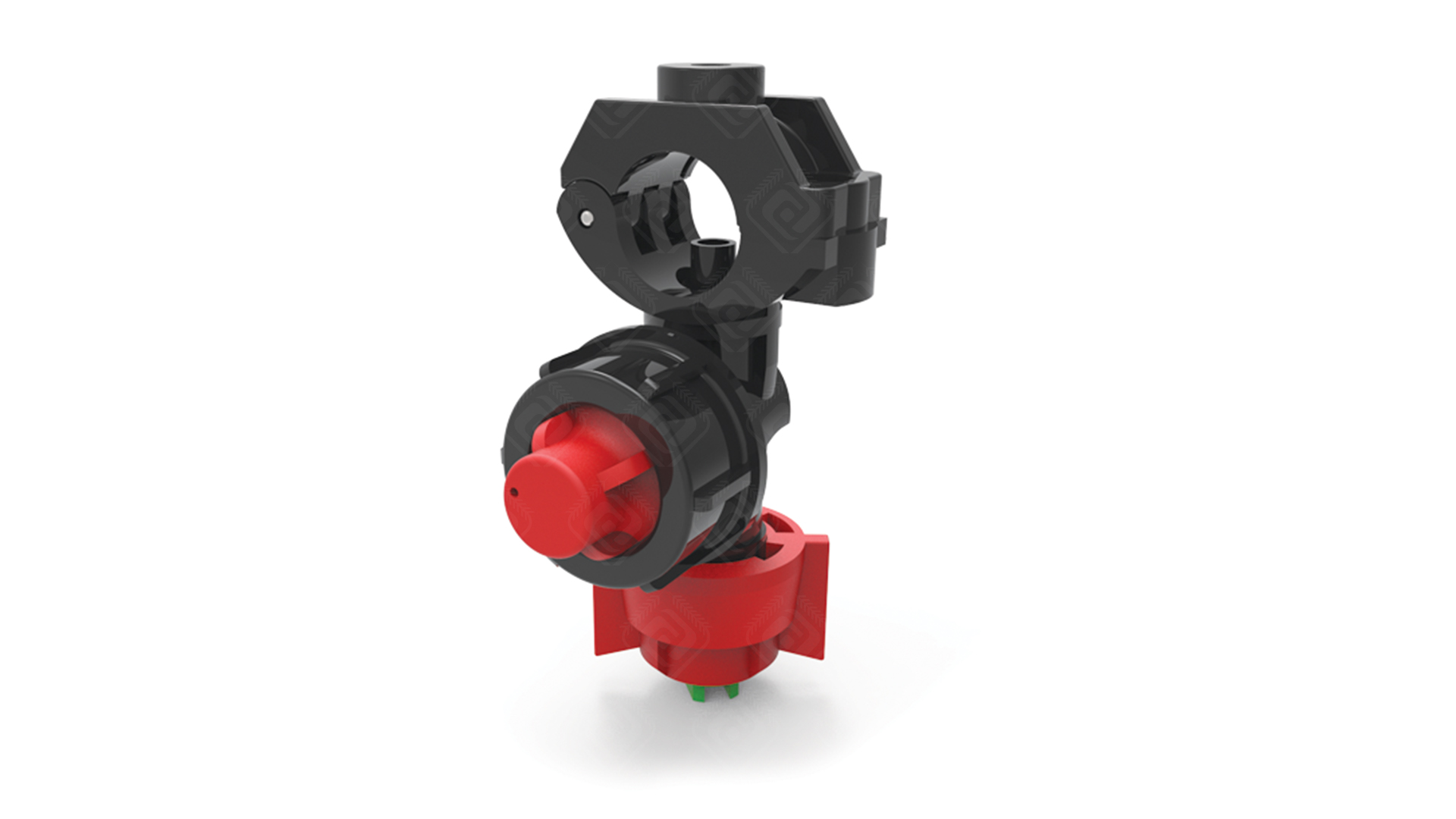

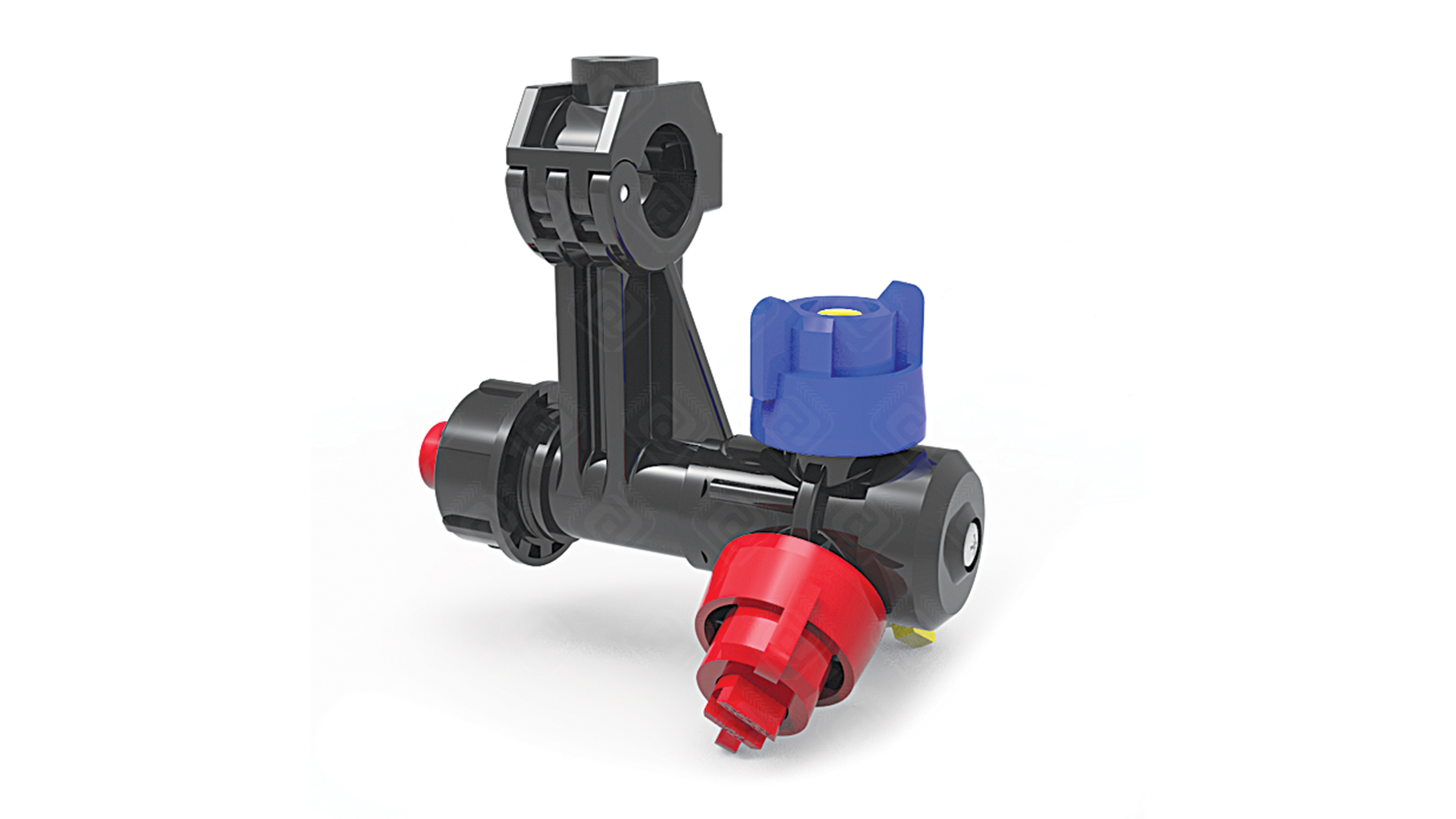

Triple Plastic Nozzle

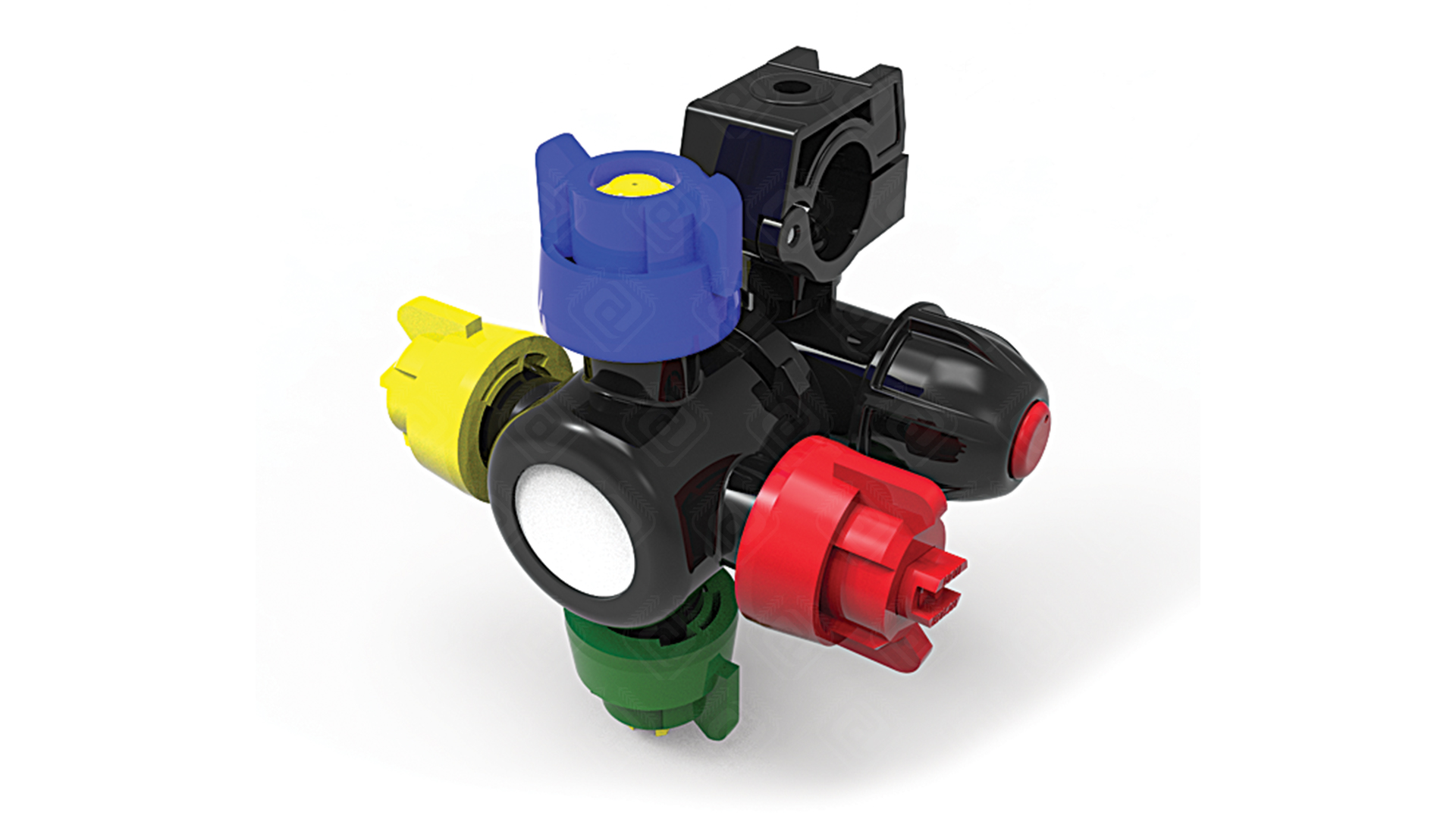

Quadr Plastic Nozzle

Mixer

Spraying Proportioning

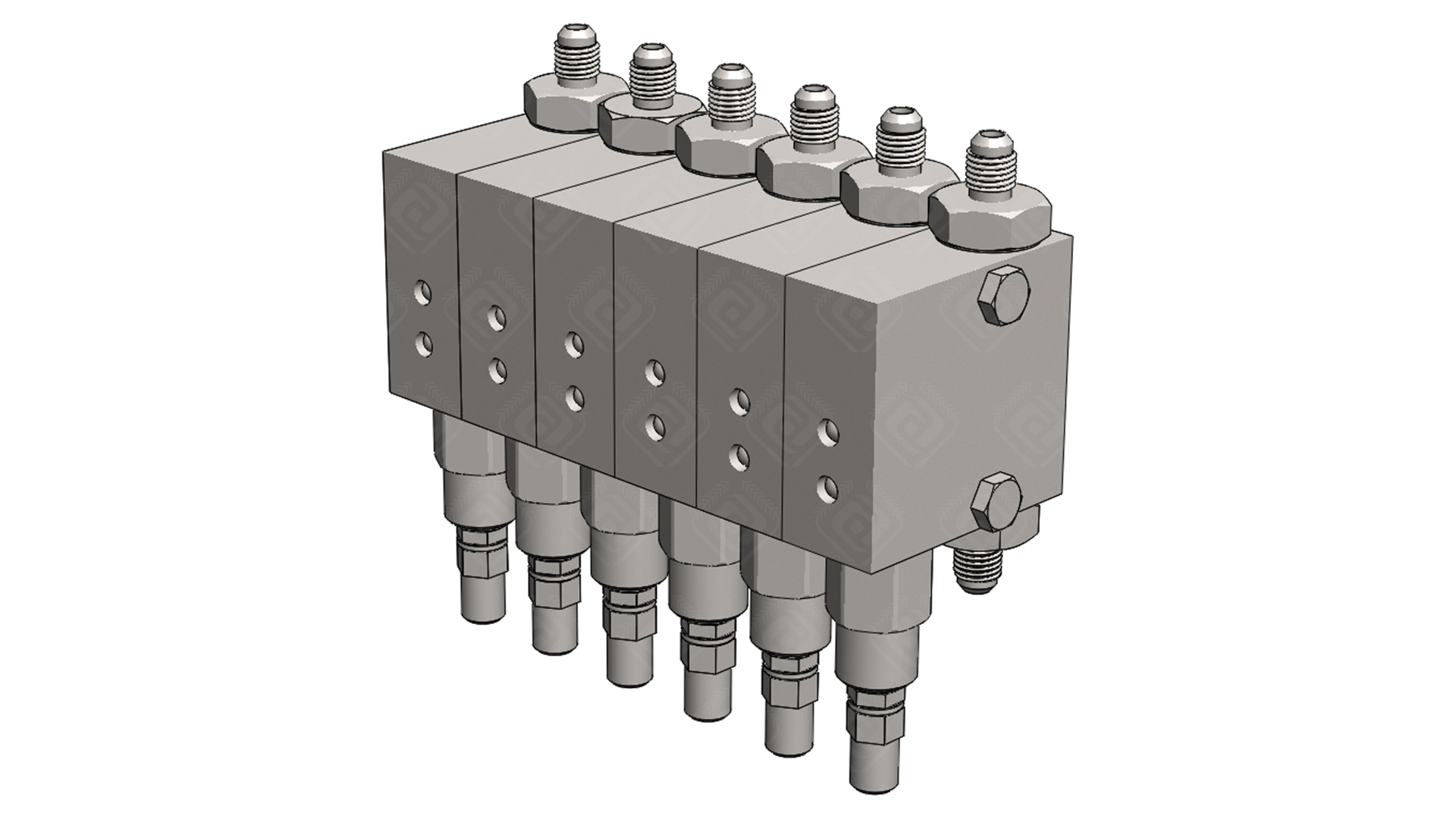

Hydraulic Sorter System

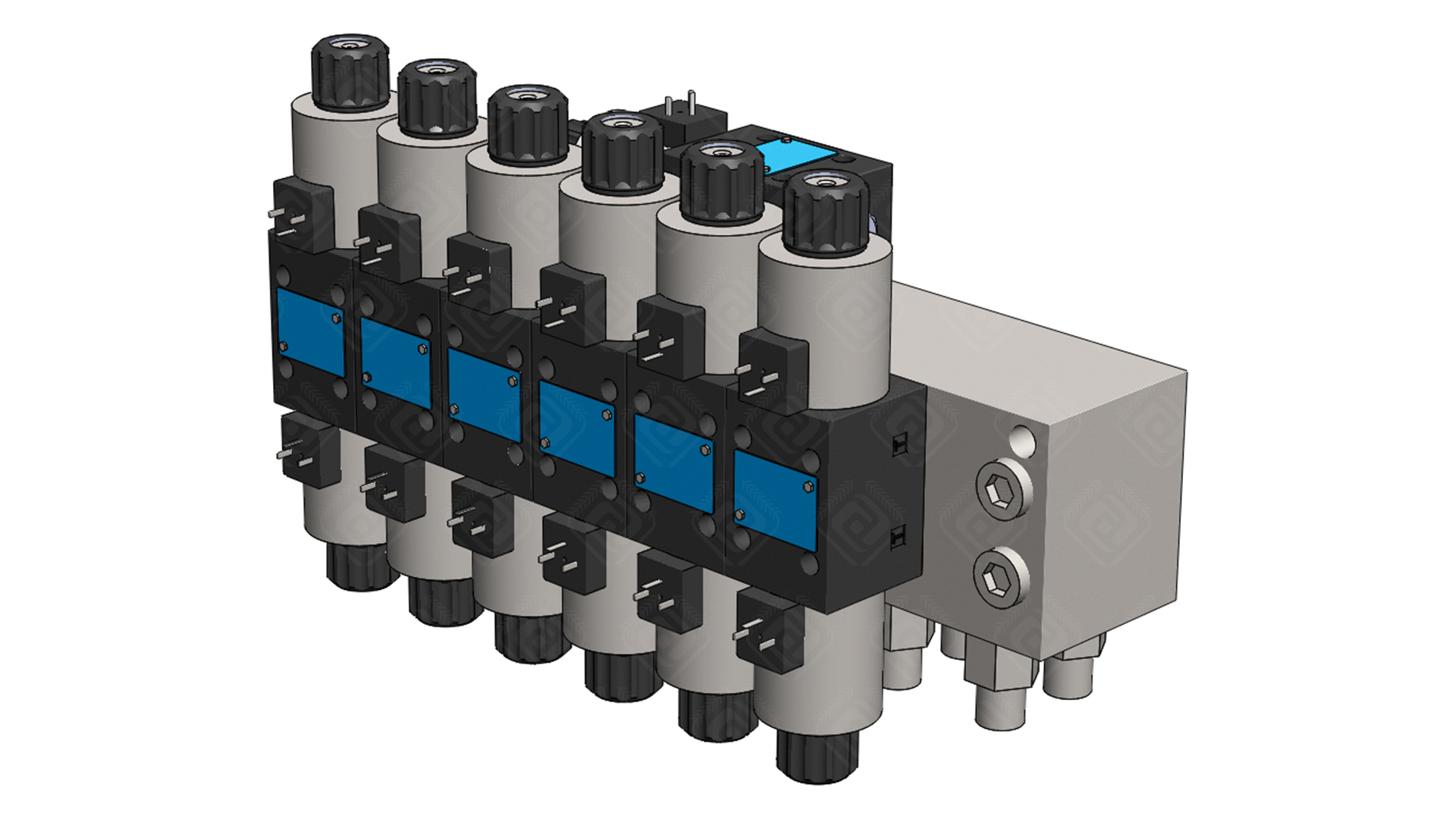

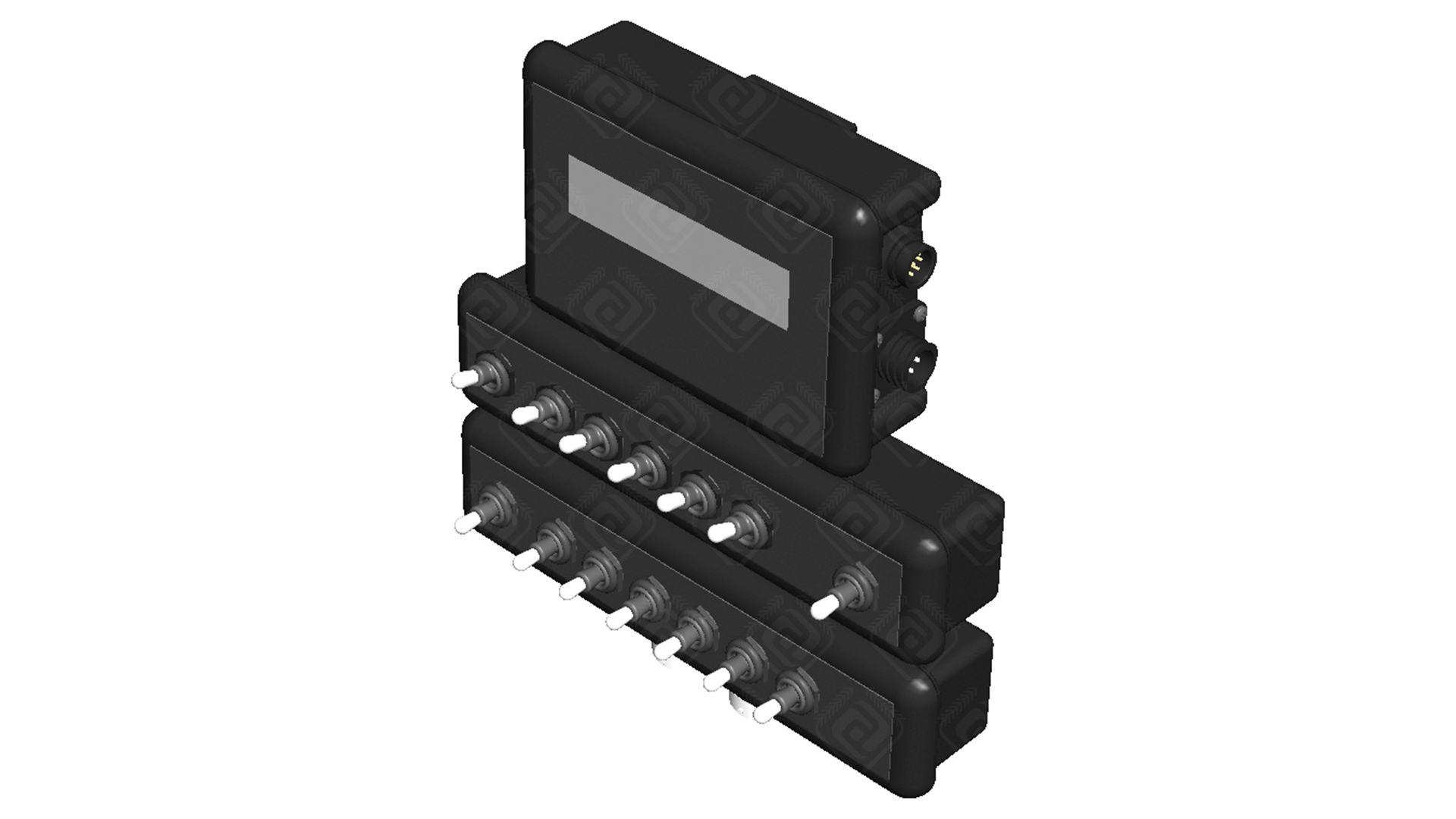

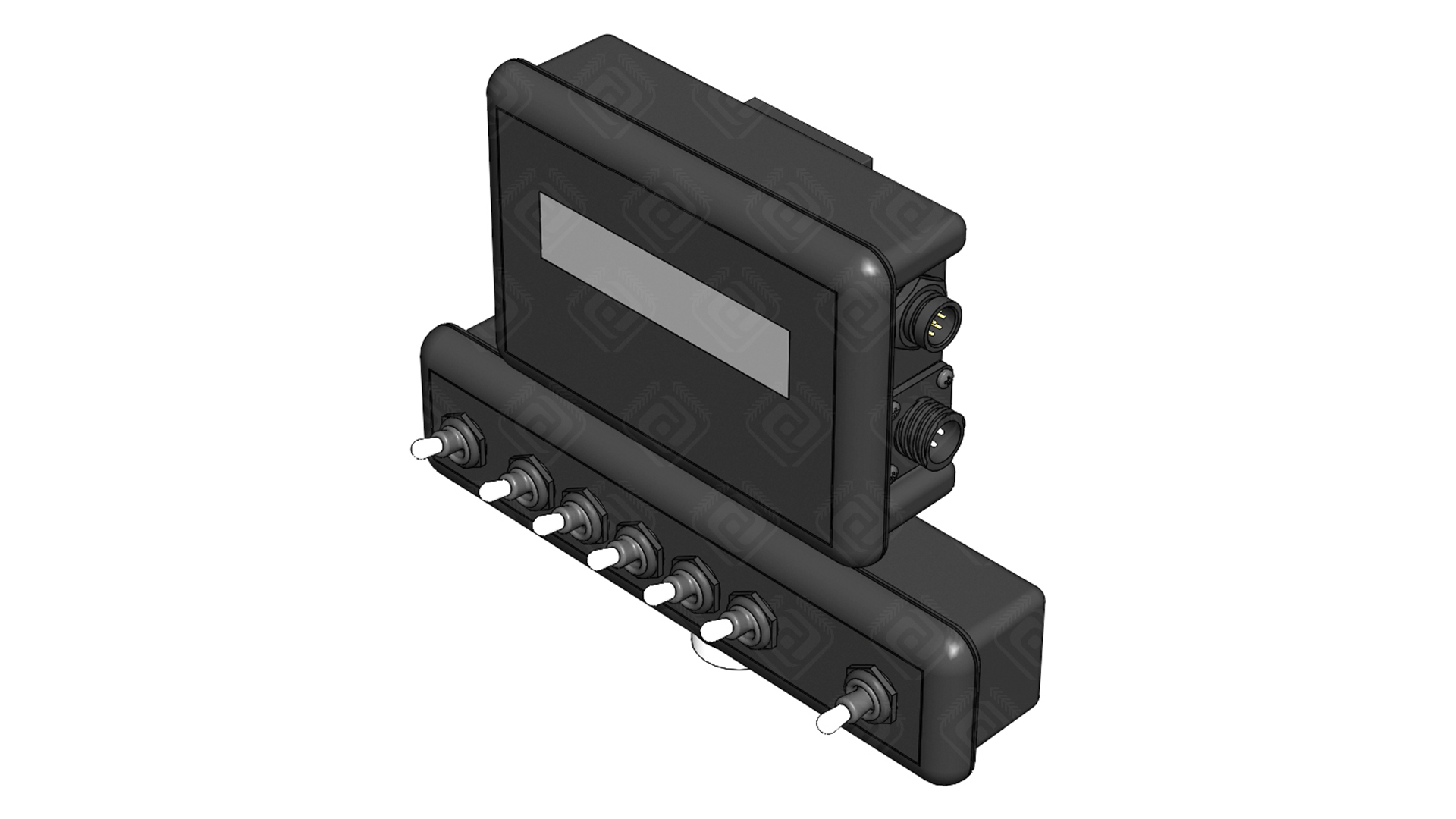

6 Output Electronic Regulator

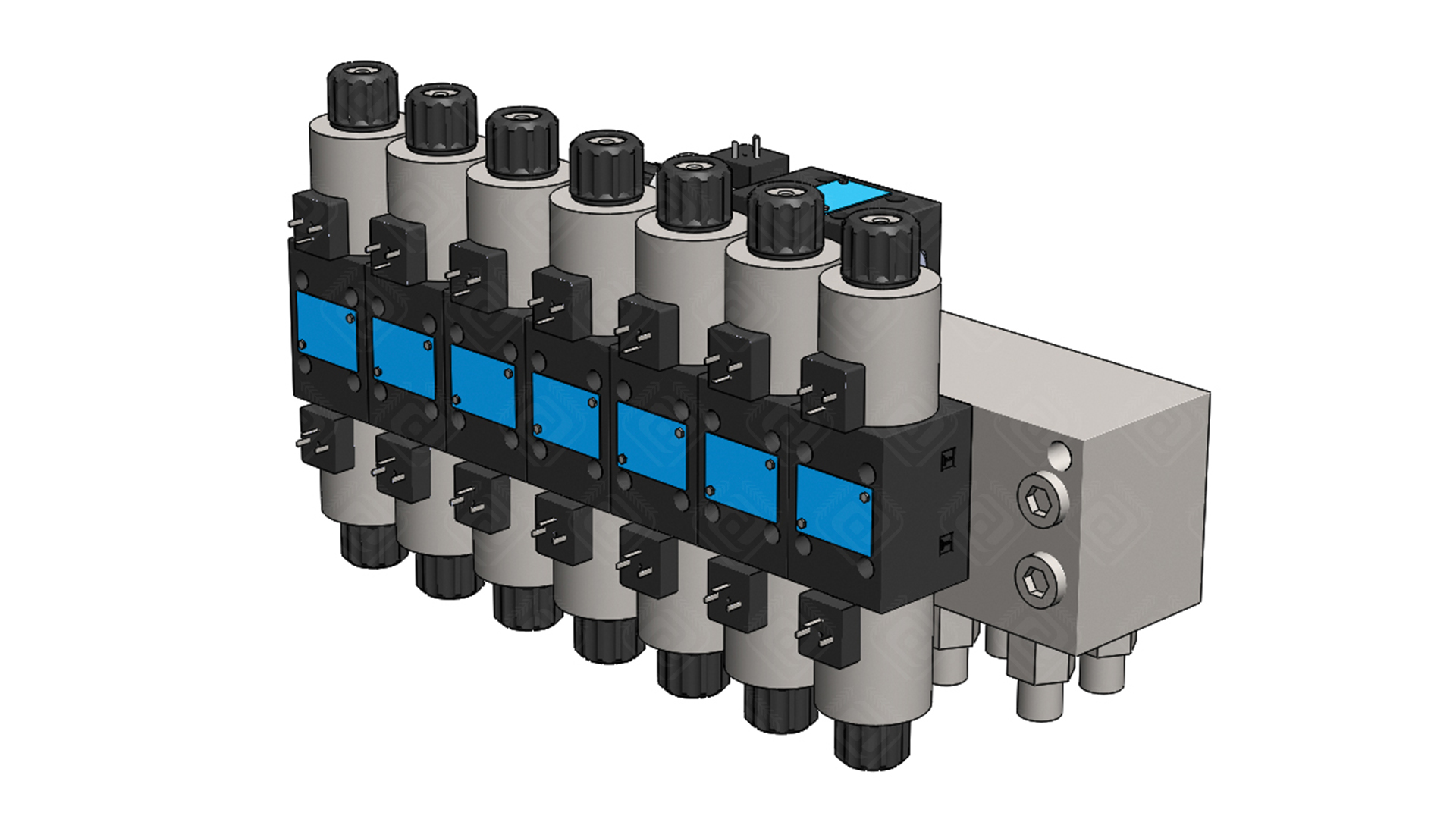

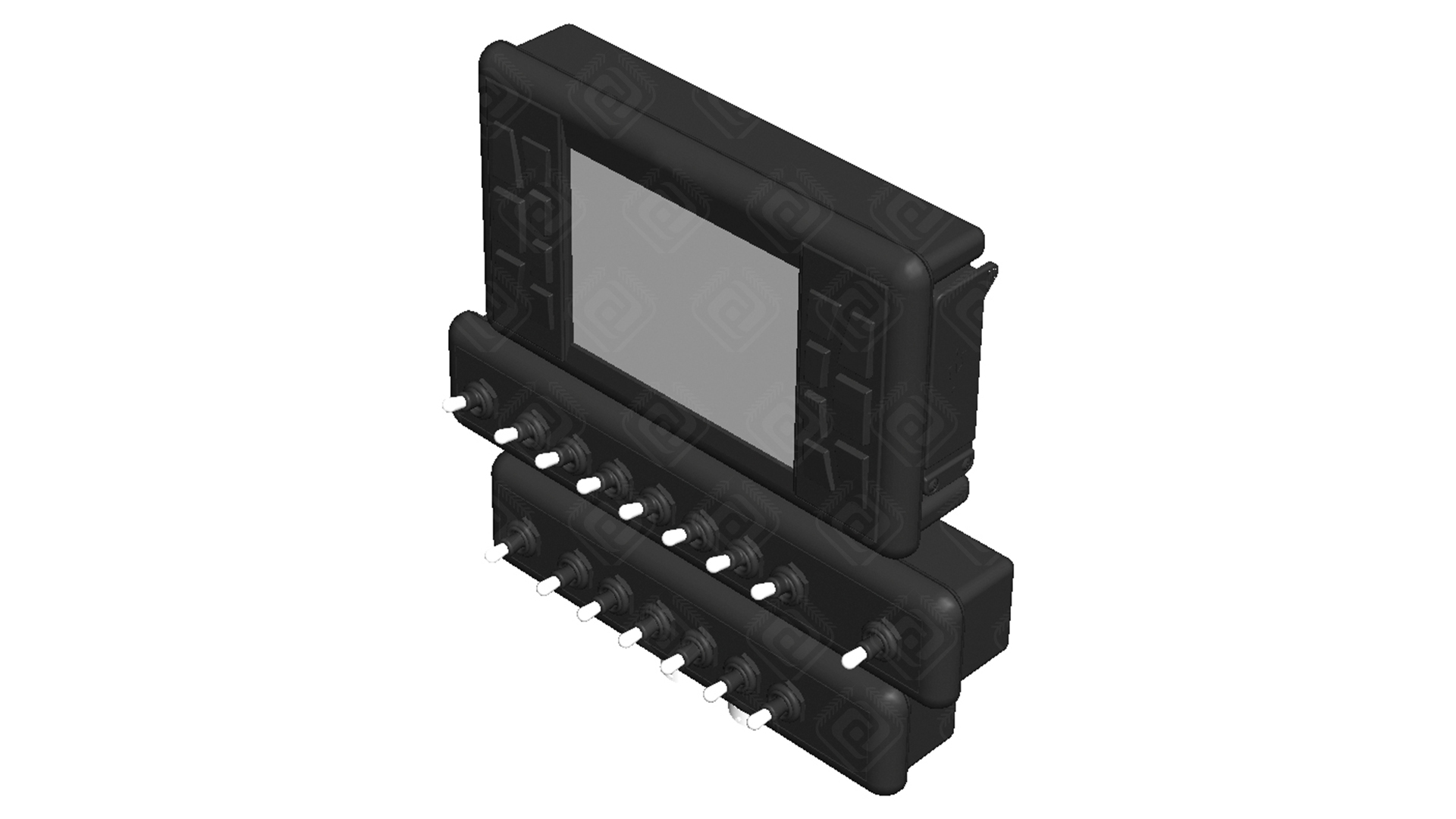

7 Output Electronic Regulator

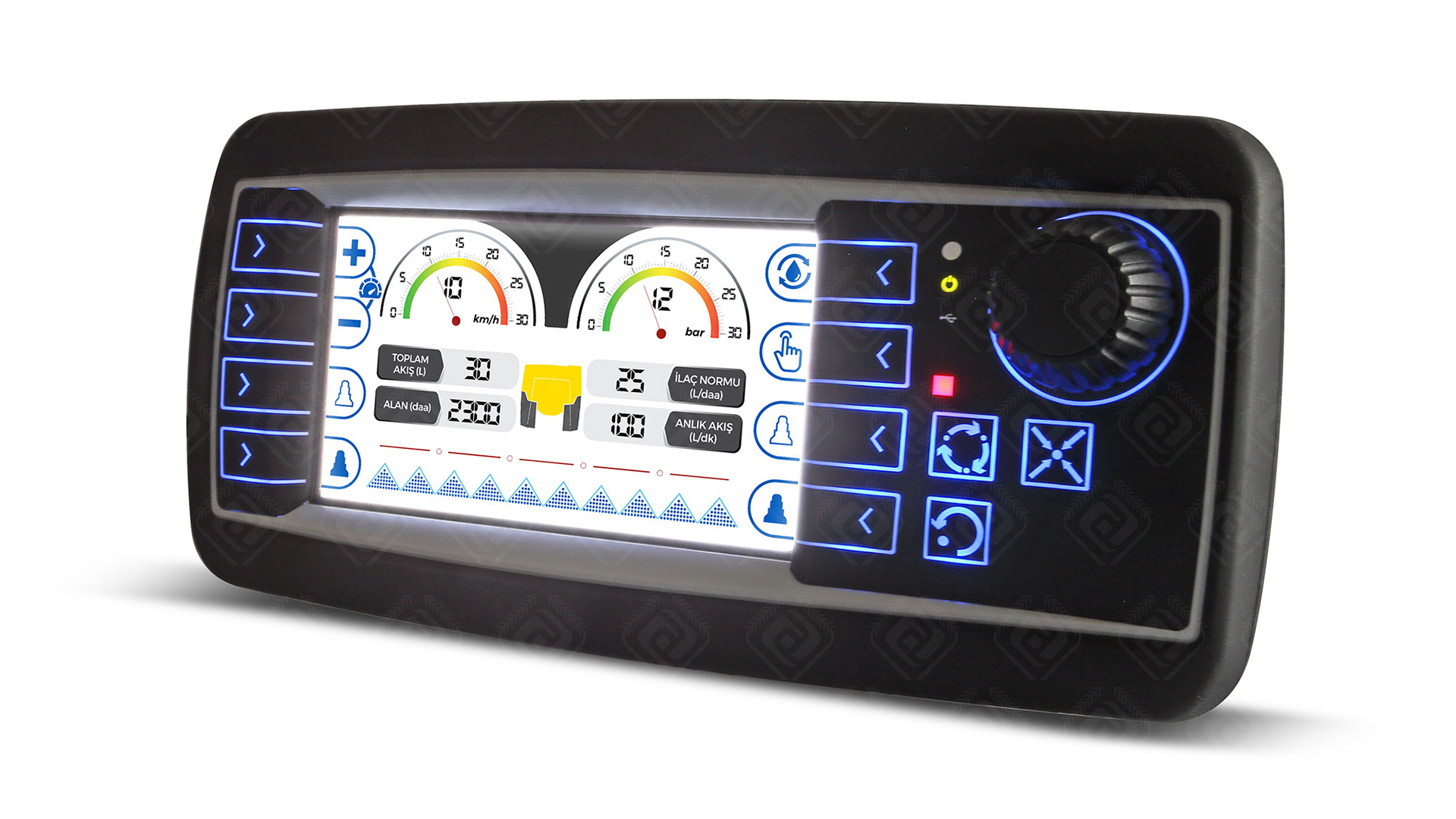

Arag Bravo 180

Arag Bravo 180 With Hydraulic System

Arag Bravo 400

TECHNICAL SPECIFICATIONS

Technical Specifications*	Unit	APACHE YHL 2000	APACHE YHL 3000
Capacity	L	2000	3000
Capacity	gallon	528	792
Total Width (W)	mm	2780	2780
Total Width (W)	ft.in	9'1"	9'1"
Total Length (L)	mm	4700	4700
Total Length (L)	ft.in	15'5"	15'5"
Total Height (H)	mm	2650	2650
Total Height (H)	ft.in	8'8"	8'8"
Pump Type		C 145 / membrane	C 145 / membrane
Pump Flowrate	L/min	145	145
Pump Pressure	bar	50	50
Boom Length	m	14–16	14–16
Boom Length	ft.in	45'–52'	45'–52'
Regulator Model		OSR	OSR
Pressure Safety Valve		Standard	Standard
Tank Mixer		Standard	Standard
Additional Mixer		Optional	Optional
Tank Material		Polyethylene	Polyethylene
PTO Rotation	rpm	540	540
Required Power	hp	90	90
Total Weight	kg	–	–
Total Weight	lbs	–	–

Technical Specifications*	Unit	12 m Boom	14 m Boom	16 m Boom
Working Width	m	12	14	16
Working Width	ft.in	39'4"	45'	52'
Total Length	mm	200	530	530
Total Length	ft.in	0'8"	1'8"	1'8"
Total Width	mm	2700	2720	2720
Total Width	ft.in	8'10"	8'11"	8'11"
Boom Type		semi-hydraulic	heavy-duty semi-hydraulic	heavy-duty semi-hydraulic
Number of the nozzles	pcs	25	29	33
Nozzle Type		Conical / T-Jet	Conical / T-Jet	Conical / T-Jet
Distance between Nozzle	mm	500	500	500
Distance between Nozzle	ft.in	1'8"	1'8"	1'8"
Height	mm	570	600	600
Height	ft.in	1'10"	1'12"	1'12"
Weight	kg	63	150	156
Weight	lbs	138	330	343

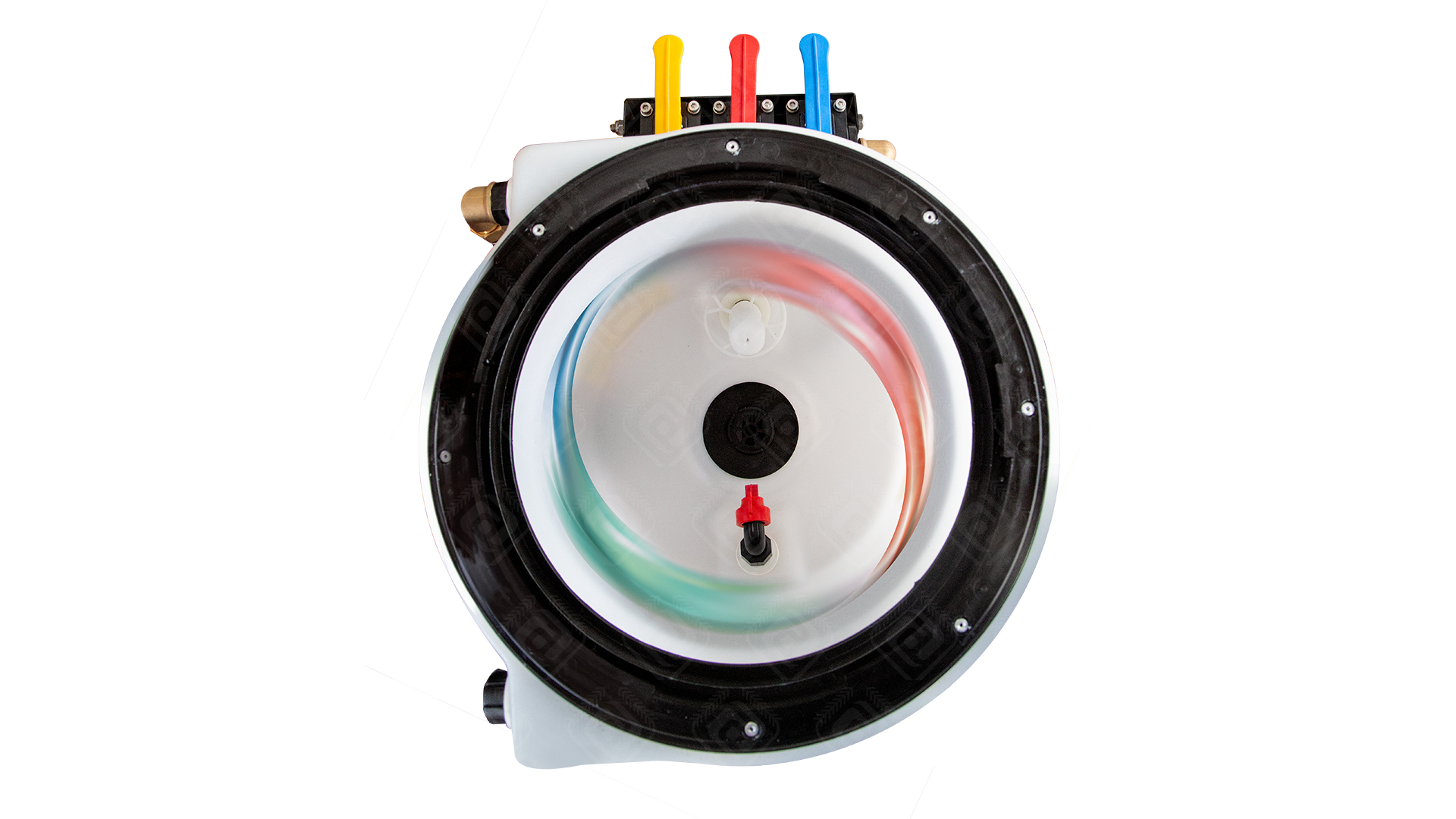

Our sprayer is equipped with a dedicated mixer unit, ensuring that every chemical is blended into a perfectly homogeneous solution before it enters the main tank. This guarantees that each drop is evenly distributed, maximizing spraying efficiency and minimizing the risk of clogging

Smart proportional spraying technology continuously adjusts the application rate to match the tractor's speed, delivering the exact amount of spray at every moment. Achieve maximum crop protection, minimize chemical waste, reduce operating costs, and ensure uniform coverage across every hectare with unmatched precision.

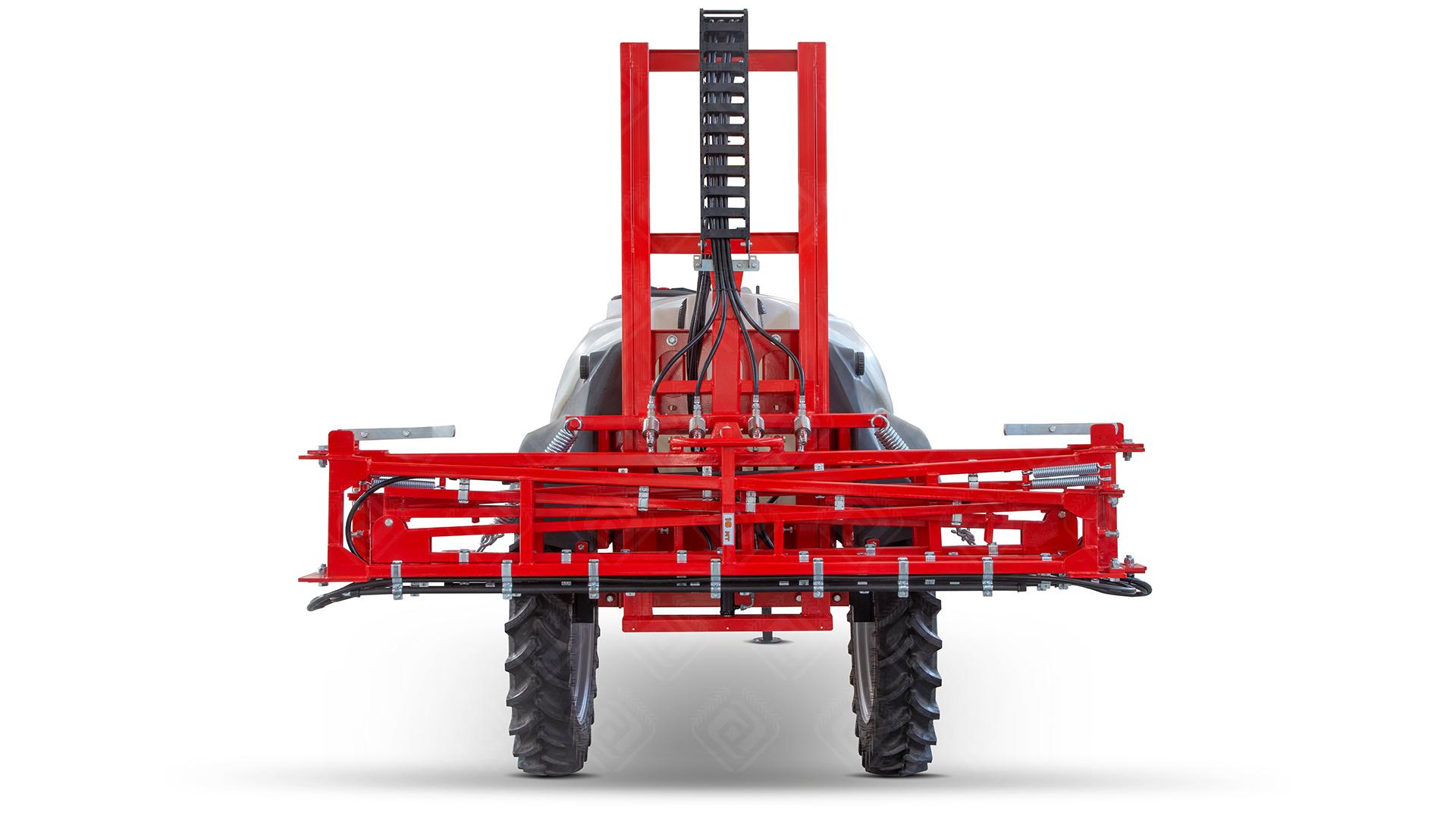

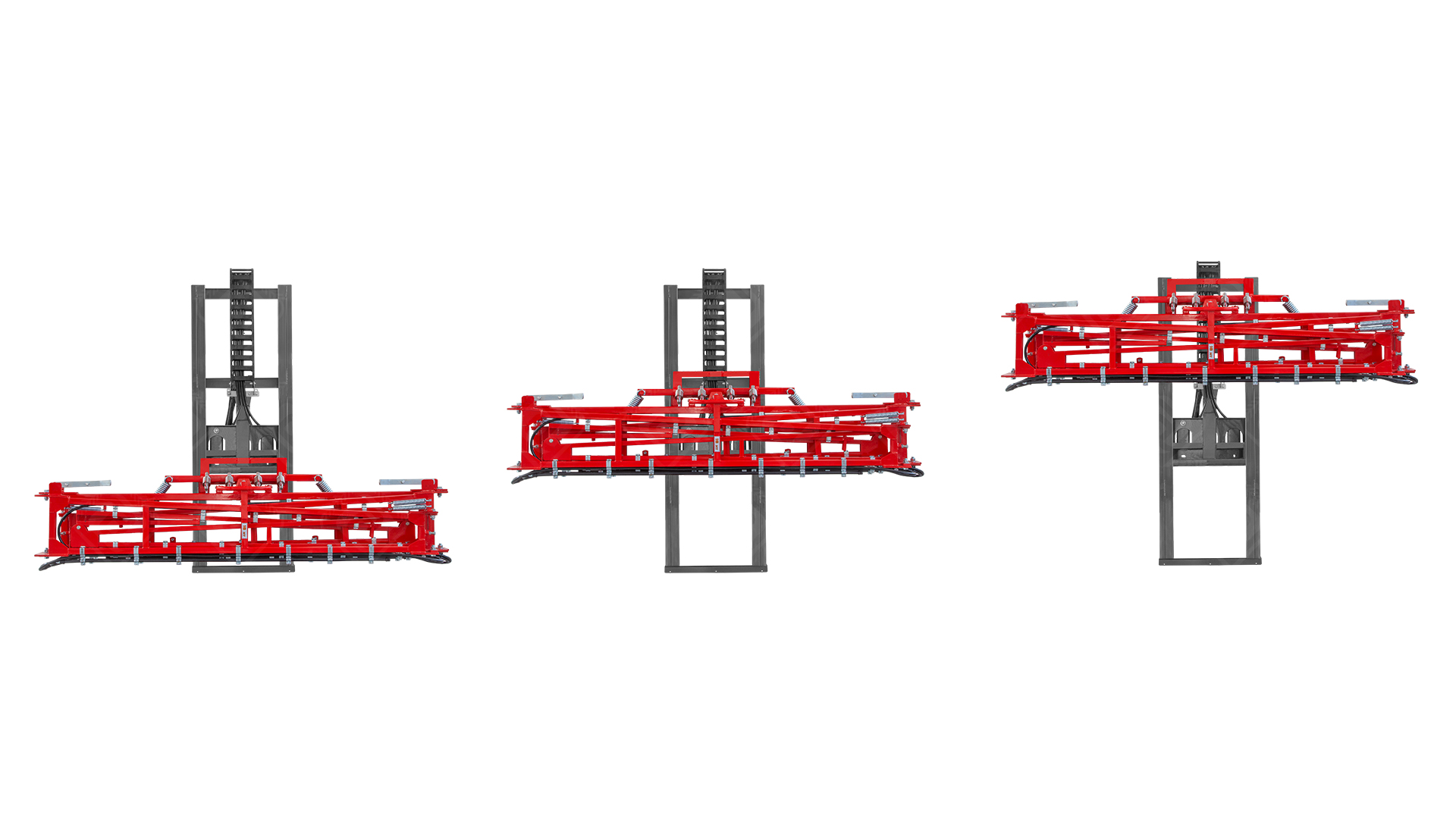

The semi-hydraulic system allows the working height to be adjusted quickly and effortlessly. It provides convenient height control for different field conditions, improving ease of operation and ensuring efficient performance.

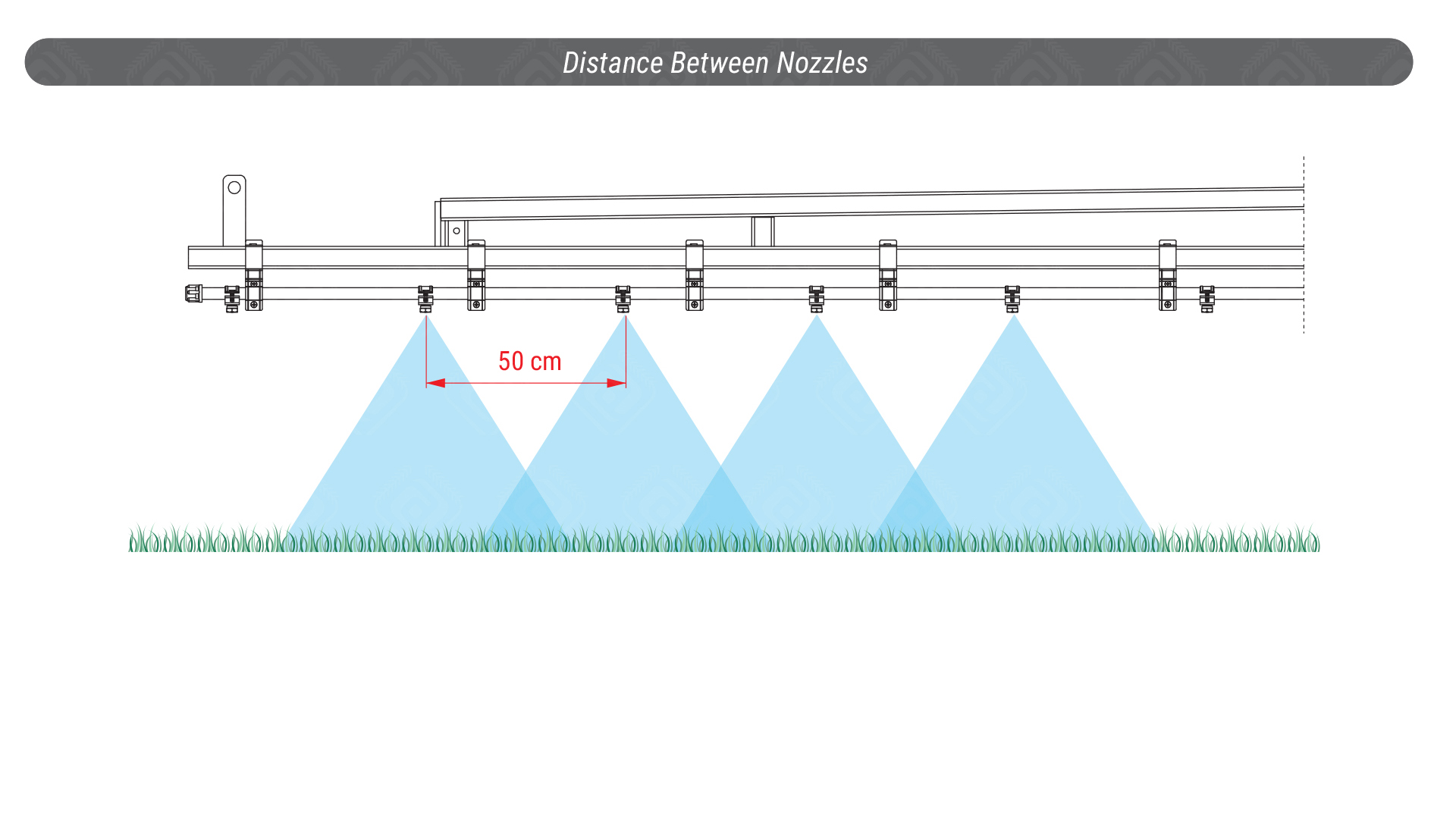

Optimized nozzle spacing ensures ideal spray pattern overlap, providing uniform distribution across the entire working width. This design enhances application accuracy, maximizes target coverage, reduces chemical waste, and delivers consistent spraying performance under a wide range of field conditions

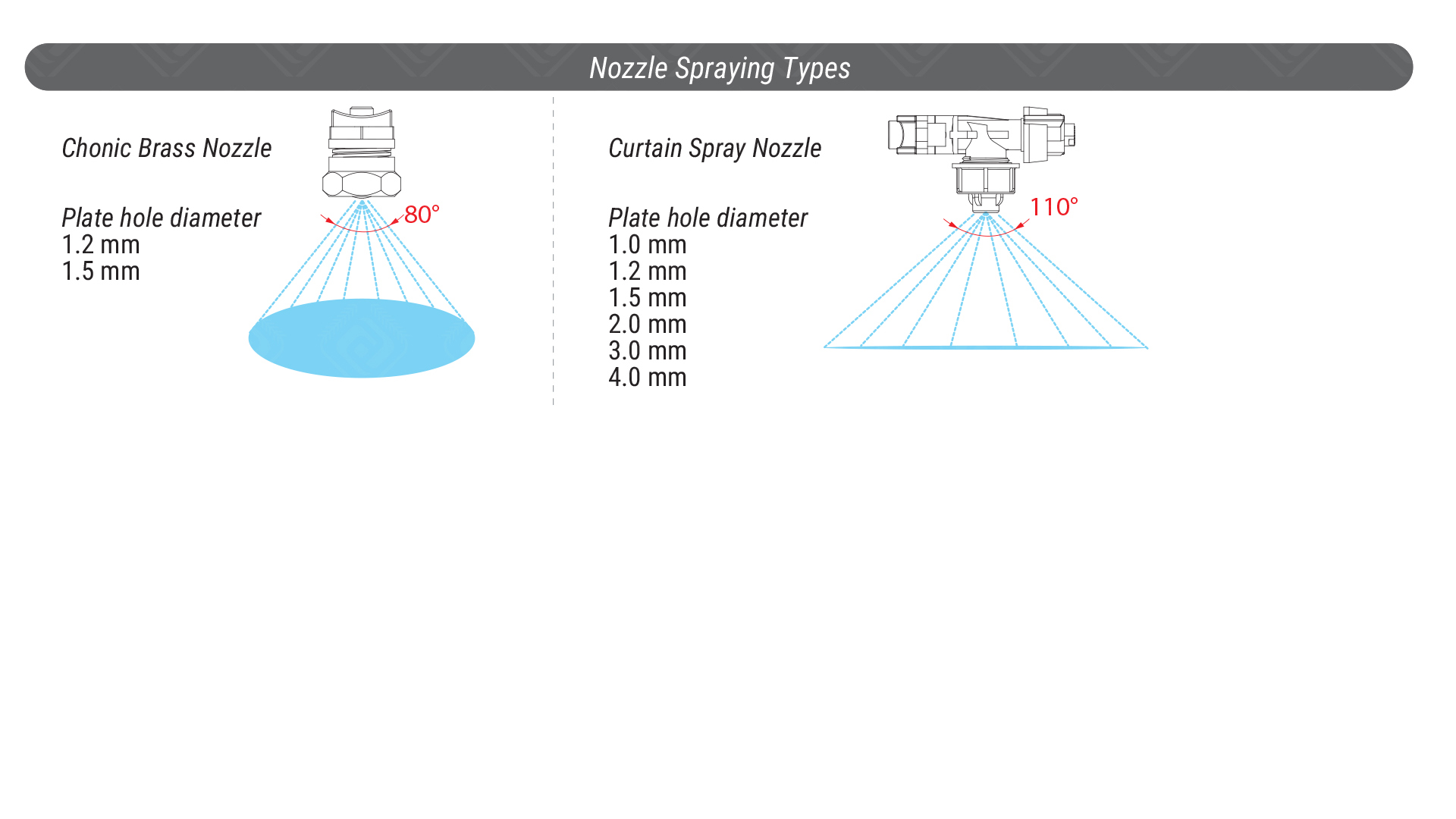

The sprayer is available with conical brass nozzles and curtain spray nozzles to suit different crop protection requirements. Conical brass nozzles are offered with 1.2 mm and 1.5 mm orifice sizes and produce an 80° spray pattern, while curtain spray nozzles are available with 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 3.0 mm, and 4.0 mm orifice sizes, delivering a 110° spray angle for uniform coverage and precise application across a wide range of field conditions.
