COBRA C

Field Sprayers

COBRA C

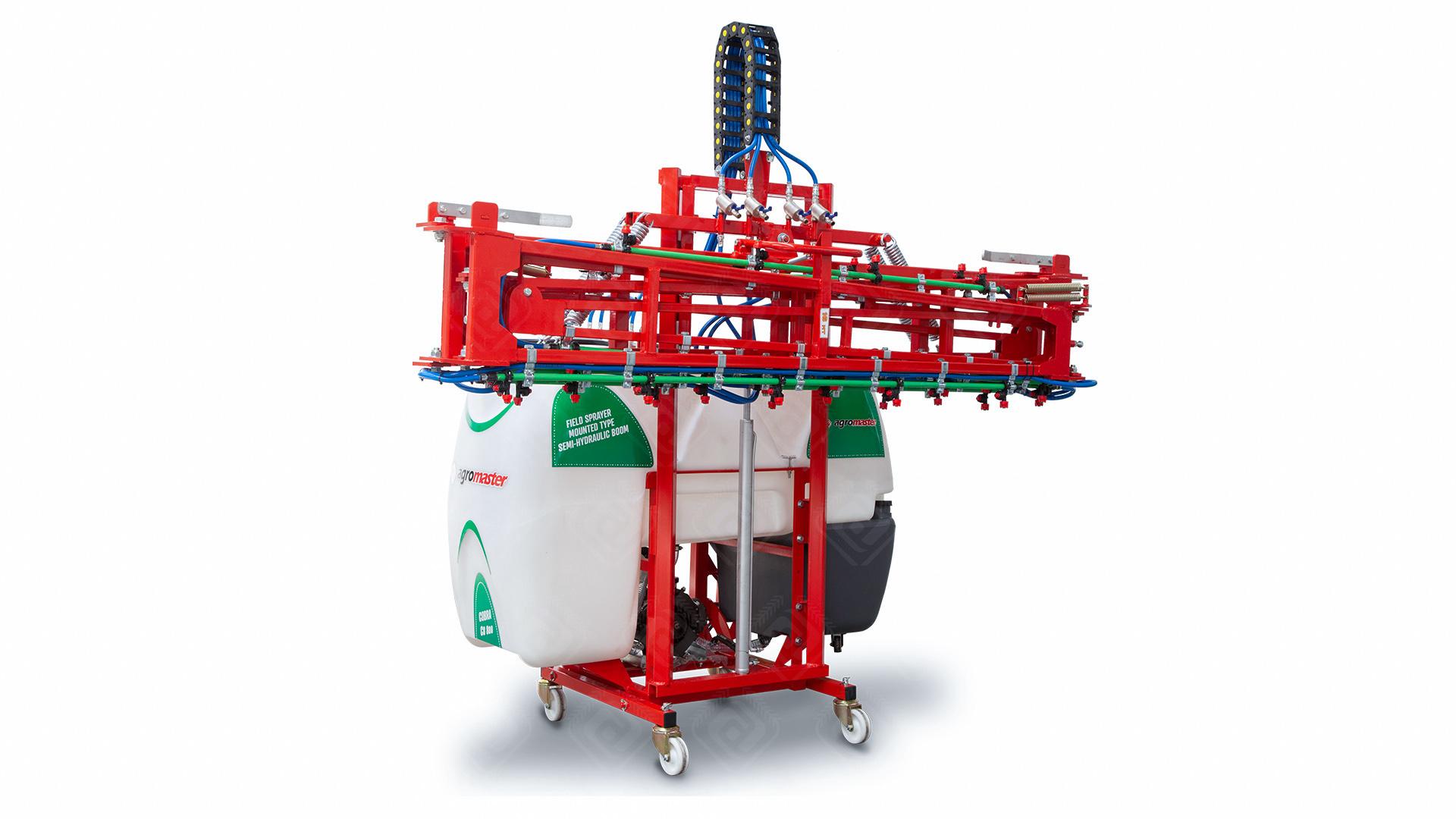

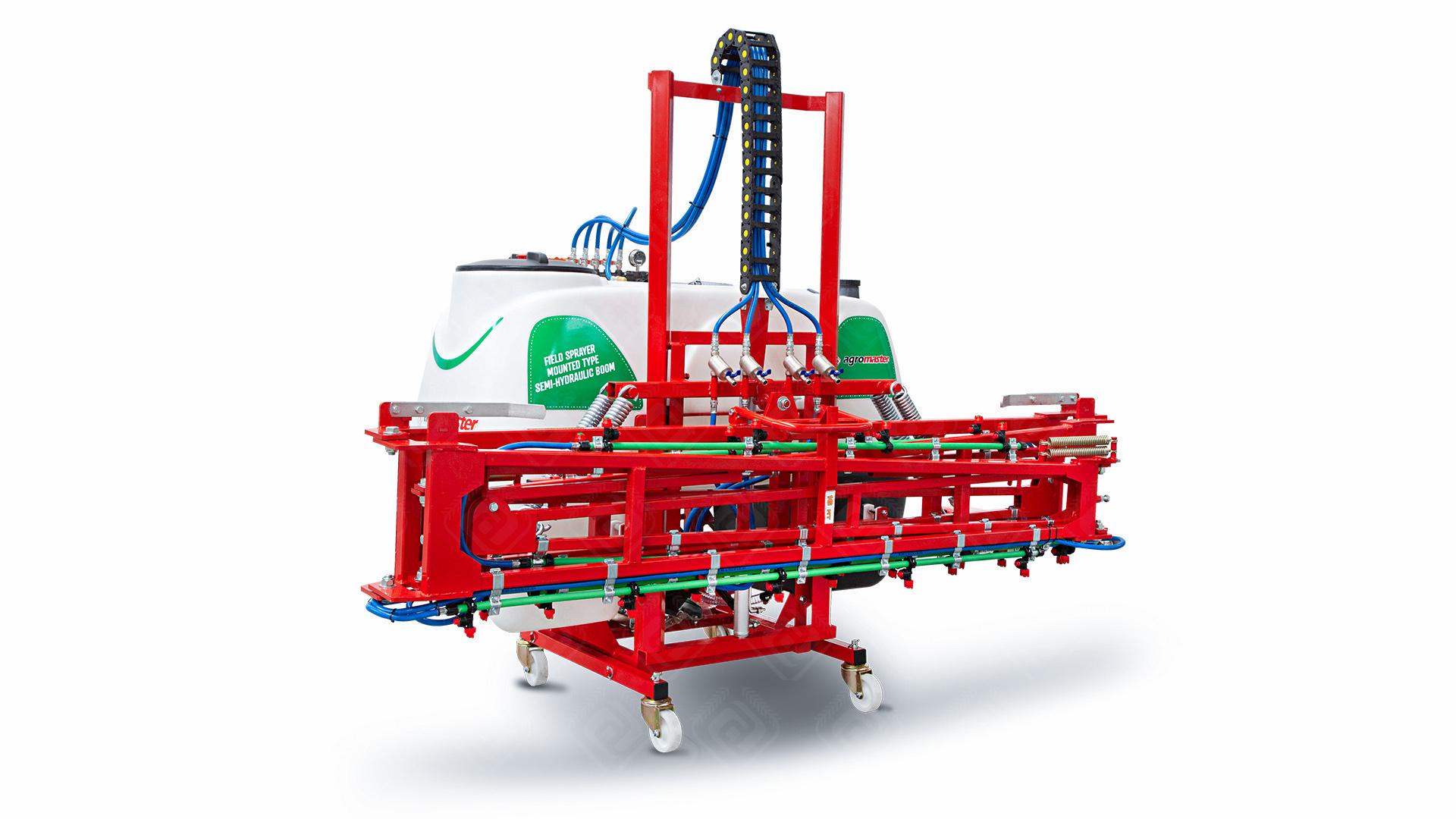

FIELD SPRAYER, MOUNTED TYPE HEAVY DUTY SEMI-HYDRAULIC BOOM

Product Catalog

DESCRIPTION

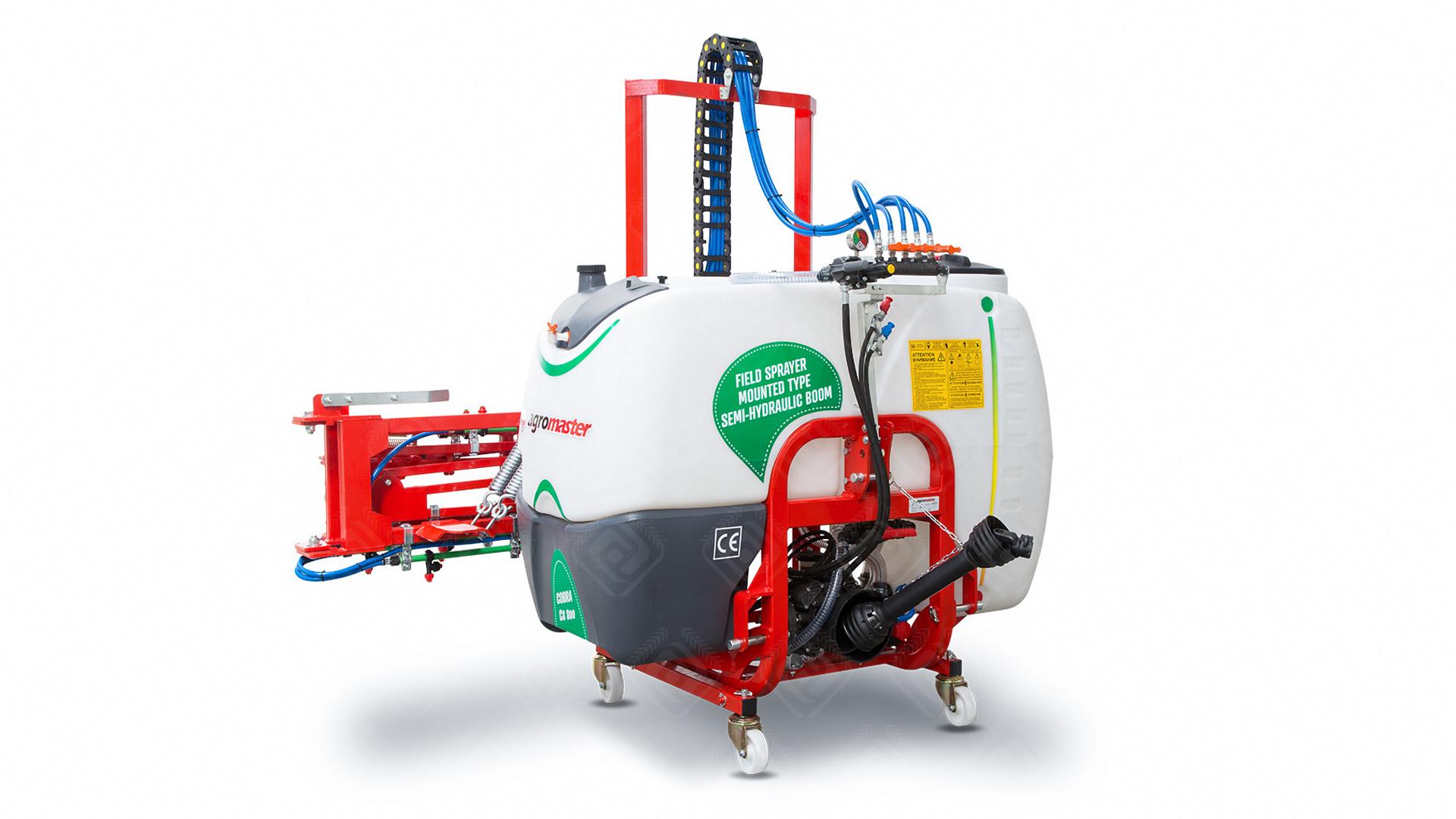

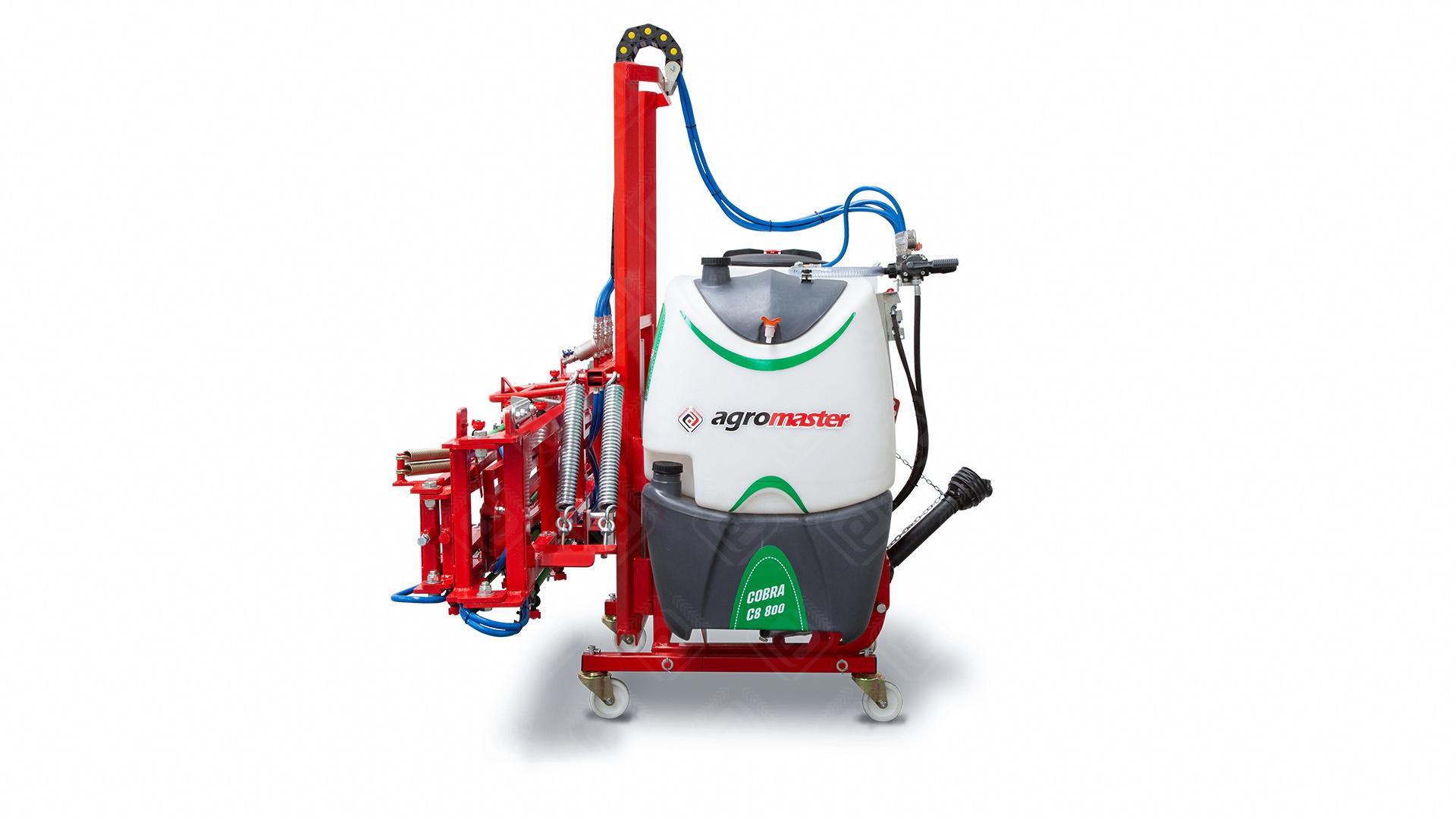

The COBRA C Mounted Field Sprayer is engineered for demanding agricultural applications, featuring a heavy-duty semi-hydraulic boom that delivers exceptional strength, stability, and precise spray performance. Available with 600, 800, and 1000 L UV-resistant polyethylene tanks, it offers outstanding durability, superior chemical resistance, and long service life. Its robust boom construction ensures consistent spray distribution, enhanced application accuracy, and reliable operation even under the toughest field conditions.

Long-lasting and cleanable nozzle provides homogeneous disinfection

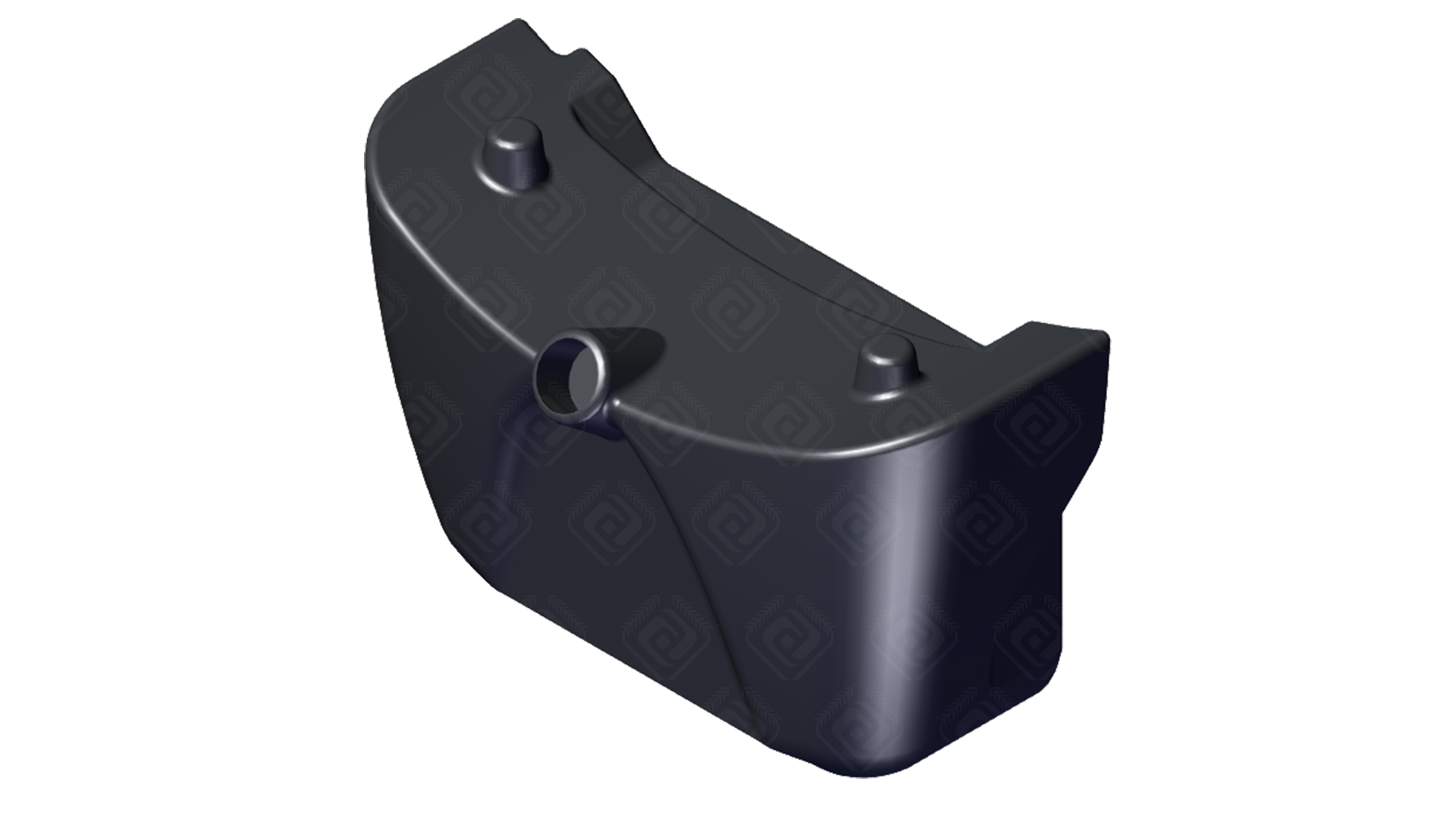

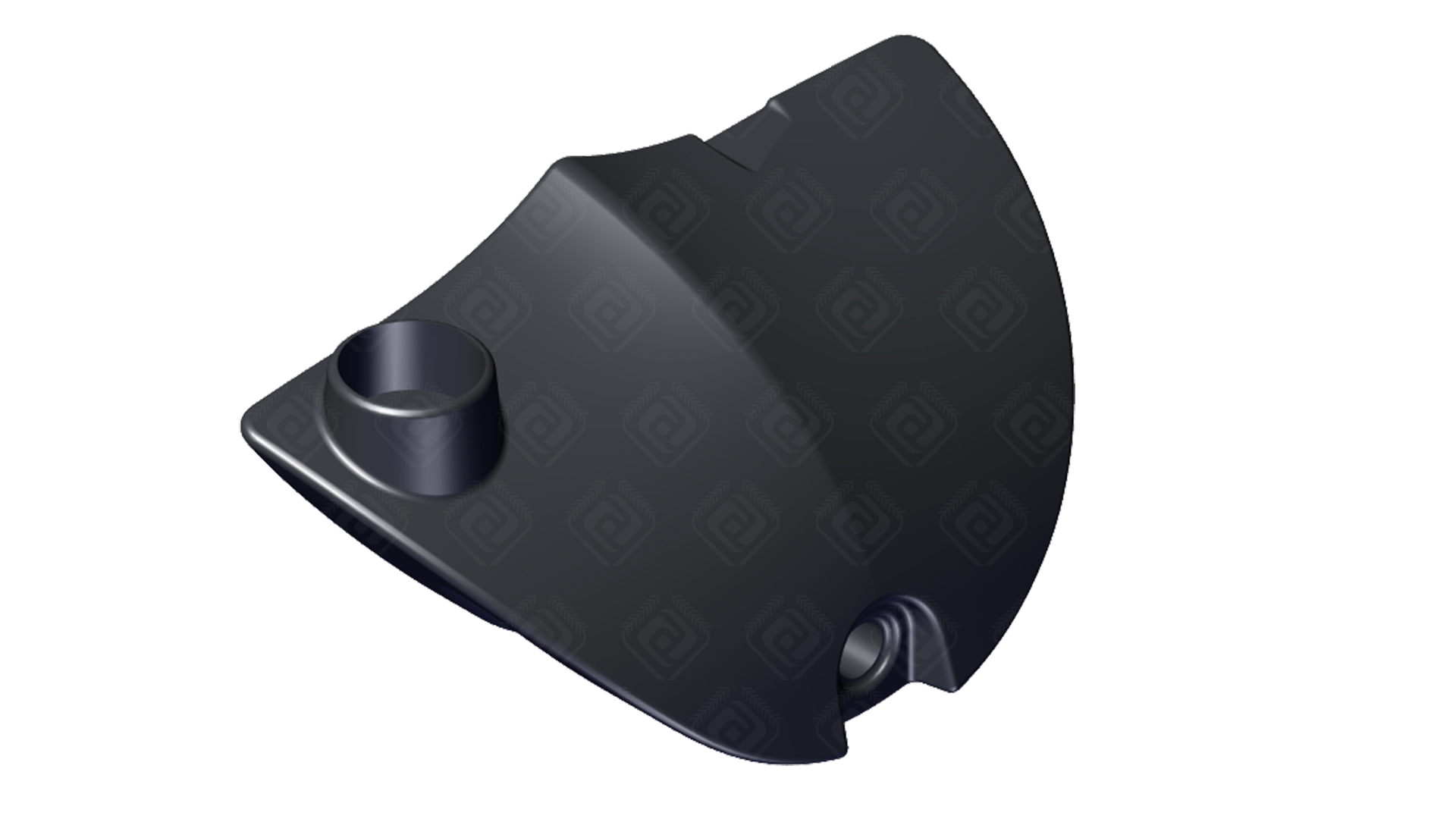

Hand Washing Tank

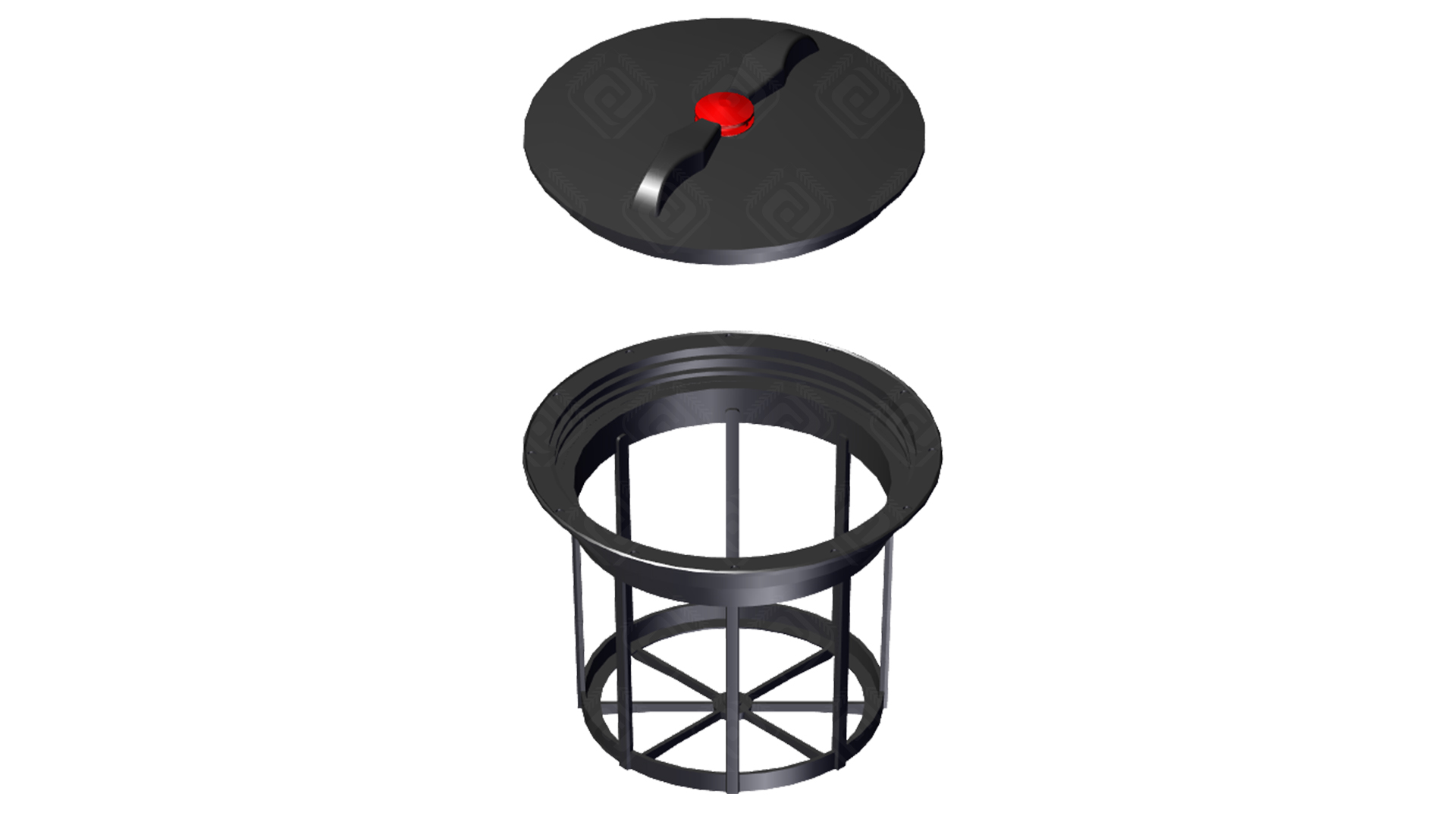

Tank Lid

Tank Cleaning System

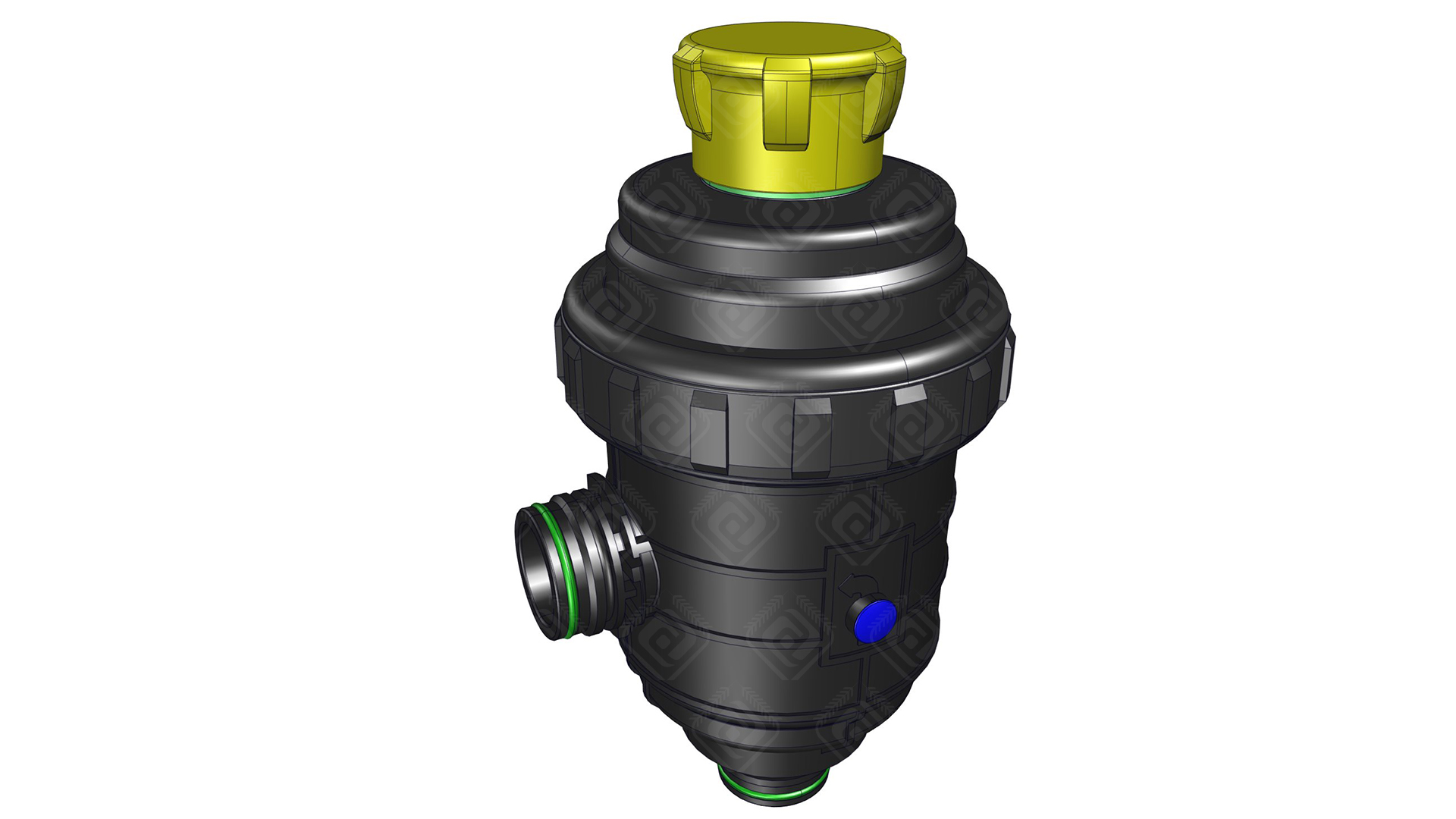

Cleanable Filter

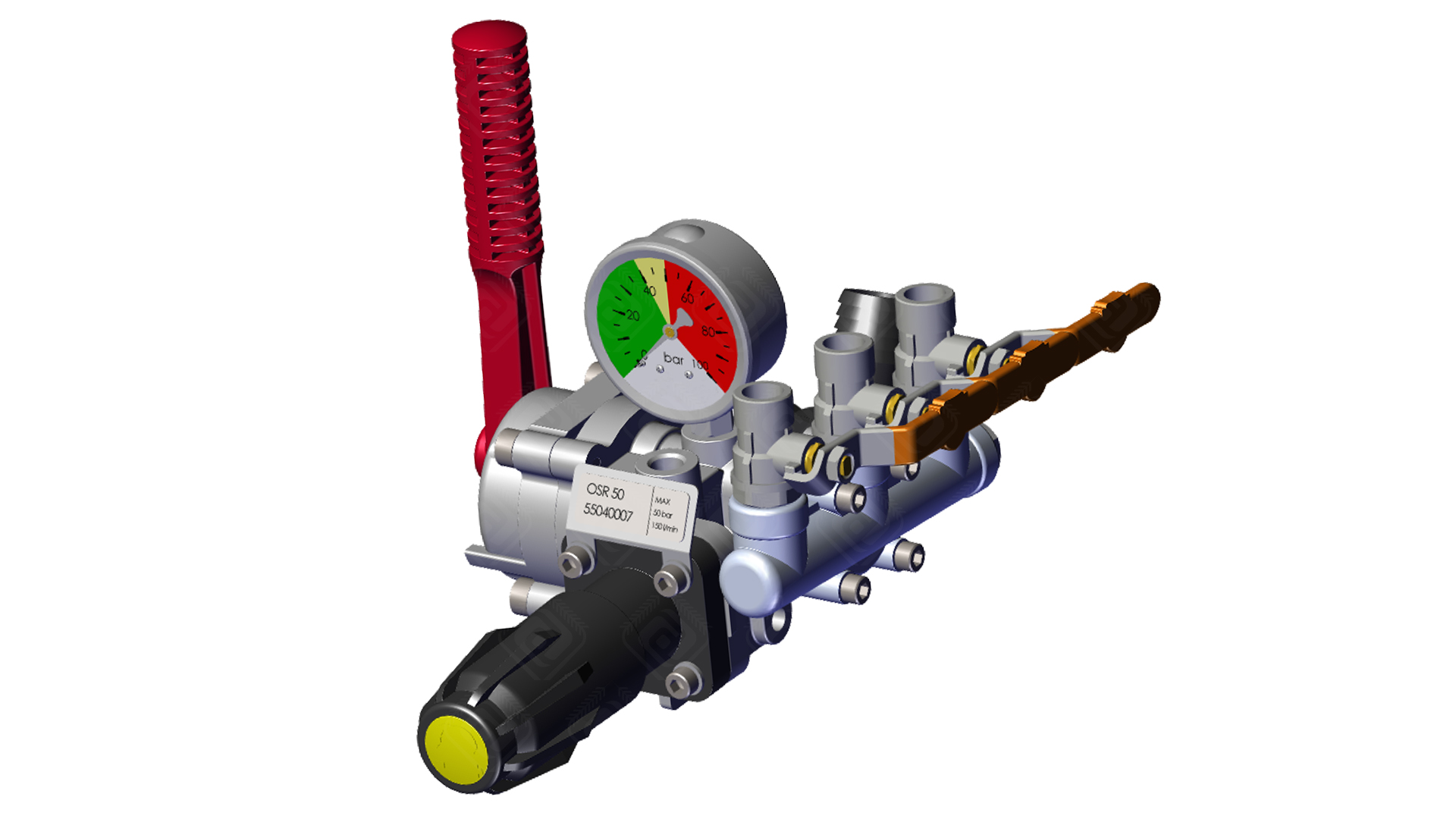

By the help of pressure regulator right or left spraying and the pressure adjustment can be made.

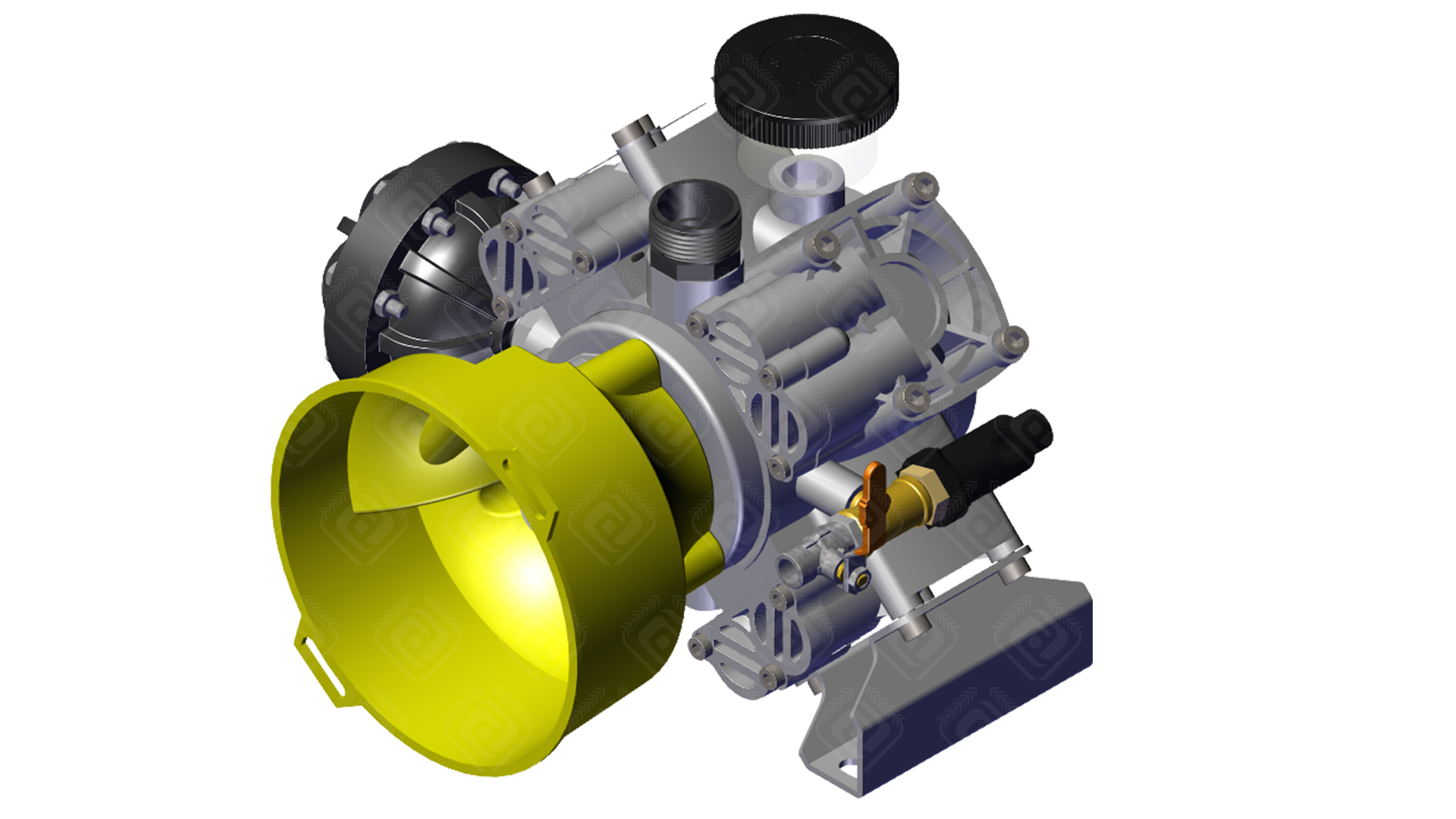

Best quality 4 membrane C96 pump which is produced by our factory is the most efficient product in its segment.

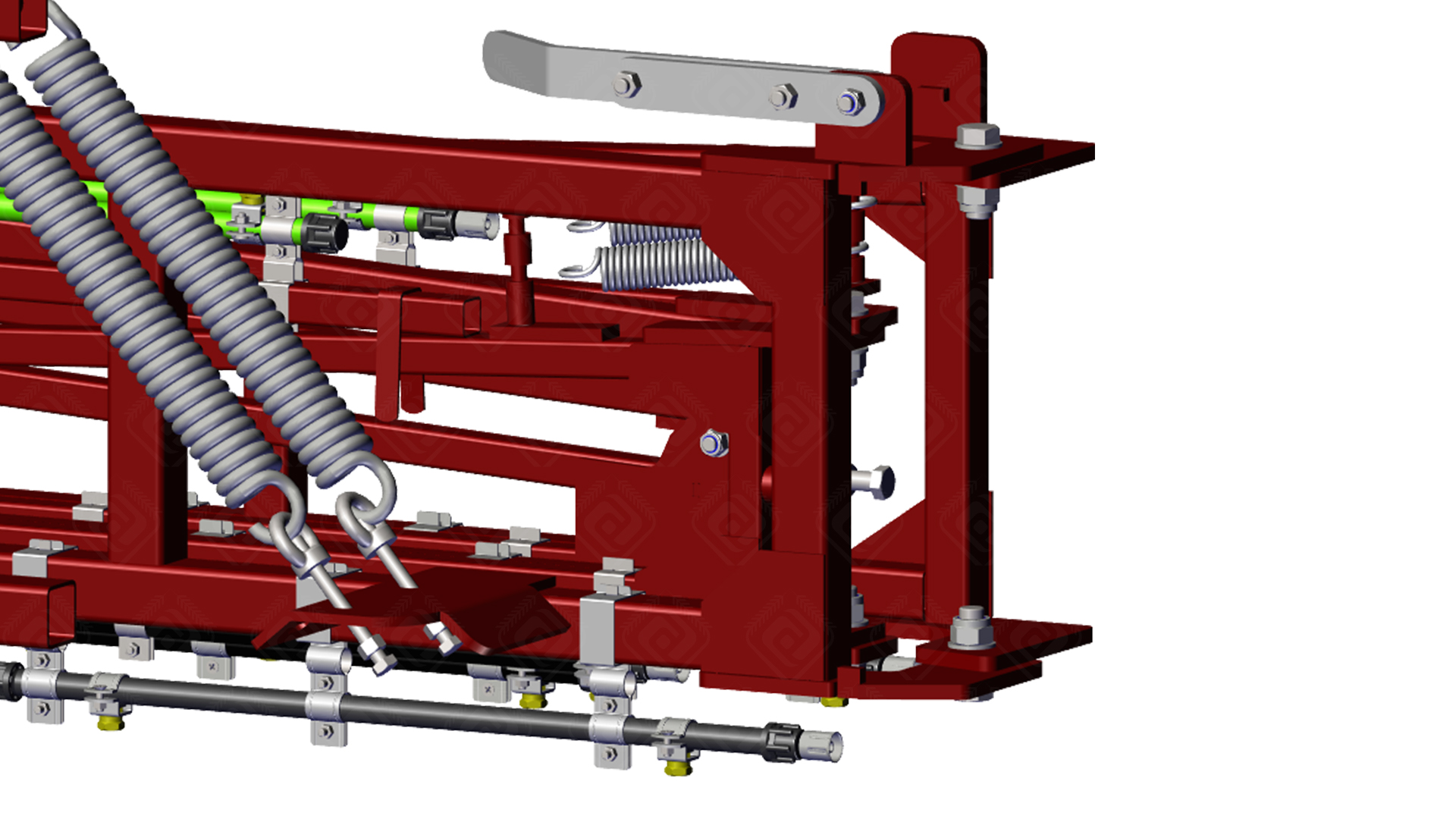

Boom Lock System

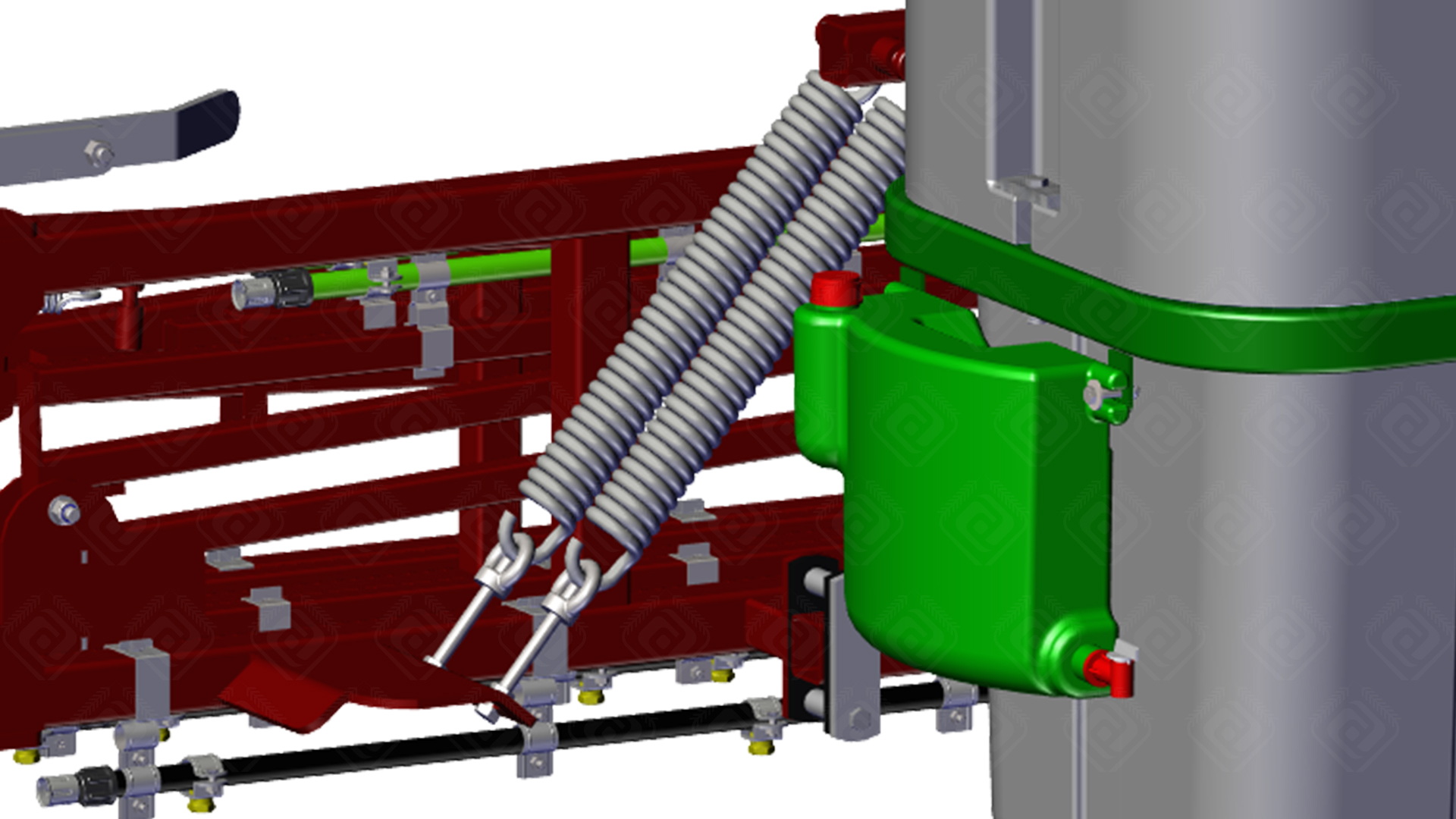

Balance springs stabilize the machine by minimizing the vibration on the rugged fields.

Optional galvanized frame, boom and chrome pipe prevents corrosion for life-extentioning of machine.

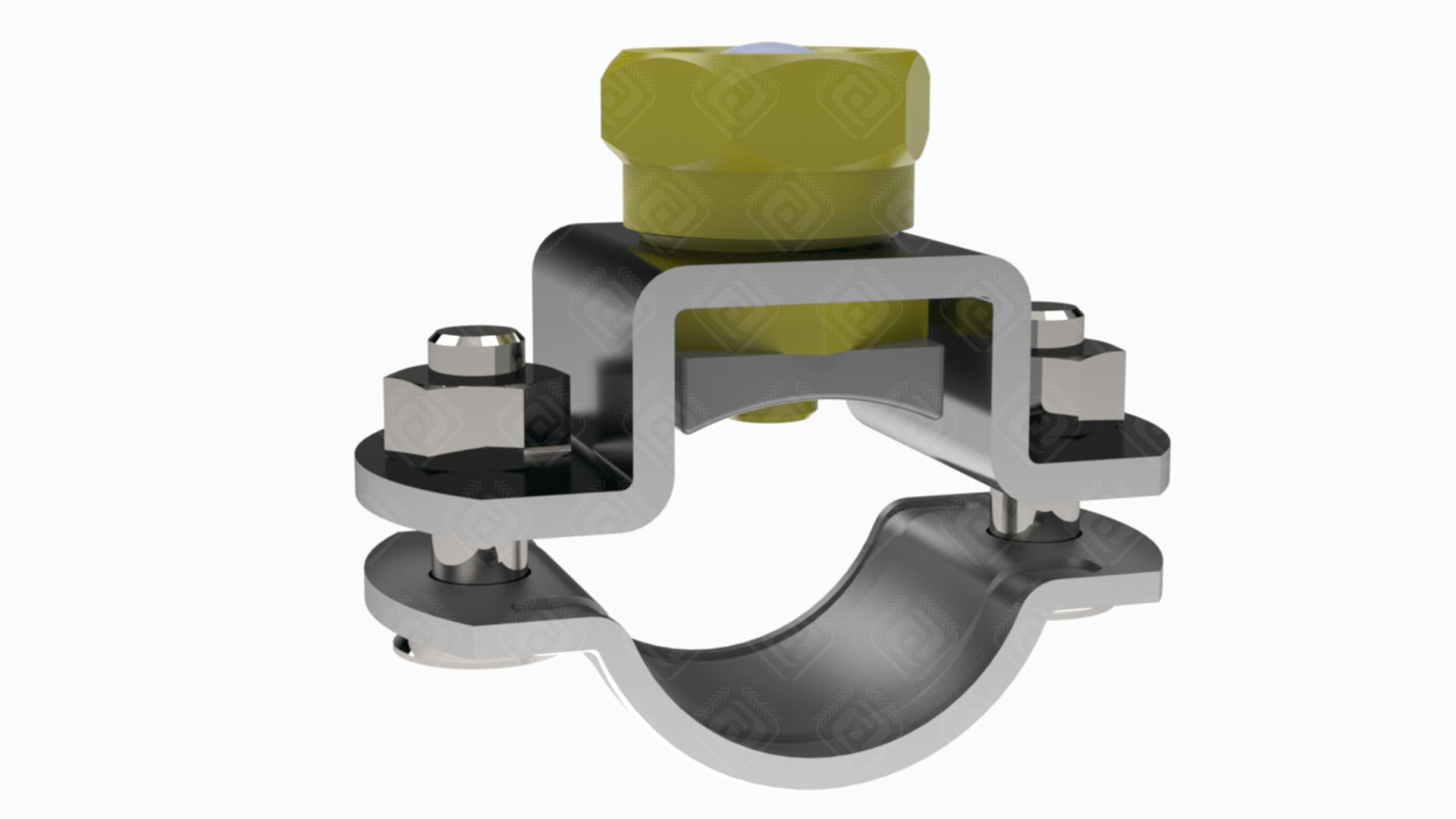

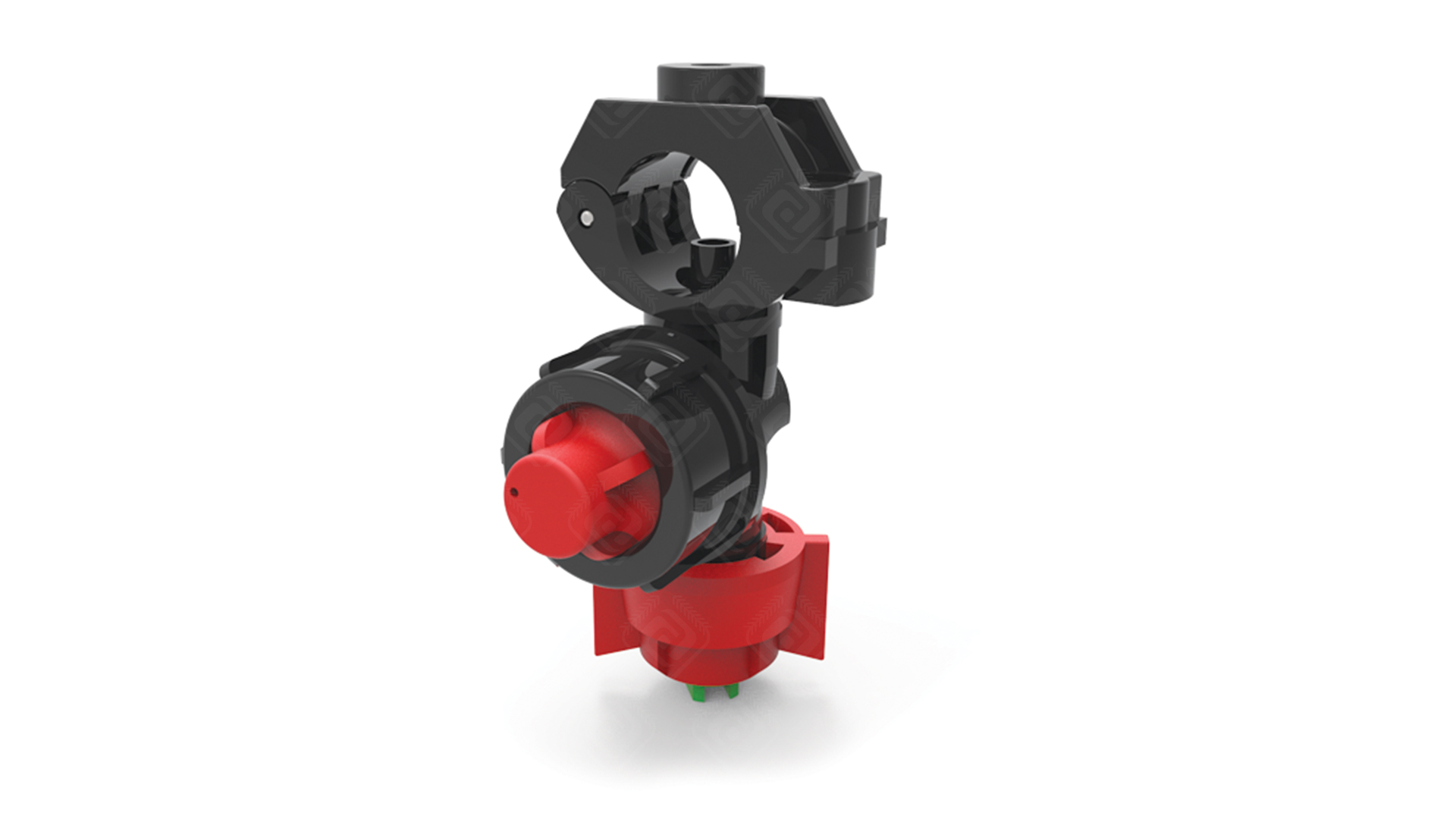

Single Plastic Nozzle

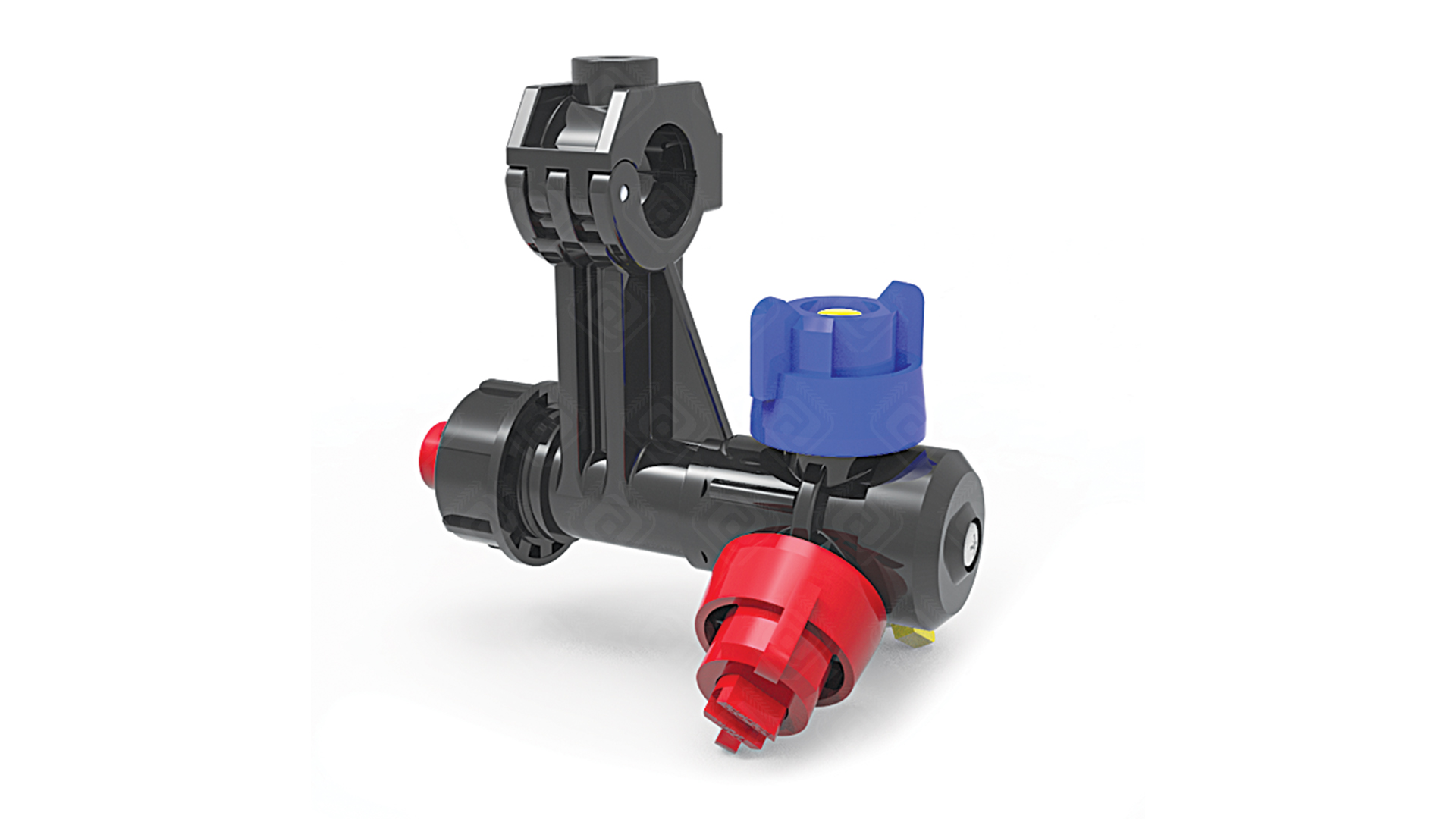

Triple Plastic Nozzle

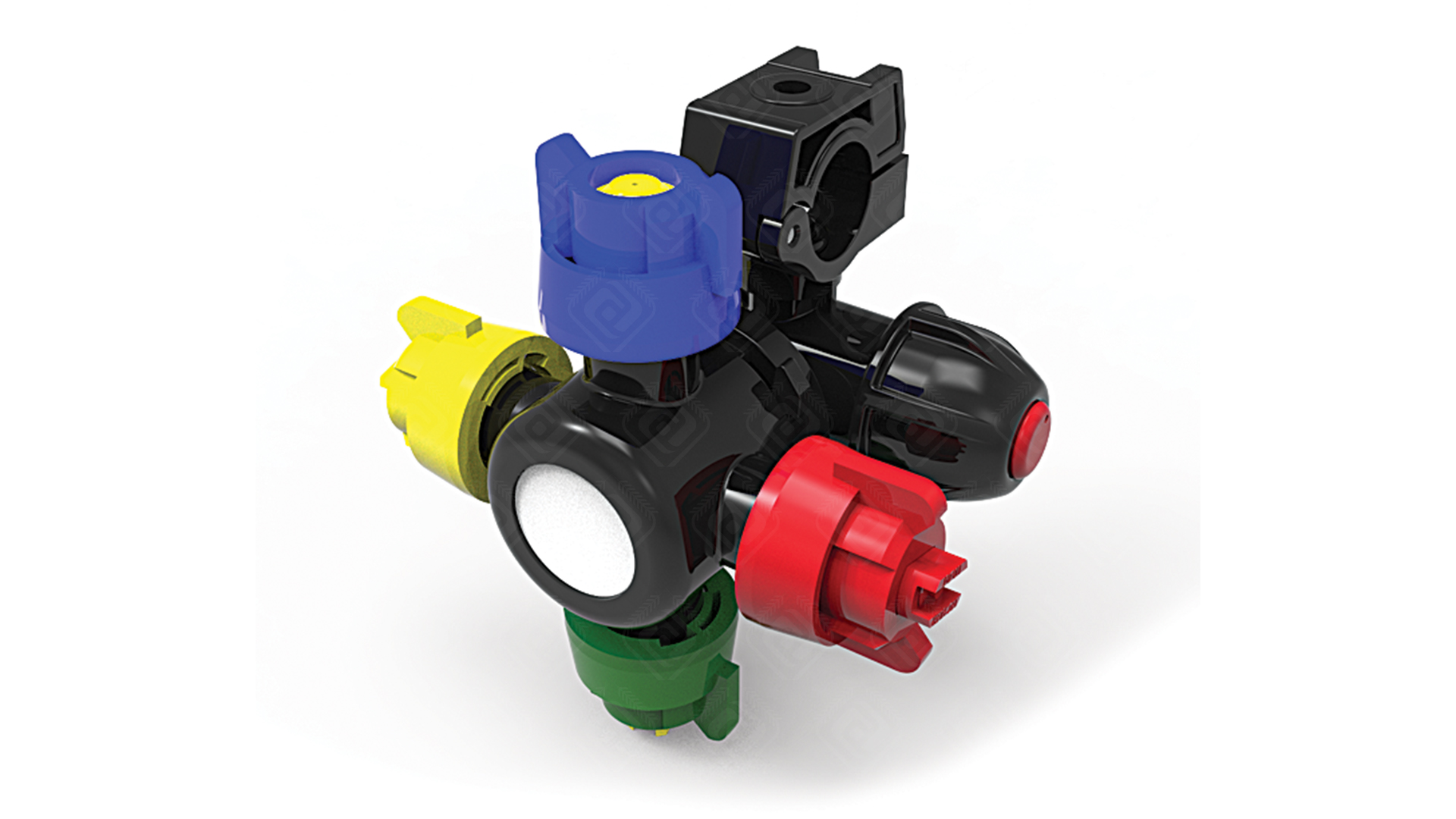

Quadr Plastic Nozzle

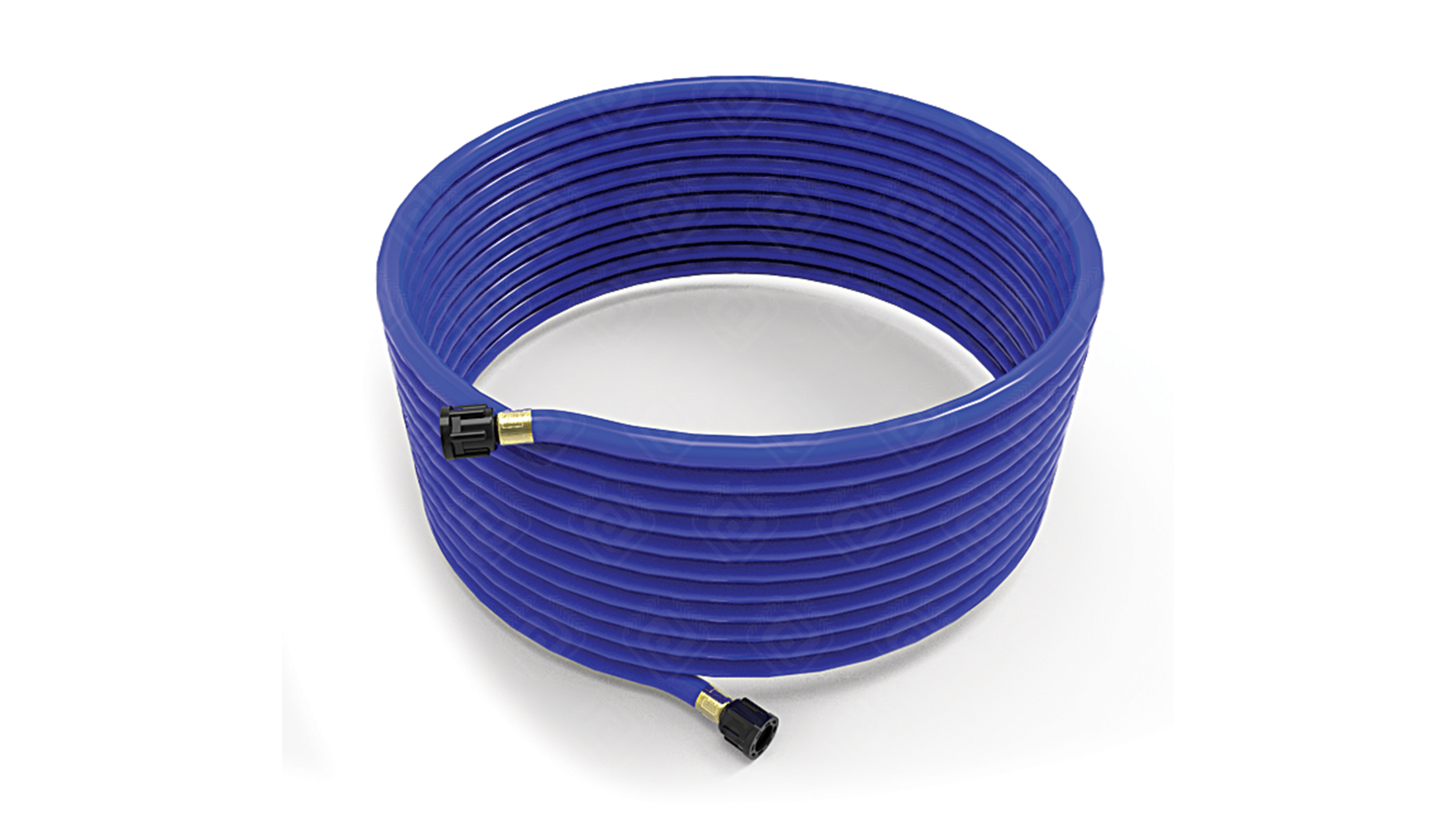

Hose Blue 90 Bar

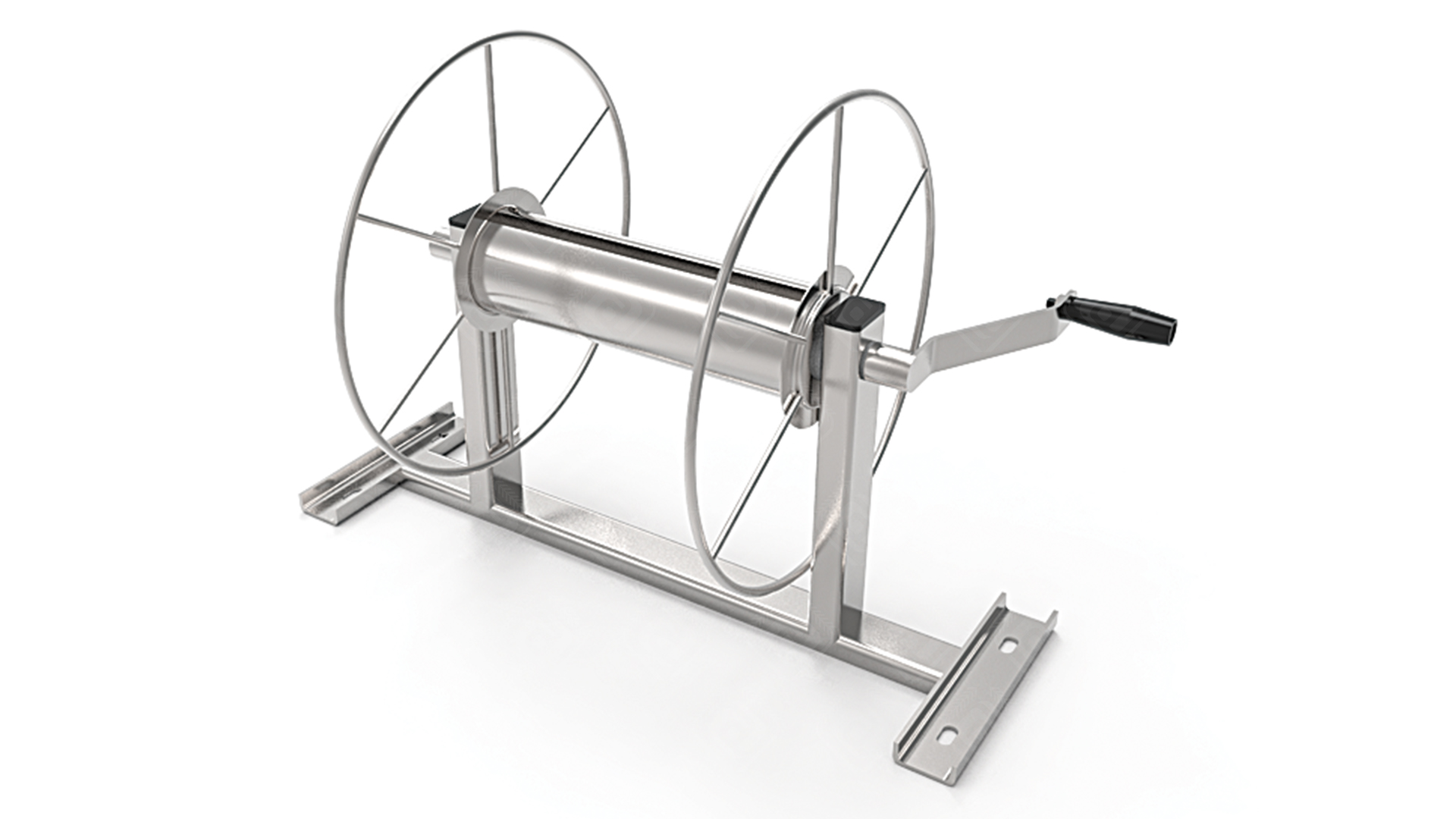

Hose Reel

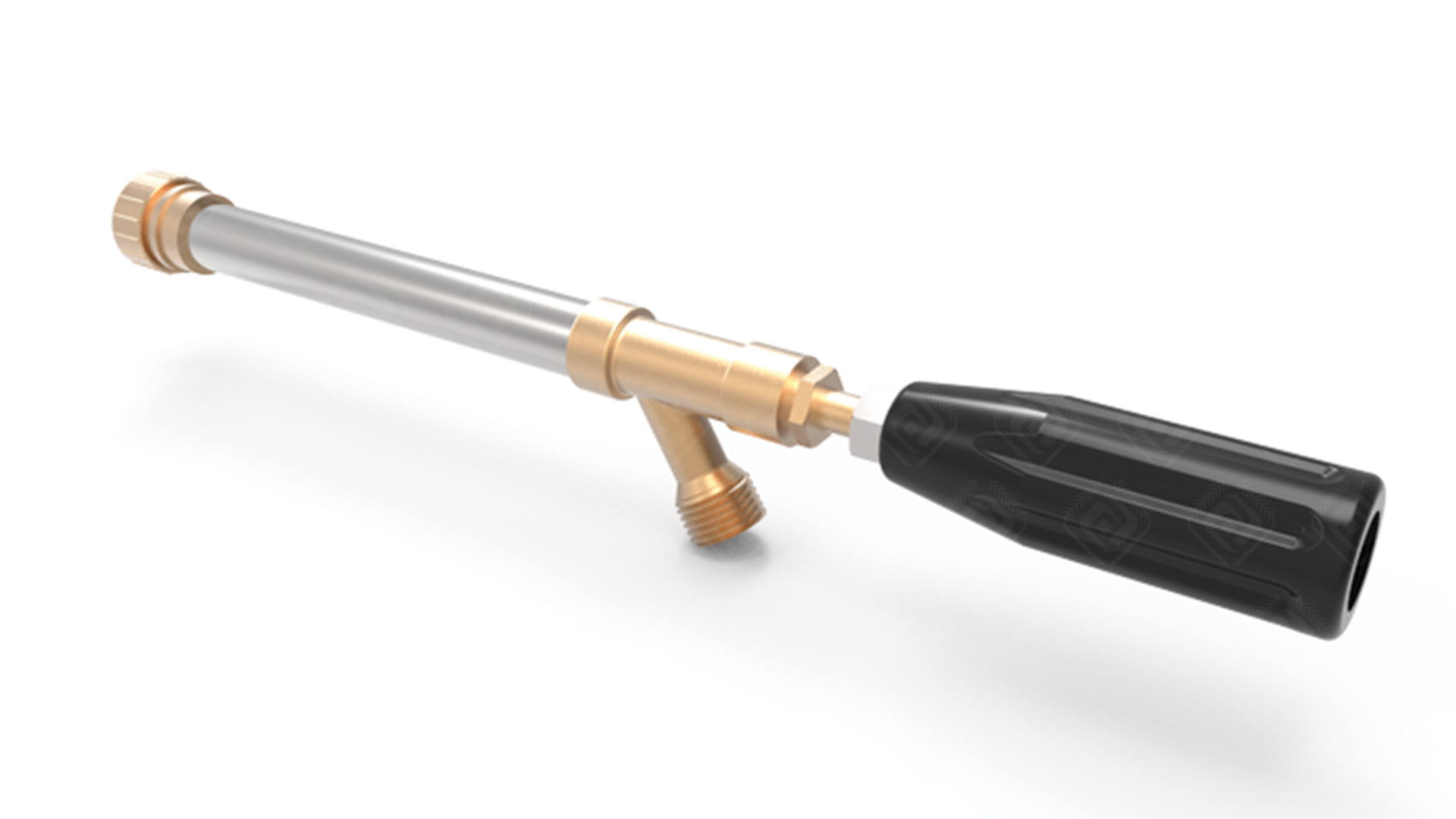

Short Gun

TECHNICAL SPECIFICATIONS

Technical Specifications*	Unit	COBRA C 600	COBRA C 800	COBRA C 1000
Capacity	L	600	800	1000
Capacity	gallon	158	211	264
Width without boom (W)	mm	1450	1750	1750
Width without boom (W)	ft.in	4'9"	5'8"	5'8"
Length without boom (L)	mm	940	940	940
Length without boom (L)	ft.in	3'1"	3'1"	3'1"
Total Height (H)	mm	2220	2220	2220
Total Height (H)	ft.in	7'3"	7'3"	7'3"
Pump Type		C 96 / membrane
Pump Flowrate	L/min	96
Pump Pressure	bar	50
Boom Length	m	14-16
Boom Length	ft.in	45'11" - 52'6"
Regulator Model		OSR
Pressure Safety Valv		standard
Tank Mixer		standard
Tank Material		polyethylene
Hand Washing Tank	L	5
Hand Washing Tank	gallon	1
Tank Washing System	L	60	100	100
Tank Washing System	gallon	15	26	26
PTO Rotation	rpm	540
Required Power	hp	50-60	70-80	90-100
Total Weight	kg	260	290	300
Total Weight	Ibs	573	639	661

Technical Specifications*	Unit	BOOMS
Working Width	m	8	10	12
Working Width	ft.in	26’3”	32’10”	39’4”
Total Length	mm	200	200	200
Total Length	ft.in	0’8”	0’8”	0’8”
Total Width	mm	2130	2130	2700
Total Width	ft.in	6’12”	6’12”	8’10”
Boom Type		mechanical
Number of the Nozzles	pcs	16	20	25
Nozzle Type		Conical/T-Jet
Distance between Nozzle	mm	500
Distance between Nozzle	ft.in	1’8”
Height	mm	430	430	570
Height	ft.in	1’5”	1’5”	1’10”
Weight	kg	35	41	63
Weight	Ibs	77	90	138

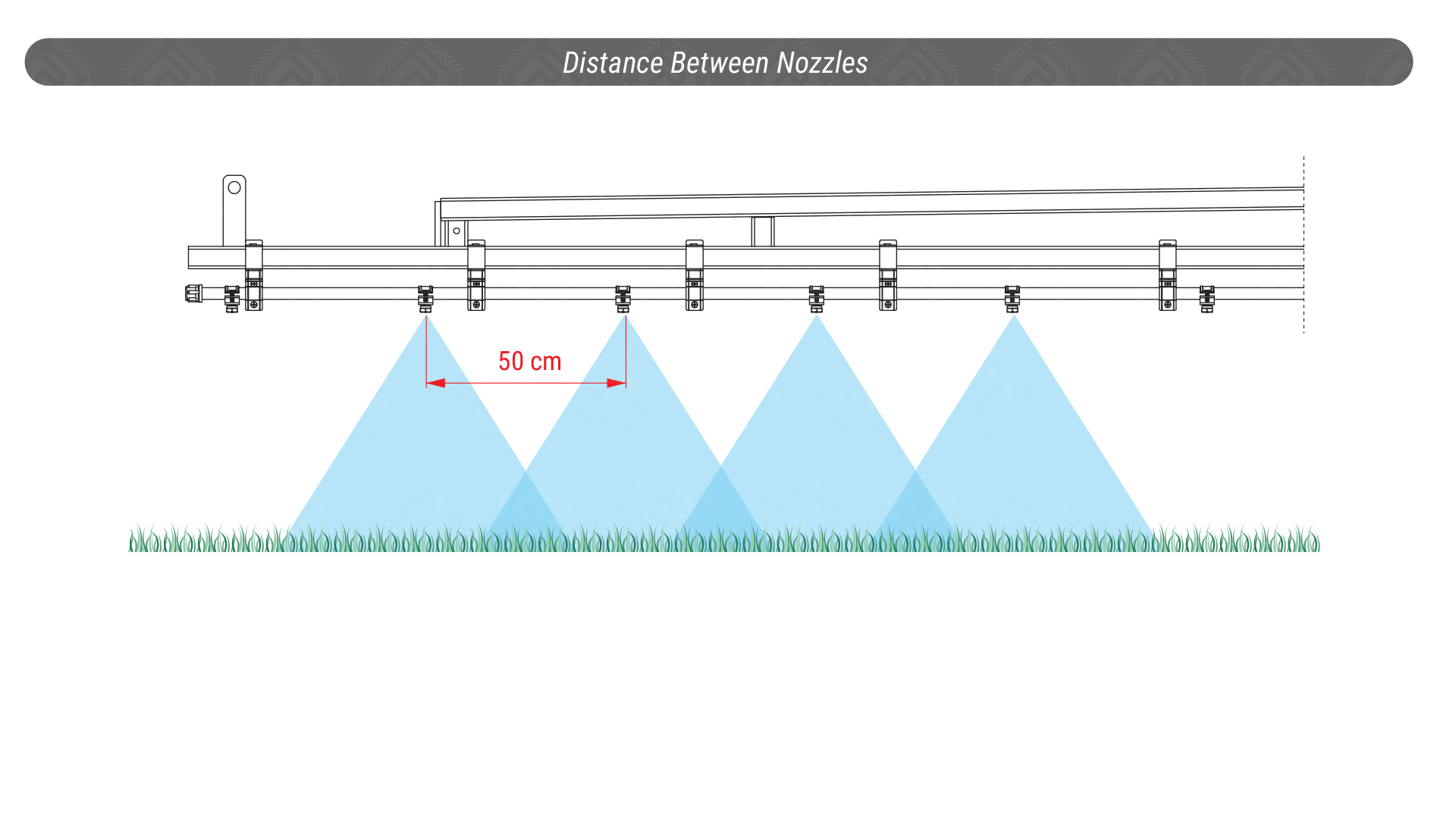

Optimized nozzle spacing ensures ideal spray pattern overlap, providing uniform distribution across the entire working width. This design enhances application accuracy, maximizes target coverage, reduces chemical waste, and delivers consistent spraying performance under a wide range of field conditions.

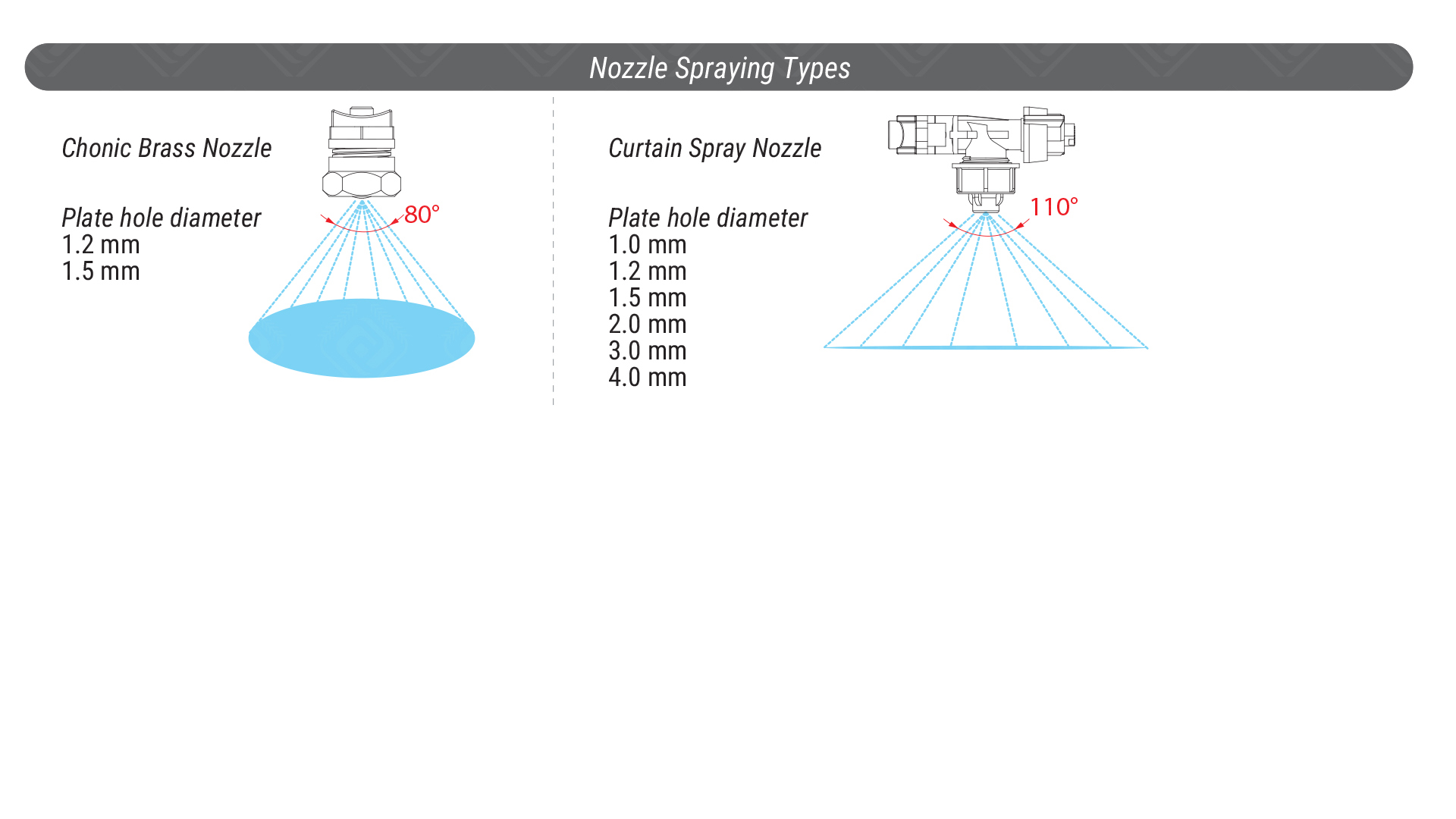

The sprayer is available with conical brass nozzles and curtain spray nozzles to suit different crop protection requirements. Conical brass nozzles are offered with 1.2 mm and 1.5 mm orifice sizes and produce an 80° spray pattern, while curtain spray nozzles are available with 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 3.0 mm, and 4.0 mm orifice sizes, delivering a 110° spray angle for uniform coverage and precise application across a wide range of field conditions.

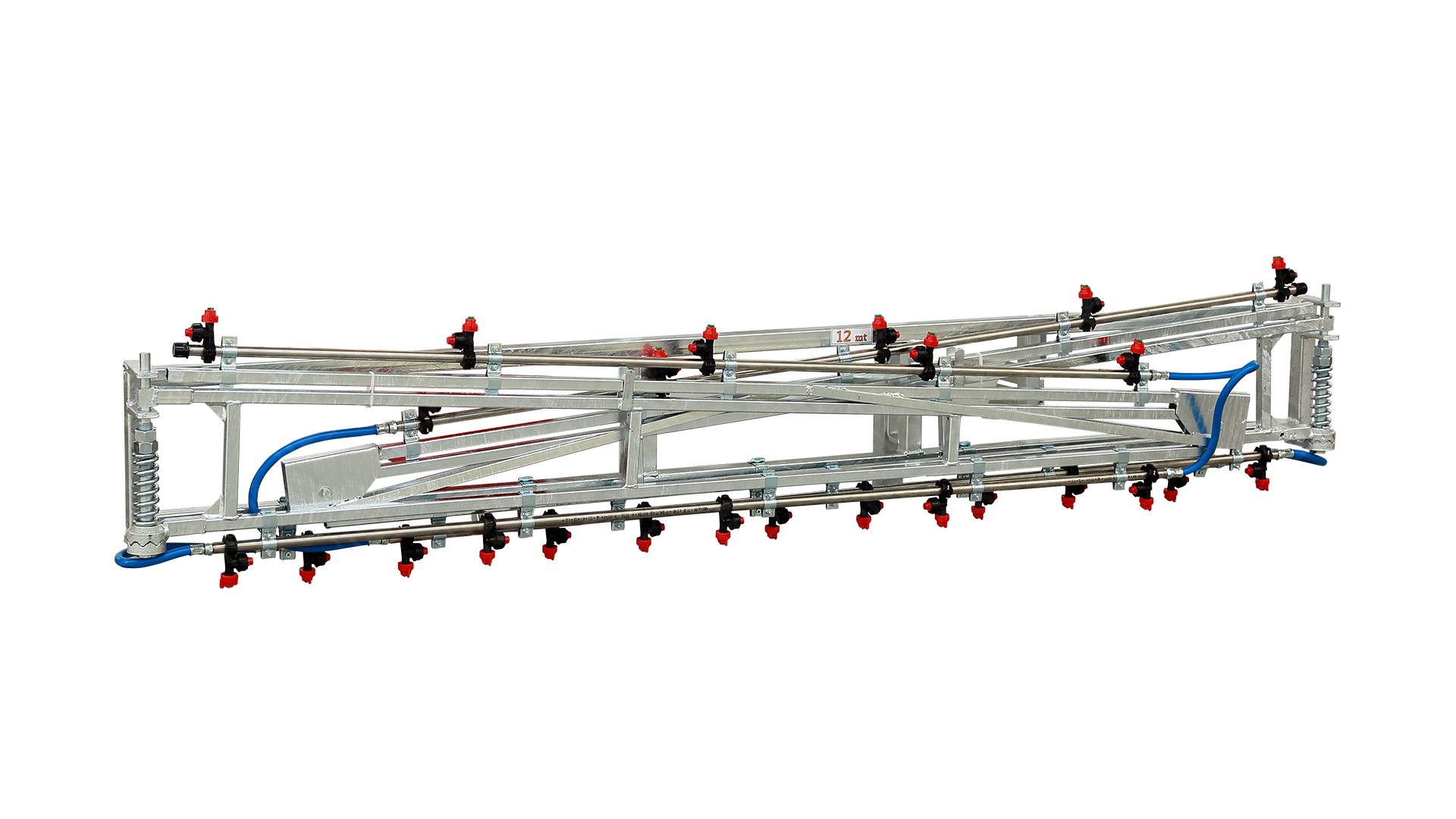

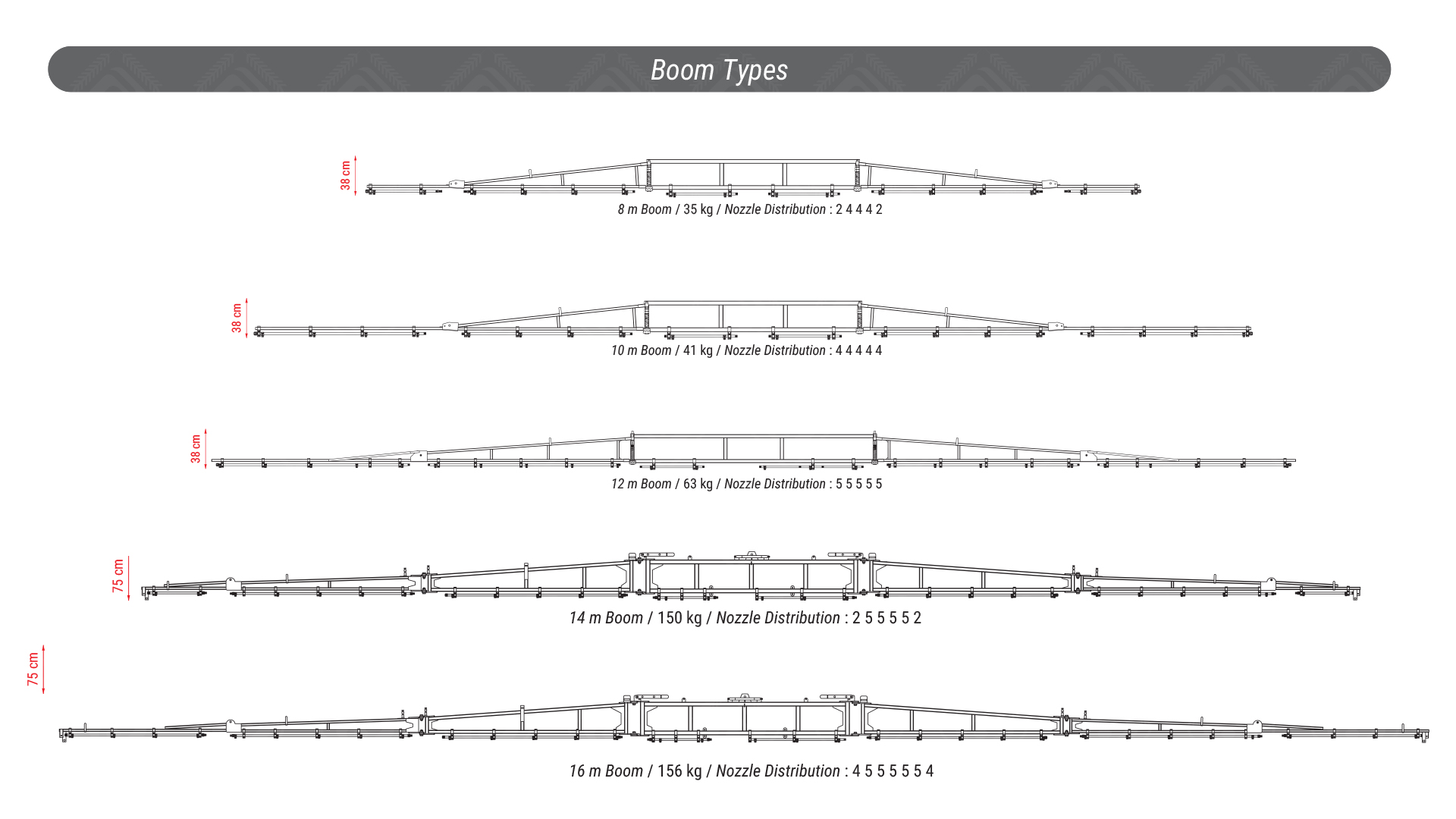

Available in 8 m, 10 m, 12 m, 14 m, and 16 m working widths, the boom range is designed to meet the demands of various field conditions and farm sizes. Manufactured from high-strength steel, each boom delivers exceptional stability and rigidity, ensuring uniform spray distribution and precise application across the entire working width. Its durable construction minimizes boom movement during operation, enhances spraying accuracy, and provides reliable, long-lasting performance in demanding agricultural environments.
