ALFA X

Field Sprayers

ALFA X

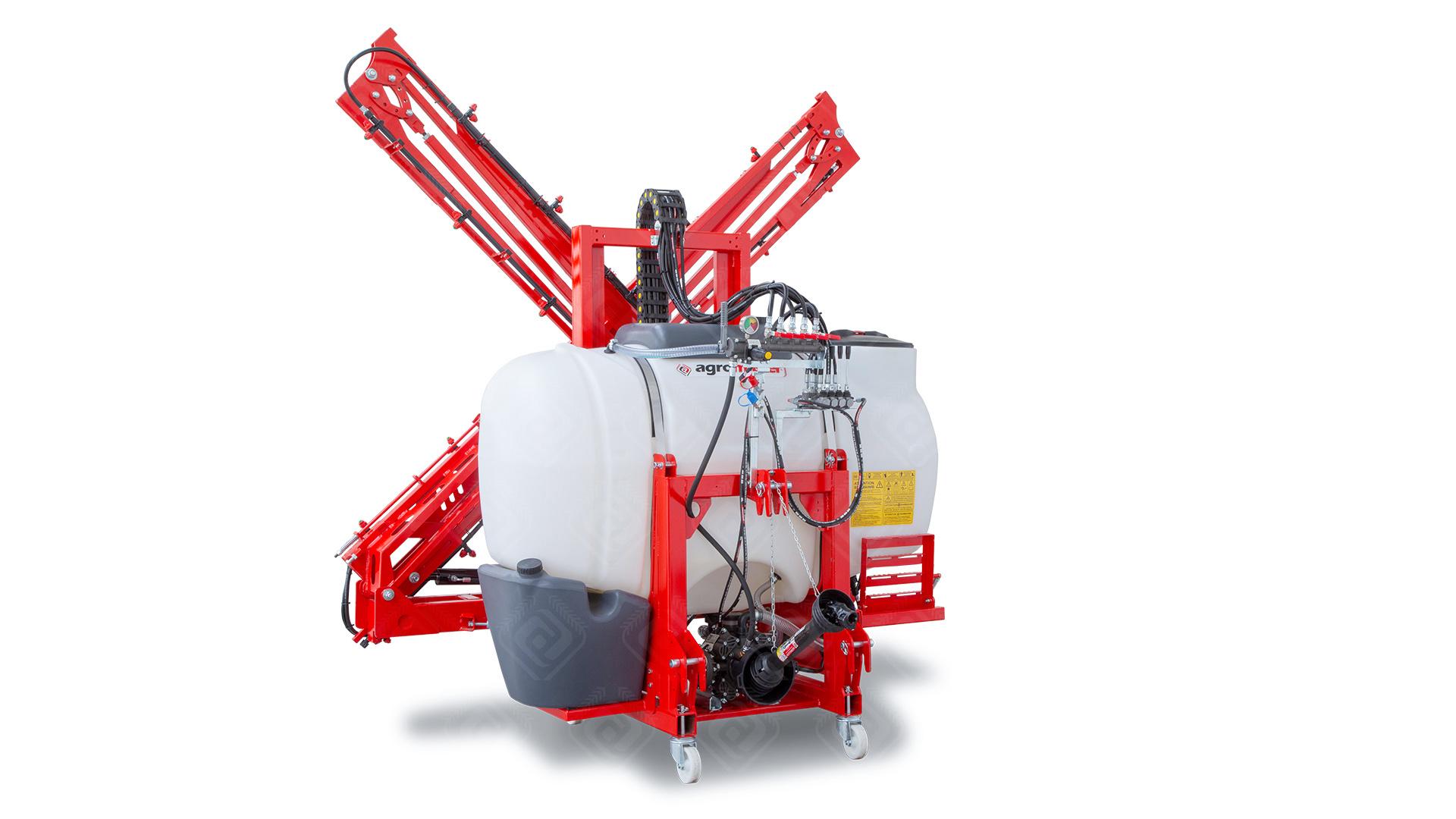

FIELD SPRAYER, MOUNTED TYPE HEAVY-DUTY FULL HYDRAULIC BOOM

DESCRIPTION

ALFA X HEAVY-DUTY Full Hydraulic Controlled Boom Field sprayers are durable for many options and it finds use in traditional farming, Mounted type 600, 800, 1000 L field sprayers are used for multipurpose plant protection.15m X type avaible Full Hydraulic Boom functions can be controlled from on machine.

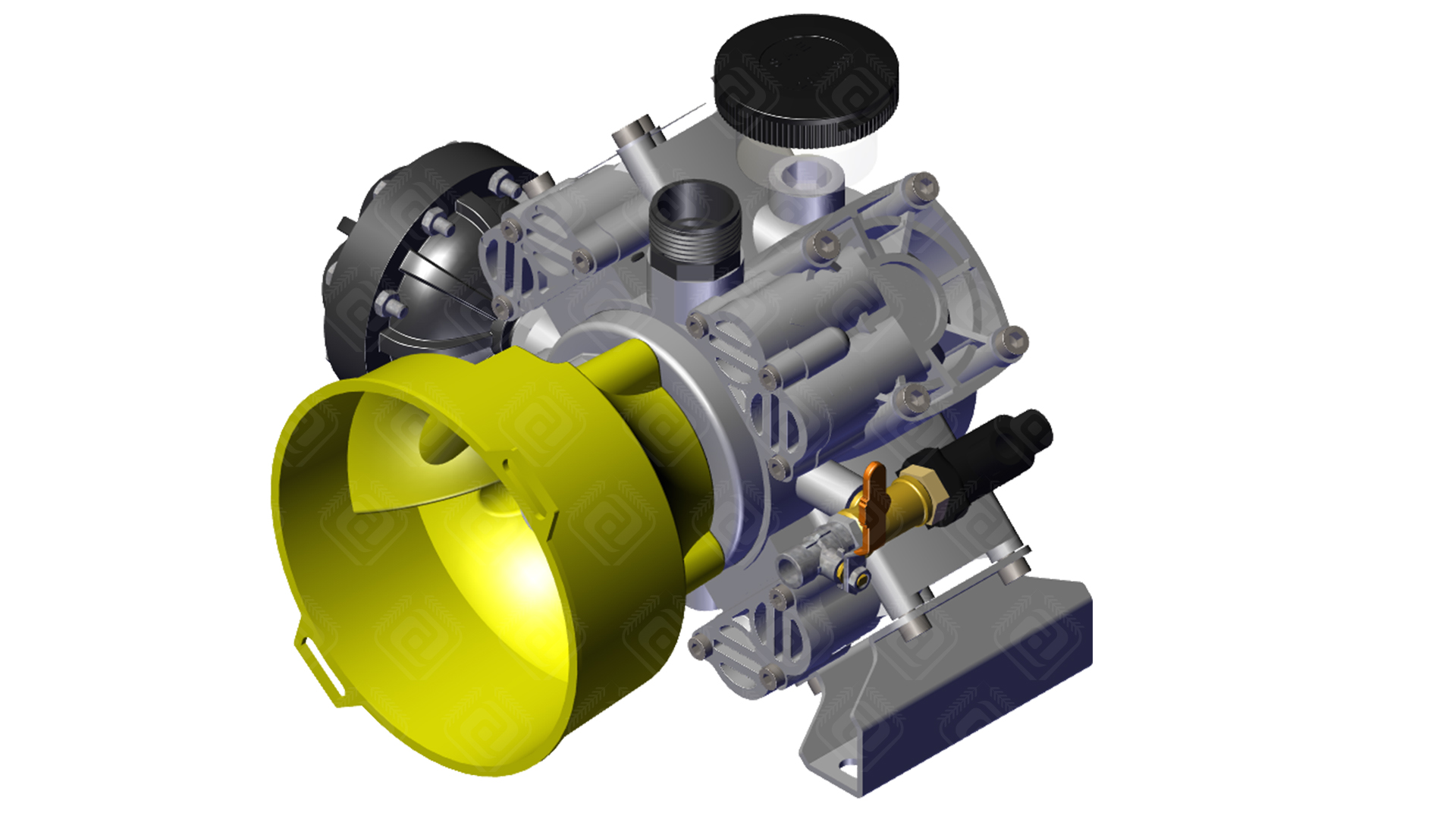

Best quality 4 membrane C96 pump which is produced by our factory is the most efficient product in its segment.

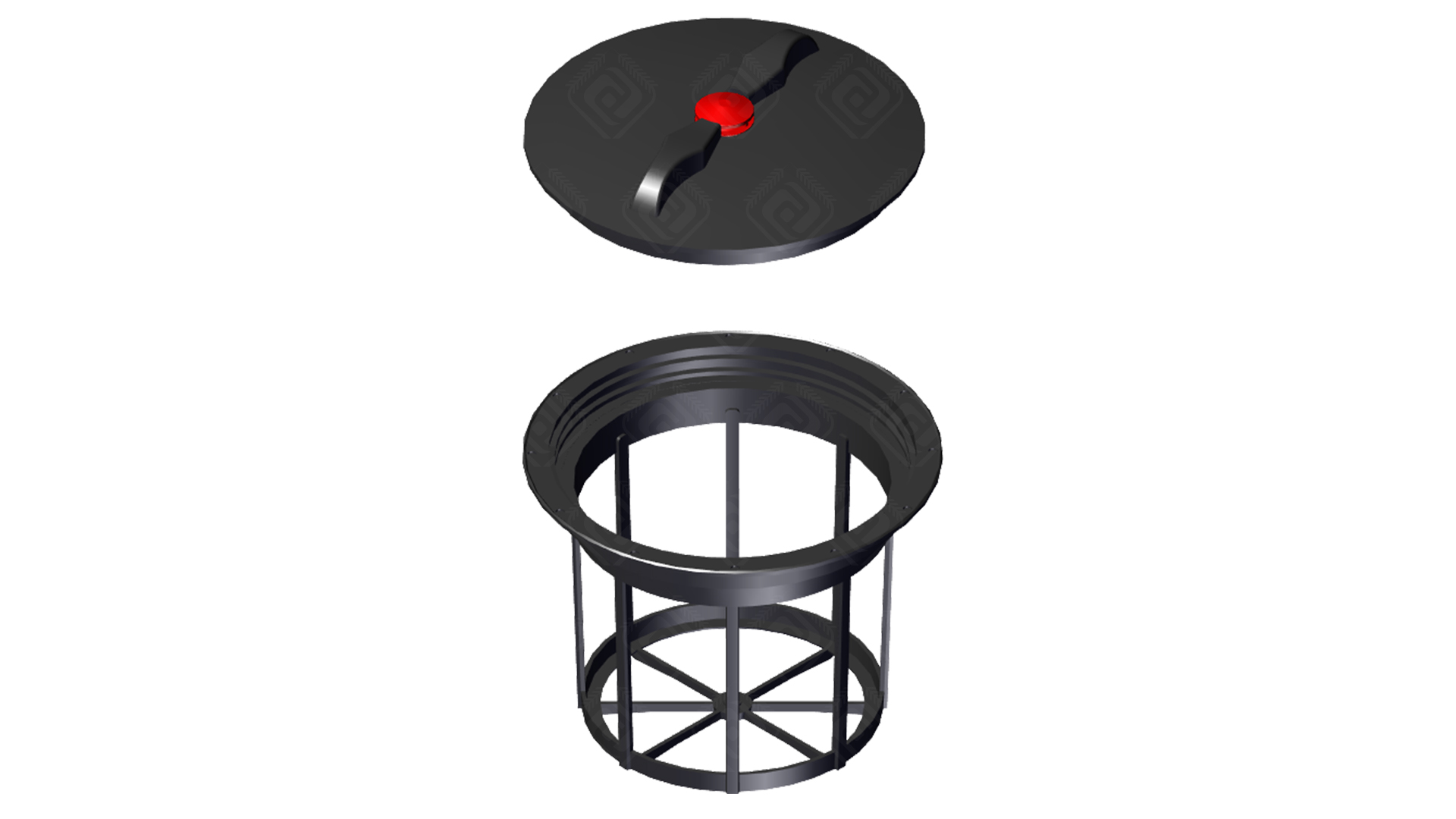

Tank Lid

Tank Cleaning System

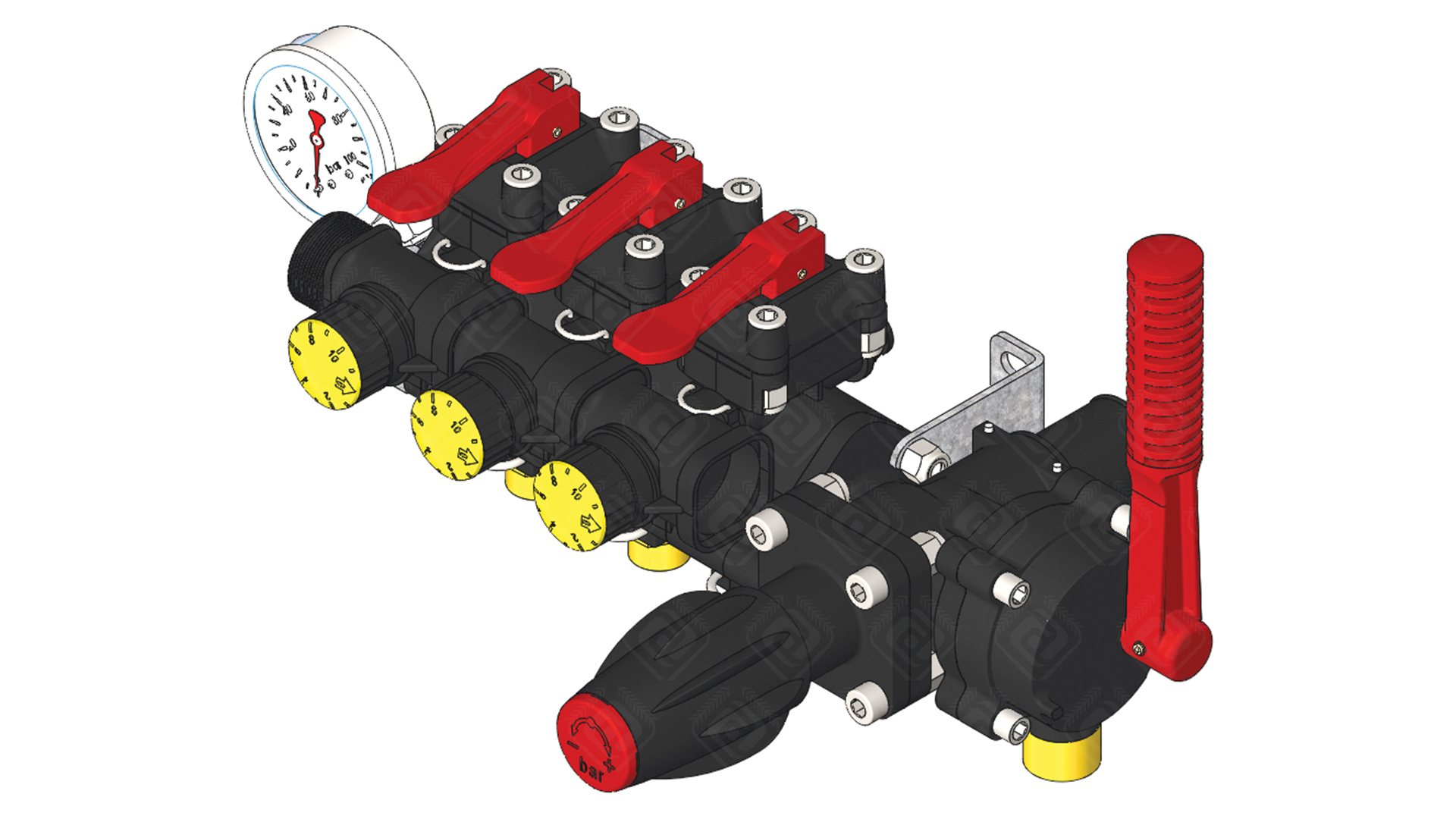

By the help of pressure regulator right or left spraying and the pressure adjustment can be made.

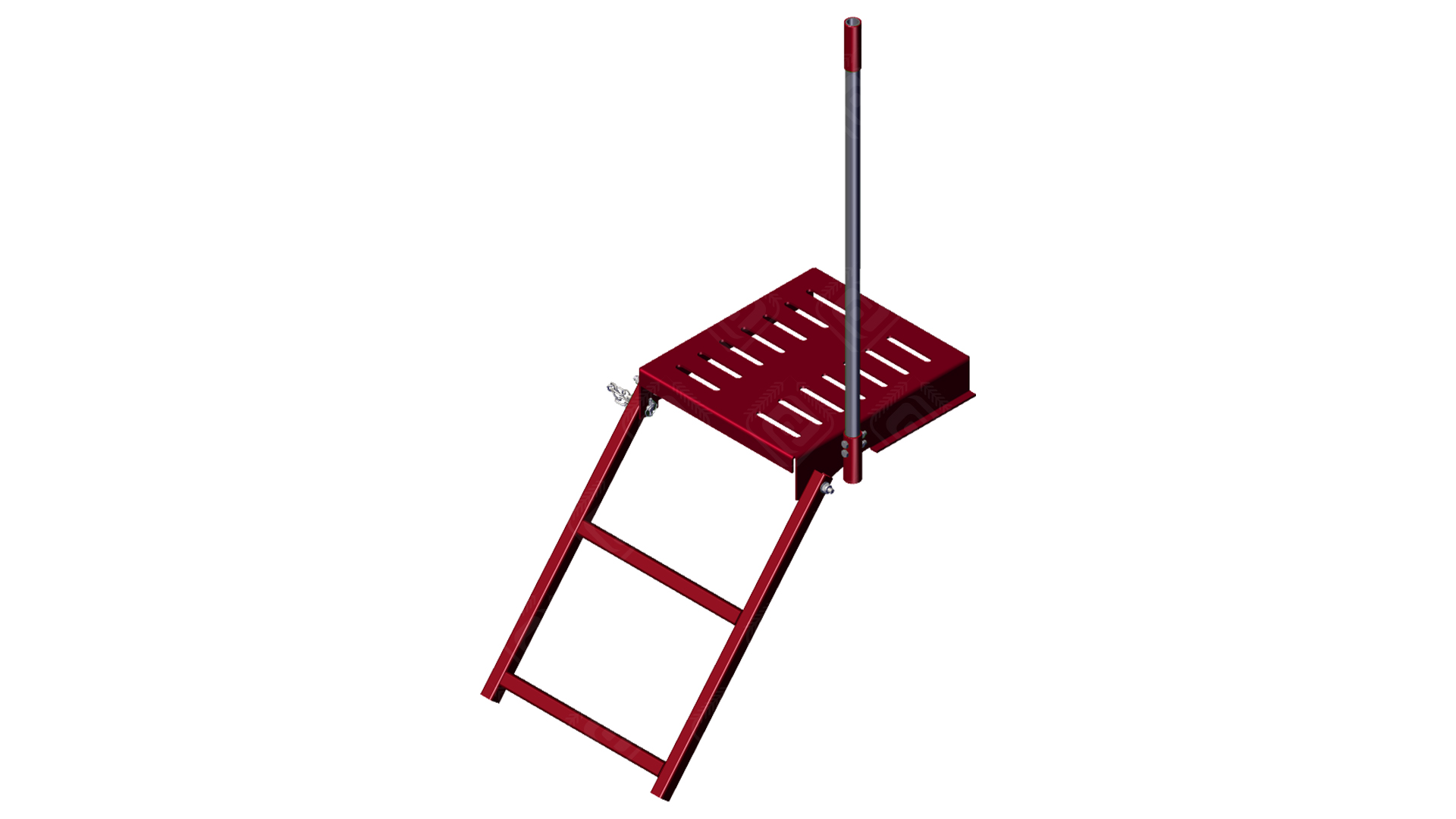

Ladder for easy acces

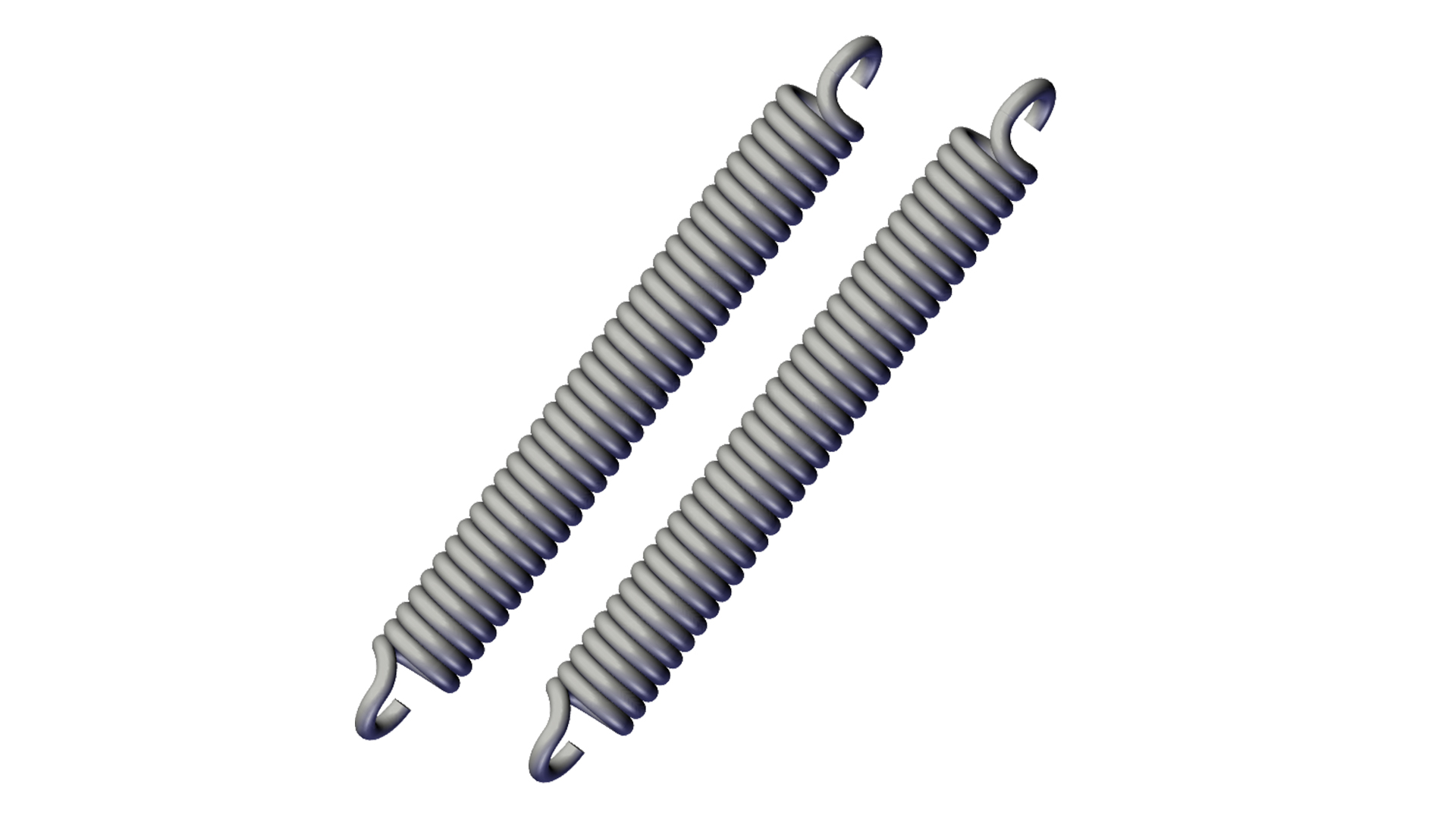

Balance springs stabilize the machine by minimizing the vibration on the rugged fields.

Long-lasting and cleanable nozzle provides homogeneous disinfection

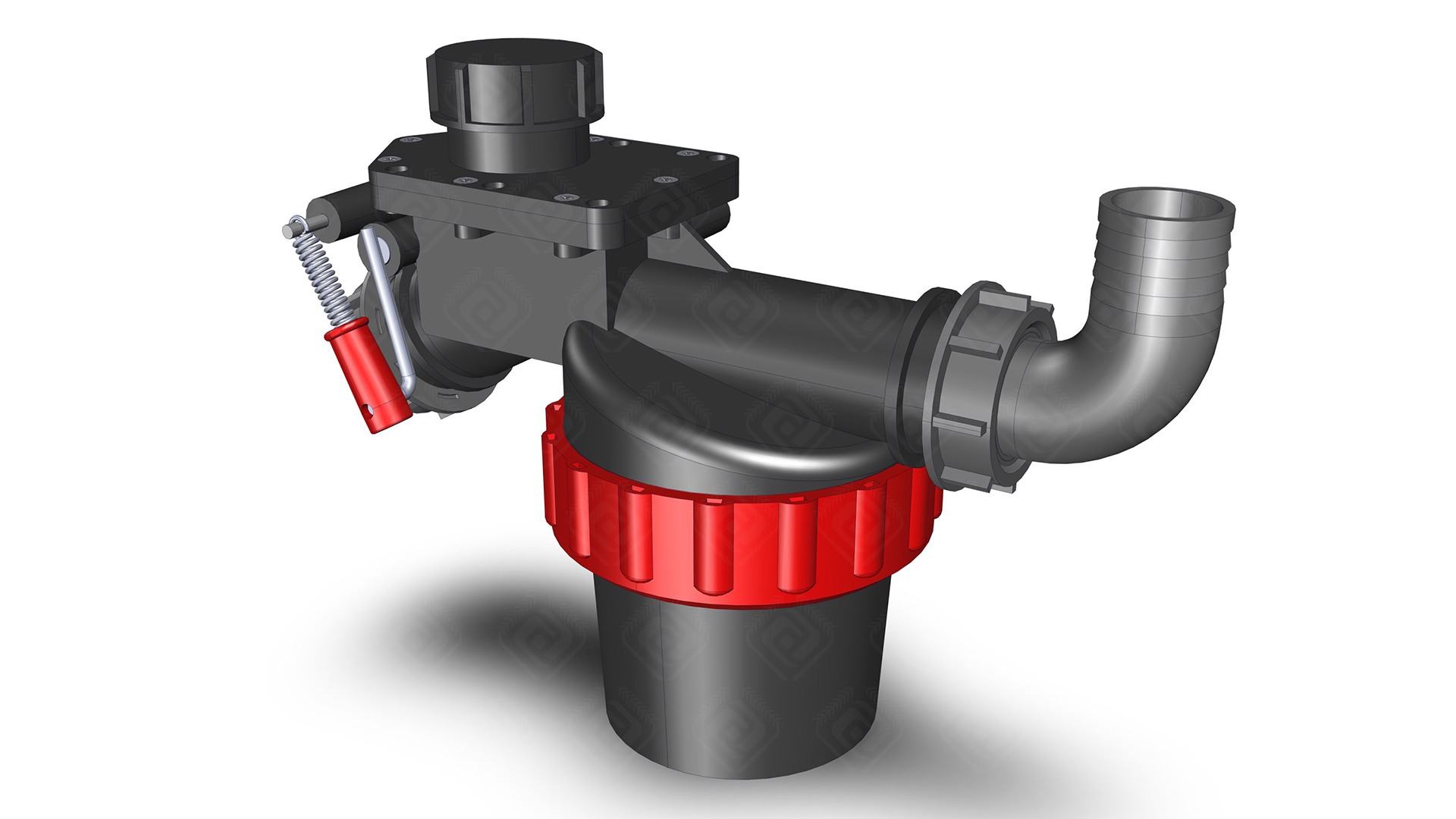

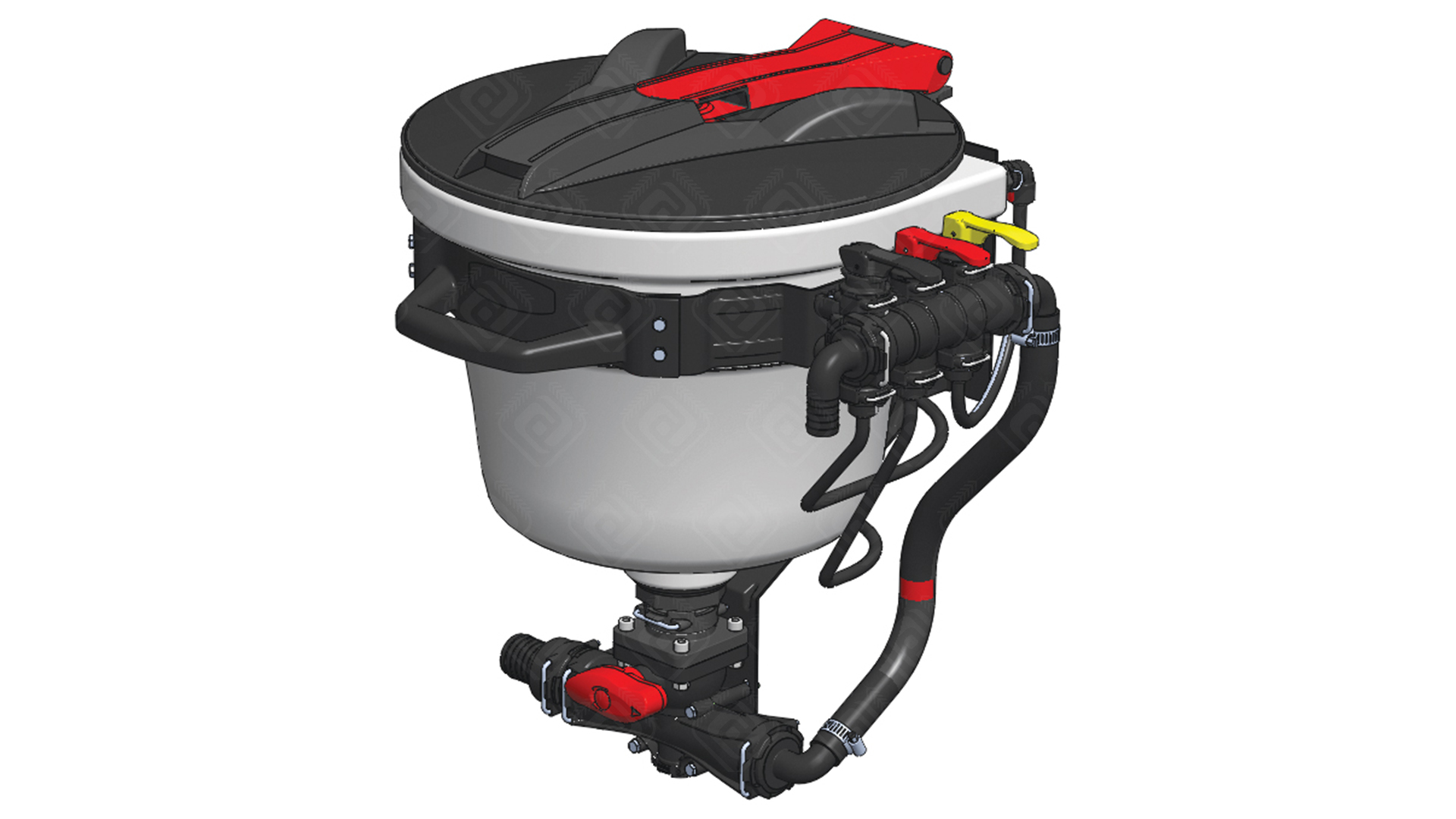

Fast Filler

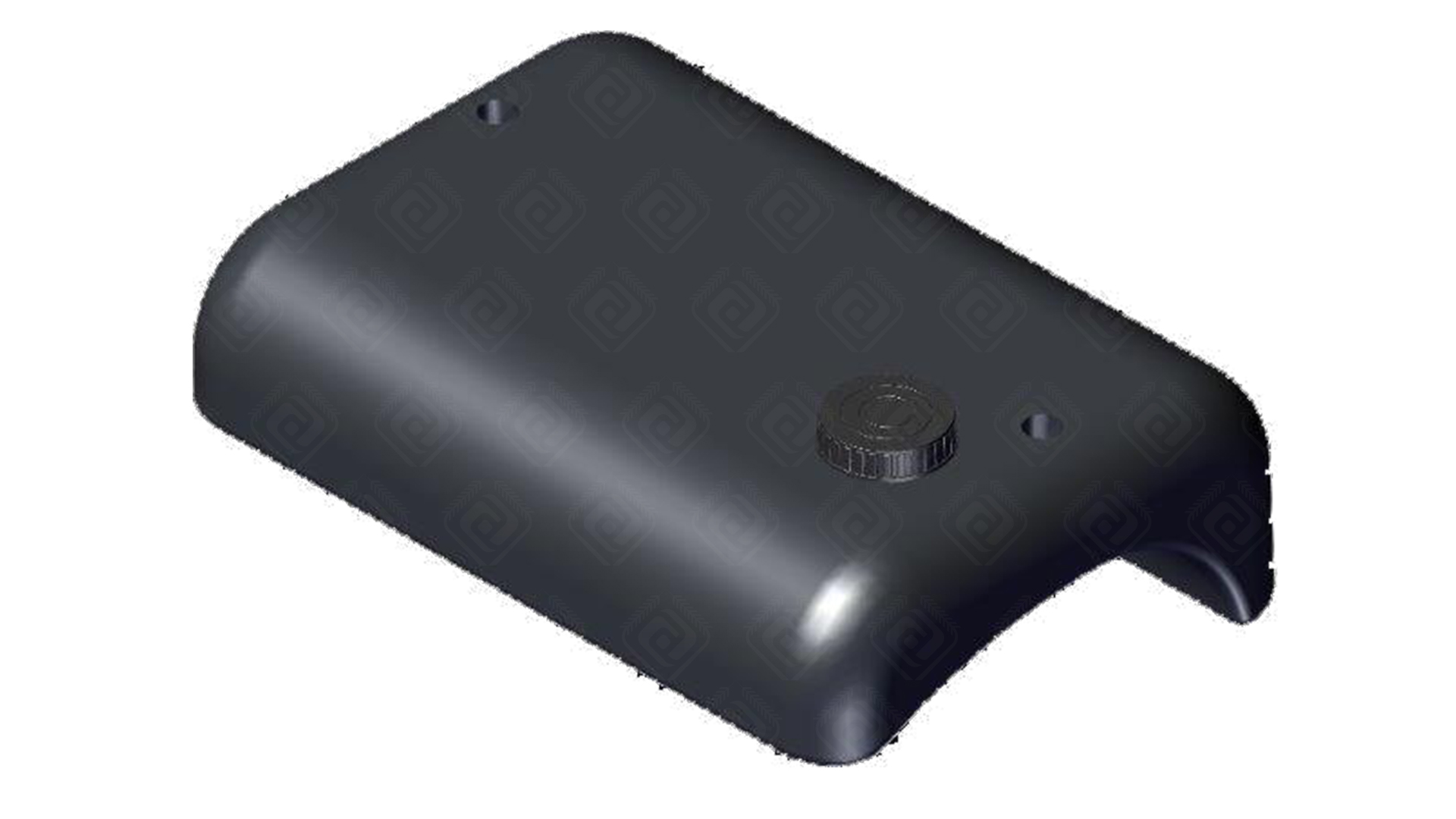

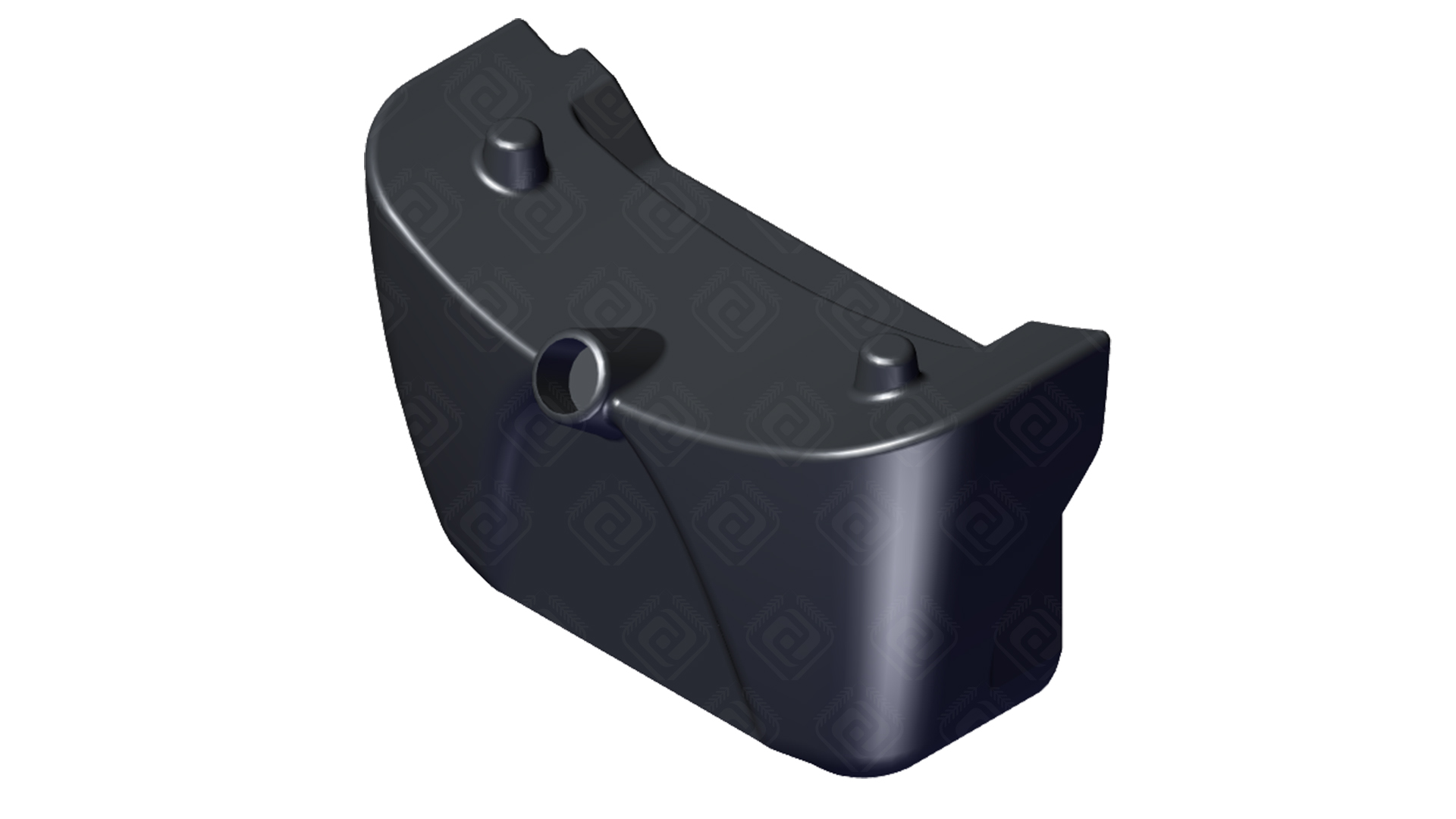

Hand Washing Tank

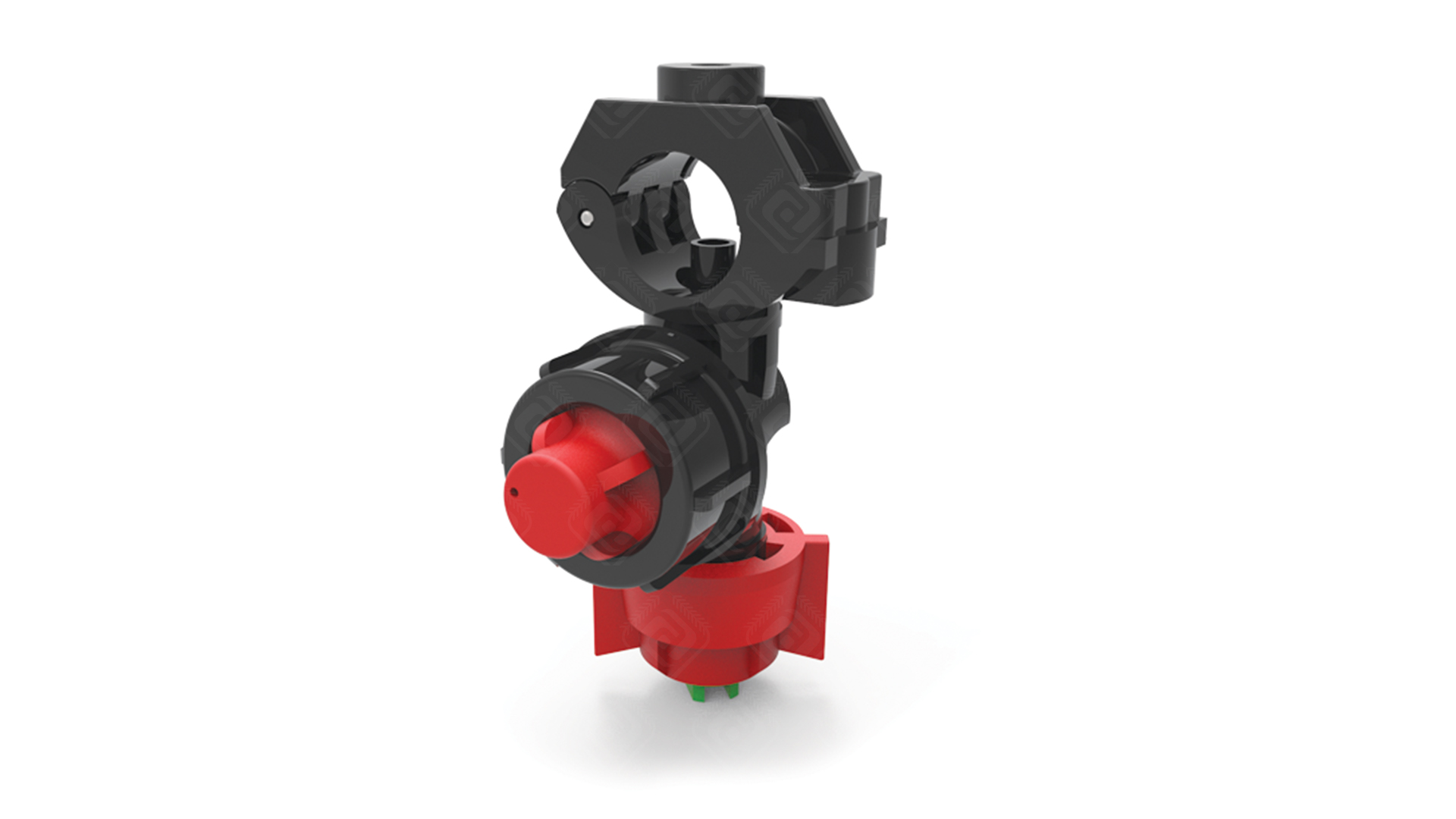

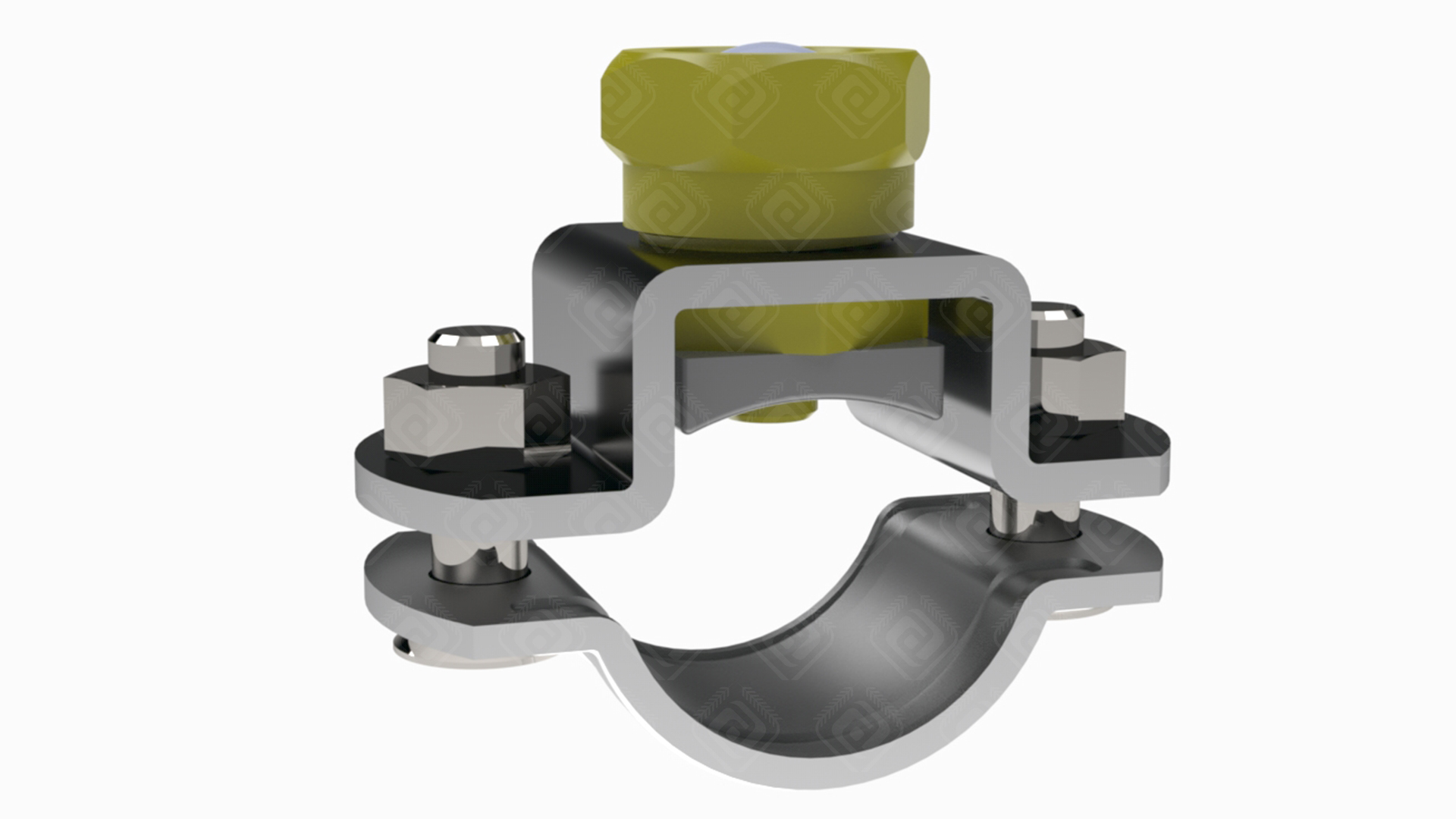

Single Plastic Nozzle

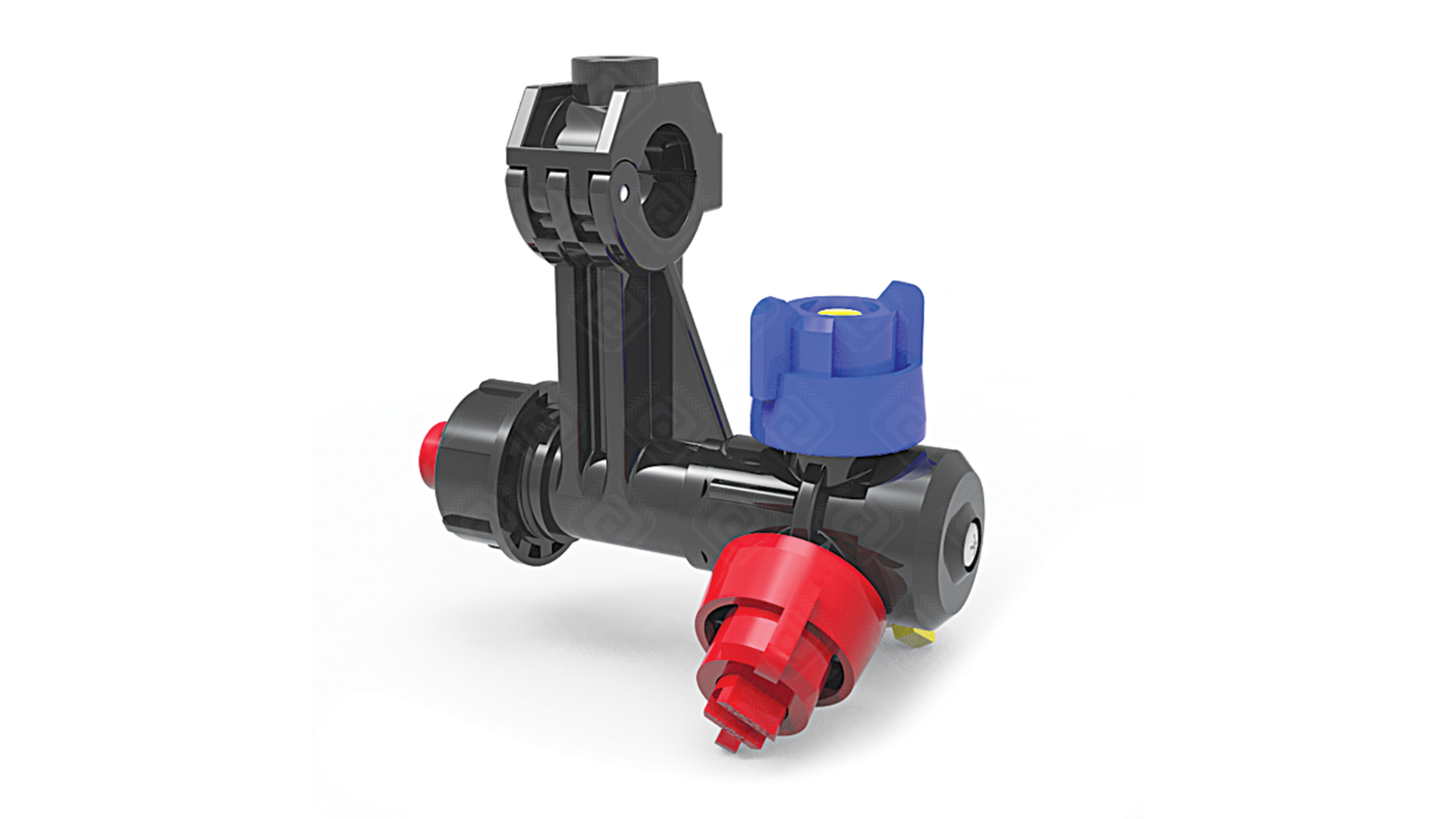

Triple Plastic Nozzle

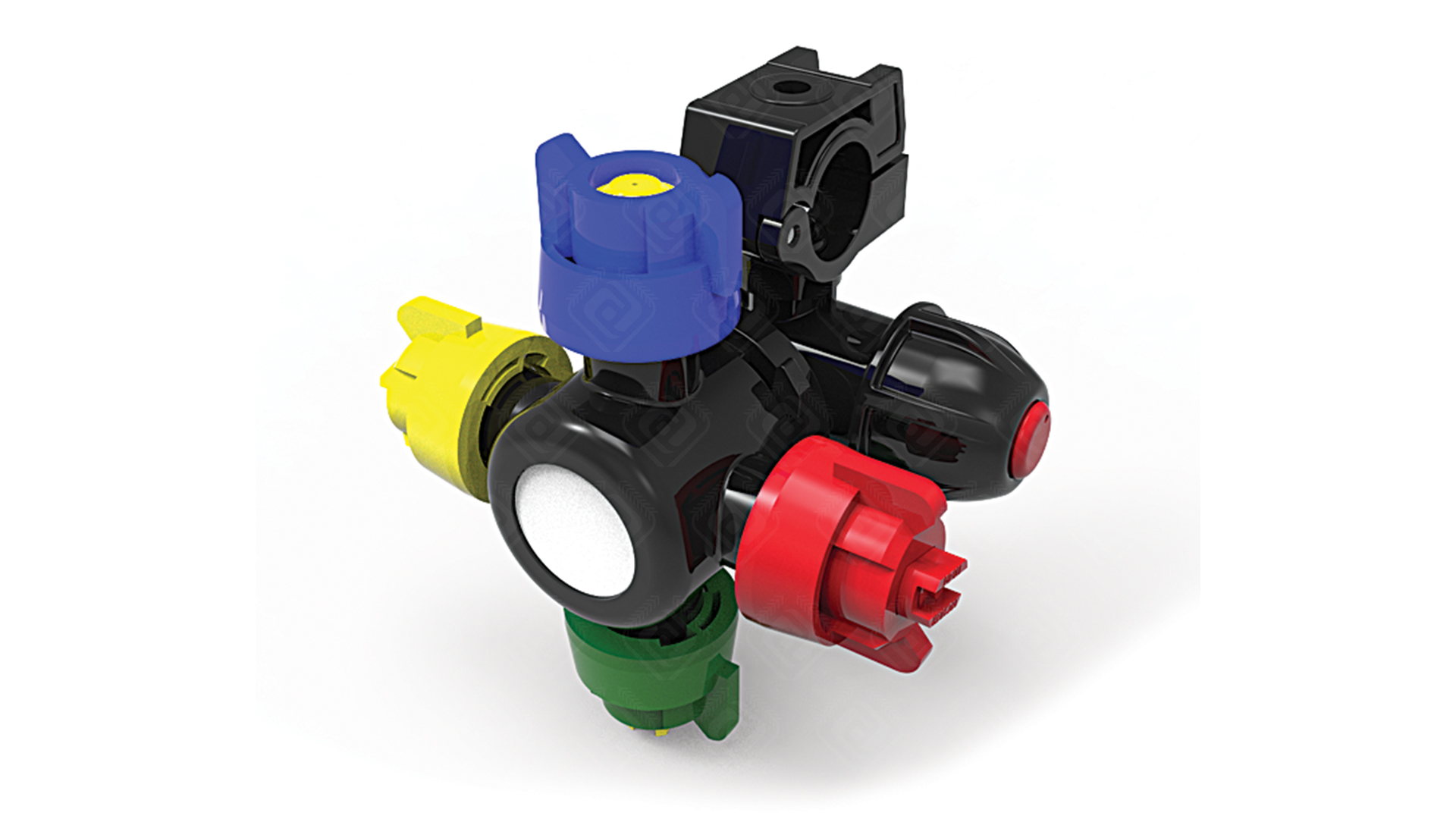

Quadr Plastic Nozzle

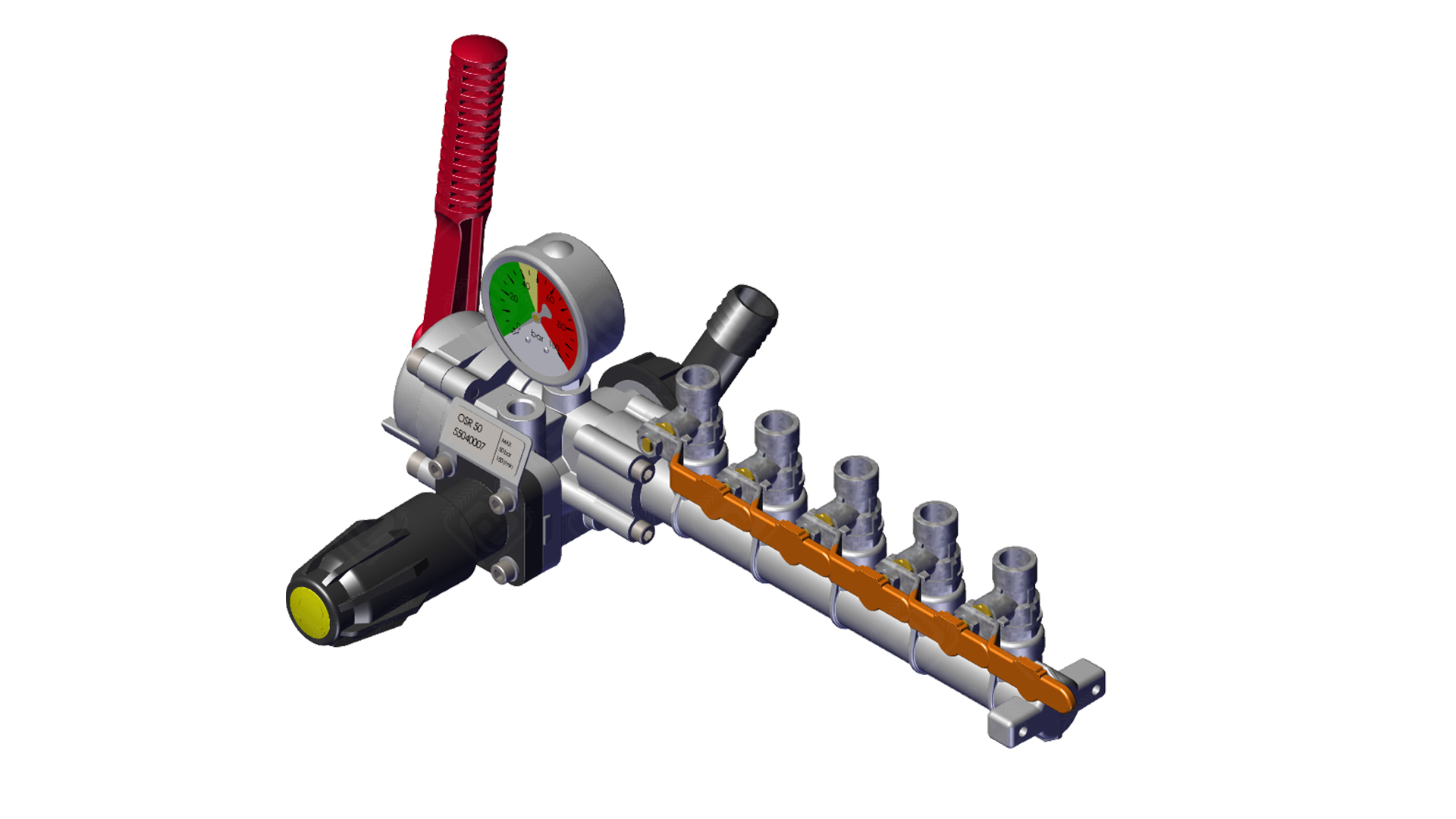

FPR 20-3 Pressure Regulator

Mixer

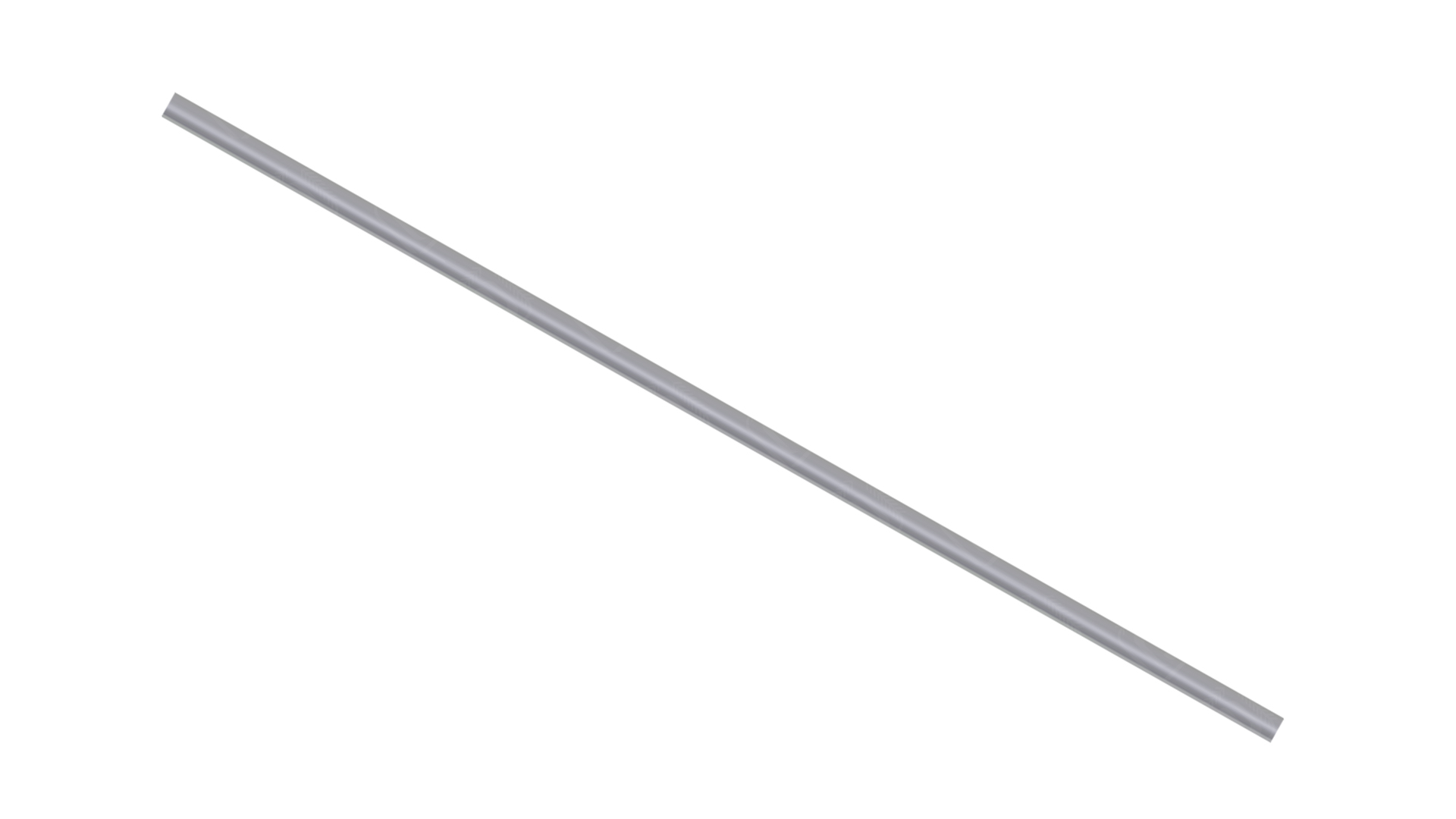

Chrome Spraying Pipe

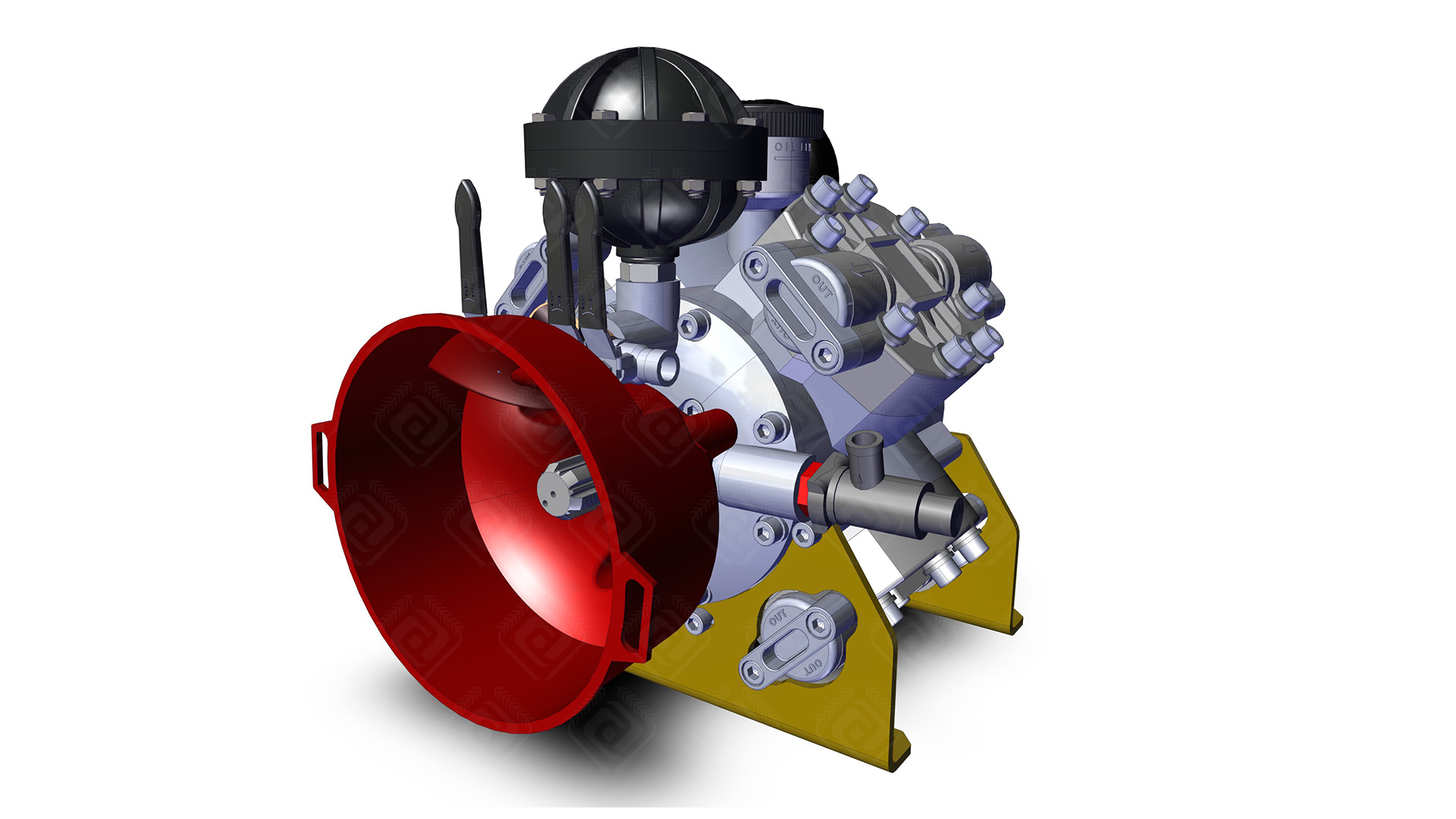

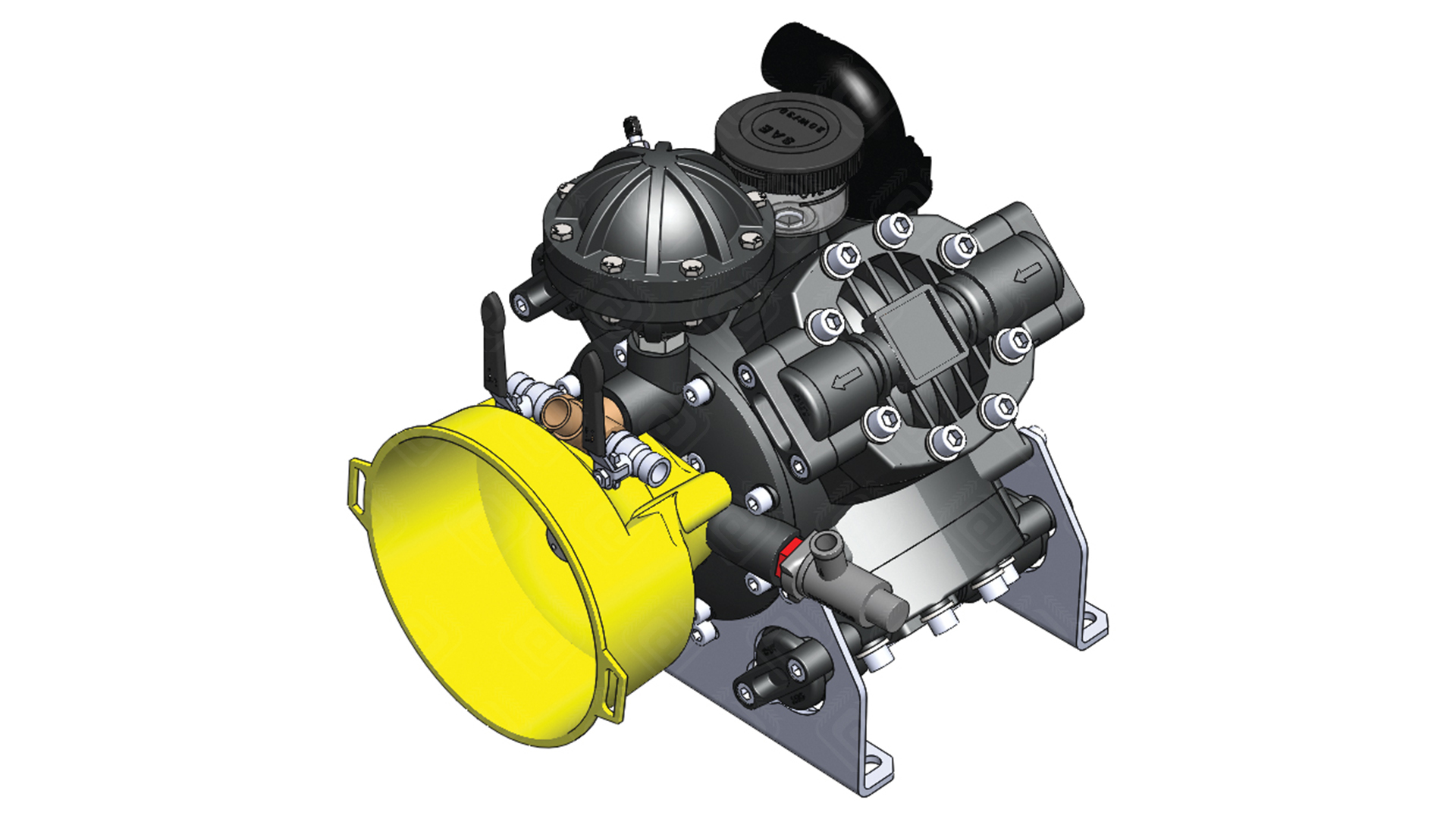

Best quality 4 membrane C145 pump which is produced by our factory is the most efficient product in its segment.

APS 145 Pump

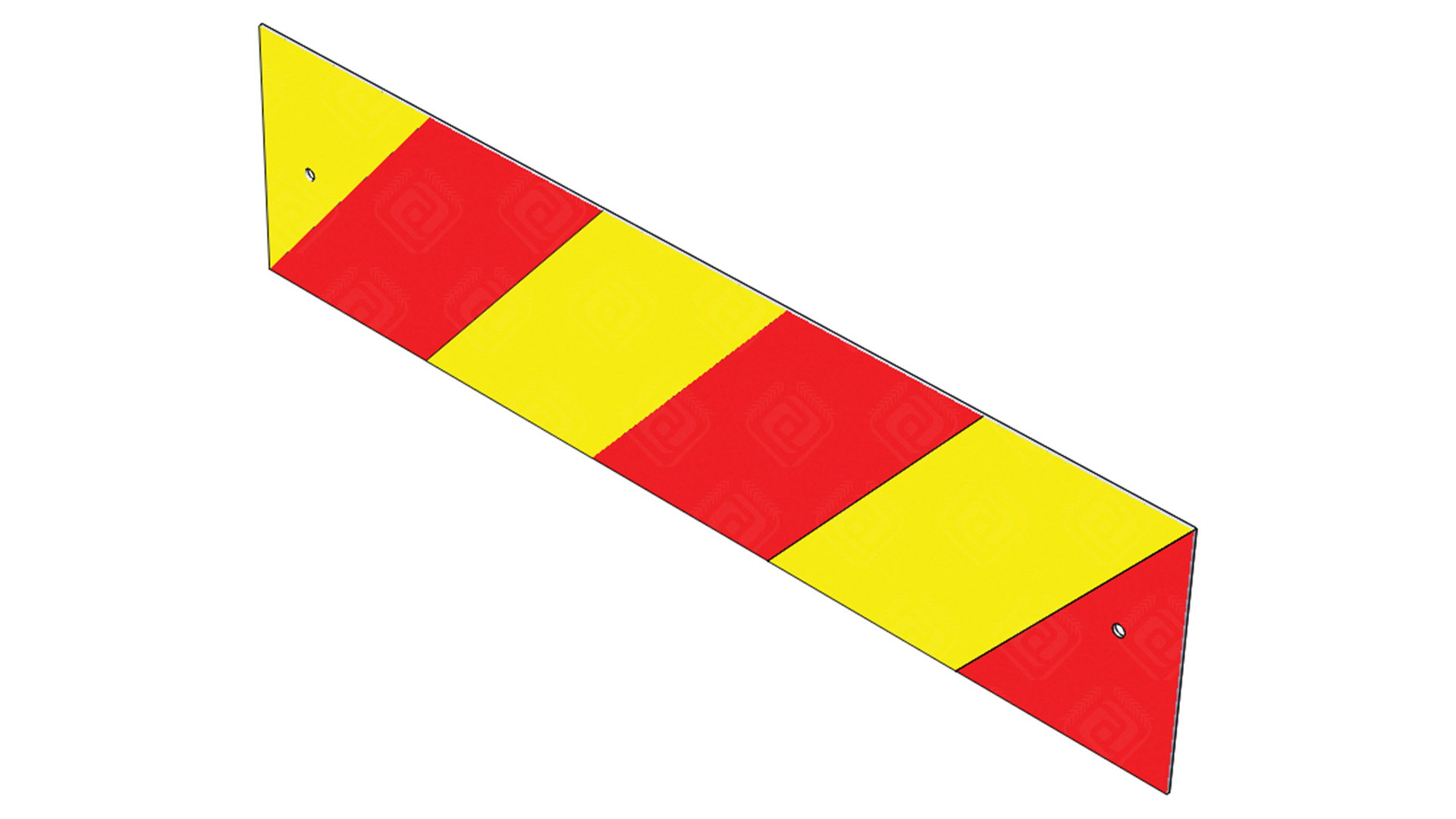

Traffic Warning Sign

Spraying Proportioning

TECHNICAL SPECIFICATIONS

Technical Specifications*	Unit	ALFA X 600	ALFA X 800	ALFA X 1000
Capacity	L	600	800	1000
Capacity	gallon	158	211	264
Width without boom (W)	mm	1750	1850	1850
Width without boom (W)	ft.in	5’9”	6’1”	6’1”
Length without boom (L)	mm	1070	1070	1070
Length without boom (L)	ft.in	3’6”	3’6”	3’6”
Total Height (H)	mm	2200	2200	2200
Total Height (H)	ft.in	7’3”	7’3”	7’3”
Pump Type		C 96 / membrane
Pump Flowrate	L/min	96
Pump Pressure	bar	50
Boom Length	m	15
Boom Length	ft.in	48’
Regulator Model		OSR
Pressure Safety Valve		standard
Tank Mixer		standard
Tank Washing System		standard
Tank Material		polyethylene
PTO Rotation	rpm	540
Required Power	hp	50-60	70-80	90-100
Total Weight	kg	345	375	385
Total Weight	Ibs	760	826	848

Technical Specifications*	Unit	BOOMS
Working Width	m	15
Working Width	ft.in	48’
Total Length (L1)	mm	1670
Total Length (L1)	ft.in	5’6”
Total Width (W1)	mm	2450
Total Width (W1)	ft.in	8’1”
Boom Type		Full Hyd.
Number of the nozzles	pcs	30
Nozzle Type		Conical / T-Jet
Distance between Nozzle	mm	500
Distance between Nozzle	ft.in	1’8”
Height	mm	2800
Height	ft.in	2’6”
Weight	kg	285
Weight	Ibs	628

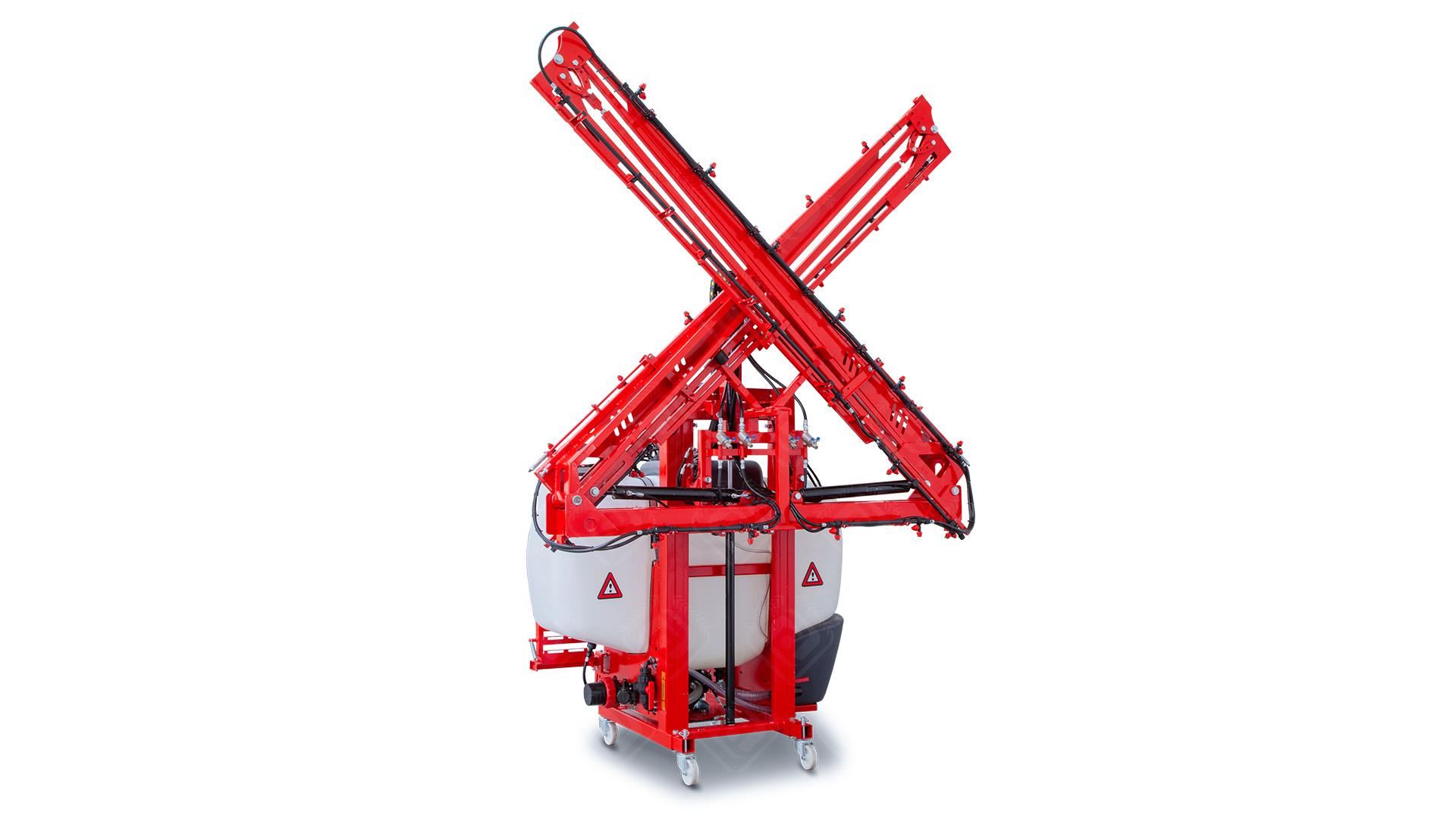

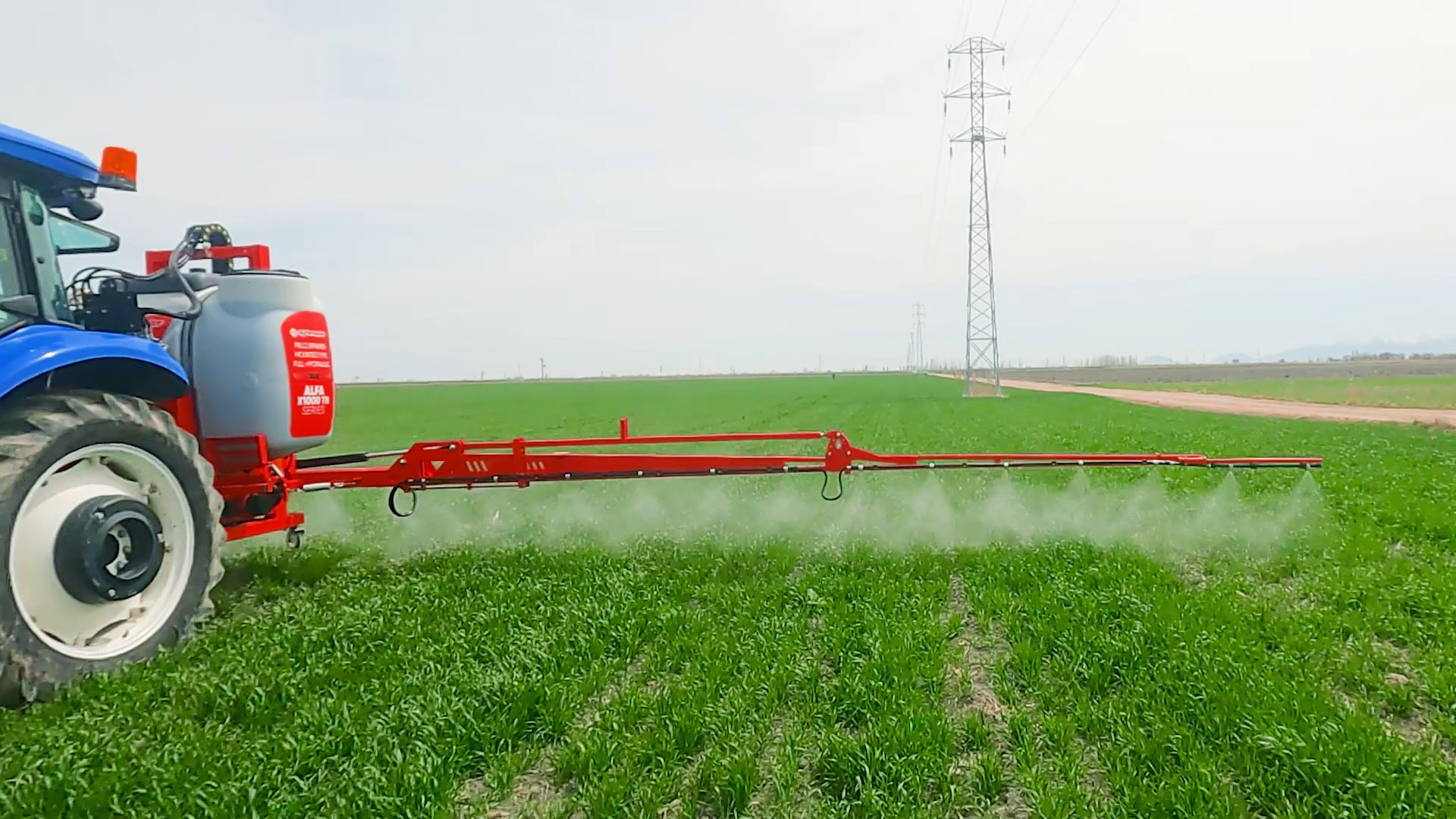

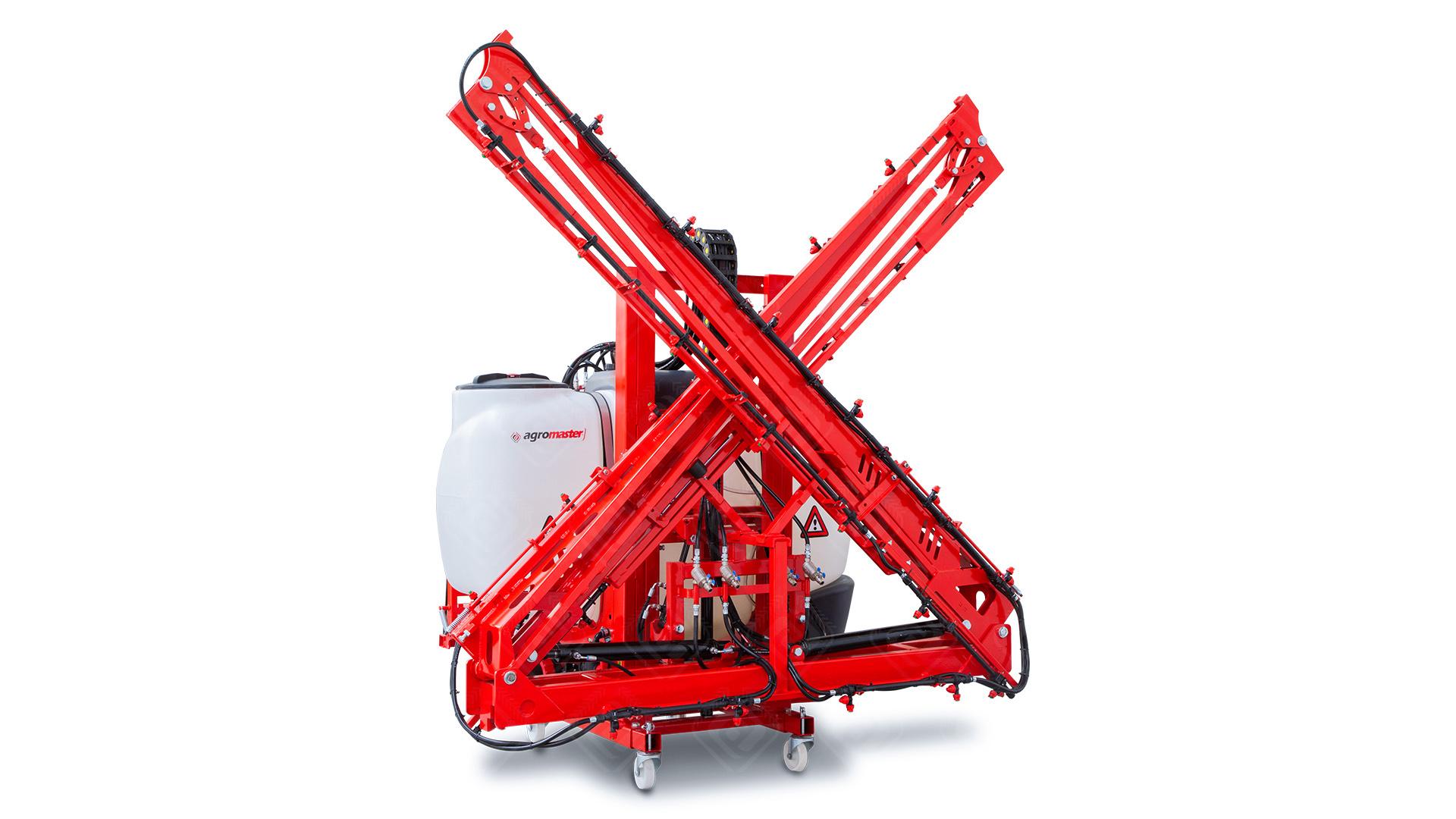

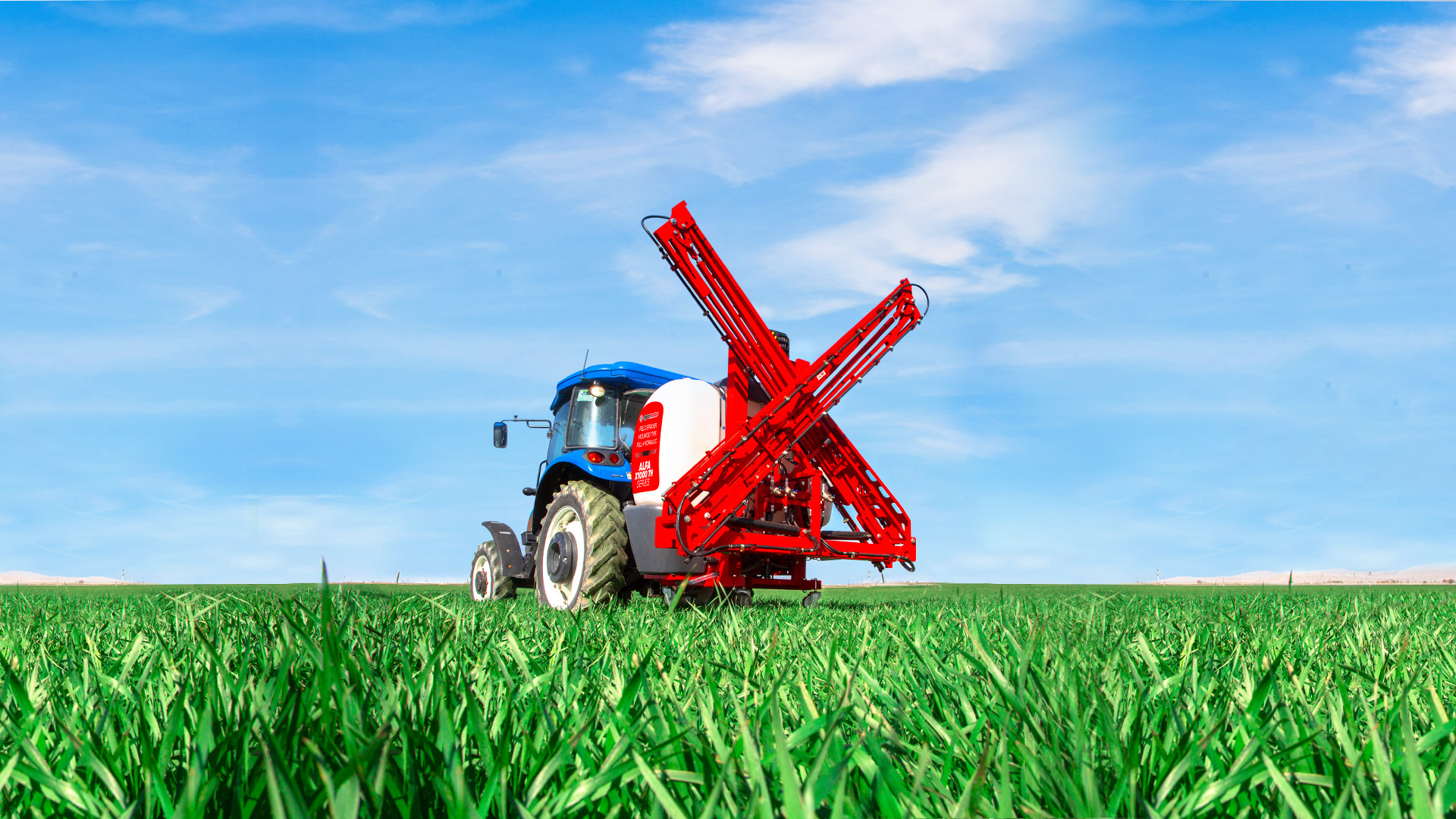

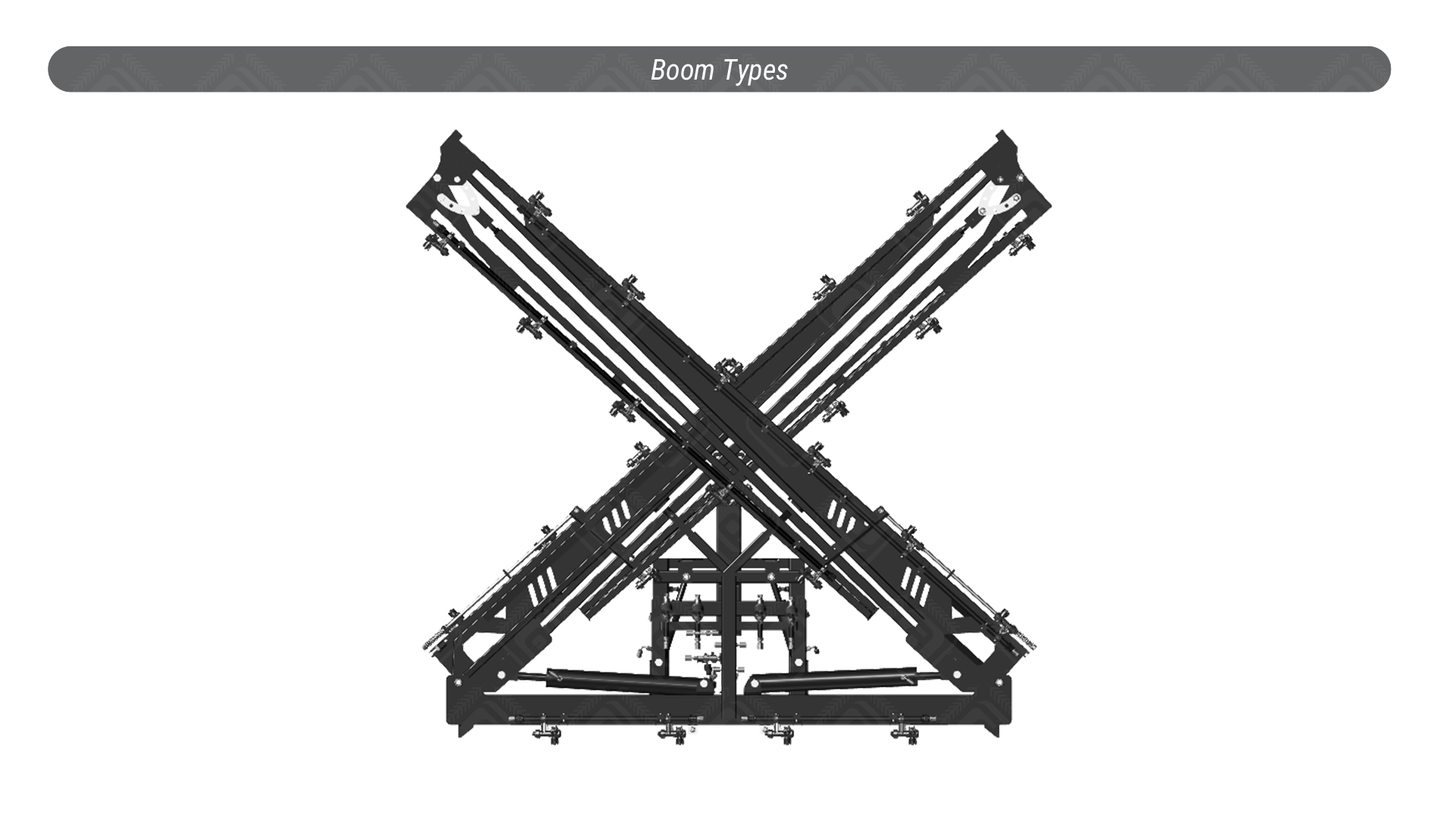

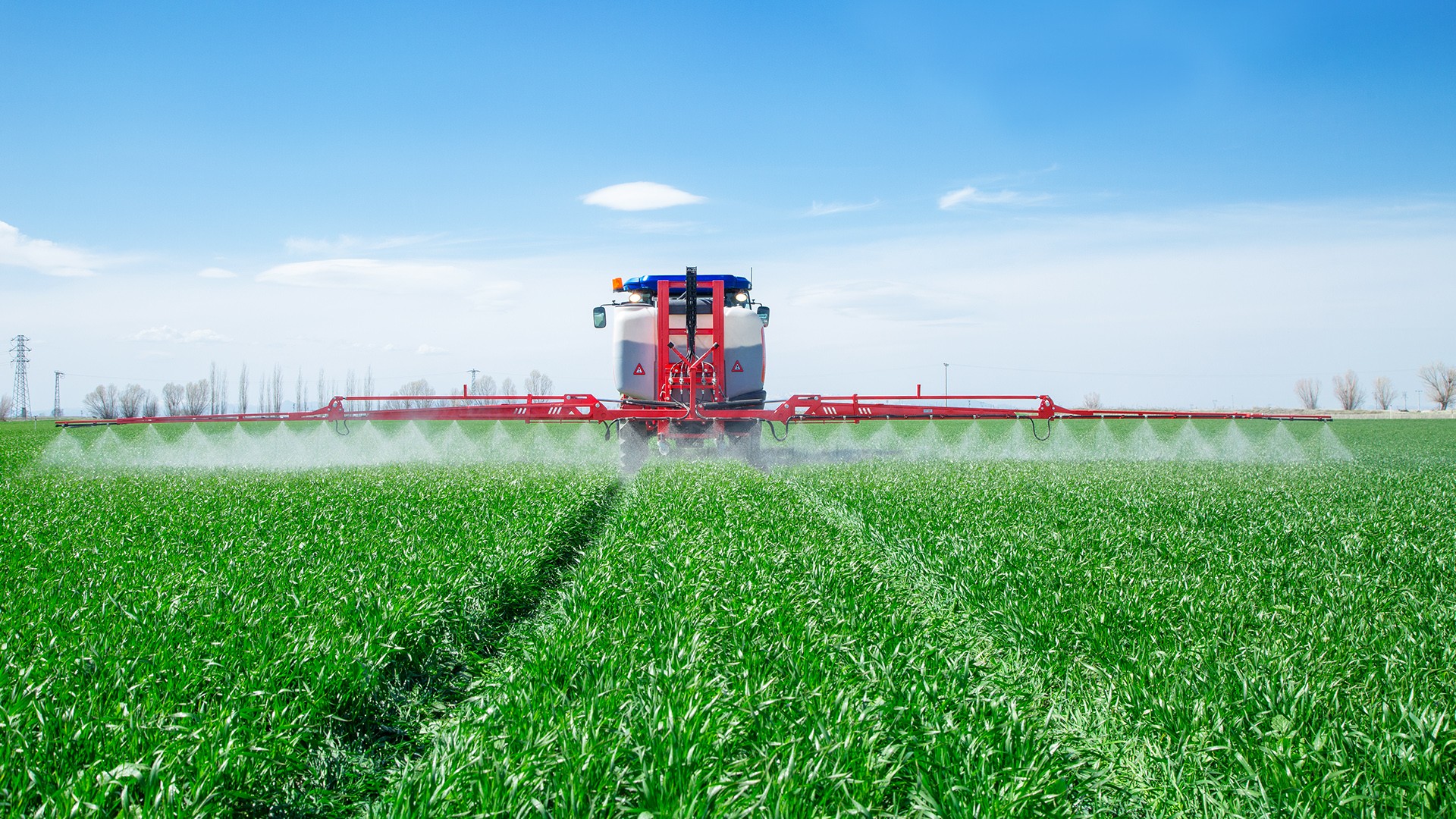

The ALFA X Mounted Field Sprayer is equipped with a robust 15-meter X-type boom, engineered to provide exceptional stability, uniform spray distribution, and precise application across the entire working width. Designed for high-capacity field operations, the X-type boom offers excellent structural strength and reliable performance, while minimizing boom movement during operation. Its durable construction ensures consistent spraying efficiency, improved crop protection, and long-lasting performance under demanding agricultural conditions.

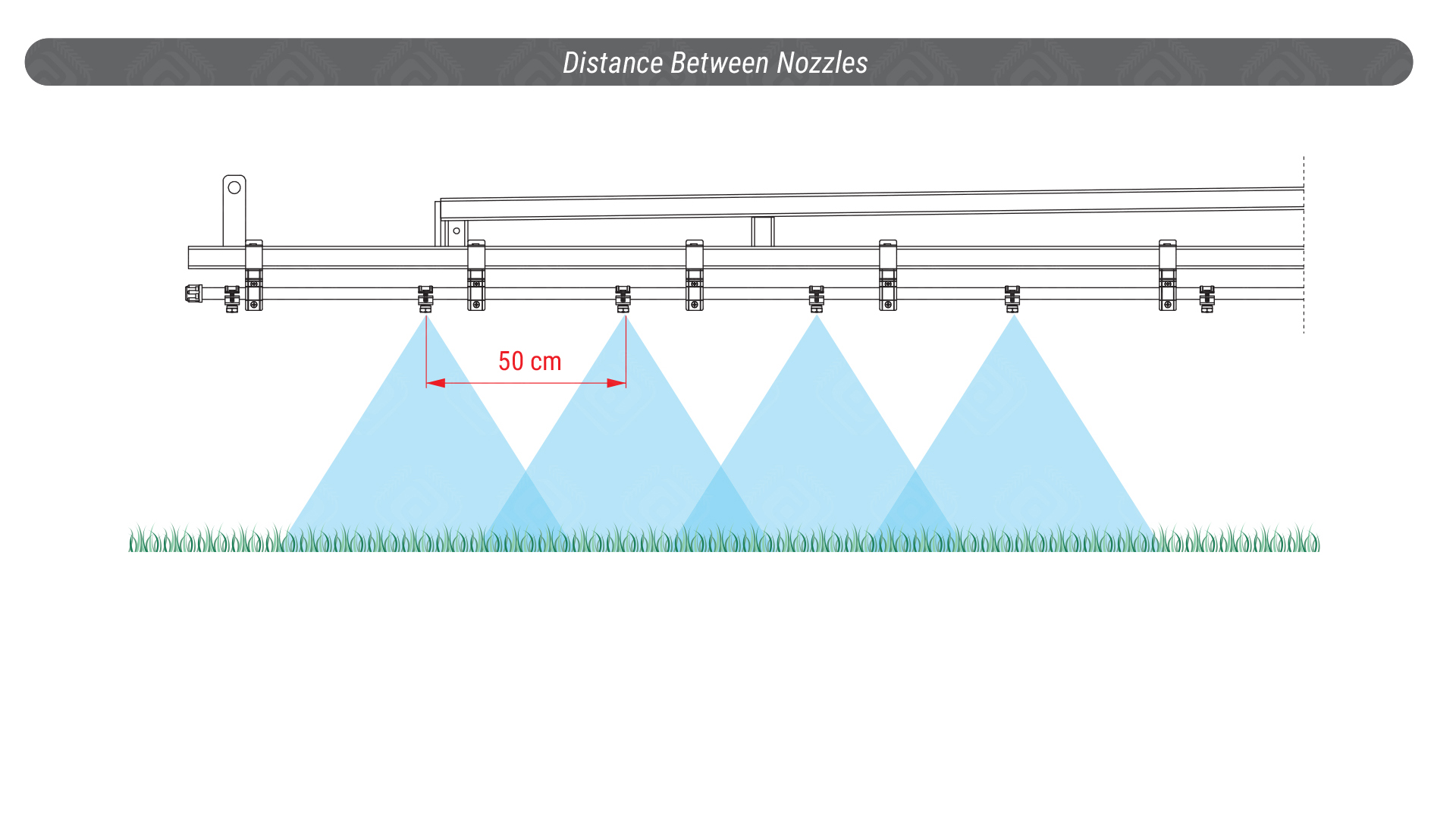

Optimized nozzle spacing ensures ideal spray pattern overlap, providing uniform distribution across the entire working width. This design enhances application accuracy, maximizes target coverage, reduces chemical waste, and delivers consistent spraying performance under a wide range of field conditions.

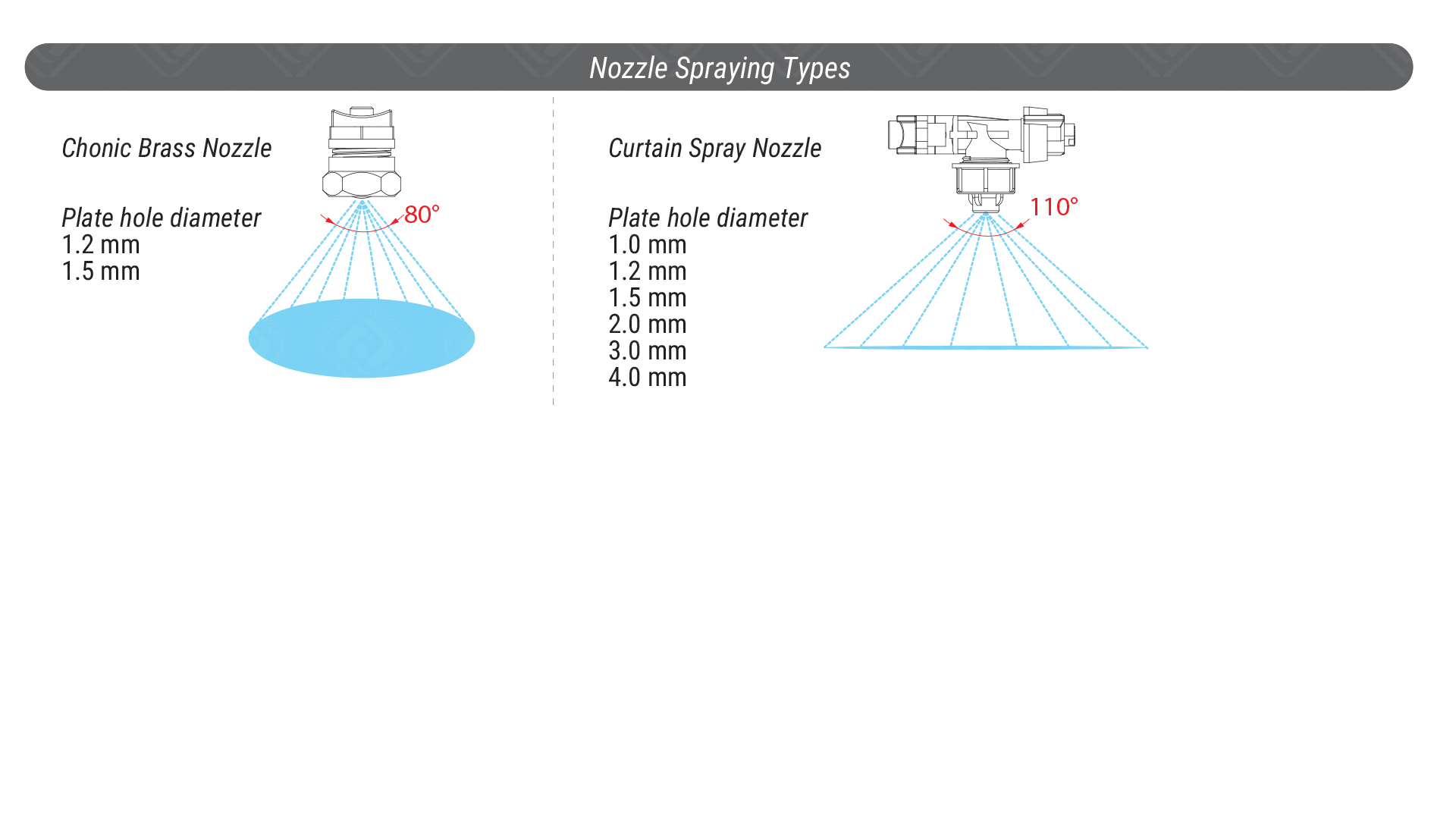

The sprayer is available with conical brass nozzles and curtain spray nozzles to suit different crop protection requirements. Conical brass nozzles are offered with 1.2 mm and 1.5 mm orifice sizes and produce an 80° spray pattern, while curtain spray nozzles are available with 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 3.0 mm, and 4.0 mm orifice sizes, delivering a 110° spray angle for uniform coverage and precise application across a wide range of field conditions.

Its innovative boom design allows independent operation of a single boom wing, providing greater flexibility for spraying along field edges, boundaries, and irregularly shaped areas while reducing chemical waste and improving operational efficiency.

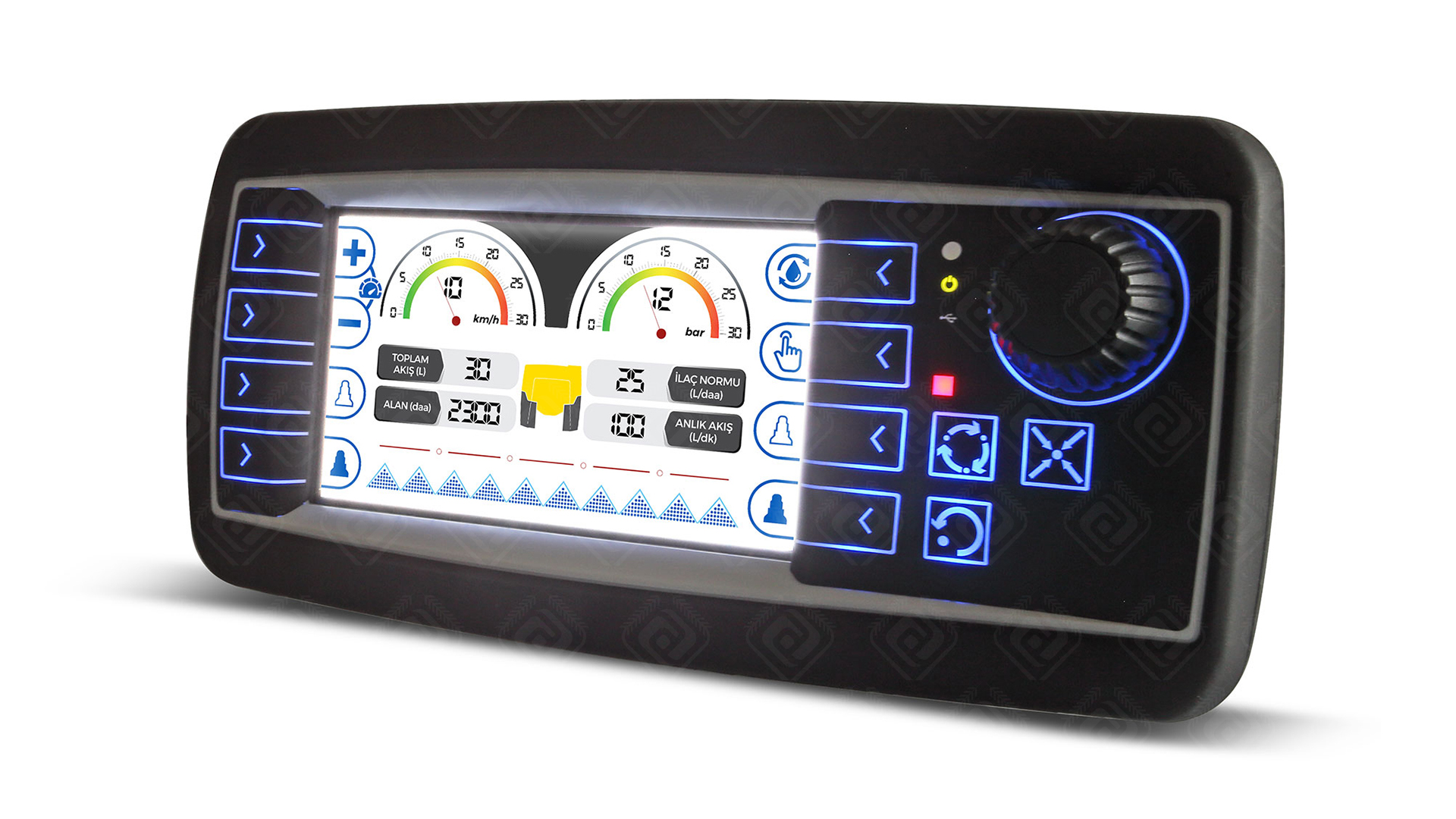

Smart proportional spraying technology continuously adjusts the application rate to match the tractor's speed, delivering the exact amount of spray at every moment. Achieve maximum crop protection, minimize chemical waste, reduce operating costs, and ensure uniform coverage across every hectare with unmatched precision.
