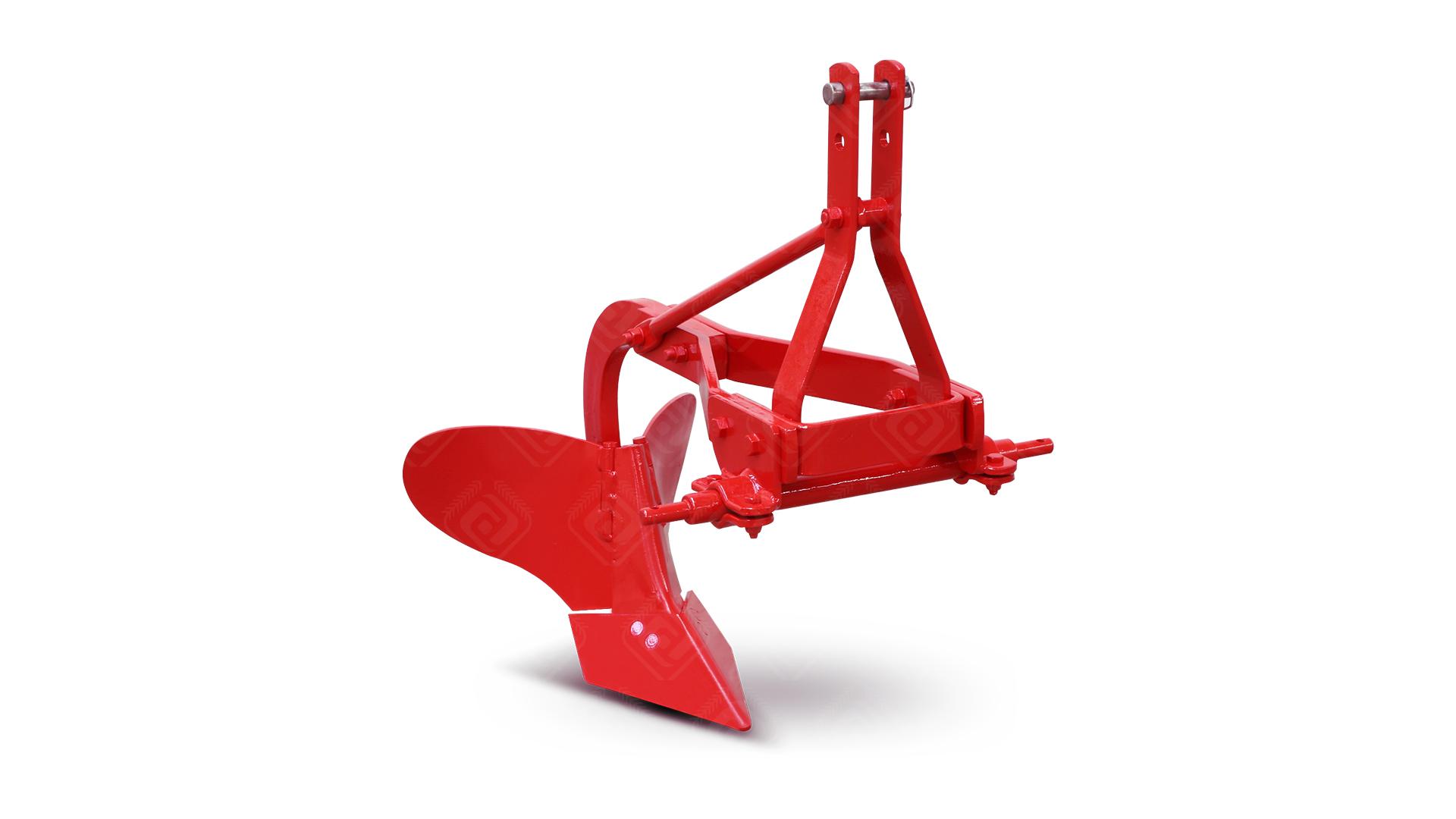

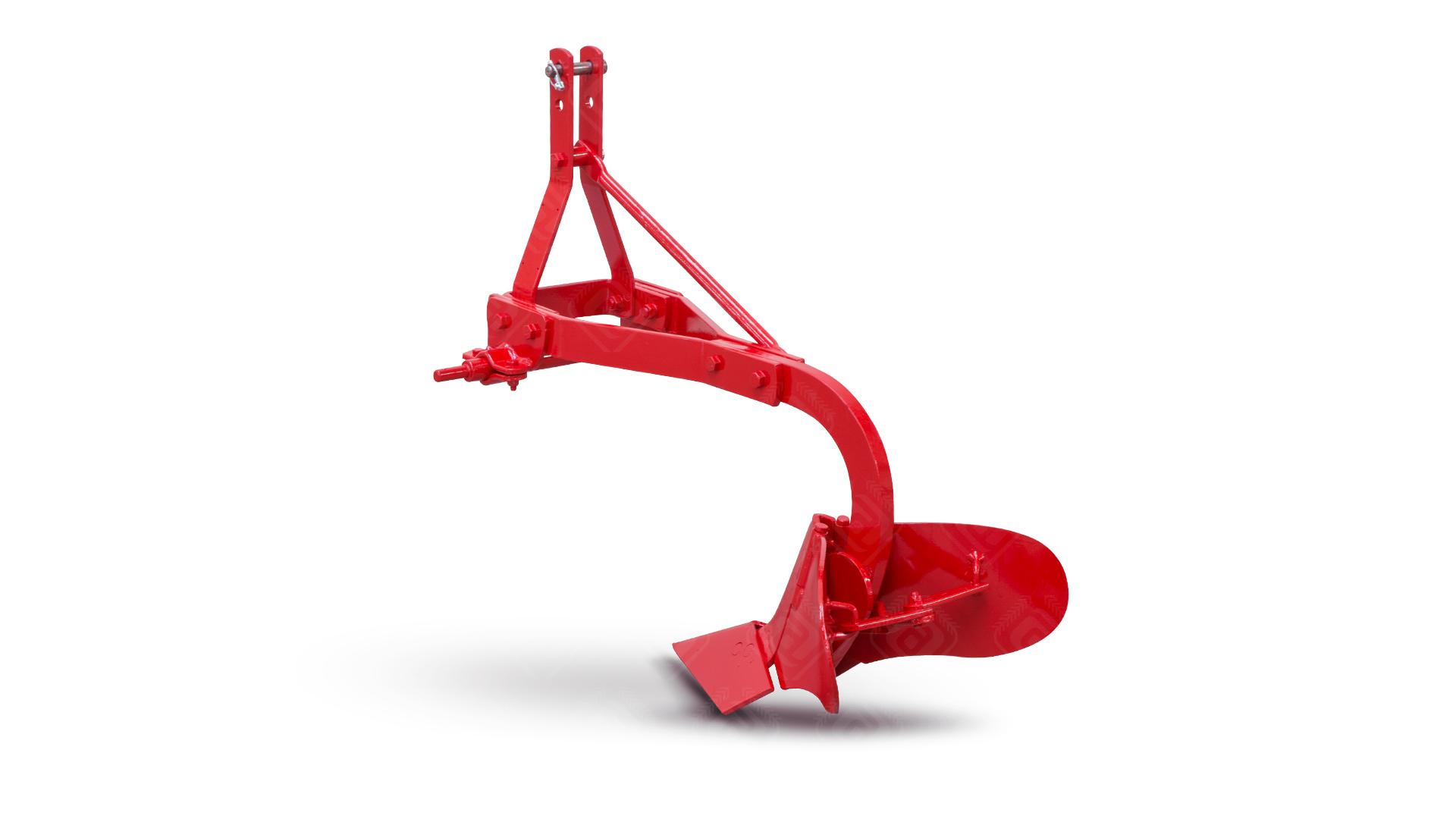

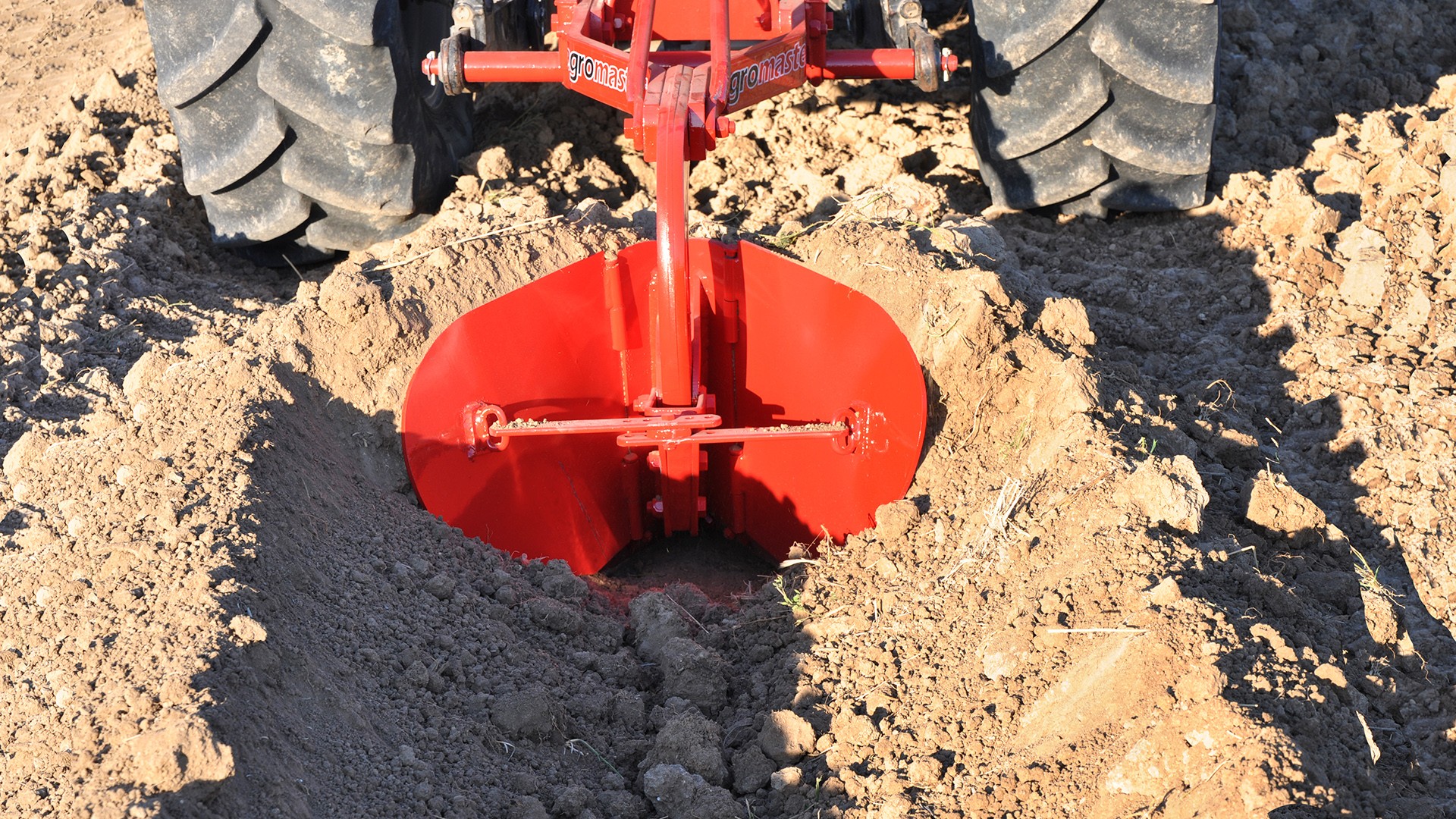

The primary soil tillage machine is mounted and from tractor’s hydraulic lifting unit and universal three point linkage system. Therefore transportation to the field can be easily done.Furrow width could be adjusted according to the demanded range owing to its adjustable moldboard.The usage aim of the machine is to open furrows between rows and ridging forrow-planted seeds such as; corn,sunflower,cotton,etc.
|
Technical Specifications* |
Unit |
SMR 12 |
SMR 14 |
SMR 18 |
SMR 20 |
|
Total Width (W) |
mm |
810 |
810 |
810 |
810 |
|
ft.in. |
2'8" |
2'8" |
2'8" |
2'8" |
|
|
Total Length (L) |
mm |
1300 |
1350 |
1400 |
1450 |
|
ft.in |
4'3" |
4'5" |
4'7" |
4'9" |
|
|
Total Height (H) |
mm |
1200 |
1200 |
1200 |
1200 |
|
ft.in |
3'11" |
3'11" |
3'11" |
3'11" |
|
|
Working Dept (max) |
mm |
350 |
350 |
350 |
350 |
|
ft.in |
14" |
14" |
14" |
14" |
|
|
Working Width (W1) |
mm |
880 |
900 |
920 |
1000 |
|
ft.in. |
2'11" |
2'12" |
3' |
3'3" |
|
|
Required Power |
hp |
45-50 |
50-60 |
65-70 |
80-90 |
|
Weight |
kg |
175 |
175 |
180 |
230 |
|
Ibs |
385 |
385 |
396 |
507 |
