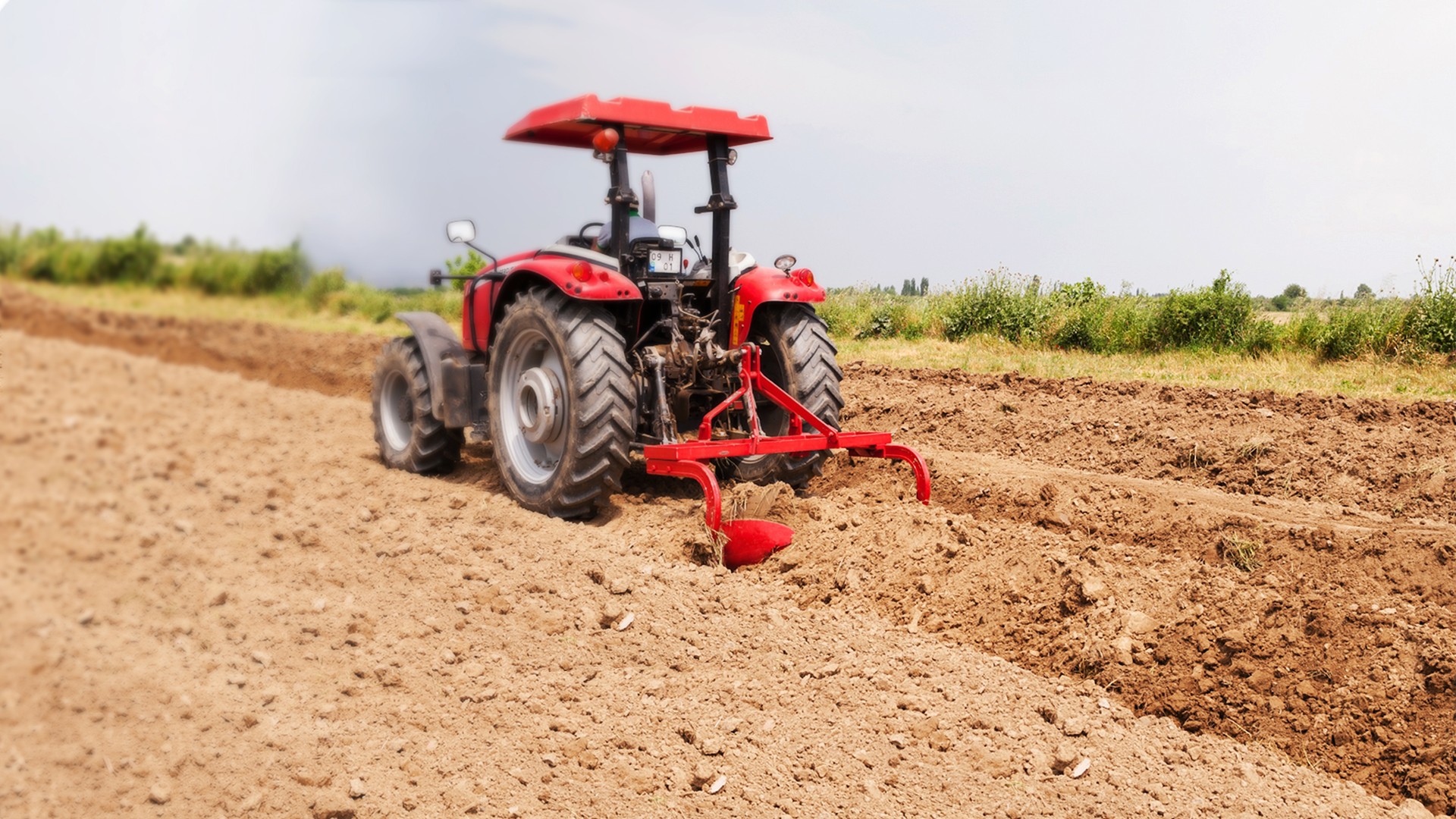

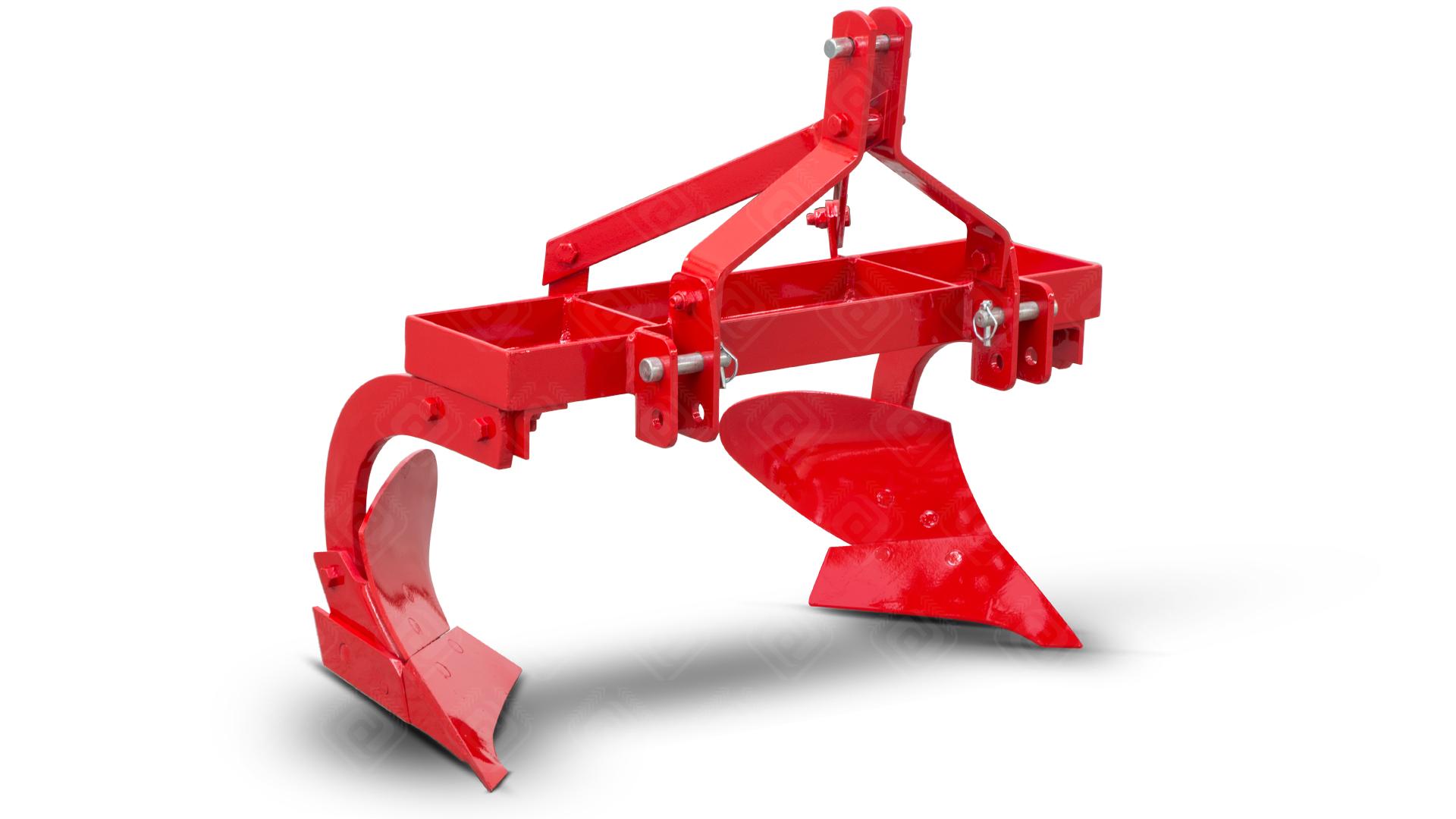

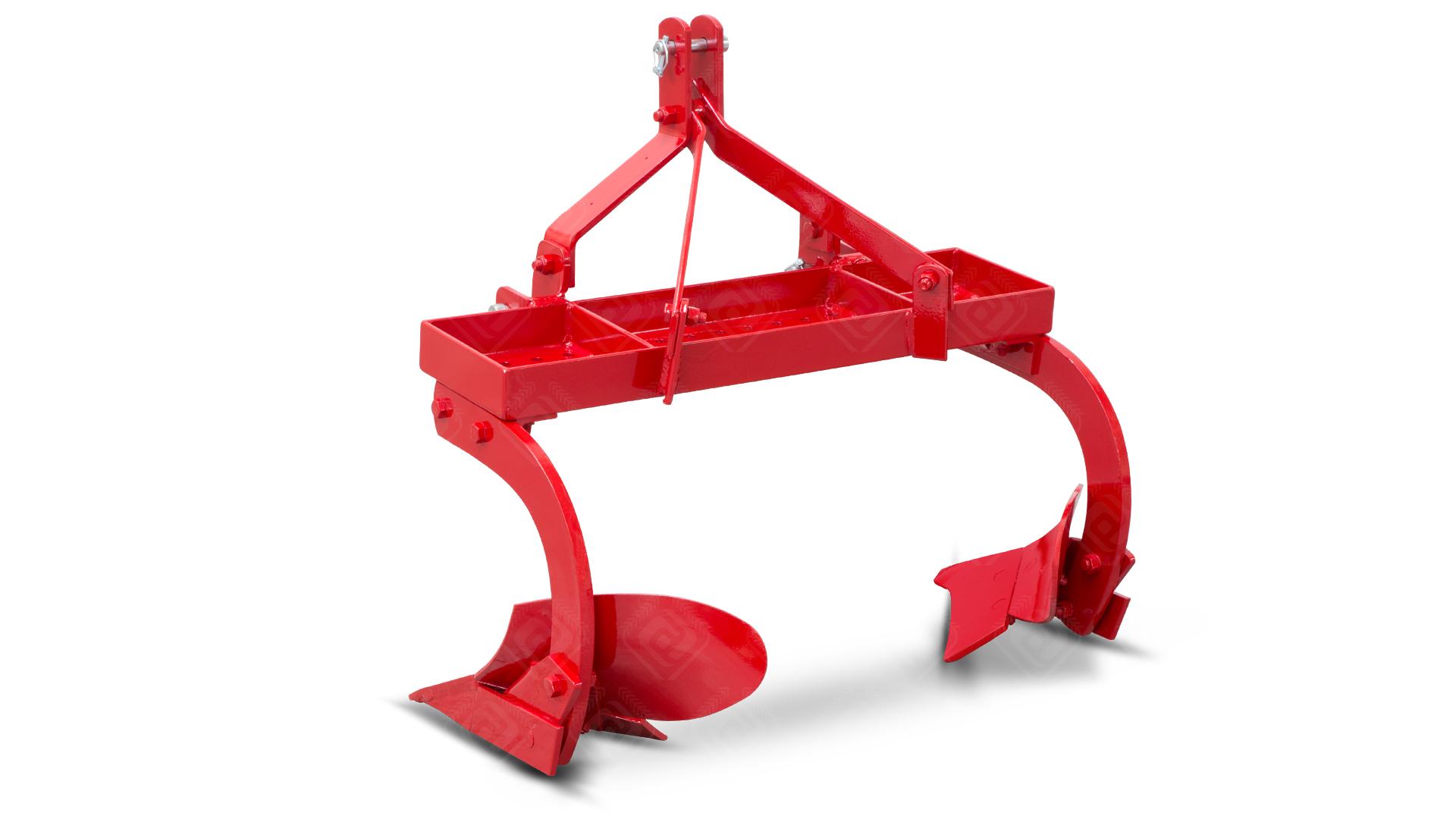

The primary soil tillage machine is mounted from tractor's hydraulic lifting unit and universal three point linkage system. Therefore transportation to the field can be easily done.The machine has an opportunity to open furrow or ridge as demanded wideness owing to its moldboard connection on the angle chassis. The usage aim of the machine is to make water channel, open furrows and make ridges between rows and ridging for row-planted seeds such as; corn, sunflower, cotton, etc.When moldboards meet in the center it is used as furrow opener and when changed the right and left moldboards in place of each other the machine used as ridger.
|
Technical Specifications* |
Unit |
SKP 010 |
SKP 012 |
SKP 014 |
SKP 016 |
SKP 018 |
|
Number of The Disc |
pcs |
2 |
2 |
2 |
2 |
2 |
|
Total Width (W) |
mm |
950 |
950 |
950 |
950 |
950 |
|
ft.in. |
3'1" |
3'1" |
3'1" |
3'1" |
3'1" |
|
|
Total Length (L) |
mm |
1700 |
1700 |
1700 |
1700 |
1700 |
|
ft.in |
5'7" |
5'7" |
5'7" |
5'7" |
5'7" |
|
|
Total Height (H) |
mm |
1300 |
1300 |
1300 |
1300 |
1300 |
|
ft.in |
4'3" |
4'3" |
4'3" |
4'3" |
4'3" |
|
|
Working Dept (max) |
mm |
220 |
260 |
280 |
300 |
320 |
|
ft.in |
9" |
10" |
11" |
12" |
13" |
|
|
Working Width |
mm |
1750 |
1800 |
1850 |
1900 |
1950 |
|
ft.in. |
5'9" |
5'11" |
6'1" |
6'3" |
6'5" |
|
|
Space Between Bodies |
Adjustment |
|||||
|
Required Power |
hp |
35-40 |
45-50 |
50-55 |
60-65 |
70-75 |
|
Weight |
kg |
245 |
249 |
255 |
260 |
355 |
|
Ibs |
540 |
548 |
562 |
573 |
782 |
|
