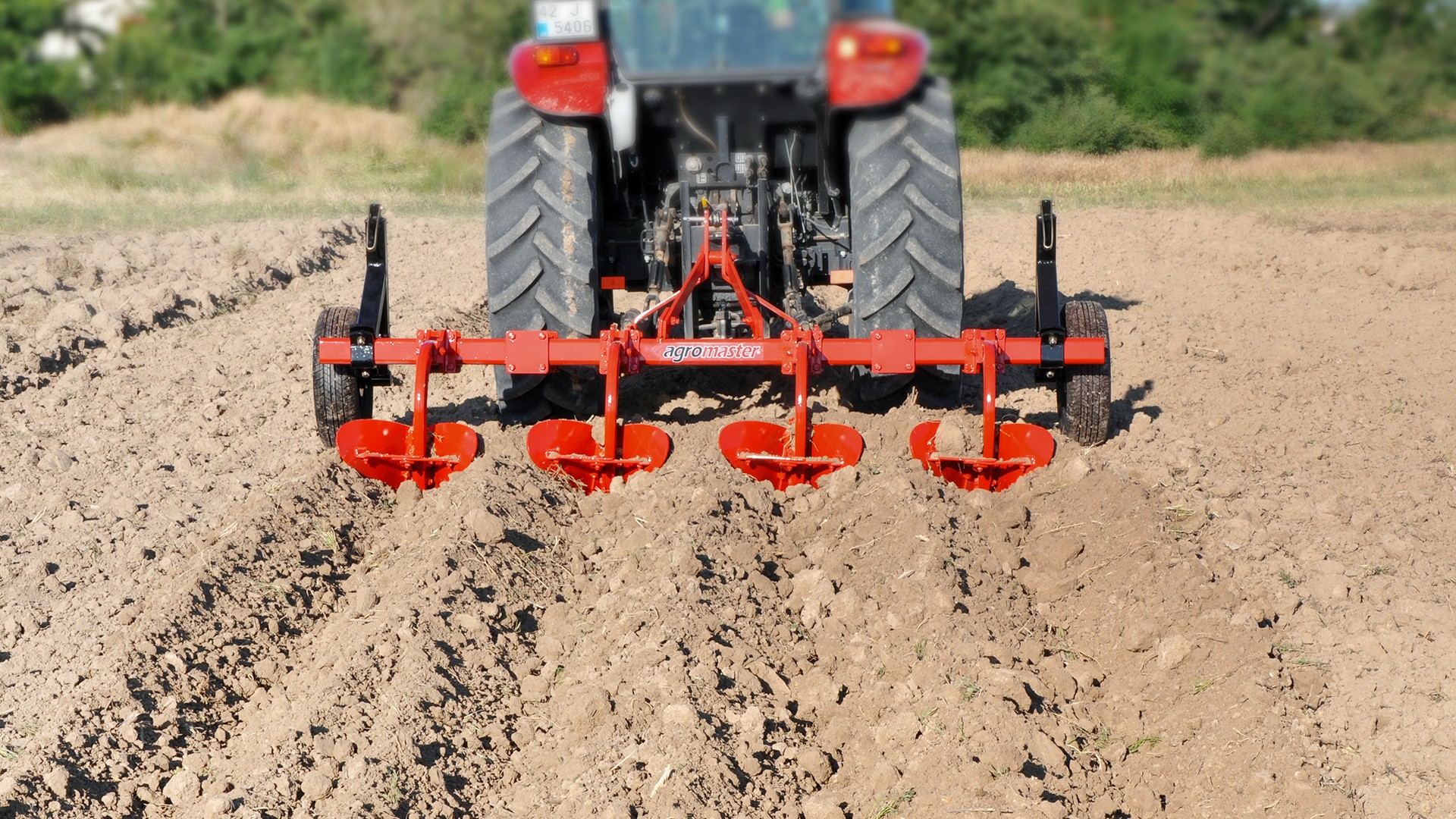

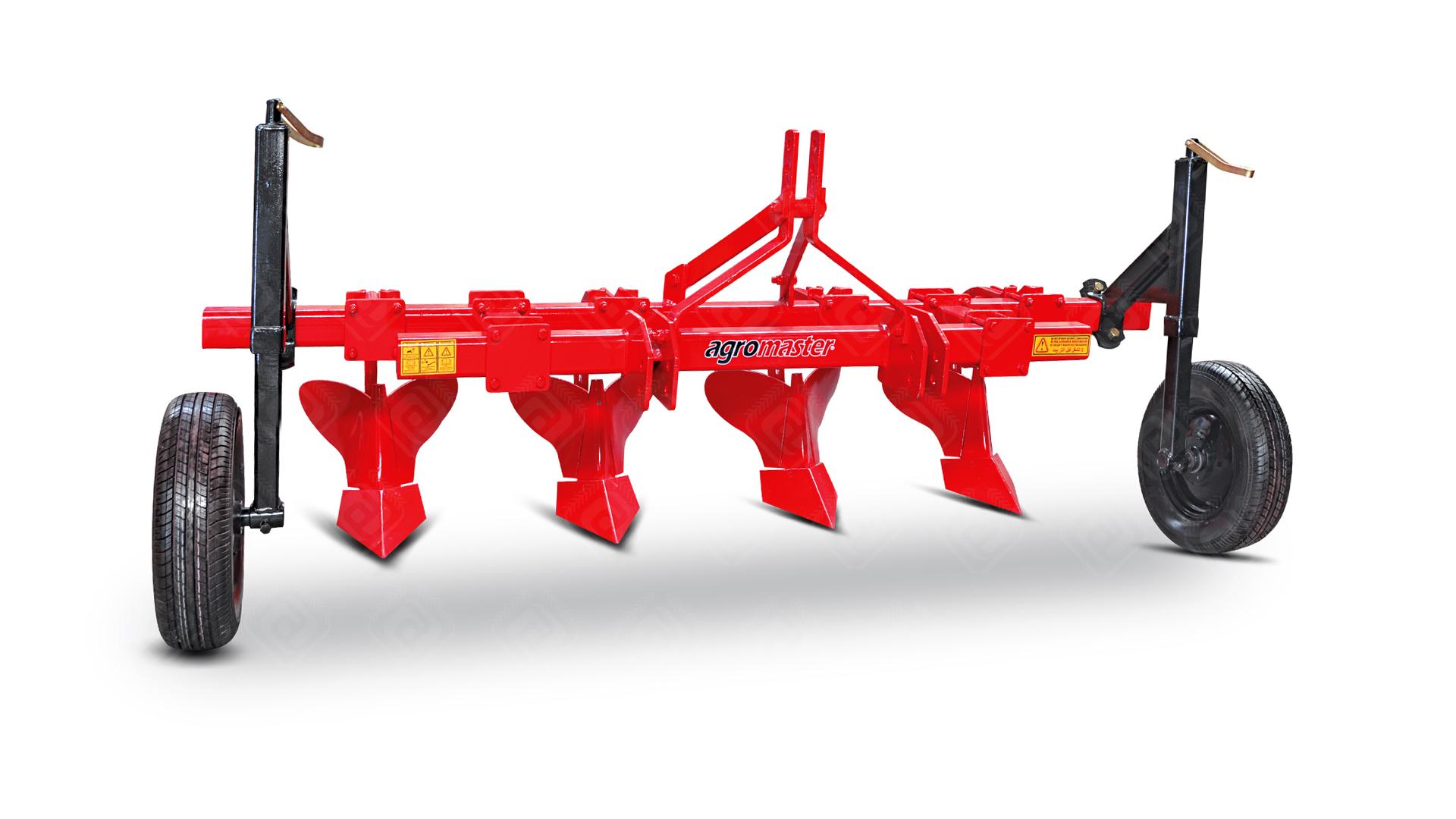

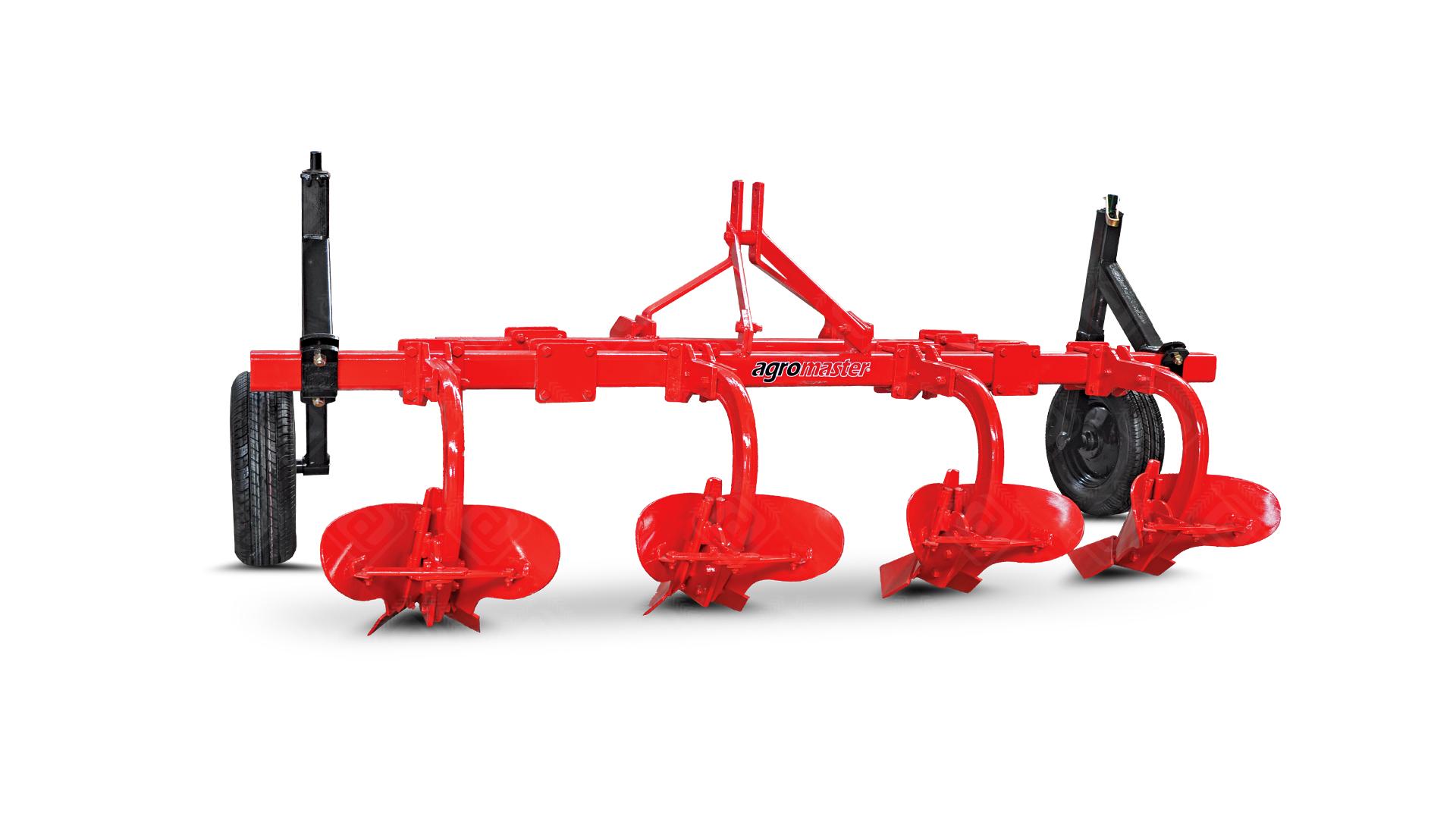

The primary soil tillage machine is mounted from tractor’s hydraulic lifting unit and universal three point linkage system. Therefore transportation to the field can be easily done.Furrow opener is placed over adjustable profile chassis and also it is manufactured as with or without wheel. It has an opportunity to enter between rows as demanded width due to its adjustable moldboards.The usage aim of the machine is to open furrows between rows and ridging for row-planted seeds such as; corn,sunflower,cotton,etc.
|
Technical Specifications* |
Unit |
MRT 3 |
MRT 4 |
MRT 5 |
|
Number of The Disc |
pcs |
3 |
4 |
5 |
|
Total Width (W) |
mm |
2100 |
2900 |
3700 |
|
ft.in. |
6'11" |
9'6" |
12'2" |
|
|
Total Length (L) |
mm |
1000 |
1000 |
1000 |
|
ft.in |
3'3" |
3'3" |
3'3" |
|
|
Total Height (H) |
mm |
1750 |
1750 |
1750 |
|
ft.in |
5'9" |
5'9" |
5'9" |
|
|
Distance Betweeen Furrows |
mm |
700-900 |
700-900 |
700-900 |
|
ft.in |
2'4"-2'11" |
2'4"-2'11" |
2'4"-2'11" |
|
|
Bottom Width of The Canal |
mm |
250 |
250 |
250 |
|
ft.in |
10" |
10" |
10" |
|
|
Canal Depth |
mm |
200-350 |
200-350 |
200-350 |
|
ft.in. |
8"-14" |
8"-14" |
8"-14" |
|
|
Canal Width |
mm |
300-340-360 |
300-340-360 |
300-340-360 |
|
ft.in. |
12"-13"-14 |
12"-13"-14 |
12"-13"-14 |
|
|
Dept Wheels |
mm |
OPTIONAL |
||
|
ft.in. |
||||
|
Required Power |
hp |
50-60 |
65-75 |
80-90 |
|
Weight |
kg |
450 |
520 |
620 |
|
Ibs |
992 |
1146 |
1366 |
|
