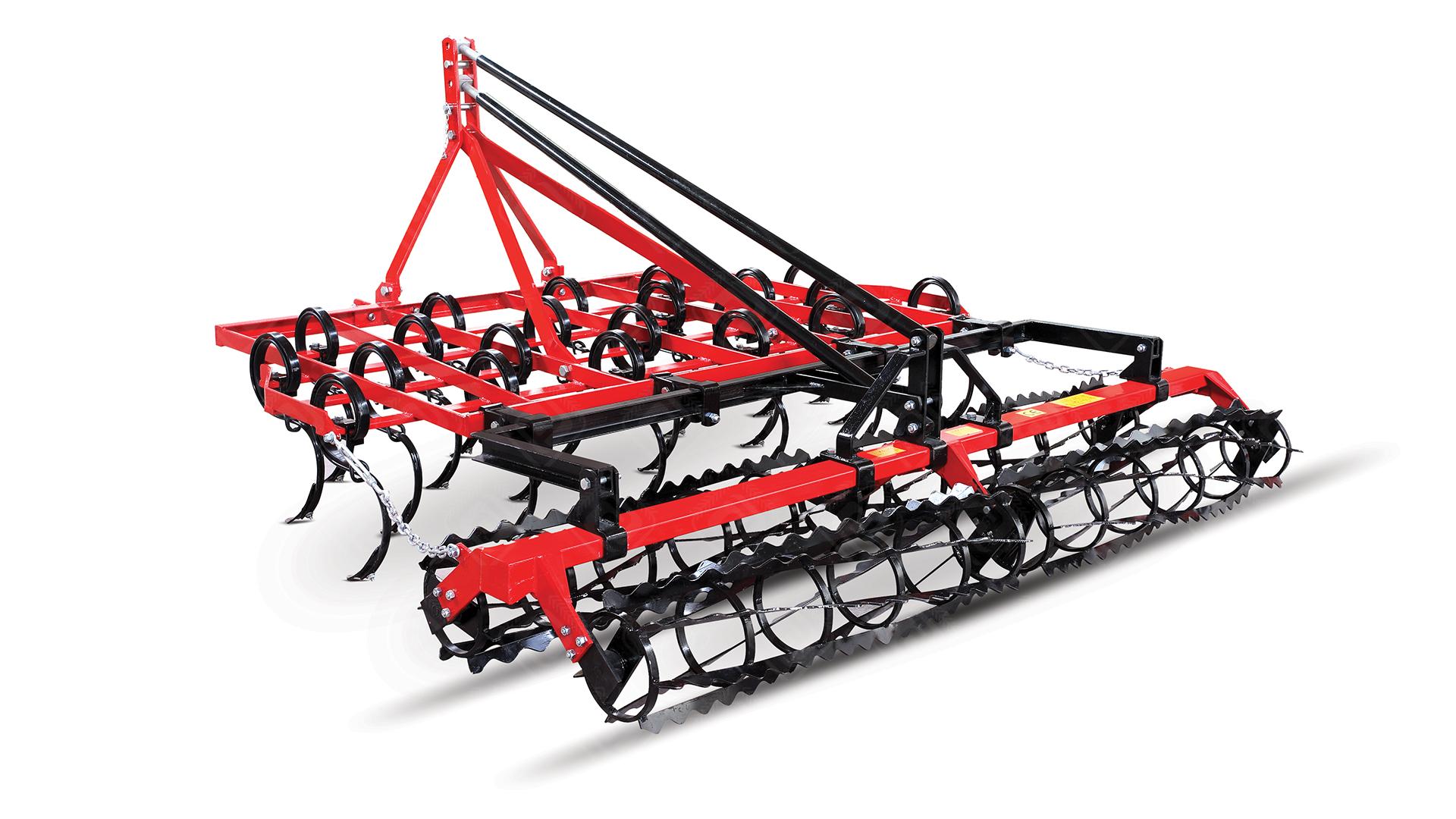

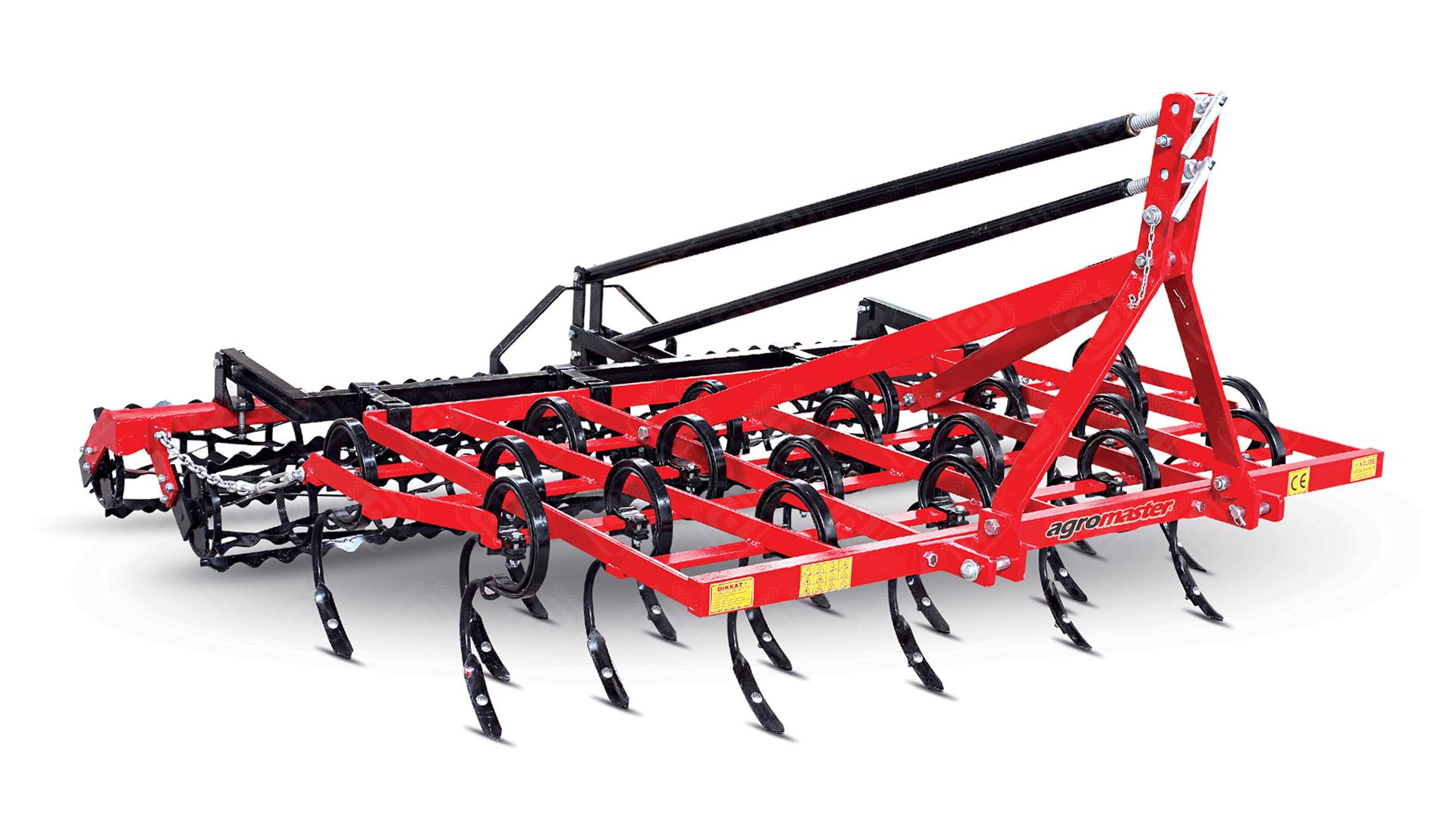

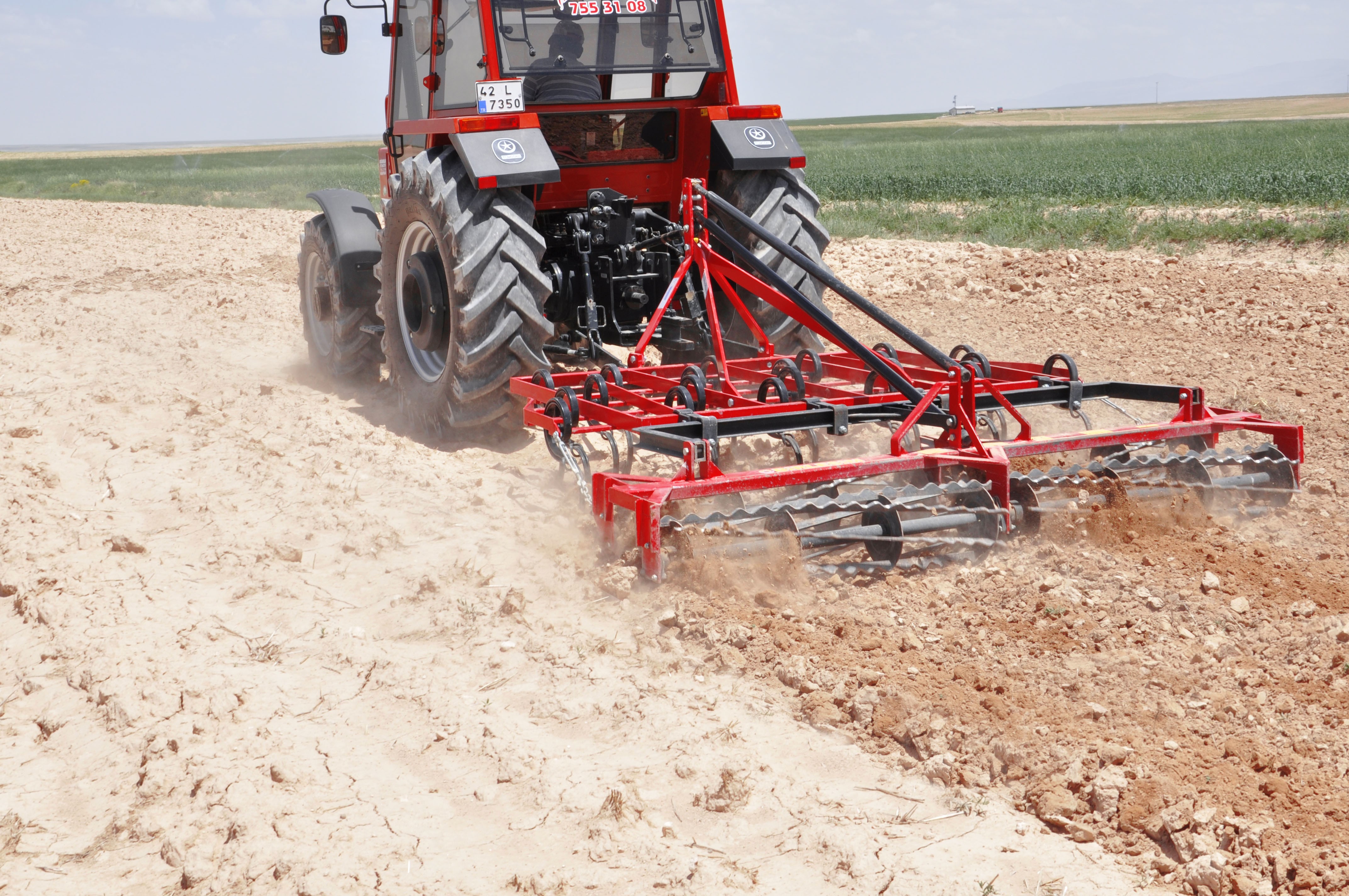

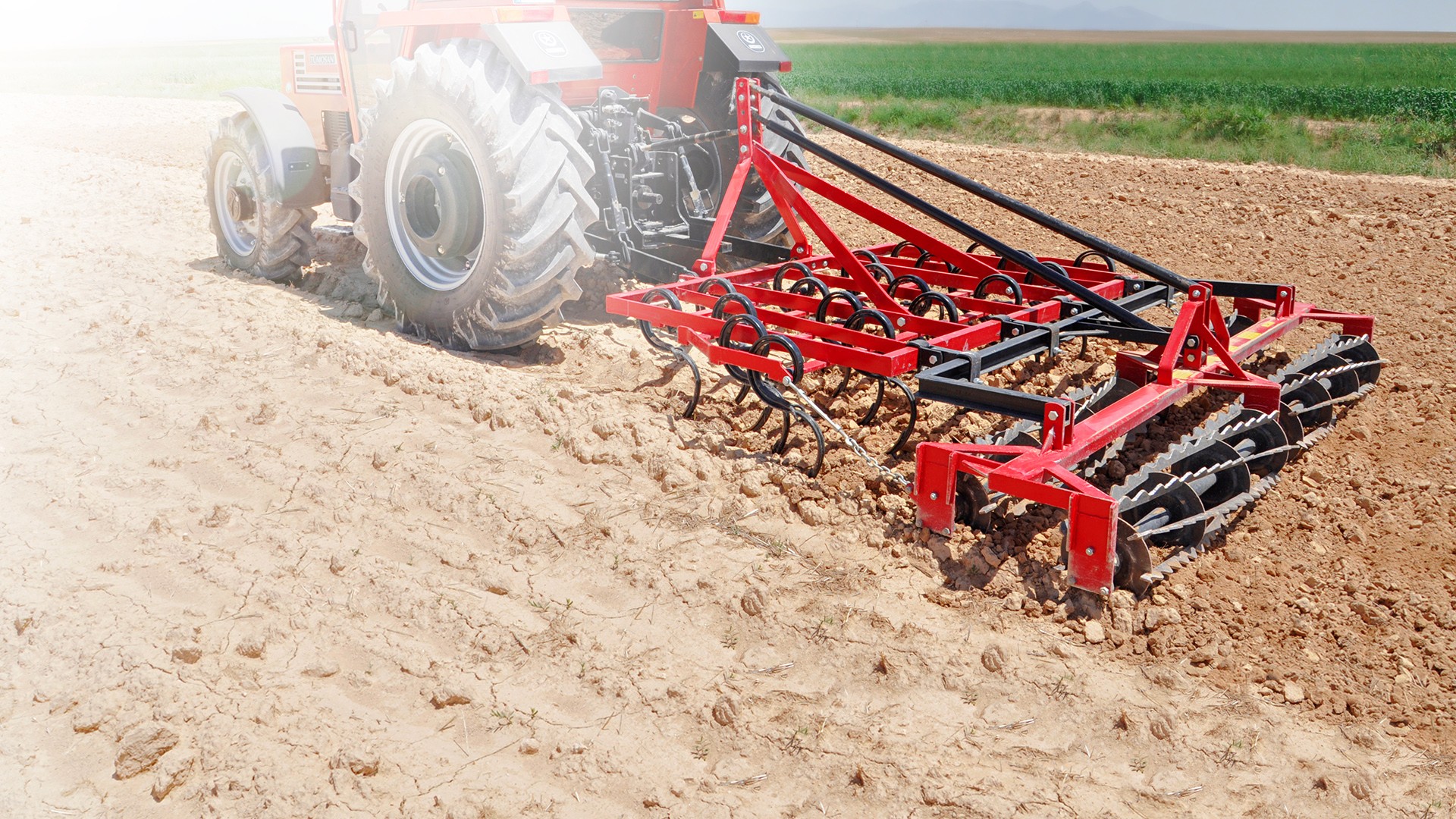

4 Row S-Tine Tiller is a secondary soil tillage machine is mounted to tractor's hydraulic lifting unit and universal three point linkage system, hydraulically mounted type machine. Therefore transportation to the field can be easily done. 4 Row S-Tine Tiller is used for preparing the soil before sowing by uprooting the weeds for to make fertilizer and preparing the seed-beds. 4 Row Tillers are manufactured as 19, 21, 23, 25, 27, 29,31feet, 65×65 mm profile chassis and 30×10 mm spiral spring foot which are made of special high-strength spring steel. Row spaces of the feet are adjustable. For preparing the soil for the sowing process single or double row roll also could be attachable at the back of the machine.
|
Technical Specifications* |
Unit |
T4 19 |
T4 21 |
T4 23 |
T4 25 |
T4 27 |
T4 29 |
T4 31 |
|
Number of Tines |
pcs |
19 |
21 |
23 |
25 |
27 |
29 |
31 |
|
Total Width (W) |
mm |
2250 |
2500 |
2750 |
3000 |
3250 |
3500 |
3750 |
|
ft.in. |
7'5" |
8'2" |
9' |
9'10" |
10'8" |
11'6" |
12'4" |
|
|
Total Length (L) |
mm |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
ft.in |
4'11" |
4'11" |
4'11" |
4'11" |
4'11" |
4'11" |
4'11" |
|
|
Total Height (H) |
mm |
1350 |
1350 |
1350 |
1350 |
1350 |
1350 |
1350 |
|
ft.in |
4'5" |
4'5" |
4'5" |
4'5" |
4'5" |
4'5" |
4'5" |
|
|
Height (H1) |
mm |
430 |
430 |
430 |
430 |
430 |
430 |
430 |
|
ft.in |
1'5" |
1'5" |
1'5" |
1'5" |
1'5" |
1'5" |
1'5" |
|
|
Working Depth (Max.) |
mm |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
ft.in. |
8" |
8" |
8" |
8" |
8" |
8" |
8" |
|
|
Working Width |
mm |
2250 |
2500 |
2750 |
3000 |
3250 |
3500 |
3750 |
|
ft.in. |
7'5" |
8'2" |
9' |
9'10" |
10'8" |
11'6" |
12'4" |
|
|
Tine Dimensions |
mm |
30x10 |
30x10 |
30x10 |
30x10 |
30x10 |
30x10 |
30x10 |
|
ft.in. |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
|
|
Space Between Tine |
mm |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
|
ft.in. |
5" |
5" |
5" |
5" |
5" |
5" |
5" |
|
|
Frame Size |
mm |
65x65 |
65x65 |
65x65 |
65x65 |
65x65 |
65x65 |
65x65 |
|
ft.in. |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
|
|
Required Power |
hp |
50-55 |
55-60 |
65-70 |
70-75 |
75-80 |
80-90 |
95-100 |
|
Weight |
kg |
340 |
390 |
440 |
490 |
540 |
590 |
640 |
|
Ibs |
749 |
859 |
970 |
1080 |
1190 |
1300 |
1410 |
|
Technical Specifications* |
Unit |
T4R 19 |
T4R 21 |
T4R 23 |
T4R 25 |
T4R 27 |
T4R 29 |
T4R 31 |
|
Number of Tines |
pcs |
19 |
21 |
23 |
25 |
27 |
29 |
31 |
|
Total Width (W) |
mm |
2250 |
2500 |
2750 |
3000 |
3250 |
3500 |
3750 |
|
ft.in. |
7'5" |
8'2" |
9' |
9'10" |
10'8" |
11'6" |
12'4" |
|
|
Total Length (L) |
mm |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
ft.in |
4'11" |
4'11" |
4'11" |
4'11" |
4'11" |
4'11" |
4'11" |
|
|
Length (L1) |
mm |
2365 |
2365 |
2365 |
2365 |
2365 |
2365 |
2365 |
|
ft.in |
7'9" |
7'9" |
7'9" |
7'9" |
7'9" |
7'9" |
7'9" |
|
|
Total Height (H) |
mm |
1350 |
1350 |
1350 |
1350 |
1350 |
1350 |
1350 |
|
ft.in |
4'5" |
4'5" |
4'5" |
4'5" |
4'5" |
4'5" |
4'5" |
|
|
Height (H1) |
mm |
430 |
430 |
430 |
430 |
430 |
430 |
430 |
|
ft.in |
1'5" |
1'5" |
1'5" |
1'5" |
1'5" |
1'5" |
1'5" |
|
|
Working Depth (Max.) |
mm |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
ft.in. |
8" |
8" |
8" |
8" |
8" |
8" |
8" |
|
|
Working Width |
mm |
2250 |
2500 |
2750 |
3000 |
3250 |
3500 |
3750 |
|
ft.in. |
7'5" |
8'2" |
9' |
9'10" |
10'8" |
11'6" |
12'4" |
|
|
Tine Dimensions |
mm |
30x10 |
30x10 |
30x10 |
30x10 |
30x10 |
30x10 |
30x10 |
|
ft.in. |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
1"x1⁄32' |
|
|
Space Between Tine |
mm |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
|
ft.in. |
5" |
5" |
5" |
5" |
5" |
5" |
5" |
|
|
Frame Size |
mm |
65x65 |
65x65 |
65x65 |
65x65 |
65x65 |
65x65 |
65x65 |
|
ft.in. |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
|
|
Roller Diameter |
mm |
315 |
315 |
315 |
315 |
315 |
315 |
315 |
|
ft.in. |
12" |
12" |
12" |
12" |
12" |
12" |
12" |
|
|
Required Power |
hp |
50-55 |
55-60 |
65-70 |
70-75 |
75-80 |
80-90 |
95-100 |
|
Weight |
kg |
550 |
610 |
670 |
730 |
790 |
850 |
910 |
|
Ibs |
1212 |
1344 |
1477 |
1609 |
1741 |
1873 |
2006 |
