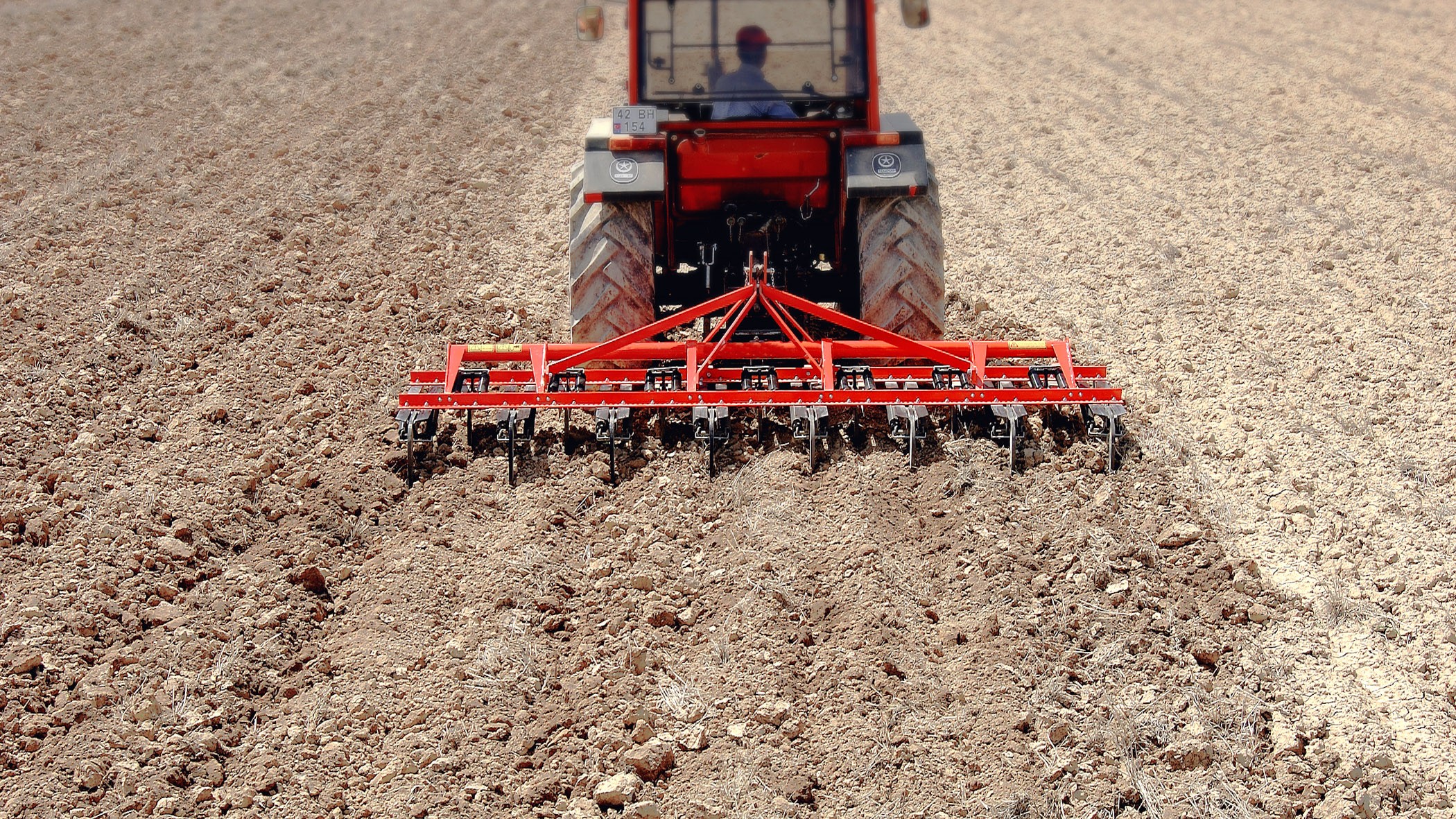

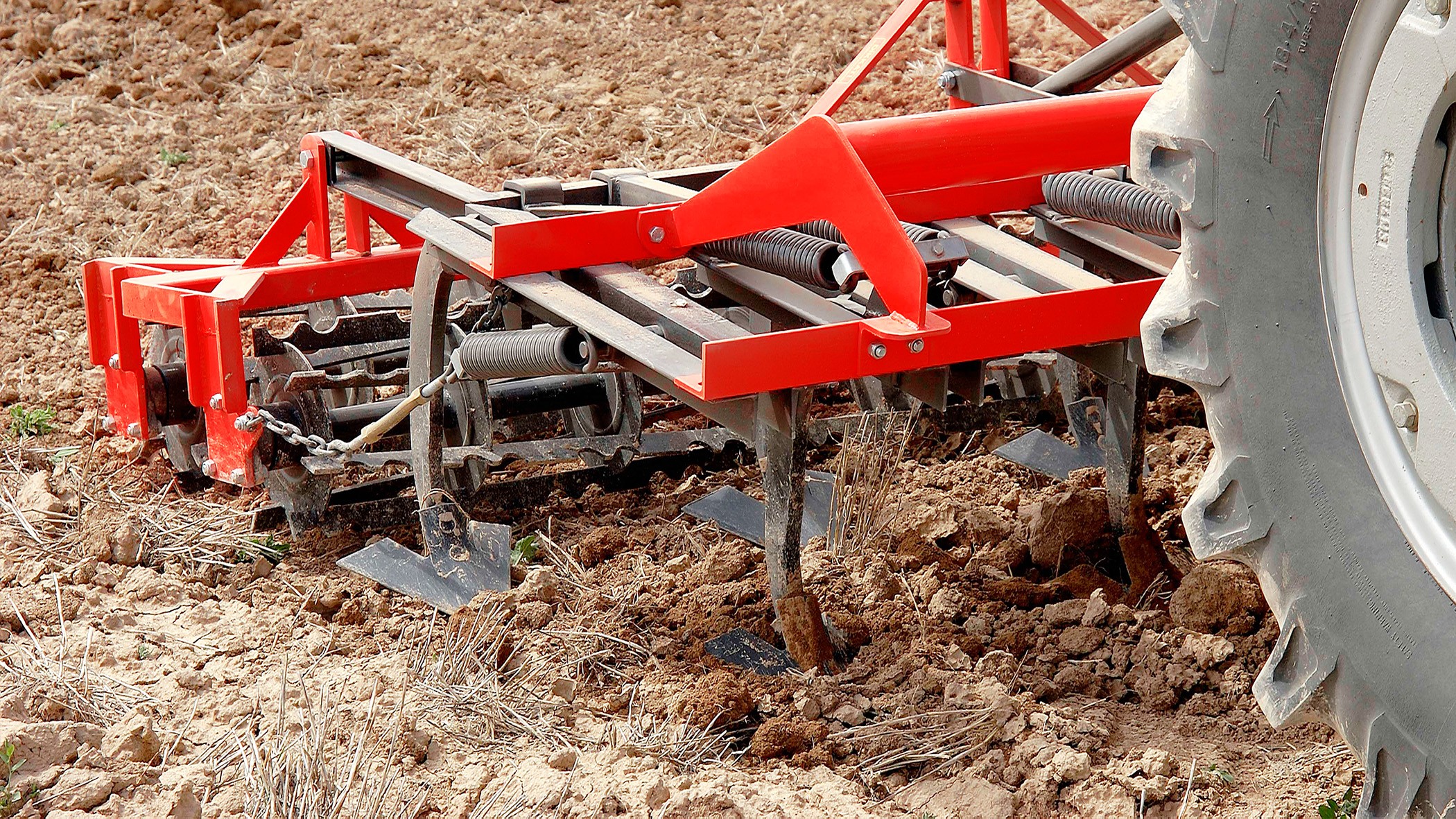

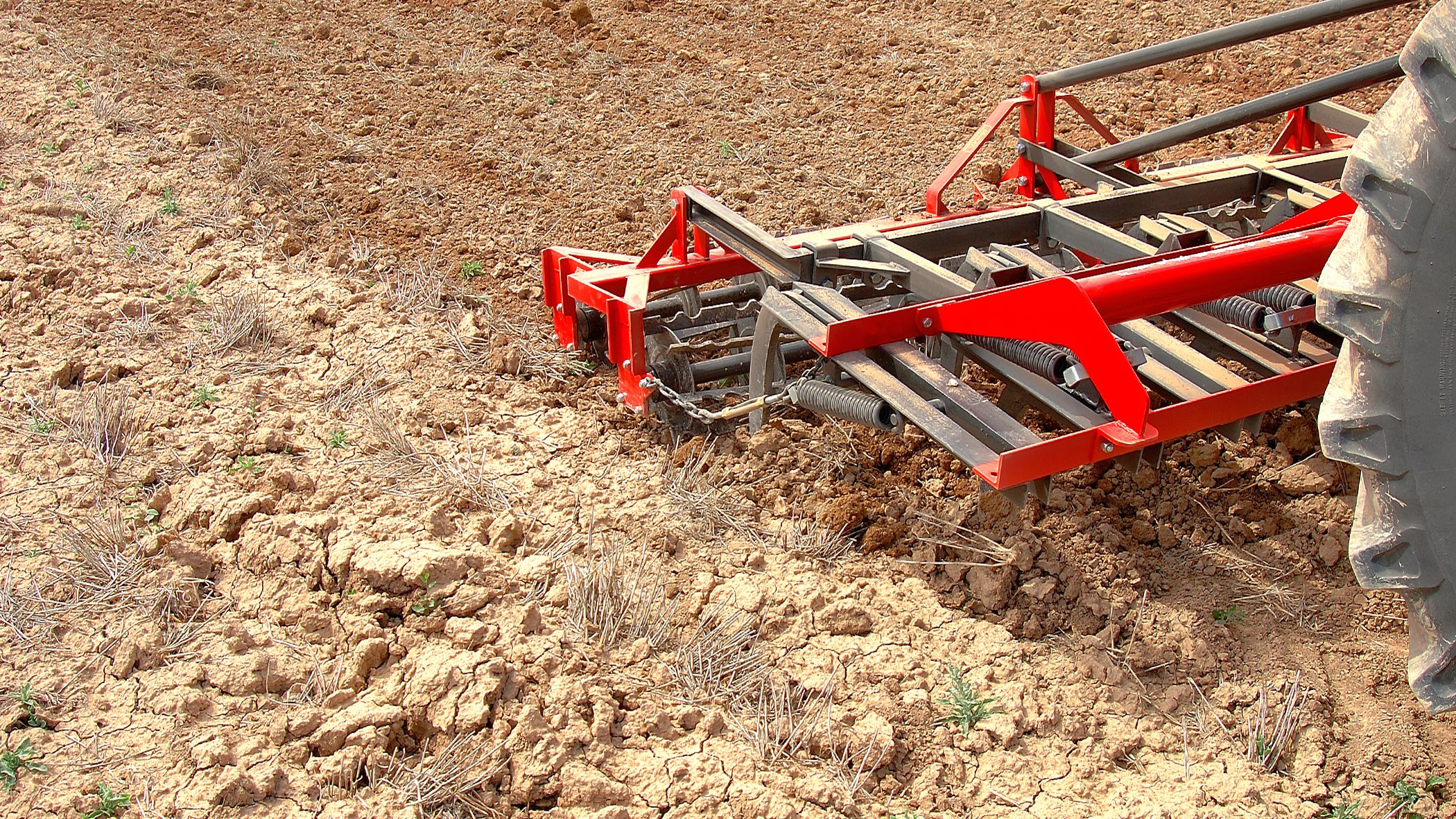

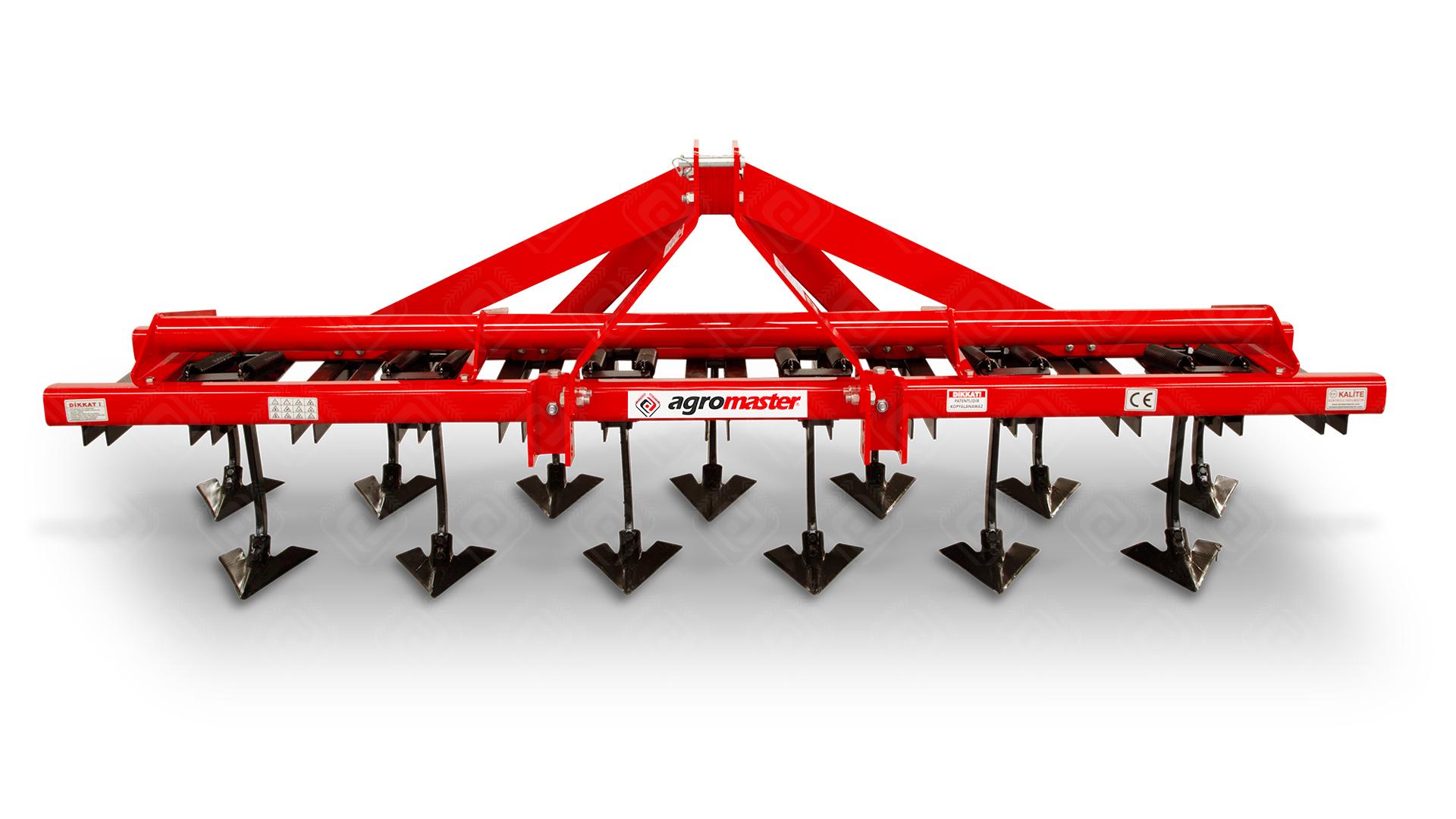

Tubular Frame Cultivator is a secondary soil tillage machine is mounted to tractor's hydraulic lifting unit and universal three point linkage system, hydraulically mounted type machine. Therefore transportation to the field can be easily done.Tubular Frame Cultivators are used for preparing the soil before sowing by uprooting the weeds for to make fertilizer and preparing the seed-beds.Thesecultivatorsare manufactured as 5, 7,9,11,13,15,17 tines.

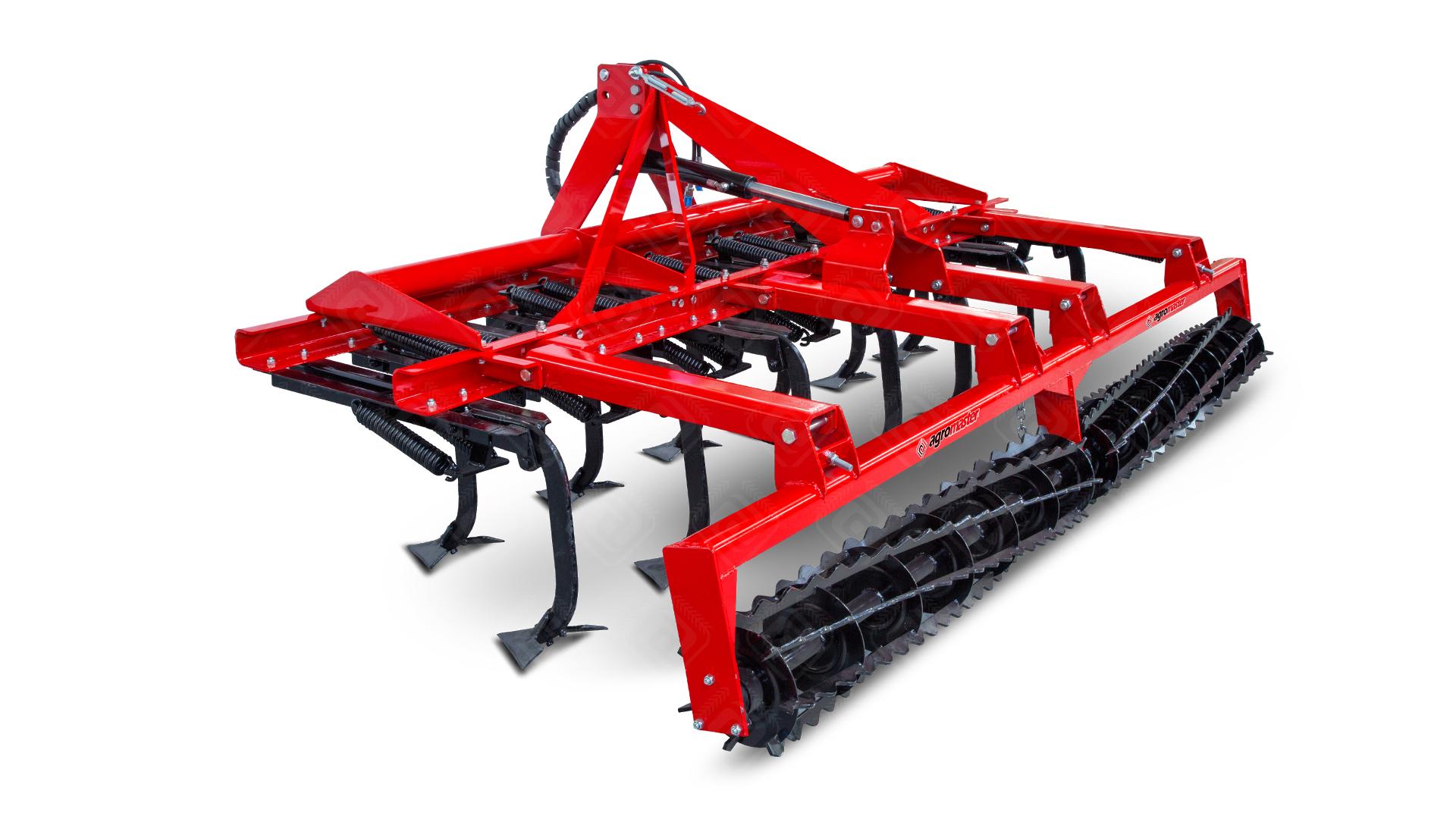

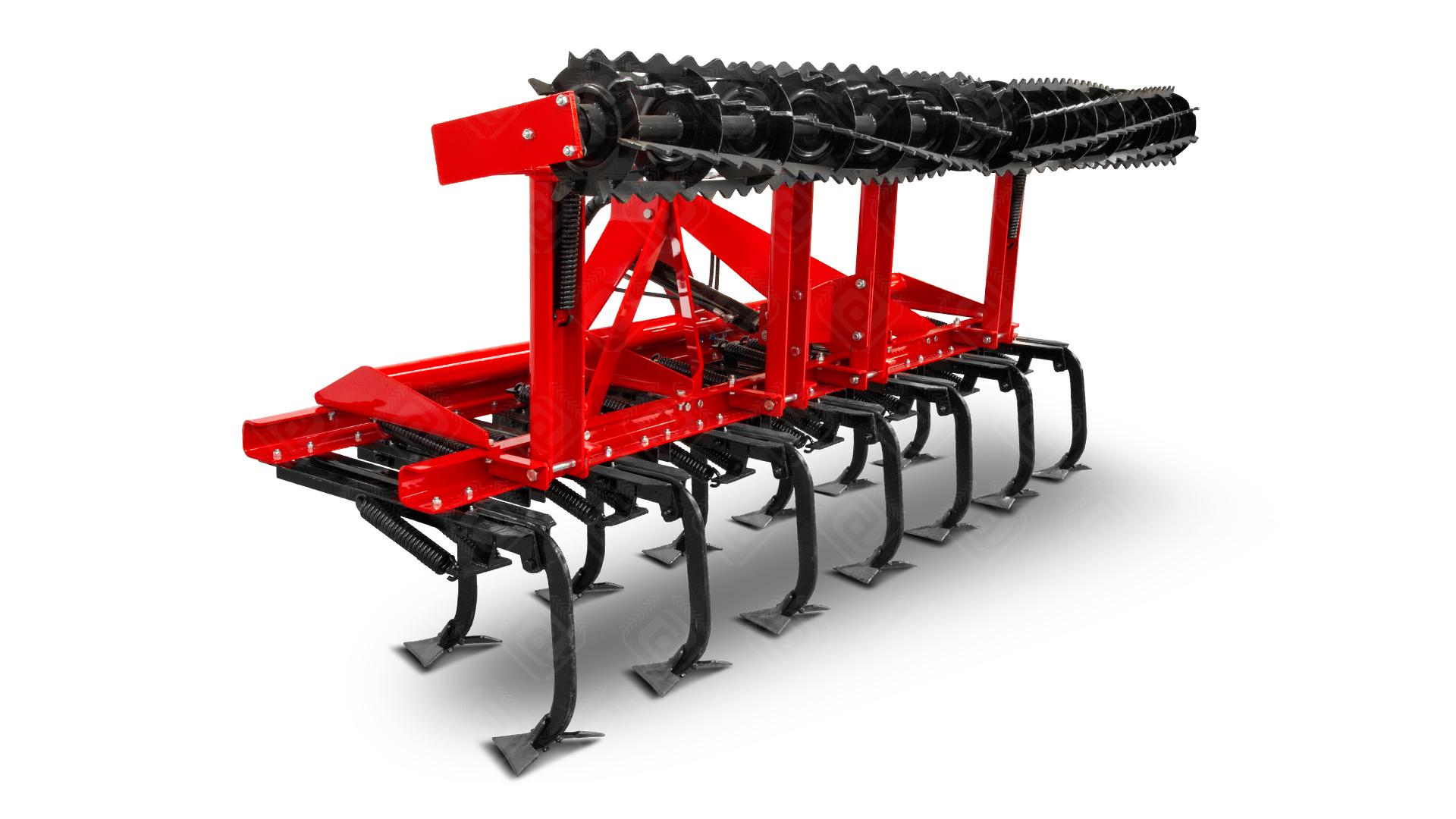

One Roller

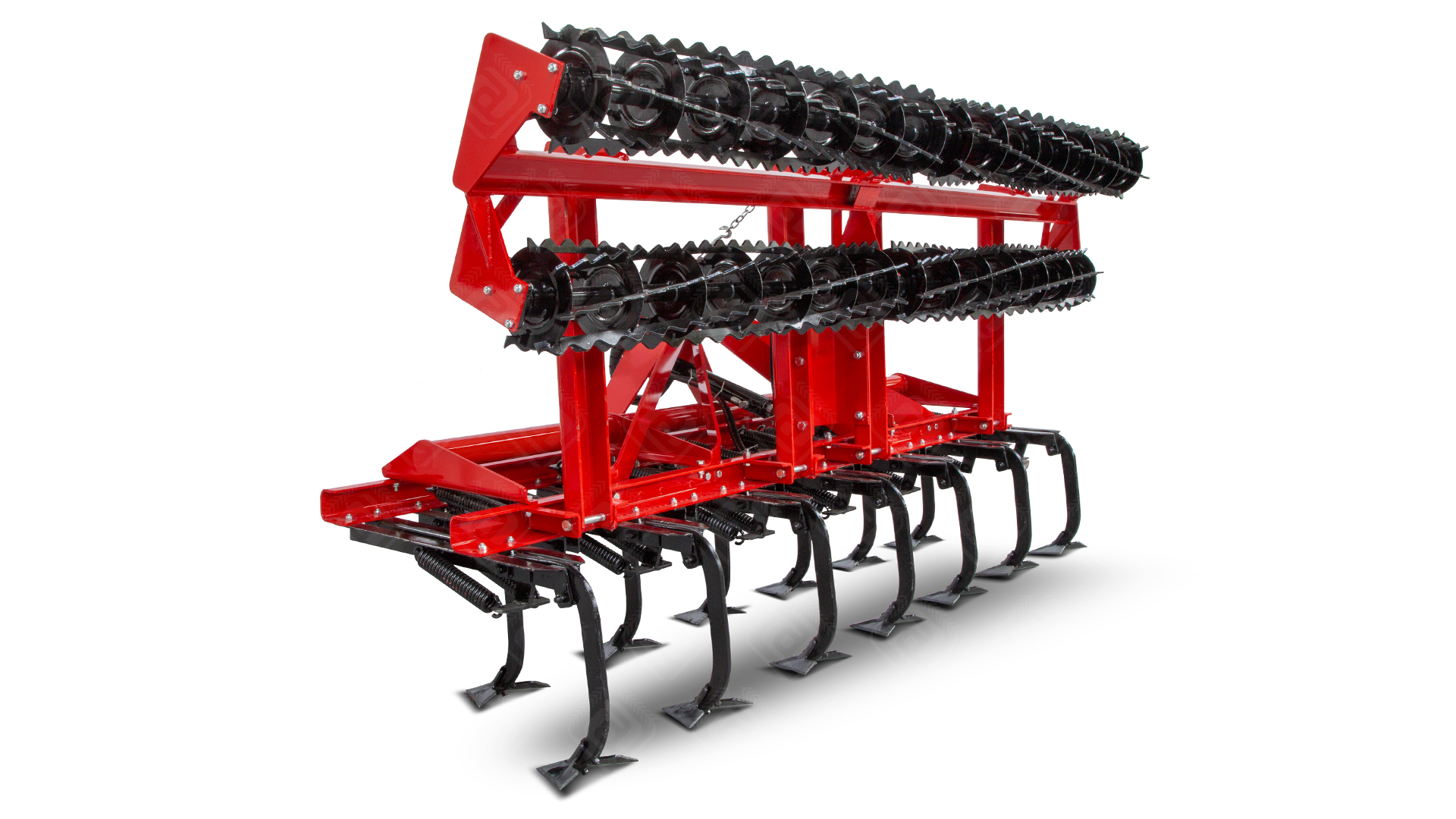

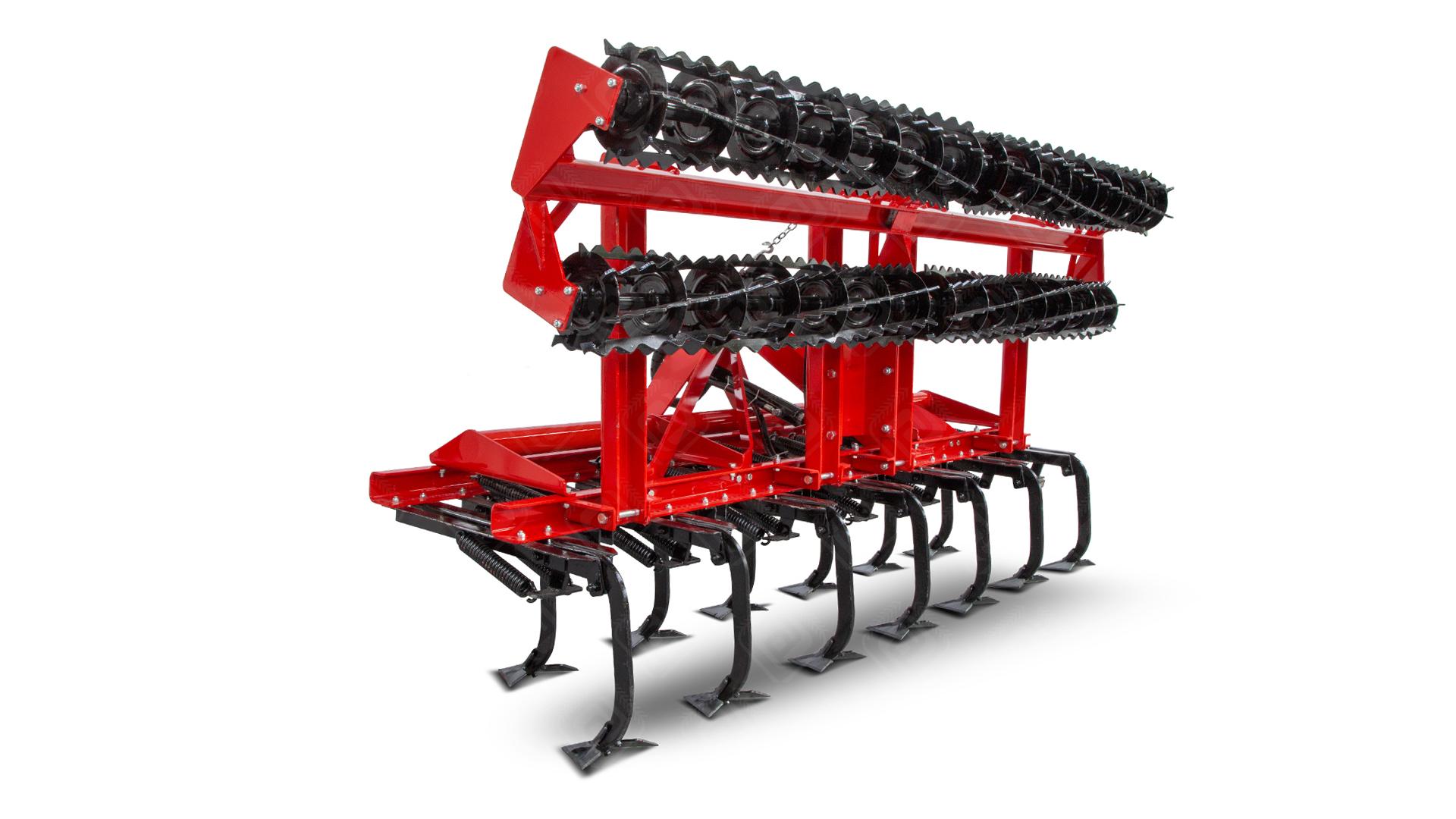

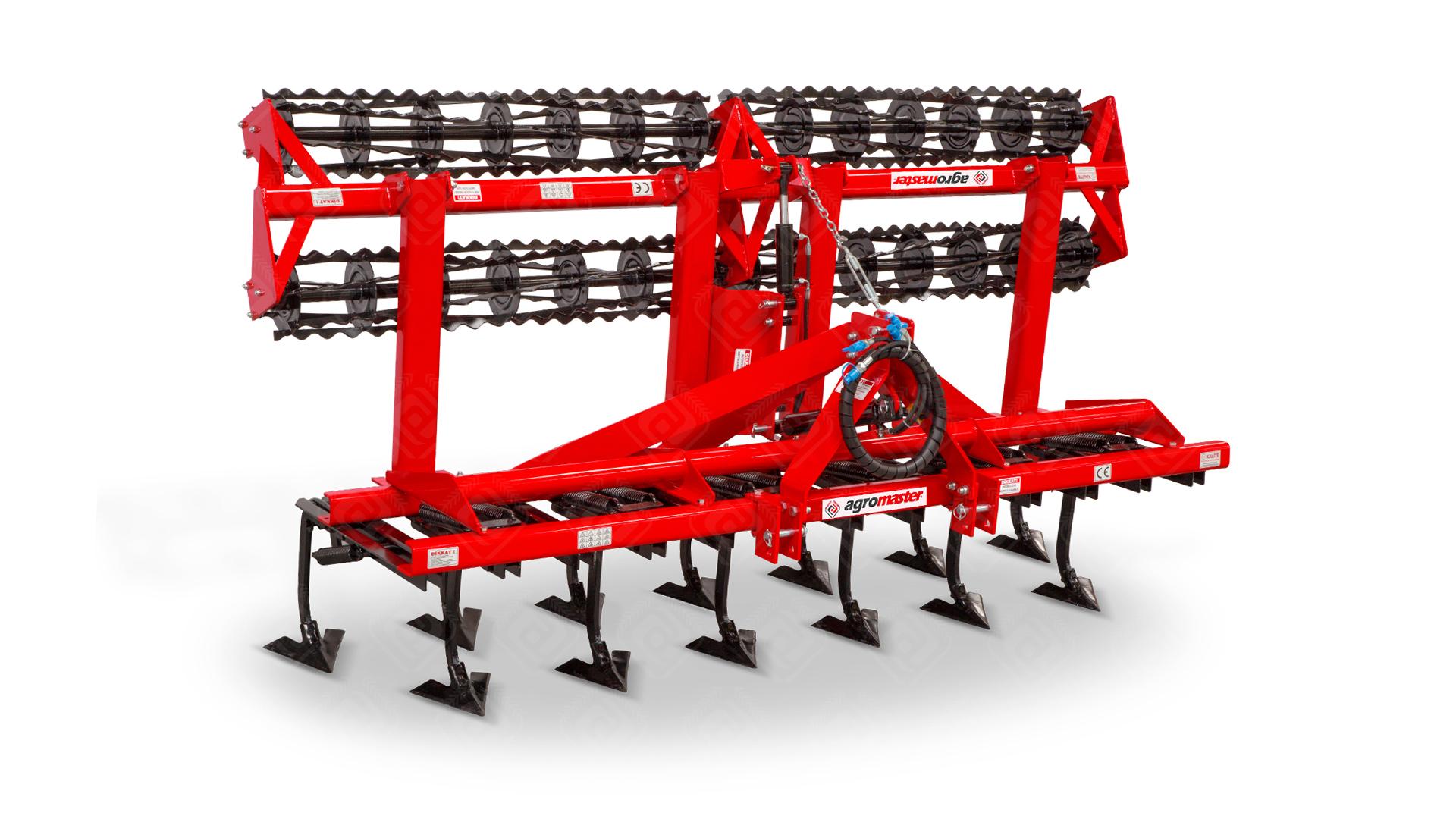

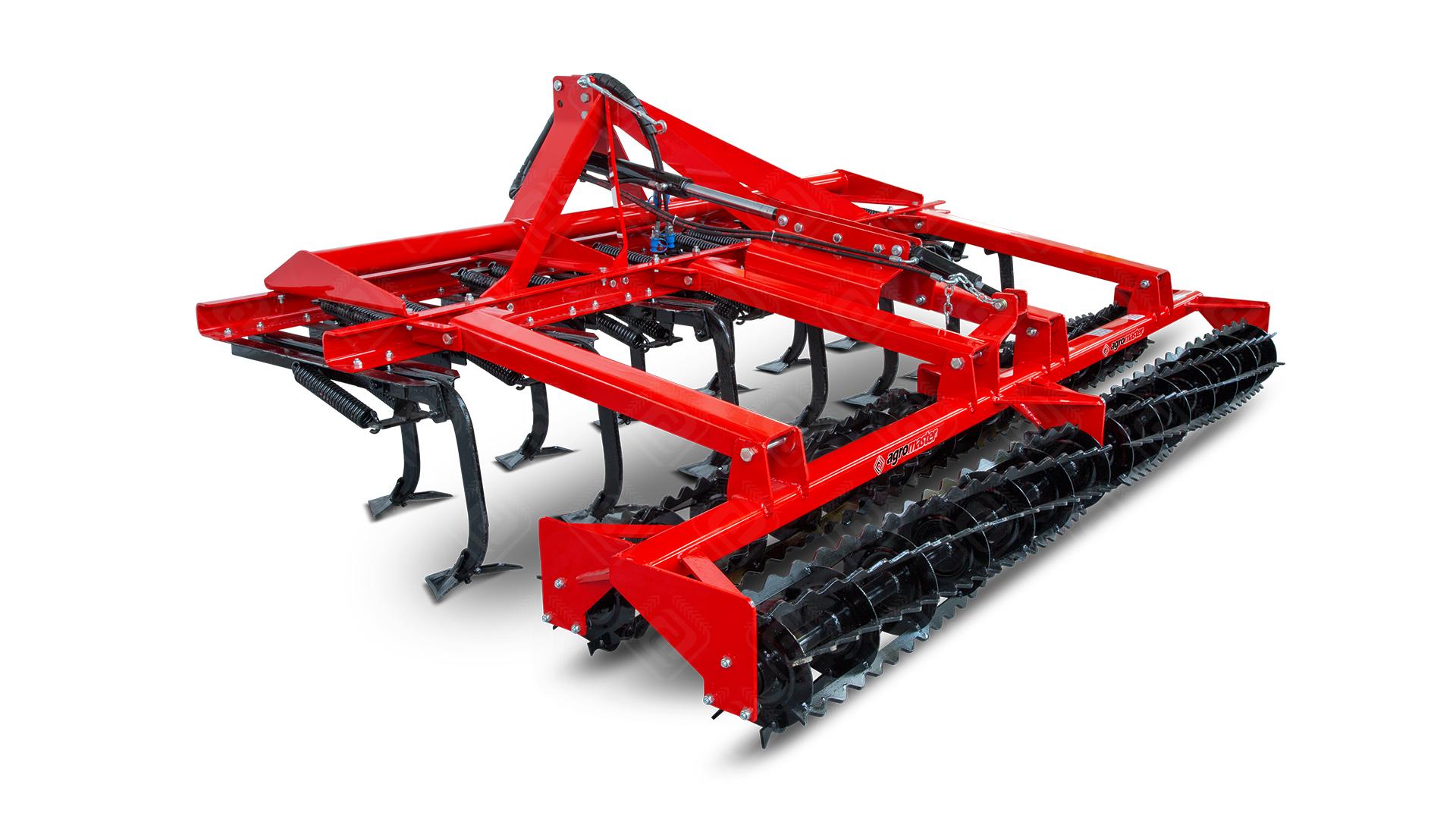

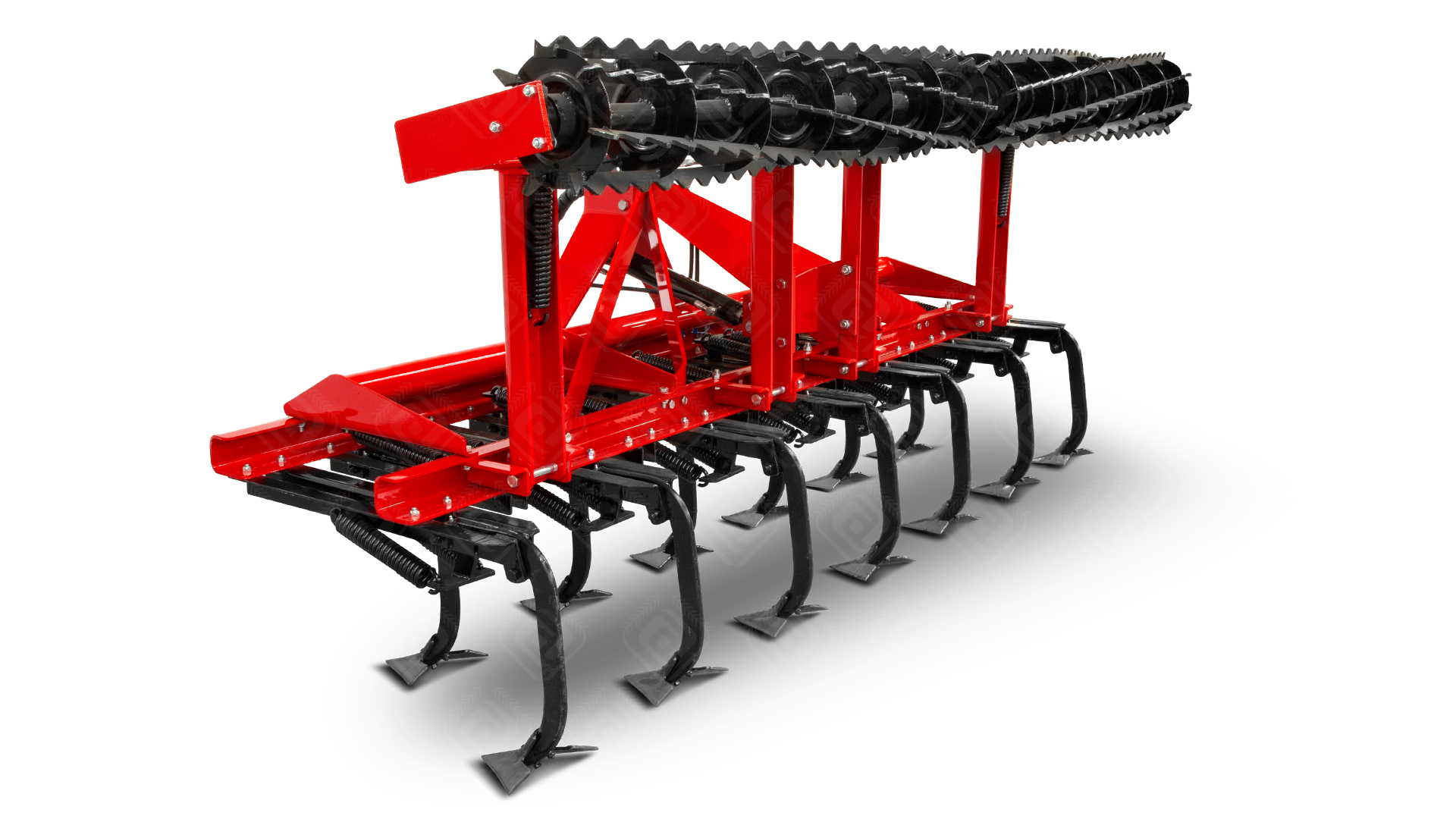

Double Roller
|
Technical Specifications* |
Unit |
KB 7 |
KB 9 |
KB 11 |
KB 13 |
KB 15 |
KB 17 |
|
Number of Tines |
pcs |
7 |
9 |
11 |
13 |
15 |
17 |
|
Total Width (W) |
mm |
1700 |
2200 |
2700 |
3200 |
3700 |
4200 |
|
ft.in. |
5'7" |
7'3" |
8'10" |
10'6" |
12'2" |
13'9" |
|
|
Total Lenght (L) |
mm |
850 |
850 |
850 |
850 |
850 |
850 |
|
ft.in |
2'9" |
2'9" |
2'9" |
2'9" |
2'9" |
2'9" |
|
|
Total Height (H) |
mm |
1180 |
1180 |
1180 |
1180 |
1180 |
1180 |
|
ft.in |
3'10" |
3'10" |
3'10" |
3'10" |
3'10" |
3'10" |
|
|
Working Depth (Max.) |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
|
ft.in. |
12" |
12" |
12" |
12" |
12" |
12" |
|
|
Working Width |
mm |
1700 |
2200 |
2700 |
3200 |
3700 |
4200 |
|
ft.in. |
5'7" |
7'3" |
8'10" |
10'6" |
12'2" |
13'9" |
|
|
Tine Space (W1) |
mm |
250 |
250 |
250 |
250 |
250 |
250 |
|
ft.in. |
10" |
10" |
10" |
10" |
10" |
10" |
|
|
Required Power |
hp |
40-50 |
50-60 |
60-70 |
70-80 |
80-90 |
100-110 |
|
Total Weight |
kg |
220 |
270 |
320 |
370 |
440 |
510 |
|
Ibs |
485 |
595 |
705 |
815 |
970 |
1124 |
