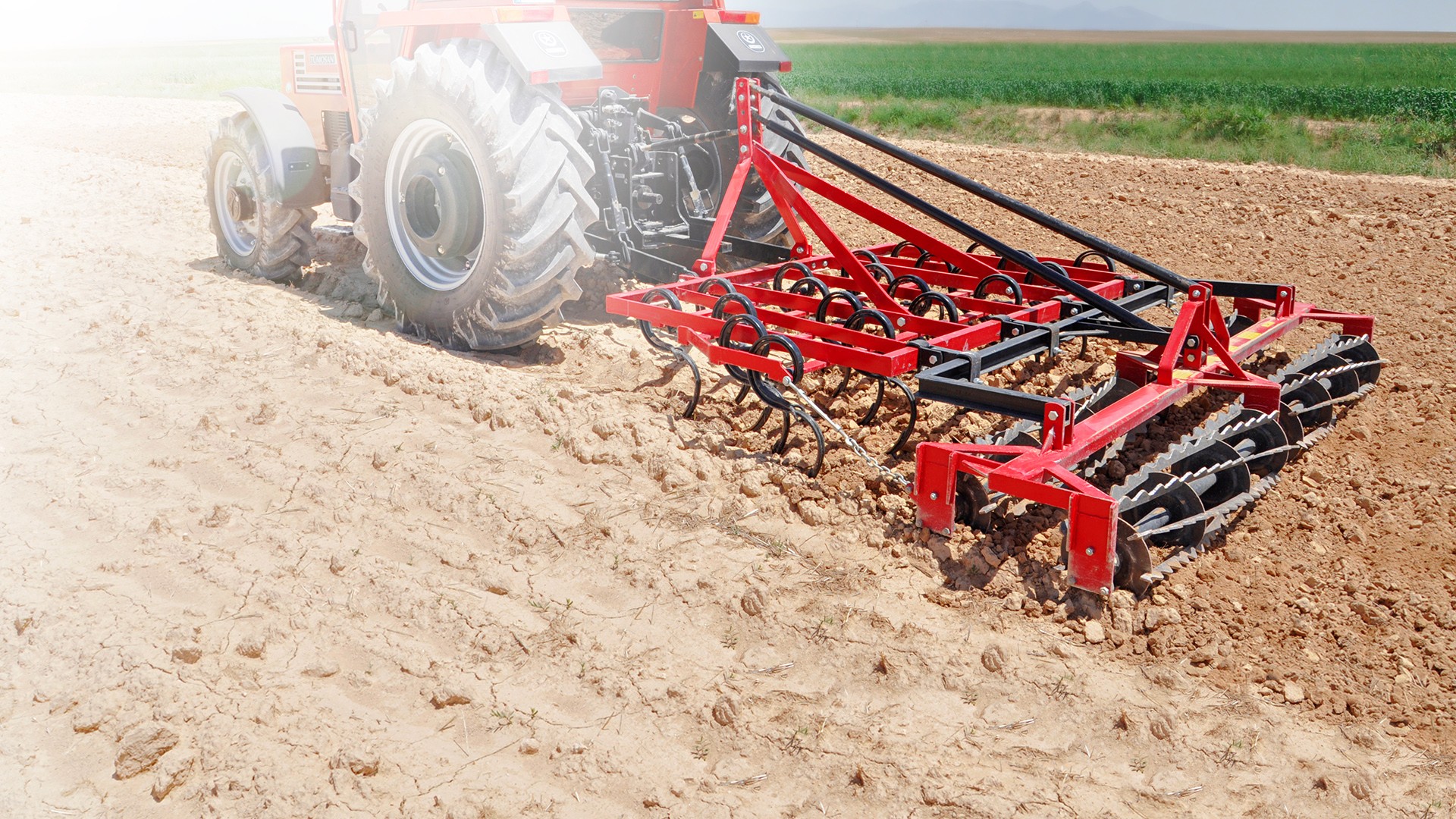

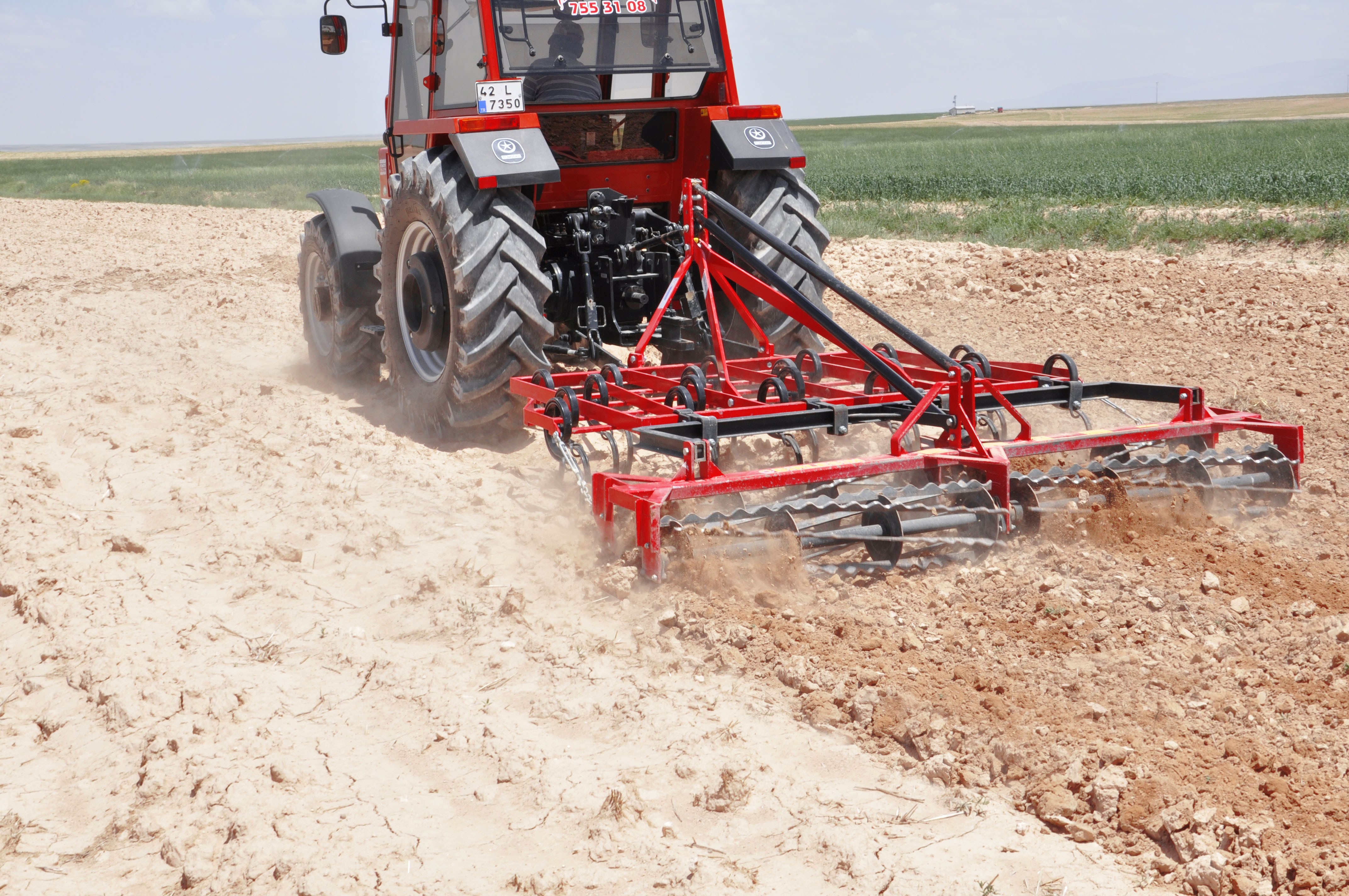

2 Row Low Chassis Tiller is a secondary soil tillage machine is mounted to tractor's hydraulic lifting unit and universal three point linkage system, hydraulically mounted type machine. Therefore transportation to the field can be easily done. 2 Row Low Chassis Tiller is used for preparing the soil before sowing by uprooting the weeds for to make fertilizer and preparing the seed-beds. 2 Row Tillers are manufactured as 7, 9,11,13,15 feet, 80×80 mm profile chassis and 32×32 mm spring foot which are made of special high-strength spring steel. Row spaces of the feet are adjustable. For preparing the soil for the sowing process single or double row roll also could be attachable at the back of the machine.Duck foot point and narrow type end iron can be attachable as optional.
|

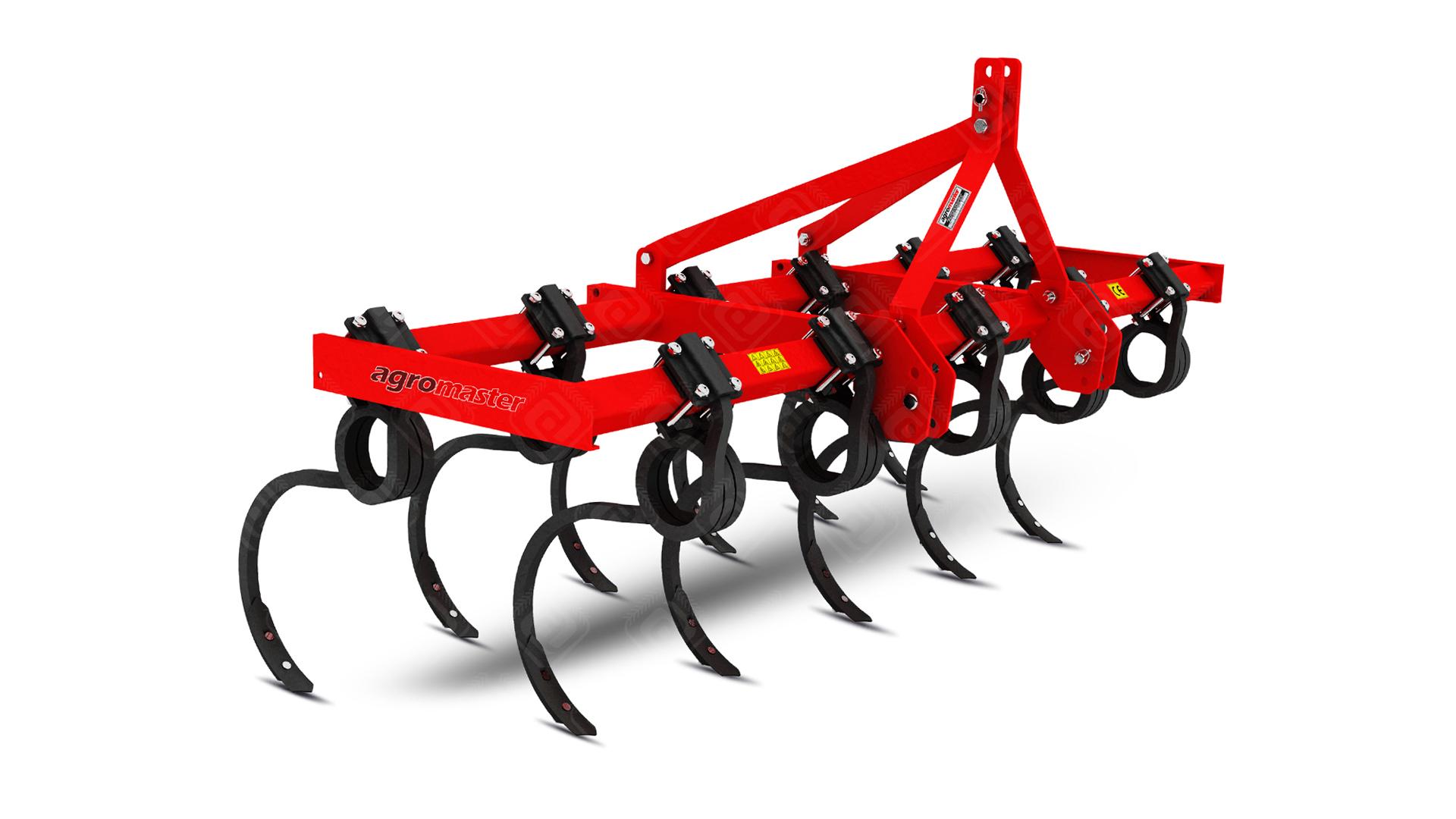

Technical Specifications* |
Unit |
T2 7 |
T2 9 |
T2 11 |
T2 13 |
T2 15 |
|
Number of Tines |
pcs |
7 |
9 |
11 |
13 |
15 |
|
Total Width (W) |
mm |
1700 |
2200 |
2700 |
3200 |
3700 |
|
ft.in. |
5'7" |
7'3" |
8'10" |
10'6" |
12'2" |
|
|
Total Length (L) |
mm |
1380 |
1380 |
1380 |
1380 |
1380 |
|
ft.in |
4'6" |
4'6" |
4'6" |
4'6" |
4'6" |
|
|
Total Height (H) |
mm |
1250 |
1250 |
1250 |
1250 |
1250 |
|
ft.in |
4'1" |
4'1" |
4'1" |
4'1" |
4'1" |
|
|
Height (H1) |
mm |
600 |
600 |
600 |
600 |
600 |
|
ft.in |
1'12" |
1'12" |
1'12" |
1'12" |
1'12" |
|
|
Working Depth (Max.) |
mm |
350 |
350 |
350 |
350 |
350 |
|
ft.in. |
14" |
14" |
14" |
14" |
14" |
|
|
Working Width |
mm |
1700 |
2200 |
2700 |
3200 |
3700 |
|
ft.in. |
5'7" |
7'3" |
8'10" |
10'6" |
12'2" |
|
|
Tine Dimensions |
mm |
32x32 |
32x32 |
32x32 |
32x32 |
32x32 |
|
ft.in. |
1"x1" |
1"x1" |
1"x1" |
1"x1" |
1"x1" |
|
|
Space Between Tine |
mm |
250 |
250 |
250 |
250 |
250 |
|
ft.in. |
10" |
10" |
10" |
10" |
10" |
|
|
Frame Size |
mm |
80x80 |
80x80 |
80x80 |
80x80 |
80x80 |
|
ft.in. |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
|
|
Required Power |
hp |
50-55 |
65-70 |
75-80 |
95-90 |
95-100 |
|
Weight |
kg |
265 |
320 |
375 |
430 |
485 |
|
Ibs |
584 |
705 |
826 |
947 |
1069 |
|

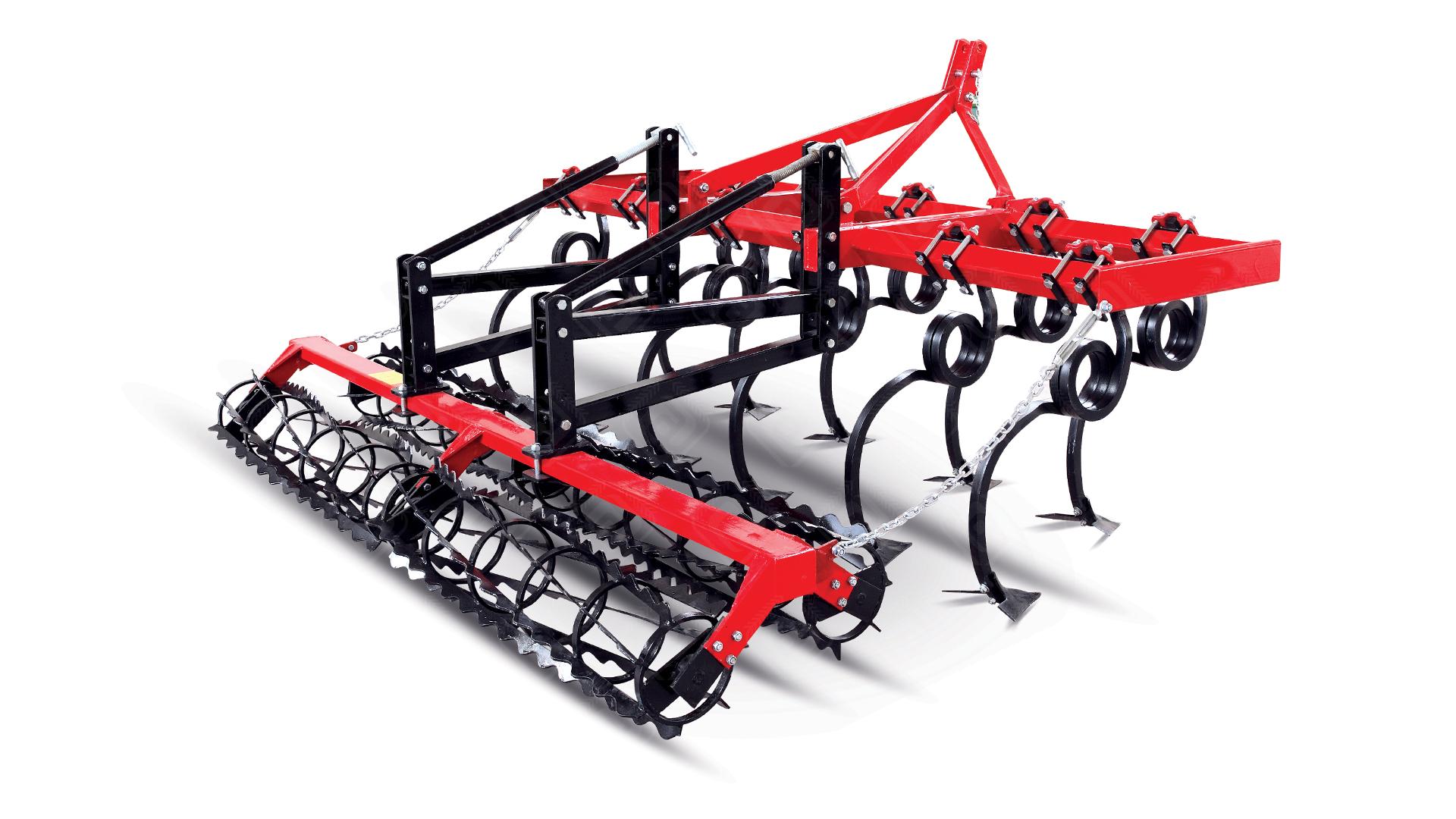

Technical Specifications* |
Unit |
T2R 7 |
T2R 9 |
T2R 11 |
T2R 13 |
T2R 15 |
|
Number of Tines |
pcs |
7 |
9 |
11 |
13 |
15 |
|
Total Width (W) |
mm |
1700 |
2200 |
2700 |
3200 |
3700 |
|
ft.in. |
5'7" |
7'3" |
8'10" |
10'6" |
12'2" |
|
|
Total Length (L) |
mm |
1380 |
1380 |
1380 |
1380 |
1380 |
|
ft.in |
4'6" |
4'6" |
4'6" |
4'6" |
4'6" |
|
|
Length (L1) |
mm |
2250 |
2250 |
2250 |
2250 |
2250 |
|
ft.in |
7'6" |
7'6" |
7'6" |
7'6" |
7'6" |
|
|
Total Height (H) |
mm |
1390 |
1390 |
1390 |
1390 |
1390 |
|
ft.in |
4'7" |
4'7" |
4'7" |
4'7" |
4'7" |
|
|
Height (H1) |
mm |
600 |
600 |
600 |
600 |
600 |
|
ft.in |
1'12" |
1'12" |
1'12" |
1'12" |
1'12" |
|
|
Working Depth (Max.) |
mm |
350 |
350 |
350 |
350 |
350 |
|
ft.in. |
14" |
14" |
14" |
14" |
14" |
|
|
Working Width |
mm |
1700 |
2200 |
2700 |
3200 |
3700 |
|
ft.in. |
5'7" |
7'3" |
8'10" |
10'6" |
12'2" |
|
|
Tine Dimensions |
mm |
32x32 |
32x32 |
32x32 |
32x32 |
32x32 |
|
ft.in. |
1"x1" |
1"x1" |
1"x1" |
1"x1" |
1"x1" |
|
|
Space Between Tine |
mm |
250 |
250 |
250 |
250 |
250 |
|
ft.in. |
10" |
10" |
10" |
10" |
10" |
|
|
Frame Size |
mm |
80x80 |
80x80 |
80x80 |
80x80 |
80x80 |
|
ft.in. |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
3"x3" |
|
|
Roller Diameter |
mm |
315 |
315 |
315 |
315 |
315 |
|
ft.in. |
12" |
12" |
12" |
12" |
12" |
|
|
Required Power |
hp |
50-55 |
65-70 |
75-80 |
85-90 |
95-100 |
|
Weight |
kg |
465 |
545 |
625 |
705 |
785 |
|
Ibs |
1025 |
1201 |
1377 |
1554 |
1730 |
