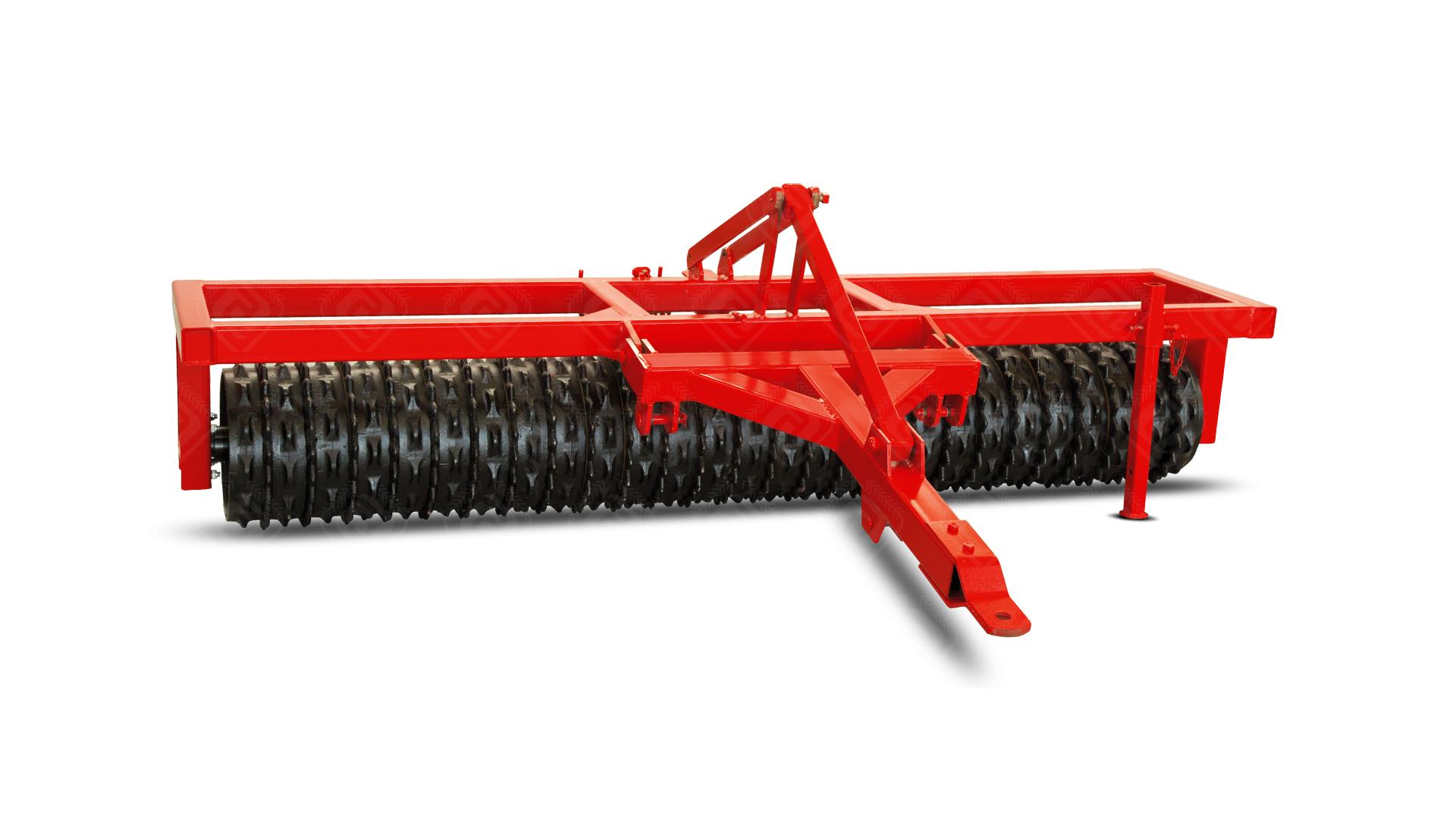

The Casting Roller Mounted Type is designed to effectively compact the soil and prepare a firm, uniform seedbed. Its heavy-duty cast rollers break down large clods, level the soil surface, and help retain soil moisture for improved seed germination. Manufactured from durable cast material for long service life, it is easily attached to the tractor through the three-point linkage system and delivers reliable performance under various field conditions.
|
Technical Specifications* |
Unit |
BIZON-M 280 |
BIZON-M 320 |
BIZON-M 400 |
|
Total Width (W) |
mm |
2910 |
3450 |
4250 |
|
ft.in. |
9'7" |
11'4" |
13'11" |
|
|
Total Length (L) |
mm |
2350 |
2350 |
2350 |
|
ft.in |
7'6" |
7'6" |
7'6" |
|
|
Total Height (H) |
mm |
800 |
800 |
800 |
|
ft.in. |
2'7" |
2'7" |
2'7" |
|
|
Working Width |
mm |
2800 |
3200 |
4000 |
|
ft.in |
9'2" |
10'6" |
13'1" |
|
|
Roller Diameter (D) |
mm |
500 |
500 |
500 |
|
ft.in |
20" |
20" |
20" |
|
|
Required Power |
hp |
70-75 |
80-90 |
100-110 |
|
Weight |
kg |
1090 |
1300 |
1700 |
|
Ibs |
2403 |
2866 |
3747 |
