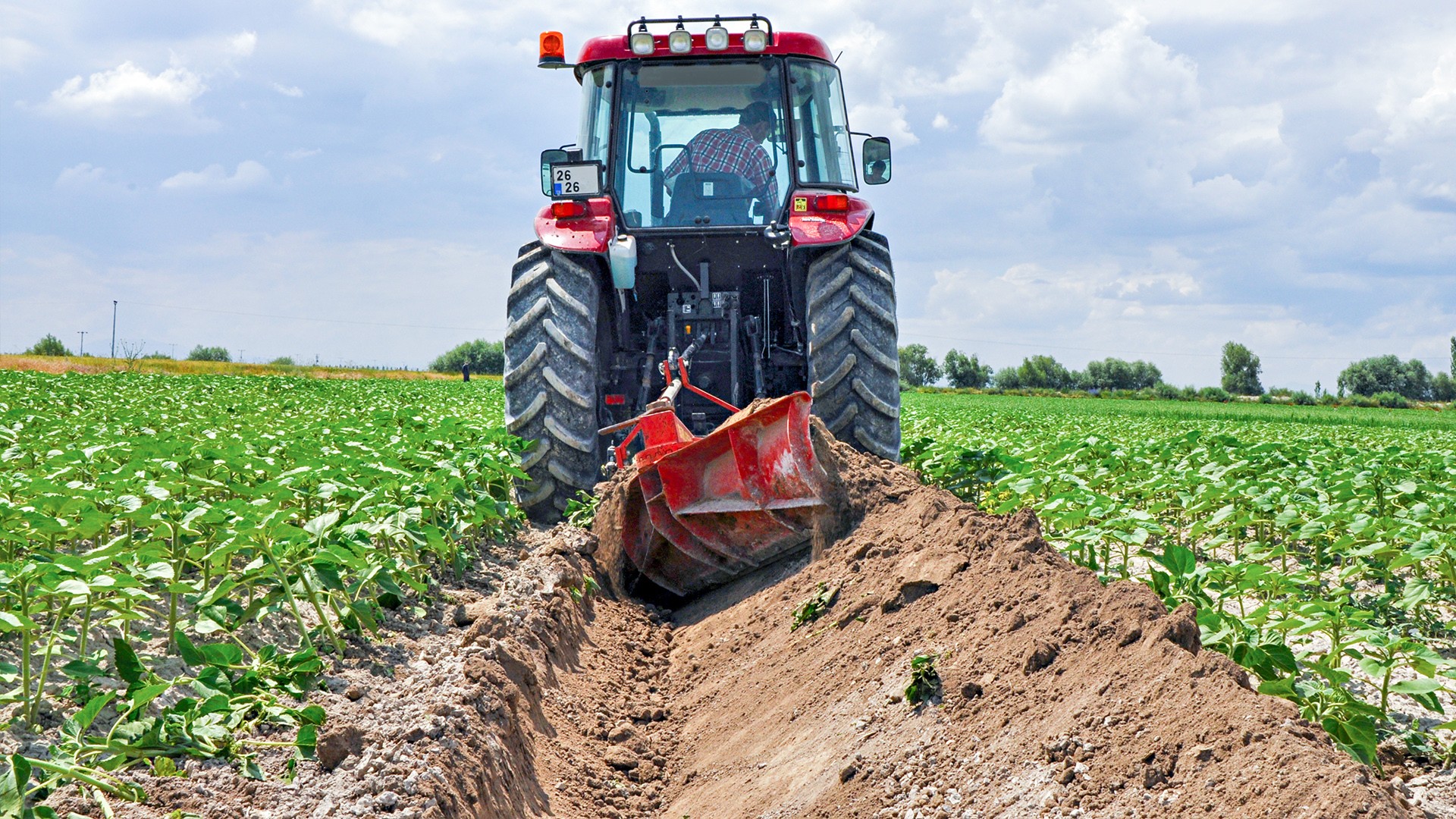

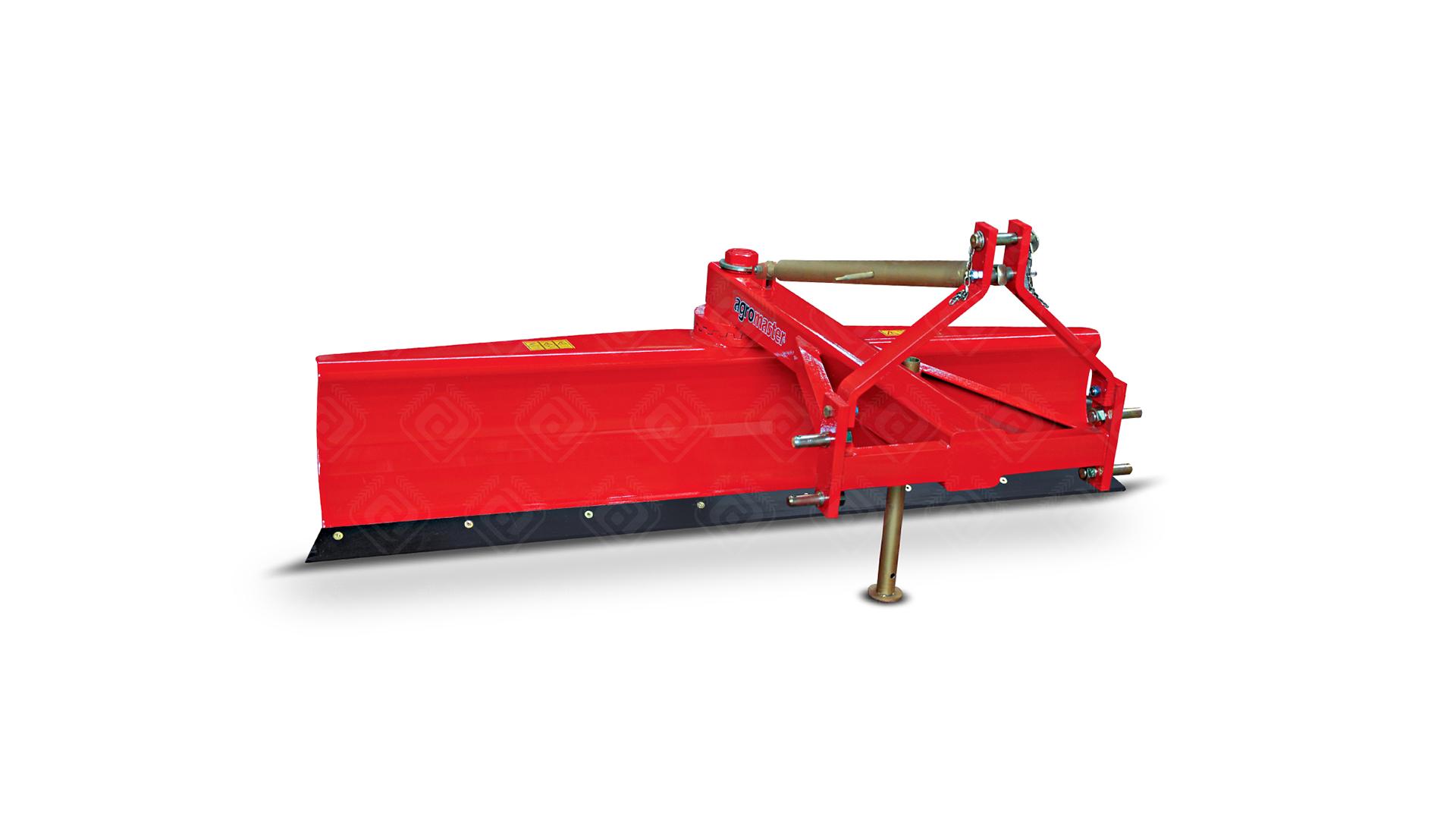

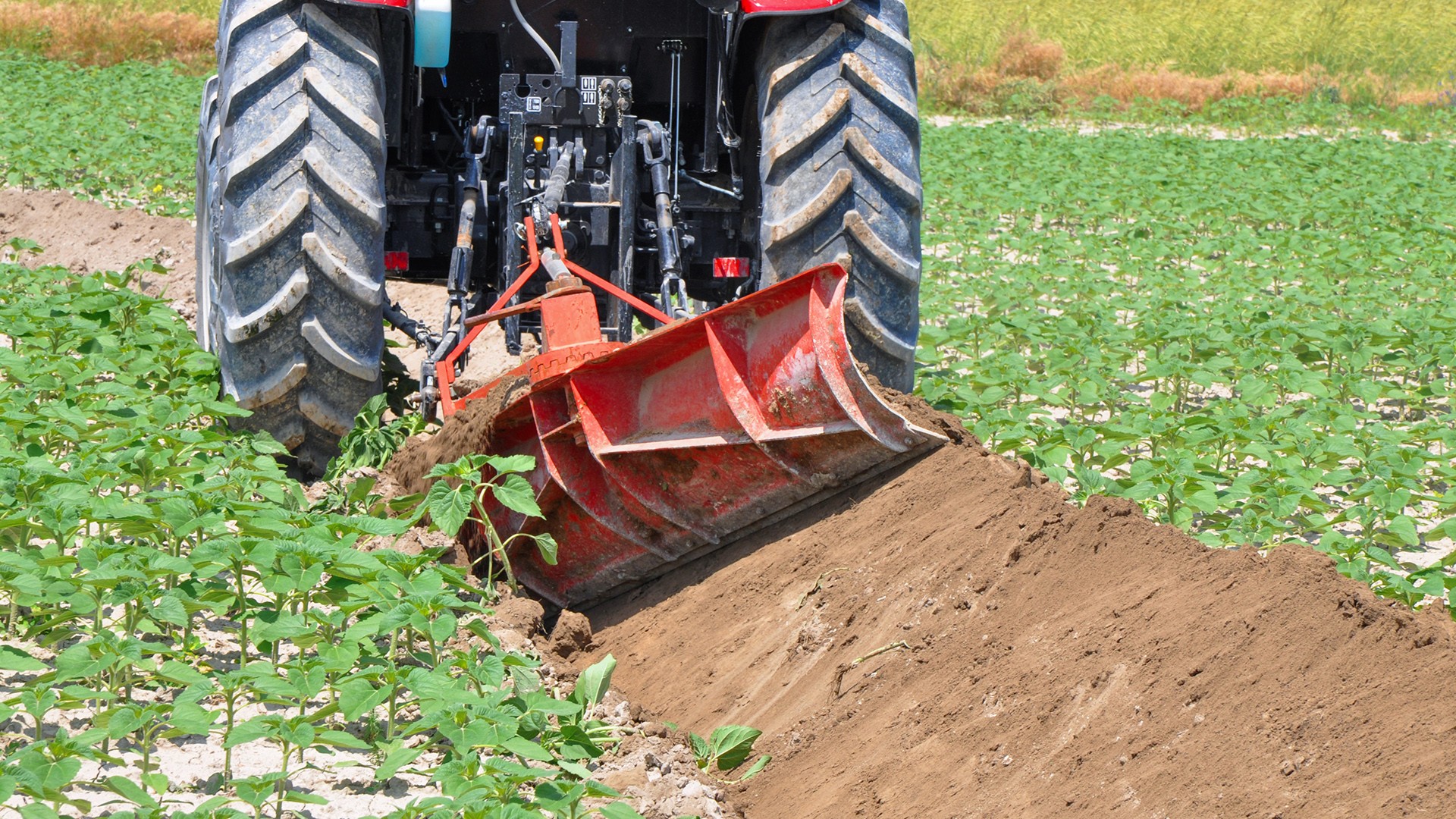

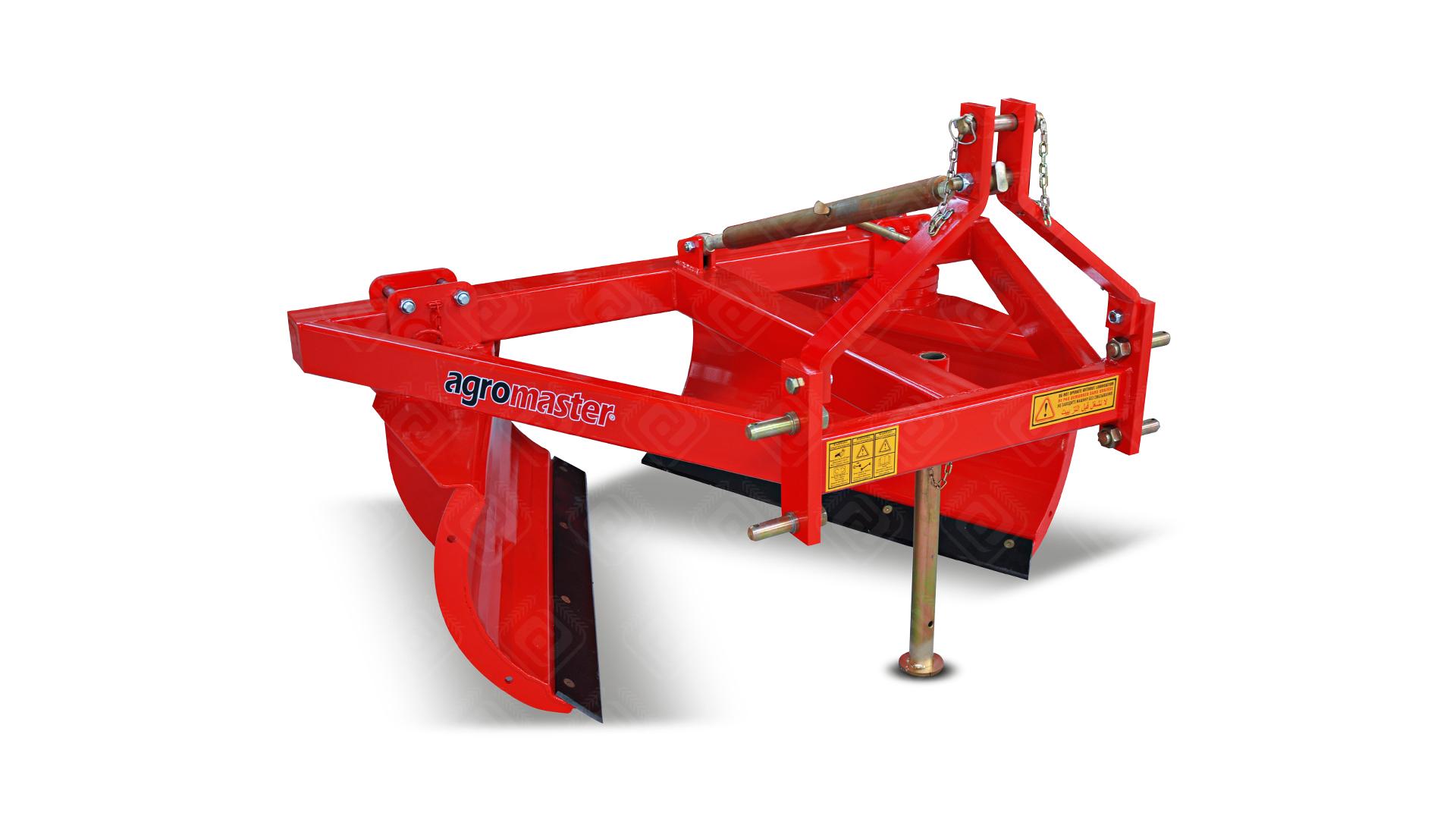

Agromaster Levelling Blades are mounted to tractors by three point linkage system. These Levelling Blades can be used in various purposes like making a field way, land levelling, opening ditches and filling. By the help of their 3602'ba working angle they can be used in different directions. Blades are produced from special steel to prevent corrosion and breakings. Also both sides of these removable blades can be used.
|
Technical Specifications* |
Unit |
TK 200 |
TK 220 |
TK 250 |
|
Total Width (W) |
mm |
200 |
220 |
250 |
|
ft.in. |
8" |
8" |
8" |
|
|
Total Length (L) |
mm |
1400 |
1400 |
1400 |
|
ft.in |
4'7" |
4'7" |
4'7" |
|
|
Total Height (H) |
mm |
1100 |
1100 |
1100 |
|
ft.in. |
3'7" |
3'7" |
3'7" |
|
|
Working Depth (max) |
mm |
500 |
500 |
500 |
|
ft.in. |
20" |
20" |
20" |
|
|
Working Width |
mm |
2120 |
2320 |
2620 |
|
ft.in. |
6'11" |
7'7" |
8'7" |
|
|
Turning Angle |
º |
360 |
360 |
360 |
|
Required Power |
hp |
30-40 |
45-50 |
70-80 |
|
Weight |
kg |
190 |
210 |
260 |
|
Ibs |
418 |
462 |
573 |
