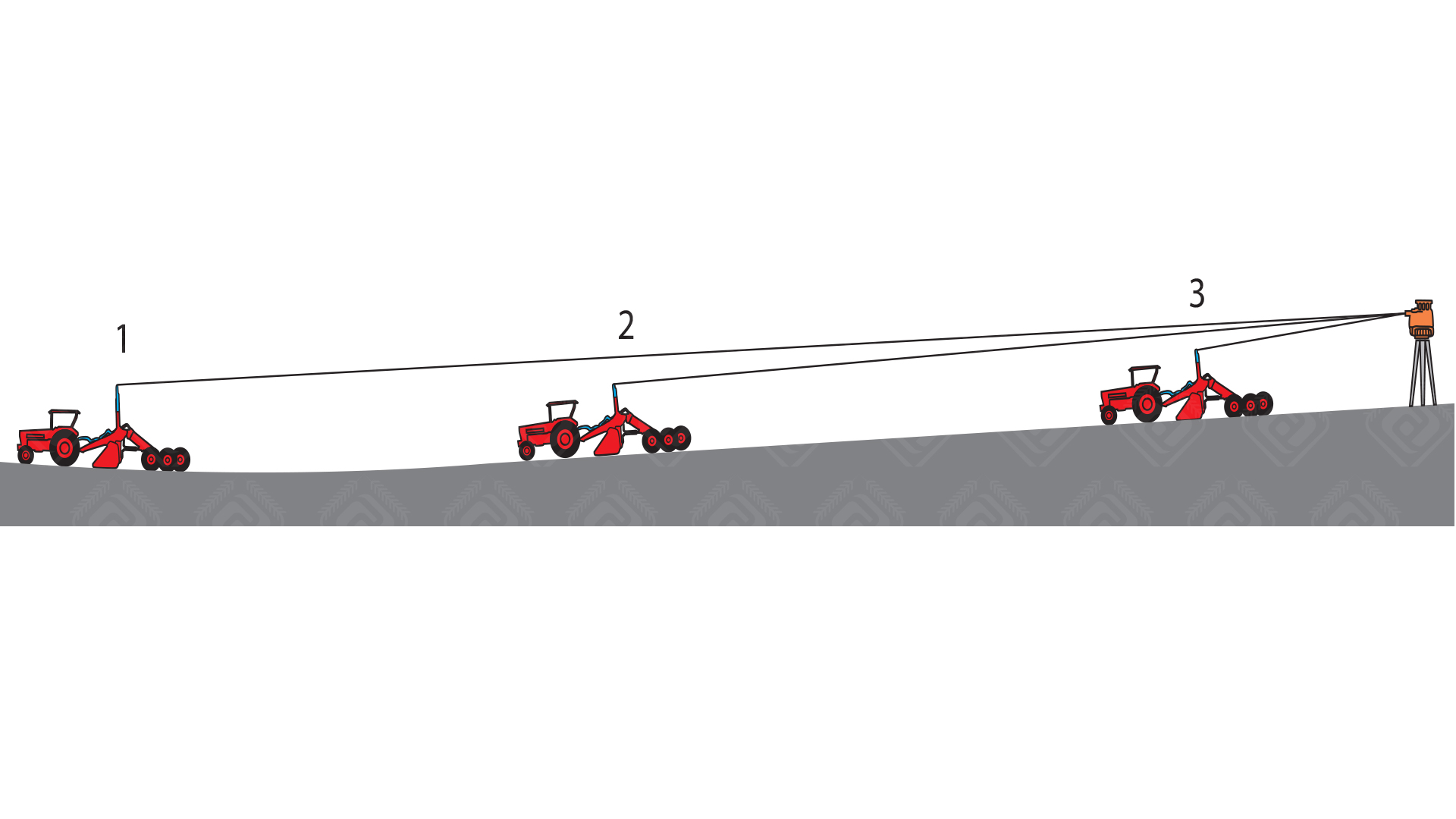

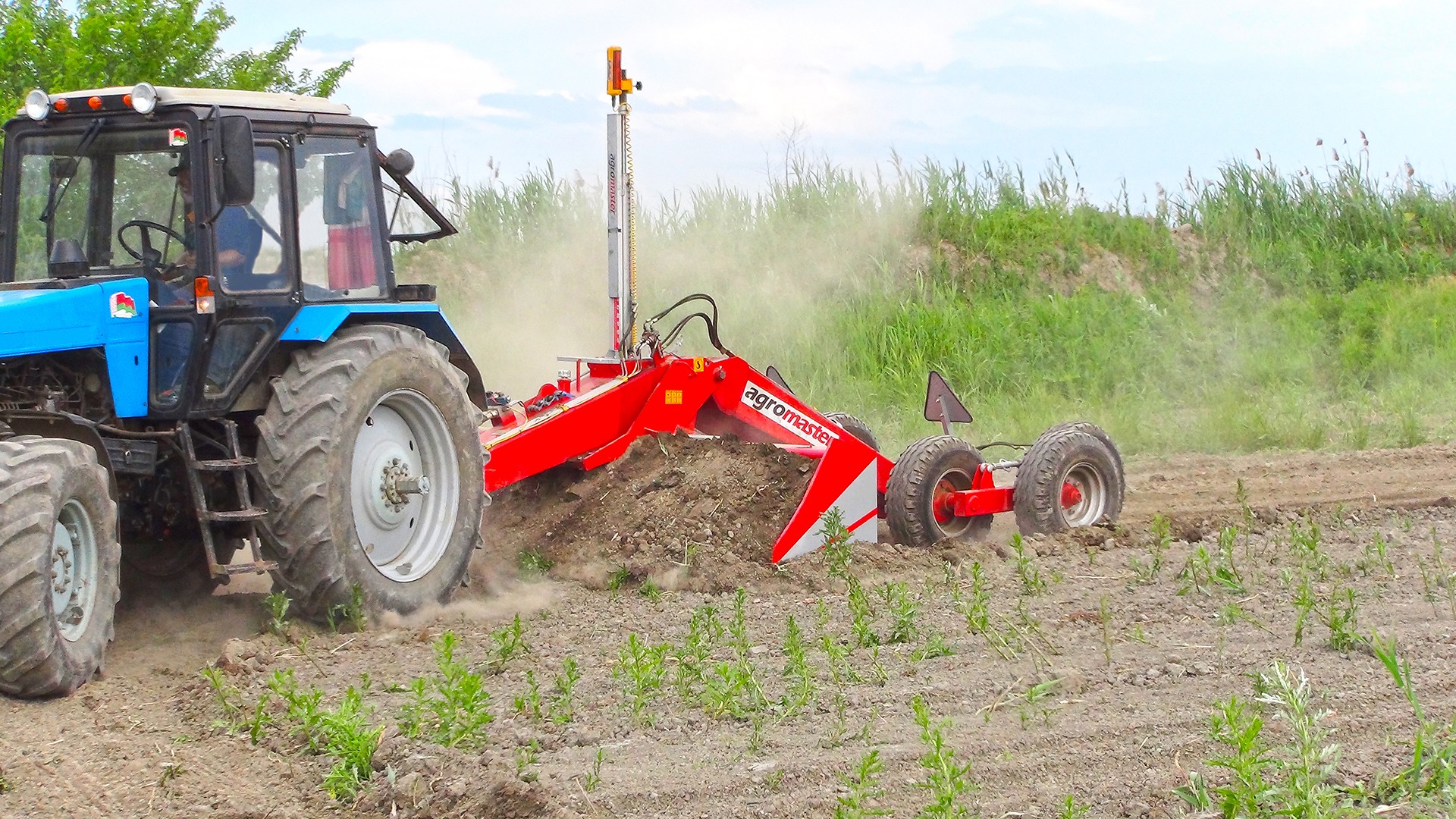

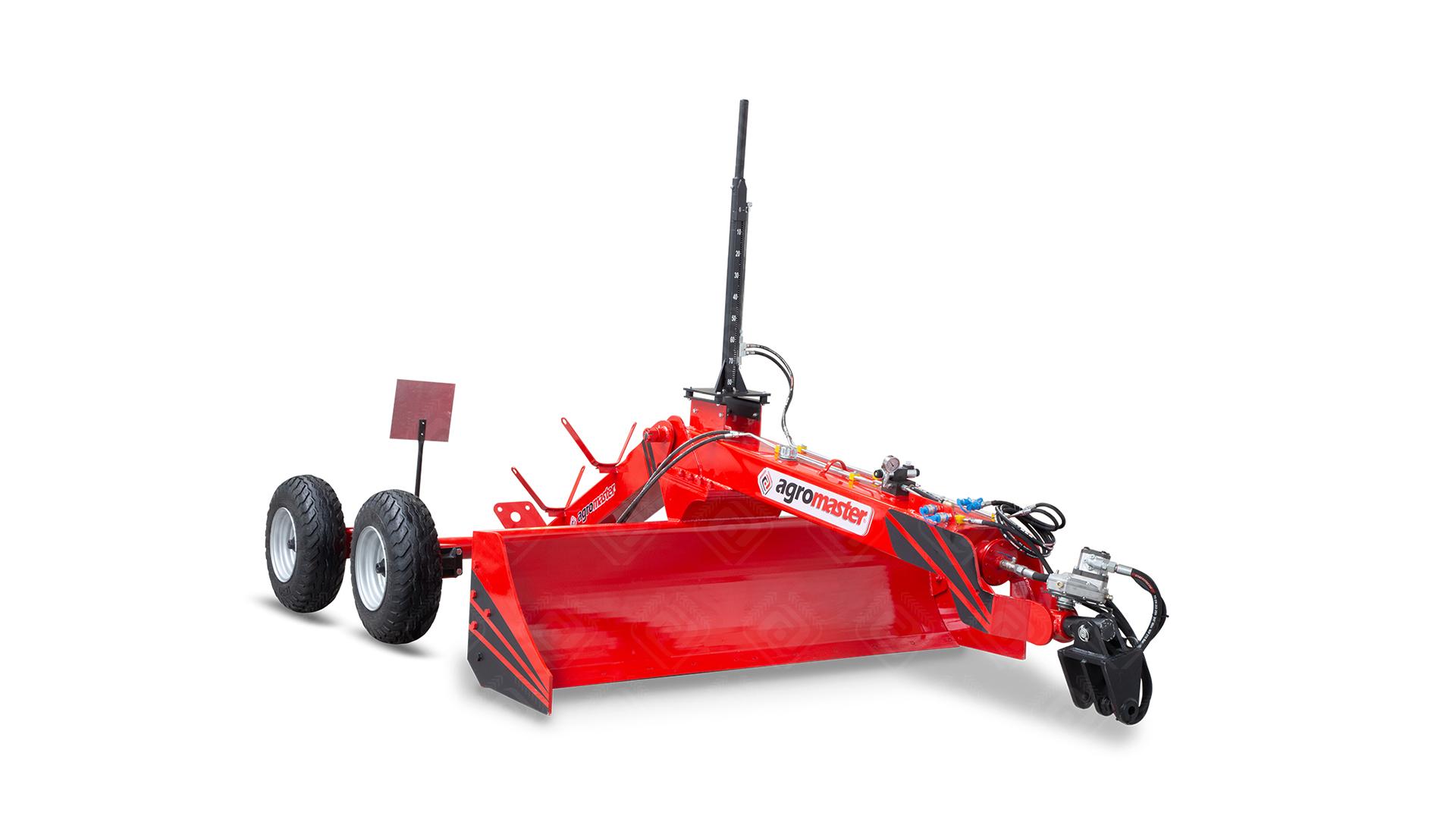

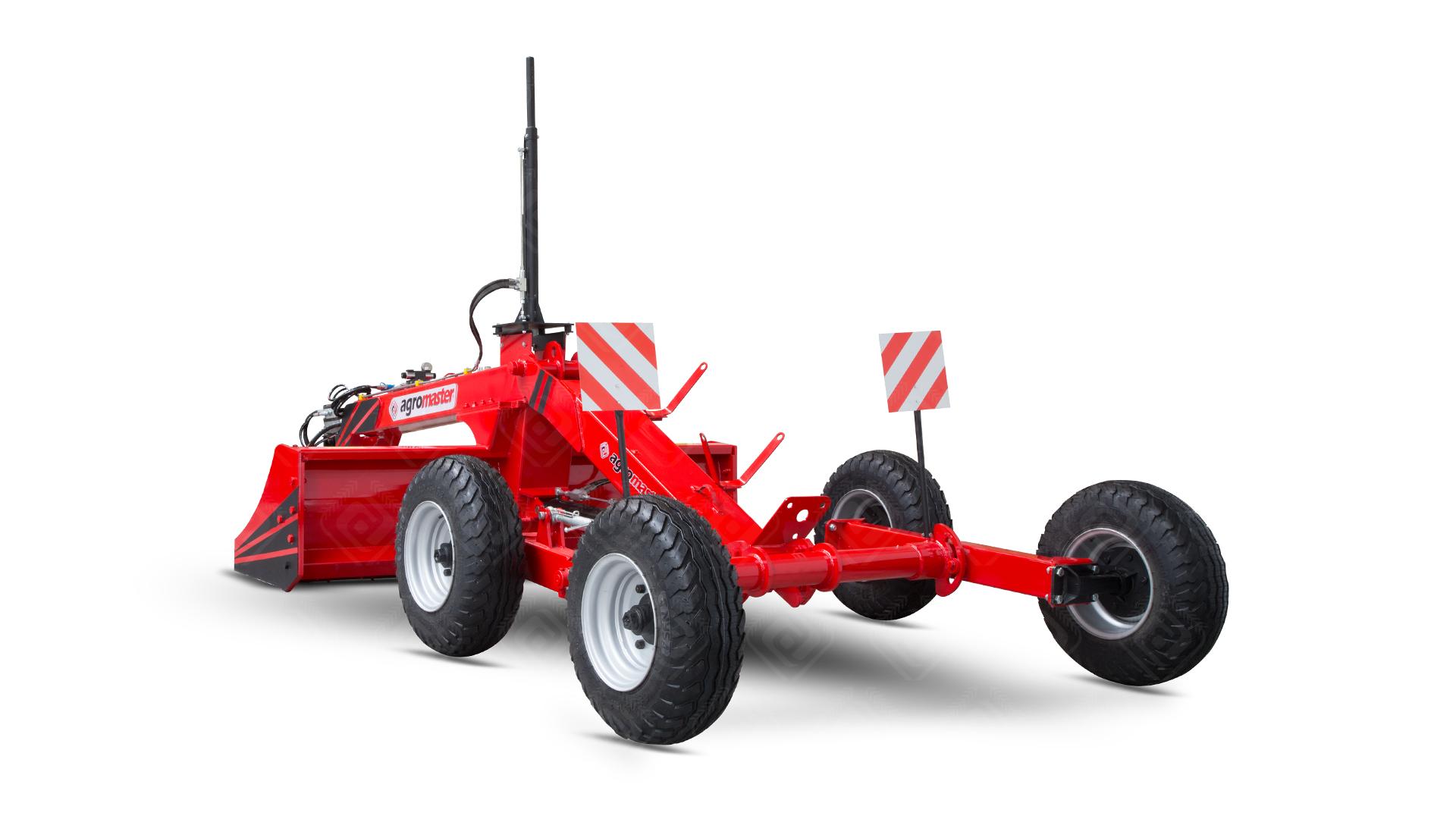

The Dozer Model, operating with a laser-controlled levelling system, provides precise and uniform land levelling. Based on signals received from the laser system, the blade height is automatically adjusted to eliminate elevation differences across the land surface. Thanks to its lightweight design, the machine is easy to transport and compatible with tractors of different power levels, making it an ideal solution for high-precision levelling operations in fields, land areas, and construction sites.
TOPCON Laser
|
Technical Specifications* |
Unit |
DOZER LIGHT 250 |
DOZER LIGHT 300 |
DOZER LIGHT 350 |
DOZER LIGHT 400 |
|
Working Width |
mm |
2500 |
3000 |
3500 |
4000 |
|
ft.in. |
8’2” |
9’10” |
11’5” |
13’1” |
|
|
Tranport Width |
mm |
2500 |
2500 |
2500 |
2500 |
|
ft.in |
8’2” |
8’2” |
8’2” |
8’2” |
|
|
Required Power |
hp |
60-80 |
70-90 |
80-100 |
90-110 |
|
Total Weight |
kg |
1700 |
1800 |
1900 |
2000 |
|
Ibs |
3747 |
3968 |
4188 |
4409 |
|

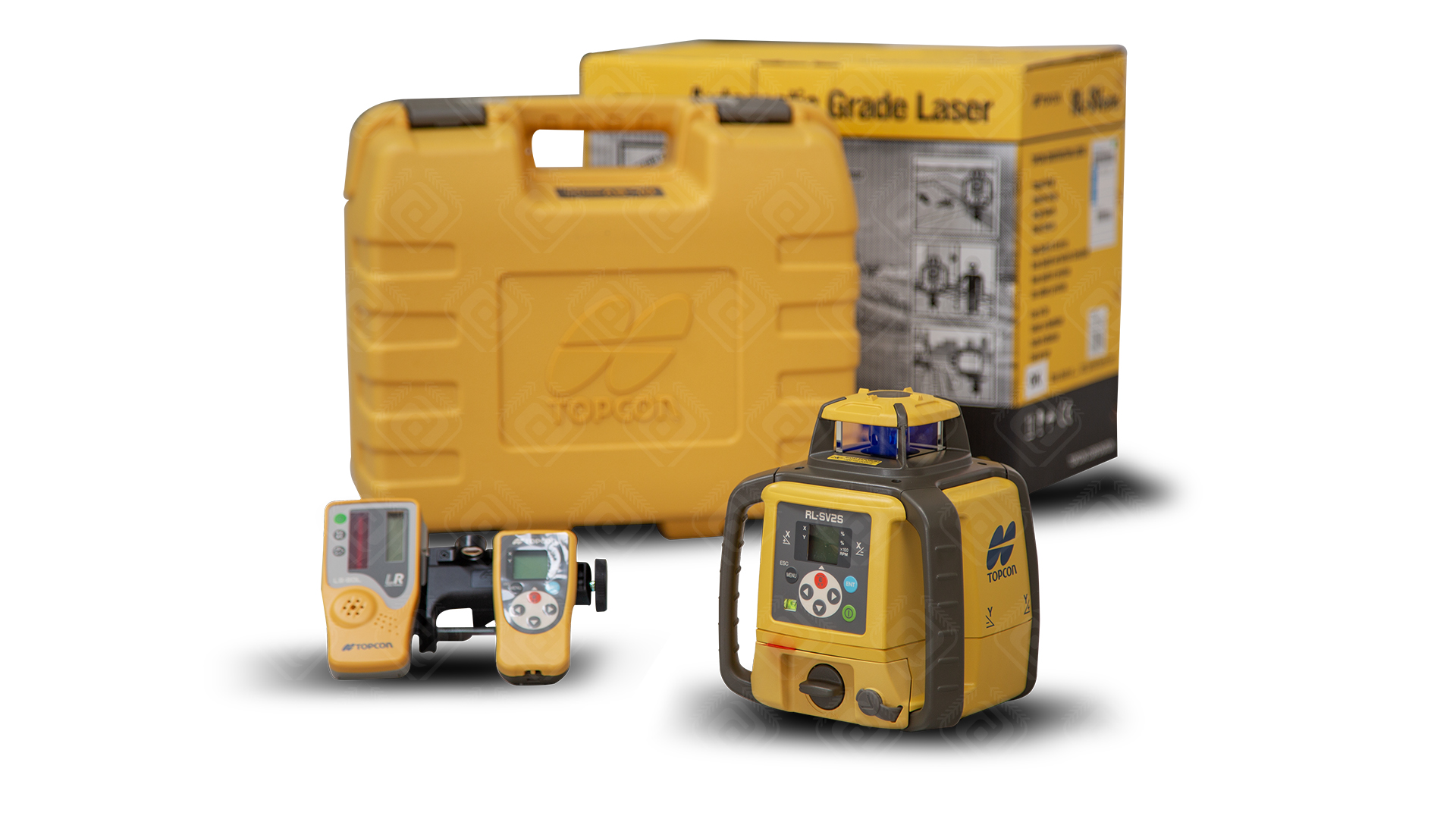

Technical Specifications for Topcon Laser System |
|
|
Horizontal Accuracy |
±1.5 mm @ 30 m (± 10 arc seconds) |
|
Operating Range |
400 m radius / 900 m diameter |
|
Operating Time |
120 hours with D cell batteries, 65 hours with Ni-MH Battery Option |
|
Grade |
8% (laser requires tilting over ±15%) |
|
Rotation Speed |
300, 600 rpm |
|
Water Resistance |
IP66 |
|
Self-Levelling Range |
±5° |
|
Laser Class |
3A |
|
Output Power |
Less than 5 mW |
