Interrow Cultivator with Router is an ENVIRONMENTALLY FRIENDLY machine that destroys the weeds existing between the rows of the plants such as (corn, beet, sunflower, cotton, potato, tomato, pepper etc.) that are planted on the rows without damaging the plants and thus ensures that the plants get the adequate nutrients and water from the soil. The row space can be adjusted by sliding the units on the main frames. The working depth is adjusted by the 2 displaceable wheels located on the main frame. The working depth of the units may be different depending on the products and plant space.Thanks to the optional fertilizer box and the furrow opener apparatus, the fertilizer that has been scattered during the hoeing is made to be mixed with the soil homogenously and after this mixture is piled up towards the plant root the plant benefits hugely from the fertilizer with the middle breaking procedure.

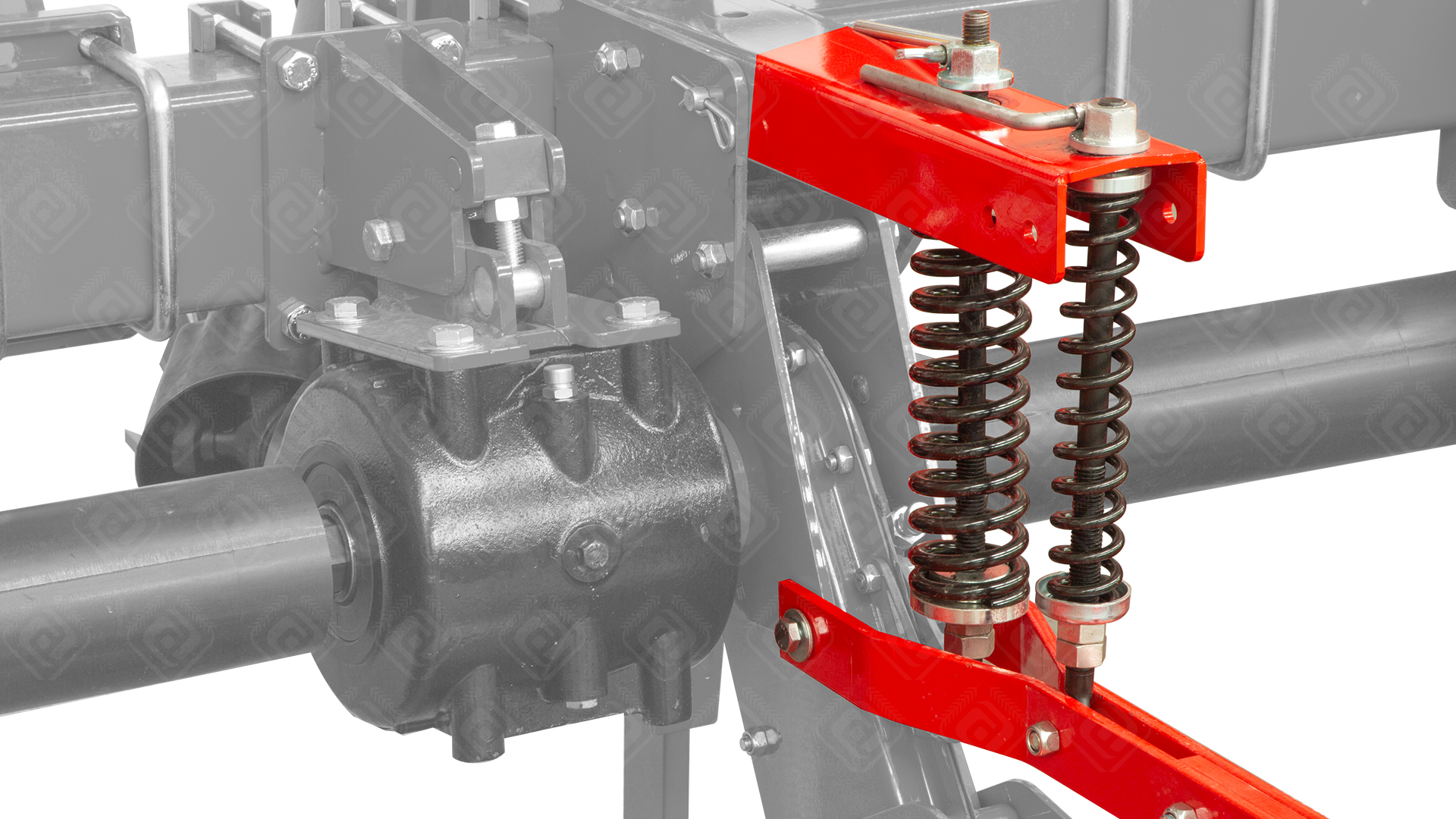

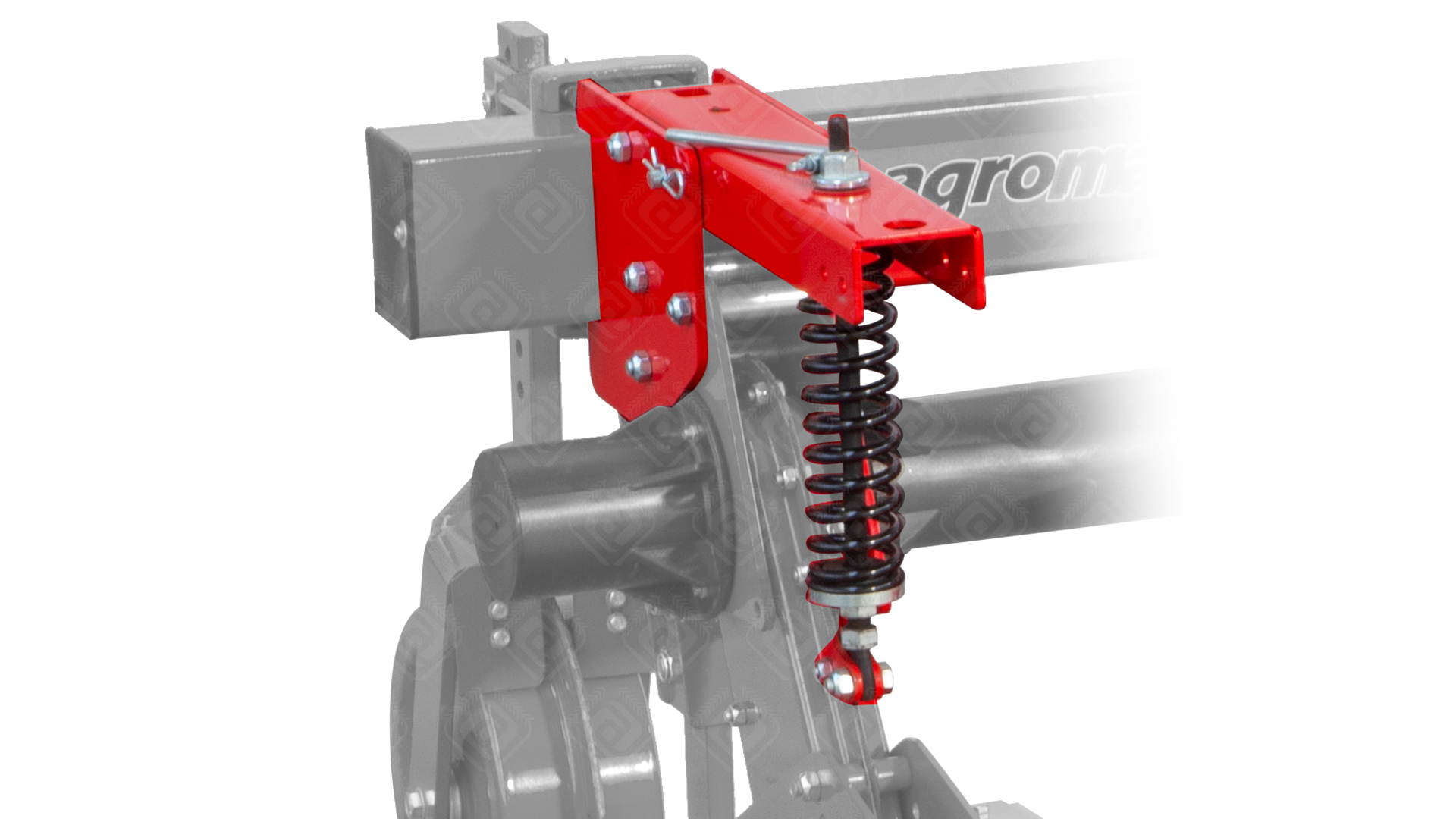

Down Force Adjustment
Adjustment of Spaces Between Rows

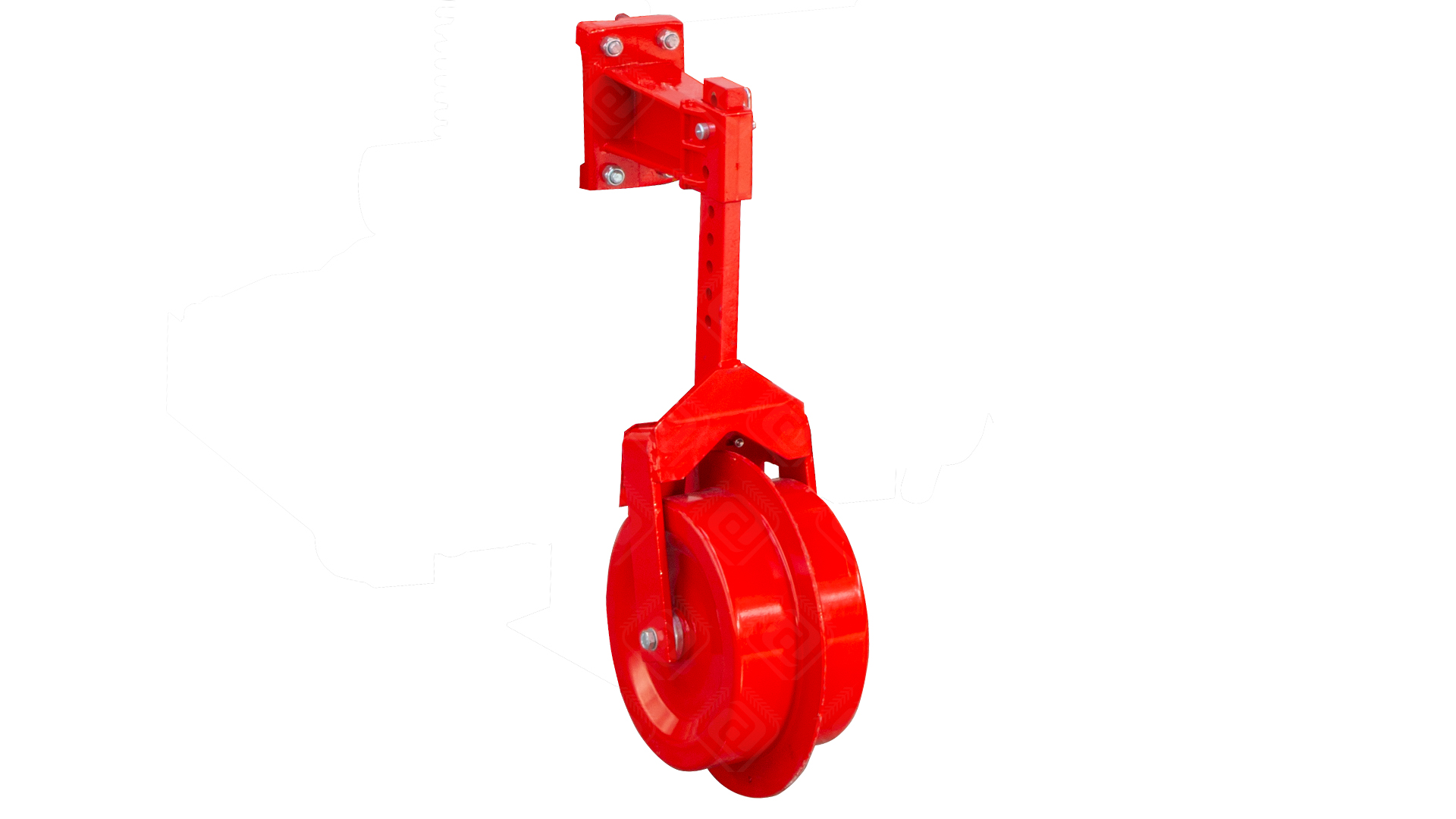

Balance Wheel Adjustment

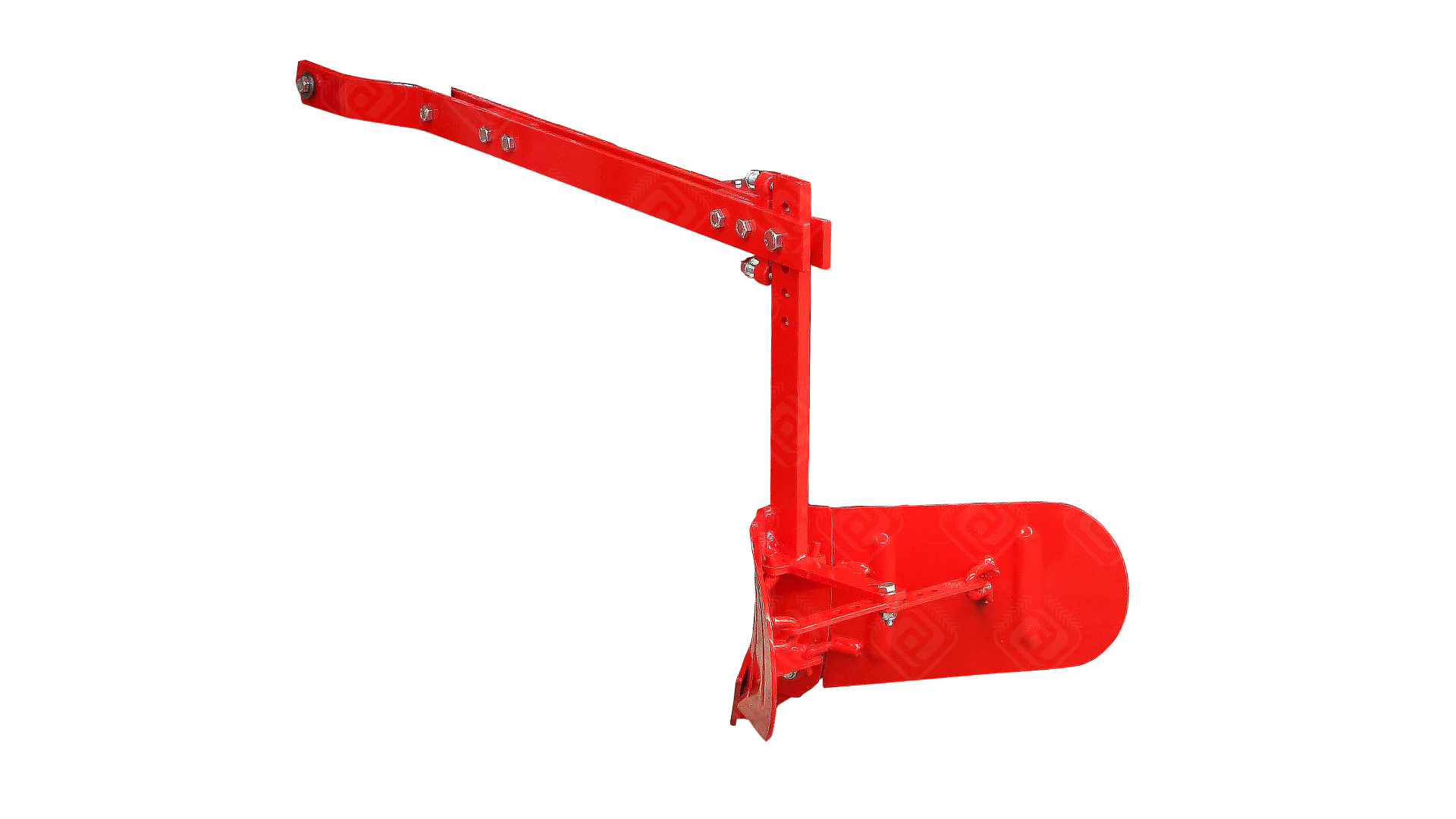

Optional Canal Opener Attachment
|
Technical Specifications* |
Unit |
AMELE HF3-2 |
AMELE HF4-2 |
AMELE HF5-2 |
|
Number of Units |
pcs |
3 Full 2 Half |
4 Full 2 Half |
5 Full 2 Half |
|
Distance Between Units |
mm |
700 |
700 |
700 |
|
Working Width |
mm |
500 |
500 |
500 |
|
Number of blades |
pcs |
16 |
16 |
16 |
|
Working Depth |
mm |
100 |
100 |
100 |
|
Transport Width |
mm |
3300 |
3800 |
4400 |
|
Lenght |
mm |
1450 |
1450 |
1450 |
|
Height |
mm |
1650 |
1650 |
1650 |
|
Required Power |
hp |
60-80 |
70-90 |
80-100 |
|
kw |
45-60 |
52-67 |
60-75 |
|
|
Total Weight |
kg |
1020 |
1180 |
1320 |
|
Plastic Fertilizer Hopper |
lt |
180x2 |
230x2 |
280x2 |
|
Metal and Stainless Fertilizer Hopper |
lt |
200x2 |
250x2 |
400x2 |
