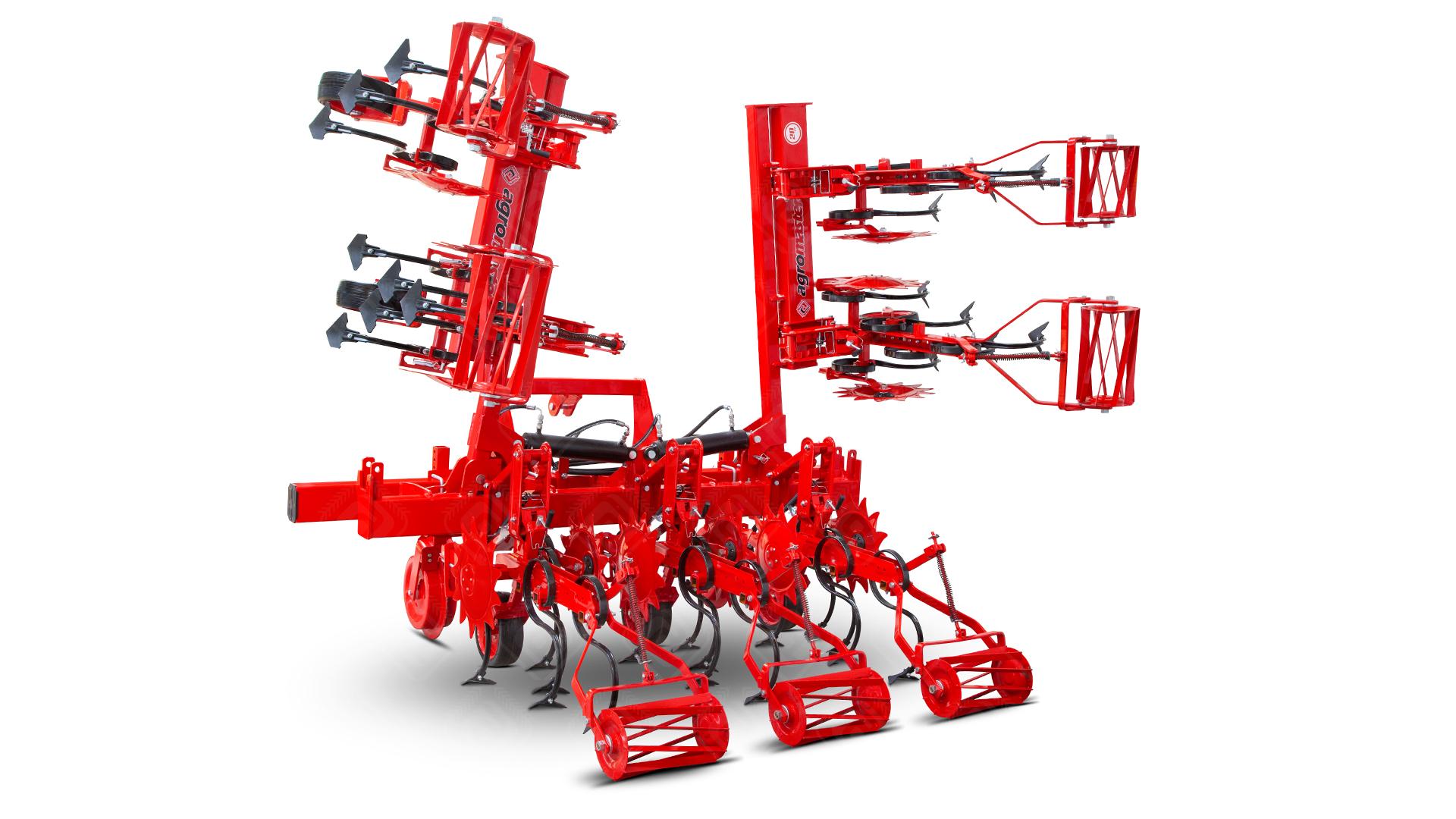

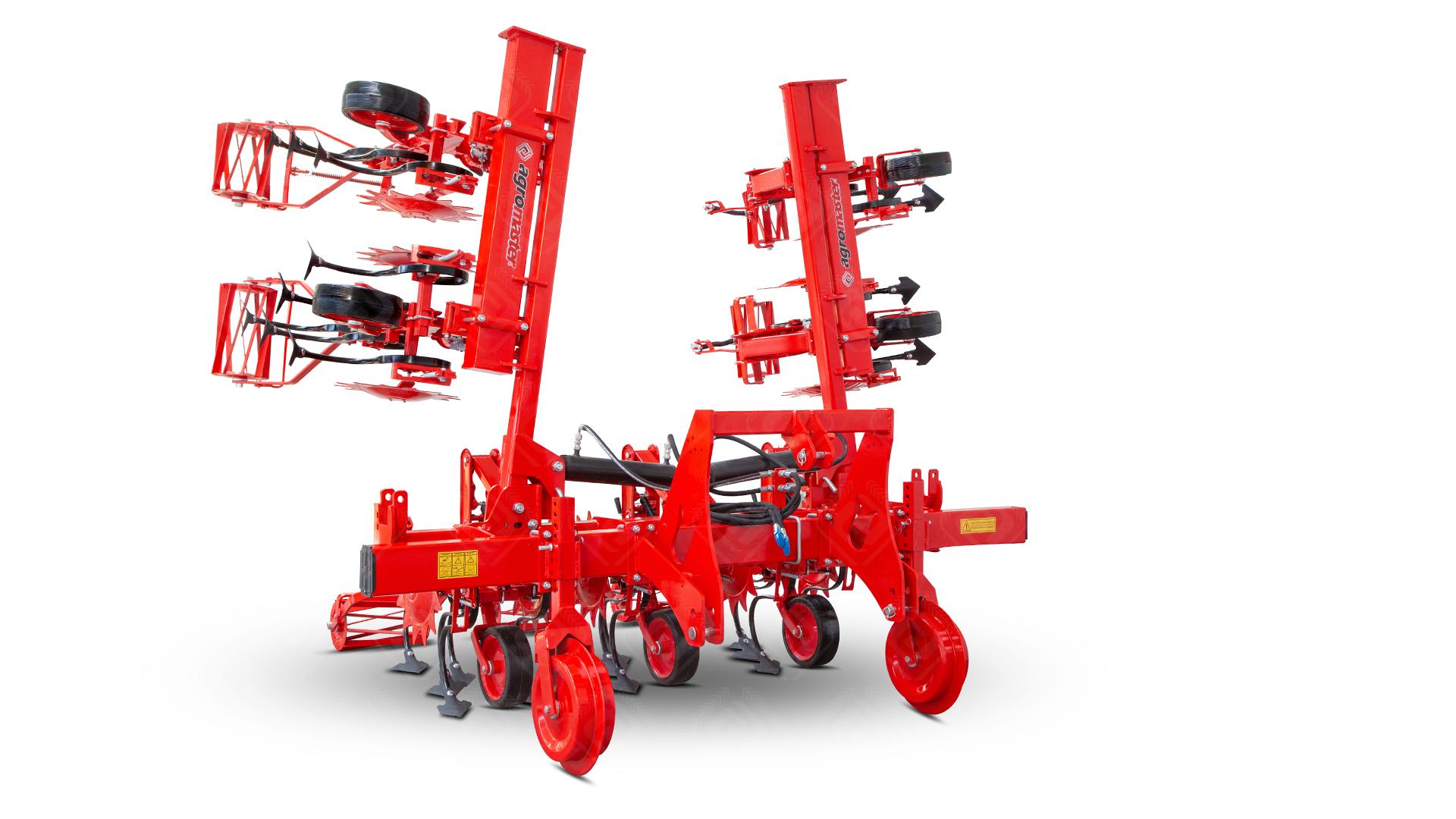

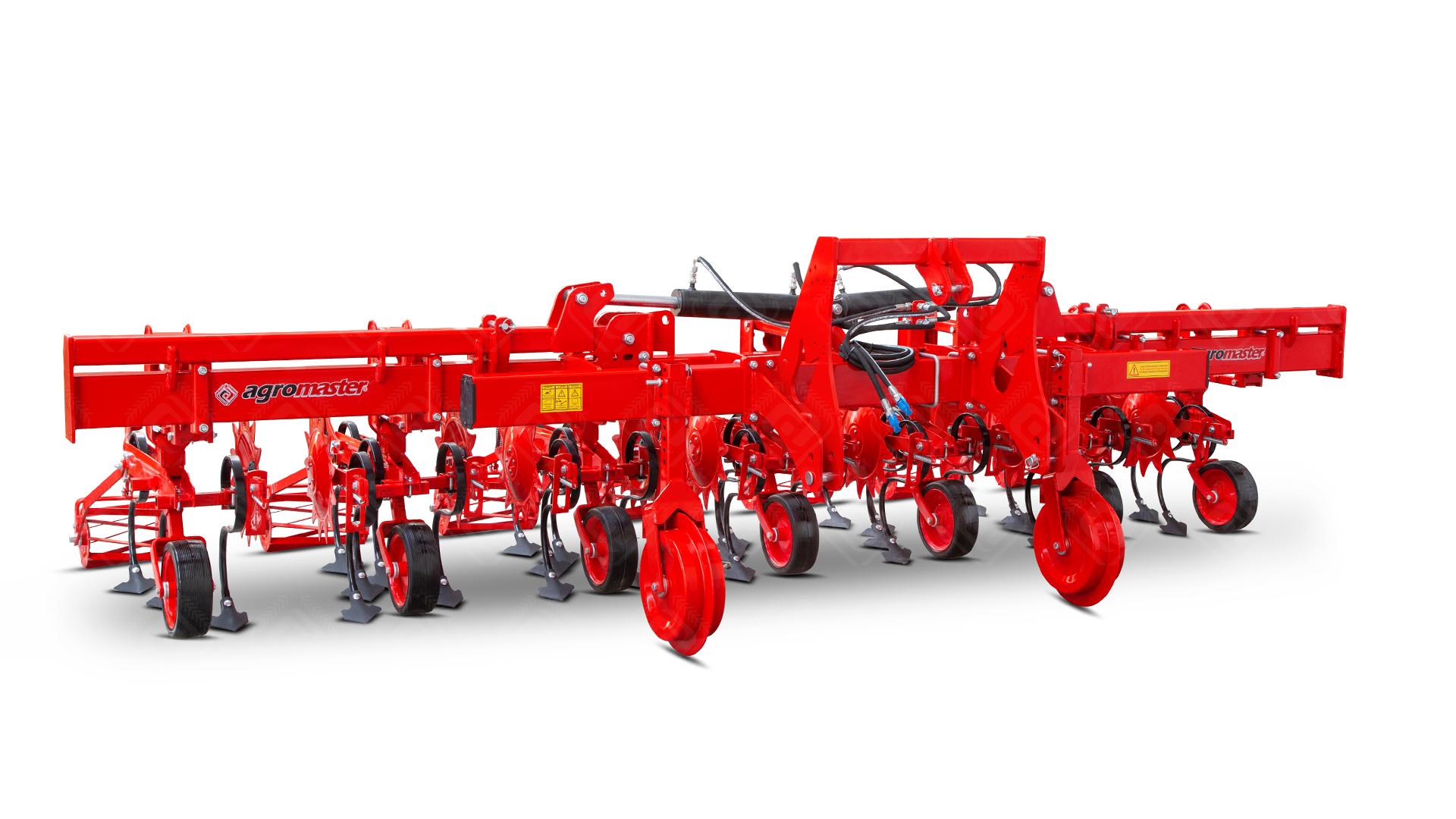

The primary soil tillage machine is mounted from tractor's hydraulic lifting unit and transportation to the field can be easily done.Machine is produced as 5, 7, 9, 11, 13, 15, 17 and 19 rows and used for hoeing of plants.Detrimental effect of weeds on the plants starts 1-1,5 months later from the planting date. The machine is used for rising of soil and weeding during the growing period of plants. This process accelerates growing of the plants. Row space of machine is adjustable and fertilizing mechanism can be added according to demand

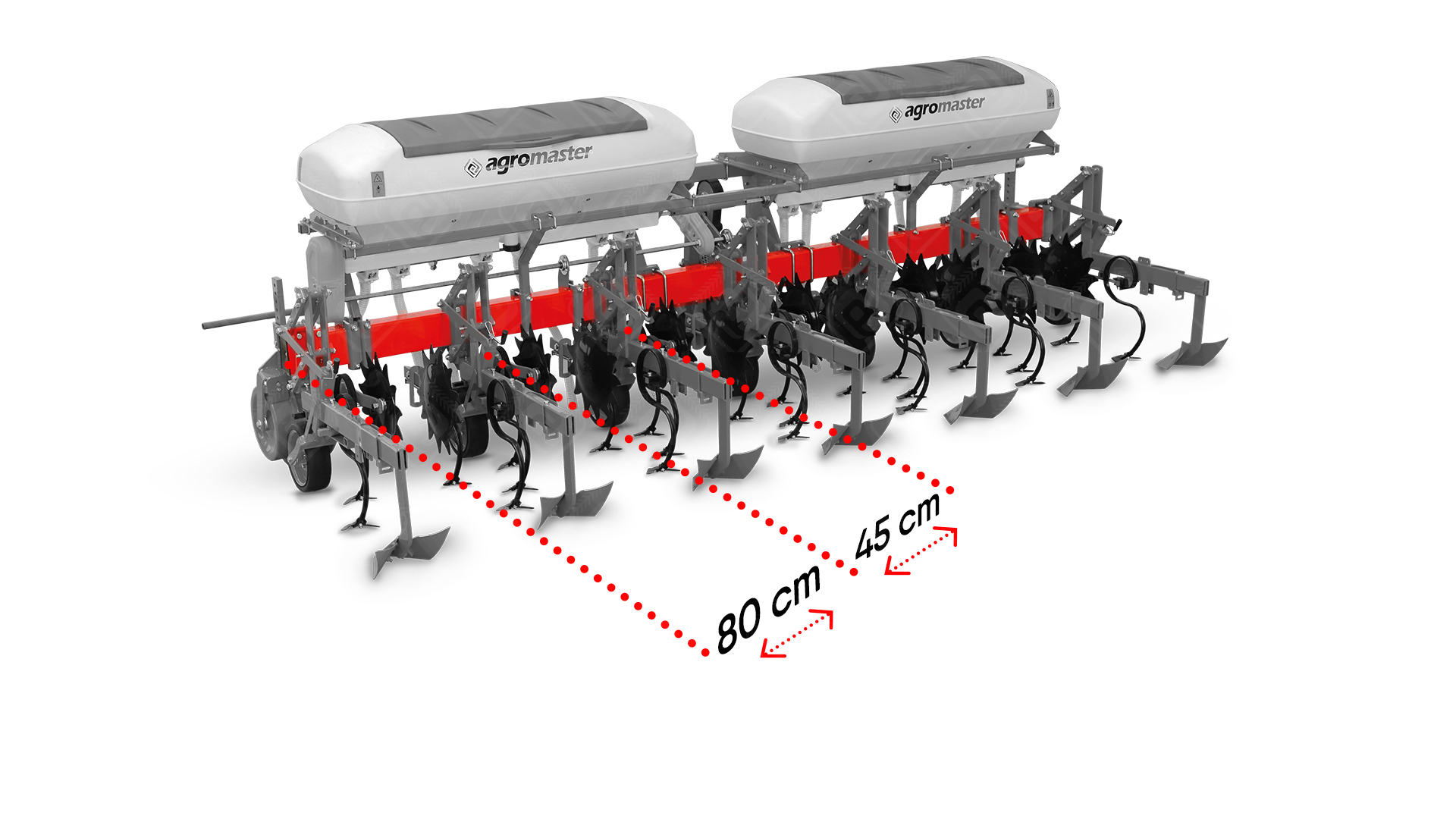

Changeable Space Between Rows

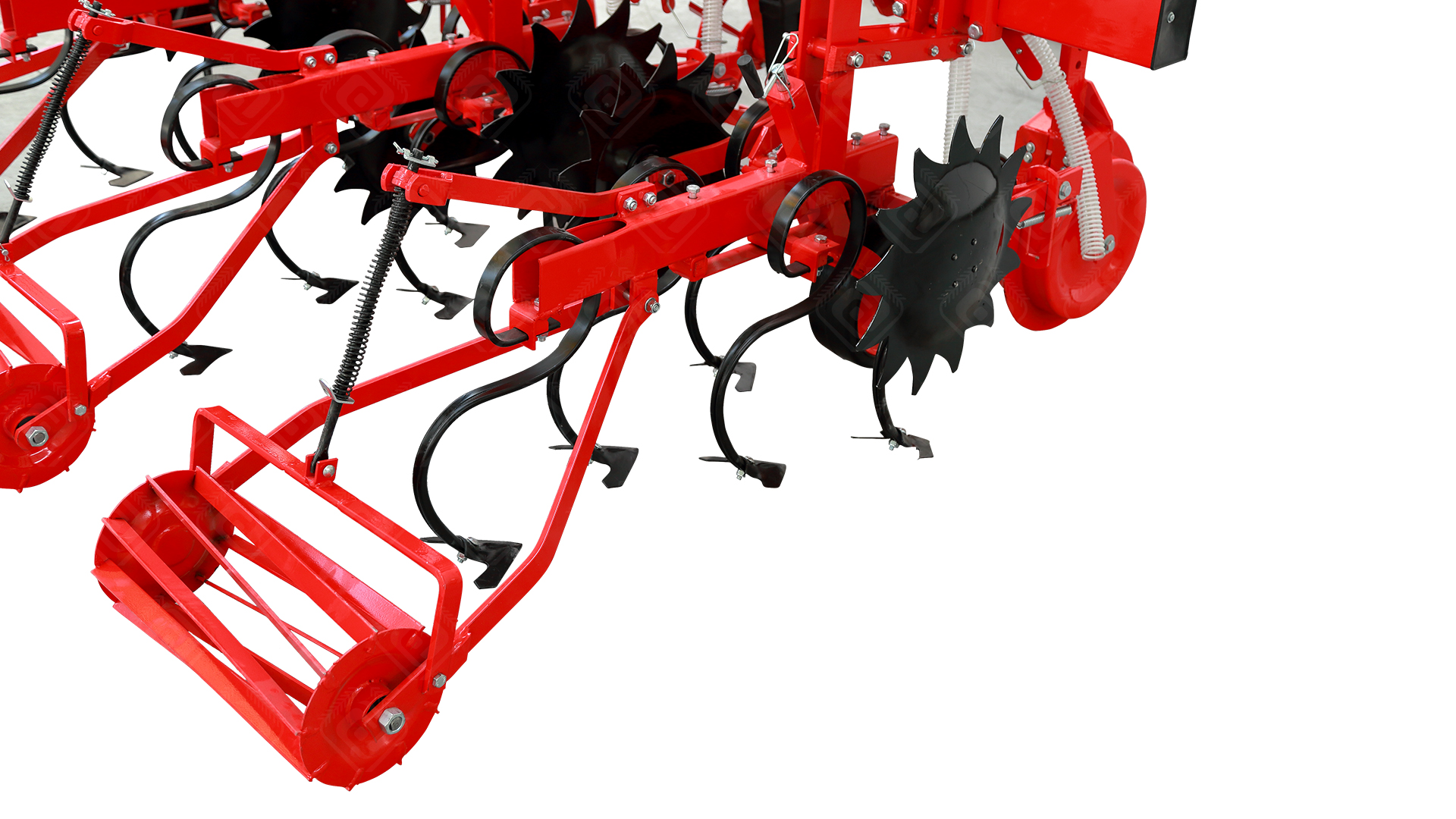

Depth Adjustment

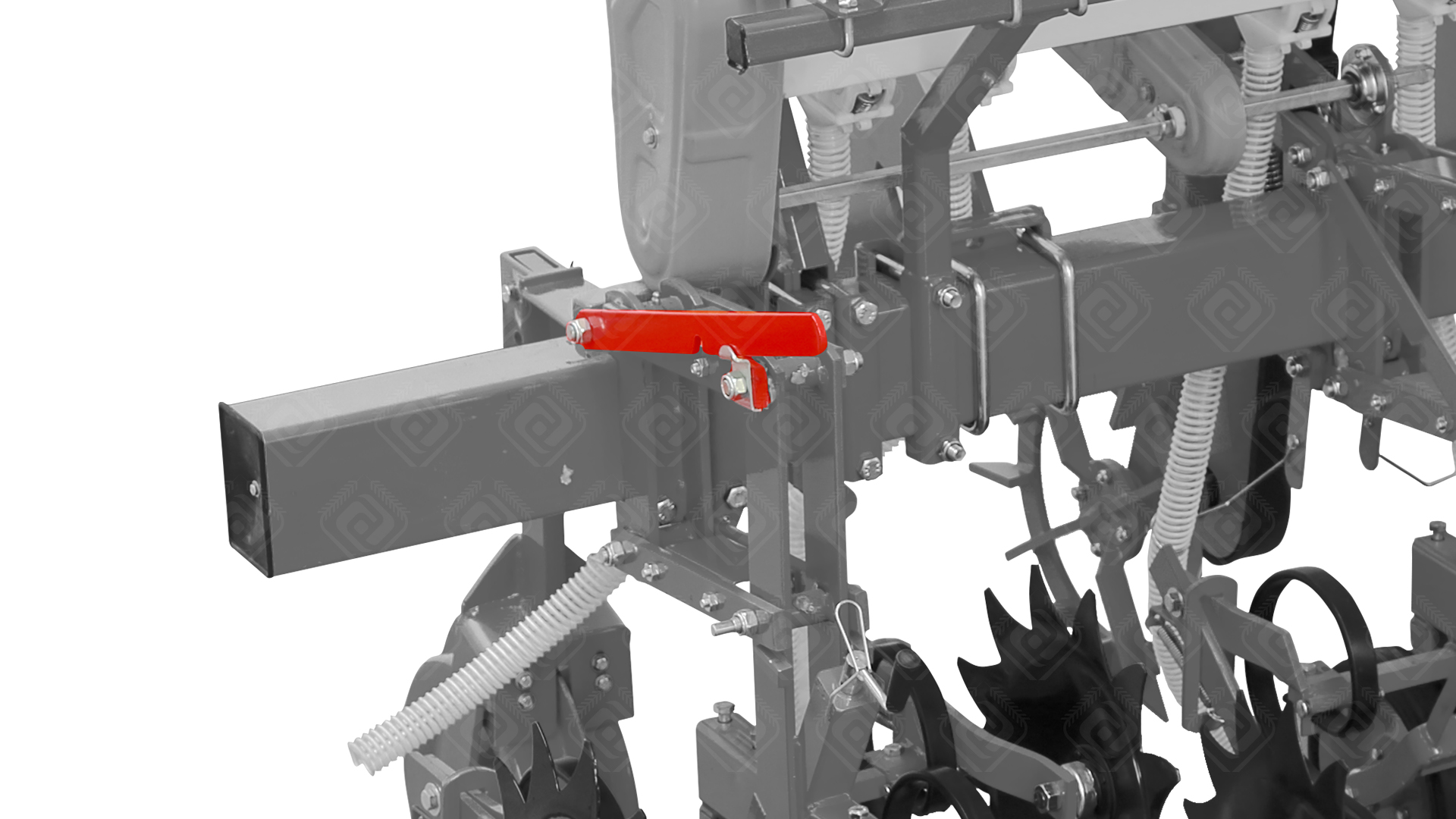

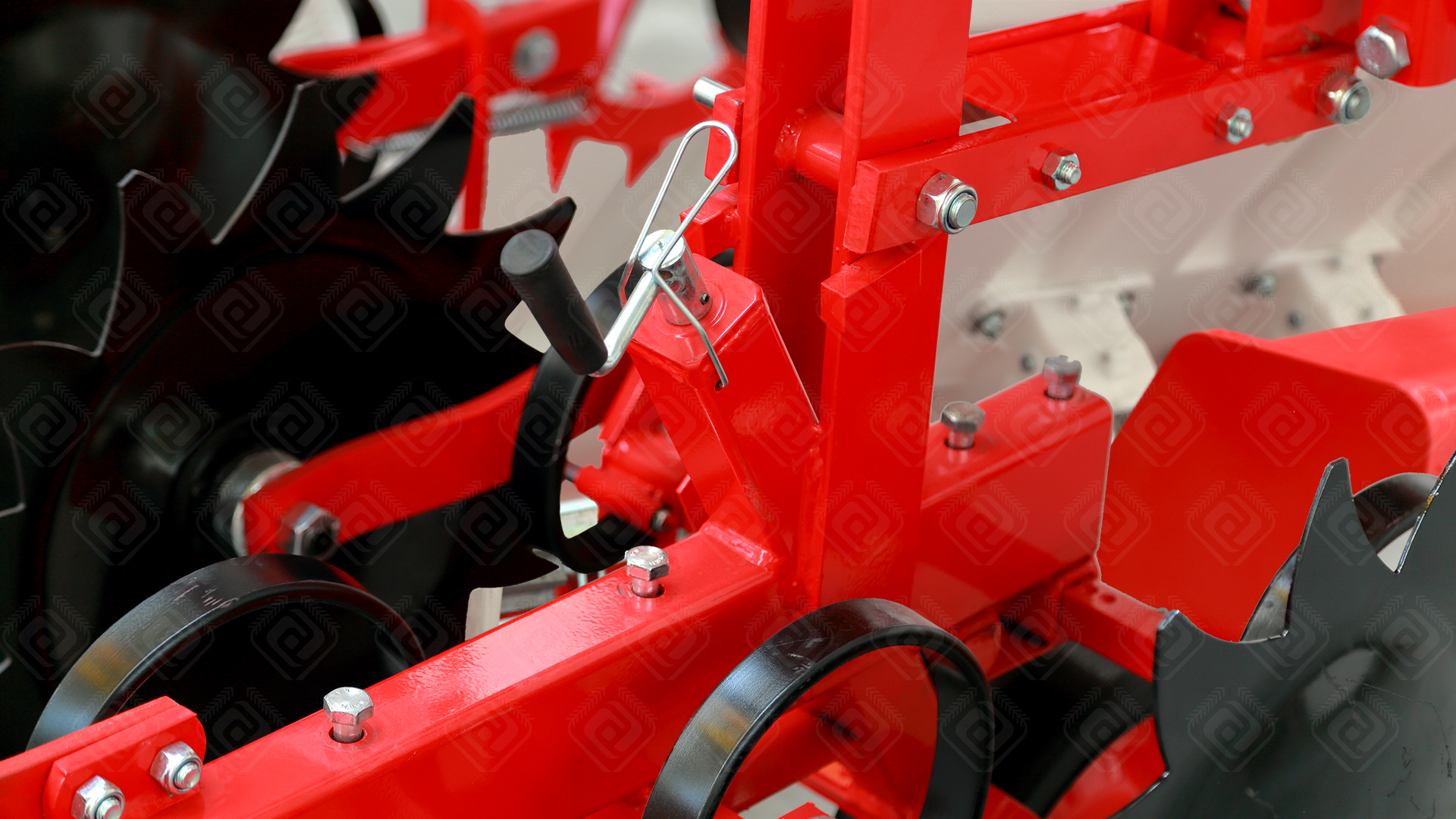

Unit Locking Adjustment

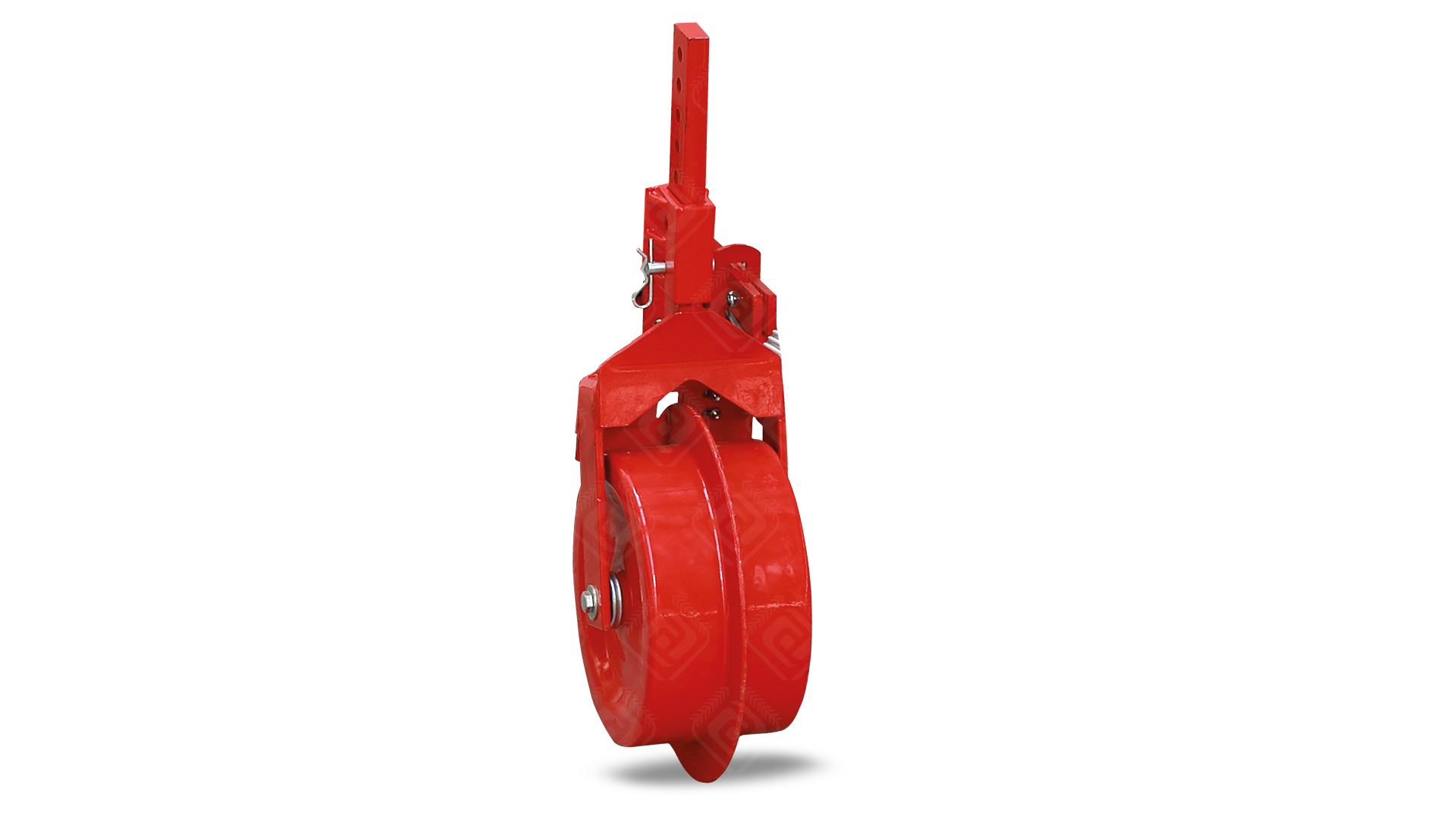

Balance Wheel Adjustment

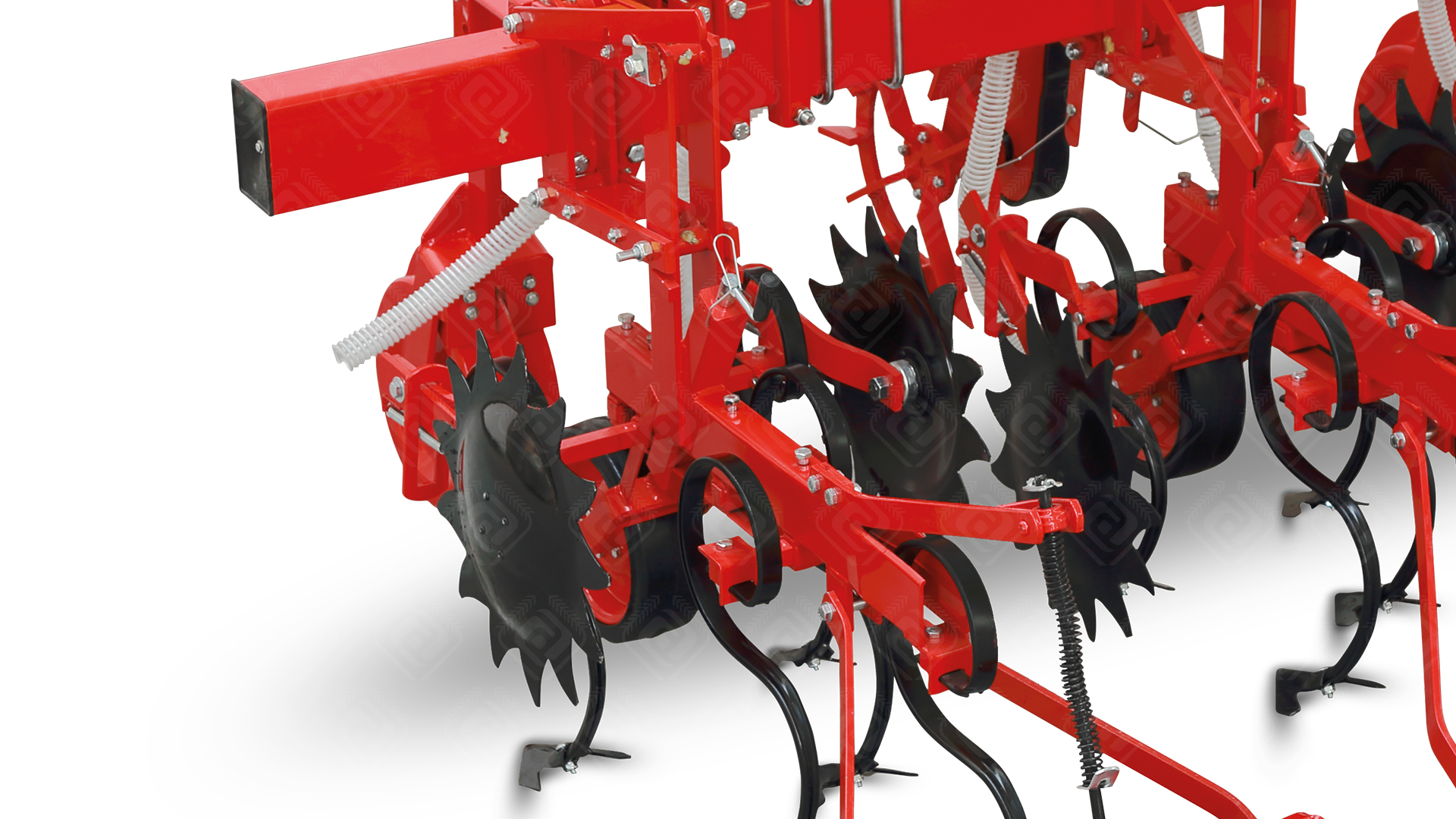

Star Disc Adjustment

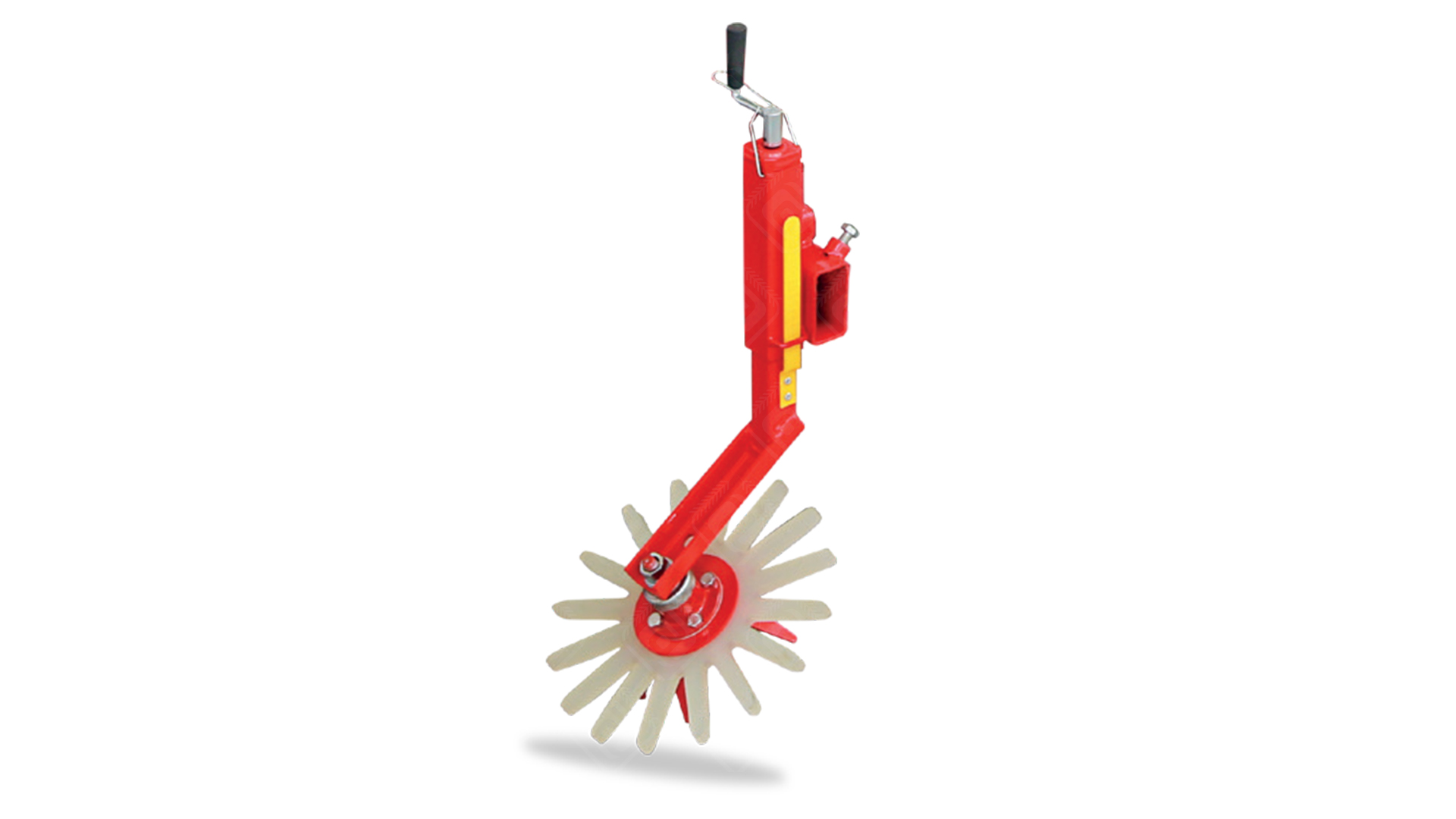

Star Type Closer Disc
Canal Opener
Roller Force Adjustment

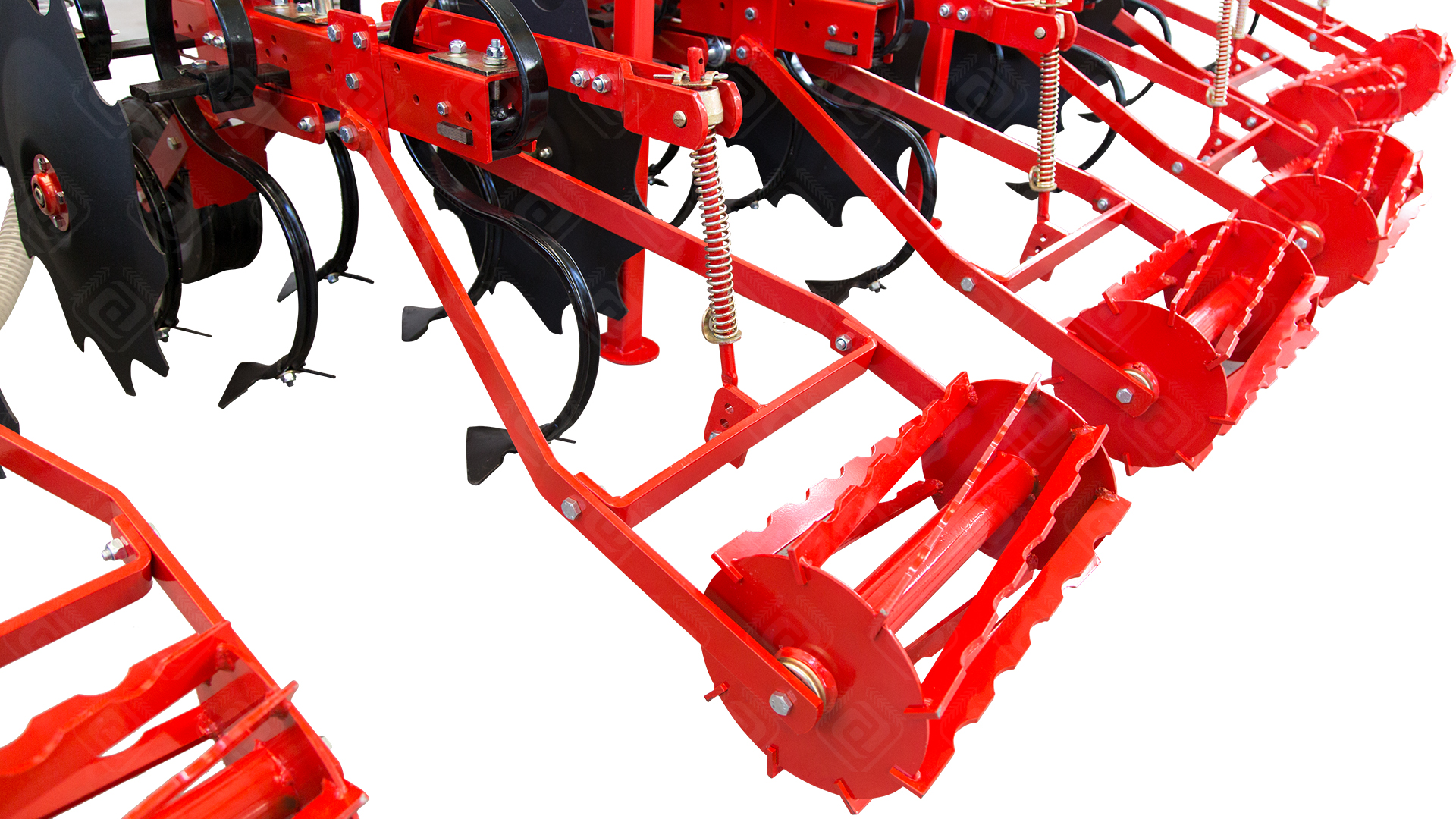

Rear roller provide to crumbling the soil and smooth soil surface.
|
Technical Specifications* |
Unit |
YCM 3 |
YCM 5 |
YCM 6 |
YCM 7 |
YCM 9 |
|
Number of Units |
pcs |
3 |
5 |
6 |
7 |
9 |
|
Number of Tines |
pcs |
13 |
21 |
26 |
31 |
41 |
|
Total Width (W) |
mm |
2070 |
3000 |
3000 |
4500 |
6000 |
|
ft.in. |
6'10" |
9'10" |
9'10" |
14'9" |
19'8" |
|
|
Total Length (L) |
mm |
2300 |
2300 |
2300 |
2300 |
2300 |
|
ft.in |
7'7" |
7'7" |
7'7" |
7'7" |
7'7" |
|
|
Total Height (H) |
mm |
950 |
950 |
950 |
950 |
950 |
|
ft.in. |
3'1" |
3'1" |
3'1" |
3'1" |
3'1" |
|
|
Working Width |
mm |
Adjustable |
||||
|
Space Between Units |
mm |
450-800 |
450-800 |
450-800 |
450-800 |
450-800 |
|
ft.in. |
1'6"-2'7" |
1'6"-2'7" |
1'6"-2'7" |
1'6"-2'7" |
1'6"-2'7" |
|
|
Required Power |
hp |
45 |
55 |
60 |
75 |
90 |
|
Weight |
kg |
505 |
620 |
690 |
790 |
1100 |
|
Ibs |
1113 |
1366 |
1521 |
1741 |
2425 |
|
Interrow Cultivator with Spring Tine / YCM
