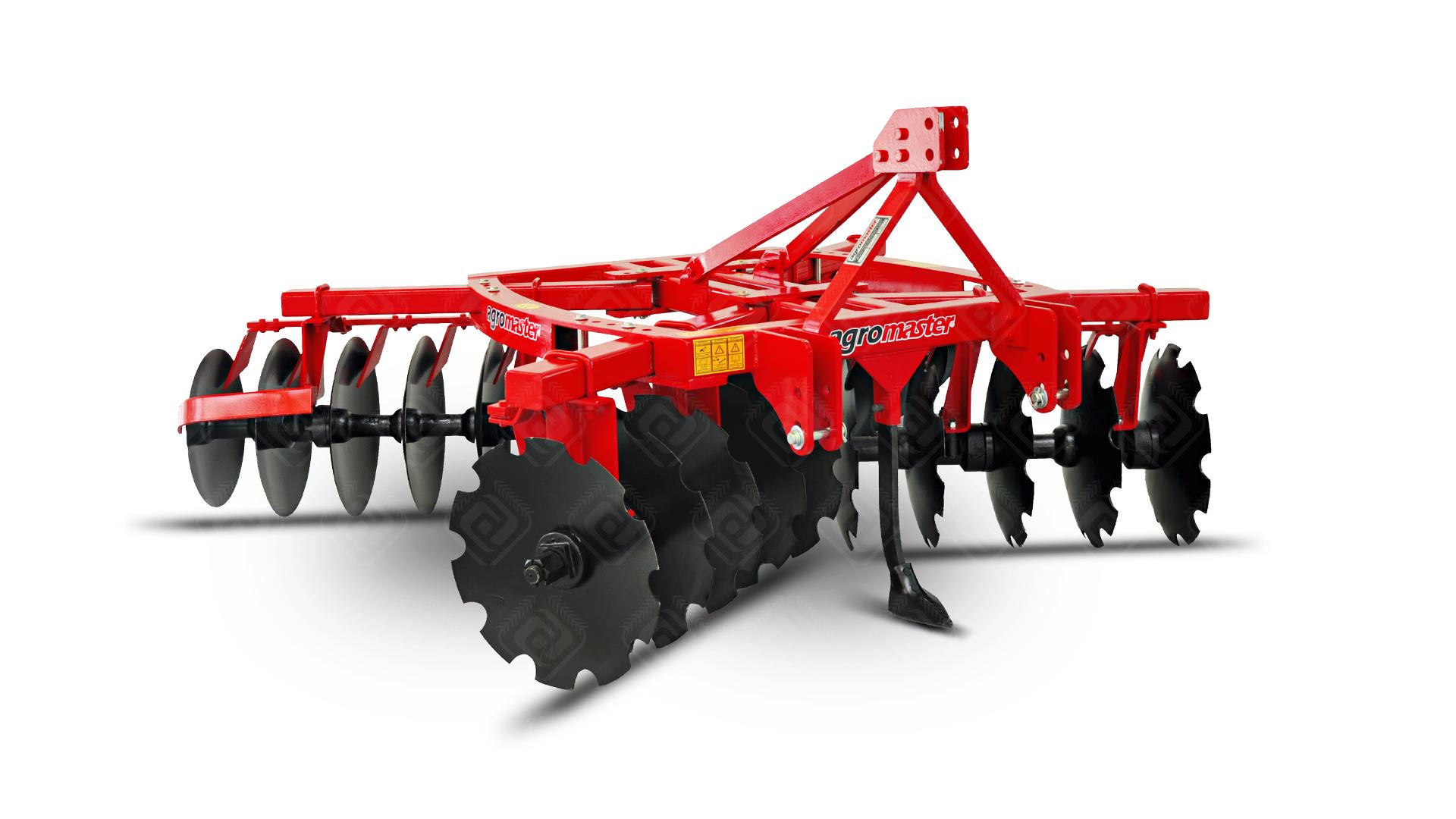

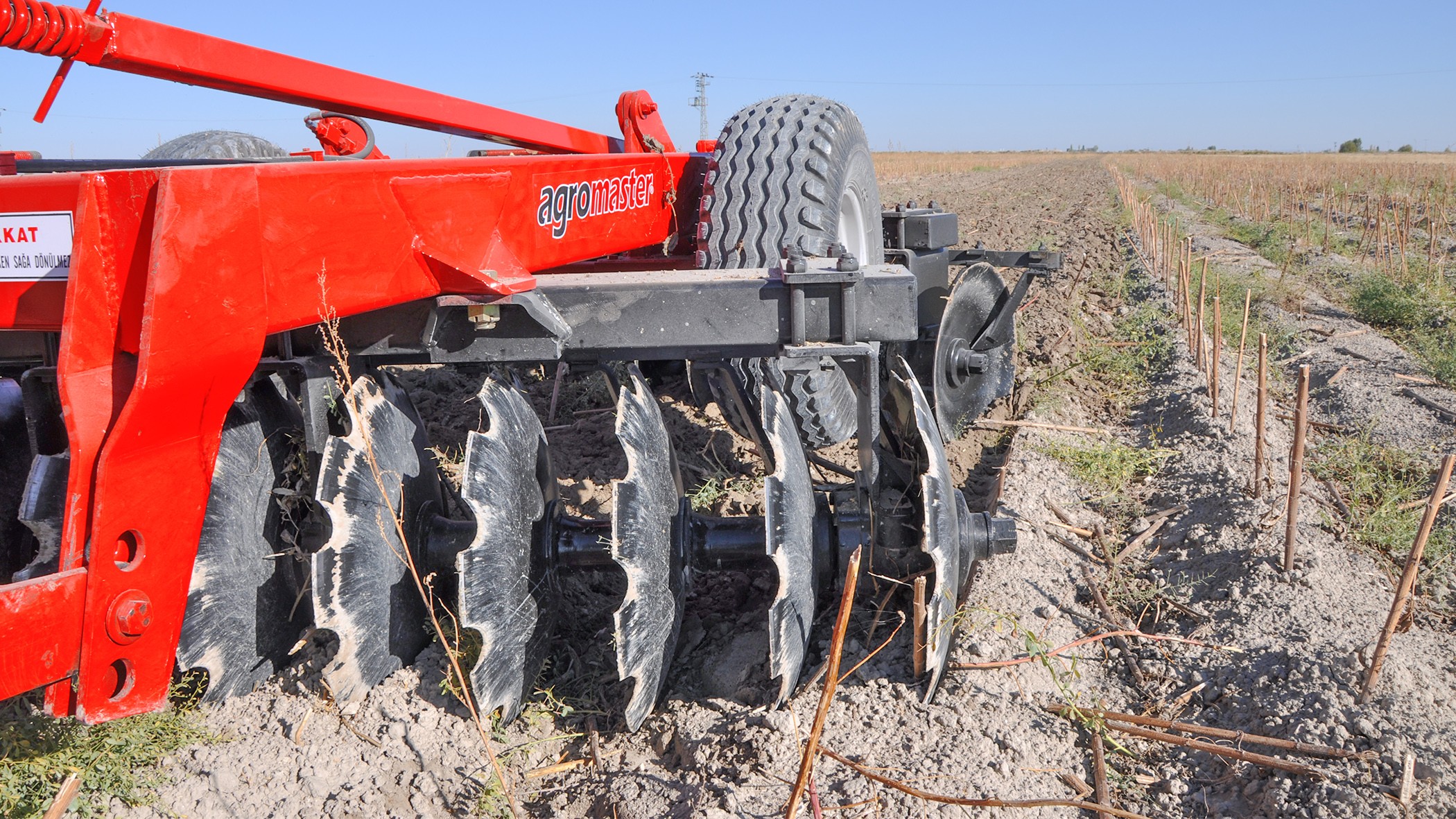

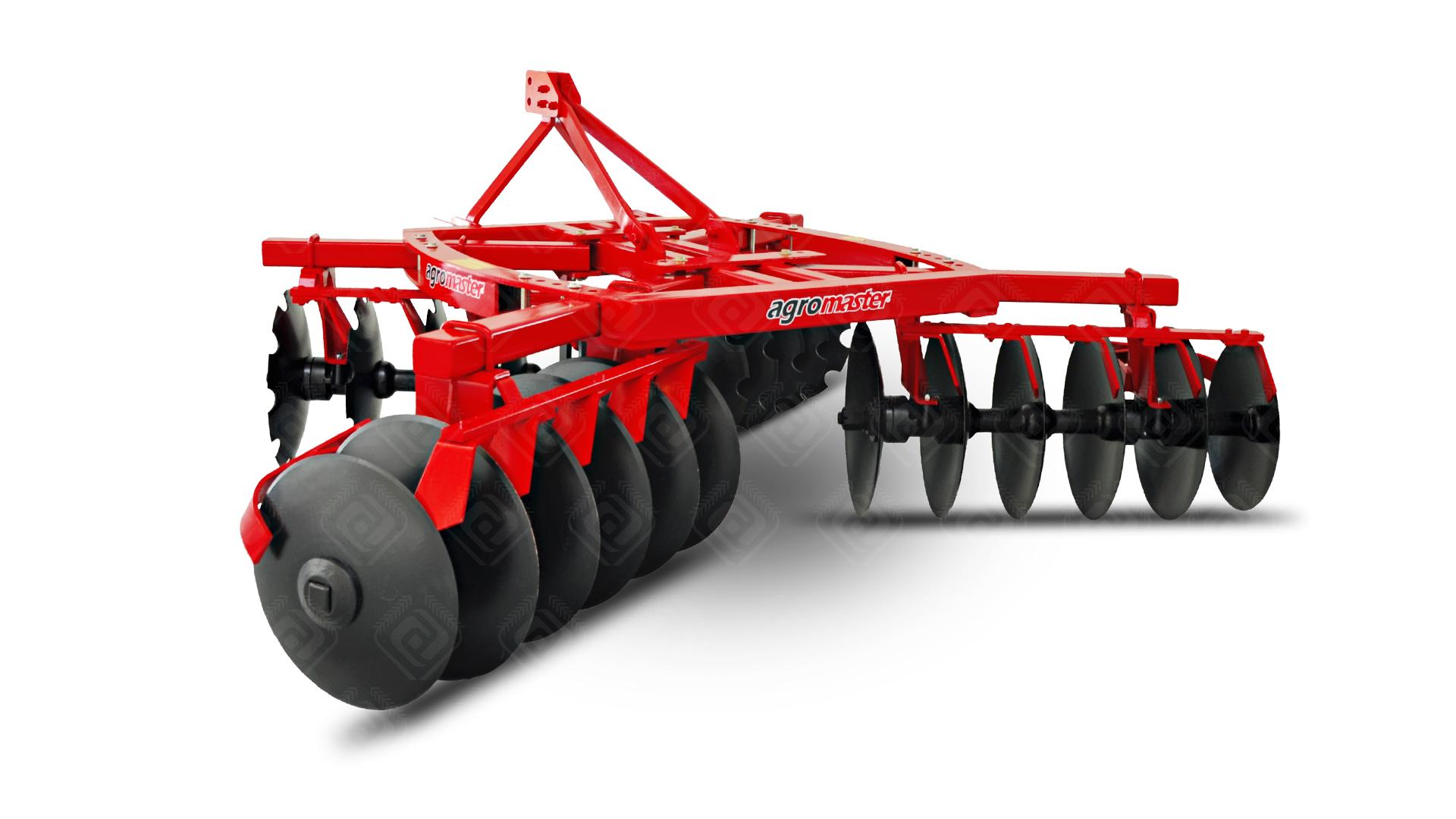

This is for secondary tillage machine which is mounted type along with Universal three-point hitch and hydraulic lifting unit of tractor. X type disc harrows are used for preparation of seed bed and also used for turning into organic fertilizer stems of weeds by cutting weeds before sowing on plowed land. X type disc harrows are manufactured based on 20-36 discs type of batteries, diameter of discs are 460 mm, 510 mm and 560 mm made of boron steel with hard 50-52 Rh.
|
Disc diameter,460 mm |
||||||
|
Technical Specifications* |
Unit |
XD 2046 |
XD 2446 |
XD 2846 |
XD 3246 |
XD 3646 |
|
Number of Disc |
pcs |
20 |
24 |
28 |
32 |
36 |
|
Working Depth (Max.) |
mm |
100 |
100 |
100 |
100 |
100 |
|
ft.in. |
4" |
4" |
4" |
4" |
4" |
|
|
Working Width |
mm |
1900 |
2280 |
2660 |
3040 |
3420 |
|
ft.in. |
6'3" |
7'6" |
8'9" |
9'12" |
11'3" |
|
|
Disc Diameter |
mm |
460 |
460 |
460 |
460 |
460 |
|
ft.in. |
1'6" |
1'6" |
1'6" |
1'6" |
1'6" |
|
|
Space Between Disc |
mm |
190 |
190 |
190 |
190 |
190 |
|
ft.in. |
7" |
7" |
7" |
7" |
7" |
|
|
Required Power |
hp |
45-55 |
55-65 |
65-75 |
75-85 |
85-100 |
|
Weight |
kg |
620 |
665 |
750 |
800 |
840 |
|
Ibs |
1366 |
1466 |
1653 |
1763 |
1851 |
|
|
Disc diameter,510 mm |
||||||
|
Technical Specifications* |
Unit |
XD 2051 |
XD 2451 |
XD 2851 |
XD 3251 |
XD 3651 |
|
Number of Disc |
pcs |
20 |
24 |
28 |
32 |
36 |
|
Working Depth (Max.) |
mm |
150 |
150 |
150 |
150 |
150 |
|
ft.in. |
6" |
6" |
6" |
6" |
6" |
|
|
Working Width |
mm |
1900 |
2280 |
2660 |
3040 |
3420 |
|
ft.in. |
6'3" |
7'6" |
8'9" |
9'12" |
11'3" |
|
|
Disc Diameter |
mm |
510 |
510 |
510 |
510 |
510 |
|
ft.in. |
20" |
20" |
20" |
20" |
20" |
|
|
Space Between Disc |
mm |
190 |
190 |
190 |
190 |
190 |
|
ft.in. |
7" |
7" |
7" |
7" |
7" |
|
|
Required Power |
hp |
50-60 |
60-70 |
70-80 |
80-100 |
100-120 |
|
Weight |
kg |
650 |
700 |
790 |
840 |
880 |
|
Ibs |
1433 |
1543 |
1741 |
1851 |
1940 |
|
|
Disc diameter,560 mm |
|||||
|
Technical Specifications* |
Unit |
XD 2056 |
XD 2456 |
XD 2856 |
XD 3256 |
|
Number of Disc |
pcs |
20 |
24 |
28 |
32 |
|
Working Depth (Max.) |
mm |
200 |
200 |
200 |
200 |
|
ft.in. |
8" |
8" |
8" |
8" |
|
|
Working Width |
mm |
2200 |
2640 |
3080 |
3520 |
|
ft.in. |
7'3" |
8'8" |
10'1" |
11'7" |
|
|
Disc Diameter |
mm |
560 |
560 |
560 |
560 |
|
ft.in. |
22" |
22" |
22" |
22" |
|
|
Space Between Disc |
mm |
220 |
220 |
220 |
220 |
|
ft.in. |
9" |
9" |
9" |
9" |
|
|
Required Power |
hp |
70-75 |
85-90 |
95-100 |
105-115 |
|
Weight |
kg |
700 |
765 |
850 |
1000 |
|
Ibs |
1543 |
1686 |
1873 |
2204 |
|
