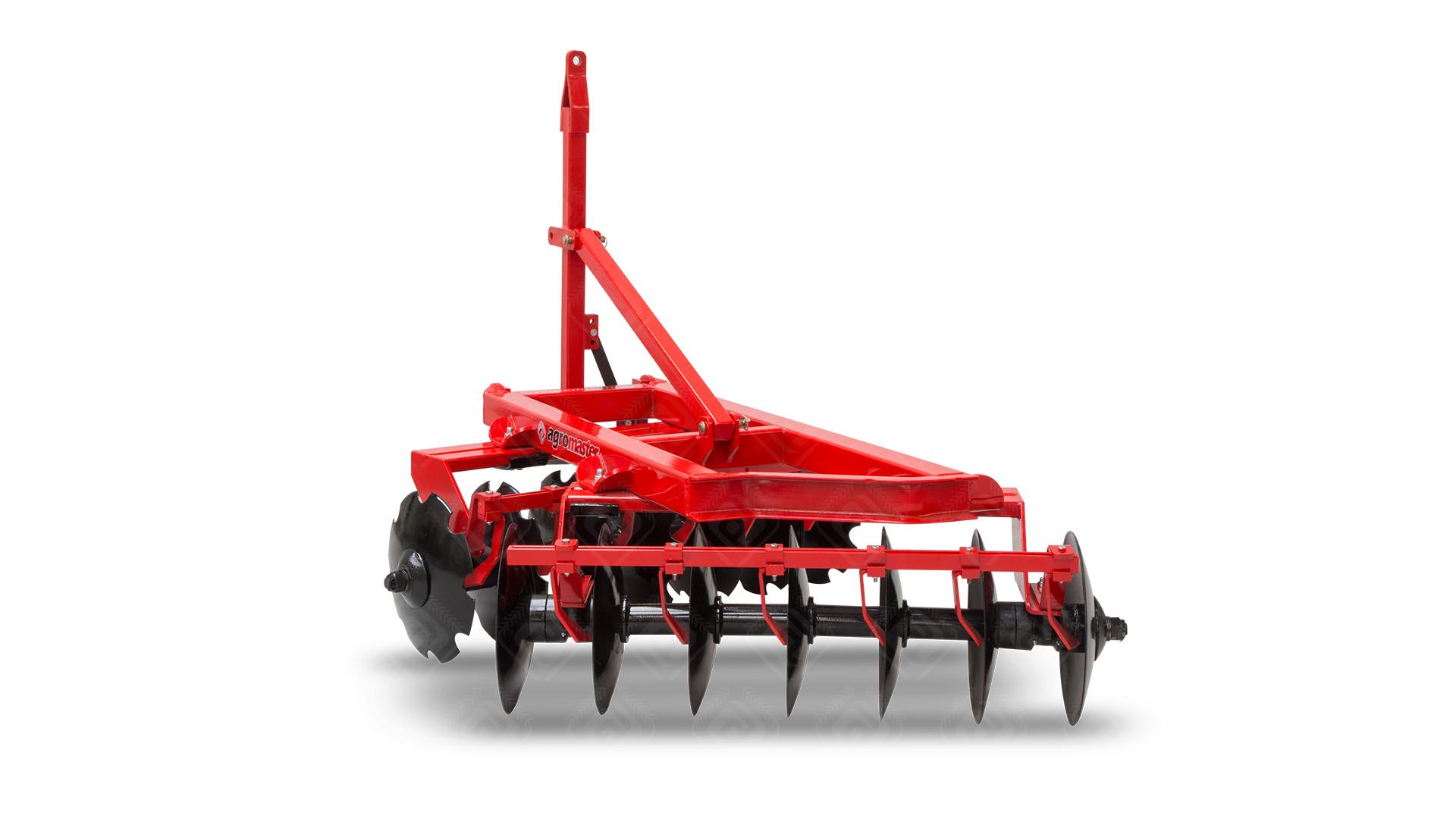

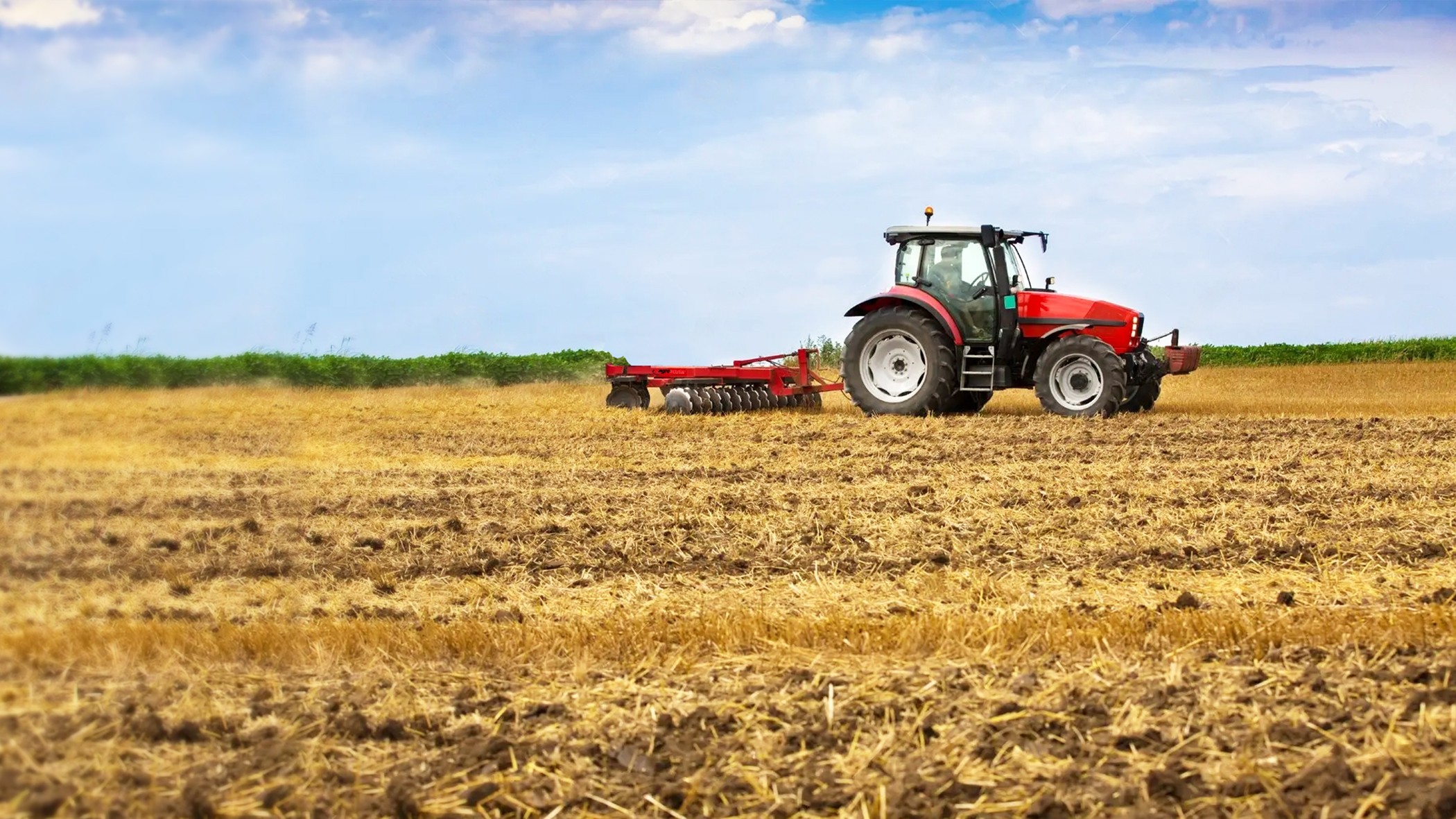

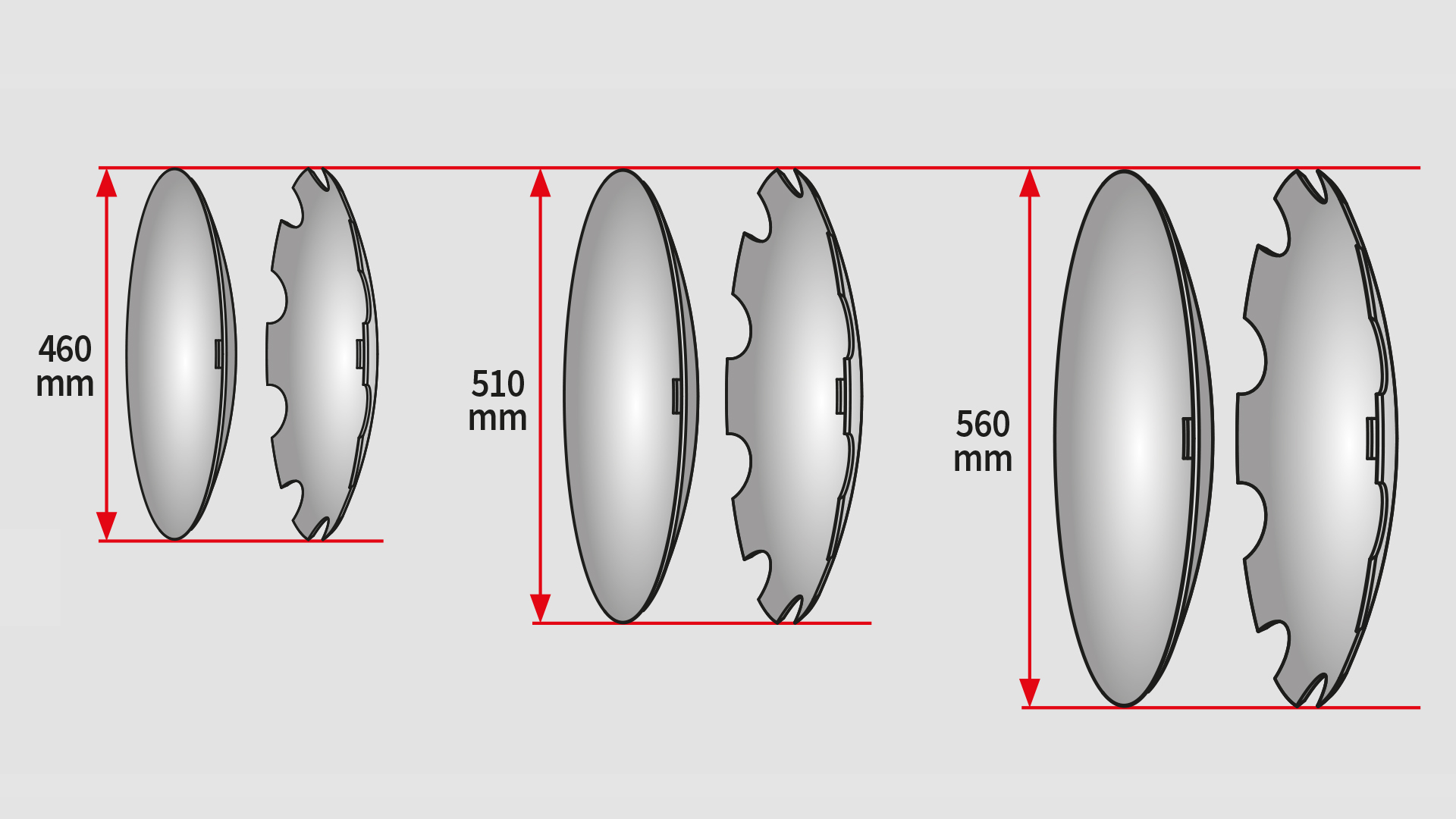

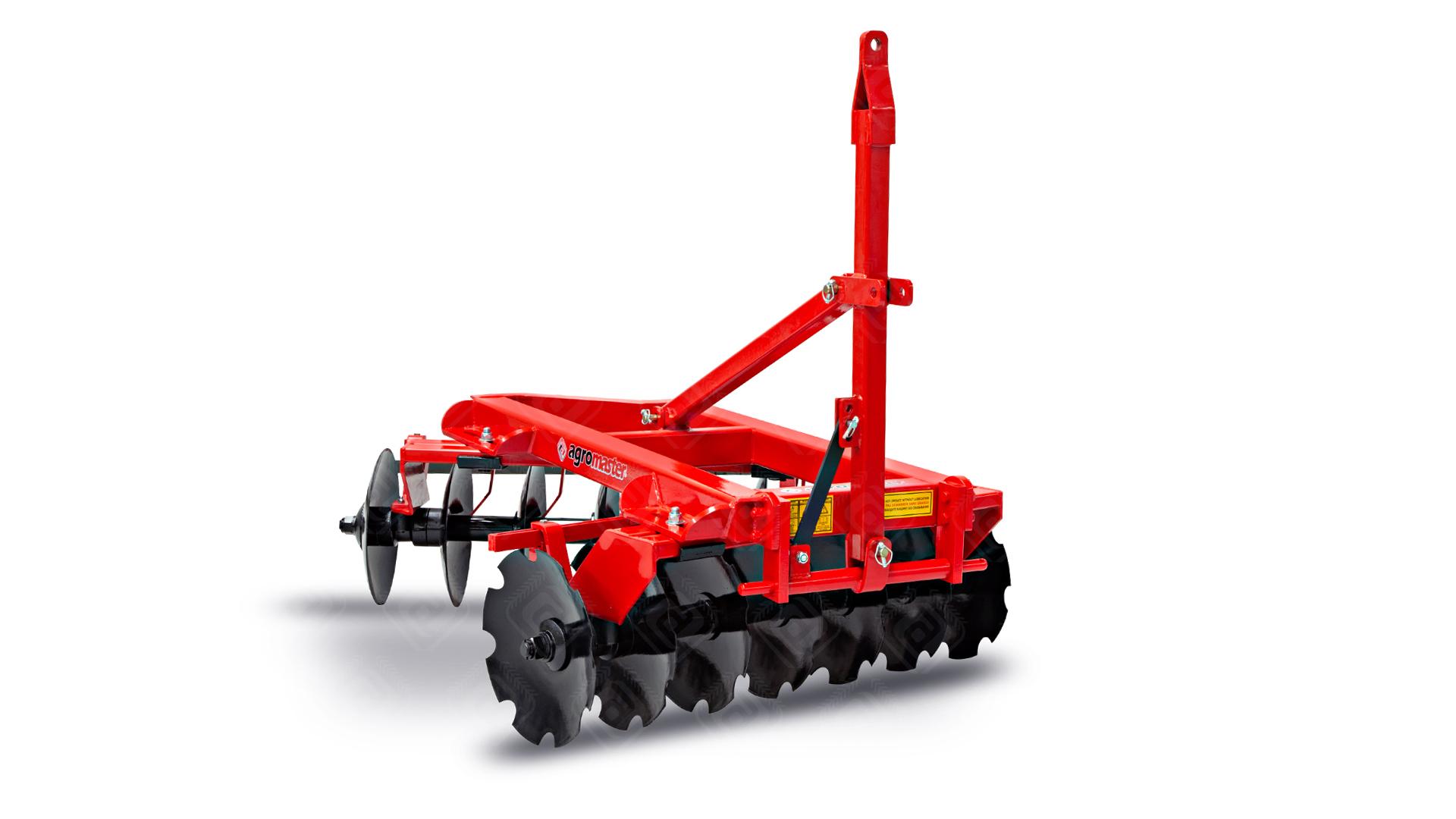

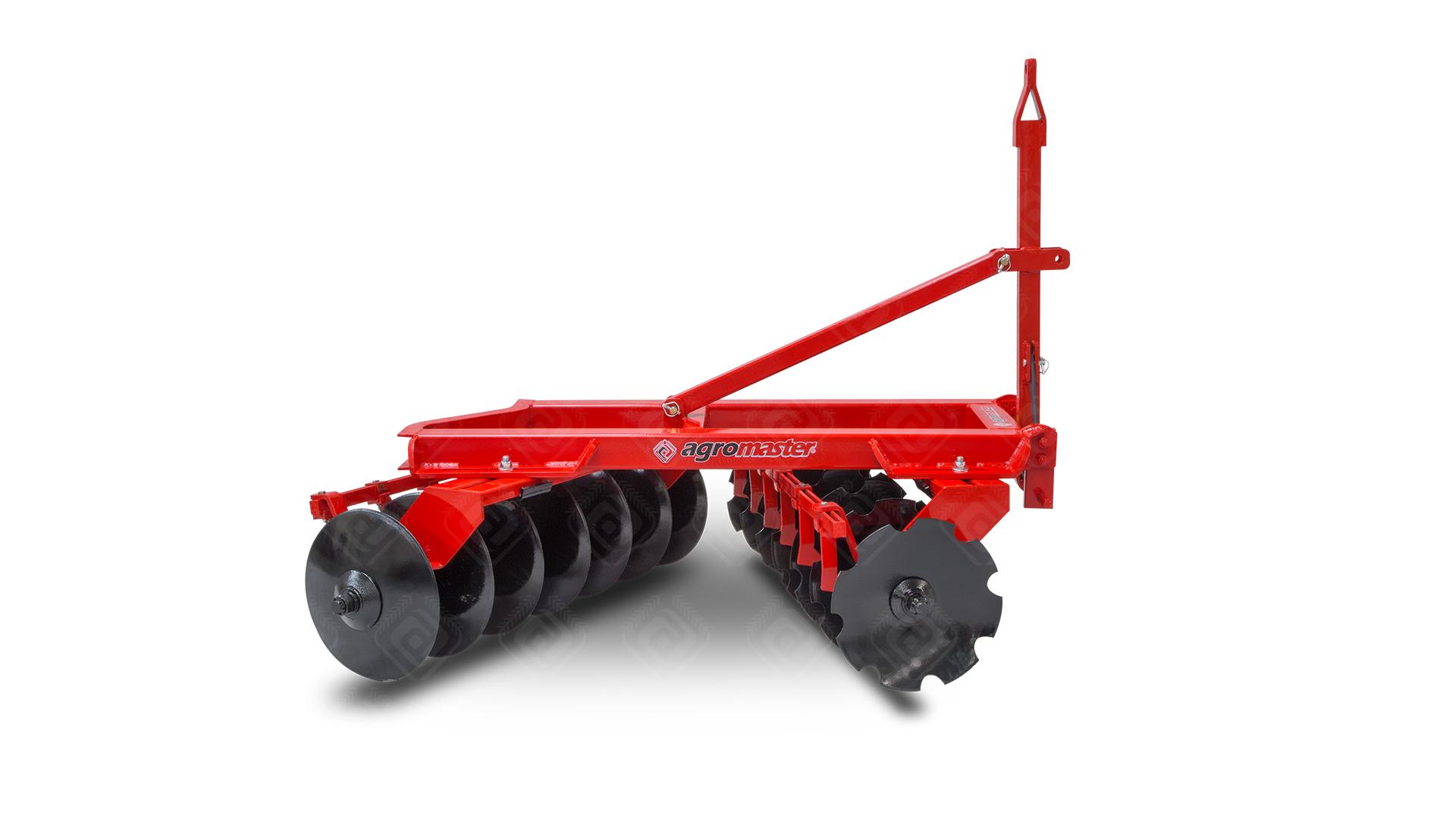

Off set disc harrows mounted to tractor with three point linkage sytem (universal) and trailed by drawbar. Machine can be easily transported to the field.These disc harrows are used for chopping of stems and mixing with soil after harvesting. After using of plough, chisel and cultivators on the field, you can use this disc harrow for breaking of clods and crumbling of soils.These disc harrows are also used on all kinds of soils for making of seed bed, seedling bed, chopping of weeds, mixing of organic and inorganic fertilizers with soil and aeration as easily.Size of frame for this model is 80×80 mm and The number of discs is between 14-22 disc with sizes ; 460/510 and 560 mm high quality 52 HRC bororn steel.It has been used house bearings with conical bearings one side and ball bearing other side with high quality seals. It can be greaseable.
|
Technical Specifications* |
Unit |
OD 1456 |
OD 1656 |
OD 1856 |
OD 2056 |
OD 2256 |
|
Number of Disc |
pcs |
14 |
16 |
18 |
20 |
22 |
|
Total Width (W) |
mm |
1650 |
1870 |
2050 |
2160 |
2580 |
|
ft.in. |
5'5" |
6'2" |
6'9" |
7'1" |
8'6" |
|
|
Total Length (L) |
mm |
2280 |
2380 |
2460 |
2540 |
2680 |
|
ft.in |
7'6" |
7'10" |
8'1" |
8'4" |
8'10" |
|
|
Total Height (H) |
mm |
1720 |
1720 |
1720 |
1720 |
1720 |
|
ft.in |
5'8" |
5'8" |
5'8" |
5'8" |
5'8" |
|
|
Height (H1) |
mm |
700 |
700 |
700 |
700 |
700 |
|
ft.in |
2'4" |
2'4" |
2'4" |
2'4" |
2'4" |
|
|
Working Depth (Max.) |
mm |
250 |
250 |
250 |
250 |
250 |
|
ft.in. |
10" |
10" |
10" |
10" |
10" |
|
|
Working Width |
mm |
1580 |
1800 |
2020 |
2240 |
2460 |
|
ft.in. |
5'2" |
5'11" |
6'8" |
7'4" |
8'1" |
|
|
Disc Diameter |
mm |
560 |
560 |
560 |
560 |
560 |
|
ft.in. |
22" |
22" |
22" |
22" |
22" |
|
|
Space Between Disc (W1) |
mm |
225 |
225 |
225 |
225 |
225 |
|
ft.in. |
9" |
9" |
9" |
9" |
9" |
|
|
Number of Bearing |
pcs |
4 |
4 |
4 |
6 |
|
|
Frame Size |
mm |
80 |
80 |
80 |
80 |
80 |
|
ft.in. |
3" |
3" |
3" |
3" |
3" |
|
|
Required Power |
hp |
40-45 |
45-50 |
55-60 |
65-70 |
75-80 |
|
Weight |
kg |
490 |
540 |
590 |
645 |
700 |
|
Ibs |
1080 |
1190 |
1300 |
1421 |
1543 |
|
