Fertilizer Spreaders

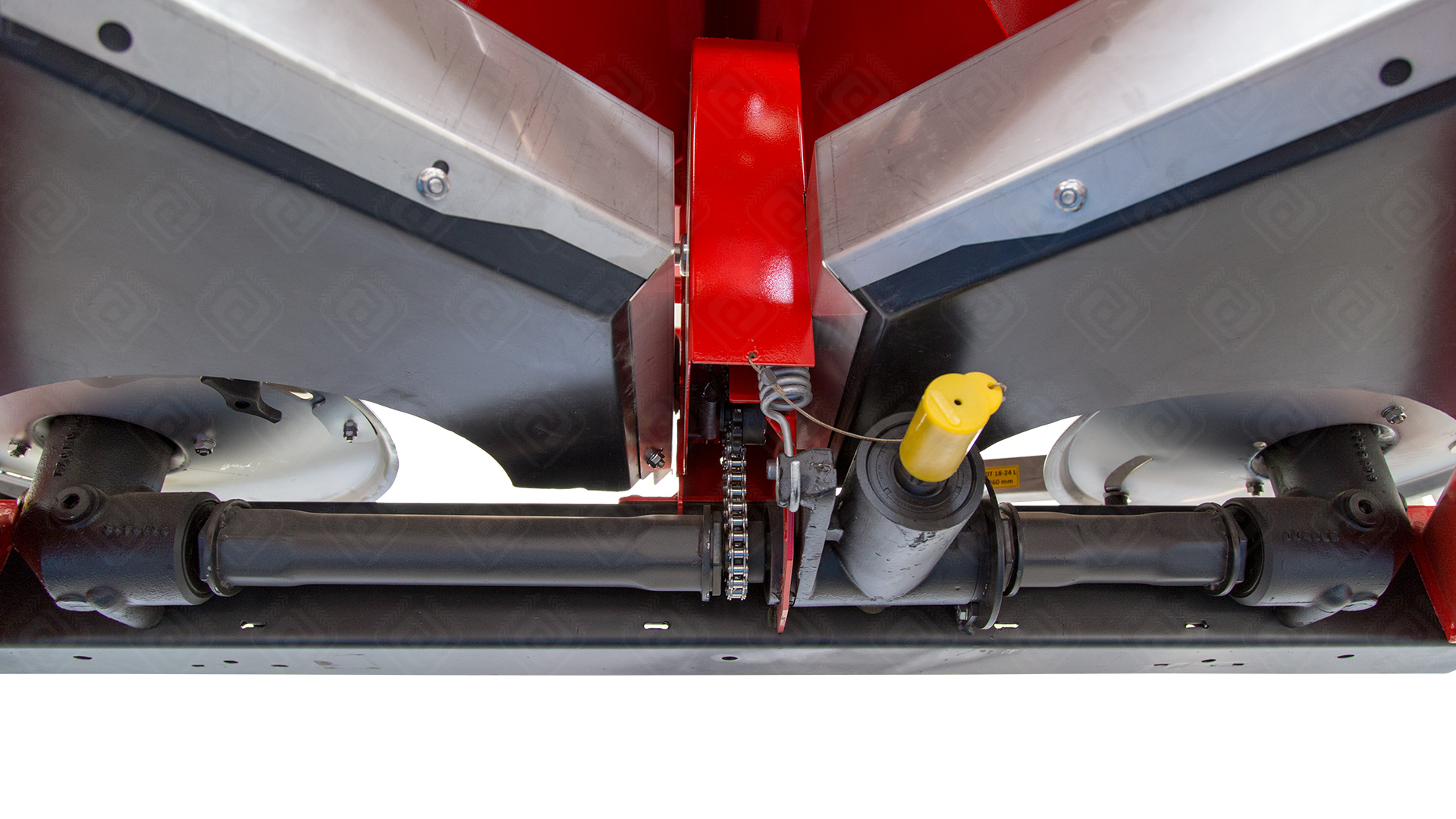

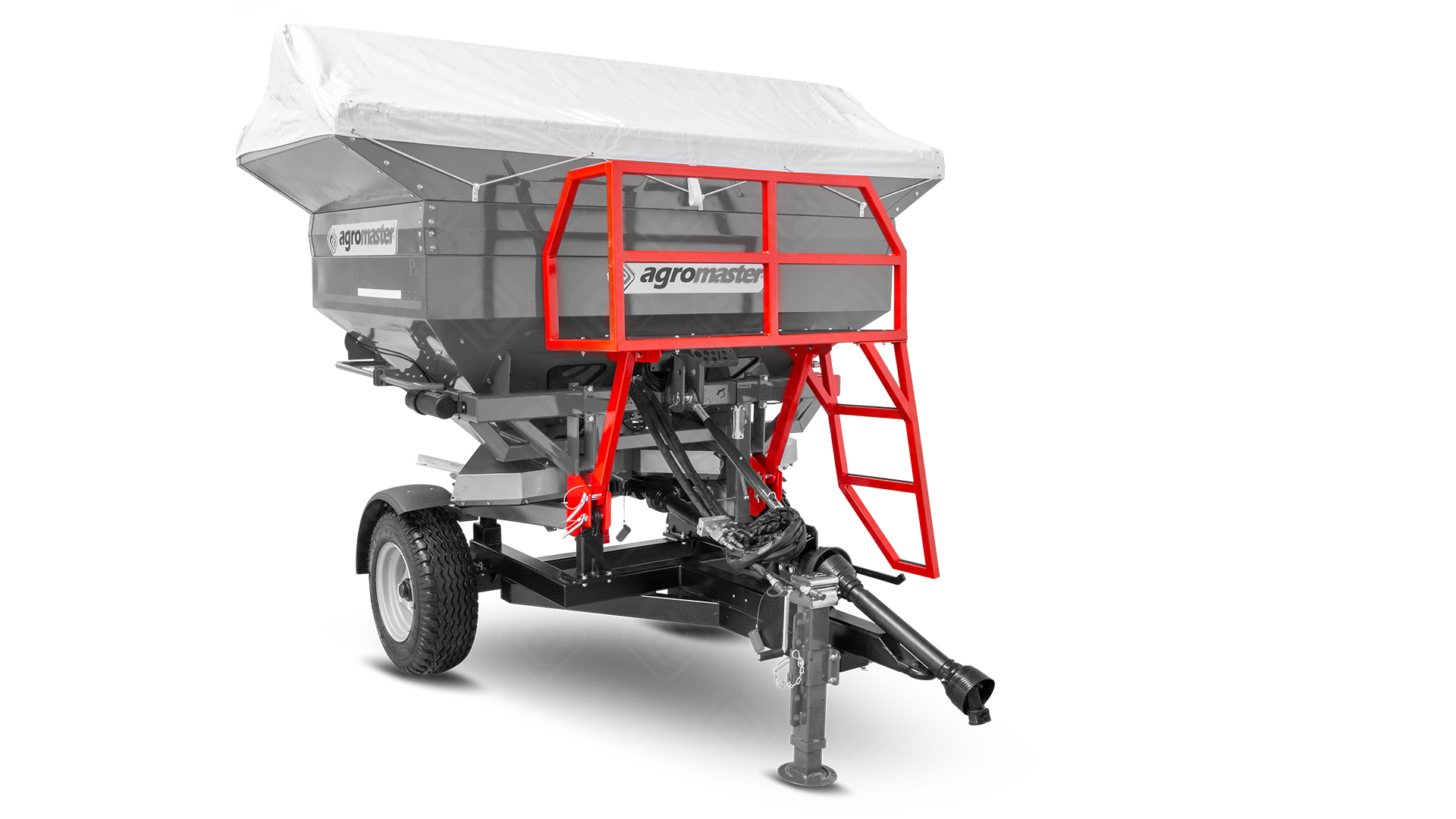

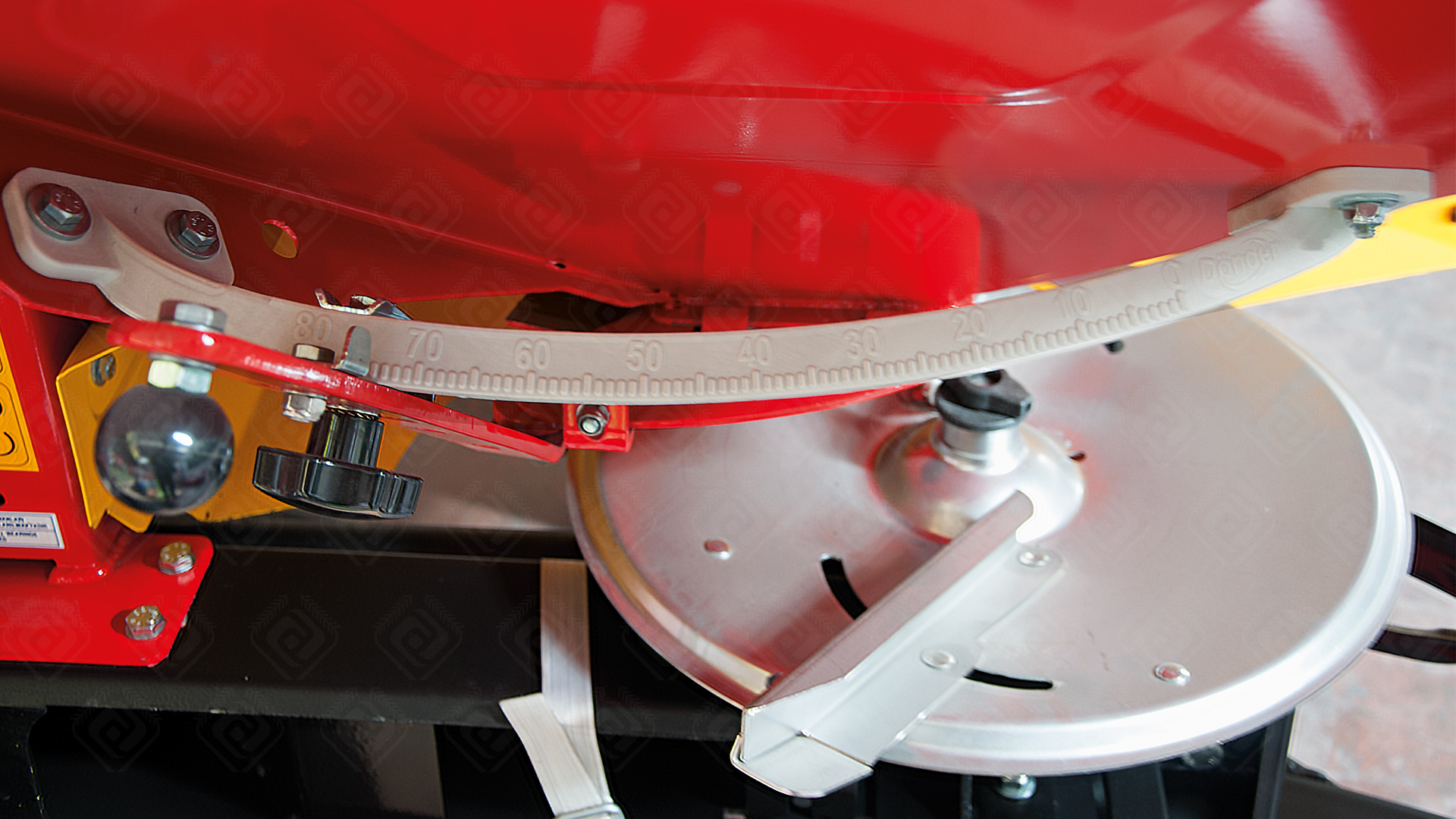

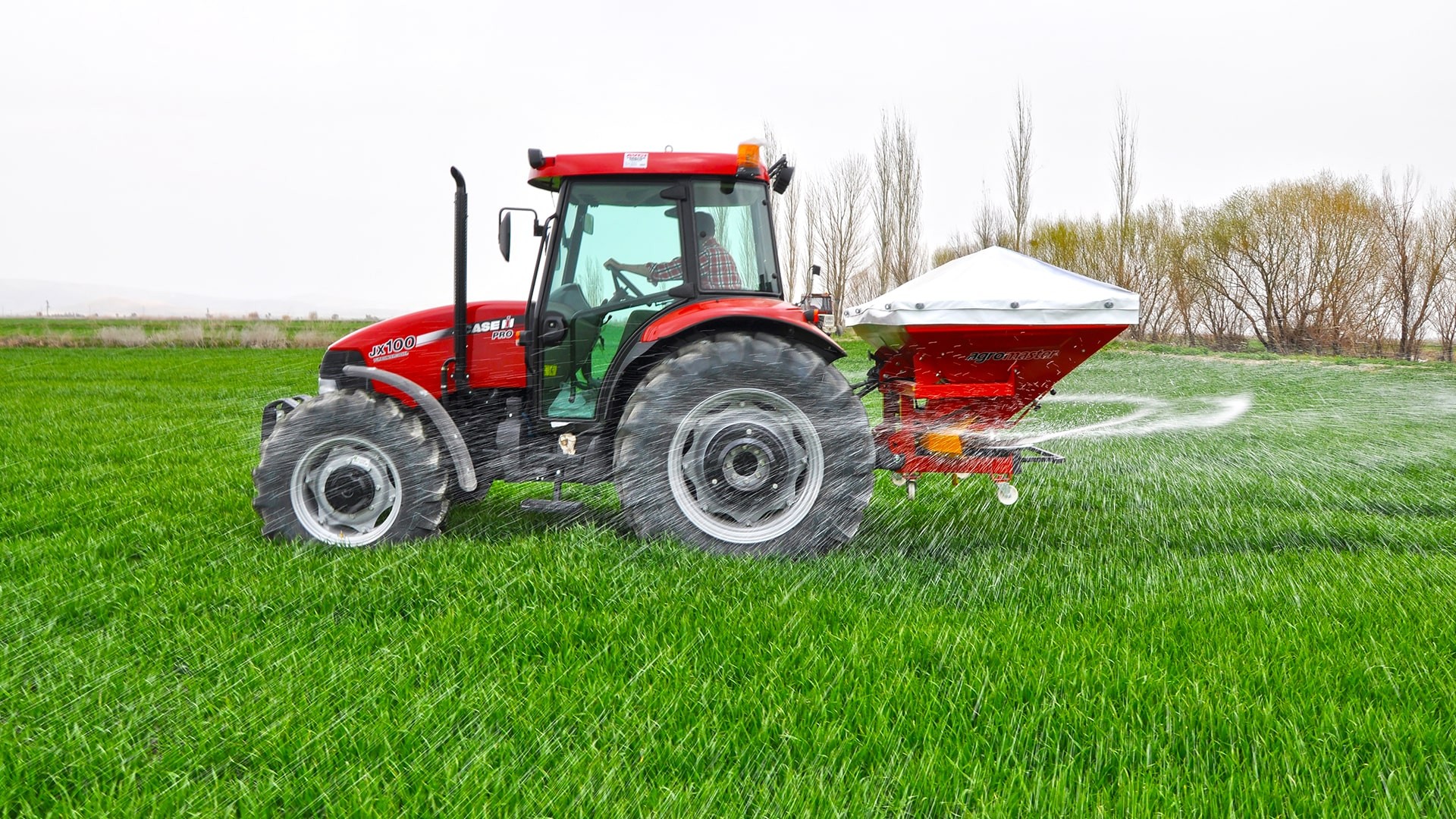

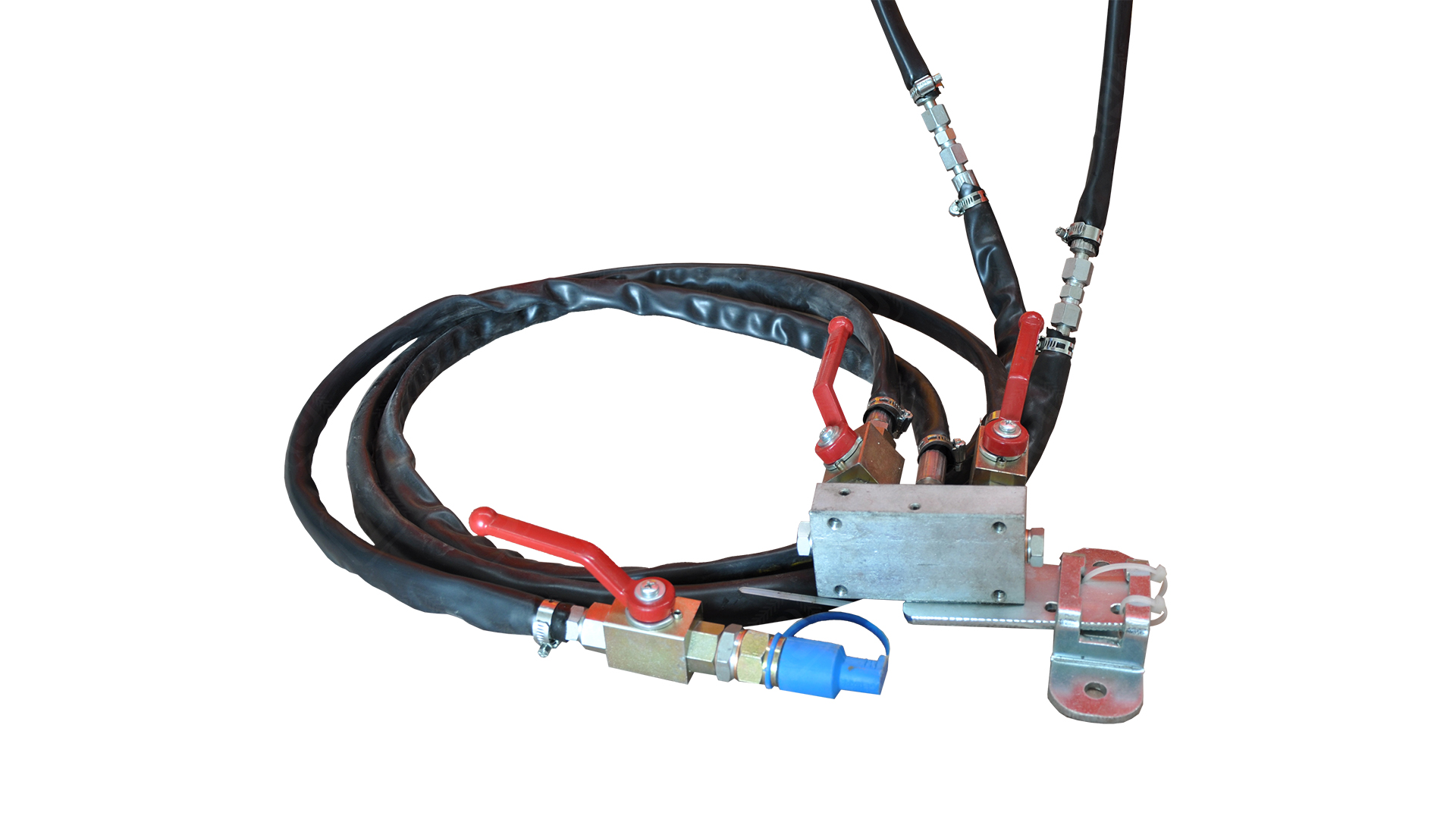

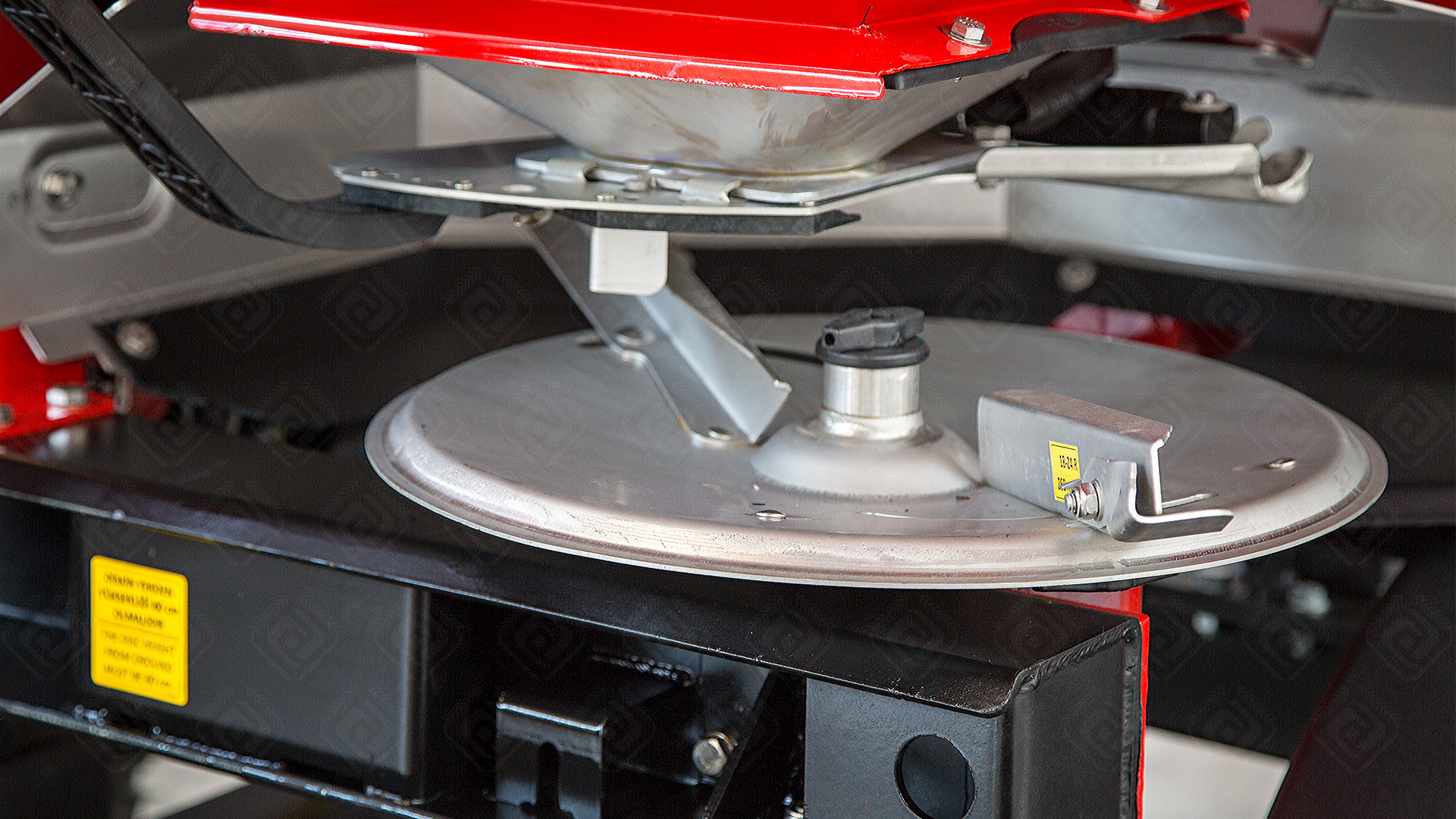

Trailed type FIRTINA T2 model Fertilizer Spreaders are produced with double discs, 2500 and 3000 liters capacities and 18-24, 24-36 m working width. These fertilizer spreaders are attached to tractor’s drawbar. Spreading discs made from stainless steel material. Horizontal mixer provides falling of fertilizer onto spreading discs easily. Fertilizer spreading degree can be easily adjusted by means of hydraulic lift.
|
Technical Specifications* |
Unit |
FIRTINA T2 2500 |
FIRTINA T2 3000 |
|
Hopper Capacity |
lt |
2500 |
3000 |
|
gallon |
8'2" |
9'10" |
|
|
Number of Disc |
pcs |
2 |
2 |
|
Working Width |
mm |
18-24 / 59'-79' |
18-24 / 59'-79' |
|
ft.in. |
24-36 / 79'-118' |
24-36 / 79'-118' |
|
|
Total Width (W) |
mm |
2500 |
2500 |
|
ft.in. |
8'2" |
8'2" |
|
|
Total Length (L) |
mm |
2640 |
2640 |
|
ft.in. |
8'8" |
8'8" |
|
|
Total Height (H) |
mm |
2050 |
2150 |
|
ft.in. |
6'9" |
7' |
|
|
Category |
II |
II |
|
|
Transmission Type |
1/1 |
1/1 |
|
|

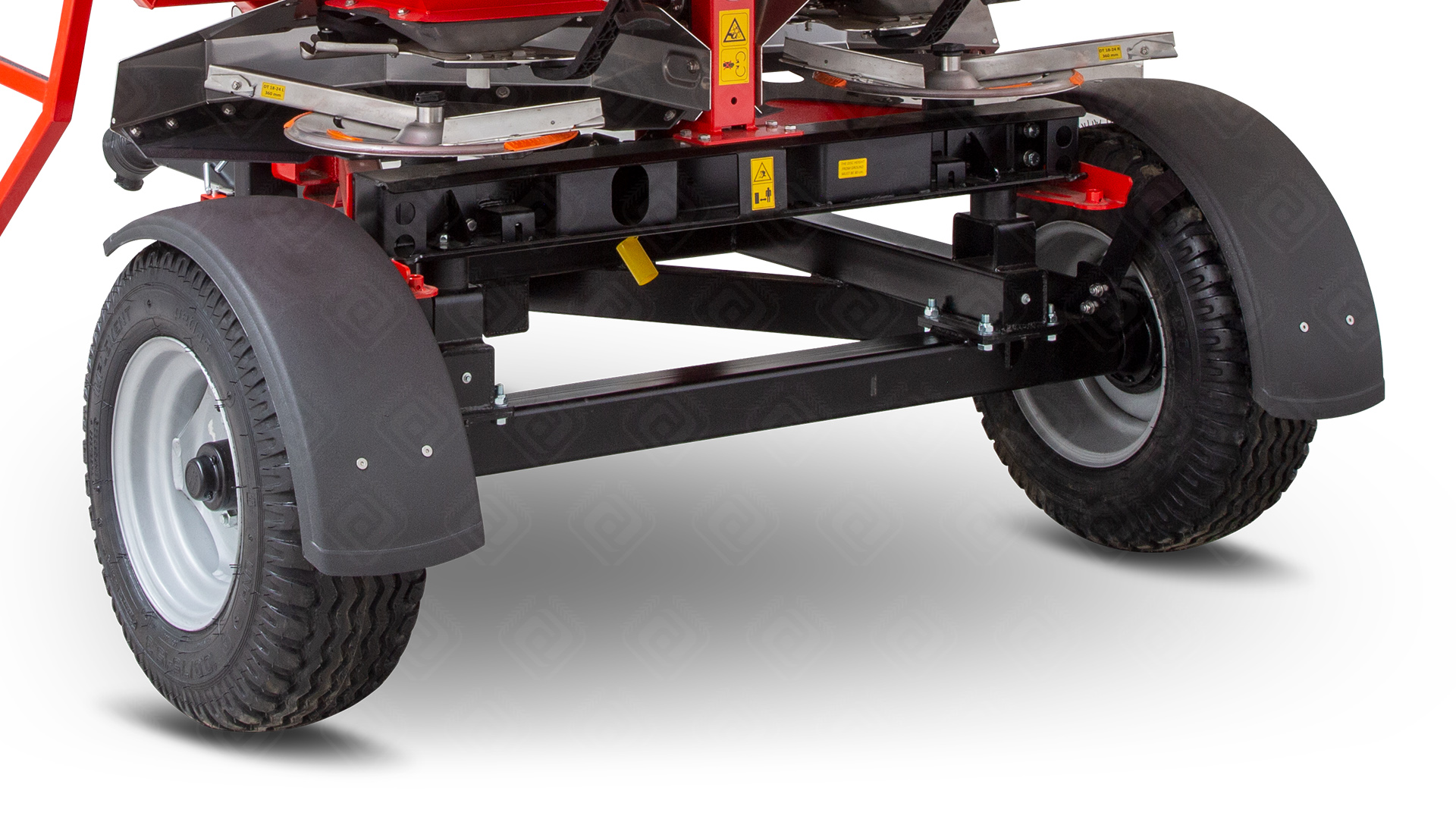

Number of Wheel |
pcs |
2 |
2 |
|
Tyre Size |
10.0/75-15.3 |
10.0/75-15.3 |
|
|

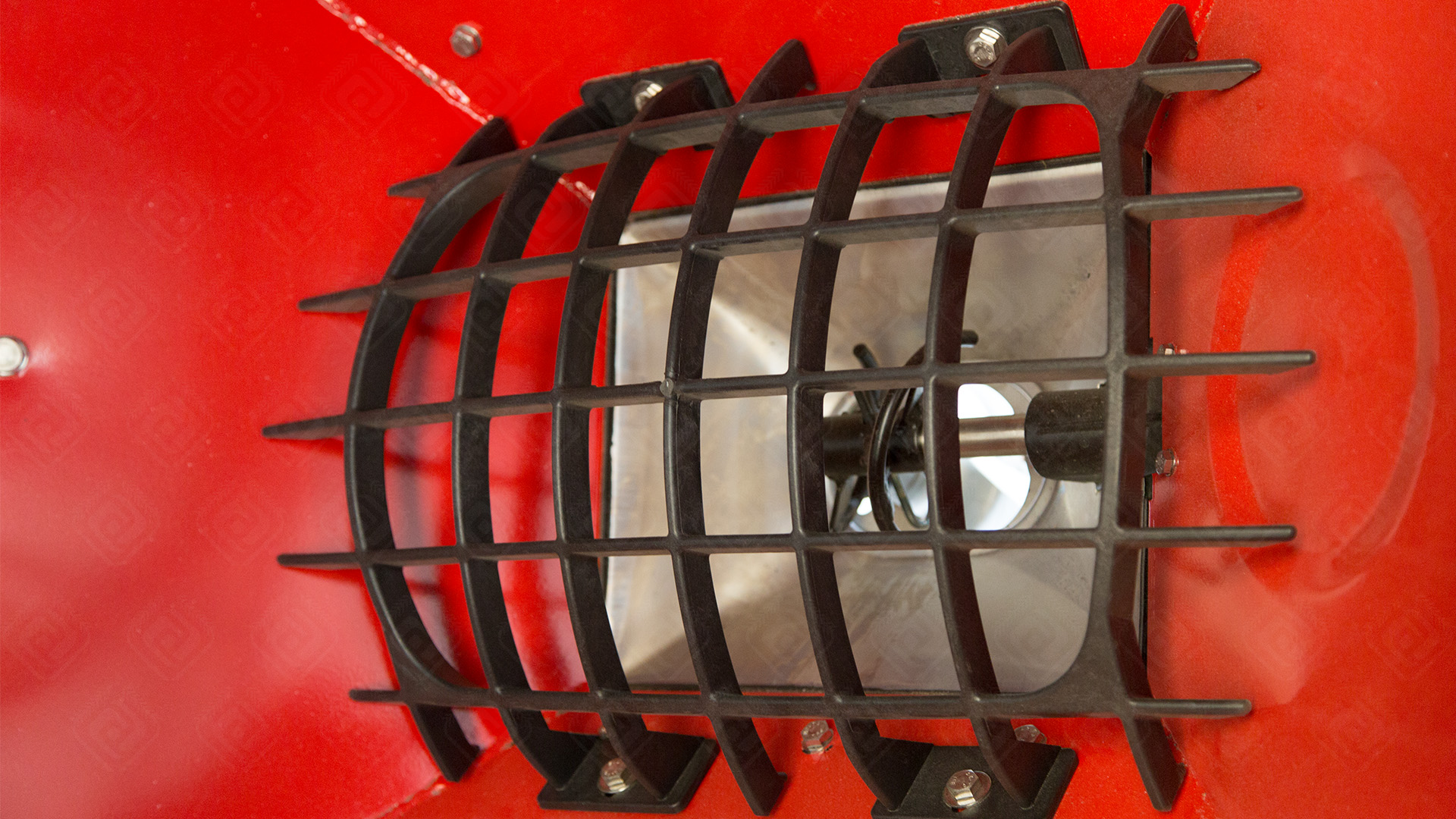

Mixing System |
Horizontal |
||
|
PTO Rotation |
rpm |
540 |
|
|
Required Power |
hp |
70-90 |
70-100 |
|
Total Weight |
kg |
770 |
850 |
|
Ibs |
1697 |
1873 |
|
