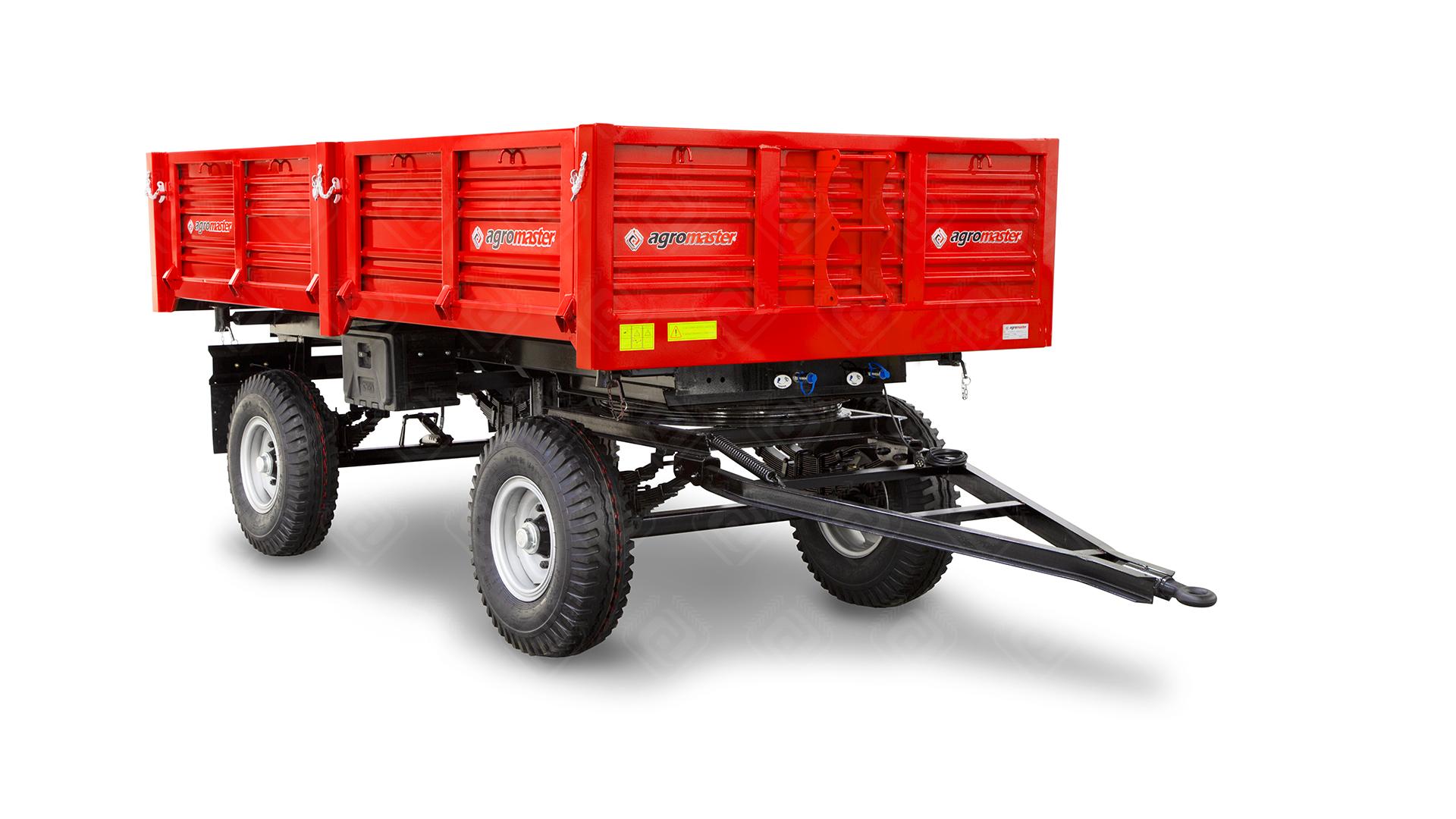

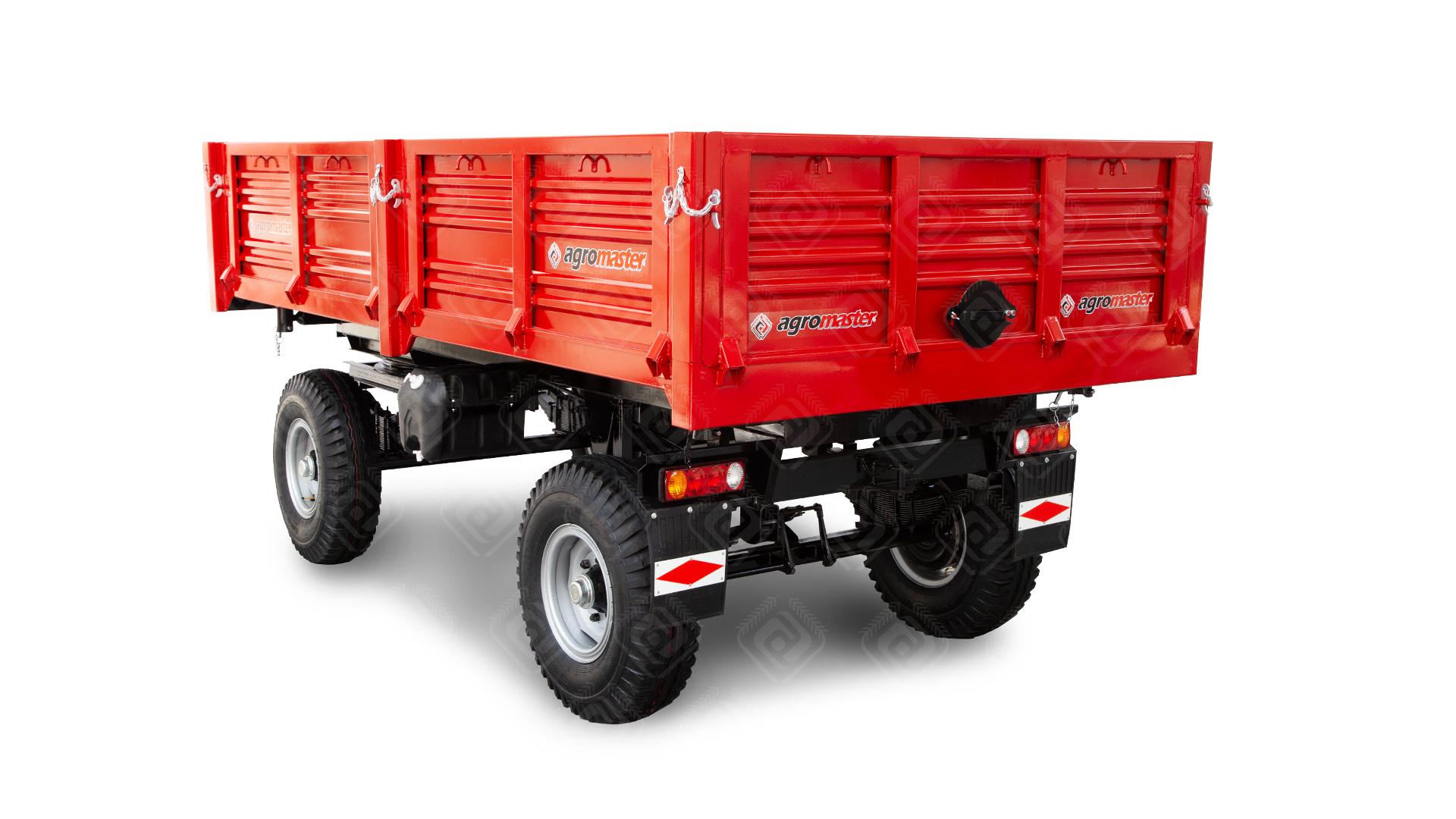

Trailers
General purpose trailers are also suitable in big agribusiness but special purpose trailers are very advantageous for big agribusiness. According to board construction system trailers are divided into two groups; a) Wood board trailers b) Sheet iron board trailers. In generally we manufacture our trailers as sheet iron board but according to costumers’ wishes we manufacture wood board trailers. According to unloading system, trailers are divided into two groups.
1) Damper type (with a tipping system)
a) Rear side tipping

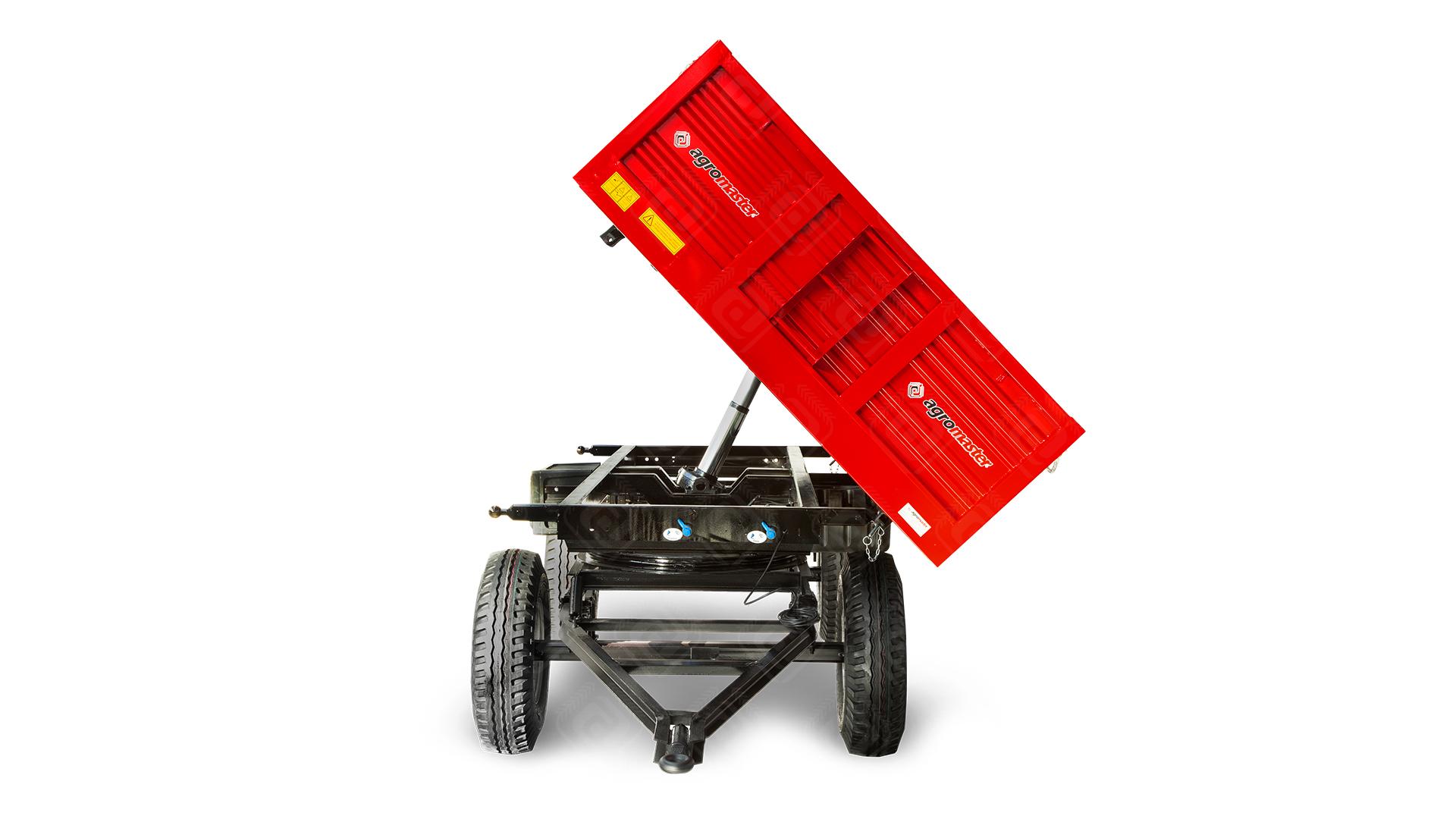

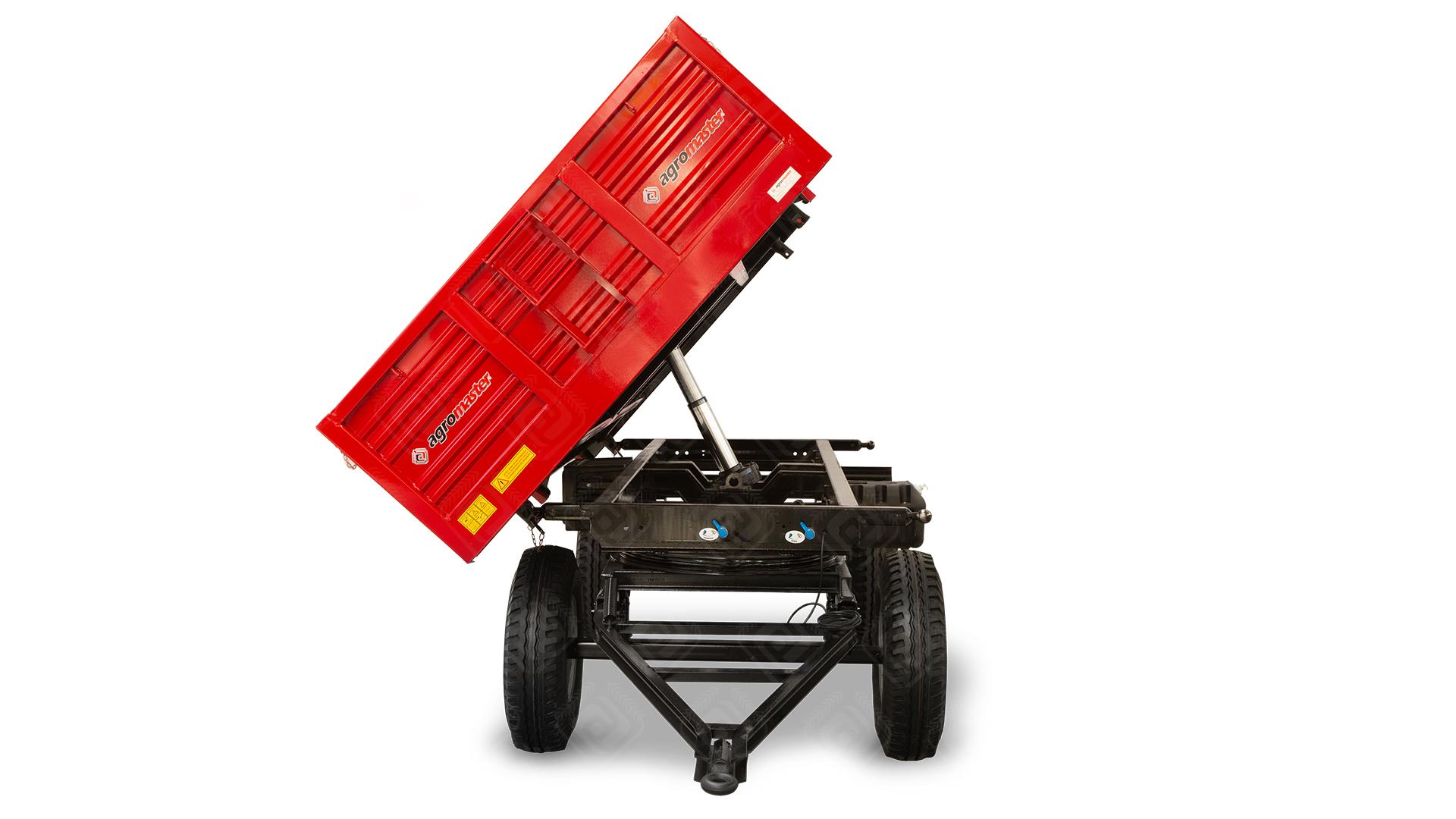

b) Right and left side tipping
c) Rear, right and left (three side) tipping
2) Fixed type (without a tipping system)
|
Technical Specifications* |
Unit |
2DR 5000 |
2DR 6000 |
2DR 7000 |
2DR 8000 |
2DR 10000 |
2DR 12000 |
|
Loading Capacity |
kg |
5000 |
6000 |
7000 |
8000 |
10000 |
12000 |
|
Ibs |
11023 |
13227 |
15423 |
17636 |
22046 |
26455 |
|
|
Height from ground |
mm |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
|
ft.in. |
3'7" |
3'7" |
3'7" |
3'7" |
3'7" |
3'7" |
|
|
Outer Size Width |
mm |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
|
ft.in |
6'7" |
6'7" |
6'7" |
6'7" |
6'7" |
6'7" |
|
|
Outer Size Height |
mm |
4000 |
4250 |
4500 |
4750 |
5000 |
5000 |
|
ft.in |
13'1" |
13'11" |
14'9" |
15'7" |
16'5" |
16'5" |
|
|
Inner Size Width |
mm |
1920 |
1920 |
1920 |
1920 |
1920 |
1920 |
|
ft.in. |
6'4" |
6'4" |
6'4" |
6'4" |
6'4" |
6'4" |
|
|
Inner Size Height |
mm |
3920 |
4170 |
4420 |
4670 |
4920 |
4920 |
|
ft.in. |
12'10" |
13'8" |
14'6" |
15'4" |
16'2" |
16'2" |
|
|
Height of Door |
mm |
600 |
600 |
600 |
600 |
600 |
700 |
|
ft.in. |
1'12" |
1'12" |
1'12" |
1'12" |
1'12" |
2'4" |
|
|
Additional wall height |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
|
ft.in. |
12" |
12" |
12" |
12" |
12" |
12" |
|
|
Number of Axle |
2 |
2 |
2 |
2 |
2 |
2 |
|
|
Tyre Size |
mm |
900/16 |
900/16 |
900/16 |
900/16 |
900/16 |
900/16 |
|
ft.in. |
2'11"/1" |
2'11"/1" |
2'11"/1" |
2'11"/1" |
2'11"/1" |
2'11"/1" |
|
|
Leaf Spring |
pcs |
4 |
4 |
4 |
4 |
4 |
4 |
|
Brake System |
Mechanical/Hydraulic/Pneumatic/Mech & Hyd |
||||||
|
Rear Tipper |
Standard |
||||||
|
Three Way Tipper |
Optional |
||||||
|
Electric System |
Optional |
||||||
|
Required Power |
hp |
50-60 |
55-60 |
65-70 |
70-75 |
85-90 |
90-100 |
|
Total Weight |
kg |
- |
- |
- |
- |
- |
- |
