DESCRIPTION

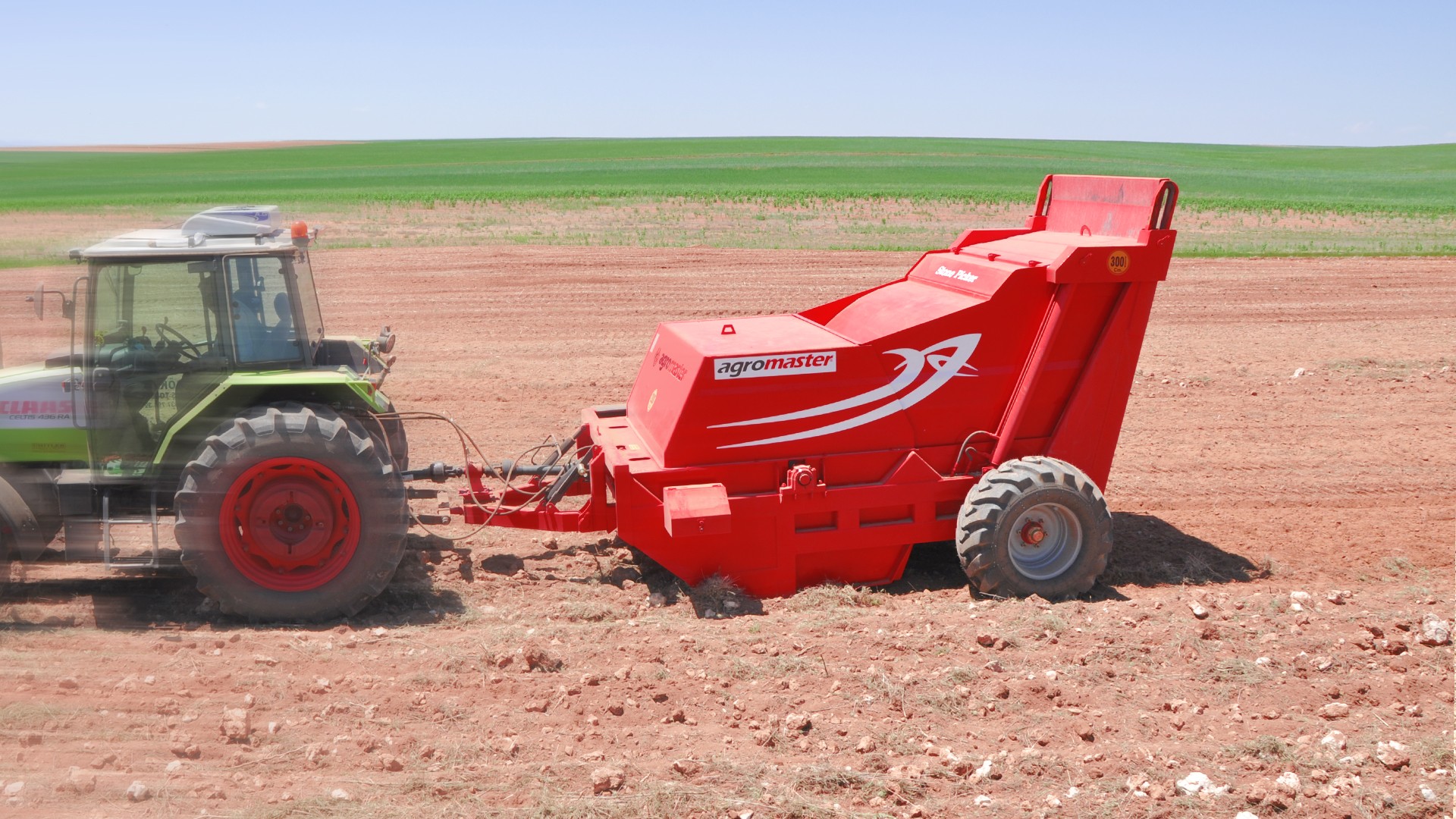

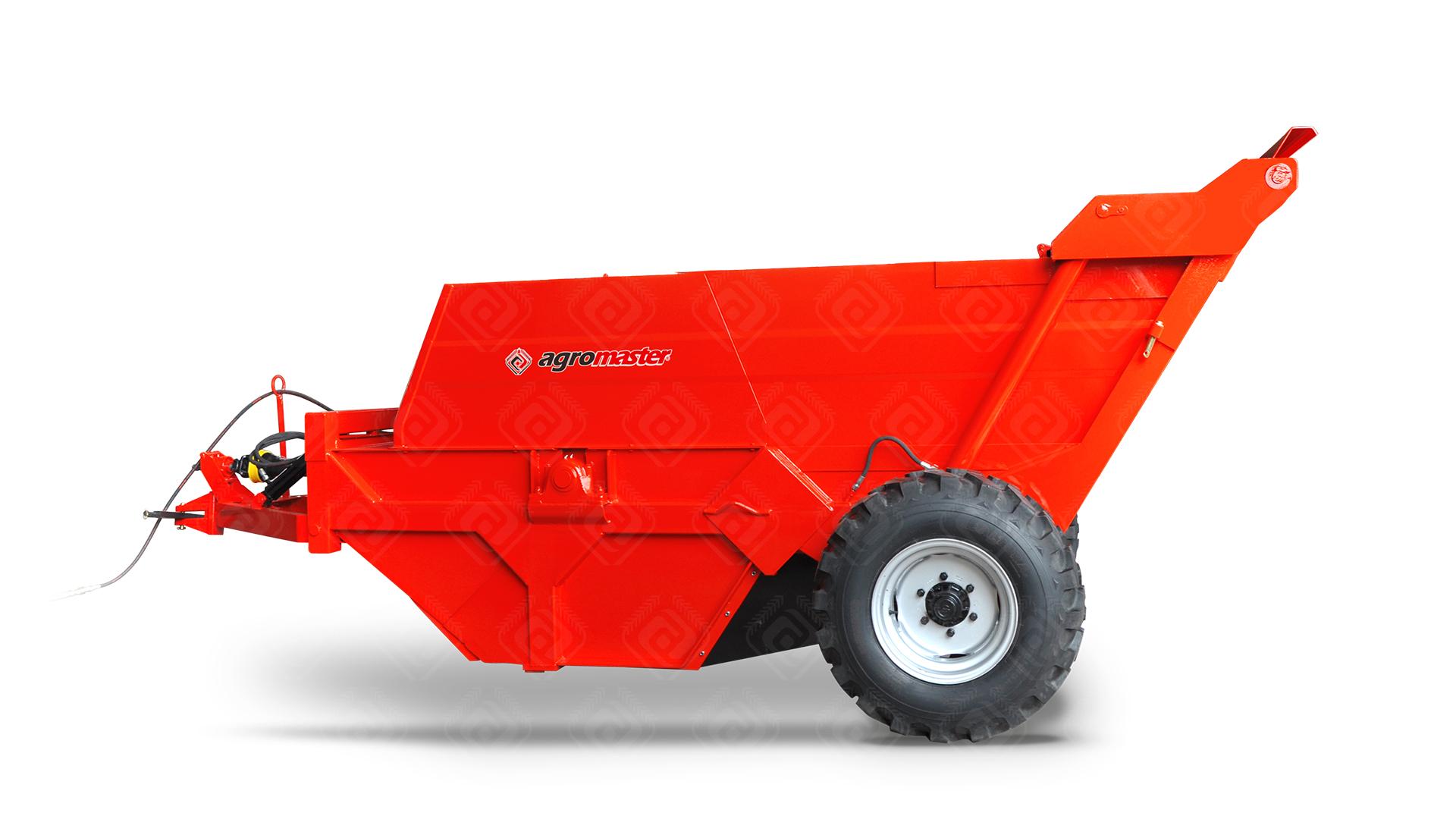

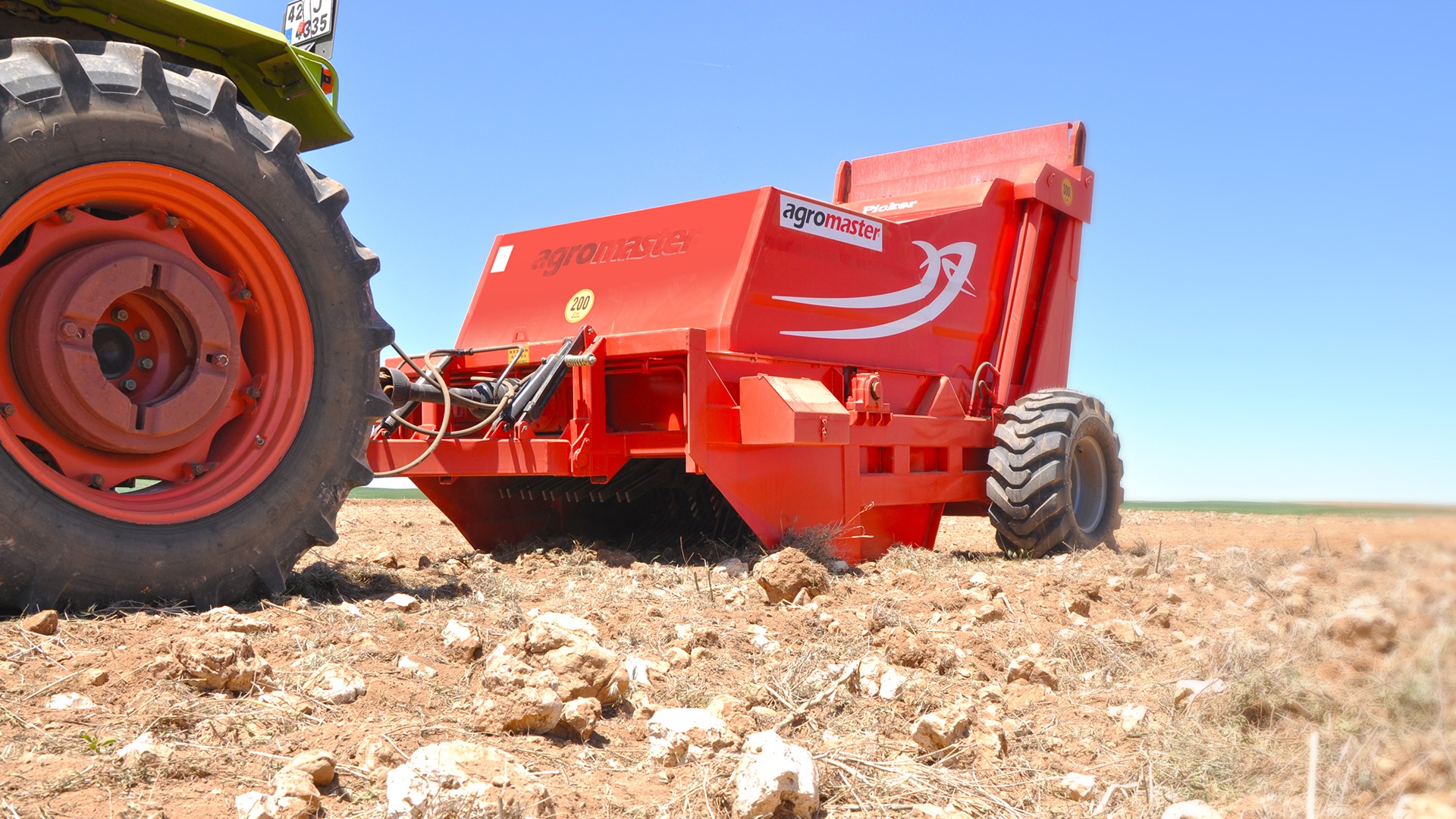

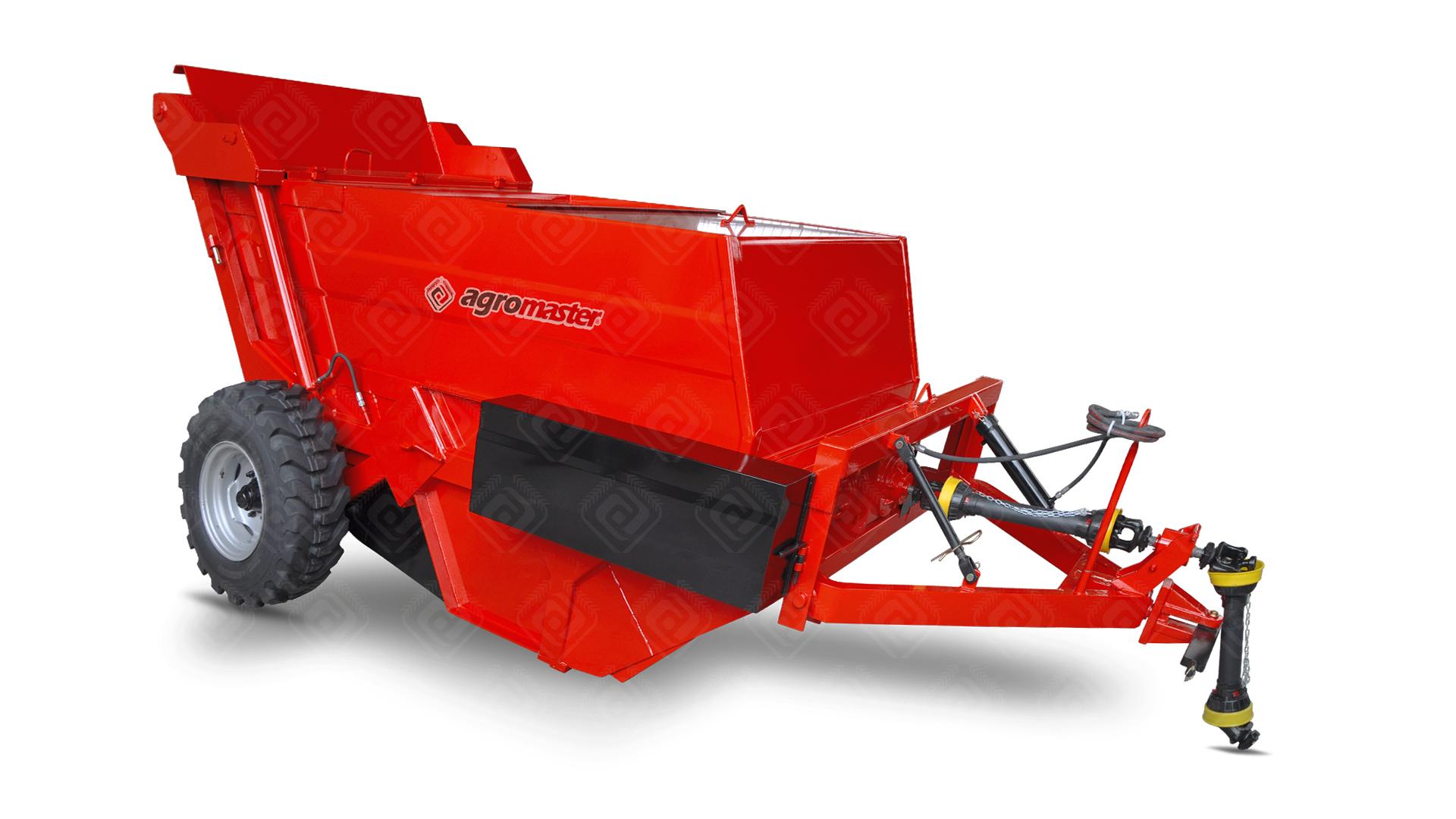

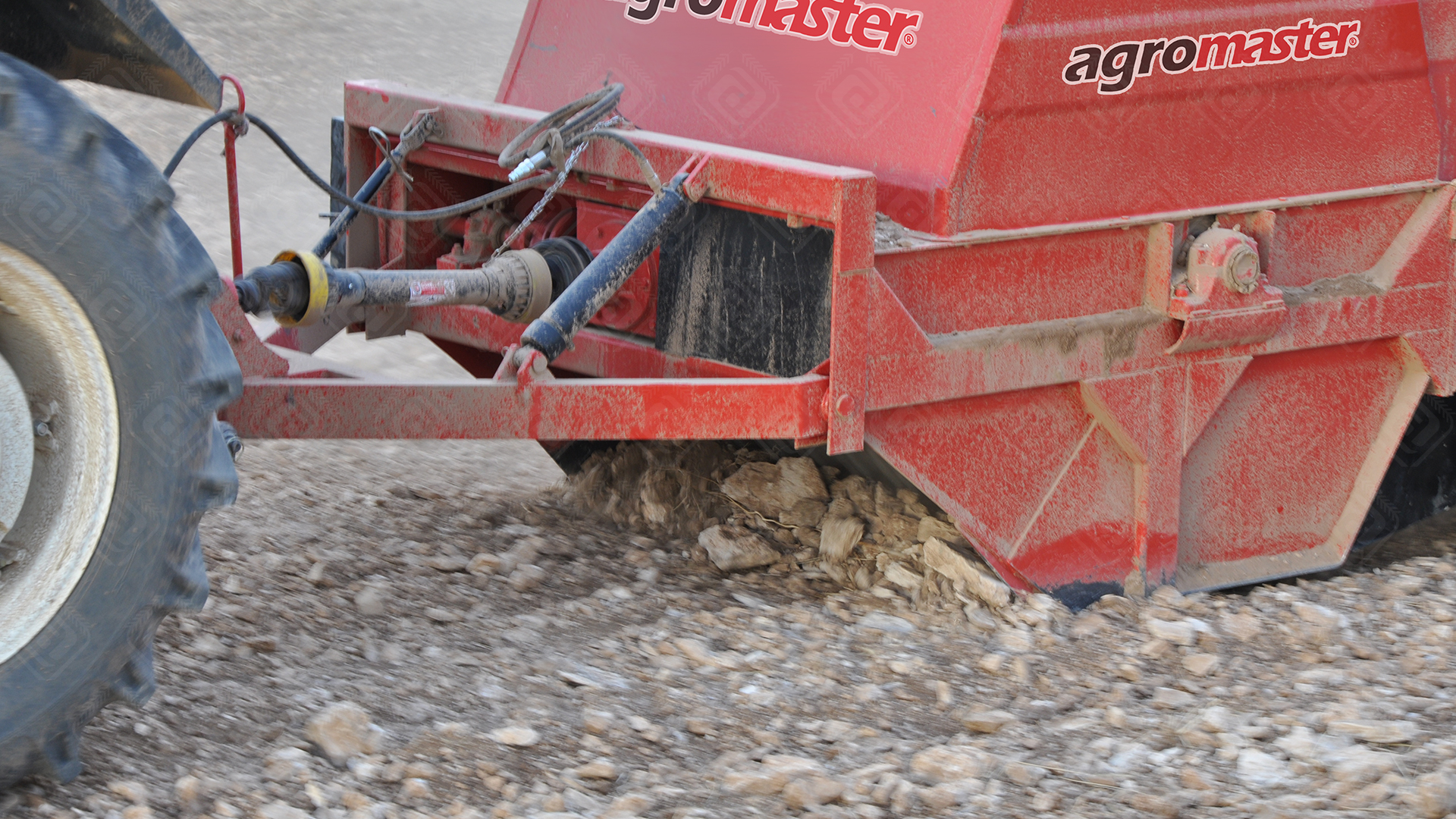

The Stone Collector is designed to efficiently collect stones and other solid debris from the field, creating a cleaner and safer working environment for agricultural operations. It helps protect cultivation and harvesting equipment from damage, improves seedbed quality, and increases field efficiency. Its robust construction, high collecting capacity, and reliable operating system ensure long-lasting performance under demanding field conditions.

TECHNICAL SPECIFICATIONS

Technical Specificaions*	Unit	TT 120	TT 140	TT 230	TT 250	TT 290
Hopper Capacity (Max)	kg	2000	3000	4000	6000	8000
	Ibs	18’	19’	21’12”	23’11”	18’
	m3	1,4	2,4	2,55	2,95	4,1
Total Width (W)	mm	2140	2440	2440	2440	2900
Total Width (W)	ft.in.	7’	8’	8’	8’	9’6”
Hopper Width	mm	1210	1500	1500	1500	1750
Hopper Width	ft.in.	3’12”	4’11”	4’11”	4’11”	5’9”
Total Length (L)	mm	4500	5000	5000	5000	5350
Total Length (L)	ft.in.	14’9”	16’5””	16’5”	16’5”	17’7”
Total Height (H)	mm	2300	2300	2400	2550	2900
Total Height (H)	ft.in.	7’7”	7’7”	7’10”	8’4”	9’6”

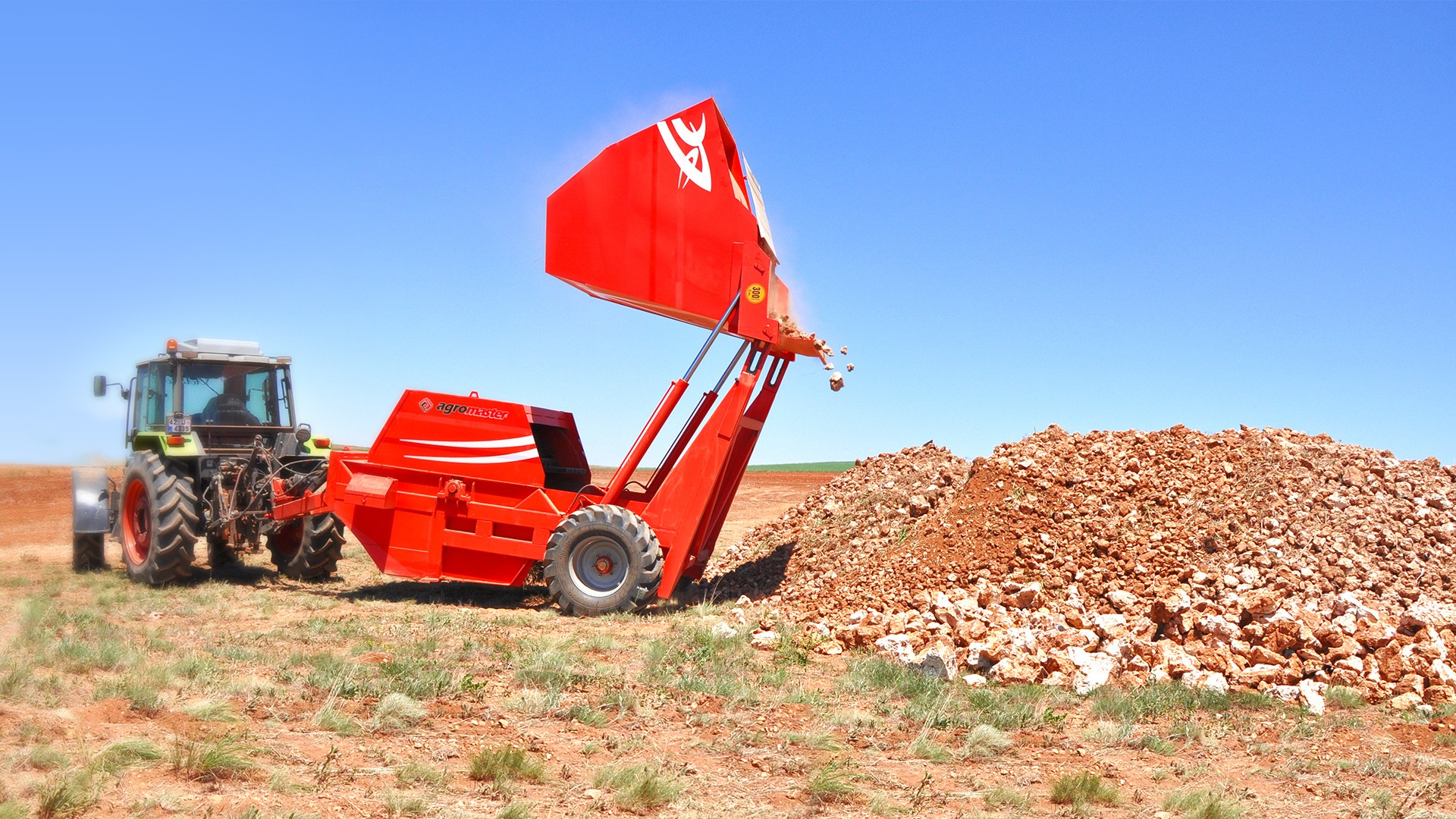

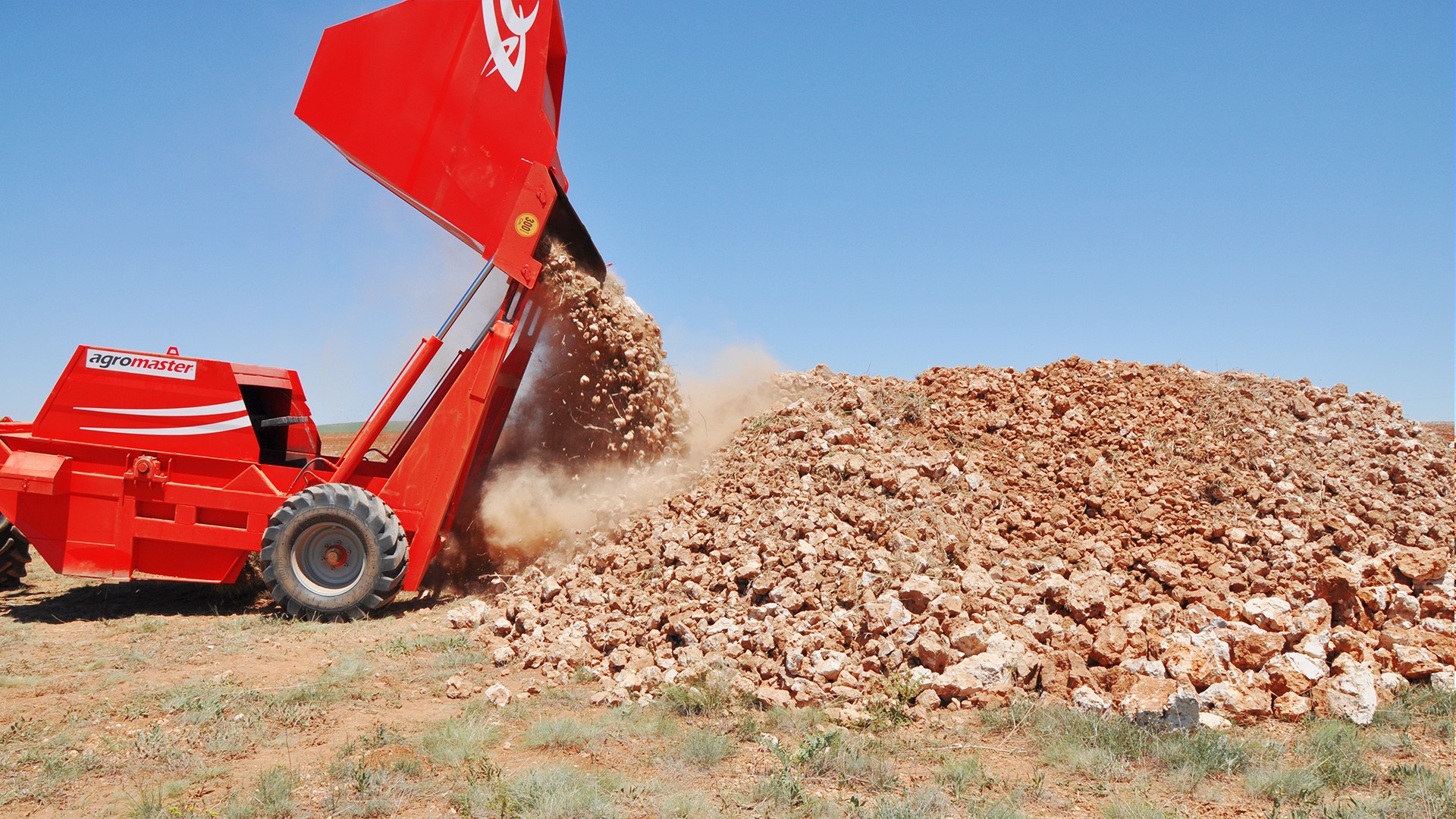

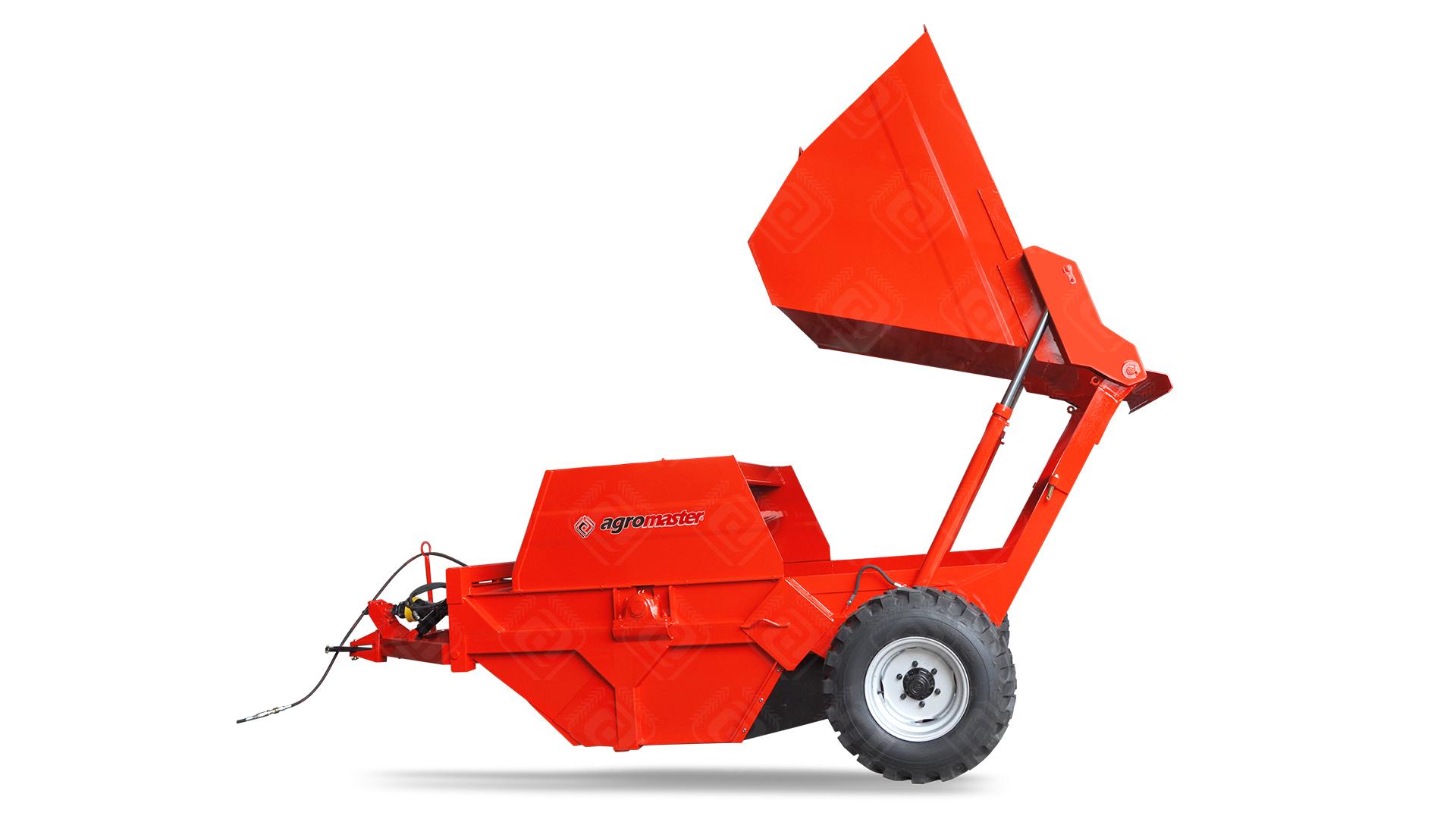

Hopper Discharge Height	mm	2100	2100	2350	2500	2900
Hopper Discharge Height	ft.in.	6’11”	6’11”	7’8”	8’2”	9’6”
Working Depth	mm	50-200	50-300	50-300	50-300	50-300
Working Depth	ft.in.	2”10”	2”-12”	2”-12”	2”-12”	2”-12”
Working Width	mm	1400	1750	1750	1750	2000
Working Width	ft.in.	4’7”	5’9”	5’9”	5’9”	6’7”

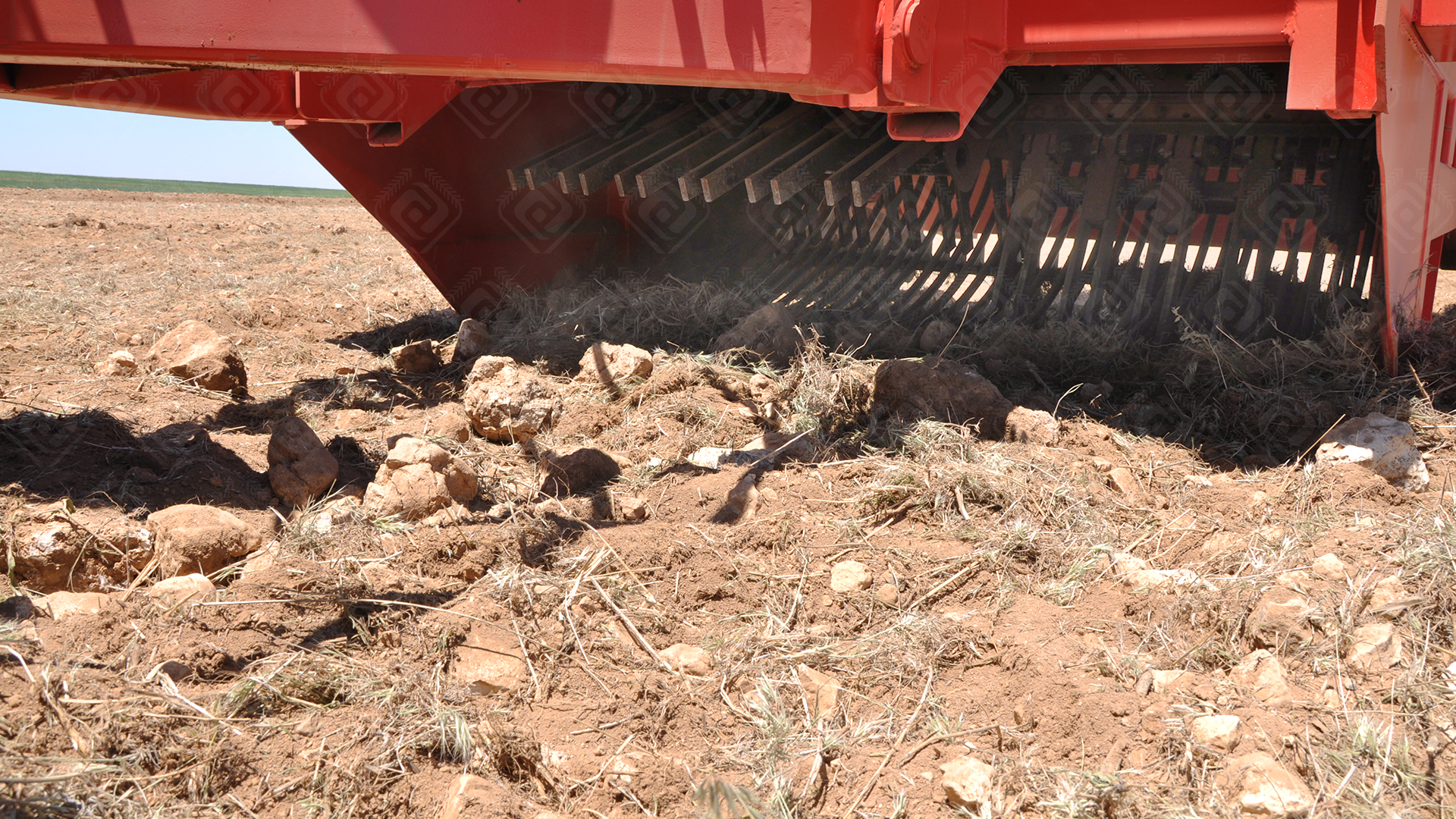

Sieve Width	mm	1235	1530	1530	1530	1770
Sieve Width	ft.in.	4’	5’	5’	5’	5’10”
Sieve Size	mm	880	890	890	890	1070
Sieve Size	ft.in.	2’10”	2’10”	2’10”	2’10”	3’6”
Space Between Sieve	mm	30	30	30	30	30
Space Between Sieve	ft.in.	1”	1”	1”	1”	1”
Sieve Angle		37	35	35	35	35
Number of Sieve	pcs	22	28	28	28	33
Hopper Angle		15	15	15	15	15

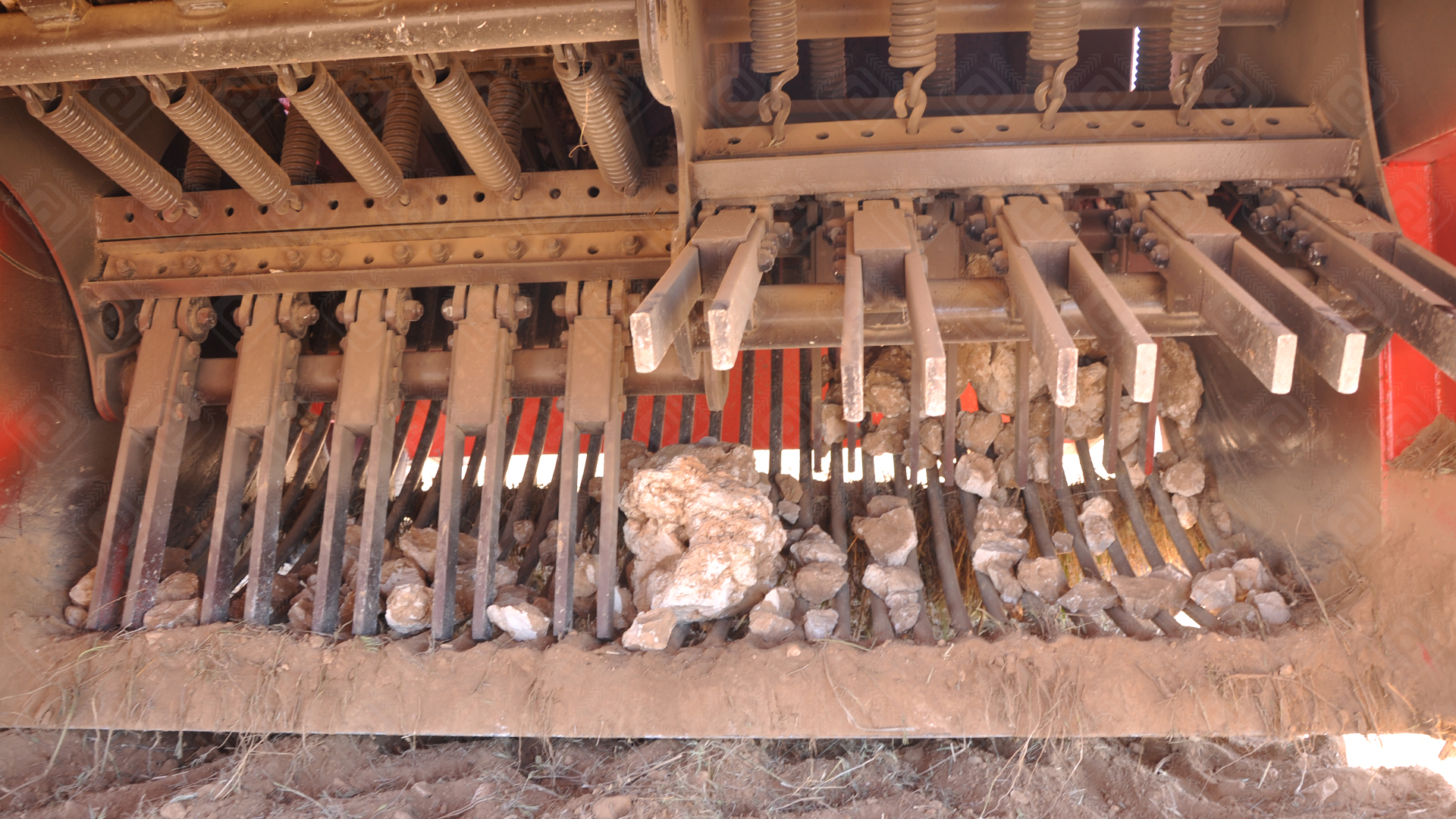

Bar Width	mm	1240	1535	1535	1535	1770
Bar Width	ft.in.	4'11"	5'	5'	5'	5'10"
Bar Diameter	∅	1400	1485	1485	1485	1680
Number of Bar	pcs	42	64	64	64	80
Number of Bar Group	pcs	3	8	8	8	8
Stone Diameter	mm	30-300	30-300	30-300	30-300	30-300
Stone Diameter	ft.in.	1"-12"	1"-12"	1"-12"	1"-12"	1"-12"
Tyre Size	rpm	400/60-15,5	12,5/80-18	12,5/80-18	12,5/80-18	16/70-26
PTO Rotation	rpm	540	540	540	540	540
Bar Speed	rpm	90	90	90	90	90
Required Power		60-70	70-80	80-90	90-100	100-110
Total Weight	kg	2700	3300	3550	3750	4500
Total Weight	lbs	5952	7275	7826	8267	9920
