Potato Harvesters

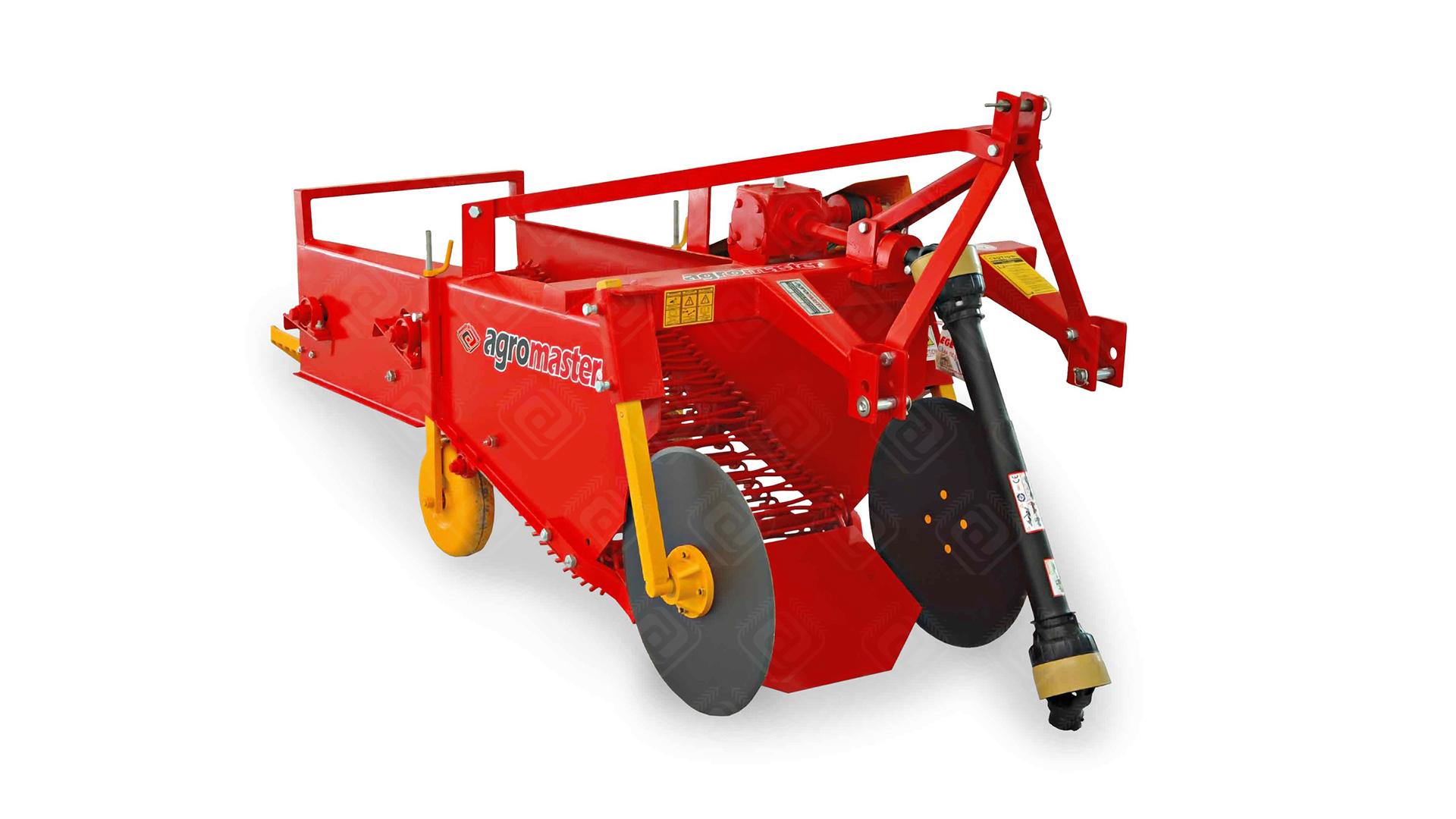

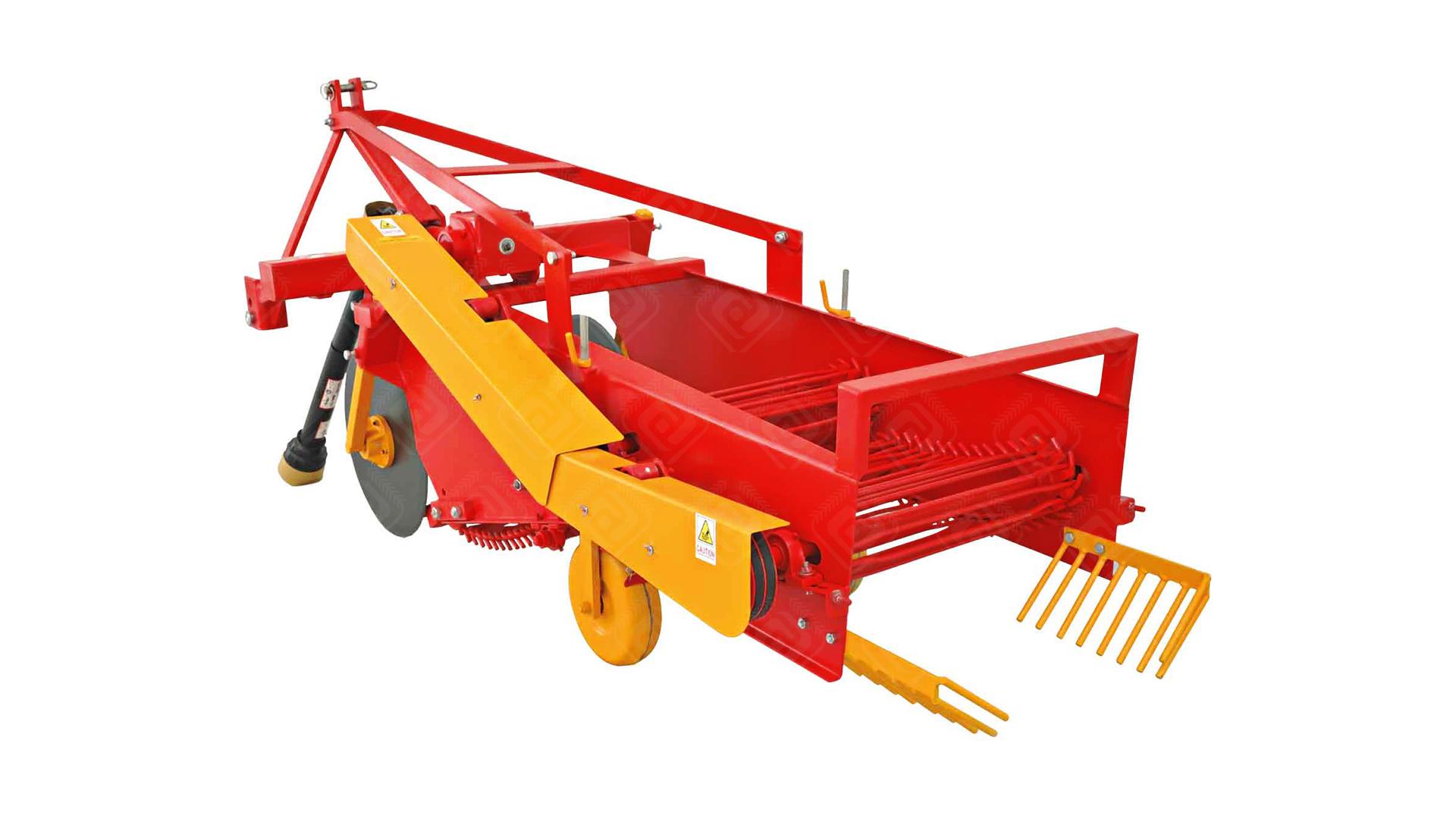

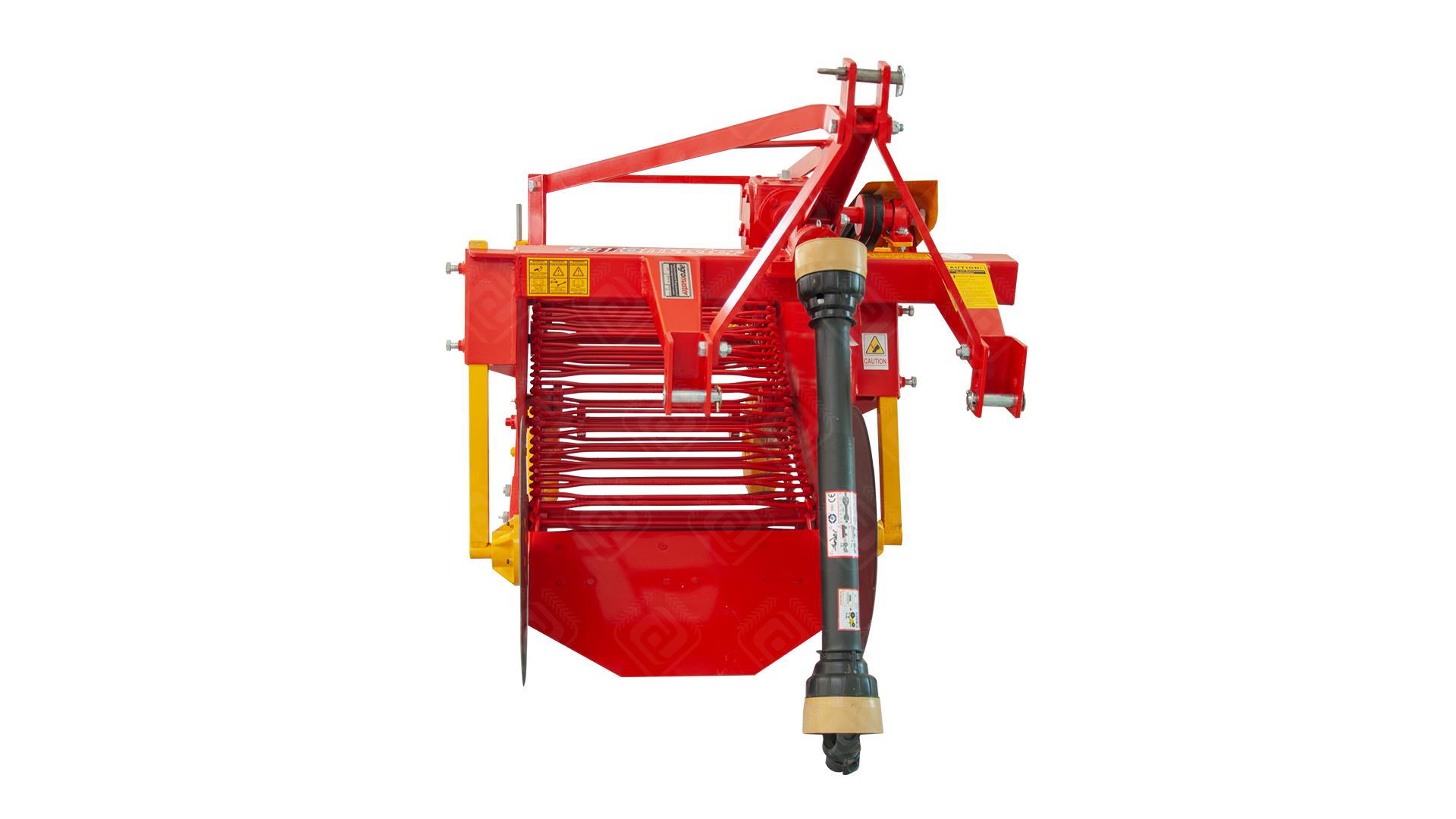

The The single row potato harvester with single sieve is a mounted type machine which is able to harvest by its single row and its position is controlled by the help of hdyraulic lift mechanism by connecting universal three-point linkage of tractor. It can be easily transported during transportation. Potatoes with soil which is cut by Extractor blades is transfered to the sieving part by the help of conveyor iron bar. Potato harvester converts by driving from PTO rotational motion to the vertical motion by the help of eccentric shaft. Potatoes are sieved gradually with double sieves of harvester and soils are droped on the field. Potatoes tubers which are cleaned from soils with maximum level are left on the field surface behind of harvester. It can harvest up to 25 cm depth by help of segmented harvesting blade in harsh ad soft soil conditions.
|
Technical Specifications* |
Unit |
OPS 100 |
|
Number of Rows |
pcs |
1 |
|
Total Width (W) |
mm |
1260 |
|
ft.in. |
4’2” |
|
|
Total Length (L) |
mm |
2550 |
|
ft.in |
8’4” |
|
|
Total Height (H) |
mm |
1310 |
|
ft.in |
4’3” |
|
|
Working Depth |
mm |
200-250 |
|
ft.in |
8”-10” |
|
|
Working Width (B) |
mm |
700 |
|
ft.in |
2’4” |
|
|
Distance Between Rows (Max.) |
mm |
750 |
|
ft.in |
30” |
|
|
Sub-Merging Angle |
degree |
23 |
|
Sieving Area |
m3 |
1,52 |
|
Incline Angle of Sieve |
degree |
12 |
|
Number of Blades |
1 |
|
|
Working Capacity |
Ha/hour |
0,15 |
|
Working Speed |
Km/hour |
2 |
|
PTO Rotation |
rpm |
540 |
|
Required Power |
hp |
from 45 |
|
Total Weight |
kg |
494 |
|
Ibs |
1089 |
