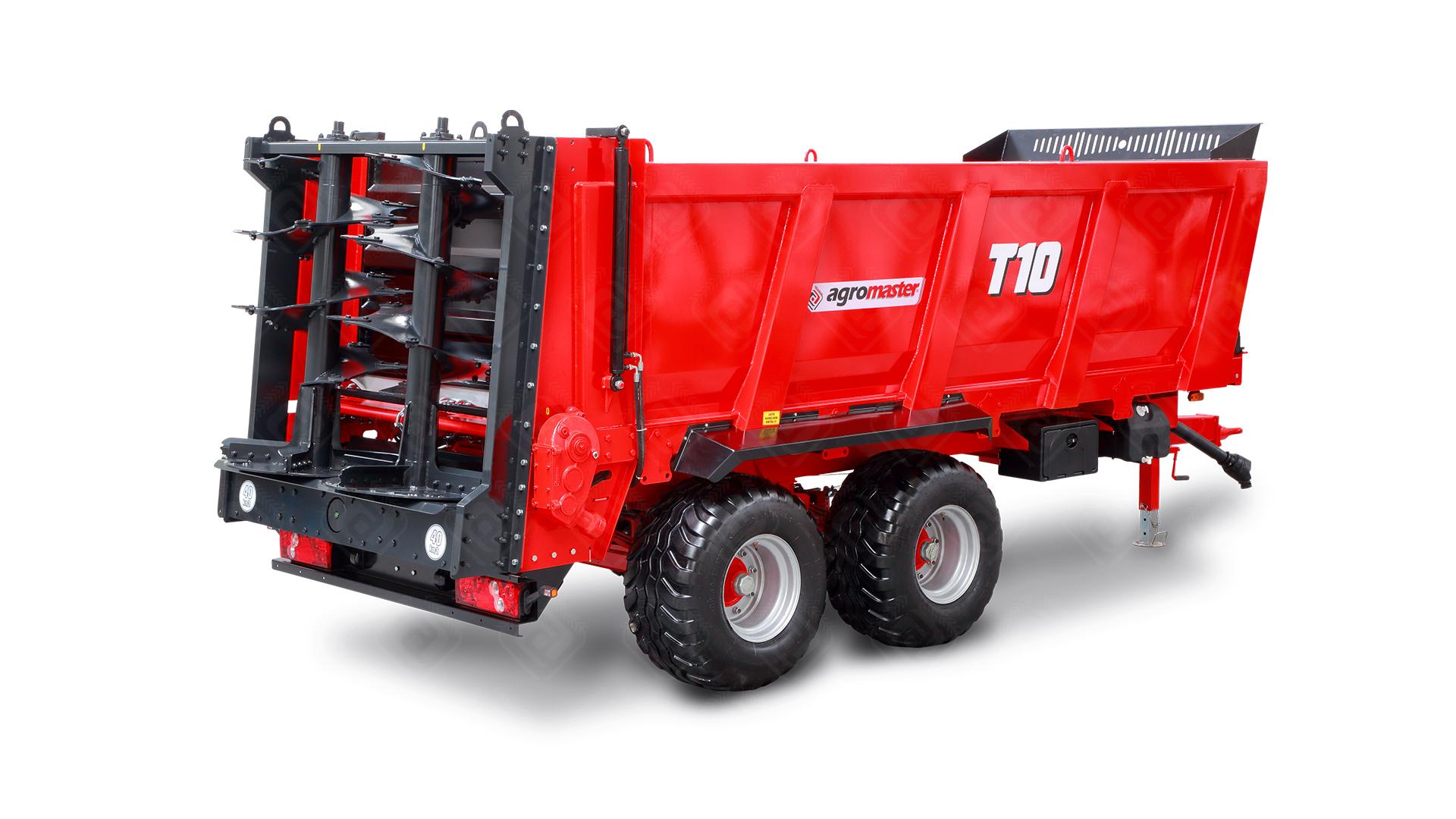

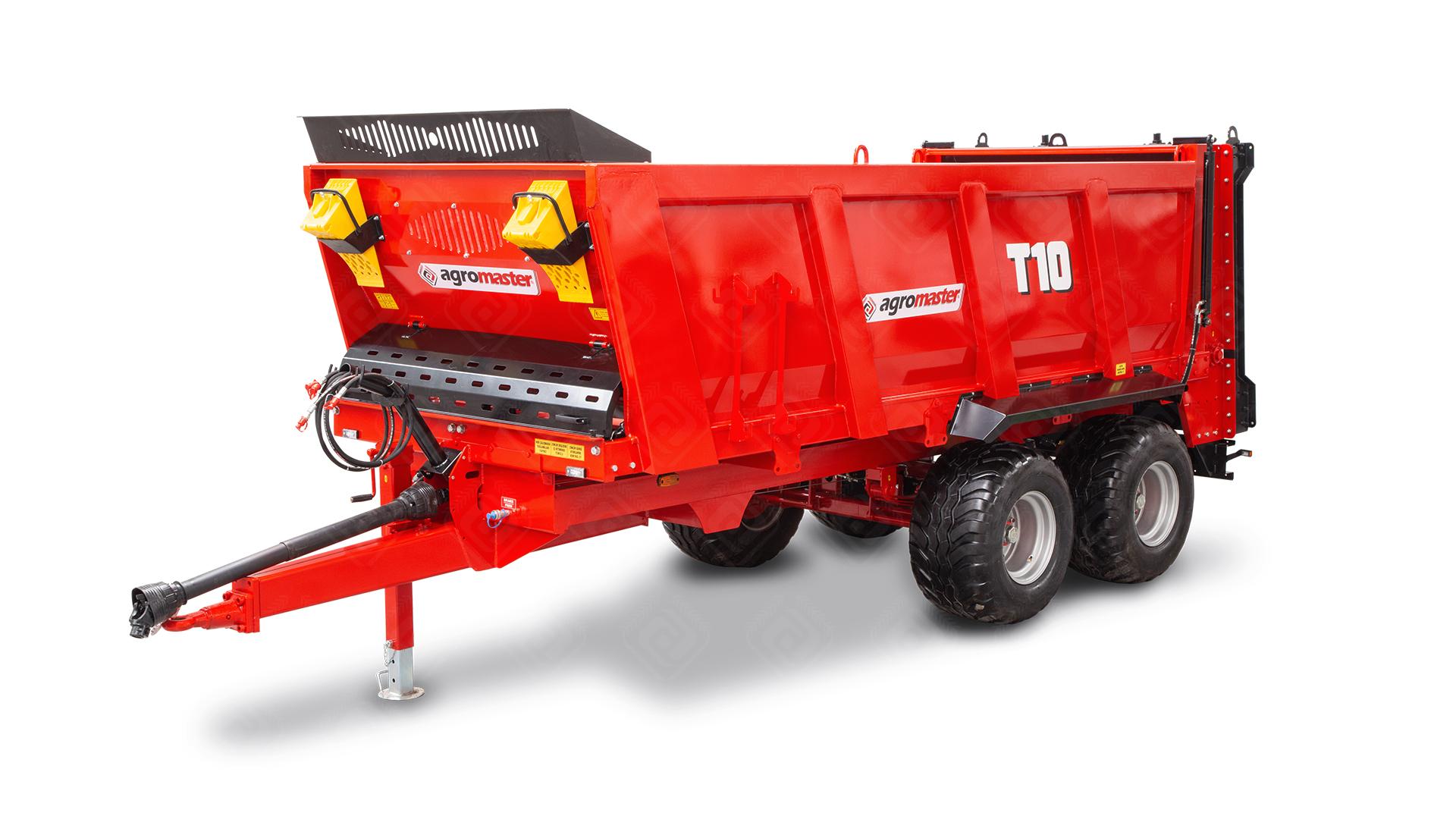

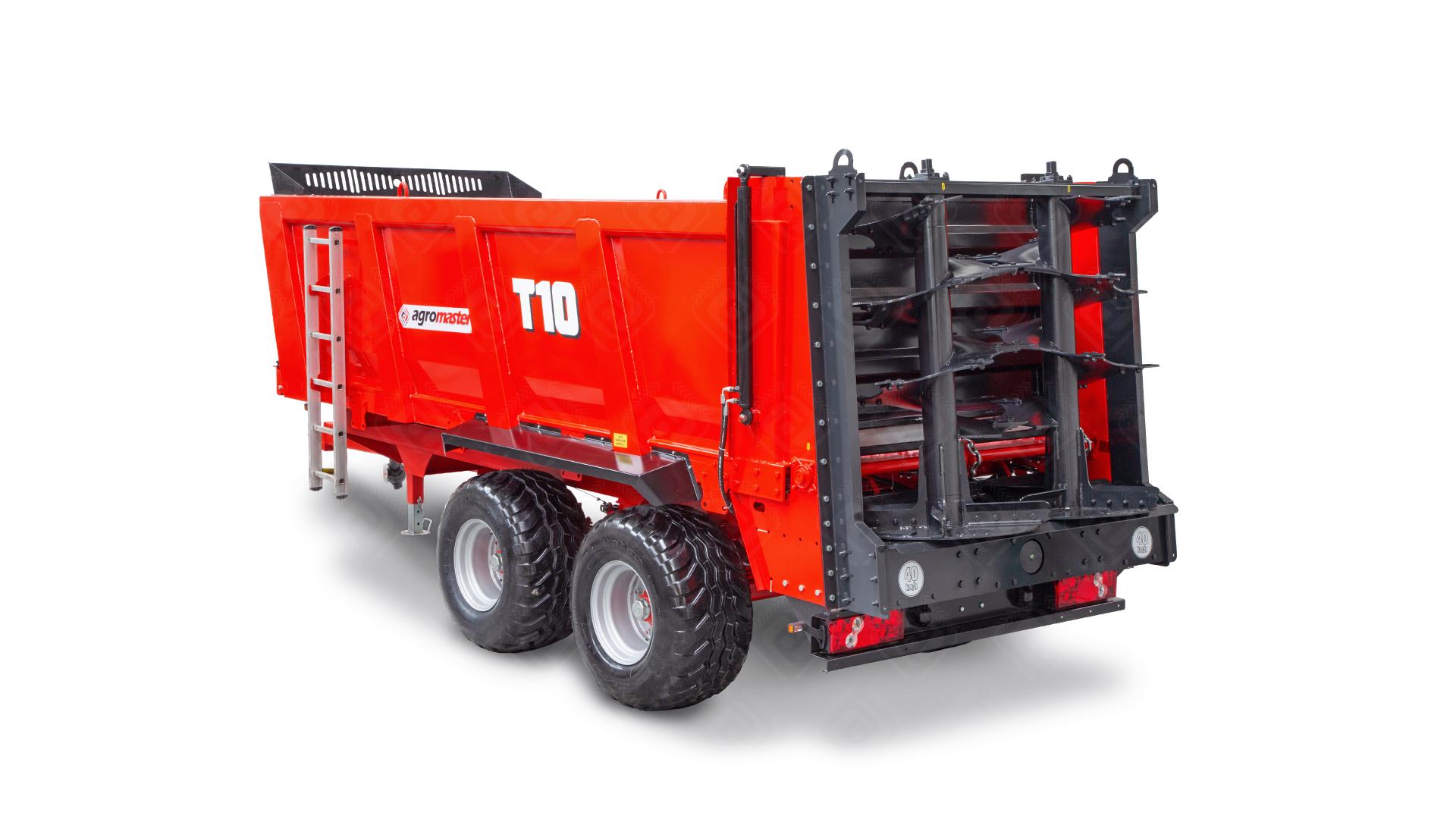

Manure Spreaders

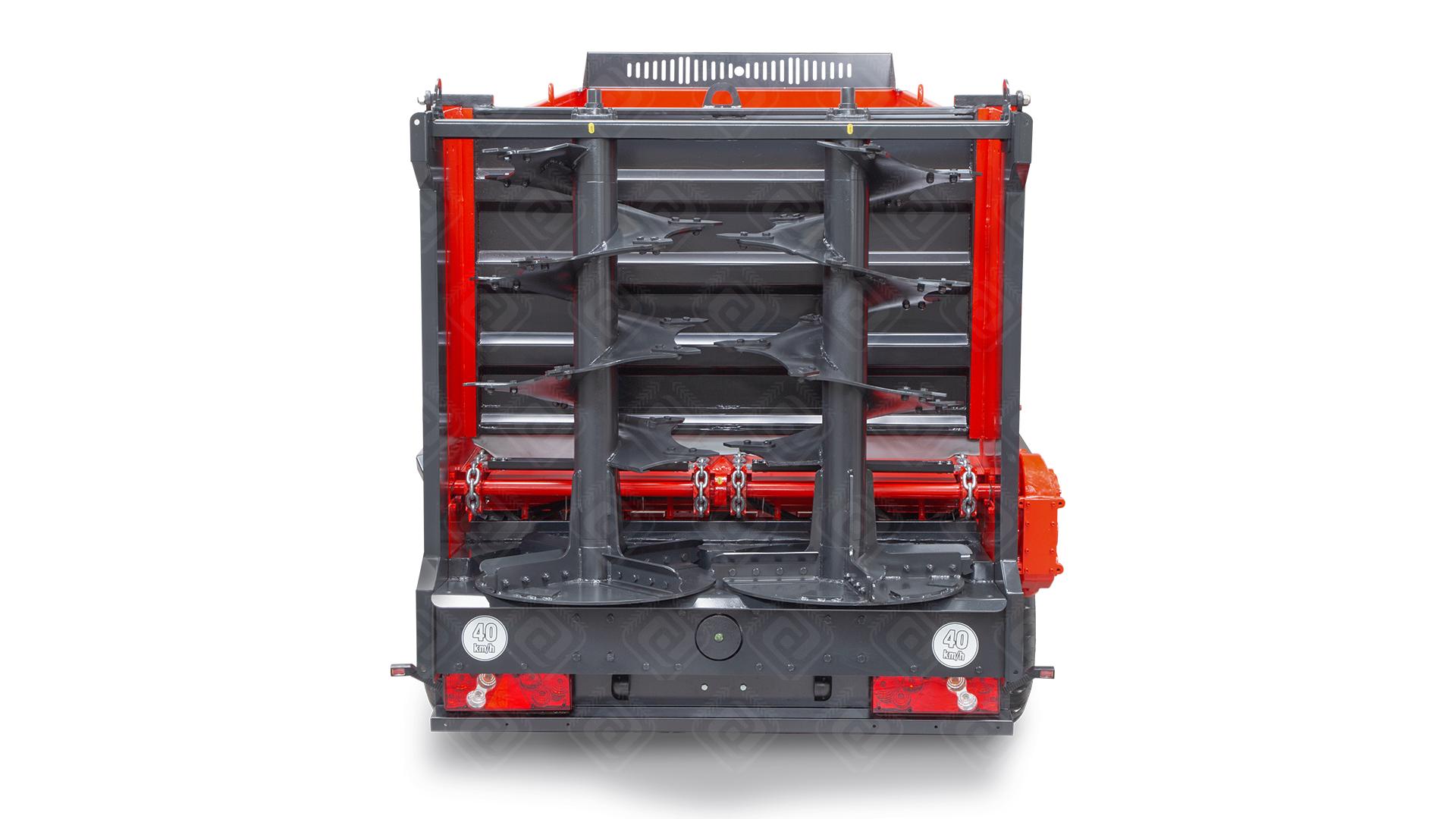

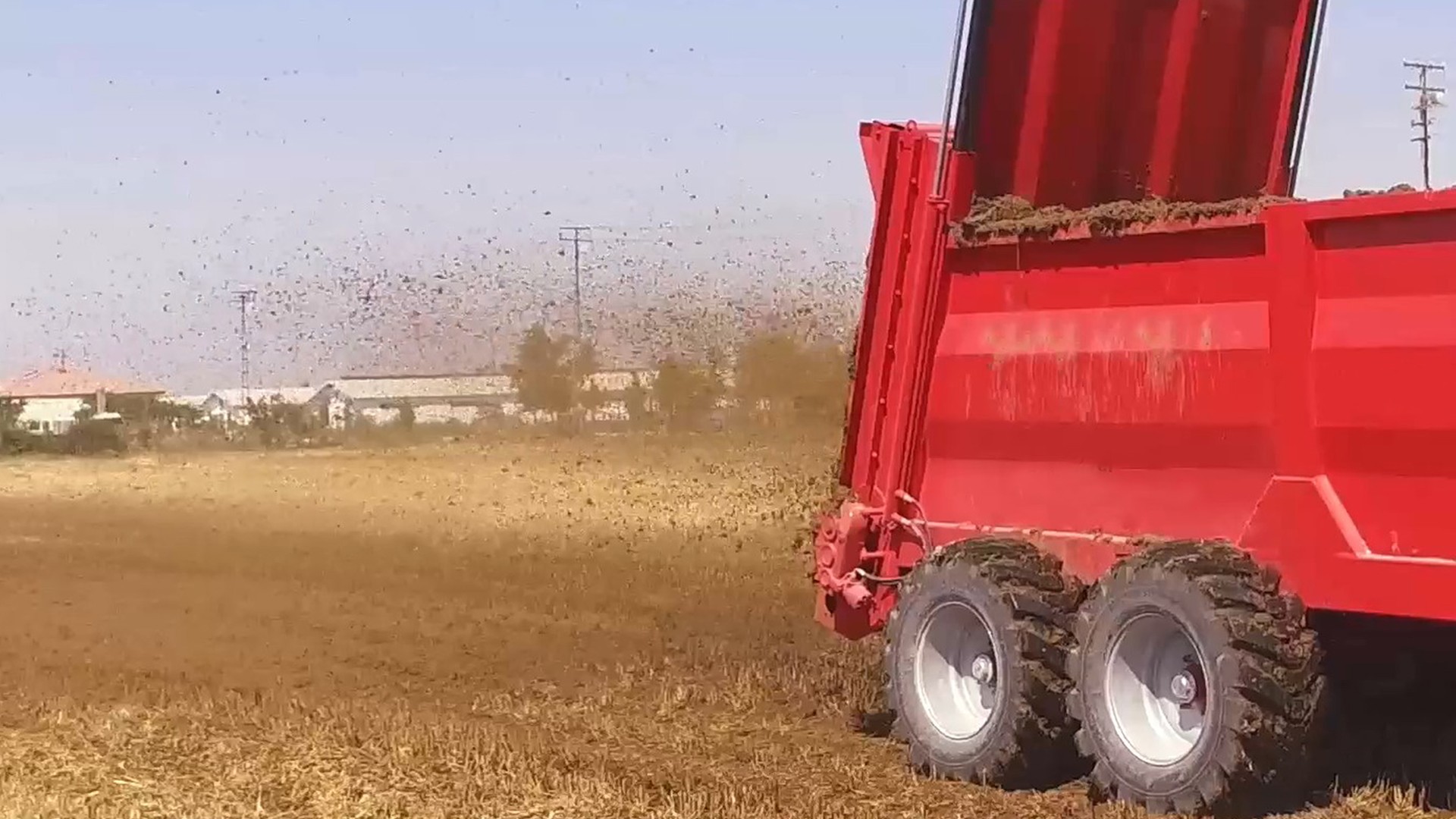

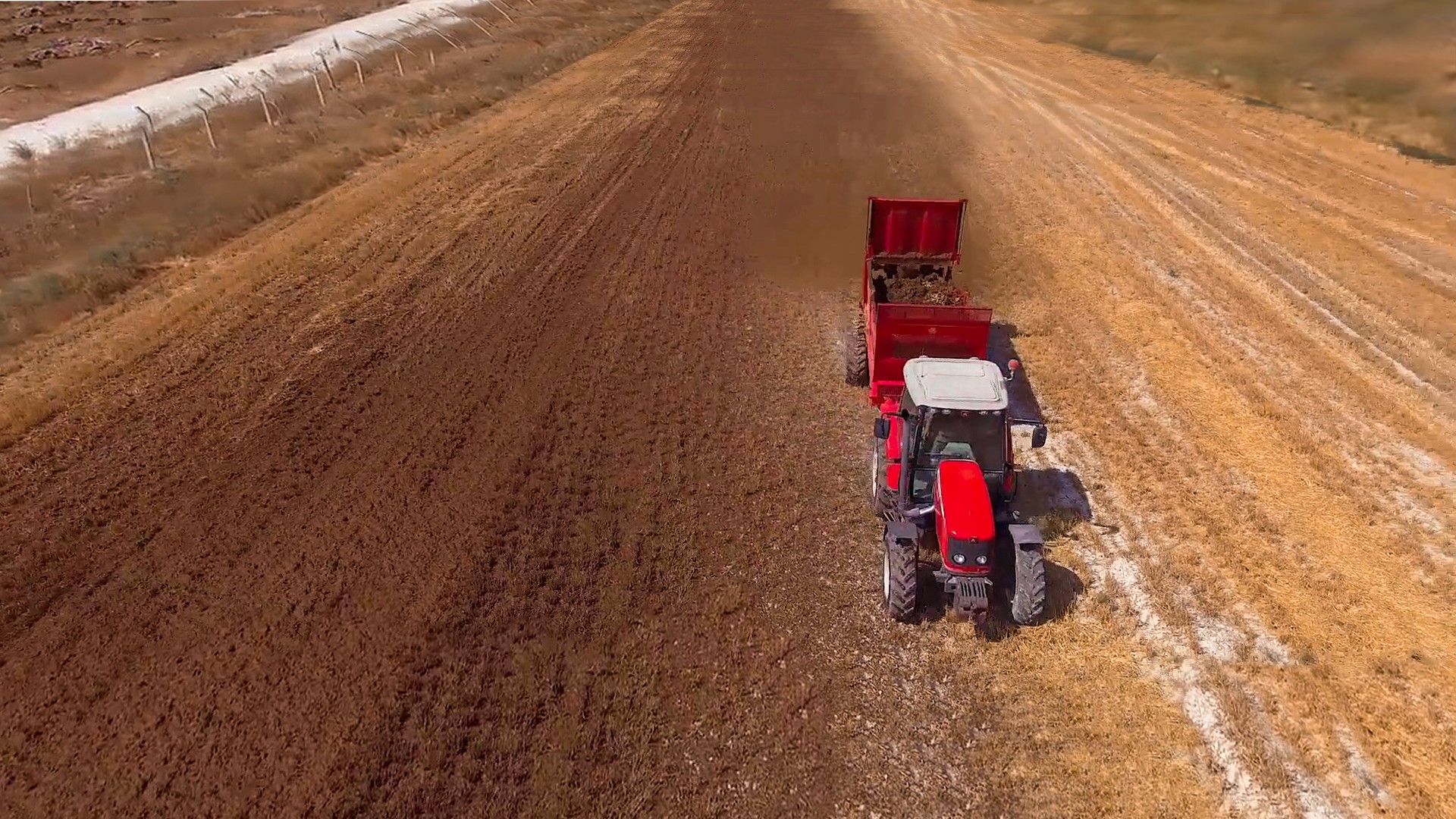

Agromaster Manure Spreader provides homogeneous distribution of animal manure which is rich of organic matter to the field surface. Thanks to the vertical auger system, the fertilizer is distributed more homogeneously in a larger area. Thus, soil compaction rate is reduced,time and labor savings are provided.
|
Technical Specificaions* |
Unit |
HK4 |
HK5 |
HK6 |
HK8 |
HK10 |
HK12 |
|
Machine Length (A) |
mm |
4500 |
4575 |
4925 |
5150 |
5750 |
6500 |
|
ft.in. |
14’9” |
15’0” |
16’2” |
16’10” |
18’10” |
21’4” |
|
|
Machine Width (B1) |
mm |
1680 |
2025 |
2025 |
2025 |
2025 |
2025 |
|
ft.in. |
5’6” |
6’8” |
6’8” |
6’8” |
6’8” |
6’8” |
|
|
Machine Width (B2) |
mm |
1870 |
2130 |
2130 |
2300 |
2300 |
2300 |
|
ft.in. |
6’2” |
6’12” |
6’12” |
7’7” |
7’7” |
7’7” |
|
|
Machine Height (C) |
mm |
1980 |
2550 |
2585 |
2750 |
2750 |
2750 |
|
ft.in |
6’6” |
8’4” |
8’6” |
9’0” |
9’0” |
9’0” |
|
|
Shadow Width (D) |
mm |
1540 |
1690 |
1690 |
1970 |
1970 |
1970 |
|
ft.in. |
5’1” |
5’6” |
5’6” |
6’6” |
6’6” |
6’6” |
|
|
Unloading Band Length (E) |
mm |
870 |
870 |
870 |
870 |
870 |
870 |
|
ft.in |
2’10” |
2’10” |
2’10” |
2’10” |
2’10” |
2’10” |
|
|
Unloading Band Width (F) |
mm |
620 |
620 |
620 |
620 |
620 |
620 |
|
ft.in. |
2’0” |
2’0” |
2’0” |
2’0” |
2’0” |
2’0” |
|
|
Unloading Band |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
|
|
Helix System |
Horizontal |
Horizontal |
Horizontal |
Horizontal |
Horizontal |
Horizontal |
|
|
Total Helix |
pcs |
1 |
2 |
2 |
2 |
2 |
2 |
|
Total Helix Blades |
pcs |
48 |
56 |
68 |
68 |
108 |
125 |
|
Capacity |
m3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
Electronic Weighing |
- |
Optional |
Optional |
Optional |
Optional |
Optional |
|
|
Machine Weight |
kg |
1550 |
2400 |
2650 |
3700 |
4500 |
5350 |
|
ıbs |
3417 |
5291 |
5842 |
8157 |
9920 |
11794 |
|
|
Bucket Capacity |
200 |
400 |
400 |
500 |
500 |
500 |
|
|
Bucket Width (G) |
mm |
880 |
940 |
1180 |
1180 |
1180 |
1180 |
|
ft.in |
2'10" |
3'1" |
3'10" |
3'10" |
3'10" |
3'10" |
|
|
Bucket Height (H) |
mm |
940 |
1285 |
1285 |
1295 |
1455 |
1455 |
|
ft.in. |
3'1" |
4’2” |
4’2” |
4’2” |
4’9” |
4’9” |
|
|
Bottom Sheet Thickness |
mm |
8 |
8 |
8 |
8 |
8 |
10 |
|
ft.in |
0,32” |
0,32” |
0,32” |
0,32” |
0,32” |
0,32” |
|
|
Side Sheet Thickness |
mm |
4 |
5 |
5 |
5 |
5 |
8 |
|
ft.in. |
0,16” |
0,20” |
0,20” |
0,20” |
0,20” |
0,20” |
|
|
Pto Rotation |
rpm |
540 |
540 |
540 |
540 |
540 |
540 |
|
Helix Rotation |
21,5 |
21,5 |
21,5 |
21,5 |
21,5 |
21,5 |
|
|
Tire Dimensions |
10.0/80-12 |
10.0/75-15,3 |
10.0/75-15,3 |
11.5/75-13,3 |
11.5/75-15,3 |
11.5/75-15,3 |
|
|
Minimum Requested Power |
hp |
50 |
50 |
60 |
60 |
70 |
70 |
