Hay Equipments

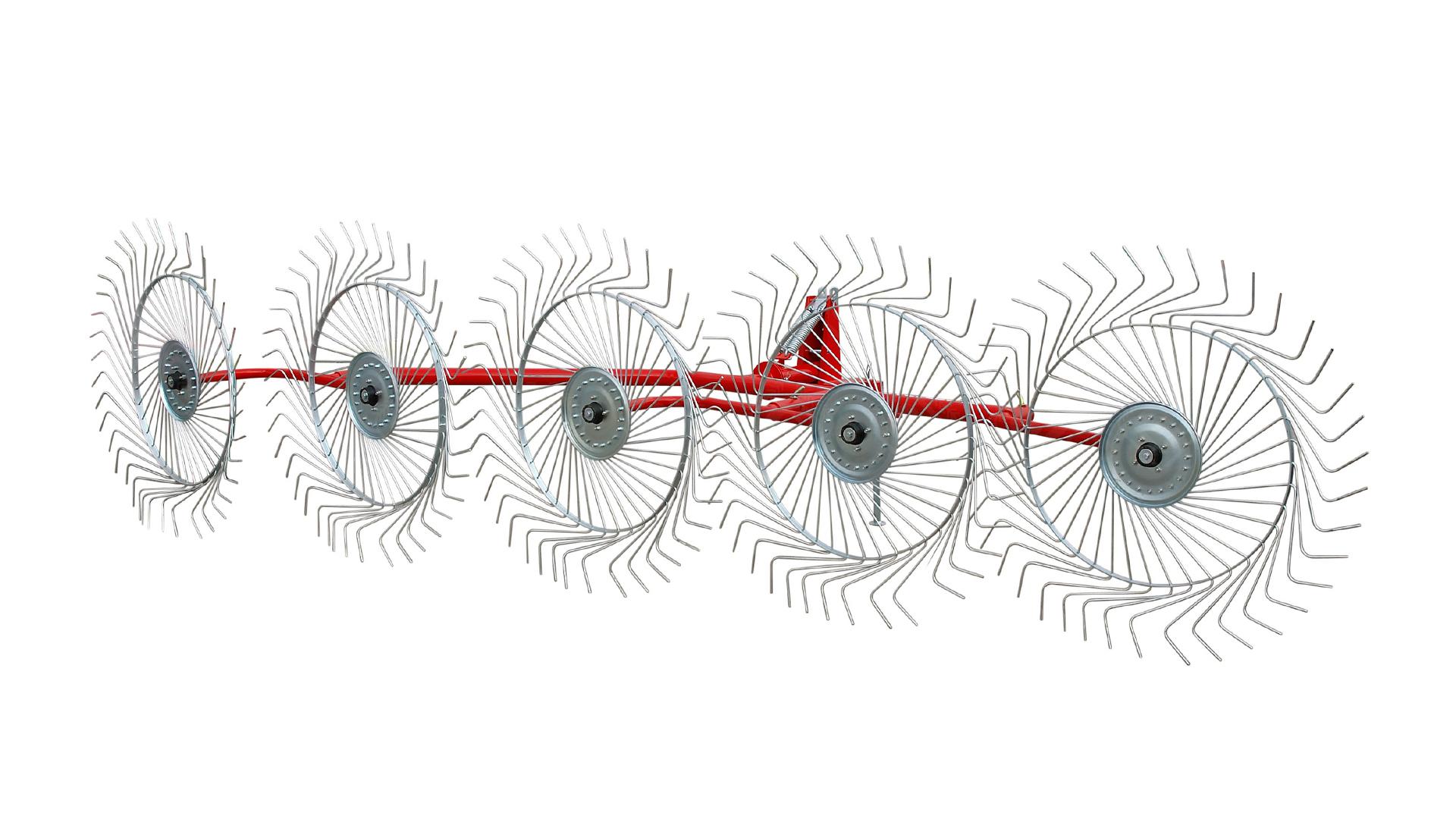

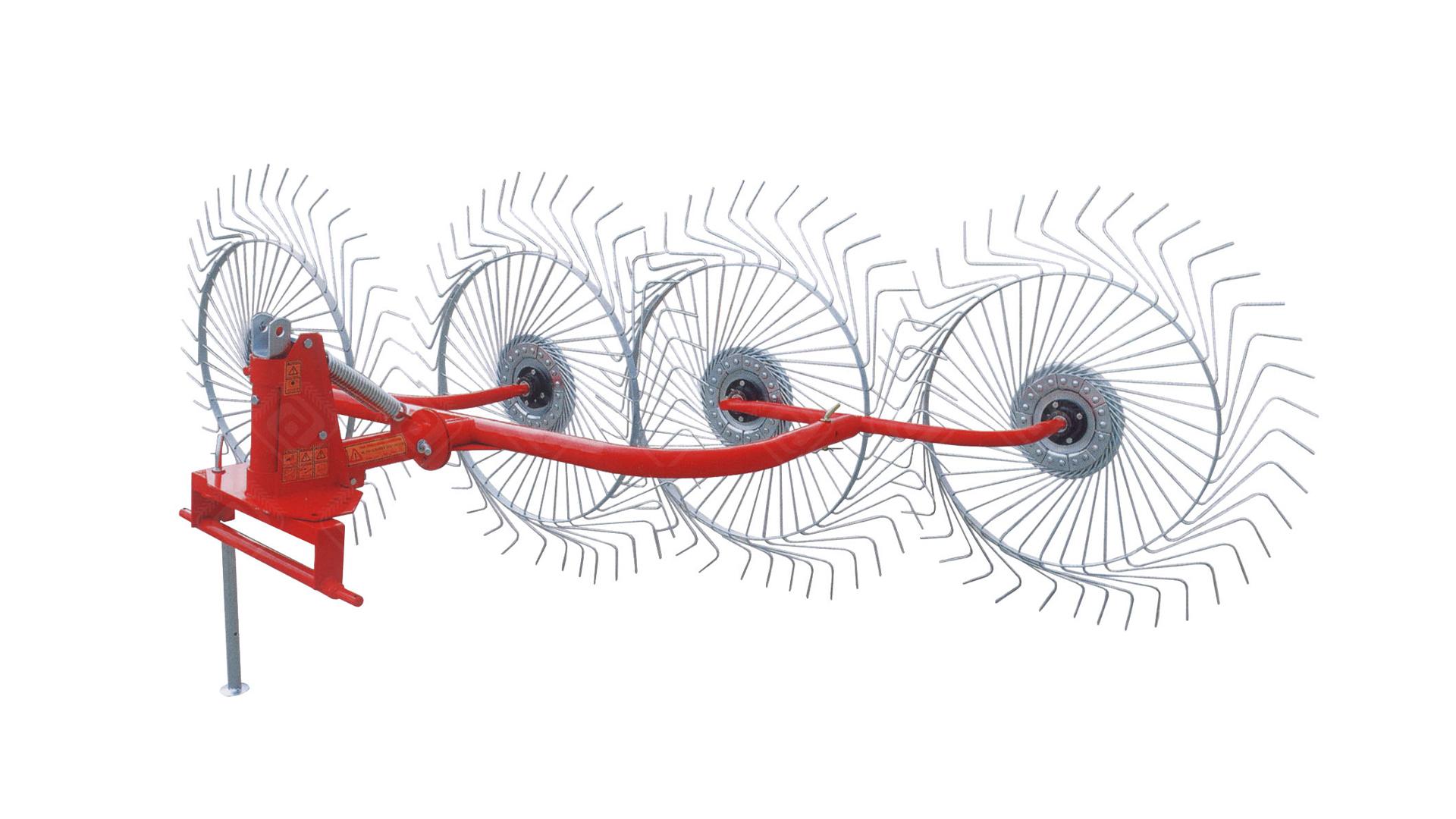

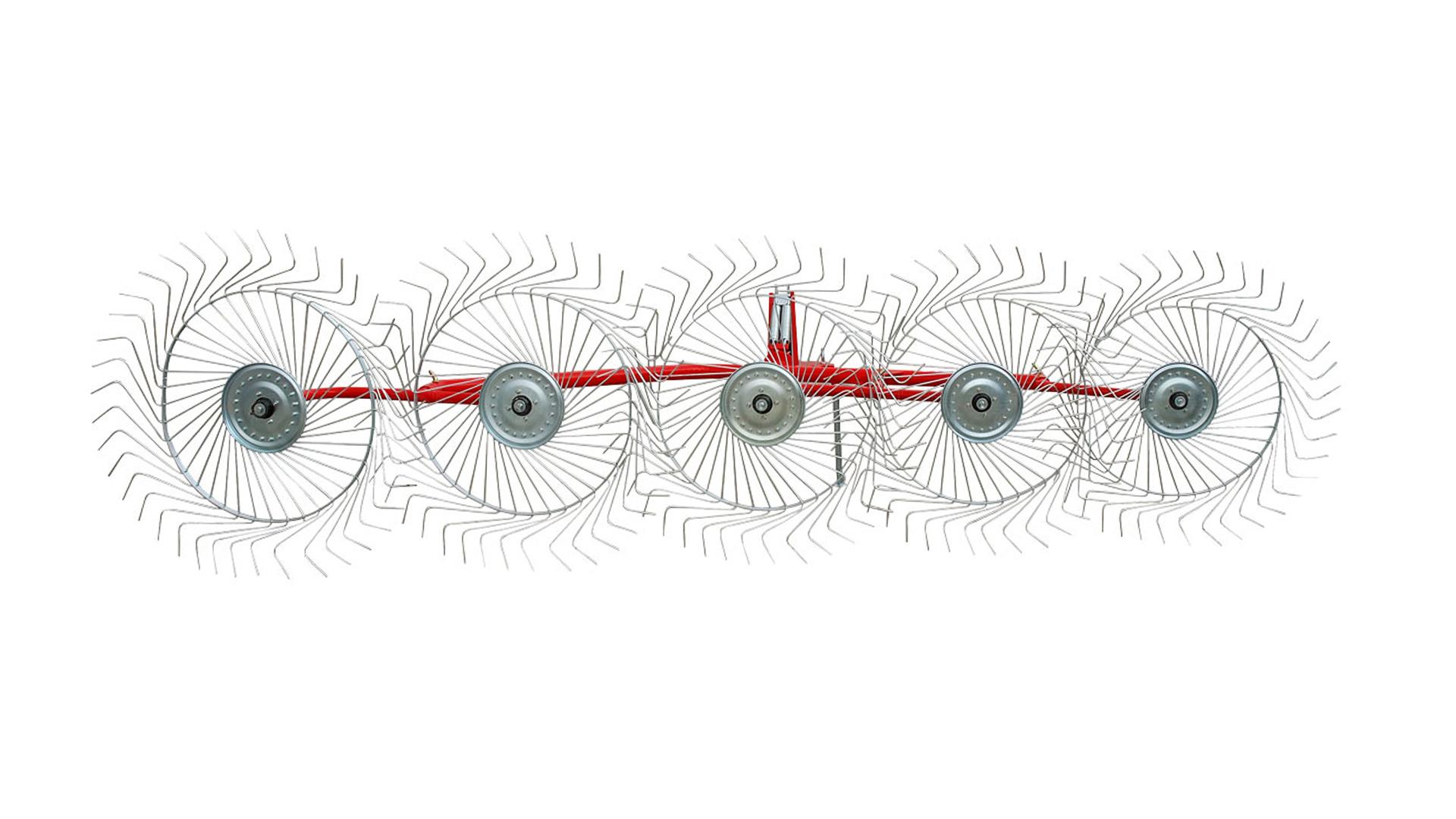

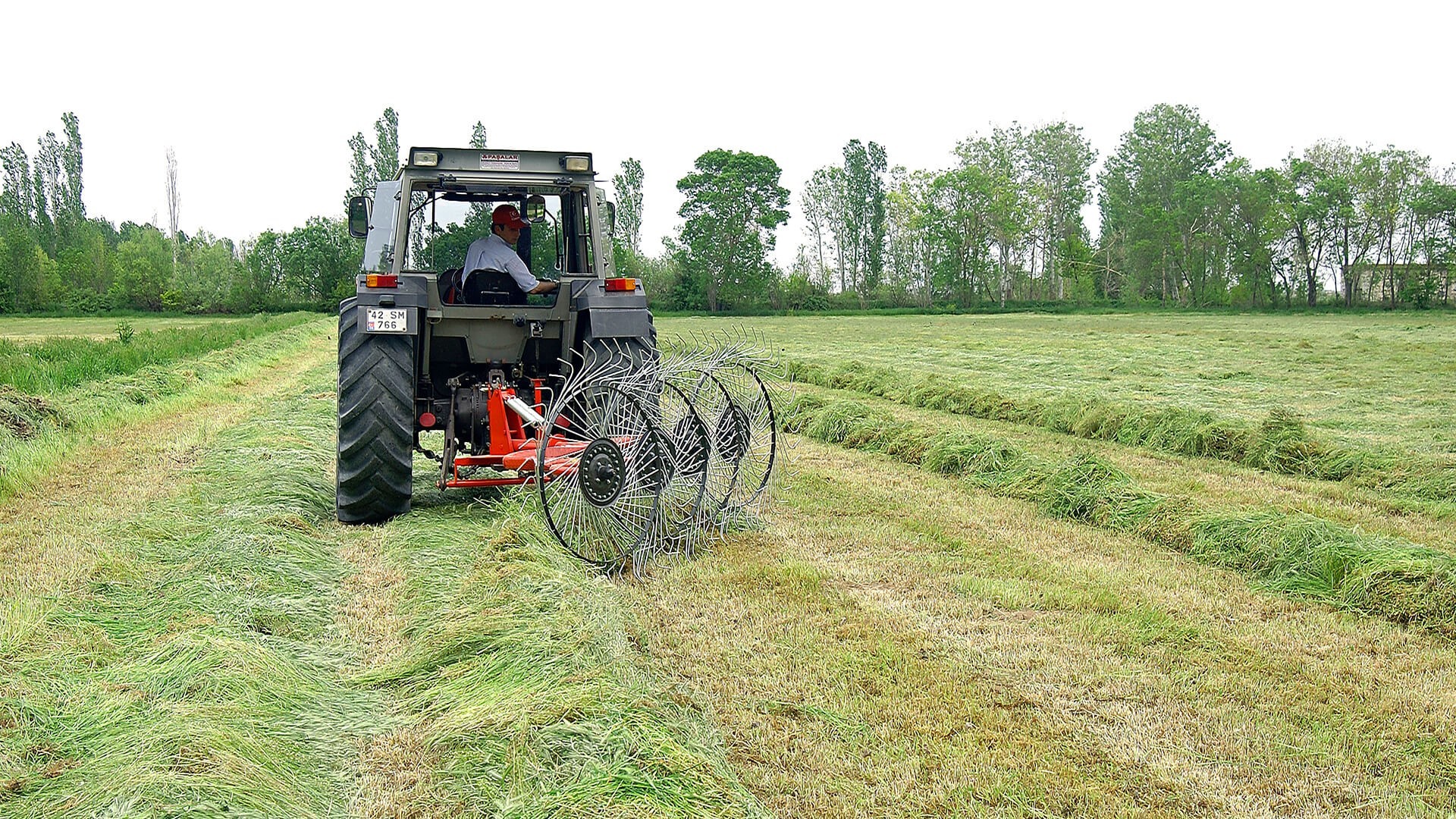

The mounted type of machine is produced with 2-3-4 and 5 drums. This implement has been designed and produced to move forage that has previously been cut and form windrows or turn the forage for airing if and when necessary. It is suitable as an implement for tractors of adequate horse power and weight. The choice of the implement must be made within the limits accepted by the tractor manufacturer based on weight and dimensions as per the chart to be found on "Technical Specications".
|
Technical Specifications* |
Unit |
OT 40 |
OT 50 |
OT 60 |
|
Number of Drums |
pcs |
4 |
5 |
6 |
|
Diameter of Drums |
mm |
1450 |
1450 |
1450 |
|
ft.in. |
4'9" |
4'9" |
4'9" |
|
|
Total Width (W) |
mm |
4200 |
4850 |
5550 |
|
ft.in. |
13'9" |
15'11" |
18'3" |
|
|
Total Length (L) |
mm |
2100 |
2300 |
2750 |
|
ft.in |
6'11" |
7'7" |
||
|
Transport Height |
mm |
2350 |
3100 |
3100 |
|
ft.in. |
7'9" |
10'2" |
10'2" |
|
|
Working Width |
mm |
1660-2900 |
1660-3500 |
2300-4050 |
|
ft.in |
5'5"-6'3" |
5'5"-11'6" |
7'7"-13'3" |
|
|
Number of Springs |
pcs |
160 |
200 |
240 |
|
Required Power |
hp |
30-50 |
40-60 |
40-60 |
|
Total Weight |
kg |
160 |
195 |
250 |
|
Ibs |
352 |
429 |
551 |
