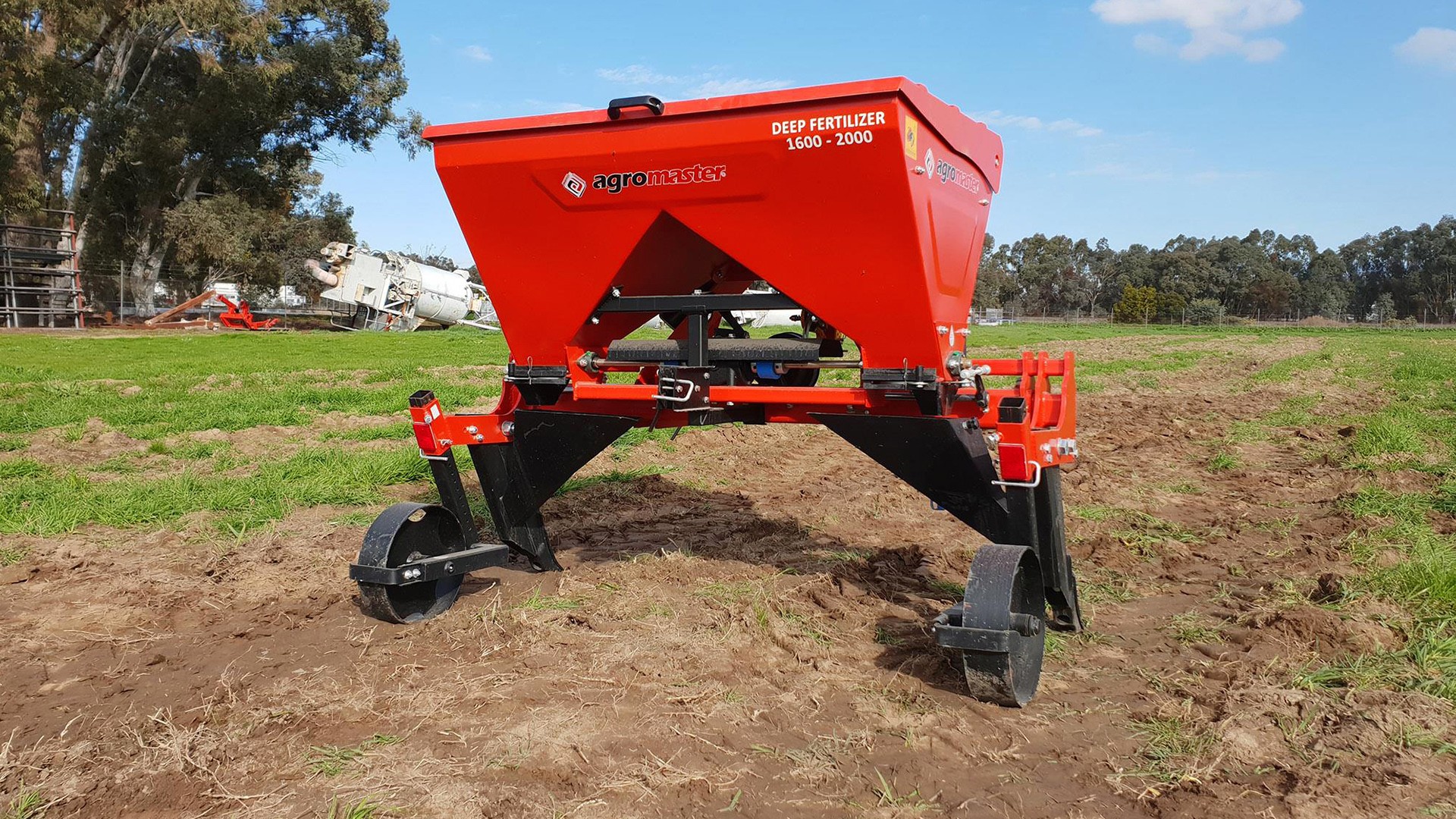

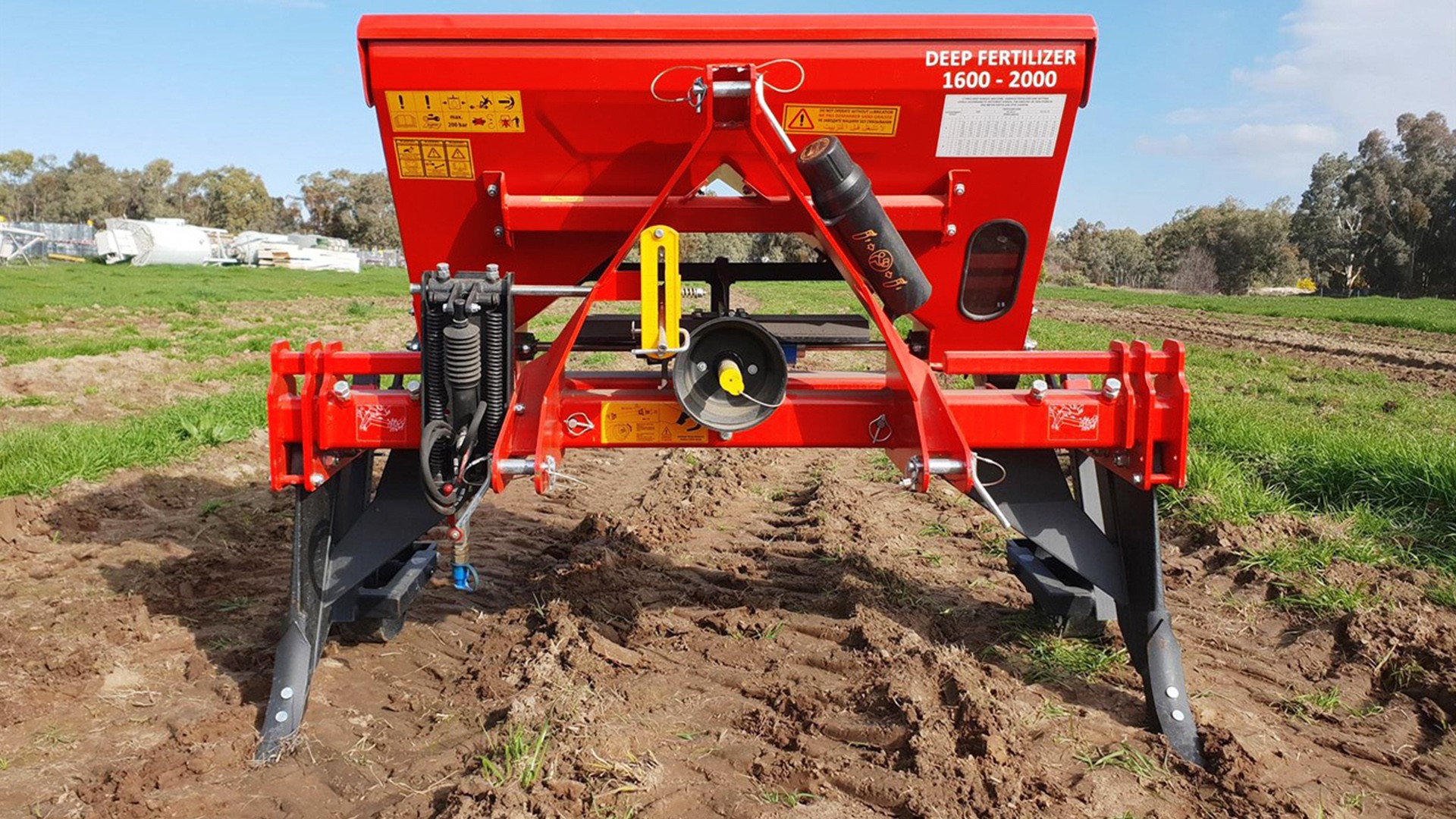

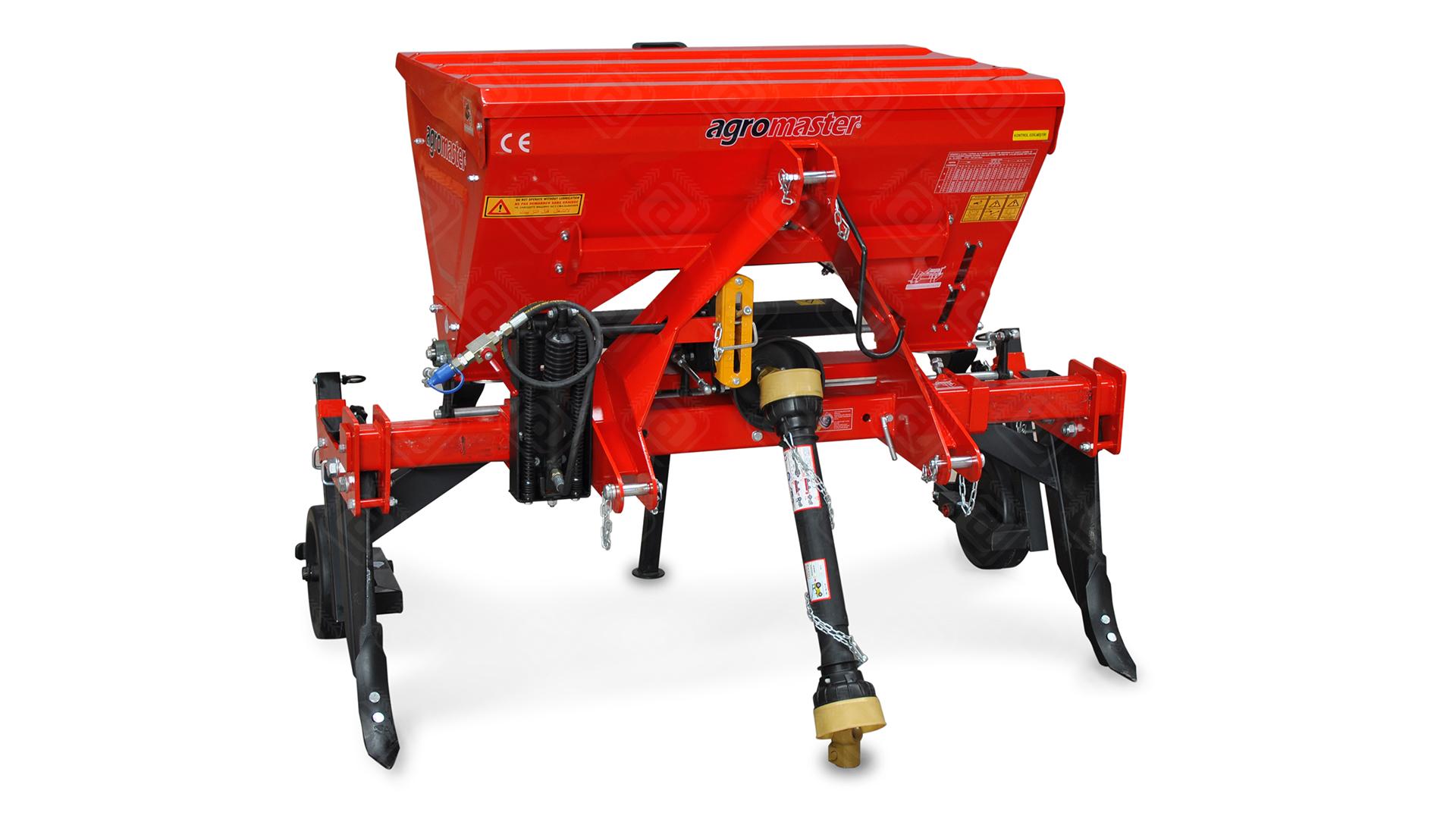

Subsoil Fertilizer Spreaders with two fertilizing tines are mounted to tractor by three point linkage system. Space between tines is adjustable. If required, spreading mechanism of one of the tines can be closed to work with one tine.These spreaders are used to apply fertilizers into subsoil in all kind of vineyards and fruit gardens. Fertilizer spreader machine enriches the soil by spreading the fertilizer to plants as wheat, barley, oats, sorghum, canola, cotton, sugar beet, sunflower, corn, beans, and sunflower.

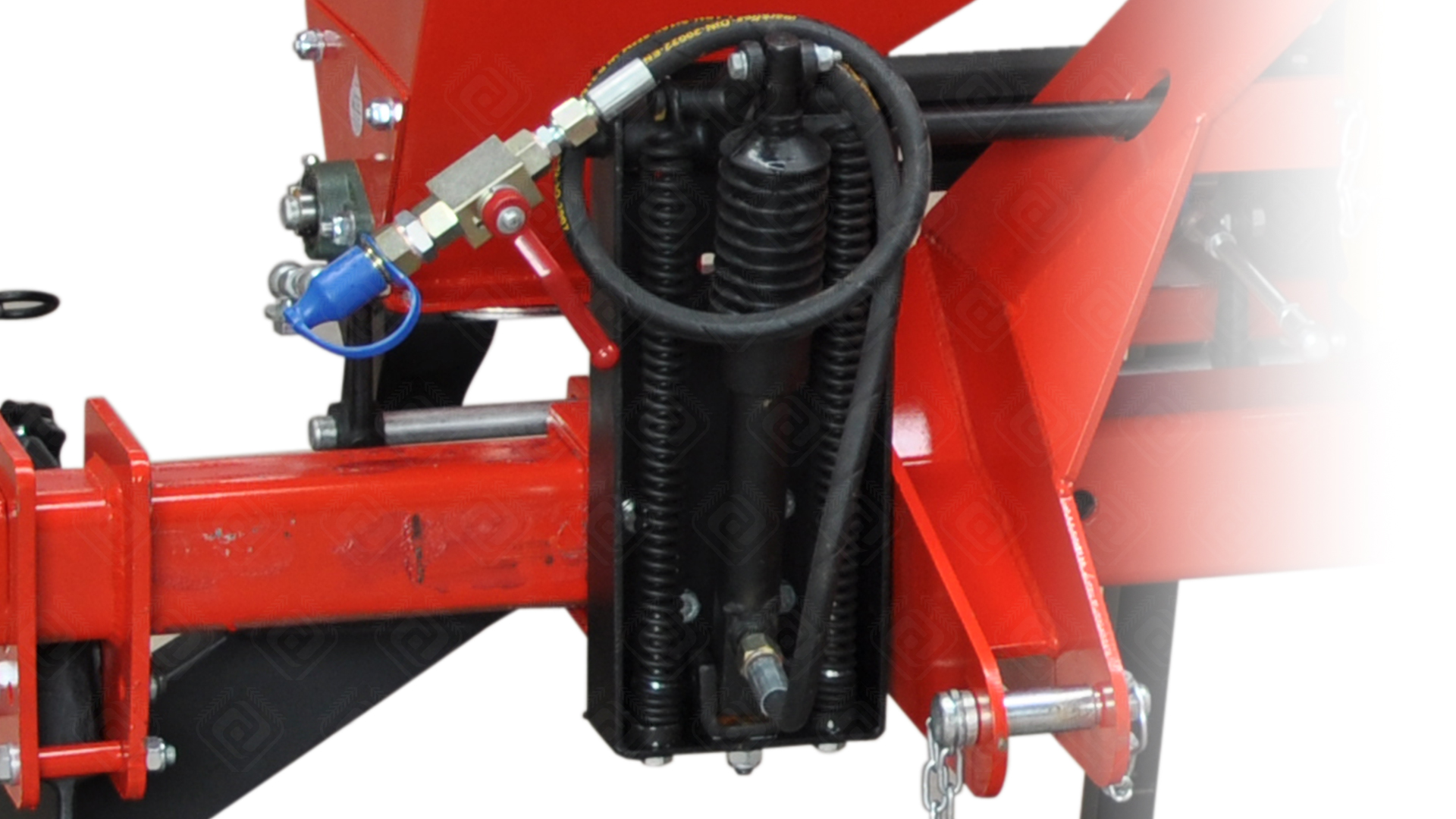

Hydraulic shut off ventils

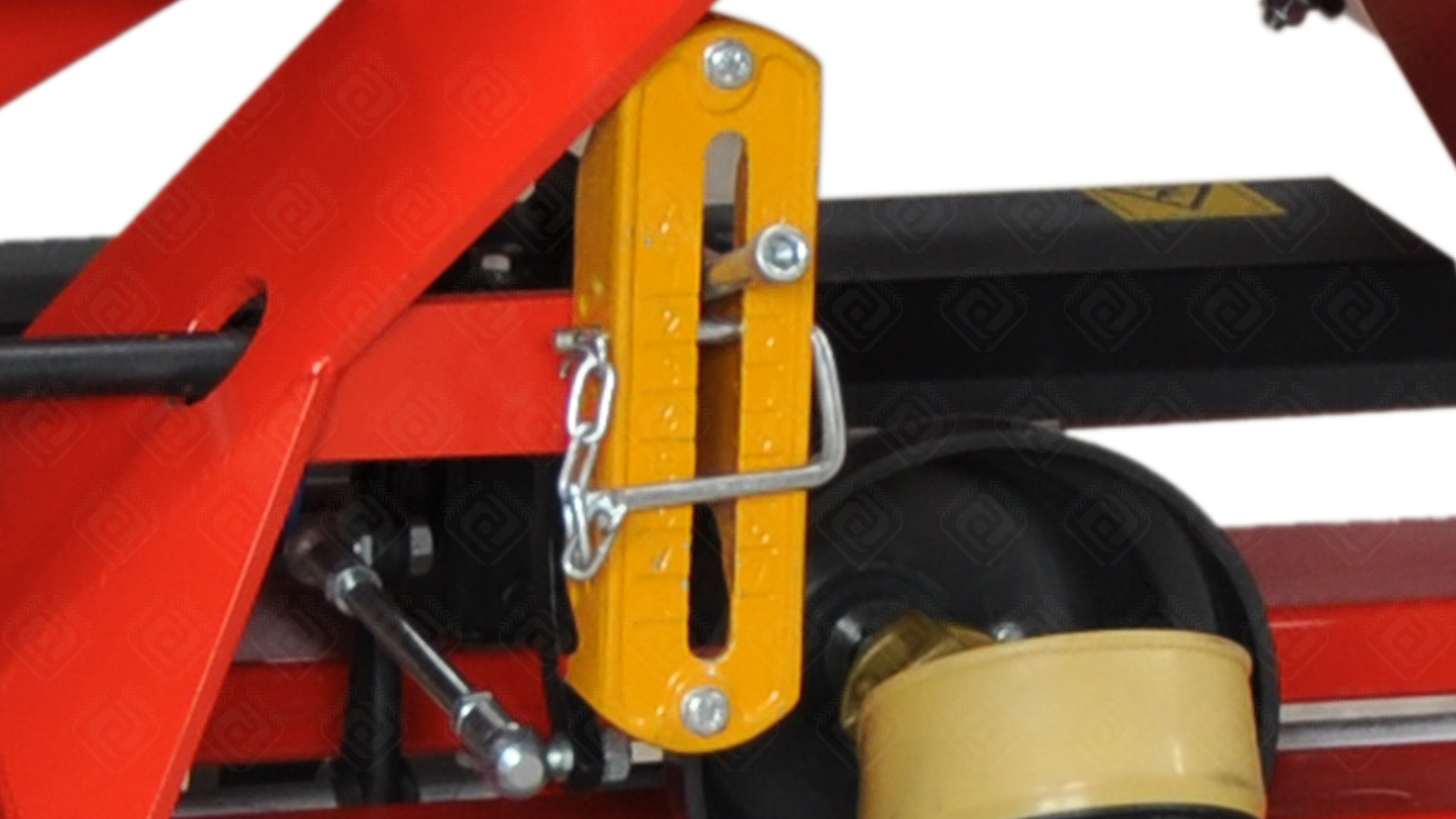

Spread rate chart
|
Technical Specifications* |
Unit |
BAF 160 |
BAF 200 |
|
Hopper Capacity |
lt |
300 |
300 |
|
gallon |
79 |
79 |
|
|
Number of Disc |
pcs |
2 |
2 |
|
Working Width |
mm |
1200-1400-1600 |
1600-2000 |
|
ft.in. |
3'11"/4'7"/5'3" |
5'3"/6'7" |
|
|
Total Width (W) |
mm |
1350/1750 |
1750/2150 |
|
ft.in. |
4'5"/5'9" |
5'9"/7'1" |
|
|
Total Length (L) |
mm |
1350 |
1350 |
|
ft.in. |
4'5" |
4'5" |
|
|
Total Height (H) |
mm |
1300 |
1300 |
|
ft.in. |
4'3" |
4'3" |
|
|
Category |
I-II |
II |
|
|
Space Between Tines |
1200-1600 |
1600-2000 |
|
|
Transmission Type |
1/1 |
1/1 |
|
|
Mixing System |
Vertical |
||
|
PTO Rotation |
rpm |
540 |
|
|
Required Power |
hp |
40-70 |
60-75 |
|
Total Weight |
kg |
288 |
300 |
|
Ibs |
634 |
661 |
|
