Electric and Smart Precision Planters "NEW INNOVATION"

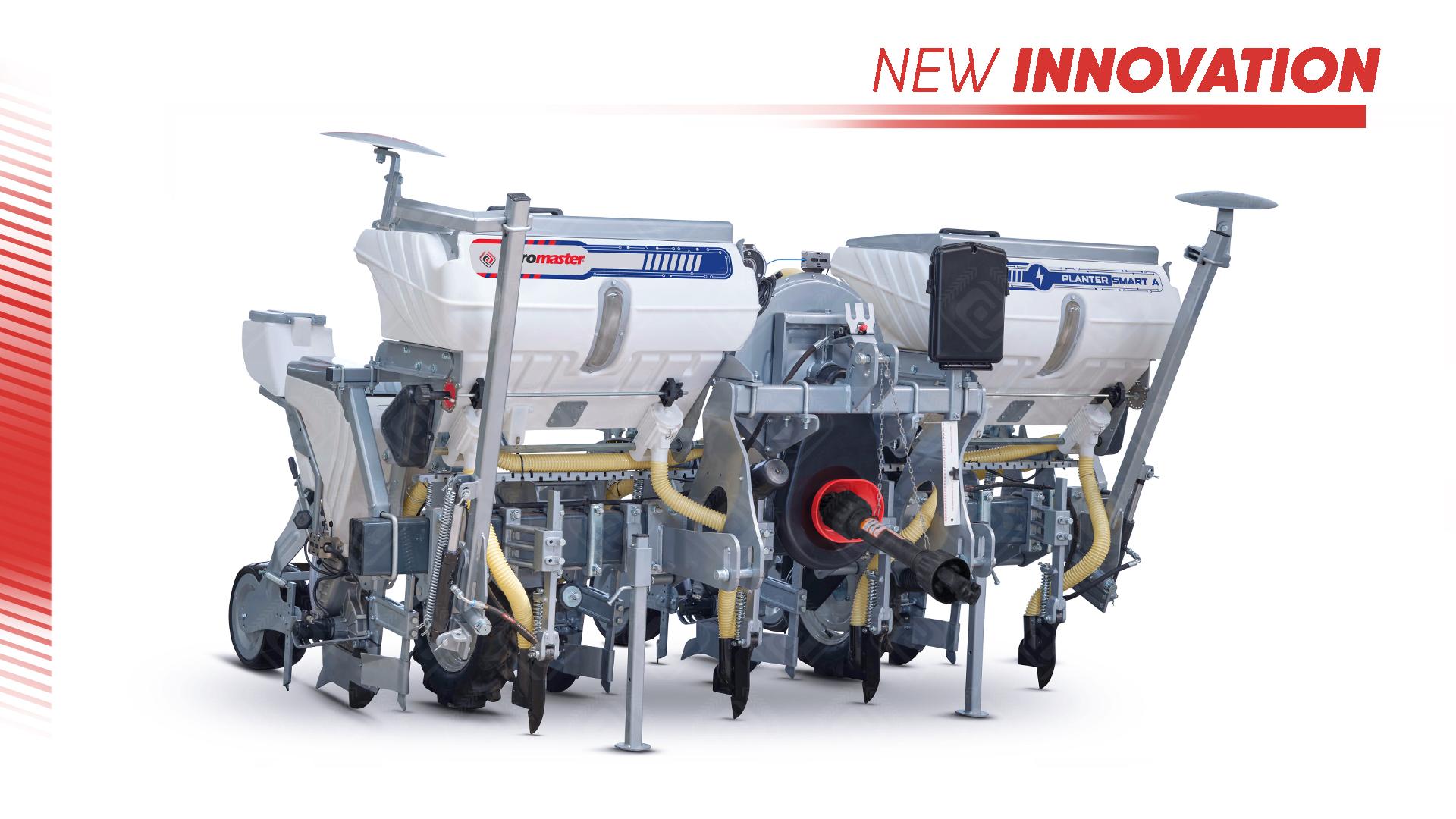

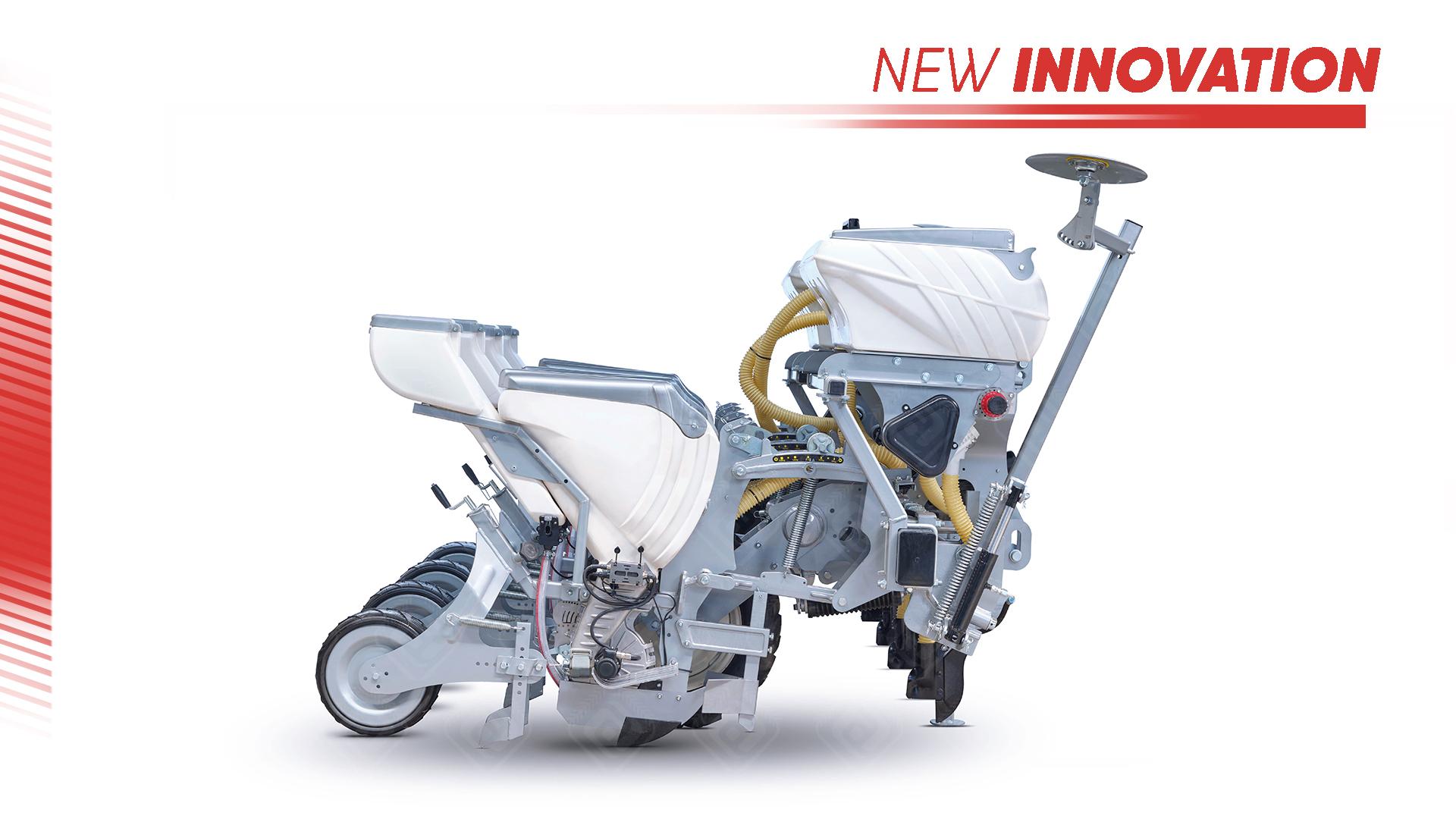

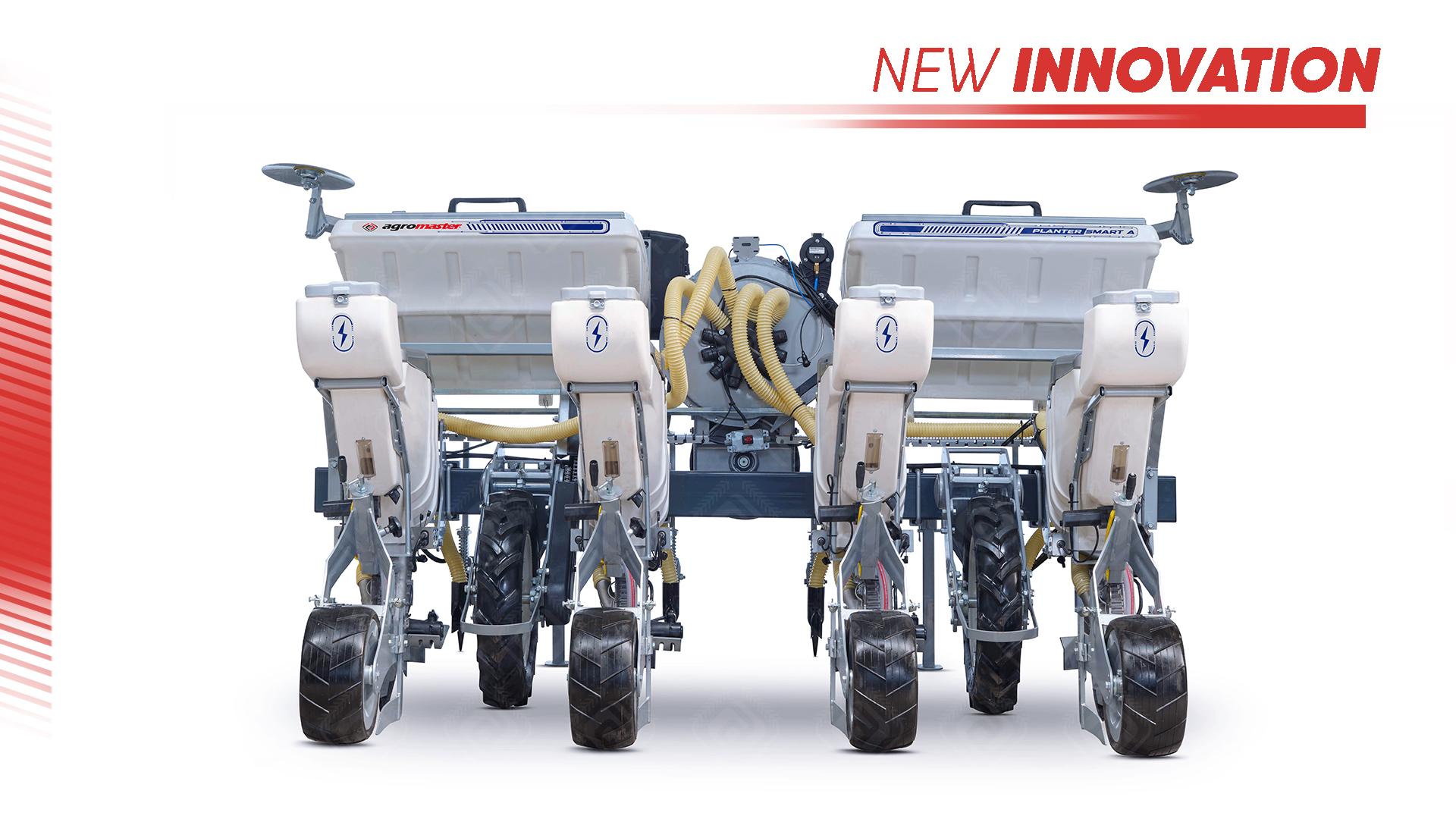

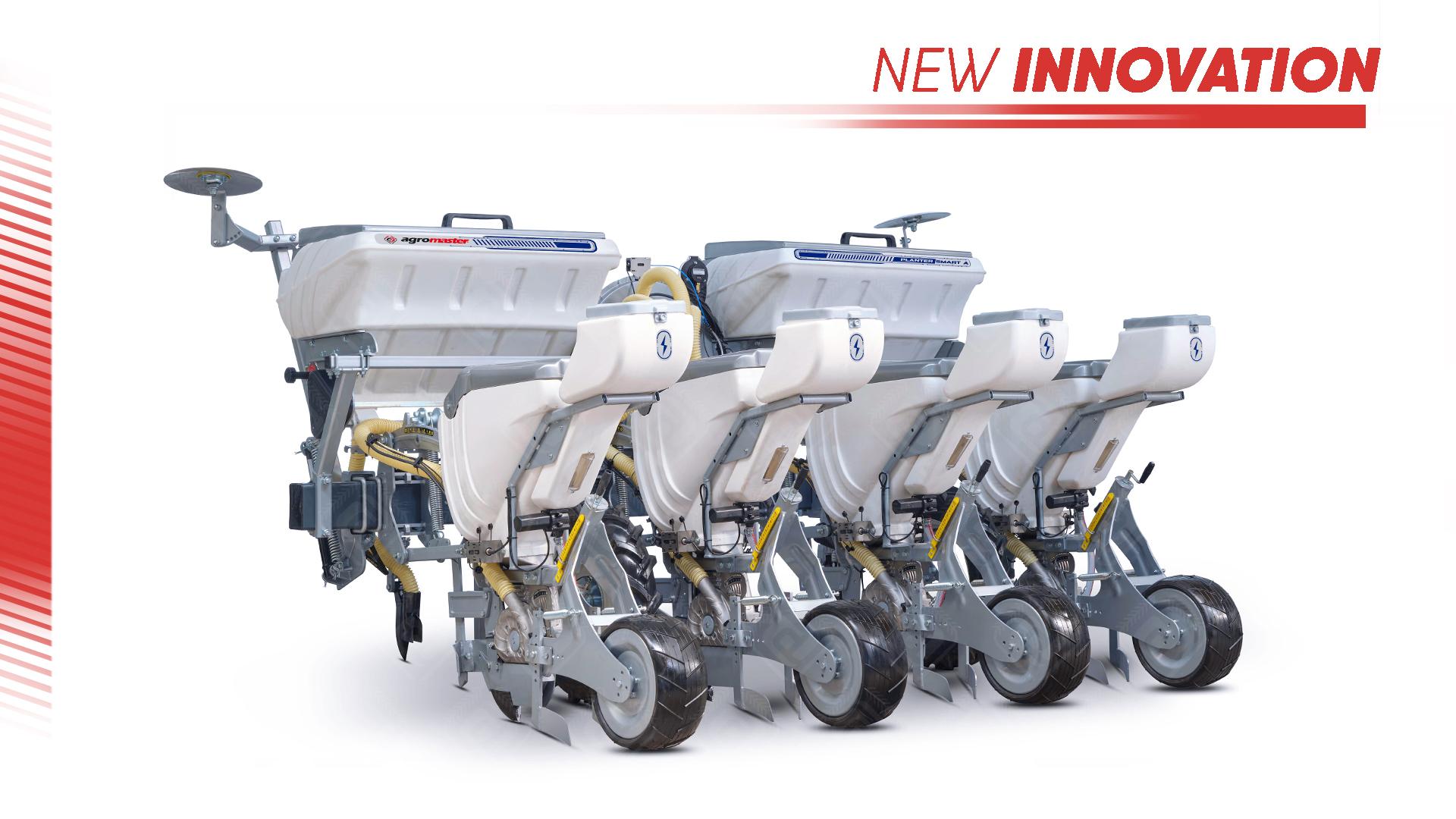

Using Agromaster's latest smart technology to improve your productivity. The SMART A Axe Type Precision Planter is designed for precision planting of corn, sunflower, sugar beet, cotton, soybean, and many other crops on cultivated soil. Developed through years of Agromaster's engineering experience and innovation, it delivers outstanding planting accuracy, reliable performance, and easy operation. Its advanced electric drive system ensures precise seed spacing, minimizes seed waste, and maximizes field efficiency, making it the ideal solution for modern farming.
|
Technical Specifications |
Unit |
PLANTER SMART A4 |
PLANTER SMART A5 |
PLANTER SMART A6 |
PLANTER SMART A8 |
|
Number of Rows |
pcs |
4 |
5 |
6 |
8 |
|
Total Width (W) |
mm |
3000 |
3200 |
4200 |
5600 |
|
ft.in |
9'10" |
10'6" |
13'9" |
18'4" |
|
|
Total Length (L) |
mm |
2000 |
2000 |
2000 |
2000 |
|
ft.in |
6'7" |
6'7" |
6'7" |
6'7" |
|
|
Total Height (H) |
mm |
1700 |
1700 |
1700 |
1700 |
|
ft.in |
5'7" |
5'7" |
5'7" |
5'7" |
|
|
Working Depth |
mm |
0–100 |
0–100 |
0–100 |
0–100 |
|
ft.in |
0"–4" |
0"–4" |
0"–4" |
0"–4" |
|
|
Fertilizer Hopper Capacity |
kg |
160×2 |
160×2 |
200×2 |
160×4 |
|
lbs |
352×2 |
352×2 |
440×2 |
352×4 |
|
|
Fertilizer Hopper Capacity (Big) |
kg |
790 |
790 |
950 |
– |
|
lbs |
1741 |
1741 |
2094 |
– |
|
|
Seed Hopper Volume |
dm³ |
40×4 |
40×5 |
40×6 |
40×8 |
|
Space Between Rows (B) |
mm |
280–800 |
280–800 |
280–800 |
280–800 |
|
ft.in |
11"–27" |
11"–27" |
11"–27" |
11"–27" |
|
|
Working Speed |
km/h |
4–12 |
4–12 |
4–12 |
4–12 |
|
PTO Rotation |
rpm |
540 |
540 |
540 |
540 |
|
Tyre Size |
– |
500-15 |
500-15 |
6.5×80-15 |
6.5×80-15 |
|
Required Power |
hp |
60–65 |
70–75 |
80–90 |
95–100 |
|
Weight with Fertilizer Hopper |
kg |
840 |
1000 |
1120 |
1480 |
|
lbs |
1851 |
2204 |
2469 |
3262 |
|
|
Weight with Fertilizer Hopper (Big) |
kg |
1000 |
1150 |
1350 |
– |
|
lbs |
2204 |
2535 |
2976 |
– |
|
|
Weight without Fertilizer Hopper |
kg |
680 |
760 |
880 |
1130 |
|
lbs |
1499 |
1675 |
1940 |
2491 |
