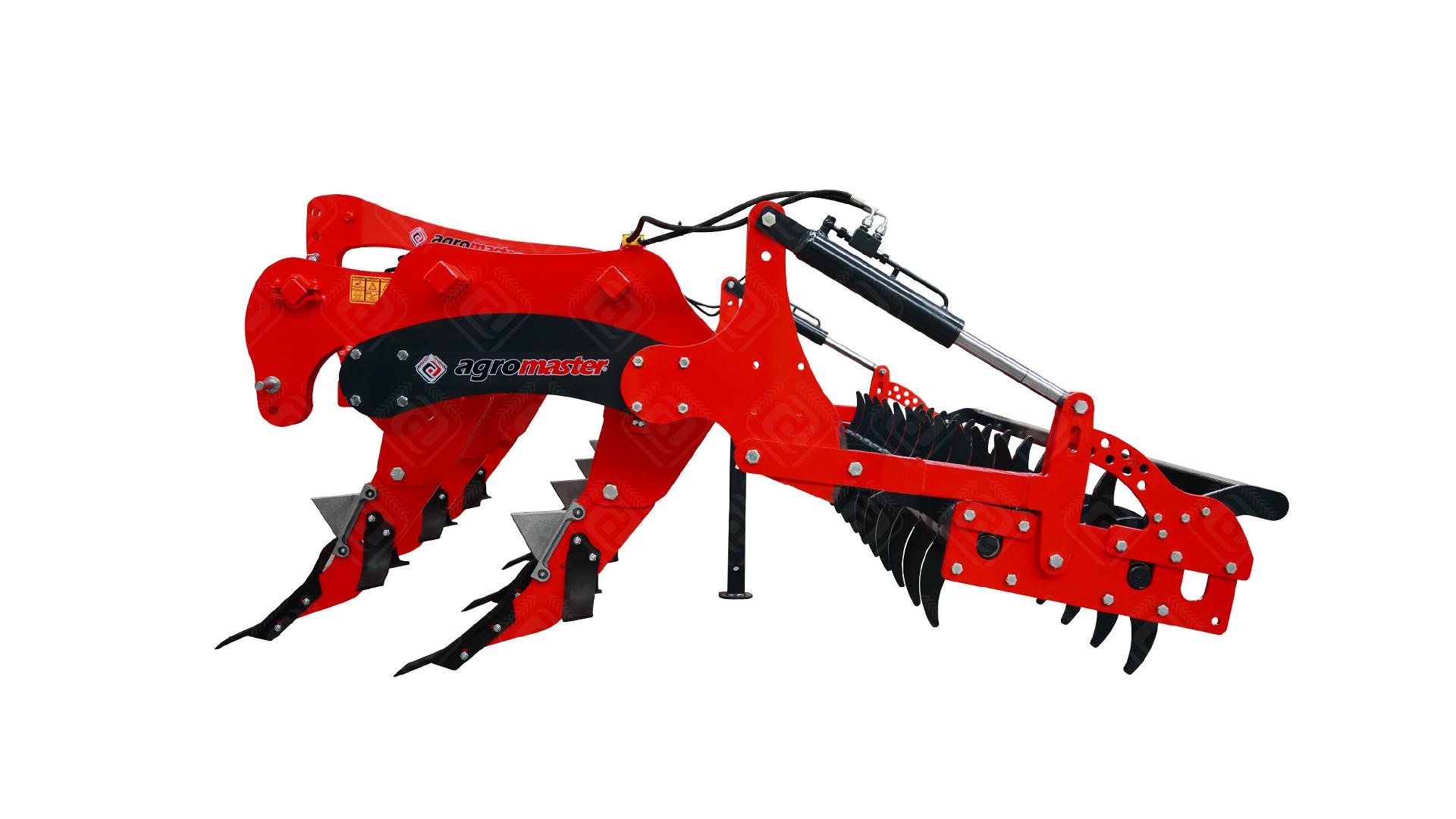

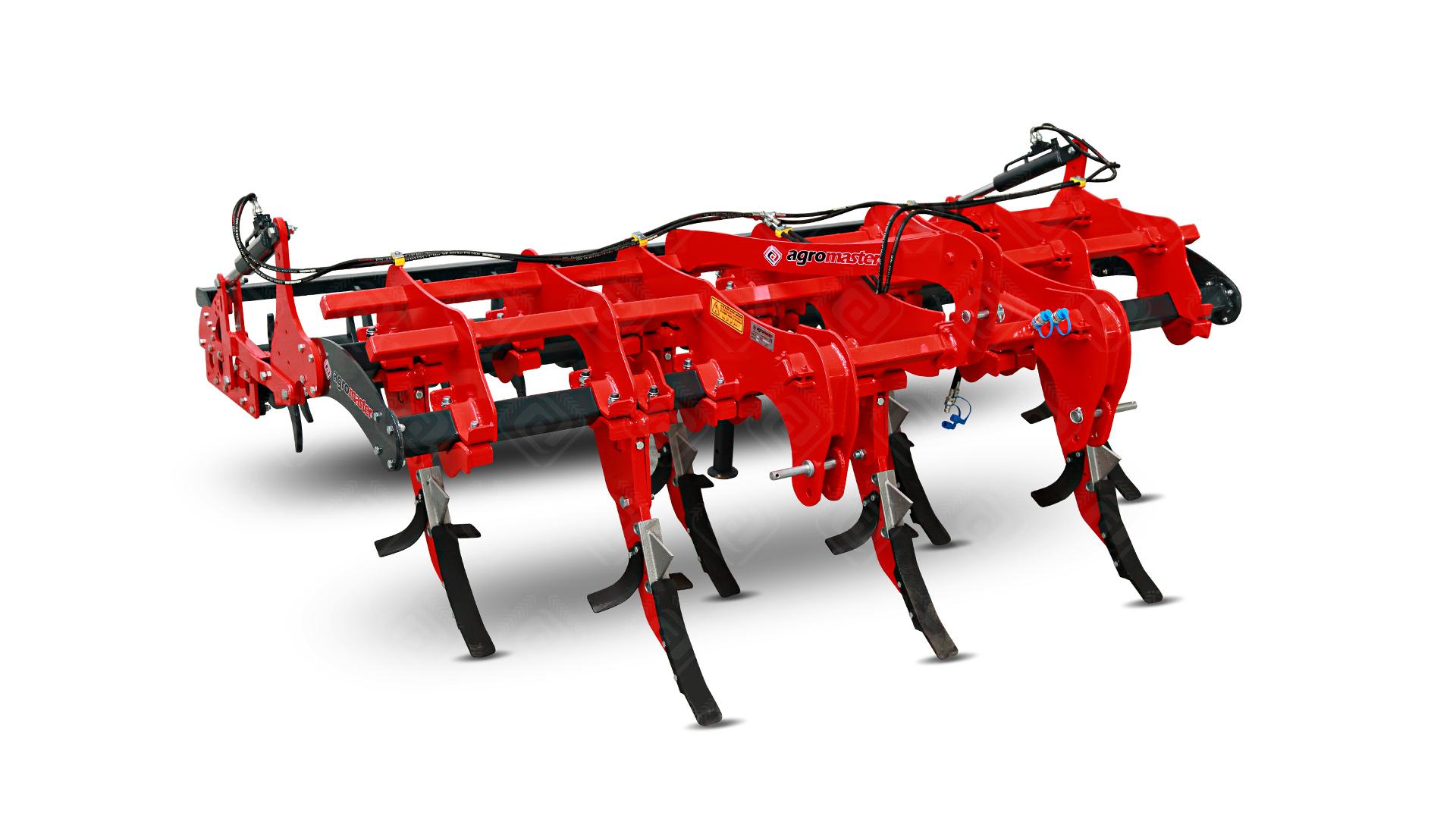

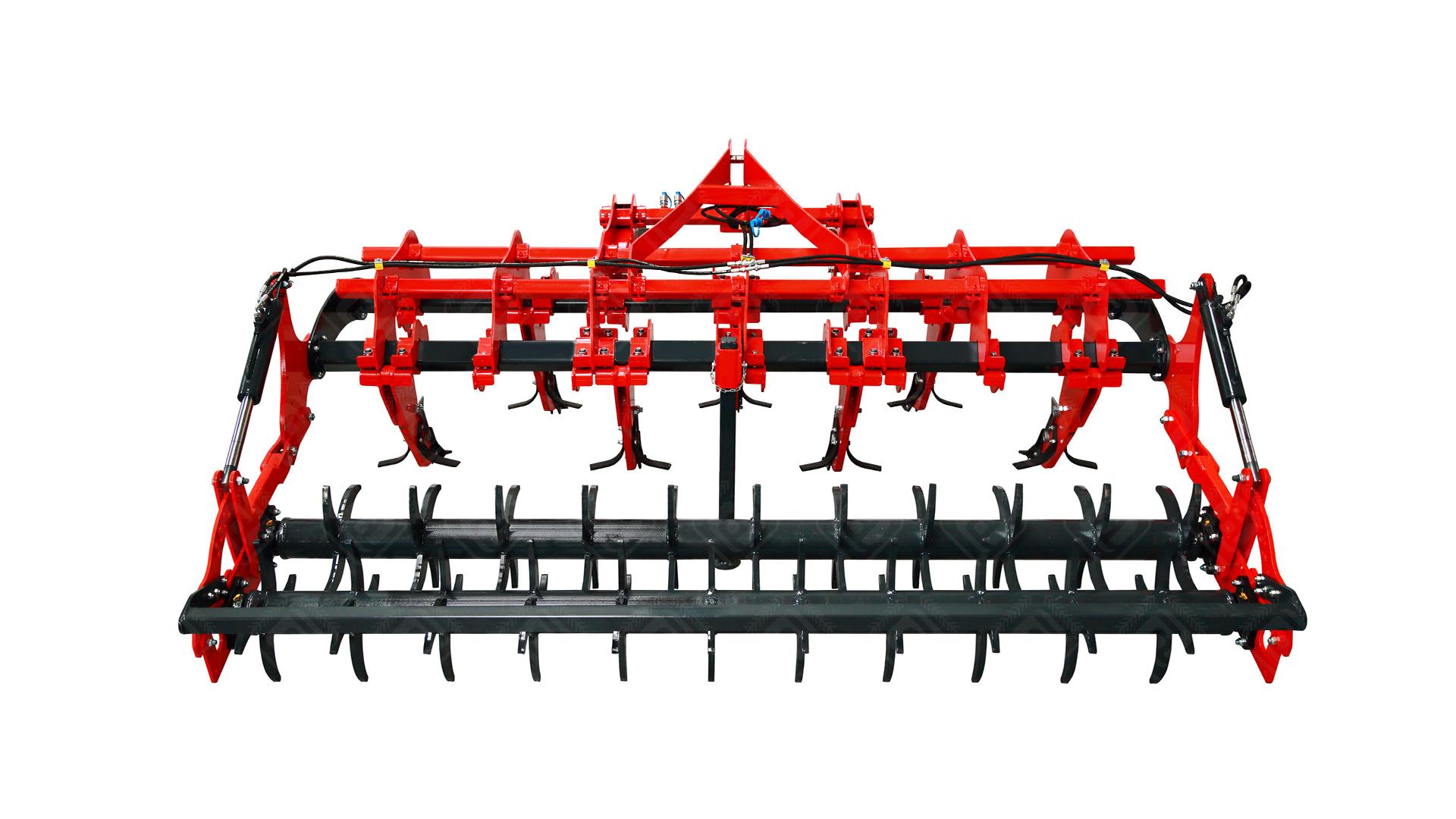

The Gergedan model subsoiler is designed for low or medium power tractors (from 65 to 175 HP). It is characterized by a maximum working depth of 50cm. Gergedan is available in di?erent widths (from 150cm and 350cm) and legs number (from 3 to 9). Legs are equipped with shear bolts safety system and the double rear roller can be manually adjusted using a pin system.
|
Technical Specifications* |
Unit |
GERGEDAN-3 |
GERGEDAN-5 |
GERGEDAN-7 |
GERGEDAN-9 |
|
Number of Legs |
pcs |
3 |
5 |
7 |
9 |
|
Working Width |
mm |
1500 |
2400 |
3000 |
3500 |
|
ft.in |
4'11" |
7'10" |
9'10" |
11'6" |
|
|
Working Depth |
mm |
500 |
500 |
500 |
500 |
|
ft.in |
1'8" |
1'8" |
1'8" |
1'8" |
|
|
Required Power |
hp |
65-100 |
80-120 |
110-140 |
135-175 |
|
Weight |
kg |
900 |
1250 |
1500 |
1800 |
|
Ibs |
1984 |
2755 |
3306 |
3968 |
